Comparative Study on Strengths of Ready-to-Assemble and Eccentric Furniture Joint
Nikola Janíková, Adam Kořený, Milan Gaff, Josef Hlavatý
TL;DR
This study compares the strength of different furniture joints under compression and tension, finding that some eccentric joints outperform ready-to-assemble plastic joints significantly.
Contribution
The study introduces a comparative analysis of RTA and eccentric joints, revealing significant performance differences in bending moment capacity.
Findings
Eccentric joints with metal-capped bolts and Euro screws outperformed other joints in bending moment capacity under compression by 147%.
Lamello© and Clamex P-14 joints showed 213% lower bending moment capacity under compression compared to the best eccentric joint.
Tenso P-14 joints performed the worst in both compression and tension tests.
Abstract
This study compared two groups of furniture joints, i.e., a so-called ready-to-assemble (RTA) plastic biscuit joint from Lamello©, while the second group consists of four types of eccentric joints with beech dowels. L-shaped specimens were prepared with the help of the selected joints and a three-layer particleboard with dimensions of 150 × 150 × 400 mm. These L-shaped specimens were tested for bending moment capacity under compression and under tension. Cam joints with wooden dowels can withstand high stress. If Lamello© Bisco P-15 joints are added to the plastic Clamex P-14 joint, this joint will achieve 13% higher values for bending moment capacity under compression and 22% under tension. During testing, the worst result was achieved by the Tenso P-14 joint. The best values achieved during the testing of bending moment capacity under compression and under tension were for an…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

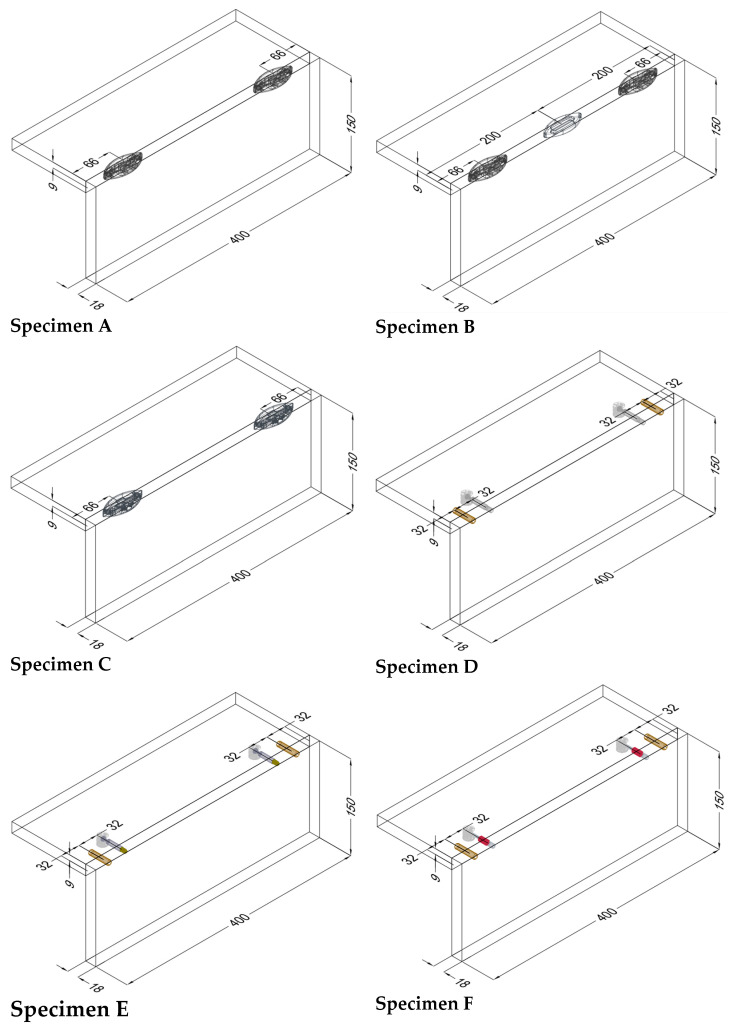

Figure 1

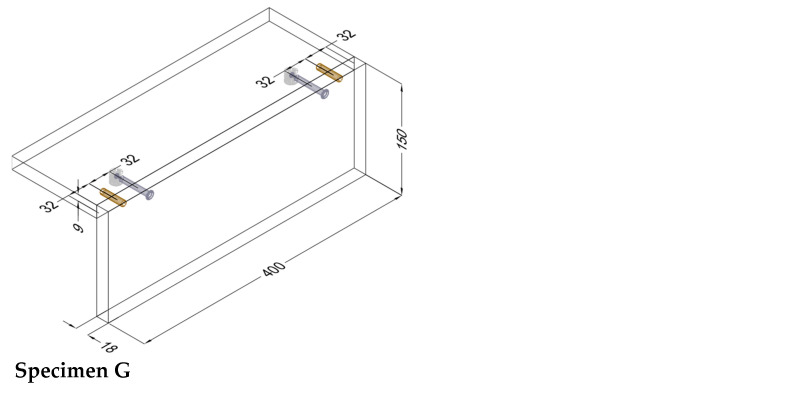

Figure 2

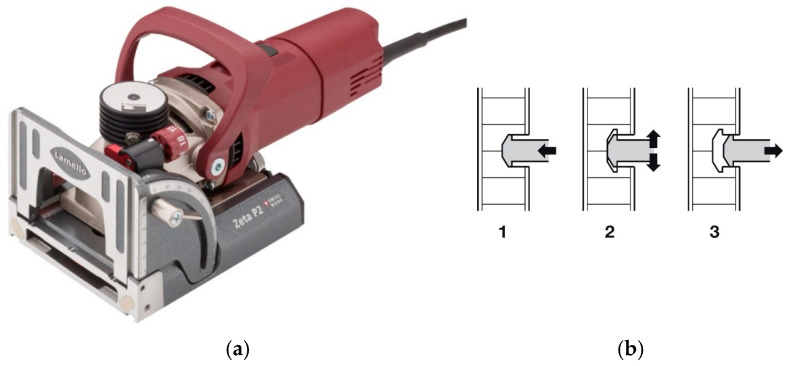

Figure 3

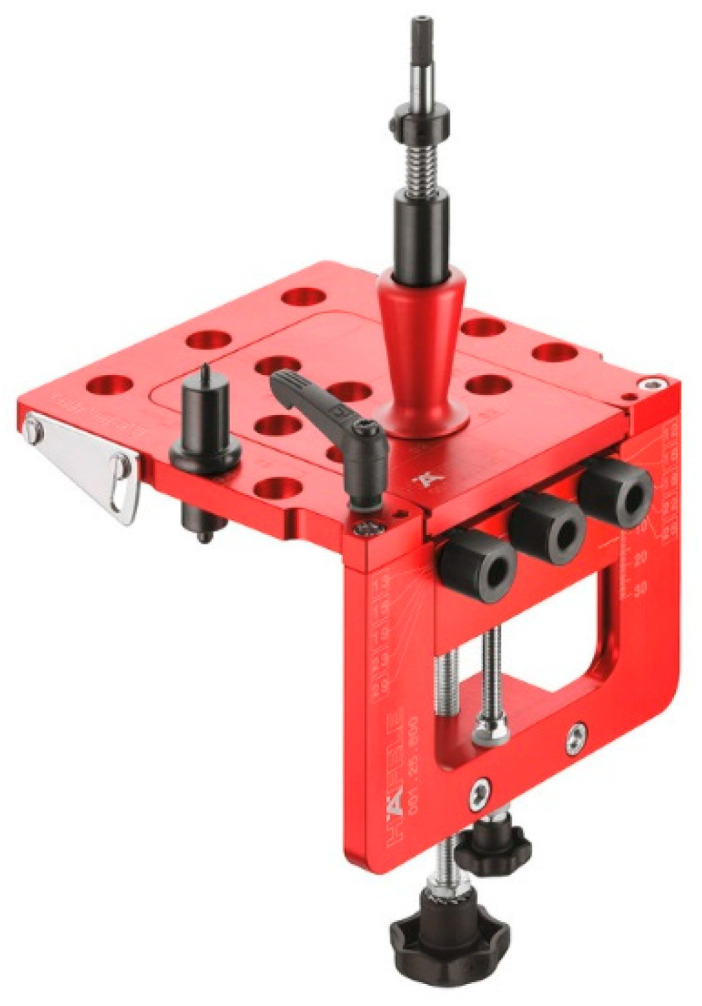

Figure 4

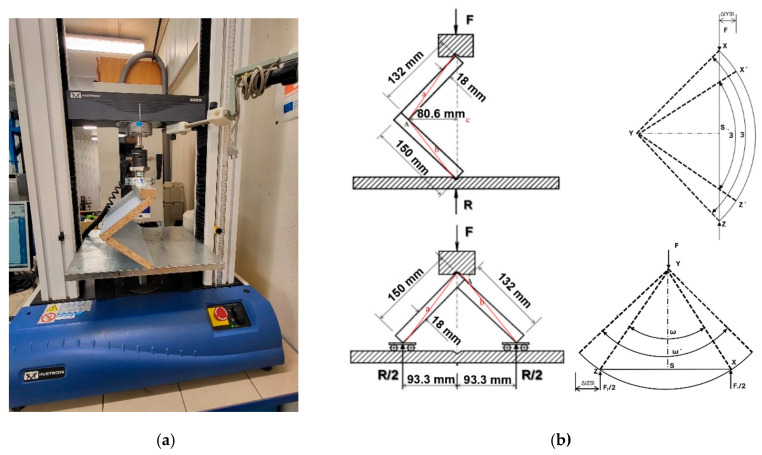

Figure 5

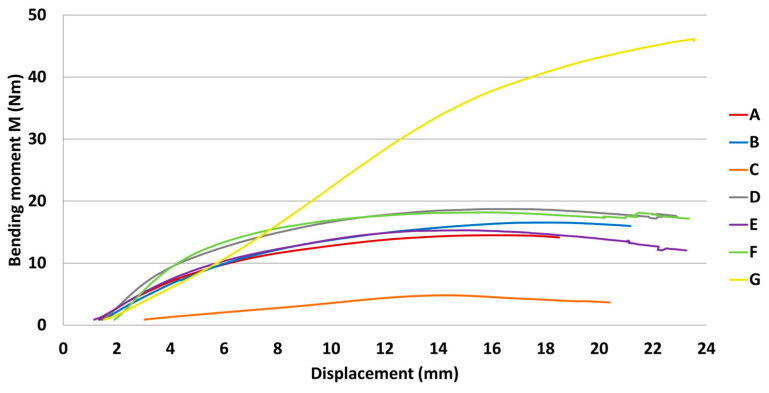

Figure 6

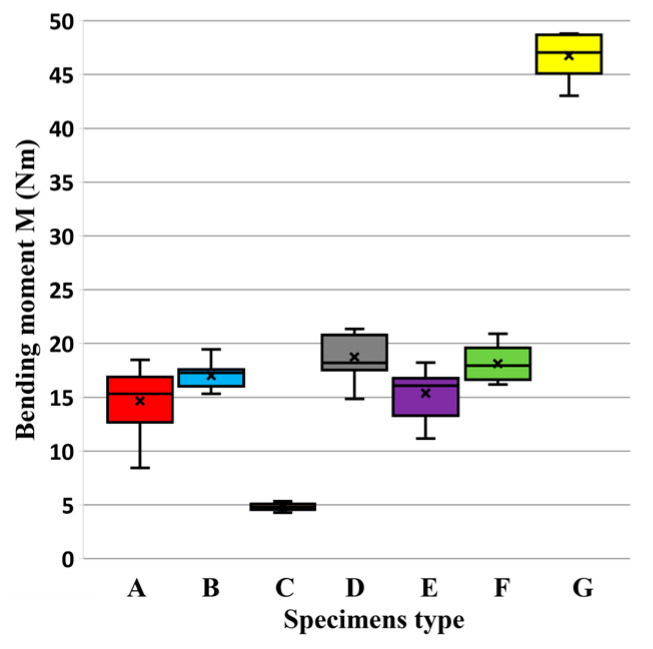

Figure 7

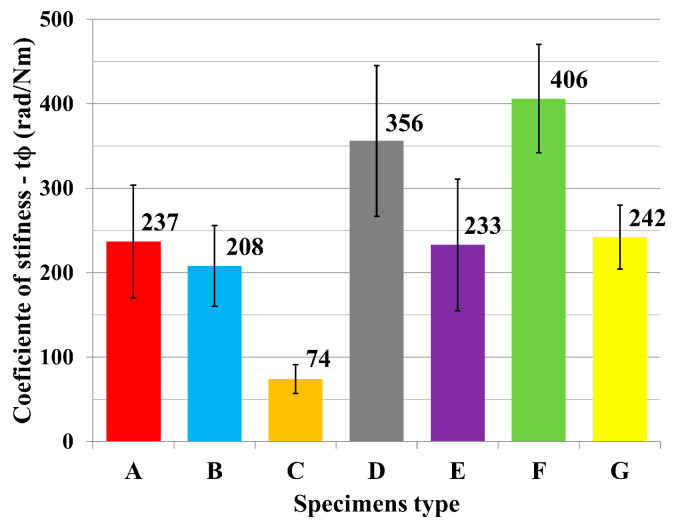

Figure 8

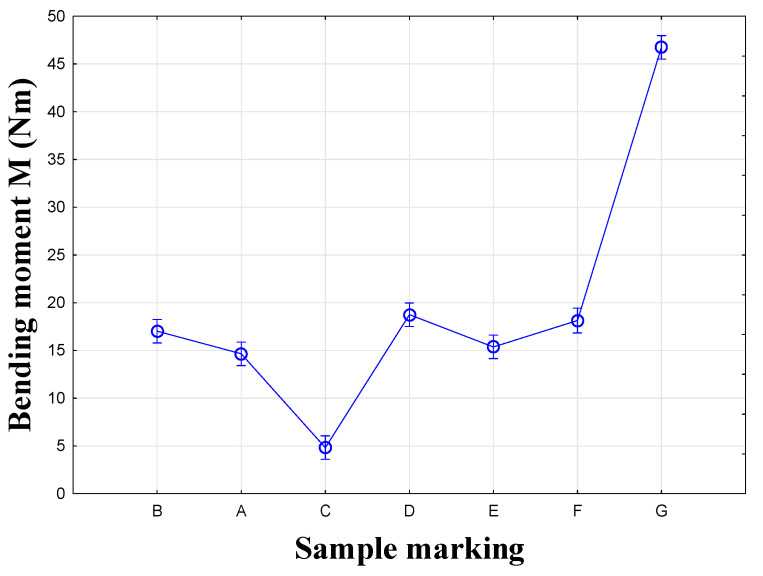

Figure 9

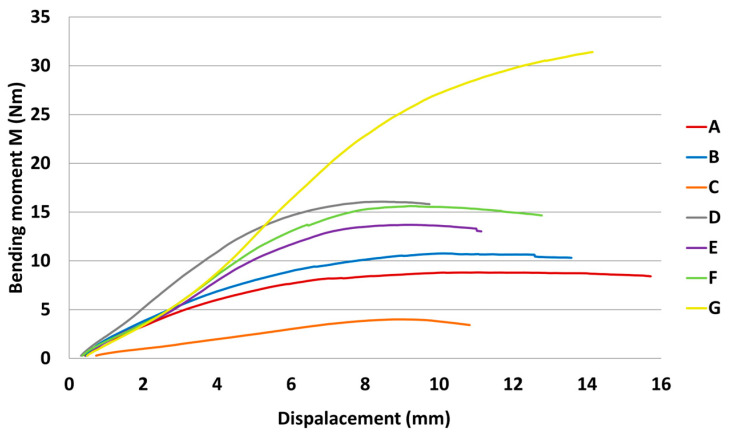

Figure 10

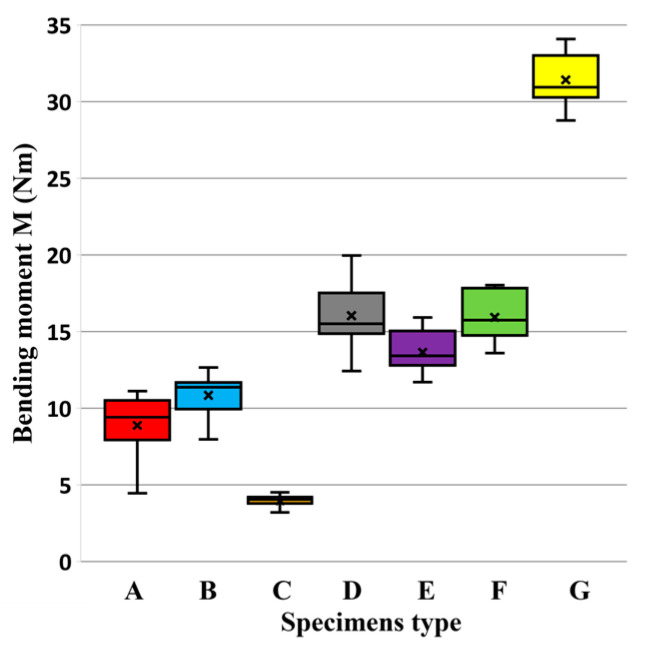

Figure 11

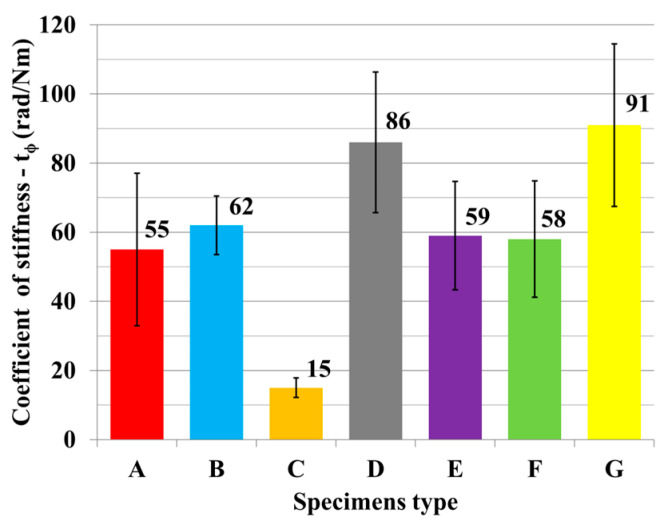

Figure 12

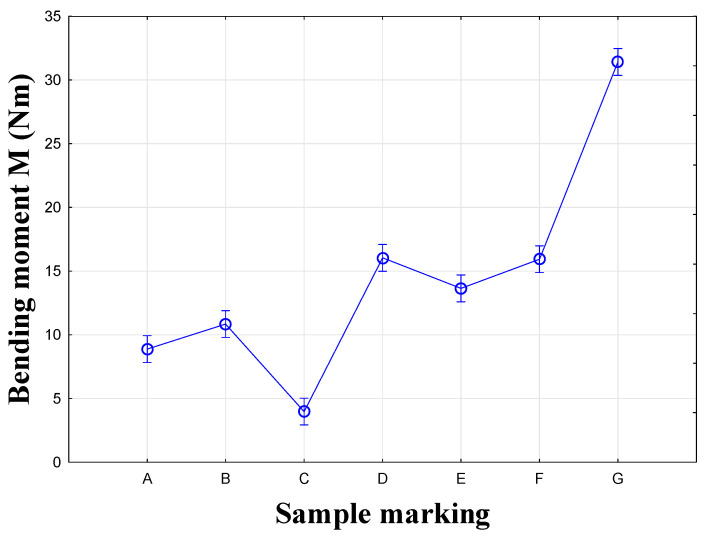

Figure 13

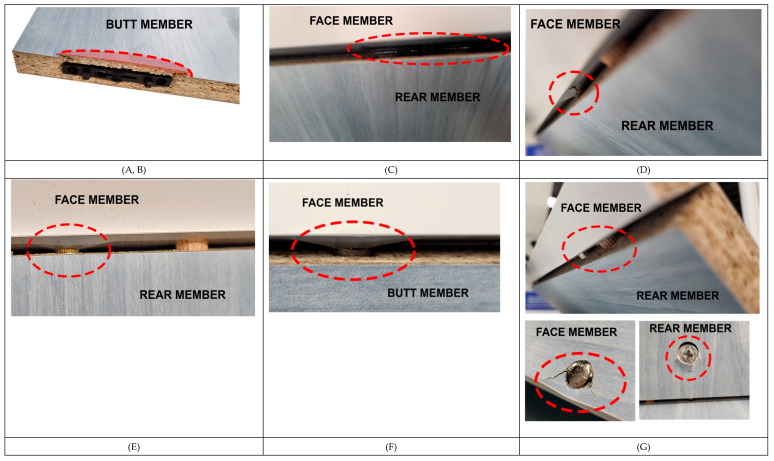

Figure 14
Figure 15
Figure 16
Figure 17

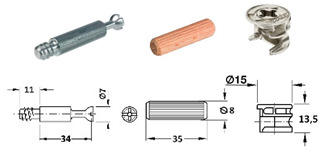

Figure 18

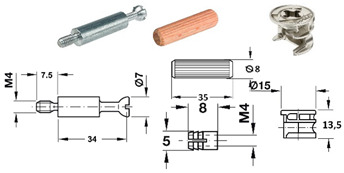

Figure 19

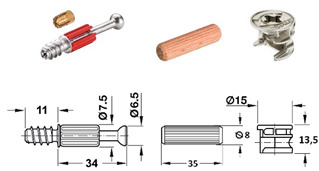

Figure 20

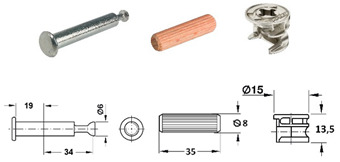

Figure 21Peer Reviews
