Acoustic Radiation Force Impulse Elastographic Study of Lung Lesions in Dogs
Bruna Bressianini Lima, Rafael Kretzer Carneiro, Brenda Santos Pompeu Miranda, Beatriz Gasser, Luiz Paulo Nogueira Aires, Verônica Maria Teixeira de Castro Terrabuio, Ricardo Andrés Ramirez Uscategui, Antônio Carlos Cunha Lacreta Junior, Danuta Pulz Doiche
TL;DR
This study explores using ARFI elastography to assess lung lesions in dogs, finding it could help distinguish between different types of lung issues.
Contribution
The study is among the first to evaluate ARFI elastography for lung lesion characterization in veterinary medicine.
Findings
Atelectatic lesions showed lower stiffness compared to consolidations, nodules, and masses.
ARFI elastography may serve as a complementary diagnostic tool for lung lesions in dogs.
More research is needed to establish diagnostic cut-off values for benign versus malignant lesions.
Abstract
This study aimed to evaluate the use of acoustic radiation force impulse (ARFI) elastography as a diagnostic tool for lung lesions in dogs. Dogs referred to the Radiology Department of the Veterinary Teaching Hospital between 2020 and 2022 for the detection of lung lesions were included in the study. The characteristics of the lung lesions were assessed using radiography as a screening tool for localization, B‐mode ultrasound for tissue characterization, and subsequently, both qualitative (elastogram grades 1–3) and quantitative (shear wave velocity—SWV) elastographic evaluations. The lesions were classified based on clinical, ultrasound, radiographic, histopathological, and/or cytological findings into the following categories: consolidations, atelectasis, or neoplasms (nodules and masses). Twenty‐six dogs met the eligibility criteria and were included in the study. In some cases, the…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
FIGURE 1
FIGURE 2
FIGURE 3
FIGURE 4| Lung lesions | E.G. | SWV (m/s) | B lines | P.E | Len. | Wid. | Echo. | Ecot. | Borders | Contour | E.S. | C.A | N. | Analysis |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
| ||||||||||||||
| M1 | 1 | 3.10 | 0 | 0 | 3.6 | 4.2 | 1 | 2 | 1 | 1 | 1 | 0 | 1 | Histopathology (carcinoma) |
| M2 | 2 | 4.35 | 0 | 1 | 4.7 | 4.2 | 3 | 2 | 2 | 1 | 1 | 1 | 1 | Histopathology (adenocarcinoma) |
| M3 | 1 | 1.83 | 0 | 1 | 3.4 | 2.1 | 1 | 1 | 1 | 1 | 0 | 0 | 2 | P.E (suggestive of lymphoma) |
| M4 | 2 | 3.15 | 0 | 0 | 3.2 | 4.1 | 1 | 1 | 2 | 1 | 0 | 0 | 2 | Clinical history (metastasis) |
| M5 | 3 | 6.13 | 0 | 1 | 3.4 | 1.2 | 3 | 2 | 2 | 1 | 1 | 0 | 1 | P.E (suggestive of carcinoma) |
| M6 | 1 | 2.19 | 1 | 0 | 4.98 | 4.5 | 1 | 2 | 2 | 1 | 0 | 1 | 2 | Histopathology (carcinoma) |
| M7 | 1 | 3.08 | 0 | 0 | 5.3 | 4.5 | 3 | 2 | 2 | 1 | 1 | 0 | 1 | Cytology (suggestive of carcinoma) |
| M8 | 1 | 2.03 | 0 | 0 | 5.7 | 3.8 | 1 | 2 | 2 | 1 | 0 | 0 | 2 | Cytology (suggestive of carcinoma) |
| M9 | 3 | 2.82 | 0 | 0 | 5.3 | 4.6 | 3 | 2 | 2 | 1 | 1 | 1 | 2 | Clinical history (metastasis) |
| M10 | 1 | 3.58 | 0 | 1 | 3.5 | 4.8 | 3 | 2 | 2 | 2 | 0 | 1 | 2 | Clinical history (metastasis) |
| M11 | 1 | 3.24 | 0 | 0 | 4.5 | 6.8 | 3 | 2 | 2 | 2 | 1 | 1 | 2 | Histopathology (carcinoma) |
| M12 | 3 | 2.46 | 0 | 0 | 5.4 | 5.0 | 1 | 1 | 1 | 1 | 0 | 0 | 2 | Clinical history (metastasis) |
| M13 | 2 | 4.41 | 0 | 0 | 8.7 | 8.2 | 3 | 2 | 2 | 1 | 0 | 1 | 2 | Clinical history (metastasis) |
| M14 | 2 | 1.53 | 0 | 1 | 3.5 | 2.1 | 3 | 2 | 2 | 1 | 1 | 0 | 2 | Cytology (suggestive of carcinoma) |
| M15 | 2 | 3.49 | 0 | 0 | 5.7 | 4.1 | 3 | 2 | 2 | 1 | 0 | 0 | 1 | Histopathology (adenocarcinoma) |
|
| ||||||||||||||
| N1 | 1 | 3.75 | 1 | 0 | 1.6 | 1.2 | 1 | 1 | 1 | 1 | 0 | 0 | 2 | Clinical history (metastasis) |
| N2 | 2 | 1.37 | 0 | 0 | 2.3 | 2 | 3 | 2 | 1 | 1 | 0 | 1 | 2 | Clinical history (metastasis) |
| N3 | 1 | 2.72 | 0 | 1 | 1.5 | 1.2 | 3 | 2 | 2 | 2 | 0 | 0 | 2 | P.E (epithelial neoplasm cells) |
| N4 | 2 | 1.11 | 0 | 0 | 1.1 | 1.2 | 1 | 2 | 2 | 1 | 0 | 0 | 2 | Clinical history (metastasis) |
| N5 | 2 | 4.30 | 0 | 0 | 0.4 | 0.6 | 1 | 1 | 1 | 1 | 0 | 0 | 2 | Clinical history (metastasis) |
| N6 | 1 | 2.97 | 0 | 1 | 1.87 | 0.8 | 1 | 2 | 1 | 1 | 0 | 0 | 2 | Clinical history (metastasis) |
| N7 | 1 | 3.10 | 0 | 0 | 0.8 | 0.5 | 1 | 1 | 1 | 1 | 0 | 0 | 2 | Clinical history (metastasis) |
| N8 | 1 | 2.60 | 0 | 0 | 2.2 | 2.5 | 3 | 2 | 2 | 1 | 0 | 1 | 2 | Clinical history (metastasis) |
|
| ||||||||||||||
| A1 | 1 | 1.61 | 0 | 1 | 2 | 1 | 2 | 1 | 0 | 0 | 1 | P.E (hemorrhagic) | ||
| A2 | 1 | 1.19 | 0 | 1 | 2 | 1 | 2 | 1 | 0 | 0 | 1 | P.E (suggestive of lymphoma) | ||
| A3 | 1 | 1.55 | 0 | 1 | 2 | 1 | 2 | 1 | 0 | 0 | 1 | Histopathology (carcinoma) | ||
| A4 | 1 | 1.41 | 0 | 1 | 2 | 1 | 2 | 1 | 0 | 0 | 1 | Clinical history (metastasis) | ||
|
| ||||||||||||||
| C1 | 1 | 2.90 | 0 | 0 | 1 | 2 | 1 | 1 | 1 | 0 | 1 | Clinical history (pneumonia) | ||
| C2 | 1 | 2.47 | 0 | 0 | 1 | 2 | 1 | 1 | 1 | 0 | 1 | Clinical history (metastasis) | ||
| C3 | 1 | 3.00 | 0 | 0 | 3 | 2 | 2 | 1 | 0 | 1 | 1 | Clinical history (metastasis) | ||
| C4 | 2 | 3.14 | 0 | 0 | 3 | 2 | 2 | 1 | 1 | 0 | 1 | Cytology (suggestive of carcinoma) | ||
| C5 | 1 | 2.46 | 1 | Clinical history (metastasis) | ||||||||||
| C6 | 1 | 2.98 | 0 | 0 | 1 | 2 | 2 | 1 | 1 | 0 | 1 | Clinical history (metastasis) | ||
| C7 | 1 | 2.46 | 0 | 0 | 1 | 2 | 1 | 1 | 0 | 0 | 1 | Clinical history (metastasis) | ||
| C8 | 2 | 3.26 | 0 | 0 | 1 | 1 | 2 | 1 | 0 | 0 | 1 | Clinical history (metastasis) | ||
- —Conselho Nacional de Desenvolvimento Científico e Tecnológico 10.13039/501100003593
- —Fundação de Amparo à Pesquisa do Estado de São Paulo 10.13039/501100001807
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsUltrasound Imaging and Elastography · Ultrasonics and Acoustic Wave Propagation · Photoacoustic and Ultrasonic Imaging
Introduction
1
Dogs with primary or metastatic pulmonary neoplasia may manifest nonspecific clinical signs that can be confused with heart disease, among others. Signs such as chronic cough, exercise intolerance, progressive weight loss, tachypnea, hemoptysis, and cyanosis, often culminate in a late diagnosis of pulmonary neoplasia [1, 2, 3]. Therefore, imaging tests such as radiography and ultrasound are useful for diagnosing, staging, and monitoring these patients [2, 4, 5].
At the radiographic examination, lung metastasis usually presents a structured interstitial pattern commonly related to multiple nodules [6]; this radiographic pattern can be confused with infections (especially fungal), foreign body reactions, hypersensitivity, immune‐mediated diseases, and pulmonary lobe torsion [7]. Depending on the lung condition, various radiographic abnormalities may be present concomitantly, including pleural effusion and other lung pathology patterns, that may reduce the visibility of metastatic pulmonary disease [6].
In these cases, ultrasound can be used to help in the diagnostic process [8, 9], principally when the pleural effusion is present because it makes it possible to distinguish between pulmonary alterations and pleural effusion and visualize peripheral lung lesions, that are inapparent or overlapped by pleural effusion at radiographic examination [5, 9, 10]. Ultrasound can also observe neoplasm behavior during breathing [6, 11] and help to perform fine‐needle aspiration (FNA) and/or percutaneous biopsies [12], with the advantage of performing these biopsies exactly from the site of the lesion and obtaining representative samples [13].
Although lung ultrasound allows an acceptable diagnostic approach to various lung alterations, atelectasis, consolidation, and pulmonary nodules/masses [14], it is still not very accurate for differentiating other abnormalities such as, fungal pneumonia, neoplastic processes, or chronic abscesses [15], often requiring the application of invasive and risky techniques to achieve a definitive diagnosis.
Elastography allows tissue stiffness estimation and could become a noninvasive alternative for differentiating lung lesions in animals. Studies in humans have shown that this technique allows accurate differentiation of necrotic, atelectatic, consolidation, and pulmonary neoplastic lesions [16, 17].
Elastography is developing rapidly. Initially, the technique consisted of applying manual pressure with a transducer to the tissues. The system evaluated the deformation by the pressure generated and presented an image of this deformation (elastogram). By comparing lesion deformation with healthy regions of the evaluated tissue or other tissues, the relative tissue stiffness was determined in percentage. This technique is operator‐dependent, and although the systems have integrated methods for the control and standardization of manual pressure, its reproducibility is not the best [18, 19, 20, 21].
Consequently, the acoustic radiation force impulse (ARFI) elastography technique was developed. The ARFI elastography is based on the emission of an ultrasonic impulse capable of reaching and displacing a target tissue, the system captures the sound waves of this impulse that bounce off the tissue, and estimates the tissue hardness by means of the rebound speed and the wave characteristics, making it much less operator dependent and with better reproducibility. Any elastography techniques used will provide parameters for the subjective, creating a static map (elastogram) of the relative tissue stiffness to be compared with the corresponding B‐mode image; this map is available in color or gray scales. In general, the lighter areas (bluish tones) represent more deformable tissues, in other words, less rigid than the darker areas (reddish tones), and objective (shear wave velocity, pressure force measurement or strain ratio) evaluation of tissue hardness, which is related to the nature of lesions in various tissues, their value (m/s) being directly proportional to their hardness [18, 19, 20, 21].
Based on these precepts, elastography appears to be a promising alternative for the noninvasive diagnosis of lung lesions in dogs, which is a major clinical challenge today and which, to the authors' knowledge, has not been explored to date. For this reason, this study aimed to evaluate ARFI elastography as a tool for the diagnosis of lung lesions in dogs.
Material and Methods
2
Ethical Aspects and Cases’ Selection
2.1
A prospective cohort study for diagnostic validation was conducted at the “Governador Laudo Natel” Veterinary Hospital of the Faculty of Agricultural and Veterinary Sciences (FCAV), UNESP/Jaboticabal, Brazil, between 2020 and 2022, following approval from the Institutional Ethics Committee (protocol no. 799/21). The owners of the animals enrolled in this study provided written, free, and informed consent, agreeing to the proposed assessments.
Dogs referred to the radiology department for the detection of lung lesions due to clinical signs such as coughing, sneezing, bilateral nasal discharge, dyspnea, abdominal breathing, exercise intolerance, or syncope, as well as those diagnosed with primary malignant neoplasms and referred for the detection of lung metastases, during the aforementioned period, were considered eligible. Inclusion required the presence of visible lung lesions on chest radiography and/or ultrasound, with a definitive diagnosis confirmed either by cytological or histopathological examination of the lesions or pleural fluid or through clinical history that included an oncological diagnosis of primary lesions (e.g., a confirmed diagnosis of primary neoplasm in another organ via histopathology or cytology). There were no restrictions regarding age, gender, breed, size, reproductive status, medication, or previous treatment.
Dogs with lesions located in central or deep lung regions that could not be identified via ultrasound, dogs that were hemodynamically unstable and therefore unable to undergo biopsy, or cases where the owner did not authorize the procedure were excluded from the study.
Thoracic Radiography
2.2
Radiographic examinations were performed using a conventional X‐ray machine (Siemens RG150/100 gL), capturing thoracic images in left lateral, right lateral, ventrodorsal, and dorsoventral projections. Images were acquired using AGFA brand computerized imaging plates of various sizes and digitized with an AGFA CR‐30 digital scanner. The digital radiographs were analyzed using the DICOM (Digital Imaging and Communications in Medicine, Rosslyn, VA, USA) software by two veterinarians experienced in diagnostic imaging (BBL), including the chief radiologist with 19 years of expertise in the field (MARF). The radiographic images were archived for subsequent comparison with other variables collected during the study.
Thoracic Ultrasound
2.3
The procedure began with a trichotomy of the examination area (chest), and the patients were restrained manually, positioned with their heads facing the monitor and their bodies parallel to the device. To ensure optimal image acquisition, the ultrasound gel, a viscous mixture of water and propylene glycol, was applied to the patient's skin. This gel served as a conductive medium between the skin and the transducer, facilitating smooth gliding and effective ultrasound transmission.
The animals were examined in stationary sternal decubitus, right lateral, and/or left lateral positions, depending on the access required to the ultrasound windows. The dorsal decubitus position was not used to avoid respiratory discomfort in the dogs. Ultrasound images were taken using a SIEMENS ACUSON S2000 device (Siemens, Munich, Germany), equipped with a matrix and a multifrequency linear transducer ranging from 9.0 to 13.0 MHz. A scanning protocol was implemented to evaluate the entire lung by systematically sliding the transducer along the intercostal spaces in the right and left hemithorax. The lungs were assessed in the caudal, perihilar, middle, and cranial regions, as proposed by Assis & Feliciano [15].
The B‐mode ultrasound evaluation focused on identifying alterations, such as the discontinuity or absence of A‐lines, the presence of B‐lines, and consolidated lung areas, which included atelectasis, nodules, masses, or multiple lesions. These alterations were characterized based on their echogenicity (hypoechoic, hyperechoic, or mixed, with the presence of echogenic points, cystic areas, shadowing, or acoustic enhancement), echotexture (homogeneous or heterogeneous), contours (regular or irregular), borders (defined or undefined), number (single or multiple), dimensions (length and width), and the presence or absence of associated pleural effusion. The ultrasound examinations were carried out by a veterinary radiologist with 7 years of experience in veterinary ultrasound (BBL).
ARFI Lung Elastography
2.4
Once lung parenchyma lesions were identified during the B‐mode ultrasound examination, the elastography software (Virtual Touch Tissue Imaging Quantification, 2D‐SWE technique) was activated. The lesion was positioned as centrally as possible on the screen, and an elastogram image was captured. When the software captures this image, it displays a colorful quality control bar on the screen; only elastograms with high quality were saved.
Subsequently, the veterinary radiologist performed both qualitative and quantitative evaluations of the stored elastograms. In the qualitative assessment, lesions in the elastogram (color scale map) were classified based on the color as: (1) low stiffness lesions colored in blue and light green; (2) moderately stiff lesions colored in dark green and light yellow; and (3) high stiffness lesions colored in dark yellow and red.
For the quantitative evaluation, five regions of interest (ROIs) measuring 1 × 1 mm were randomly placed on the lesion, ensuring that all areas of the lesion were included. The software then automatically calculated the shear wave velocity (SWV in m/s) for each ROI, providing a quantitative assessment of tissue stiffness.
Cytological and/or Histopathological Analysis
2.5
Patients with superficial lung lesions located in the periphery, whose owners authorized the invasive diagnostic approach, underwent FNA using 20 to 27‐gauge needles and/or percutaneous biopsies. For sample collection, the animals were subjected to neuroleptoanalgesia or general anesthesia. After thorough antisepsis of the skin, ultrasound‐guided FNA and/or Tru‐Cut biopsy was performed.
The material collected via FNA was placed on smear slides, fixed, and sent to the Pathology Department for subsequent staining and microscopic evaluation. Biopsy samples obtained using a 16 to 18‐gauge Tru‐Cut needle were fixed in a 10% formaldehyde solution buffered with phosphates (pH 7.4) and sent for routine processing, followed by hematoxylin and eosin staining. The samples were then analyzed under light microscopy by an experienced pathologist, who provided the histopathological report and diagnosis.
In cases where cytological and/or histopathological samples could not be obtained primarily, in patients with primary neoplasms in other organs referred for metastasis detection, or in cases with severe pleural effusion where biopsy was not feasible due to respiratory or circulatory instability, clinical history findings associated with primary tumors, ultrasound and radiographic data, and/or pleural effusion cytochemical analysis were considered. These cases were classified based on the nature of the lesions (as described below), with the assistance and support of the oncology department at the “Governador Laudo Natel” Veterinary Hospital of the School of Agricultural and Veterinary Sciences, UNESP/Jaboticabal, Brazil.
Lesions Classification
2.6
The animals with lung lesions included in this study were classified into one of four study groups: masses, nodules, consolidations, or atelectasis, based on the results of histological, cytological, and cytochemical analyses and radiographic/ultrasound characteristics and clinical history.
Lesions suggestive of neoplasia on X‐ray and/or ultrasound (typically ovoid and generally hypoechoic, located immediately below the pleural surface of the lung) were classified based on their size: lesions larger than 3 cm were classified as masses, while those smaller than 3 cm were classified as nodules. Subsequently, within the general lesion description, histopathology, cytology, and clinical analysis results were incorporated to identify the type of neoplasia.
Consolidation and atelectasis were primarily differentiated based on their ultrasonographic appearance [22]. In cases of atelectasis, lung volume is reduced due to collapse caused by increased pleural pressure [23], and its echogenicity varies depending on the amount of air remaining inside the lung: it appears hyperechoic when a significant amount of air is retained in the alveoli and hypoechoic when little air is present [11]. In contrast, lung consolidation does not involve a reduction in lung parenchyma size but instead exhibits echogenicity and echotexture similar to that of the liver (a hepatized lung) [9], due to alveolar spaces being filled with fluid, cellular exudate, or neoplastic cells [5]. The classification process carefully considered the results of the performed examinations and the patient's clinical history.
Statistical Analysis
2.7
The statistical analysis was performed using R software (The R Foundation for Statistical Computing, version 4.3.1, USA). Initially, the SWVs obtained from the various regions of interest (ROIs) within each lesion were compared using the Kruskal–Wallis test. If no significant differences were found, the median values of these ROIs were used as the lesion SWV for further analysis.
Subsequently, the lesion SWV and qualitative elastogram grades were compared among the four study groups (masses, nodules, consolidations, and atelectasis) using the Kruskal–Wallis test followed by Dunn's post hoc test. Statistical significance for all tests was set at p < .050, and the results are presented as the median ± interquartile range. Other qualitative variables collected will be described in the results section. The statistical analysis was performed by co‐author RARU, a veterinarian, MSc, PhD, with extensive experience (10 years) and training in univariate and multivariate statistical analysis and experimental design.
Results
3
Selected Cases
3.1
Twenty‐six dogs met the eligibility criteria and were included in the study. In some cases, the same patient had more than one type of lesion studied at the same time, totaling 35 lung lesions assessed, of which 15 were masses, 8 nodules, 8 consolidations, and 4 areas of atelectasis.
Five pleural effusion analyses were carried out, six histopathological examinations, and four cytology, and in the remaining cases, the clinical history associated with imaging findings, such as radiography and ultrasound, was considered, as in the case of metastases, where the main tumors causing metastases included mammary tumors, osteosarcomas, melanomas, and splenic neoplasms.
Of the 35 lesions evaluated, only two can be considered “benign”, one of these in the consolidations group, presenting a clinical history of pneumonia, and another one in the atelectasis group, with effusion analysis conclusive of hemorrhage. The data of the lesions were evaluated, and their characteristics are shown in Table 1
Thoracic Radiography
3.2
Masses were the predominant lesions observed on radiographic examination (n = 15), showing structured interstitial lung patterns. The solitary masses (n = 5) had a predilection for the caudal lobes (Figure 1C,D); while the others (n = 10) had multiple formations in different lung lobes (Figure 1A,B,E,F). The nodules larger than 0.7 cm had sufficient radiopacity for identification on radiographic examination and did not predominate in any specific lung lobe, being visible in different lung portions. Radiographic samples showing examples of the lesions assessed in this study and their respective descriptions are shown in Figure 1.

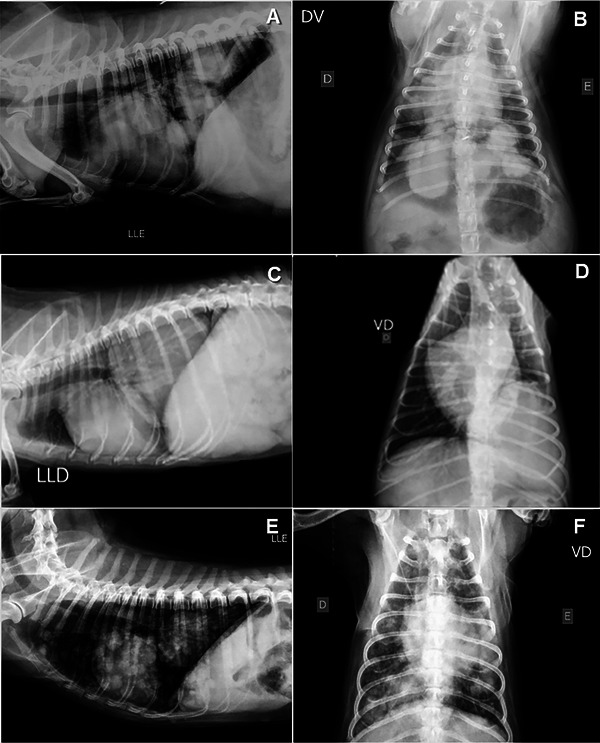

Left lateral (A) and ventrodorsal (B) radiographs of the thoracic region of a dog with a structured interstitial pattern evidenced by multiple lung formations of different sizes, diffusely distributed throughout the parenchyma. Right lateral (C) and ventrodorsal (D) chest radiographs of a dog with a lung formation in the caudoventral (C) and caudomedial (D) regions of the left caudal and accessory pulmonary lobes, causing deviation of the left main bronchus and its respective branches, visualized in ventrodorsal projection. Left lateral (E) and ventrodorsal (F) chest X‐rays reveal the presence of numerous diffusely distributed pulmonary nodules. There is also a larger formation in the left caudal lobe.
Regarding consolidations, the lesions showed an increase in lung radiopacity and little definition and often could not be distinguished from masses, nor could the possibility of consolidation and pulmonary masses at the same time be ruled out. In these cases, ultrasound was essential for better detail. Atelectasis was characterized exclusively by ultrasound due to the presence of pleural effusion.
B‐Mode Ultrasound
3.3
The consolidation group showed predominantly hypoechogenic lungs, with echogenic spots in the consolidated lobe, characterizing the air bronchograms and giving a heterogeneous appearance (Figure 2).

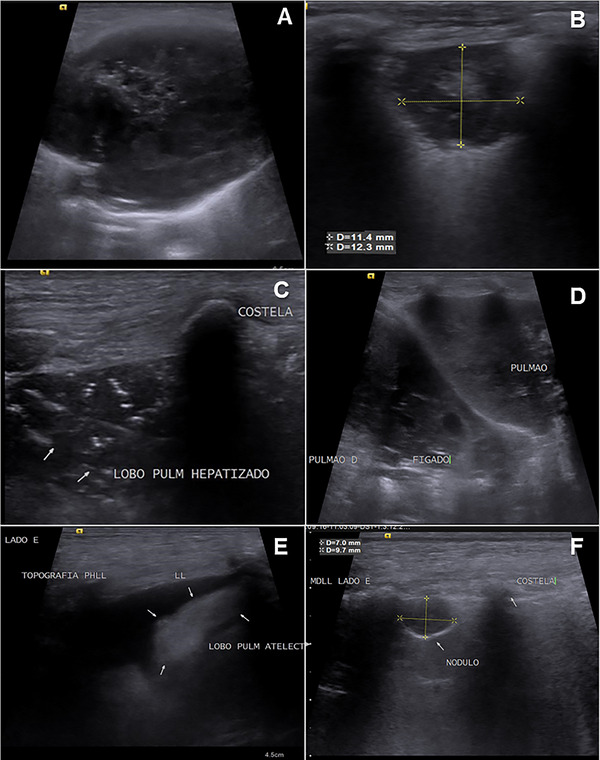

A, Lung mass, heterogeneous in appearance, with echogenic spots and small cavitary areas in the center of the lesion, with mixed echogenicity, irregular margins, and well‐defined contours. B, Nodular formation in the lung, subpleural, predominantly hypoechogenic, with slightly irregular margins and well‐defined contours, slightly heterogeneous, measuring approximately 11.4 × 12.3 mm. C, lung consolidation, with a hepatized appearance, showing hyperechogenic punctate echoes, corresponding to air bronchograms, giving the lesion a heterogeneous appearance and hypoechogenic lung parenchyma. D, Lung also shows pulmonary consolidation, and the liver parenchyma can be seen to the left of the image, for comparison purposes, with a very similar appearance to the pulmonary lobe, hence the term hepatization, when the lung is well consolidated. E, pulmonary atelectasis, showing the left lung lobe in peri hilar topography, with a triangular shape, hyperechogenic, homogeneous, supernatant pleural effusion present, (F) nodule in the left lung parenchyma in the medial region, subpleural, hypoechogenic, homogeneous, with regular margins and well‐defined contours, measuring approximately 7 × 9.7 mm.
Atelectasis was characterized when pleural effusion was present and appeared as triangular, hyperechogenic, homogeneous areas with slightly irregular margins and well‐defined contours, overlying the pleural effusion (Figure 2).
Most of the nodules were hypoechogenic with regular margins and well‐defined contours. Most of the masses showed mixed echogenicity (62.5%), the other masses were hypoechogenic, and when the echotexture was studied, 81.3% had a heterogeneous appearance. However, the heterogeneous appearance was also a common feature in the groups of consolidations and nodules (Figure 2).
ARFI Lung Elastography
3.4
Examples of B‐mode images of lung lesions and their corresponding elastographic studies are shown in Figure 3. The results of the quantitative and qualitative elastography analysis are represented in Figure 4. The SWVs obtained from the different ROIs selected in each lesion studied were similar (p = .3831). Comparing the types of lesions, the SWV of the atelectatic lesions (1.48 ± 0.35 m/s) was lower (p = .0187) than the SWV of consolidation (2.94 ± 0.64 m/s), nodules (2.85 ± 1.40 m/s), and masses (3.13±1.45 m/s). In qualitative elastography, the elastogram grades resulted similar between the types of lesions (p = .5541), atelectatic lesions (1.00 ± 0.00), consolidation (1.00 ± 0.75), nodules (1.00 ± 1.00), and masses (1.50 ± 1.00).

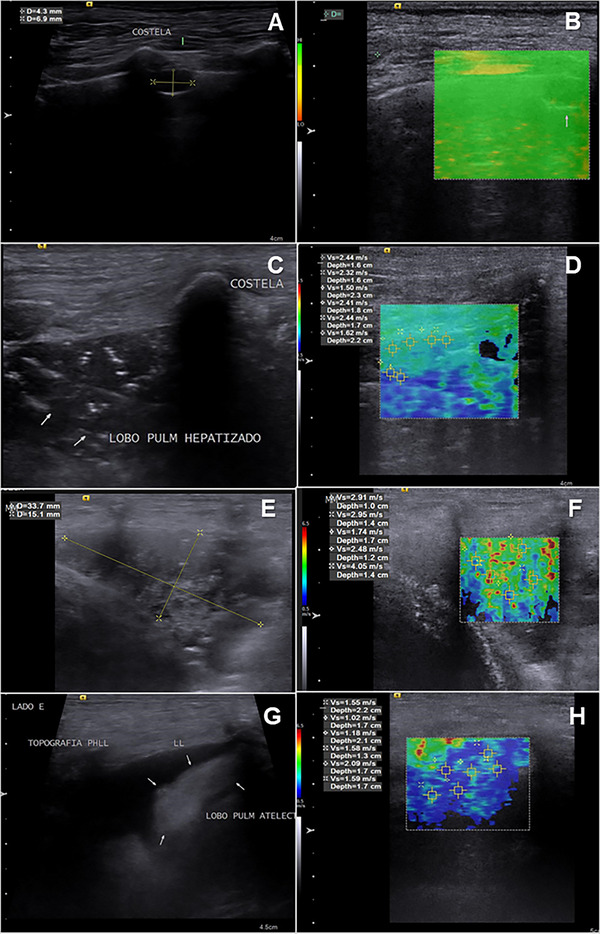

A, C, E, G, Corresponding to b‐mode ultrasound. B, D, F, H, Same lesion, but with ARFI mode activated, performing qualitative (color map) and quantitative elastographic analysis with ROIs (region of interest) positioned on the lesions to obtain numerical SWV values in m/s. Images were obtained using SIEMENS ACUSON S2000 equipment. A, Presence of a nodular formation in the lung, measuring approximately 4.3 × 6.9 mm. B, Same formation with ARFI mode activated in its quality map, where green areas correspond to an ideal site for evaluation and orange areas to poor quality for the elastographic study. C, Pulmonary consolidation, with a hepatized appearance. D, Same consolidation as image C, with ARFI mode activated, it is possible to see the elastogram in shades of blue and green representing soft tissues. After the qualitative assessment, a quantitative assessment was obtained (SWV m/s). E, Presence of a formation in the lung, measuring approximately 33.7 × 15.1 mm. F, Formation corresponding to image (E), with ARFI mode activated. G, Corresponds to pulmonary atelectasis, showing a triangular‐shaped, hyperechogenic, homogeneous pulmonary lobe in perihilar topography, supernatant to pleural effusion. H, Corresponds to the elastogram of image G, in its qualitative and quantitative study.

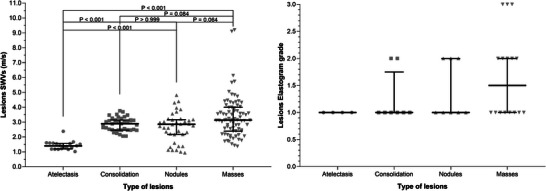

Graphical representation of the elastographic evaluation, quantitative (shear wave velocity—SWV—m/s; left) and qualitative (elastogram grades 1–3; right). The grey points represent each of the measurements performed on the lung lesions (including all ROIs evaluated in the quantitative evaluation), the thicker horizontal line is the median, and the bars are the interquartile range. Additionally, in the quantitative evaluation (left), the p‐values of the Dunns post hoc comparisons were included.
