Tibial tubercle torsion is associated with patellar height when measured by computed tomography

TL;DR

This study finds that tibial tubercle torsion is linked to patellar height in CT scans of patients without patellofemoral instability.

Contribution

The study reports a novel association between tibial tubercle torsion and patellar height using CT scans in a large patient cohort.

Findings

The mean tibial tubercle torsion angle was 24.7° in patients without patellofemoral instability.

Higher tibial tubercle torsion angles were associated with increased patellar height (measured by the Insall–Salvati index).

Abstract

To establish an average tibial tubercle (TT) torsion angle from computed tomography (CT) scans of patients without known patellofemoral instability and investigate whether TT torsion angles would differ based on demographics, tibial tubercle‐trochlear groove (TT‐TG) distance and patellar height.

The Stryker Orthopaedics Modeling and Analytics (SOMA) database was queried for patients with CT scans and available measures related to patella and TT position. The mean TT torsion angle was compared in patients with an increased and normal TT‐TG distance (≥20 vs. <20 mm) and patellar height (Insall–Salvati [IS] index ≥1.3 vs. <1.3). Measurements of sulcus angle, patellar inclination angle, congruence angle, trochlear groove depth and long limb axis alignment were assessed.

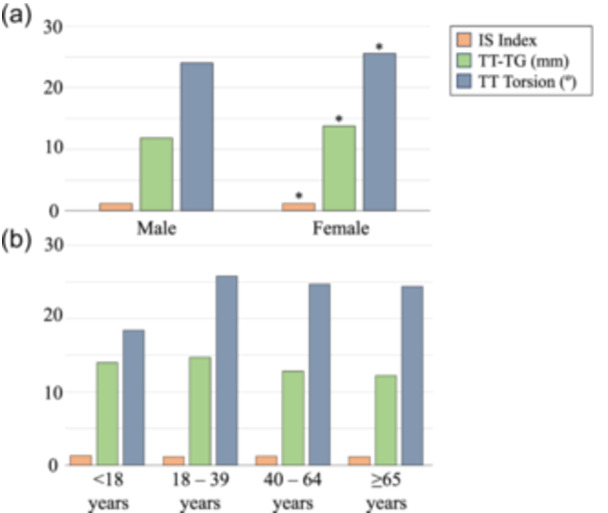

A total of 886 knees from 499 patients within the SOMA database were included, with a mean age of 59.4 ± 16.5 years and 238 (48%) females. The mean TT torsion angle for all patients was 24.7 ± 5.2°. Females had a significantly higher mean IS index (1.24 vs. 1.18), TT‐TG distance (13.8 mm vs. 11.8 mm) and TT torsion angle (25.5° vs. 24.0°) compared to males. The mean TT torsion angle for patients with a TT‐TG distance ≥20 mm and <20 mm was 24.7° in both groups (p = n.s.). There was a significantly greater TT torsion angle in patients with an IS index ≥1.3 (26.6°) compared to those with an IS index <1.3 (24.0°) (p < 0.001). A weak and positive correlation was found between TT torsion angle and IS index (r = 0.242, p < 0.001), but not with other measurements.

The mean TT torsion angle for patients without known patellofemoral instability was 24.7° and increased TT torsion angles were associated with increased patellar height. An association between TT torsion and TT‐TG was not found. Findings of the current study describe the relationship between morphologic assessments of the patellofemoral joint using CT.

Level IV, cohort study.

Figures
