Novel Quantification of Eggshell Surfaces in Dromaius novaehollandiae With Implications for the Fossil Eggshells of Oviraptorosauria (Dinosauria)

TL;DR

This paper introduces a new quantitative method to analyze eggshell surfaces, comparing emu and dinosaur eggs to improve understanding of fossil egg ornamentation.

Contribution

A novel statistical approach to quantifying external eggshell ornamentation using R functions, including a new 'Orientation' function.

Findings

The quantitative method provides statistical support for qualitative observations of eggshell ornamentation.

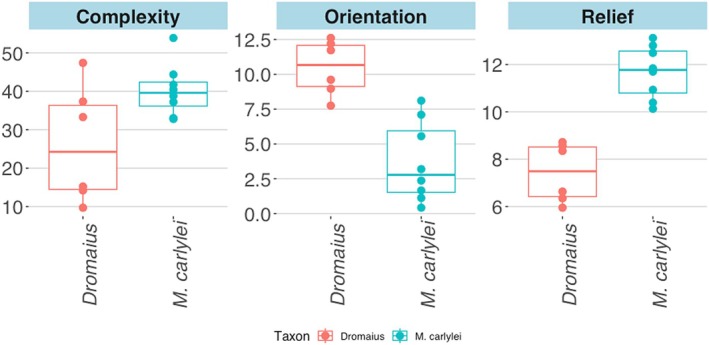

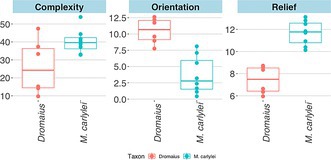

Statistically significant differences in ornamentation were found between emu and oviraptorosaur eggs, especially in relief.

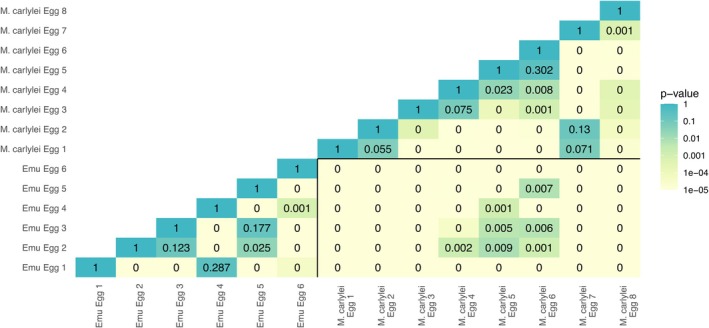

Intranest variation in fossil eggs was demonstrated using harmonic mean p-value differences between egg pairs.

Abstract

The external surfaces of non‐avian dinosaur eggs are not usually smooth like those of their avian descendants. Unique ornamentation patterns sculpt the exterior of the eggs, a trait that is difficult to interpret because of its scarcity in modern taxa. One avian species that does homoplastically present similar external eggshell ornamentation to that of non‐avian dinosaurs is
Dromaius novaehollandiae
Latham, 1790, the emu. Here we use
D. novaehollandiae

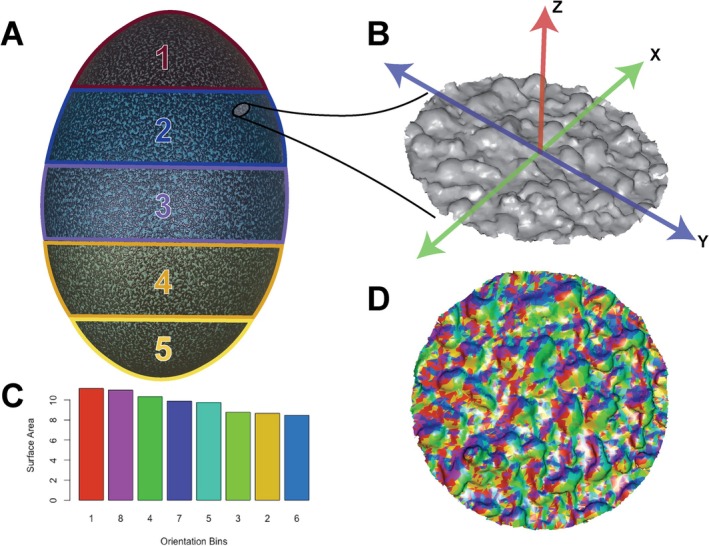

eggs in conjunction with a clutch of oviraptorosaurian dinosaur eggs (NCSM 33576, Macroelongatoolithus carlylei) to test new methods of quantifying external eggshell ornamentation. Currently, the only scientific language for describing and comparing ornamentation styles in fossil ootaxa is restricted to qualitative categorization, which introduces issues of subjectivity and overly broad and overlapping typification. In this study, we derived and tested a new statistical quantitative approach to quantifying ornamentation that includes two existing functions of the molaR package in R previously applied to shape quantifications of fossil teeth, and ‘Orientation’, a novel function presented as a proxy for ‘direction’, needed to capture directionality. Results demonstrate that (1) the quantitative approach provides statistical backing to gross qualitative observations; (2) statistically significant differences exist between the ornamentation in
D. novaehollandiae
and M. carlylei, particularly in terms of relief; (3) intranest variation of M. carlylei can be demonstrated from harmonic mean p‐value differences between different pairs of eggs. This method offers a strong platform to consolidate quantitative measures with existing qualitative categories, improve the diagnoses of ootaxa and answer broad ecological and evolutionary questions regarding dinosaur reproduction. Moreover, wider application of the technique is encouraged for a multi‐proxy quantitative analysis of any paleontological surfaces, such as echinoderm tests, geological ripple marks or dentition.

We have developed a new, quantitative method of assessing the variation on paleosurfaces. This method uses functions from the molaR package of R, including new functions detailed here. This paper tests the functions on the eggshell surfaces of extant emu (
Dromaius novaehollandiae
) and fossil oviraptorosaur eggs of the ootaxon Macroelongatoolithus carlylei.
