TEE Guiding for T-TEER by Using Multiplanar Reconstructions in a Patient With Previous Surgical Annuloplasty

TL;DR

This paper shows how 3D imaging helps guide a heart repair procedure in patients with prior surgery, improving safety and outcomes.

Contribution

The study demonstrates the novel use of multiplanar reconstructions in 3D transesophageal echocardiography for tricuspid transcatheter repair.

Findings

Multiplanar reconstructions improved visualization in a patient with a prior annuloplasty ring.

The procedure successfully reduced tricuspid regurgitation from massive to moderate.

The technique offers enhanced safety and leaflet grasping accuracy during the repair.

Abstract

Transesophageal echocardiographic guidance in tricuspid transcatheter edge-to-edge repair may face limitations in imaging, which are sometimes difficult to overcome and lead to an increased risk of periprocedural complications. We present an imaging vignette describing the usefulness of multiplanar reconstructions by 3-dimensional transesophageal echocardiography in a patient with previously implanted surgical tricuspid annuloplasty ring impeding imaging quality. The procedure was conducted successfully by implanting a single device and reducing tricuspid regurgitation from massive to moderate. Multiplanar reconstructions represent a valuable tool with the possibility for improving safety in tricuspid transcatheter edge-to-edge repair by ameliorated visualization of leaflet insertion and grasping.

Figures

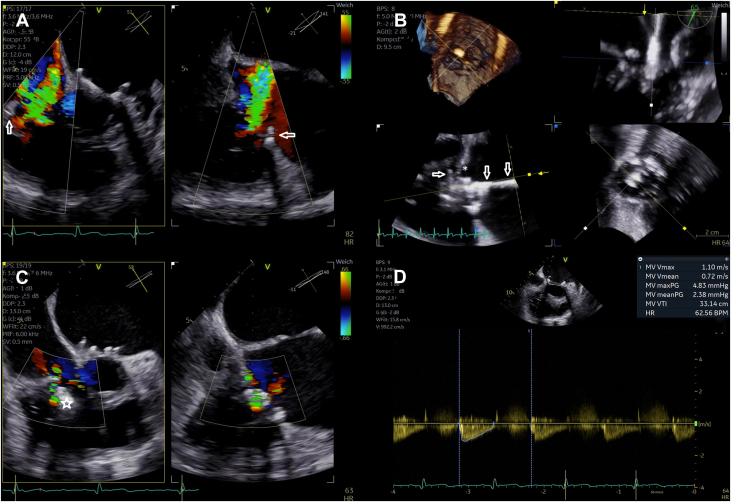

Periprocedural Transesophageal Echocardiographic Guidance(A) Severity of tricuspid regurgitation before performing tricuspid transcatheter edge-to-edge repair (arrows mark the previously implanted annuloplasty ring). (B) Multiplanar reconstruction to visualize the septal leaflet with the delivery system already positioned subvalvularly (arrows, delivery system; asterisk, septal leaflet). Residual tricuspid regurgitation is seen in C (star, transcatheter edge-to-edge-repair device), and (D) confirms adequate postprocedural transvalvular gradient of the tricuspid valve.

Full text

Case Description

With the current increase in tricuspid transcatheter edge-to-edge repair (T-TEER) procedures conducted worldwide, physicians will face a similarly growing number of patients with impaired imaging qualities during transesophageal echocardiographic guidance. We present a successful T-TEER procedure despite a previously implanted surgical annuloplasty ring and associated impaired visibility by using 3-dimensional transesophageal echocardiography and multiplanar reconstruction (Figure 1).Take-Home Message

• •Multiplanar reconstruction by 3-dimensional transesophageal echocardiography is a valuable tool to improve procedural safety by allowing excellent alignment of the device to clearly visualize leaflet insertion and grasping. Figure 1. Periprocedural Transesophageal Echocardiographic Guidance(A) Severity of tricuspid regurgitation before performing tricuspid transcatheter edge-to-edge repair (arrows mark the previously implanted annuloplasty ring). (B) Multiplanar reconstruction to visualize the septal leaflet with the delivery system already positioned subvalvularly (arrows, delivery system; asterisk, septal leaflet). Residual tricuspid regurgitation is seen in C (star, transcatheter edge-to-edge-repair device), and (D) confirms adequate postprocedural transvalvular gradient of the tricuspid valve.

A 79-year-old woman was admitted for symptomatic congestive heart failure with a history of mitral and tricuspid valve repair by implantation of an annuloplasty ring in 2019. Echocardiographic examination revealed worsening of tricuspid regurgitation (TR) graded as massive (biplane vena contracta 10 × 12 mm, effective regurgitation orifice area 0.6 cm^2^) with a calculated systolic pulmonary artery pressure of 50 mm Hg. During multidisciplinary heart team evaluation, T-TEER was recommended given adequate preprocedural image quality and sufficient leaflet length (Video 1, Video 2, Video 3, Video 4, Video 5). After verbal and written informed consent the procedure was conducted in general anesthesia. This report was approved by the Ethics Committee of Charité–Universitätsmedizin Berlin (EA4/013/21).

With the introduction of the clip delivery system (Pascal, Edwards Lifesciences) through the valve, image quality deteriorated and the leaflets became barely visible (Video 6). Neither adjustments to the settings of the echocardiography machine nor changing position or angulation of the probe led to the desired improvement to safely continue device implantation. As a last resort, 3-dimensional echocardiography and multiplanar reconstructions were utilized. Here, both leaflets were visible enough to verify adequate insertion (Videos 7 and 8). Grasping was then also verified indirectly by closing the device and observing the pulling force (Video 9). Sufficient reduction in TR was achieved without increasing the transvalvular gradient (mean gradient, 2.4 mm Hg). After releasing the device, its position remained stable successfully closing the anteroseptal commissure (Video 10). Assessment of TR showed moderate residual TR (Video 11, Video 12, Video 13, Video 14), which was confirmed by transthoracic echocardiography at discharge (Video 15).

High-quality echocardiographic imaging is a key element for adequate outcomes in T-TEER procedures. Nonetheless, impaired visibility is regularly observed and may hinder safe device deployment. In particular, shadowing owing to structures (eg, calcified aortic valve) or implants (eg, interatrial septal occluder) may aggravate the visibility of leaflets, which increases the risk of inadequate leaflet grasping and consequently the probability of single leaflet device attachments, a dreaded complication with limited possibilities in therapy.1^,^2 Three-dimensional echocardiography and its possibility to apply multiplanar reconstruction allows excellent alignment of the device to clearly visualize leaflet insertion and grasping. Alternatively, intracardiac echocardiography may be applied to overcome this issue.3
