Case Report: 3D printing of customized combined guides assisting total hip arthroplasty for treatment of fused hip: a case report

TL;DR

A 64-year-old man with a fused hip due to old tuberculosis was successfully treated with 3D-printed surgical guides for hip replacement, despite a post-surgery infection.

Contribution

Demonstrates the use of 3D-printed customized guides for precise hip surgery in complex fused hip cases.

Findings

3D-printed guides enabled accurate osteotomy and implant placement in a fused hip joint.

Postoperative infection was managed successfully with surgery and medication.

The patient's hip function improved significantly, with a Harris hip score increase from 41 to 90.

Abstract

Converting a fused hip to total hip arthroplasty (THA) presents considerable surgical challenges. Traditional surgical techniques frequently result in malalignment of osteotomy planes and inaccurate prosthetic placement, leading to a high incidence of perioperative complications.

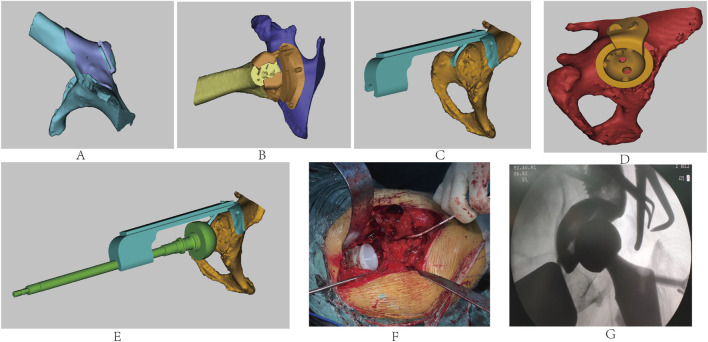

This report describes a 64-year-old male patient who underwent debridement surgery for right tuberculous hip arthritis 52 years ago. Following the operation, the joint gradually fused spontaneously, causing limited mobility. Over the past 4 years, the patient has experienced right knee pain and an unstable gait. The pathological fusion of the hip joint posed great challenges for THA, particularly in determining the osteotomy plane, ensuring adequate bone support, and reconstructing the acetabular rotation center. Using CT data, we designed and 3D printed a customized acetabular prosthesis with a series of combined guide systems, which allowed precise osteotomy and prosthetic implantation during the surgery. However, the patient developed a Mycobacterium avium infection following the procedure. As a result, debridement surgery, replacement of the acetabular liner, and combined pharmacological treatment were completed. Ultimately, the infection was controlled. A 5.5-year follow-up exhibited an improvement in the Harris hip score from 41 preoperatively to 90 postoperatively. The patient’s ability to perform activities of daily living improved significantly, and radiological follow-up indicated good prosthetic positioning without signs of loosening or displacement.

The use of 3D-printed customized combined guides in THA offers a precise and safe treatment option for patients with hip joint fusion, effectively overcoming surgical challenges associated with altered anatomy. Moreover, this approach provides a reliable treatment reference for similar complex cases. The occurrence of M. avium infection in this patient underscores the importance of perioperative infection control and prompt management in patients with a history of tuberculosis.

Figures
