The role of a salt pillow in deep saline aquifer integrity and shallow groundwater resources
Jolanta Putnaite, Alireza Malehmir, Morten Bjerager, Tanni Abramovitz, Henrik Vosgerau, Marie Keiding
TL;DR
This study examines how salt pillow growth affects geological structures and groundwater resources in Denmark using seismic data.
Contribution
New seismic data and geological modeling reveal salt pillow growth impacts on fluid transport and groundwater systems.
Findings
A fault system linked to salt diapirism was identified from the Triassic to the Miocene.
Quaternary palaeovalleys up to 2 km wide were imaged as key groundwater aquifers.
Salt pillow growth impacts fluid pathways in deep saline aquifers and shallow groundwater systems.
Abstract
Salt pillow growth leads to the deformation of the suprasalt strata and can affect geological carbon storage in saline aquifers. A concern for storage sites on land is the drinking water because the impact of the deformation on fluid pathways and groundwater systems needs to be studied. Here, we present new seismic data from a potential carbon storage site in Denmark. A high-resolution seismic dataset was acquired using a strategically deployed nodal array and a landstreamer to assess the effects of the Permian Zechstein salt migration on the layers above a salt pillow. We create a geological model of the subsurface through correlation of reflection data with borehole data and investigate the main Upper Triassic Gassum Formation reservoir. Our findings reveal a fault system linked to salt diapirism and evidence of salt pillow growth from the Triassic into the Miocene. We image up to 2…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5- —Uppsala University
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsSeismic Imaging and Inversion Techniques · earthquake and tectonic studies · Seismic Waves and Analysis
Introduction
Salt tectonics^1,2^ is a key research topic that is relevant to the origin and evolution of saline aquifers as potential geological carbon storage (GCS) sites in many sedimentary basins. Rock salt is weaker and more prone to movement than most other rocks. It migrates in response to gravitational forces or lateral forces of regional tectonics^3^. These mechanisms drive the salt flow and can generate salt pillows^4^. In contrast to diapirs, salt pillows have concordant contact with the overlying strata. The overburden is gently folded, often forming broad structural closures. This is significant for the capacity and connectivity of saline aquifers in the overburden, influencing reservoir distribution, fluid flow and integrity. Despite efforts to study these structures, detailed investigations are limited due to restricted access or insufficient resolution of subsurface geophysical data.

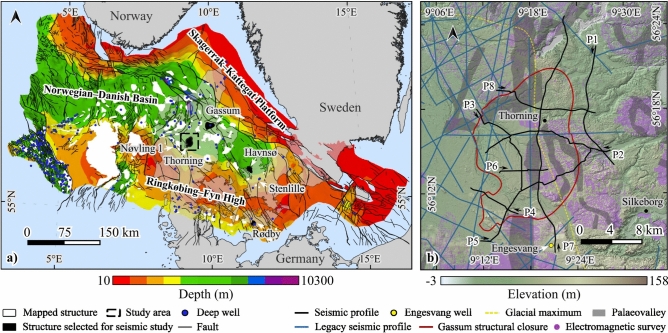

Following the 2020 evaluation of GCS potential in Denmark^5^, a series of seismic studies were conducted with the focus on five onshore areas related to salt pillows. Figure 1a shows the interpreted reservoir closures for the Danish part^5^ of the Norwegian–Danish Basin^6^, indicating selected seismic investigation sites. The seismic surveys aimed to assess different structures for GCS while considering environmental factors. Groundwater is the primary water supply in Denmark and has been mapped using electromagnetic methods throughout the country^7–12^. It is known that groundwater is present in porous sedimentary media, which comprises Quaternary sand and gravel, Miocene sand and gravel, and chalk^10^. Given the significance for drinking water, their interrelation with salt tectonics have not been investigated in detail, because this has not been possible with the legacy seismic data (often poor quality and sparse) in Denmark.Fig. 1. Location and structure of the Thorning seismic survey area. (a) Depth map to the top pre-Zechstein in the Norwegian–Danish Basin^20^ showing cross-cutting faults, deep wells and mapped structures with potential for geological carbon storage (GCS). The specified structures (Stenlille, Havnsø, Gassum, Rødby, and Thorning) were investigated as part of the seismic campaign for GCS conducted during 2022–2023. The study area of the Thorning salt pillow is marked inside the black rectangle. The closest deep well is Nøvling 1. (b) The high-resolution LiDAR terrain data showing Thorning survey layout (profiles, P1 to P8) along with prior electromagnetic surveys^12^ and the Engesvang shallow well location. Black arrows show the seismic acquisition direction. The structural closure of the Gassum horizon at 1850 m (below sea level) depth based on legacy seismic data^5^ is marked with a red contour line. Maps were made using QGIS 3.22 [https://www.qgis.org/] and underlying data were extracted from open data sources [https://eng.geus.dk/products-services-facilities/data-and-maps/subsurface-data-denmark; https://eng.geus.dk/products-services-facilities/data-and-maps/maps-of-denmark;https://dataforsyningen.dk/data/3931].
In 2022, a pilot survey was conducted to support the effort of characterizing potential GCS sites in Denmark with an experimental work in the Stenlille gas storage area^13,14^. The operational site has a wealth of information that helped to assess the performance of the pilot study. A novel onshore seismic data acquisition solution combining a micro-electromechanical sensor (MEMS) based landstreamer and a nodal array^15,16^ was tailored explicitly for cost-effective, high-resolution, full-depth range imaging purposes. The success of the Stenlille pilot survey^13^ led to one of the most extensive recent onshore seismic campaigns \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$(>650 \text{ km }$$\end{document} of seismic profiles) for GCS over five salt pillow sites (Stenlille, Havnsø, Gassum, Rødby and Thorning) in Denmark^13,17–19^ (Fig. 1a) and set grounds for further up-scaling and development work. These new seismic surveys showcase a unique opportunity of applying environmentally friendly, cost-effective acquisition, and imaging strategies onshore while collecting high-quality open-access data in urban environments.
Here, we focus for the first time on the seismic survey at the Thorning salt pillow site (Fig. 1), conducted between August and October 2023. We present the results of the combined deep and shallow high-resolution seismic acquisition solution to simultaneously image the salt pillow and suprasalt strata, including the overlying shallower groundwater systems. The unique feature of the study area is the abundance of Quaternary palaeovalleys, which can provide insight into the interrelation between the palaeovalleys and deformed overburden. The new results are critical not only for investigating the Upper Triassic Gassum Formation for \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {CO}_2$$\end{document} storage and mapping groundwater resources but also help to recognise the importance of detecting faults between the candidate \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\hbox {CO}_{2}$$\end{document} reservoir and drinking water aquifers.
Results
Seismic data analysis

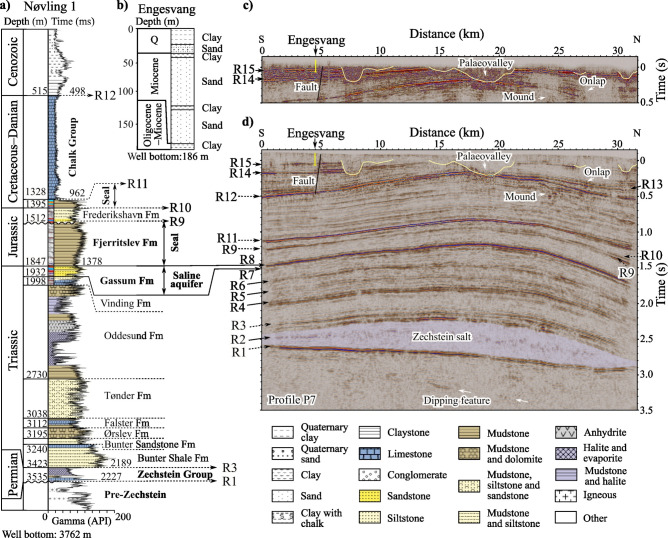

Figure 2 shows the relationship between lithostratigraphy^21^ and one of the seismic sections. We combine data from the closest deep Nøvling 1 well (Figs. 1a, 2a), the shallow Engesvang well (Figs. 1b, 2b), and the south–north trending longest (33 km) seismic profile P7 (Fig. 1b) for the landstreamer (Fig. 2c) and nodal (Fig. 2d) data. The deep well is located 30–40 km southwest of P7 towards the Ringkøbing–Fyn High, close to the Nøvling salt diapir^22^. The geometry of seismic features between R1 and R3 suggests that the Zechstein salt is concordant to the overlying strata and forms the Thorning salt pillow. Furthermore, the salt pillow rests on a tilted pre-Zechstein strata having an angular unconformity at the base Zechstein Group (R1) where different lithological units subcrop. This is supported by the observed dipping features below R1 in the seismic sections and the unconformity and thin intervals of variable pre-Zechstein rocks described in the Nøvling 1 well data. The relatively thin Zechstein Group in the well consists of mudstone, dolomite and limestone layers embedded between anhydrite beds with pure salt intervals. The high-amplitude feature, referred to as R2, within the salt pillow is laterally discontinuous. The characteristic internal diffractivity (Supplementary Figure S1) may originate from discontinuities within the layered sequence of the Zechstein Group. The discontinuities form due to salt movement and can diffract the seismic energy. Interestingly, R3–R15, which are associated with the Triassic–Miocene suprasalt strata, are gently folded.Fig. 2. Correlation of the lithostratigraphic units with the primary seismic features. (a) Lithology and stratigraphy are shown from the deep Nøvling 1 well^21^, superimposed on a gamma-ray log and supplemented with time data from a sonic log. The lithology patterns and colours are defined in the legend. Unconformities are indicated by wavy lines. An example of seismic polarities is provided for the top Oddesund Fm-base Chalk Group interval. (b) Shallow Engesvang well data. (c) A near-surface segment of the seismic section P7 traversing the Thorning salt pillow from the broadband landstreamer dataset, (d) alongside section P7 from the nodal data. The primary seismic features (R) are marked as R1–R15. The Nøvling 1 well is at 30–40 km distance from P7 and the corresponding lithostratigraphic units are traced through the legacy seismic profiles between the well and the seismic section. Yellow vertical line at the top of the seismic sections indicates the location of the Engesvang well. Figures were made using SKUA-GOCAD22 [https://www.aspentech.com/en/products/sse/aspen-skua] and Inkscape 1.3.2 [https://inkscape.org/], while the well data were extracted from open data sources [https://data.geus.dk/JupiterWWW/].
The saline aquifers below the Chalk Group, where the depth is greater than 1 kilometre, are potential geological reservoirs for carbon storage (Fig. 2), as carbon dioxide can remain in a supercritical state. A seismic polarity reversal is observed at R11 (base Chalk Group) where the minimum phase wavelet starts with a positive amplitude (blue or white) instead of the negative amplitude (red or black) seen in the first arrivals, as shown in Fig. 2. The polarity reversal is due to the lower acoustic impedance layer below the Chalk Group, confirmed by the sonic log data and velocity model building. As a result, the correlation of the reservoir and seal formations with the corresponding seismic features is more straightforward. The main reservoir consists of the Upper Triassic sandstone of the Gassum Formation, bounded at the top by a characteristic high-amplitude seismic feature, R8, and at the base by low-amplitude seismic feature, R7, with an average thickness of 100 m between them. It is overlain by a seal composed of the Lower Jurassic mudstone of the Fjerritslev Formation, which continues for approximately 200–500 m up to R9. The thickness of the Jurassic interval (R8–R10) is treated with caution due to the presence of a basin-wide Jurassic unconformity^23^ (Fig. 2a). A potentially porous interval of the Frederikshavn Formation, above R9, is only half the thickness of the sandstone of the Gassum Formation based on the data from the Nøvling 1 well, but it is still effectively imaged. The overlaying seal consists of the Jurassic–Lower Cretaceous mudstone below R11. Furthermore, well data suggest the presence of additional formations, which may contain porous rocks at depths of 2–4 km below the Oddesund Formation that need further petrological analysis.

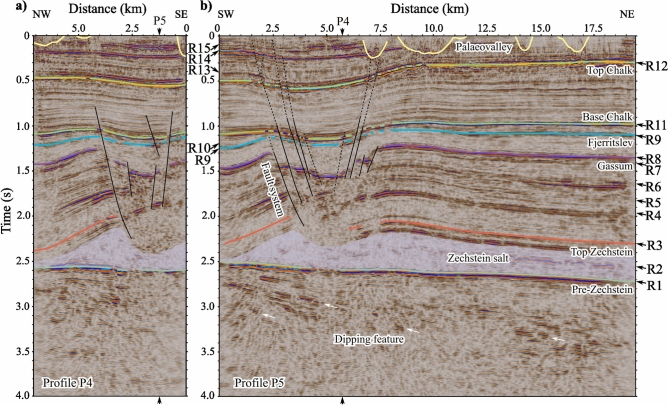

The fault system shown in Fig. 3 cuts through the Gassum horizon in the southwestern part of the study site. It is defined by sets of conjugate normal faults that form a graben. Fault displacement is the largest within the Triassic succession below the Gassum horizon (Fig. 3) reaching \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$>450$$\end{document} m throw. Bended seismic features are observed against the faults that form fault-related folds, which further influence the geometry of the horizons. A Jurassic succession below the Fjerritslev seal that is thicker on the hanging wall than on the footwall indicates syn-sedimentary (growth) normal faulting. Although the Jurassic succession above the Fjerritslev horizon is less affected by fault displacement, its thickness was controlled by the underlying palaeo-topography, resulting in thinning over the highs and thickening over the lows. The fault patterns can be traced into the Chalk Group and the unconsolidated Cenozoic layers up to the top of the seismic section (Fig. 3). However, the connectivity of the faults up through the sections is less clear. Fractures and faults cutting through the Gassum horizon with throws up to approximately 50 metres are also imaged above the crest of the Thorning salt pillow in the seismic sections P2, P3, P6, and P8, of which the largest occur along P2 presented in Supplementary Figure S2.Fig. 3. Orthogonal seismic sections showing the fault system. Nodal seismic data of (a) P4 and (b) P5. Seismic horizons were picked along the primary seismic features, which are correlated with the borehole data, and named after the associated lithostratigraphic units. Locations where the profiles intersect are indicated with arrows. Figures were made using SKUA-GOCAD22 [https://www.aspentech.com/en/products/sse/aspen-skua] and Inkscape 1.3.2 [https://inkscape.org/].
Figure 4 focuses on shallower portion of the nodal and landstreamer datasets. Distinctive features are observed along P1 and P7 towards the northern edge of the survey area shown in Fig. 4a–c. They are characterized as mound-shaped, semi-continuous to discontinuous seismic features. These features are present below the top Chalk horizon (R12), where a Danian succession (Palaeocene) is expected based on the well data (Fig. 2a). The occurrence of Upper Cretaceous-Danian mounds and channels is known from previous studies of shallow seismic profiles and outcrops in the Norwegian–Danish Basin^24–26^. Figure 4d shows our interpretation of the mounds along P1. Our observations help us to ensure that we understand the structure of the upper Chalk Group where these mounds occur.

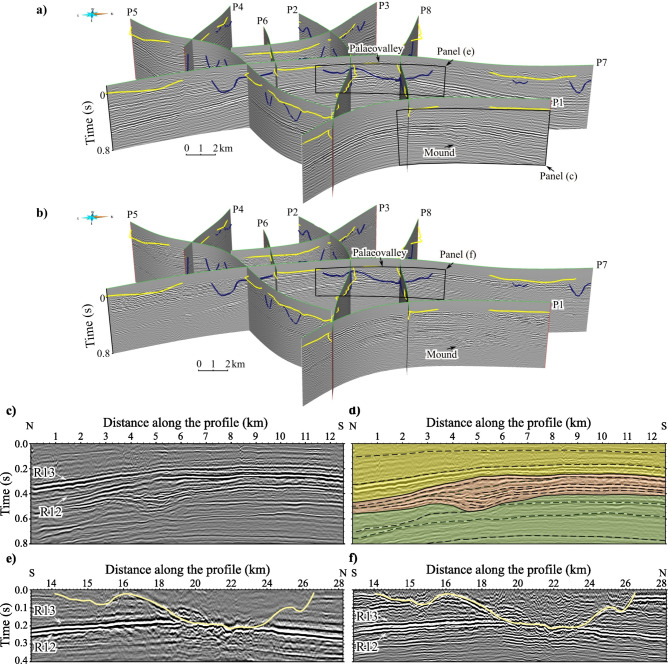

Fig. 4. Near-surface features of the nodal and landstreamer seismic datasets. Three-dimensional (3D) view of the survey layout (Fig. 1b) showing seismic sections from the (a) nodal and (b) landstreamer datasets. The yellow lines represent the seismic profile locations measured at every seismic recorder position along the roads. (c) A segment from the nodal data along P1, where mound-shaped features were imaged in the northern part of the survey area. (d) Interpretation of the corresponding segment with different colours distinguishing the mound-shaped interval (orange) from the layers above the top Chalk horizon (yellow) and below the mound (green). The dashed lines mark the seismic image patterns. A segment from the (e) nodal and (f) landstreamer datasets along P7 showing an example of the palaeovalleys imaged with the two different acquisition systems. Locations of the mounds and palaeovalleys displayed in the panels are indicated with black arrows in (a, b). Figures were made using SKUA-GOCAD22 [https://www.aspentech.com/en/products/sse/aspen-skua] and Inkscape 1.3.2 [https://inkscape.org/].
The Quaternary palaeovalleys identified in the study area range in width from a few hundred metres to several kilometres. Compared with the nodal sections (Fig. 4a), the broadband landstreamer sections (Fig. 4b) show stronger amplitudes and higher seismic resolution, resulting in a more detailed image of the palaeovalleys. The palaeovalleys are carved into the Palaeogene-Neogene succession by glacial and glacial meltwater^27^ down to approximately 0.25 s. The deepest palaeovalleys incise into the top Chalk horizon (R12), as seen in Fig. 4e–f. The valley bottom topography shows an undulating pattern and is dominated by a U-shaped morphology. Because there are no available well data to correlate with the complete infill of the channel, this interpretation is based solely on the seismic data and shallow wells such as the Engesvang well (Figs. 1b, 2b). The valley infill patterns, which show diffractivity (Supplementary Figure S3), suggest the presence of boulders and cobbles. The channel incisions indicate that there may be several phases of valley formation and sediment accumulation along the channel systems (Fig. 4e–f).
3D structural configuration

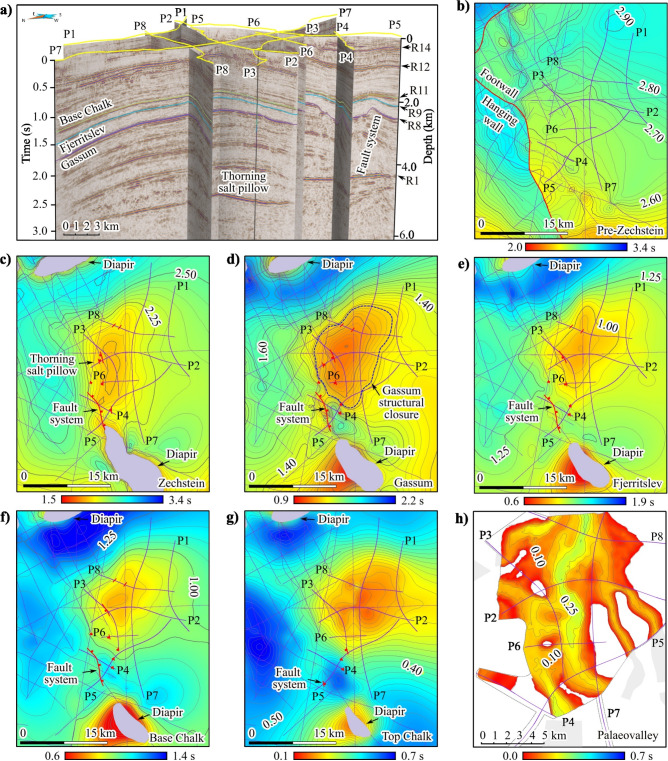

The three-dimensional (3D) geometry of the subsurface was investigated by mapping the primary seismic features in all available seismic sections, including the legacy seismic profiles (Fig. 1b), as shown in Fig. 5. Reflectivity and seismic imaging are poor within the salt bodies, and the seismic profiles have irregular two-dimensional (2D) seismic coverage. However, the extent of salt diapirism and successive faulting are still well-imaged.Fig. 53D model of the Thorning site. (a) 3D view of the new seismic sections of the nodal data. The black arrows point to some of the primary seismic features from Fig. 2. Structural time maps: (b) top pre-Zechstein, (c) top Zechstein, (d) top Gassum, (e) top Fjerritslev, (f) base Chalk, (g) top Chalk and (h) palaeovalleys that incise the pre-Quaternary layers. The purple lines show legacy and new seismic profiles used to create the structural time maps. The red lines mark faults, the purple areas map the salt diapirs, and the dashed blue contour line indicates the top Gassum structural closure (1.28 s). The grey areas represent the palaeovalley map (Fig. 1b) and the dashed grey contour line show model boundaries. Figures were made using SKUA-GOCAD22 [https://www.aspentech.com/en/products/sse/aspen-skua] and Inkscape 1.3.2 [https://inkscape.org/].
