Study on Online Correction of Polished Rod Dynamometer Cards and Digitalization Application of Pump Dynamometer Cards
Hukun Yang, Jianhua Ma, Yongqin Dai, Junmin Jia, Yu Lu, Xiyu Zhang, Ruihui Hao
TL;DR
This paper introduces a method to correct and digitize dynamometer card data for improved accuracy in oil production calculations.
Contribution
A novel method for rapid calibration and friction load calculation in dynamometer cards using a one-dimensional wave equation.
Findings
The proposed method achieves over 90% accuracy in production and liquid level calculations.
Friction loads at velocity reversal points are accurately calculated using the new method.
Online correction improves the reliability of dynamometer card data for digitization applications.
Abstract
The polished rod dynamometer operates under alternating loads and large temperature differences for a long time, inevitably leading to zero drift and temperature drift issues. At the same time, conventional inversion of polished rod dynamometer cards fails to consider the impact of friction loads, resulting in inaccurate production and liquid level calculations from pump dynamometer cards. Based on the oil-filled environment in the sucker rod and tubing during the upstroke of the pumping unit, this paper proposes a rapid identification method for the four characteristic points of the polished rod dynamometer card to obtain a calculation method for friction loads at the velocity reversal points A and C. The gravity of the polished rod string in the liquid column serves as the benchmark for calibrating the polished rod dynamometer card. Combined with basic well data, a one-dimensional…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

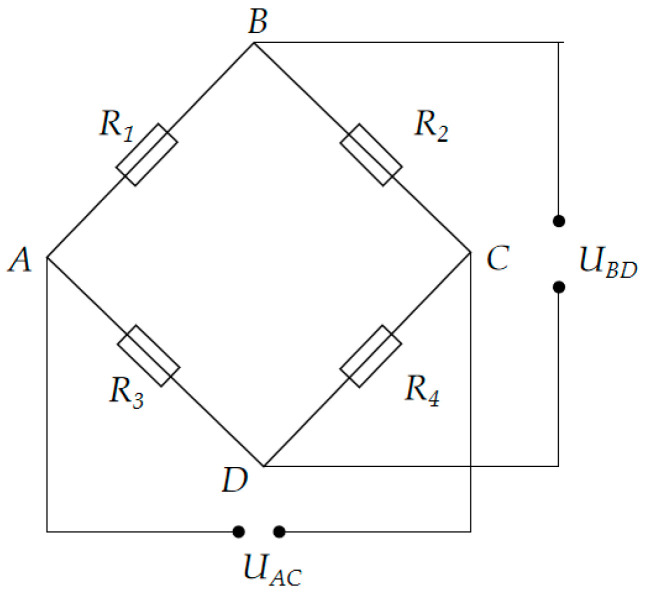

Figure 1

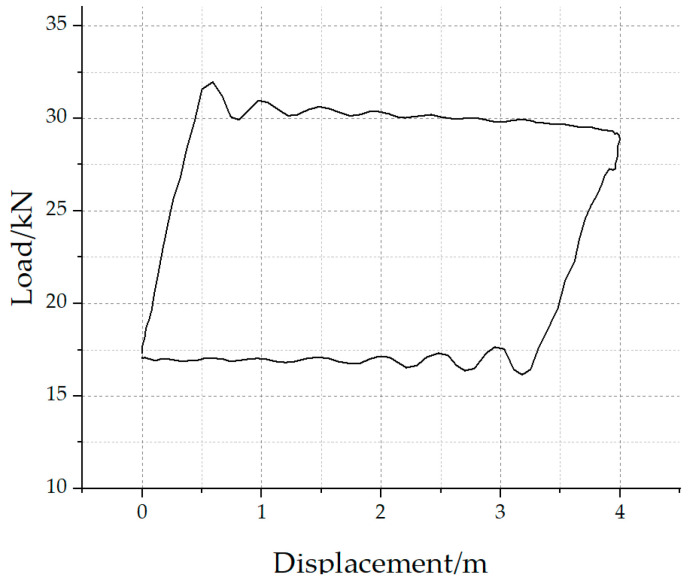

Figure 2

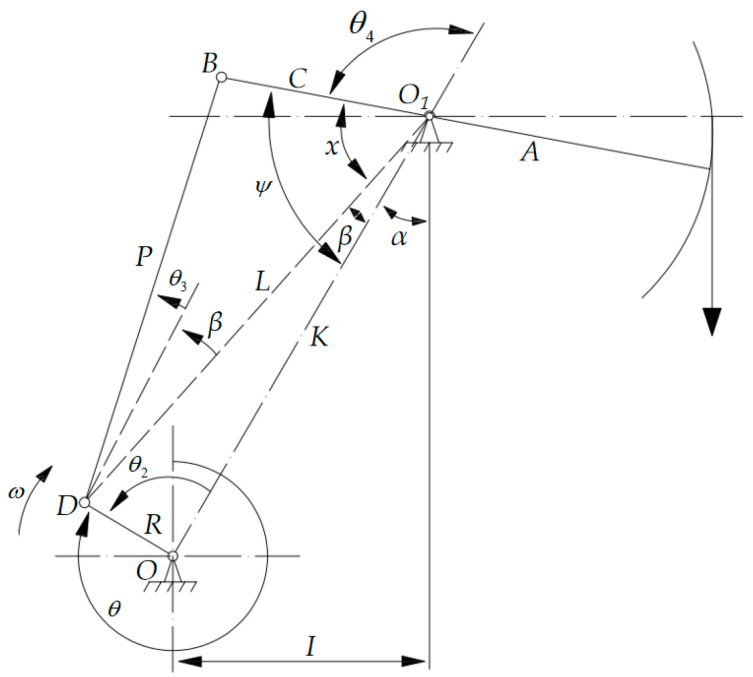

Figure 3

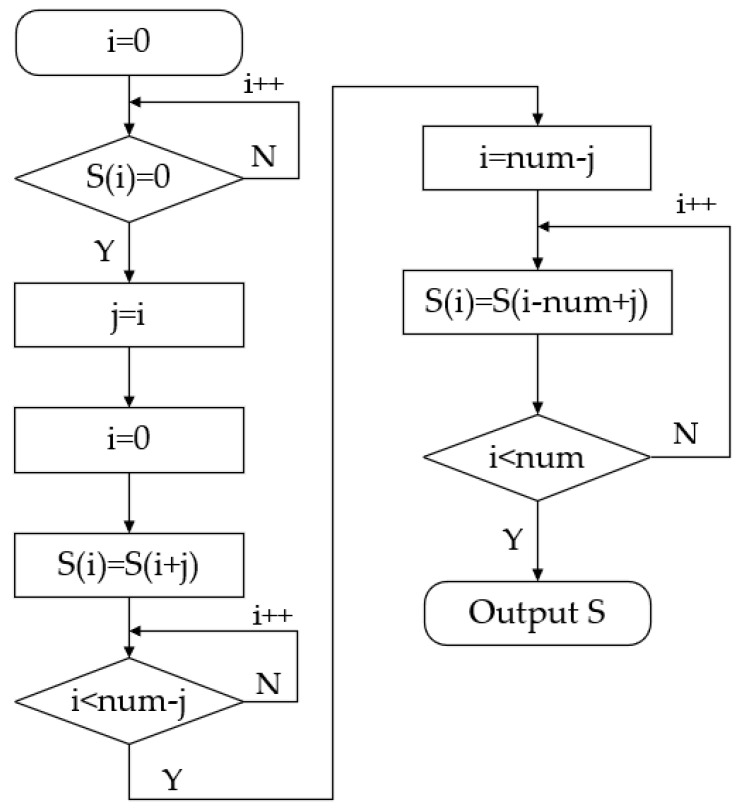

Figure 4

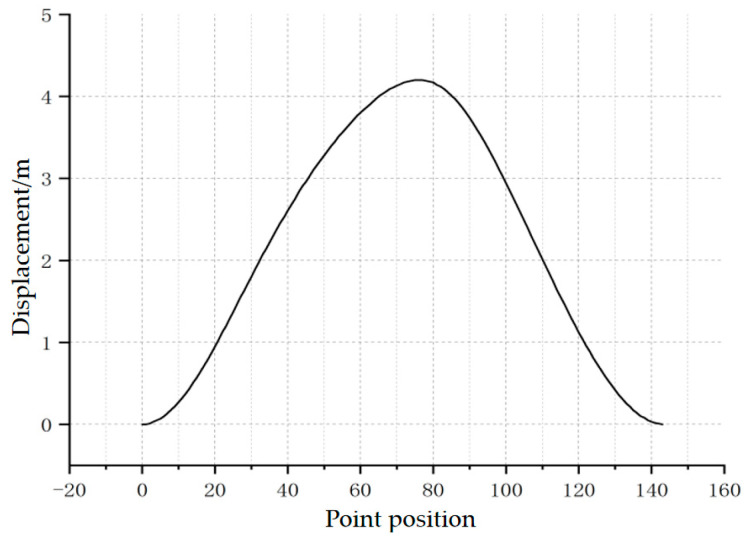

Figure 5

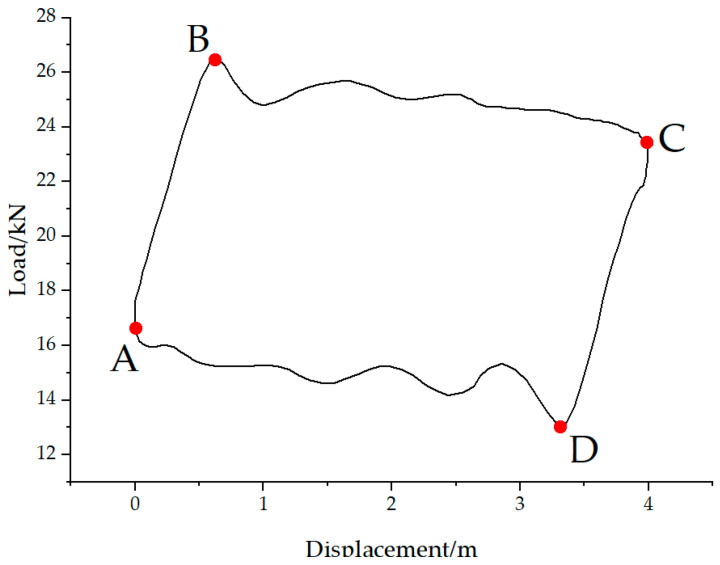

Figure 6

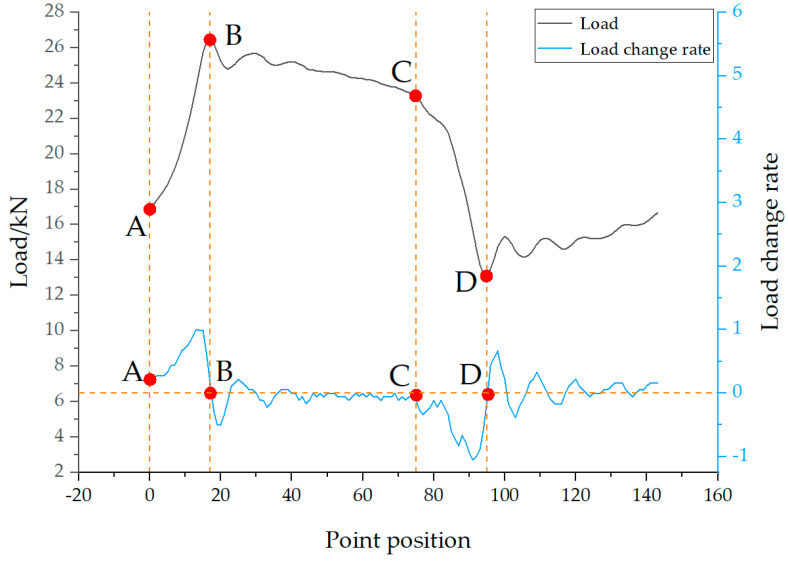

Figure 7

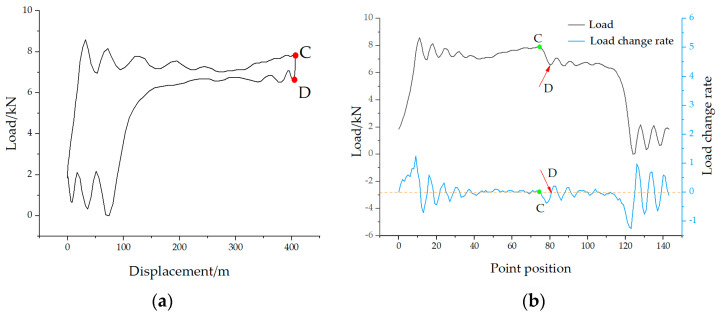

Figure 8

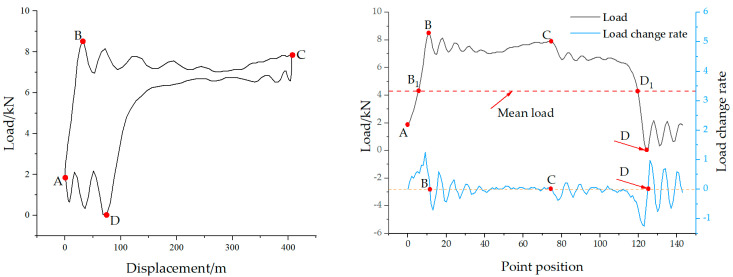

Figure 9

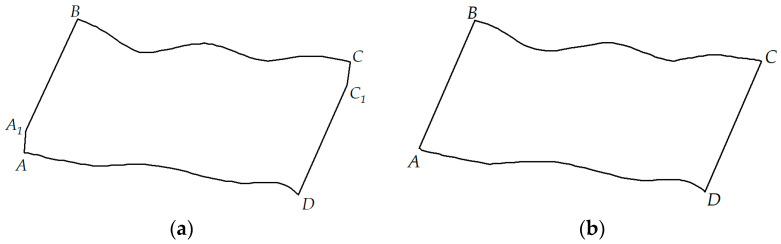

Figure 10

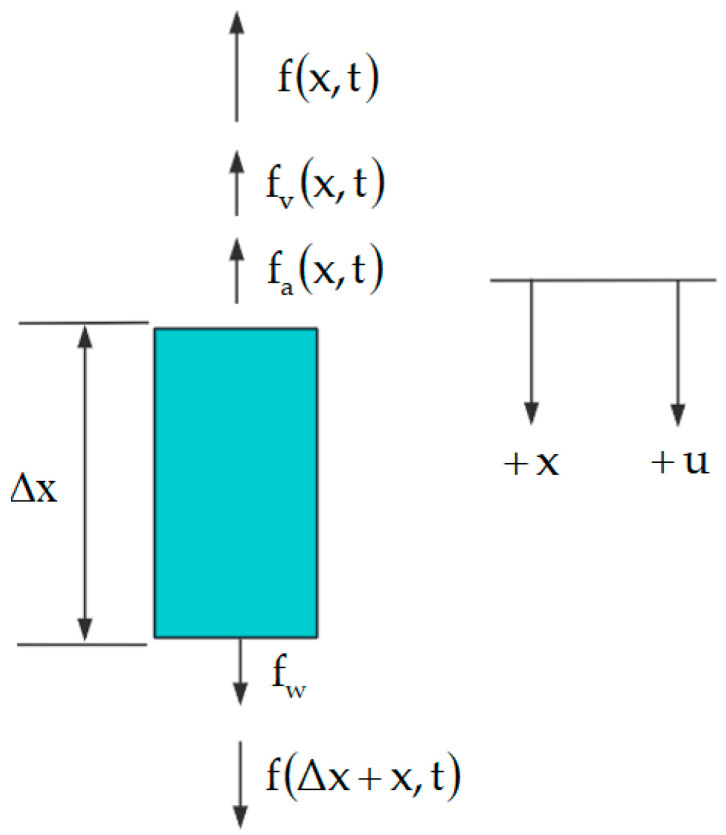

Figure 11

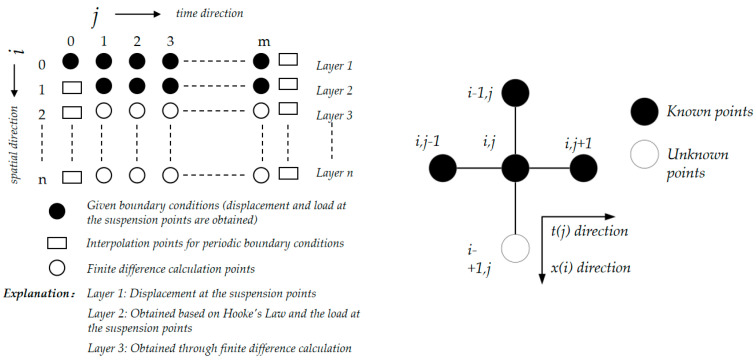

Figure 12
Figure 13
Figure 14

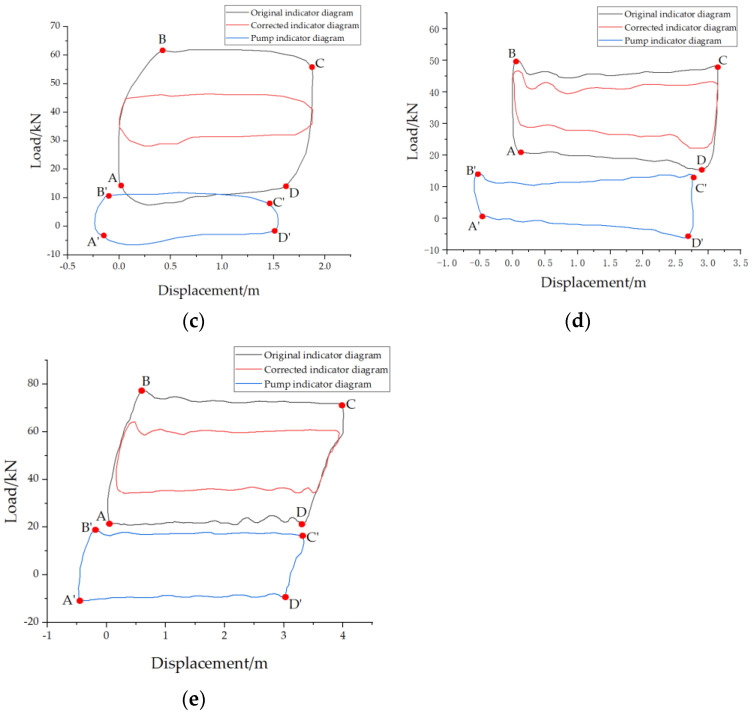

Figure 15Peer Reviews
