Molecular Ir-Based Coordination Compound Grafted onto Covalent Organic Framework for Efficient Photocatalytic H2 Evolution

TL;DR

This paper presents a new photocatalyst using a molecular iridium compound on a covalent organic framework to efficiently produce hydrogen under visible light.

Contribution

A molecular-level design strategy introduces Ir active sites on COFs to enhance photocatalytic H2 evolution.

Findings

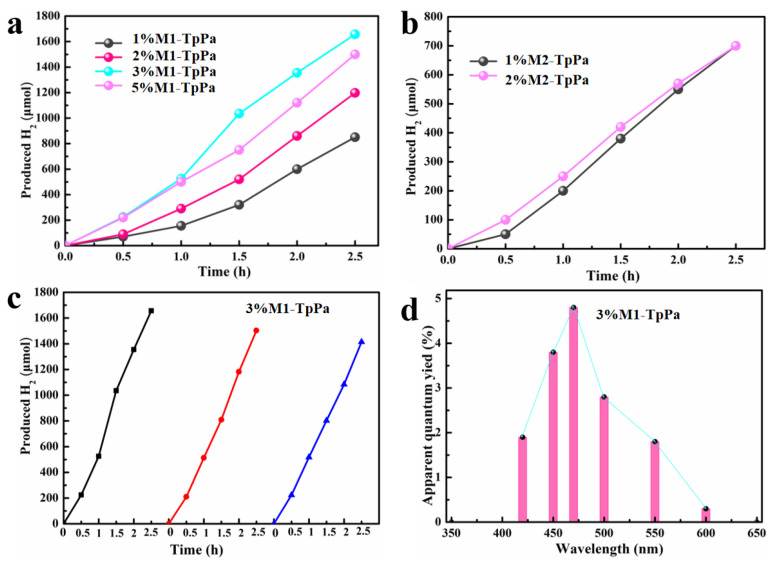

The TpPa-COF + M1 catalyst achieved a H2 evolution rate of 662 µmol/h under visible light.

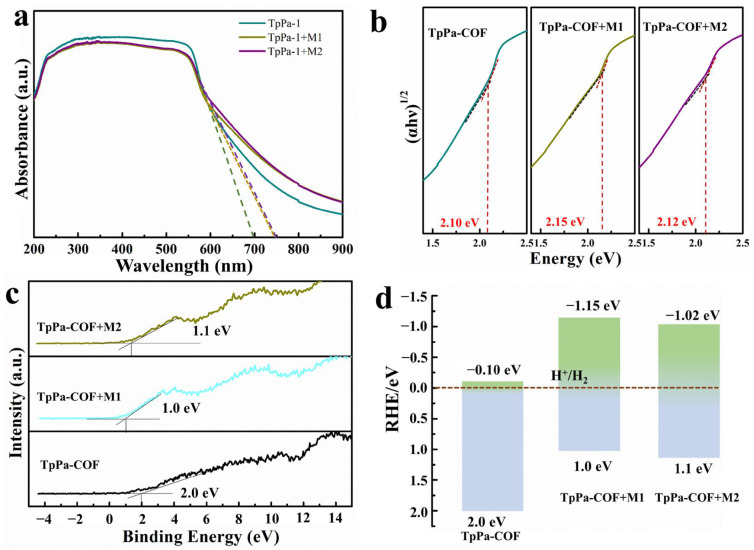

The absorption edge of the catalysts was extended to 750 nm after Ir coordination.

The highest apparent quantum yield was 4.8% at 470 nm wavelength.

Abstract

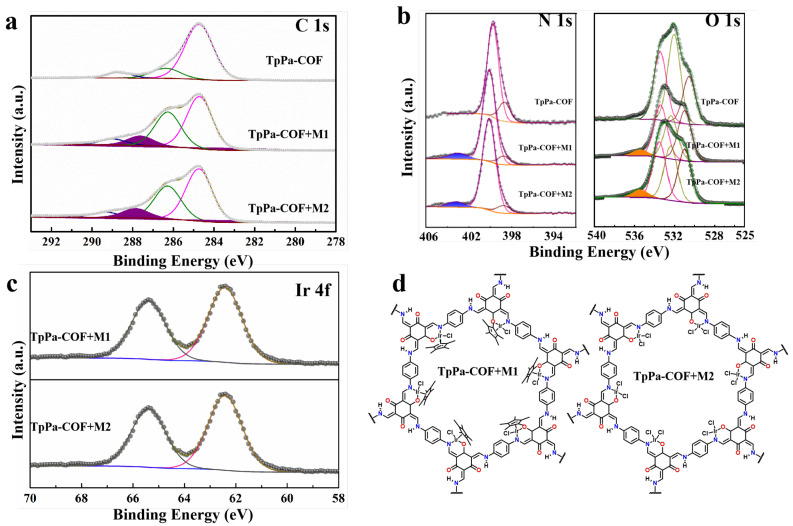

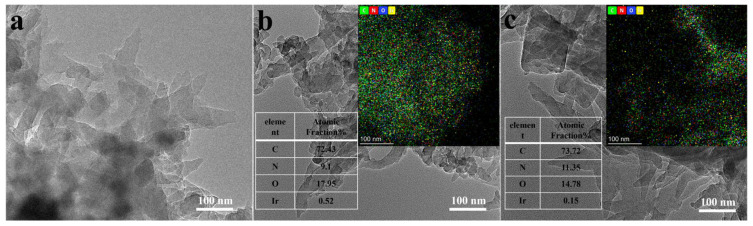

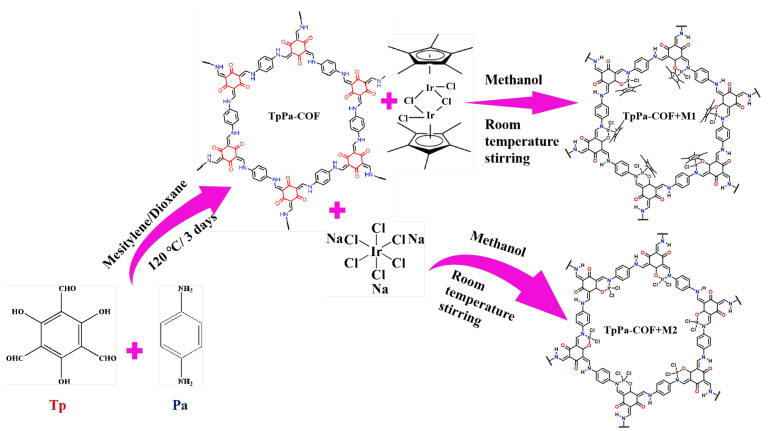

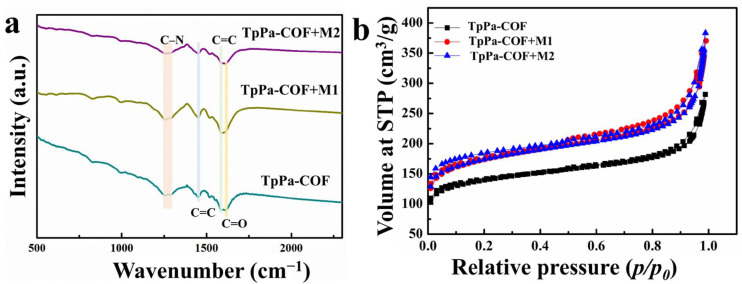

The urgency of reducing pollution and developing clean energy storage requires efficient photocatalytic hydrogen evolution (PHE) tactics. To improve solar conversion efficiency, it is highly imperative to accelerate the photocarriers separation and transport through materials design. A stable hydrogen evolution photocatalyst based on TpPa-COFs (triformylphloroglucinol phenylenediamine covalent organic frameworks) was developed by a molecular-level design strategy. The study successfully introduced a molecular-scale Ir active site onto the surface of TpPa-COFs via coordination bonds. It verified the structural integrity of TpPa-COFs and the existence of Ir through the basic structural characterizations, such as Fourier transform infrared spectroscopy (FT-IR), X-ray photoelectron spectroscopy (XPS), and transmission electron microscopy (TEM). After the Ir-based coordination compound joining, the absorption edge of TpPa-COF-M1 and TpPa-COF-M2 was extended to 750 nm. The TpPa-COF + M1 exhibited the highest photocatalytic H2 evolution rate of 662 µmol/h (10 mg catalyst) under visible-light (λ ≥ 420 nm) irradiation. The apparent quantum yield (AQY) of TpPa-COF-M1 is calculated to be 1.9%, 3.8%, 4.8%, 2.8%, 1.8%, and 0.3% at monochromatic wavelengths of 420, 450, 470, 500, 550, and 600 nm, respectively. Our findings confirm that the molecular-level design of photocatalysts can effectively boost performance and reduce cost in photocatalytic reactions and provide an important strategy for designing efficient photocatalysts.

Figures
