Investigation on the Impurity Removal Behavior During the Electron Beam Melting of V-Al Alloy
Zixin Yang, Shuaishuai Wu, Shengli Guo, Baohong Zhu, Haochen Qiu, Wei Jiang, Xuehui Yan
TL;DR
This paper studies how impurities are removed during the melting of V-Al alloy using electron beams, finding that some impurities evaporate while others concentrate.
Contribution
The study introduces a thermodynamic analysis of impurity removal behavior in V-Al alloy during electron beam melting.
Findings
Impurities like Al, Fe, Co, Ni, Cr, and Ti are effectively removed due to high evaporation coefficients.
Impurities like Si, Mo, Nb, and W increase in concentration due to low evaporation coefficients and enrichment effects.

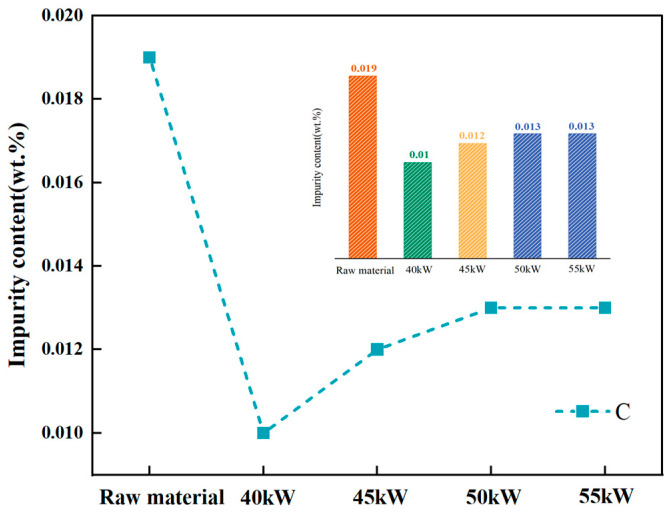

Carbon reacts with vanadium to form V2C, which is hard to remove due to its high melting point.
Abstract

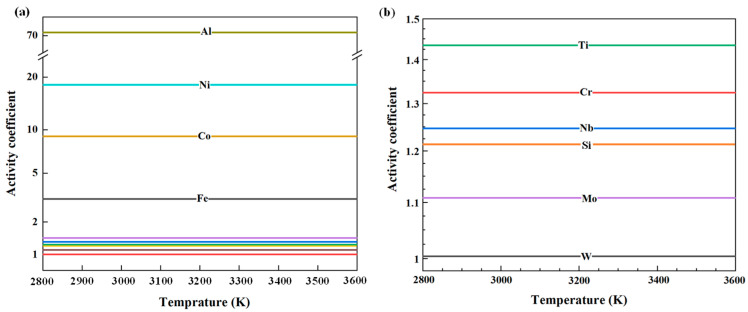

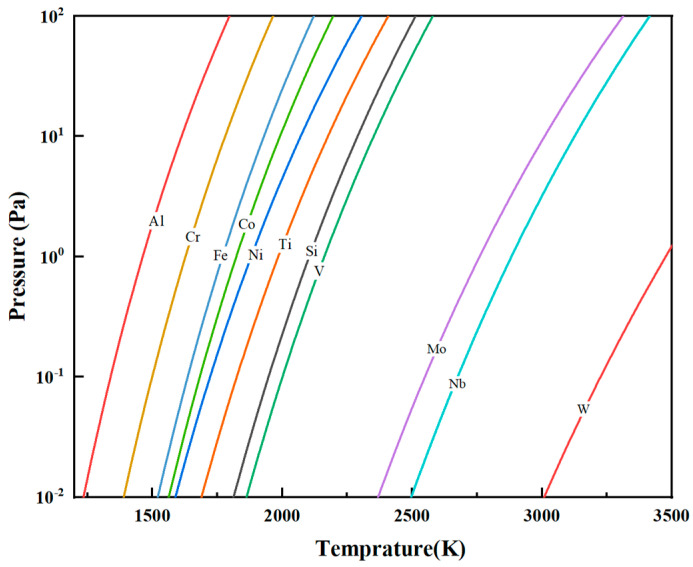

This study systematically investigated the behavior of impurity removal during the electron beam melting (EBM) process of V-Al alloy. Characterization techniques such as ICP, GDMS, SEM, EPMA, and TEM were used to analyze the composition content and microscopic element distribution of V-Al alloy and purified metal samples. Additionally, based on thermodynamic principles, the saturation vapor pressure and evaporation coefficients of impurity elements were calculated. The results indicate that the evaporation coefficients of Al, Fe, Co, Ni, Cr, and Ti exceed 1, enabling their effective removal during the melting process, thereby reducing their concentrations. In contrast, Si, Mo, Nb, and W exhibit evaporation coefficients significantly lower than 1, making their removal difficult. Instead, their concentrations increase due to the enrichment effect. Microstructural analysis reveals that Al…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1

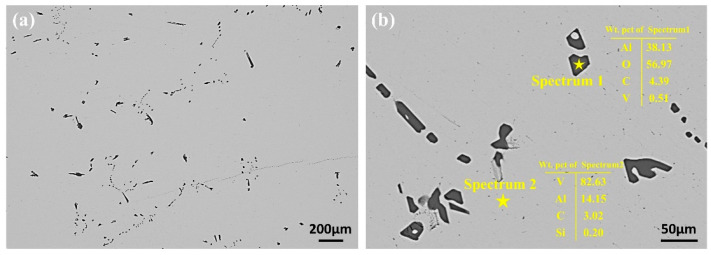

Figure 2
Figure 3
Figure 4
Figure 5
Figure 6

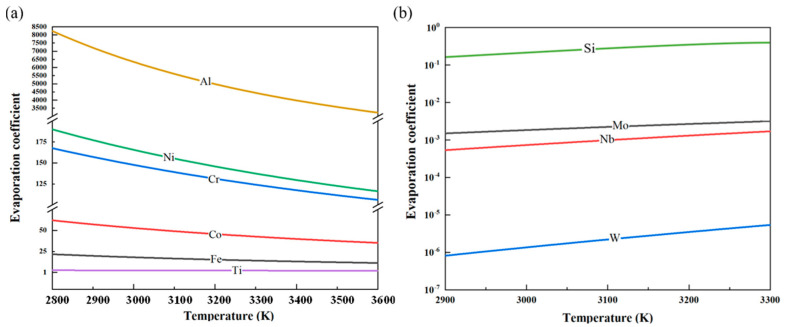

Figure 7

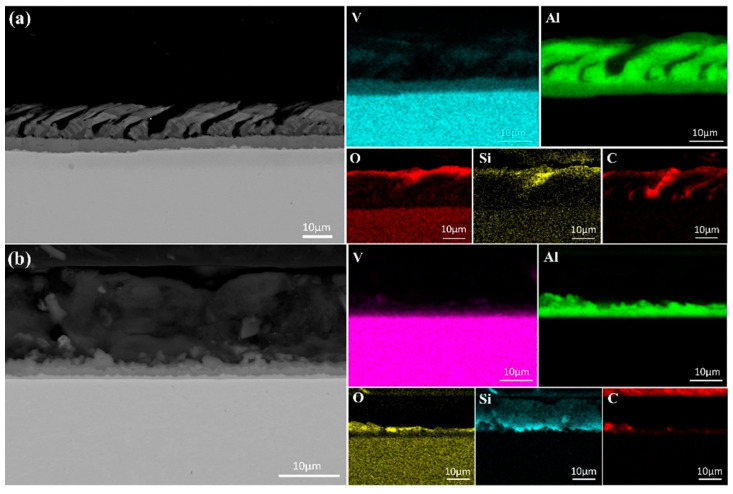

Figure 8

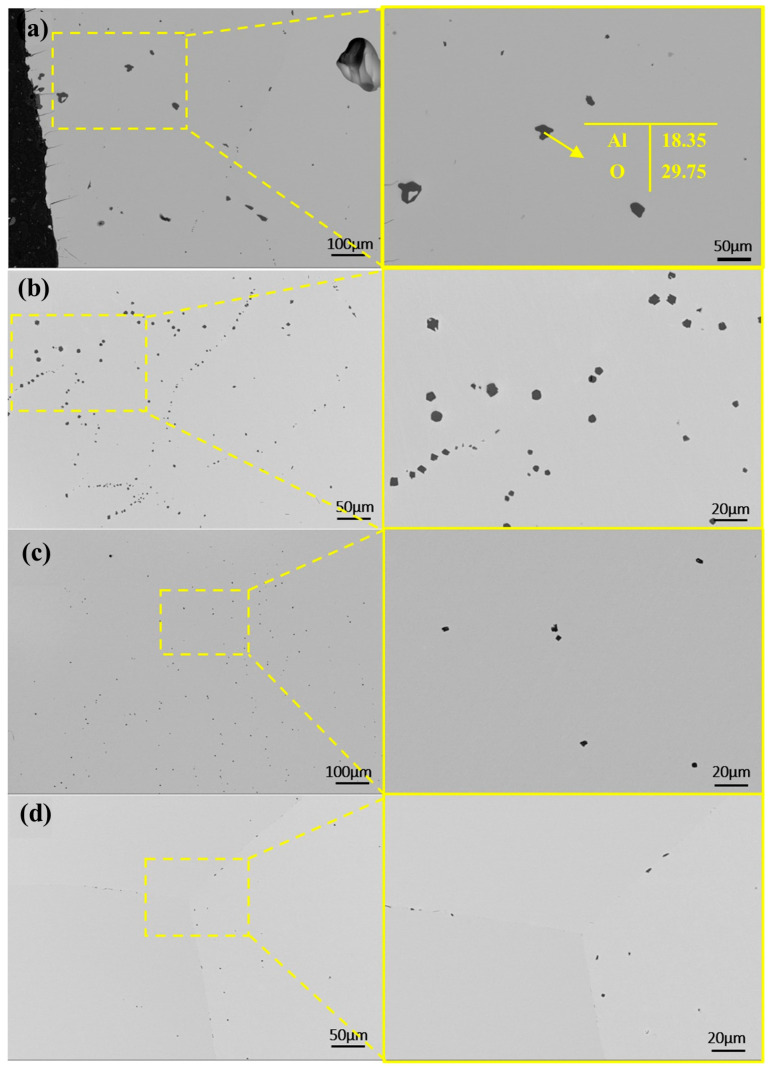

Figure 9

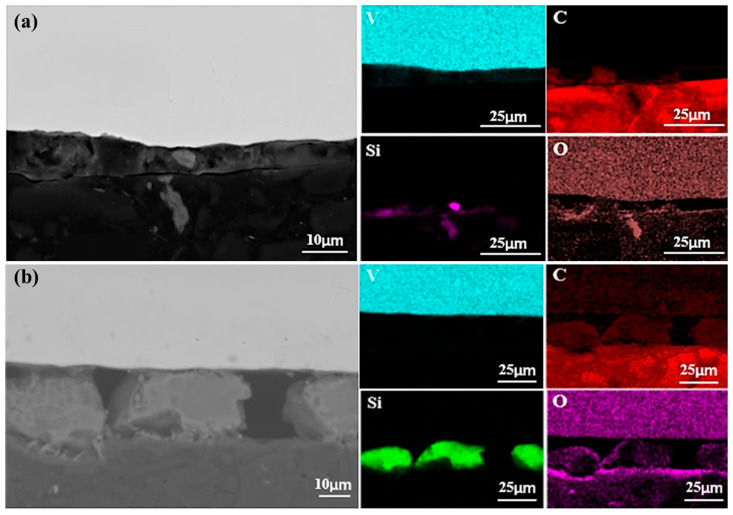

Figure 10

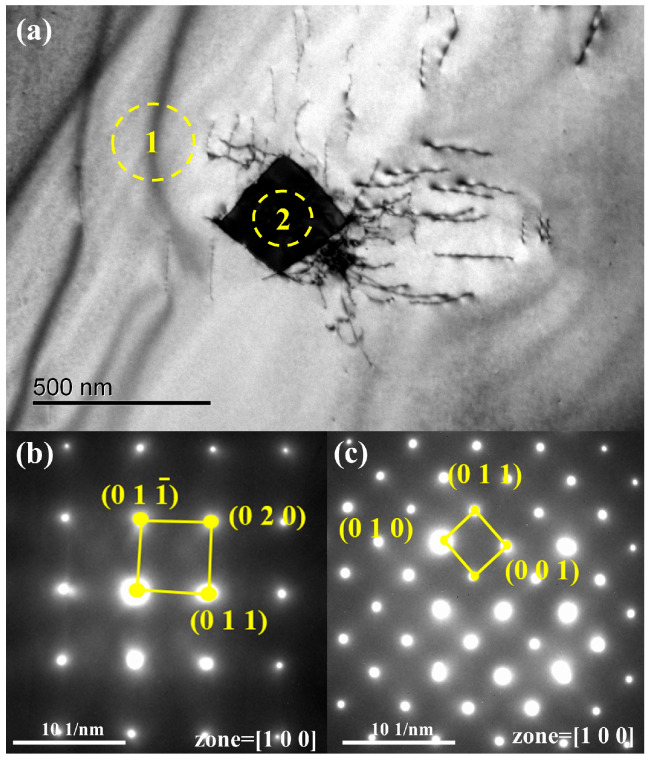

Figure 11
Figure 12
Figure 13

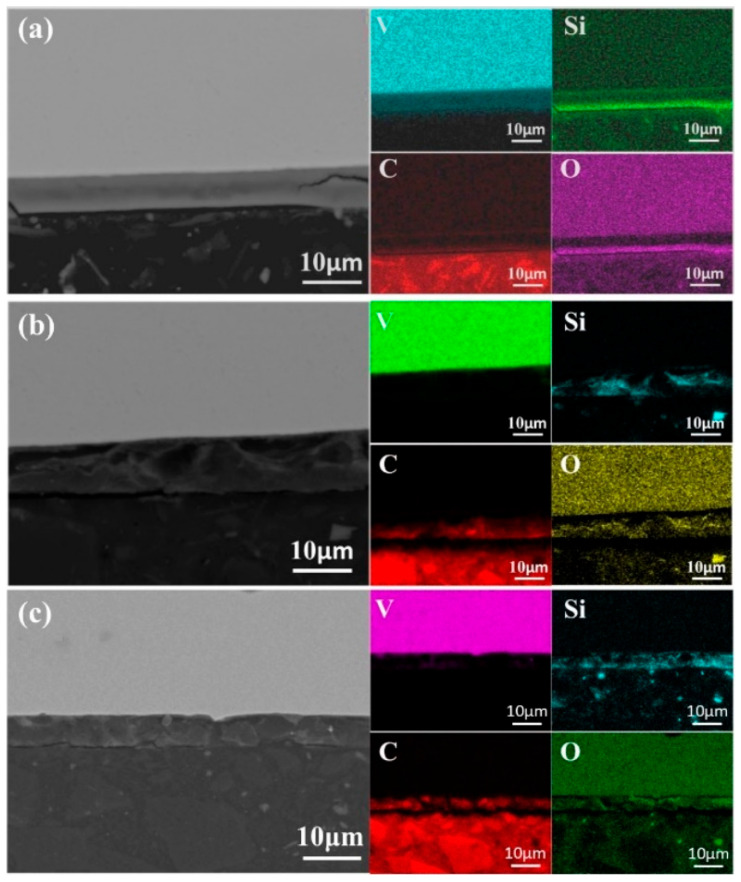

Figure 14
Figure 15Peer Reviews
