Making Synthetic 2D Graphene Oxide Nanosheets by Electrochemical Oxidation of Commercial Carbon Fibres

TL;DR

A new method produces high-quality graphene oxide nanosheets from carbon fibers, offering a sustainable alternative to mined graphite.

Contribution

A scalable and sustainable electrochemical method for synthesizing graphene oxide from commercial carbon fibers is introduced.

Findings

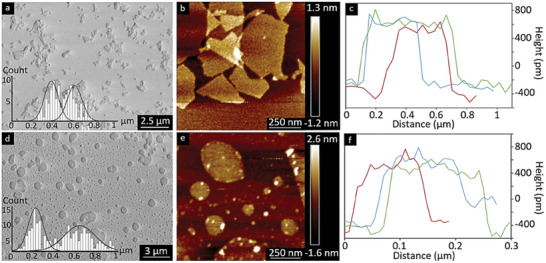

GO nanosheets have a consistent thickness of 0.9 ± 0.2 nm and circular/elliptical shapes.

A 5% nitric acid concentration optimizes exfoliation and electrochemical oxidation.

The process yields 200 mg of GO per gram of carbon fiber with high reproducibility.

Abstract

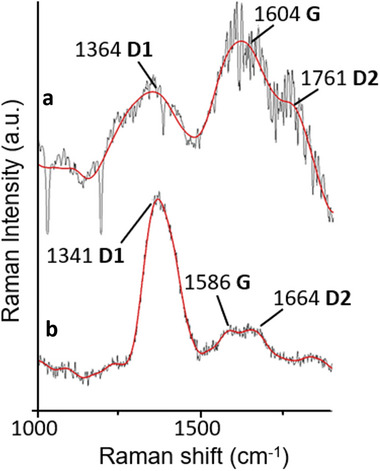

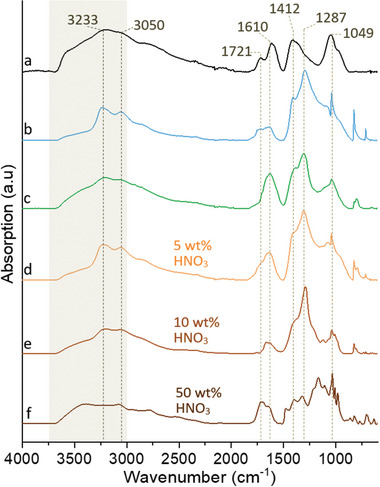

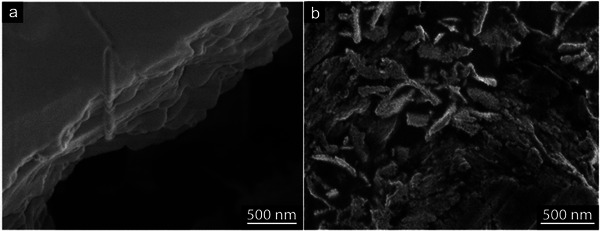

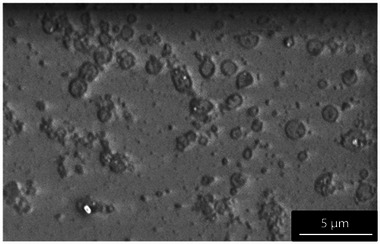

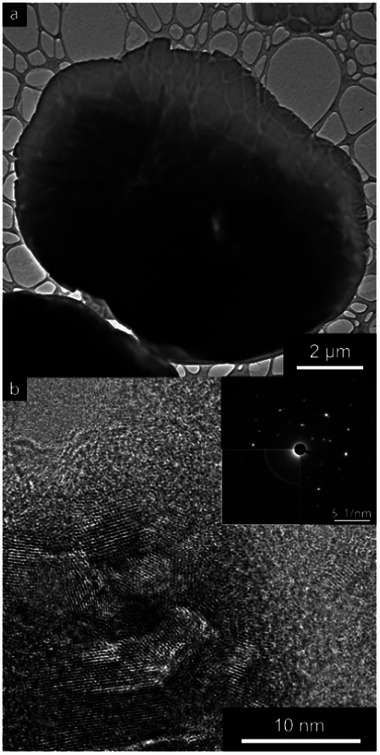

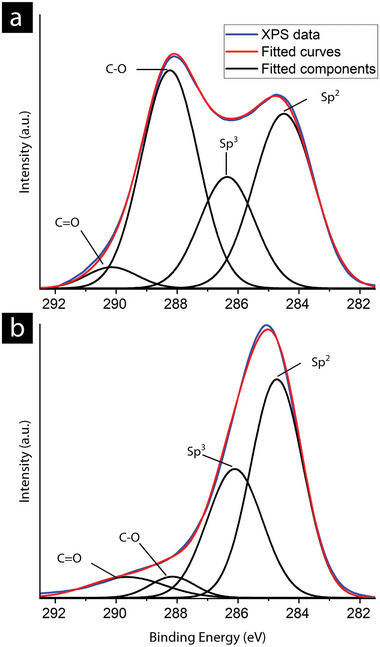

The study demonstrates a scalable and reproducible method for synthesising graphene oxide (GO) nanosheets from commercial carbon fibres derived from carbonised polyacrylonitrile (PAN) polymer. An exfoliation route with nitric acid allows for the preparation of monolayer GO nanosheets with a consistent thickness of 0.9 ± 0.2 nm, identical to the commercially available GO from mined graphite. The GO nanosheets exhibit distinct circular and elliptical shapes, in contrast to the polygonal and sharp‐edged morphology of commercial GO. An extensive evaluation of acidic solutions and electrical potentials identified a narrow processing window critical for obtaining GO nanosheets sized 0.1–1 µm. An unexpectedly low 5% acid concentration was found to be the most effective, providing a balance between efficient exfoliation through synergistic acidic and electrochemical oxidation. The process provides a high yield of 200 mg of GO per gram of carbon fibre. Advanced characterisation using high‐resolution electron and atomic force microscopy (HR‐TEM/SEM/AFM), Raman spectroscopy, X‐ray photoelectron spectroscopy (XPS), and infrared spectroscopy (FTIR) provided detailed insights into the morphology, thickness, surface functionalisation, and chemical composition of the nanosheets. With its high yield, environmentally sound production, and versatility, the synthesised GO offers transformative potential for large‐scale applications, including energy storage, advanced coatings, high‐performance composites, water purification, and electronic devices.

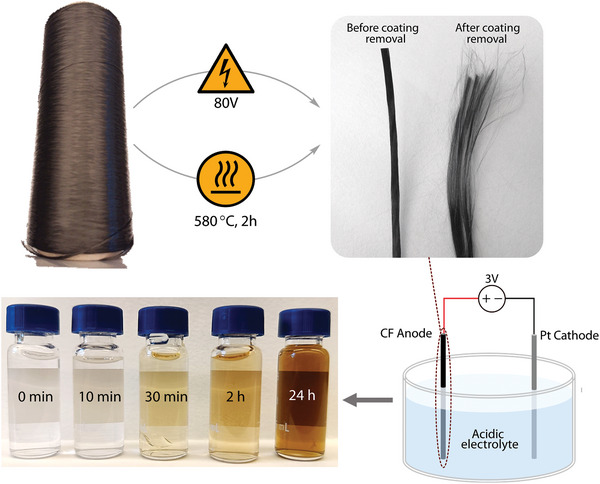

A scalable, sustainable method is presented for synthesising high‐quality graphene oxide (GO) nanosheets from carbonized polyacrylonitrile (PAN) fibres via electrochemical exfoliation in nitric acid. This method produces monolayer GO with consistent thickness (≈0.9 nm) and unique circular and oblong morphology, reducing dependence on natural graphite resources. The process achieves high yields and efficient exfoliation, making it a viable approach for industrial GO production.
