Challenges and opportunities to minimize the dose in the neurovascular bundles during prostate radiotherapy

TL;DR

This study explores ways to reduce radiation doses to neurovascular bundles during prostate cancer treatment while maintaining tumor coverage.

Contribution

The paper introduces Pareto fronts as a decision-making tool to balance neurovascular bundle sparing and target coverage in prostate radiotherapy.

Findings

Non-coplanar plans reduced doses to neurovascular bundles more effectively than coplanar plans.

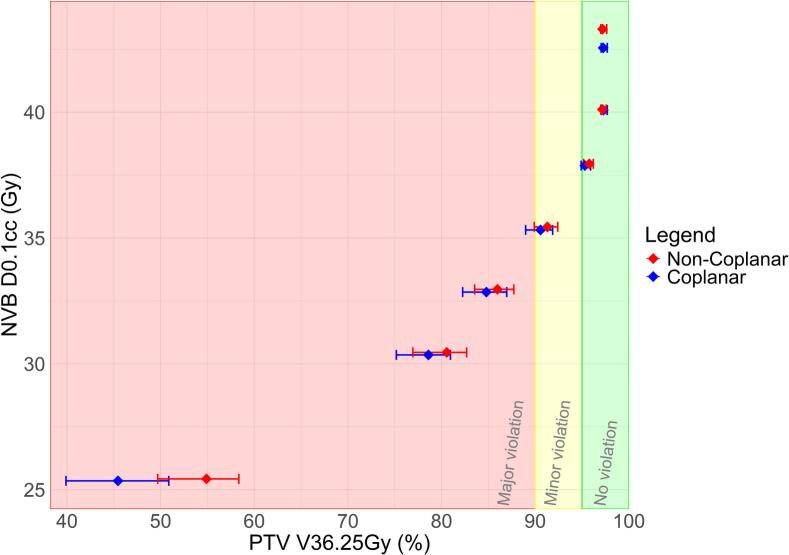

Pareto fronts visualize the trade-off between neurovascular bundle sparing and target coverage.

NVB sparing without compromising target coverage is feasible using automated treatment planning.

Abstract

•NVB sparing without compromising target coverage is feasible.•Non-coplanar compared to coplanar NVB sparing plans showed lower OAR doses, especially in more challenging treatment plans.•Eventually NVB sparing comes at the cost of target coverage, which can be visualized by a Pareto front.•Pareto frons can be used as a tool for shared decision making in clinical practice.

NVB sparing without compromising target coverage is feasible.

Non-coplanar compared to coplanar NVB sparing plans showed lower OAR doses, especially in more challenging treatment plans.

Eventually NVB sparing comes at the cost of target coverage, which can be visualized by a Pareto front.

Pareto frons can be used as a tool for shared decision making in clinical practice.

Background and purpose: Radiation damage to the neurovascular bundles (NVB) has been linked to erectile dysfunction after prostate cancer radiotherapy (PCa). NVB sparing using coplanar and non-coplanar automated treatment planning is presented here in two settings: (1) without compromising target coverage, (2) allowing target coverage compromise. Material and methods: 20 previously treated patients with localized PCa. Based on a MRI-CT match, the NVB were retrospectively delineated. All treatment plans (5 × 7.25 Gy) were automatically generated using Erasmus-iCycle (in-house automated treatment planning algorithm). Non-NVB sparing (non-NVBsparing) plans and NVB sparing plans in two settings were generated: (1) uncompromised NVB sparing (u-NVBsparing; maintaining target coverage) (2) and compromised NVB sparing (c-NVBsparing; allowing target underdosage). Coplanar and non-coplanar beam arrangements were compared. U-NVBsparing was compared to non-NVBsparing. C-NVBsparing plans were visualized in Pareto fronts. Statistical significance (p-value < 0.05) was determined by Wilcoxon signed-rank test. Results: u-NVBsparing compared to non-NVBsparing plans showed statistically significant median reductions in NVB D0.1 cc (38.9 vs 42.6 Gy for coplanar; 38.9 vs 43.3 Gy for non-coplanar) and Dmean (25.6 vs 30.0 Gy for coplanar; 24.7 vs 30.2 Gy for noncoplanar). Further lowering NVB D0.1 cc in c-NVBsparing plans clearly correlated to lower target coverage. Non-coplanar c-NVBsparing plans maintained significantly higher target coverages for similar NVB D0.1 cc values, compared to coplanar plans. Conclusion: NVB sparing without compromising target coverage is feasible. No clinically relevant benefit was found for non-coplanar compared to coplanar NVB sparing plans, although overall statistically superior. Further sparing of the NVB comes at the cost of target coverage, for which a Pareto front could be used as a tool in clinical practise.

Figures
