The genome sequence of the Common Pochard, Aythya ferina (Linnaeus, 1758)
Michelle F. O’Brien, Rosa Lopez Colom, Kritika M Garg, Leif Andersson
TL;DR
This paper provides the genome sequence of the Common Pochard, a bird species, including detailed assembly of its chromosomes and mitochondrial DNA.
Contribution
The study presents a high-quality genome assembly of Aythya ferina, including chromosomal pseudomolecules and mitochondrial genome.
Findings
The genome assembly includes two haplotypes with lengths of 1,252.30 and 1,103.59 megabases.
Haplotype 1 is scaffolded into 41 chromosomal pseudomolecules, including W and Z sex chromosomes.
The mitochondrial genome is assembled with a length of 16.6 kilobases.
Abstract
We present a genome assembly from a female specimen of Aythya ferina (Common Pochard; Chordata; Aves; Anseriformes; Anatidae). The assembly contains two haplotypes with total lengths of 1,252.30 megabases and 1,103.59 megabases. Most of haplotype 1 (92.13%) is scaffolded into 41 chromosomal pseudomolecules, including the W and Z sex chromosomes. Haplotype 2 was assembled to scaffold level. The mitochondrial genome has also been assembled, with a length of 16.6 kilobases.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5| Project information | |||
|---|---|---|---|
|
| Aythya ferina (common pochard) | ||
|
| PRJEB73425 | ||
|
|
| ||
|
| SAMEA112468034 | ||
|
| 219593 | ||
| Specimen information | |||
|
|
|
|
|
|
| bAytFer1 | SAMEA112468066 | muscle |
|
| bAytFer1 | SAMEA112468066 | muscle |
|
| bAytFer1 | SAMEA112468071 | muscle |
| Sequencing information | |||
|
|
|
|
|
|
| ERR12723486 | 8.44e+08 | 127.5 |
|
| ERR12721072 | 2.45e+06 | 25.9 |
|
| ERR12721070 | 2.15e+06 | 21.56 |
|
| ERR12721071 | 7.80e+06 | 90.37 |
|
| ERR12723487 | 5.46e+07 | 8.24 |
| Genome assembly | Haplotype 1 | Haplotype 2 |
|---|---|---|
| Assembly name | bAytFer1.hap1.1 | bAytFer1.hap2.1 |
| Assembly accession | GCA_964211825.1 | GCA_964211795.1 |
| Assembly level | chromosome | scaffold |
| Span (Mb) | 1,252.30 | 1,103.59 |
| Number of contigs | 1,335 | 767 |
| Number of scaffolds | 861 | 362 |
| Assembly metrics
| Haplotype 1 | Haplotype 2 |
| Contig N50 length (≥ 1 Mb) | 4.15 Mb | 4.45 Mb |
| Scaffold N50 length (= chromosome N50) | 79.84 Mb | 77.42 Mb |
| Consensus quality (QV) (≥ 40) | 59.8 | 61.0 |
|
| 92.76% | 85.43% |
| Combined
| 99.68% | |
| BUSCO** (S > 90%; D < 5%) | C:96.9%[S:96.1%,D:0.8%],
| - |
| Percentage of assembly mapped to
| 92.13% | Scaffold-level |
| Sex chromosomes (localised homologous
| W and Z | - |
| Organelles (one complete allele) | Mitochondrial genome:
| - |
| INSDC
| Name | Length
| GC% |
|---|---|---|---|
| 1 | 207.52 | 40 | |
| 2 | 161.71 | 40 | |
| 3 | 120.4 | 40 | |
| 4 | 79.84 | 40 | |
| 5 | 65.54 | 41.5 | |
| 6 | 42.01 | 41.5 | |
| 7 | 37.95 | 41.5 | |
| 8 | 33.73 | 42 | |
| 9 | 28.45 | 43 | |
| 10 | 23.6 | 43 | |
| 11 | 23.25 | 43 | |
| 12 | 22.18 | 42 | |
| 13 | 21.48 | 42.5 | |
| 14 | 20.32 | 44.5 | |
| 15 | 17.8 | 44.5 | |
| 16 | 16.69 | 45.5 | |
| 17 | 16.07 | 45.5 | |
| 18 | 13.34 | 47 | |
| 19 | 13.16 | 46.5 | |
| 20 | 12.1 | 48 | |
| 21 | 8.61 | 47.5 | |
| 22 | 7.85 | 48.5 | |
| 23 | 7.79 | 50.5 | |
| 24 | 7.61 | 50.5 | |
| 25 | 6.96 | 51.5 | |
| 26 | 6.48 | 51.5 | |
| 27 | 5.99 | 48.5 | |
| 28 | 3.78 | 55.5 | |
| 29 | 3.22 | 57.5 | |
| 30 | 2.36 | 52.5 | |
| 31 | 2.27 | 49 | |
| 32 | 1.96 | 49.5 | |
| 33 | 1.68 | 55 | |
| 34 | 1.51 | 53 | |
| 35 | 0.99 | 60 | |
| 36 | 0.72 | 55.5 | |
| 37 | 0.54 | 60.5 | |
| 38 | 0.52 | 63 | |
| 39 | 0.39 | 59 | |
| W | 19.38 | 45.5 | |
| Z | 85.92 | 40 | |
| MT | 0.02 | 48.5 |
| Software tool | Version | Source |
|---|---|---|
| BEDTools | 2.30.0 |
|
| BLAST | 2.14.0 |
|
| BlobToolKit | 4.3.9 |
|
| BUSCO | 5.5.0 |
|
| bwa-mem2 | 2.2.1 |
|
| Cooler | 0.8.11 |
|
| DIAMOND | 2.1.8 |
|
| fasta_windows | 0.2.4 |
|
| FastK | 666652151335353eef2fcd58880bcef5bc2928e1 |
|
| Gfastats | 1.3.6 |
|
| GoaT CLI | 0.2.5 |
|
| Hifiasm | 0.19.8-r603 |
|
| HiGlass | 44086069ee7d4d3f6f3f0012569789ec138f42b84aa44357826c0b6753eb28de |
|
| MerquryFK | d00d98157618f4e8d1a9190026b19b471055b22e |
|
| Minimap2 | 2.24-r1122 |
|
| MitoHiFi | 3 |
|
| MultiQC | 1.14, 1.17, and 1.18 |
|
| Nextflow | 23.10.0 |
|
| PretextView | 0.2.5 |
|
| samtools | 1.19.2 |
|
| sanger-tol/ascc | - |
|
| sanger-tol/blobtoolkit | 0.5.1 |
|
| Seqtk | 1.3 |
|
| Singularity | 3.9.0 |
|
| TreeVal | 1.2.0 |
|
| YaHS | 1.2a.2 |
|
- —Wellcome Trust
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsGenomics and Phylogenetic Studies · Genetic diversity and population structure · RNA and protein synthesis mechanisms
Species taxonomy
Eukaryota; Opisthokonta; Metazoa; Eumetazoa; Bilateria; Deuterostomia; Chordata; Craniata; Vertebrata; Gnathostomata; Teleostomi; Euteleostomi; Sarcopterygii; Dipnotetrapodomorpha; Tetrapoda; Amniota; Sauropsida; Sauria; Archelosauria; Archosauria; Dinosauria; Saurischia; Theropoda; Coelurosauria; Aves; Neognathae; Galloanserae; Anseriformes; Anatidae; Aythyinae; Aythya; Aythya ferina (Linnaeus, 1758) (NCBI:txid219593)
Background
The common pochard ( Aythya ferina) is a stocky diving duck. The male has a dark chestnut coloured head, black chest and tail with a grey body. The female is mainly grey-brown in colour. The bill is blue/grey with a black tip and base in both sexes although slightly duller in the female. The males also have an eclipse moult where they appear more similar to the females ( Ogilvie, 2010), with the dull, camouflaged feathers that they temporarily develop after moulting. Their wingspan is 72–82 cm and both sexes have distinctive pale grey wing bars ( BirdLife International, 2024). Male pochard have bright red eyes – the colour in the iris comes from blood vessels and pigments (e.g. carotenoids) and signals them as an attractive mate to the females ( Birdlife International, 2024).
Average clutch size is 8 to 10 eggs, with an incubation period of ~25 days and fledging usually occurs between 55 and 60 days of age ( Ogilvie, 2010). Pochards also exhibit facultative brood parasitism wherein the female may lay eggs in the nest of another bird that may or may not be the same species. The lifespan is up to 15 years of age ( Birdlife International, 2024).
The usual habitat of this species is large lakes, slow rivers and ponds edged with reeds. It will also occasionally use large open water areas and occasionally estuaries during the winter months ( Ogilvie, 2010).
Feeding normally takes place at depths in the range 1.5–3 m and dives can last up to 30 seconds. Diet consists mostly of water plants but can also include seeds, invertebrates and occasionally shellfish in estuarine environments ( Ogilvie, 2010). During the breeding season there is an increase in animal material in the diet, e.g. Chironomid midge larvae, for both adults and young ( Owen, 1977).
This species is migratory, spending its breeding season in north and eastern Europe, and migrating for the winter to western, central and southern Europe, north Africa, south-east and east Asia ( Birdlife International, 2024). Genetic analysis carried out by Liu et al. (2011), showed that there was only weak genetic divergence between ducks sampled in Europe and East Asia, and genetic differentiation between populations was not generally associated with geographical distance. With no evidence of genetic substructure detected in samples from European wintering grounds, their results suggest limited breeding-site fidelity, but extensive population admixture on the wintering grounds. The role of this species as a natural vector of zoonotic pathogens such as Highly Pathogenic Avian Influenza (HPAI) showed wintering grounds were potential hotspots for disease transmission.
Chromosome-level genomic analysis of this species ( Xia et al., 2024), has identified expanded gene families and positively selected genes that are likely to be associated with diving adaptations in this species required for underwater environments. Phylogenetic analysis of the mitochondrial genome of this species has also shown a close genetic relationship between A. ferina and Aythya americana ( Zhai et al., 2022).
The common pochard is listed as vulnerable both in Europe and globally in the IUCN Red list of threatened species ( BirdLife International, 2021), with a decreasing population trend due to habitat loss, climate change, overhunting and risks from lead poisoning.
Genome sequence report
Sequencing data
The genome of a specimen of Aythya ferina ( Figure 1) was sequenced using Pacific Biosciences single-molecule HiFi long reads, generating 137.83 Gb (gigabases) from 12.40 million reads. GenomeScope analysis of the PacBio HiFi data estimated the haploid genome size at 1,080.54 Mb, with a heterozygosity of 0.47% and repeat content of 9.57%. These values provide an initial assessment of genome complexity and the challenges anticipated during assembly. Based on this estimated genome size, the sequencing data provided approximately 122.0x coverage of the genome. Chromosome conformation Hi-C sequencing produced 127.50 Gb from 844.38 million reads. Table 1 summarises the specimen and sequencing information, including the BioProject, study name, BioSample numbers, and sequencing data for each technology.
Photograph of the Aythya ferina (bAytFer1) specimen used for genome sequencing.
Table 1.: Specimen and sequencing data for Aythya ferina.
Assembly statistics
The genome was assembled into two haplotypes using Hi-C phasing. Haplotype 1 was curated to chromosome level, while haplotype 2 was assembled to scaffold level. The assembly was improved by manual curation, which corrected 115 misjoins or missing joins. These interventions increased the total assembly length by 2.79%, decreased the scaffold count by 3.15%, and increased the scaffold N50 by 21.82%. The final assembly has a total length of 1,252.30 Mb in 861 scaffolds, with 474 gaps, and a scaffold N50 of 79.84 Mb ( Table 2).
Table 2.: Genome assembly data for Aythya ferina.
The snail plot in Figure 2 provides a summary of the assembly statistics, indicating the distribution of scaffold lengths and other assembly metrics. Figure 3 shows the distribution of scaffolds by GC proportion and coverage. Figure 4 presents a cumulative assembly plot, with separate curves representing different scaffold subsets assigned to various phyla, illustrating the completeness of the assembly.

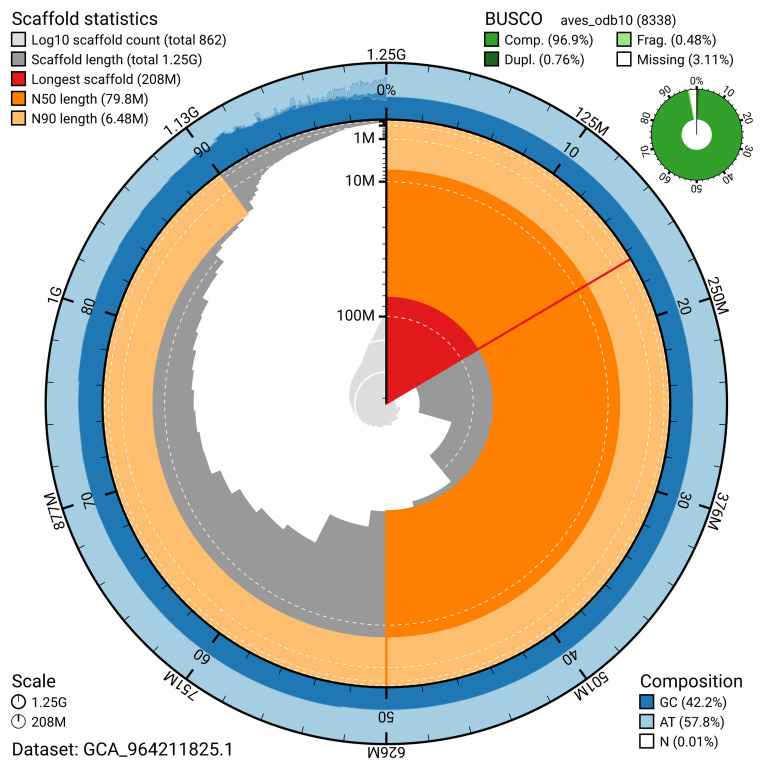

Genome assembly of Aythya ferina, bAytFer1.hap1.1: metrics.The BlobToolKit snail plot provides an overview of assembly metrics and BUSCO gene completeness. The circumference represents the length of the whole genome sequence, and the main plot is divided into 1,000 bins around the circumference. The outermost blue tracks display the distribution of GC, AT, and N percentages across the bins. Scaffolds are arranged clockwise from longest to shortest and are depicted in dark grey. The longest scaffold is indicated by the red arc, and the deeper orange and pale orange arcs represent the N50 and N90 lengths. A light grey spiral at the centre shows the cumulative scaffold count on a logarithmic scale. A summary of complete, fragmented, duplicated, and missing BUSCO genes in the aves_odb10 set is presented at the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/GCA_964211825.1/dataset/GCA_964211825.1/snail.

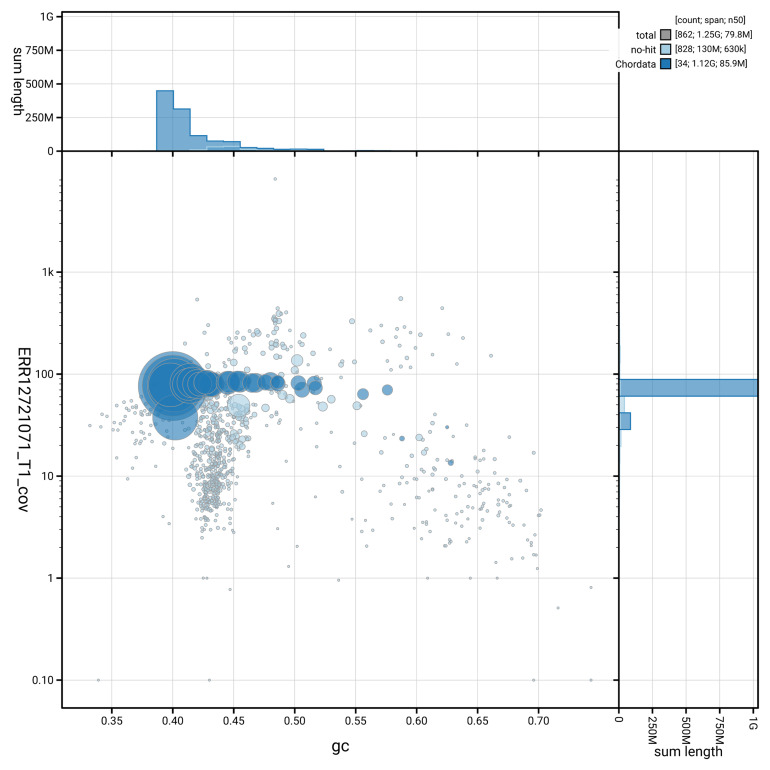

Genome assembly of Aythya ferina, bAytFer1.hap1.1: BlobToolKit GC-coverage plot.Blob plot showing sequence coverage (vertical axis) and GC content (horizontal axis). The circles represent scaffolds, with the size proportional to scaffold length and the colour representing phylum membership. The histograms along the axes display the total length of sequences distributed across different levels of coverage and GC content. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/GCA_964211825.1/blob.

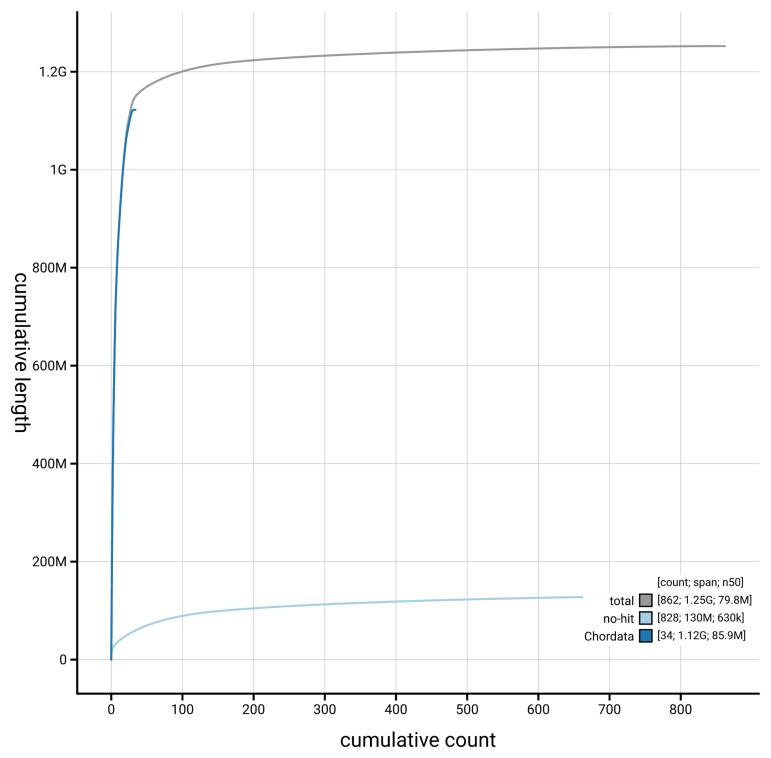

Genome assembly of Aythya ferina, bAytFer1.hap1.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/GCA_964211825.1/dataset/GCA_964211825.1/cumulative.
Most of the assembly sequence (92.13%) was assigned to 41 chromosomal-level scaffolds, representing 39 autosomes and the W and Z sex chromosomes. These chromosome-level scaffolds, confirmed by Hi-C data, are named according to size ( Figure 5; Table 3). During curation, chromosomes Z and W were assigned by read coverage.

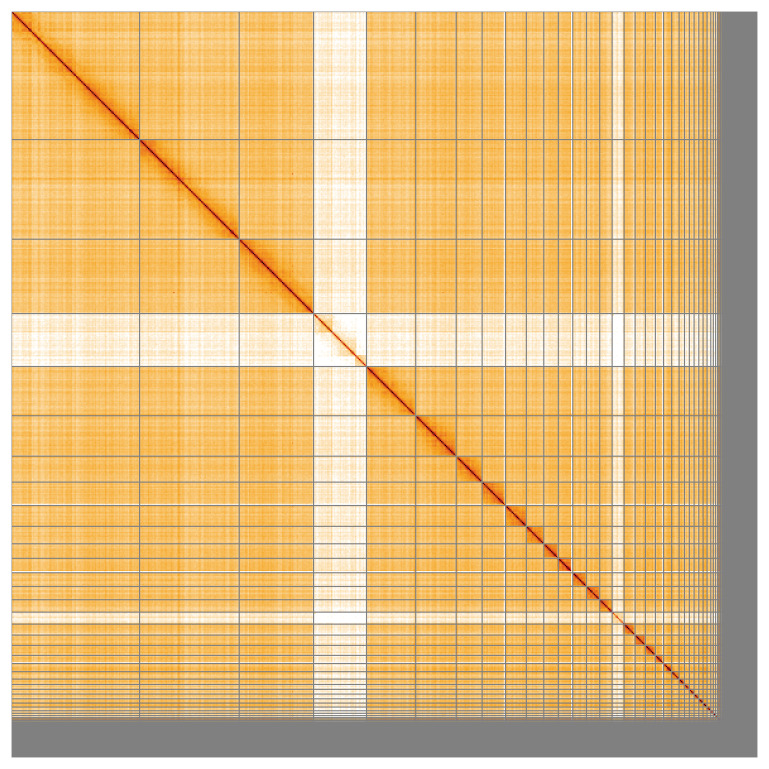

Genome assembly of Aythya ferina: Hi-C contact map of the bAytFer1.hap1.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=Sh2K5a8cTFaAk85KrGkXGw.
Table 3.: Chromosomal pseudomolecules in the genome assembly of Aythya ferina, bAytFer1.hap1.1.
The mitochondrial genome was also assembled. This sequence is included as a contig in the multifasta file of the genome submission and as a standalone record.
Assembly quality metrics
The estimated Quality Value (QV) and k-mer completeness metrics, along with BUSCO completeness scores, were calculated for each haplotype and the combined assembly. The QV reflects the base-level accuracy of the assembly, while k-mer completeness indicates the proportion of expected k-mers identified in the assembly. BUSCO scores provide a measure of completeness based on benchmarking universal single-copy orthologues.
For haplotype 1, the estimated QV is 59.8, and for haplotype 2, 61.0. When the two haplotypes are combined, the assembly achieves an estimated QV of 60.3. The k-mer recovery for haplotype 1 is 92.76%, and for haplotype 2 85.43%, while the combined haplotypes have a k-mer recovery of 99.68%. BUSCO 5.5.0 analysis using the aves_odb10 reference set ( n = 8,338) identified 96.9% of the expected gene set (single = 96.1%, duplicated = 0.8%) for haplotype 1.
Table 2 provides assembly metric benchmarks adapted from Rhie et al. (2021) and the Earth BioGenome Project (EBP) Report on Assembly Standards September 2024. The assembly achieves the EBP reference standard of 6.C.Q59.
Methods
Sample acquisition
Several small samples of pectoral muscle were taken from a wild female specimen (specimen ID NHMUK014561638, ToLID bAytFer1) found deceased and collected at WWT Arundel, West Sussex in 2021 as part of a disease surveillance programme carried out by WWT in contribution to the Great Britain Wildlife Health Partnership and stored at –20 °C.
Metadata collection for samples adhered to the Darwin Tree of Life project standards described by Lawniczak et al. (2022).
Nucleic acid extraction
The workflow for high molecular weight (HMW) DNA extraction at the Wellcome Sanger Institute (WSI) Tree of Life Core Laboratory includes a sequence of procedures: sample preparation and homogenisation, DNA extraction, fragmentation and purification. Detailed protocols are available on protocols.io ( Denton et al., 2023b). The bAytFer1 sample was prepared for DNA extraction by weighing and dissecting it on dry ice ( Jay et al., 2023). Tissue from the muscle was homogenised using a PowerMasher II tissue disruptor ( Denton et al., 2023a). HMW DNA was extracted using the Manual MagAttract protocol ( Strickland et al., 2023b). DNA was sheared into an average fragment size of 12–20 kb in a Megaruptor 3 system ( Todorovic et al., 2023). Sheared DNA was purified by solid-phase reversible immobilisation, using AMPure PB beads to eliminate shorter fragments and concentrate the DNA ( Strickland et al., 2023a). The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer using the Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system.
RNA was extracted from muscle tissue of bAytFer1 in the Tree of Life Laboratory at the WSI using the RNA Extraction: Automated MagMax™ mirVana protocol ( do Amaral et al., 2023). The RNA concentration was assessed using a Nanodrop spectrophotometer and a Qubit Fluorometer using the Qubit RNA Broad-Range Assay kit. Analysis of the integrity of the RNA was done using the Agilent RNA 6000 Pico Kit and Eukaryotic Total RNA assay.
Hi-C sample preparation and crosslinking
Tissue from the muscle of the bAytFer1 sample was processed for Hi-C sequencing at the WSI Scientific Operations core, using the Arima-HiC v2 kit. In brief, 20–50 mg of frozen tissue (stored at –80 °C) was fixed, and the DNA crosslinked using a TC buffer with 22% formaldehyde concentration. After crosslinking, the tissue was homogenised using the Diagnocine Power Masher-II and BioMasher-II tubes and pestles. Following the Arima-HiC v2 kit manufacturer's instructions, crosslinked DNA was digested using a restriction enzyme master mix. The 5’-overhangs were filled in and labelled with biotinylated nucleotides and proximally ligated. An overnight incubation was carried out for enzymes to digest remaining proteins and for crosslinks to reverse. A clean up was performed with SPRIselect beads prior to library preparation. Additionally, the biotinylation percentage was estimated using the Qubit Fluorometer v4.0 (Thermo Fisher Scientific) and Qubit HS Assay Kit and Arima-HiC v2 QC beads.
Library preparation and sequencing
Library preparation and sequencing were performed at the WSI Scientific Operations core.
** PacBio HiFi **
At a minimum, samples were required to have an average fragment size exceeding 8 kb and a total mass over 400 ng to proceed to the low input SMRTbell Prep Kit 3.0 protocol (Pacific Biosciences, California, USA), depending on genome size and sequencing depth required. Libraries were prepared using the SMRTbell Prep Kit 3.0 (Pacific Biosciences, California, USA) as per the manufacturer's instructions. The kit includes the reagents required for end repair/A-tailing, adapter ligation, post-ligation SMRTbell bead cleanup, and nuclease treatment. Following the manufacturer’s instructions, size selection and clean up was carried out using diluted AMPure PB beads (Pacific Biosciences, California, USA). DNA concentration was quantified using the Qubit Fluorometer v4.0 (Thermo Fisher Scientific) with Qubit 1X dsDNA HS assay kit and the final library fragment size analysis was carried out using the Agilent Femto Pulse Automated Pulsed Field CE Instrument (Agilent Technologies) and gDNA 55kb BAC analysis kit.
Samples were sequenced on a Revio instrument (Pacific Biosciences, California, USA). Prepared libraries were normalised to 2 nM, and 15 μL was used for making complexes. Primers were annealed and polymerases were hybridised to create circularised complexes according to manufacturer’s instructions. The complexes were purified with the 1.2X clean up with SMRTbell beads. The purified complexes were then diluted to the Revio loading concentration (in the range 200–300 pM), and spiked with a Revio sequencing internal control. Samples were sequenced on Revio 25M SMRT cells (Pacific Biosciences, California, USA). The SMRT link software, a PacBio web-based end-to-end workflow manager, was used to set-up and monitor the run, as well as perform primary and secondary analysis of the data upon completion.
** Hi-C **
For Hi-C library preparation, DNA was fragmented using the Covaris E220 sonicator (Covaris) and size selected using SPRISelect beads to 400 to 600 bp. The DNA was then enriched using the Arima-HiC v2 kit Enrichment beads. Using the NEBNext Ultra II DNA Library Prep Kit (New England Biolabs) for end repair, A-tailing, and adapter ligation. This uses a custom protocol which resembles the standard NEBNext Ultra II DNA Library Prep protocol but where library preparation occurs while DNA is bound to the Enrichment beads. For library amplification, 10 to 16 PCR cycles were required, determined by the sample biotinylation percentage. The Hi-C sequencing was performed using paired-end sequencing with a read length of 150 bp on an Illumina NovaSeq 6000 instrument.
** RNA **
Poly(A) RNA-Seq libraries were constructed using the NEB Ultra II RNA Library Prep kit, following the manufacturer’s instructions. RNA sequencing was performed on the Illumina NovaSeq 6000 instrument.
Genome assembly, curation and evaluation
** Assembly **
Prior to assembly of the PacBio HiFi reads, a database of k-mer counts ( k = 31) was generated from the filtered reads using FastK. GenomeScope2 ( Ranallo-Benavidez et al., 2020) was used to analyse the k-mer frequency distributions, providing estimates of genome size, heterozygosity, and repeat content.
The HiFi reads were assembled using Hifiasm in Hi-C phasing mode ( Cheng et al., 2021; Cheng et al., 2022), resulting in a pair of haplotype-resolved assemblies. The Hi-C reads were mapped to the primary contigs using bwa-mem2 ( Vasimuddin et al., 2019). The contigs were further scaffolded using the provided Hi-C data ( Rao et al., 2014) in YaHS ( Zhou et al., 2023) using the --break option for handling potential misassemblies. The scaffolded assemblies were evaluated using Gfastats ( Formenti et al., 2022), BUSCO ( Manni et al., 2021) and MERQURY.FK ( Rhie et al., 2020).
The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.
** Assembly curation **
The assembly was decontaminated using the Assembly Screen for Cobionts and Contaminants (ASCC) pipeline. Flat files and maps used in curation were generated via the TreeVal pipeline ( Pointon et al., 2023). Manual curation was conducted primarily in PretextView ( Harry, 2022) and HiGlass ( Kerpedjiev et al., 2018), with additional insights provided by JBrowse2 ( Diesh et al., 2023). Scaffolds were visually inspected and corrected as described by Howe et al. (2021). Any identified contamination, missed joins, and mis-joins were amended, and duplicate sequences were tagged and removed. Sex chromosomes were identified by read coverage statistics. The curation process is documented at https://gitlab.com/wtsi-grit/rapid-curation.
** Assembly quality assessment **
The Merqury.FK tool ( Rhie et al., 2020), run in a Singularity container ( Kurtzer et al., 2017), was used to evaluate k-mer completeness and assembly quality for the primary and alternate haplotypes using the k-mer databases ( k = 31) that were computed prior to genome assembly. The analysis outputs included assembly QV scores and completeness statistics.
A Hi-C contact map was produced for the final version of the assembly. The Hi-C reads were aligned using bwa-mem2 ( Vasimuddin et al., 2019) and the alignment files were combined using SAMtools ( Danecek et al., 2021). The Hi-C alignments were converted into a contact map using BEDTools ( Quinlan & Hall, 2010) and the Cooler tool suite ( Abdennur & Mirny, 2020). The contact map was visualised in HiGlass ( Kerpedjiev et al., 2018).
The blobtoolkit pipeline is a Nextflow ( Di Tommaso et al., 2017) port of the previous Snakemake Blobtoolkit pipeline ( Challis et al., 2020). It aligns the PacBio reads in SAMtools and minimap2 ( Li, 2018) and generates coverage tracks for regions of fixed size. In parallel, it queries the GoaT database ( Challis et al., 2023) to identify all matching BUSCO lineages to run BUSCO ( Manni et al., 2021). For the three domain-level BUSCO lineages, the pipeline aligns the BUSCO genes to the UniProt Reference Proteomes database ( Bateman et al., 2023) with DIAMOND blastp ( Buchfink et al., 2021). The genome is also divided into chunks according to the density of the BUSCO genes from the closest taxonomic lineage, and each chunk is aligned to the UniProt Reference Proteomes database using DIAMOND blastx. Genome sequences without a hit are chunked using seqtk and aligned to the NT database with blastn ( Altschul et al., 1990). The blobtools suite combines all these outputs into a blobdir for visualisation.
The blobtoolkit pipeline was developed using nf-core tooling ( Ewels et al., 2020) and MultiQC ( Ewels et al., 2016), relying on the Conda package manager, the Bioconda initiative ( Grüning et al., 2018), the Biocontainers infrastructure ( da Veiga Leprevost et al., 2017), as well as the Docker ( Merkel, 2014) and Singularity ( Kurtzer et al., 2017) containerisation solutions.
Table 4 contains a list of relevant software tool versions and sources.
Wellcome Sanger Institute – Legal and Governance
The materials that have contributed to this genome note have been supplied by a Darwin Tree of Life Partner. The submission of materials by a Darwin Tree of Life Partner is subject to the ‘Darwin Tree of Life Project Sampling Code of Practice’, which can be found in full on the Darwin Tree of Life website here. By agreeing with and signing up to the Sampling Code of Practice, the Darwin Tree of Life Partner agrees they will meet the legal and ethical requirements and standards set out within this document in respect of all samples acquired for, and supplied to, the Darwin Tree of Life Project.
Further, the Wellcome Sanger Institute employs a process whereby due diligence is carried out proportionate to the nature of the materials themselves, and the circumstances under which they have been/are to be collected and provided for use. The purpose of this is to address and mitigate any potential legal and/or ethical implications of receipt and use of the materials as part of the research project, and to ensure that in doing so we align with best practice wherever possible. The overarching areas of consideration are:
• Ethical review of provenance and sourcing of the material
• Legality of collection, transfer and use (national and international)
Each transfer of samples is further undertaken according to a Research Collaboration Agreement or Material Transfer Agreement entered into by the Darwin Tree of Life Partner, Genome Research Limited (operating as the Wellcome Sanger Institute), and in some circumstances other Darwin Tree of Life collaborators.
The reference list from the paper itself. Each links out to its DOI / PubMed record.
- 1Abdennur N Mirny LA : Cooler: scalable storage for Hi-C data and other genomically labeled arrays. Bioinformatics. 2020;36(1):311–316. 10.1093/bioinformatics/btz 540 31290943 PMC 8205516 · doi ↗ · pubmed ↗
- 2Allio R Schomaker-Bastos A Romiguier J : Mito Finder: efficient automated large-scale extraction of mitogenomic data in target enrichment phylogenomics. Mol Ecol Resour. 2020;20(4):892–905. 10.1111/1755-0998.13160 32243090 PMC 7497042 · doi ↗ · pubmed ↗
- 3Altschul SF Gish W Miller W : Basic Local Alignment Search Tool. J Mol Biol. 1990;215(3):403–410. 10.1016/S 0022-2836(05)80360-2 2231712 · doi ↗ · pubmed ↗
- 4Bateman A Martin MJ Orchard S : Uni Prot: the universal protein knowledgebase in 2023. Nucleic Acids Res. 2023;51(D 1):D 523–D 531. 10.1093/nar/gkac 1052 36408920 PMC 9825514 · doi ↗ · pubmed ↗
- 5Bird Life International: Aythya ferina. The IUCN red list of threatened species. 2021;2021: e.T 22680358 A 205288455. 10.2305/IUCN.UK.2021-3.RLTS.T 22680358 A 205288455.en · doi ↗
- 6Bird Life International: Common Pochard ( Aythya ferina).2024; [Accessed 8 February 2025]. Reference Source
- 7Buchfink B Reuter K Drost HG : Sensitive protein alignments at Tree-of-Life scale using DIAMOND. Nat Methods. 2021;18(4):366–368. 10.1038/s 41592-021-01101-x 33828273 PMC 8026399 · doi ↗ · pubmed ↗
- 8Challis R Kumar S Sotero-Caio C : Genomes on a Tree (Goa T): a versatile, scalable search engine for genomic and sequencing project metadata across the eukaryotic Tree of Life [version 1; peer review: 2 approved]. Wellcome Open Res. 2023;8:24. 10.12688/wellcomeopenres.18658.1 36864925 PMC 9971660 · doi ↗ · pubmed ↗
