Robustness of textural analysis features in quantitative 99 mTc and 177Lu SPECT-CT phantom acquisitions
Alastair J. Gemmell, Colin M. Brown, Surajit Ray, Alexander Small
TL;DR
This study evaluates the reliability of textural analysis features in SPECT imaging using phantoms for two radionuclides, identifying robust features for clinical use.
Contribution
The study applies adapted phantoms to assess feature robustness in SPECT for 99mTc and 177Lu, providing radionuclide-specific feature lists.
Findings
39 robust textural features were identified for 99mTc after filtering.
33 robust textural features were identified for 177Lu after filtering.
Feature selection is likely to vary between centers due to equipment and protocol differences.
Abstract
Textural Analysis features in molecular imaging require to be robust under repeat measurement and to be independent of volume for optimum use in clinical studies. Recent EANM and SNMMI guidelines for radiomics provide advice on the potential use of phantoms to identify robust features (Hatt in EJNMMI, 2022). This study applies the suggested phantoms to use in SPECT quantification for two radionuclides, 99 mTc and 177Lu. Acquisitions were made with a uniform phantom to test volume dependency and with a customised ‘Revolver’ phantom, based on the PET phantom described in Hatt (EJNMMI, 2022) but with local adaptations for SPECT. Each phantom was filled separately with 99 mTc and 177Lu. Sixty-seven Textural Analysis features were extracted and tested for robustness and volume dependency. Features showing high volume dependency or high Coefficient of Variation (indicating poor…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsRadiomics and Machine Learning in Medical Imaging · Medical Imaging Techniques and Applications · Advanced X-ray and CT Imaging
Background
In recent years the application of Textural Analysis has seen a rise across medical imaging, where it is often termed radiomics [2]. While prominent in CT and MRI, this trend has also been seen in Positron Emission Tomography (PET) imaging, where a number of papers have focussed on its use in measuring or predicting response in lung cancer [3, 4], Neuroendocrine Tumours [5–7], and a wide variety of other tumour types [8–11]. The adoption into Single Photon Emission Computed Tomography (SPECT) has been more limited. Recently joint European Association of Nuclear Medicine (EANM) and Society of Nuclear Medicine and Molecular Imaging (SNMMI) guidelines on radiomics in Nuclear Medicine [1] have been published, covering the use of Textural Analysis in both PET-CT and SPECT-CT.
Unfortunately many clinical studies have proven not to be reproducible outside of the study centre; often the chosen Textural Analysis features or multi-factorial model will not provide the same prognostic or diagnostic benefit when applied to different patient populations or using images acquired with different parameters [12, 13]. A potential cause of this lack of reproducibility is the use of non-robust features.
Testing of quantitative accuracy in SPECT would ideally be performed with custom-built and/or anthropomorphic phantoms. However, these phantoms may require specialist 3D printing equipment or be prohibitively expensive for many centres [14]. The EANM and SNMMI guidelines on radiomics advocate the use of some simpler phantoms to test potential Textural Analysis features, recommending the use of the following:
- A uniform phantom that could consist of an empty Jaszczak phantom or similar cylindrical phantom: this can be used to test the dependency on volume of Textural Analysis features.

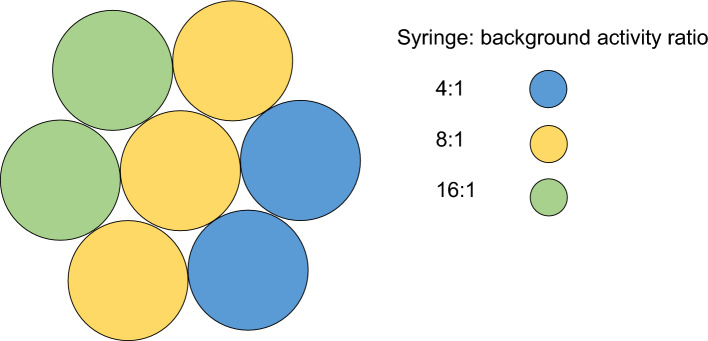

- A ‘Revolver’ phantom that can be constructed by binding together seven syringes and filling them with differing concentrations of a radionuclide to approximate an inhomogeneous lesion (based on the first demonstration of this phantom by Forgacs et al. [15]). When placed in a phantom with background activity, repeated scans of this Revolver insert can be used to test the repeatability of Textural Analysis features when applied to lesions.
While the guidelines are mostly focussed on application to PET-CT, there is a suggestion that the same phantom experiments could also be applied to quantitative SPECT: there has been increased interest in quantitative SPECT for clinical applications in recent years [16], with more accurate corrections for scatter, attenuation and resolution recovery helping to improve the accuracy of quantitative SPECT [17]. Potential clinical uses have been investigated, notably for ^177^Lu imaging and dosimetry in molecular radiotherapy [18–20], but also for a number of other radiopharmaceuticals [21–23]. However, many such quantitative SPECT studies have focussed on the more common quantitative parameters such as Standardised Uptake Values (SUV), with few SPECT studies directly investigating Textural Analysis. This work implements the use of phantom testing of Textural Analysis features for volume dependency and reproducibility in inhomogeneous lesions with quantitative SPECT imaging of two radiopharmaceuticals,^99 m^Tc and ^177^Lu, with the aim of identifying robust features for use in clinical studies.
Materials and methods
Volume dependency phantom
A uniform cylindrical phantom of height 20 cm and diameter 22 cm was filled with water (total volume = 6244 ml). The activity added was 278 MBq for ^99 m^Tc and 670 MBq for ^177^Lu, accounting for differences in photon emissions.
Revolver phantom

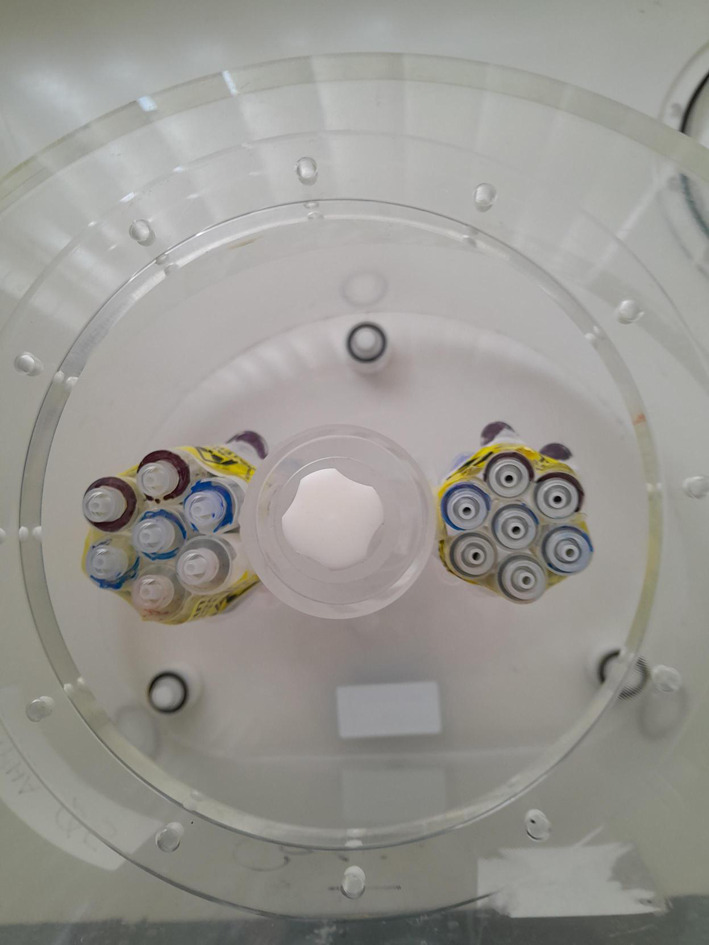

The supplementary material in the EANM/SNMMI guidelines [1] describes a methodology for the use of a Revolver phantom for PET imaging with ^18^F. Given the differences in resolution between PET and SPECT imaging, it was hypothesised that the size of syringes suggested (3 ml) may be non-optimal, and partial volume effects may dominate over inhomogeneity. Therefore, for assessment of SPECT imaging multiple Revolver inserts were created, for 2.5 ml, 5 ml, and 10 ml syringes, each consisting of 7 syringes bound together in a circular arrangement. These were filled with intended syringe: background concentrations of 4:1, 8:1 and 16:1 (Fig. 1). The filled Revolver inserts were attached to the lung insert of a National Electrical Manufacturers Association (NEMA) Image Quality phantom (Data Spectrum, NC USA) [24] and placed in the body of the phantom (Fig. 2), which was then filled with background activity of 472 MBq for ^99 m^Tc and 386 MBq for ^177^Lu. For both the ^99 m^Tc and ^177^Lu filled phantoms, four consecutive scans were acquired using the acquisition parameters detailed below.Fig. 1. Arrangement of activity in Revolver insertsFig. 2Top-down view of unfilled phantom with 2 Revolver inserts in place
Image acquisition
For both phantoms, images were acquired on a Siemens Intevo Bold gamma camera (Siemens Healthineers, Erlangen, Germany) using Low Energy High Resolution (LEHR) collimators for ^99 m^Tc and Medium Energy Low Penetration (MEGP) collimators for ^177^Lu. The camera had previously been calibrated for quantitative acquisitions for ^99 m^Tc and ^177^Lu using the Siemens BroadQuant software. Acquisitions used Acquire During Step with 64 views (128 projections) and 16 s/view. The energy window for ^99 m^Tc was 140 keV ± 15% with a lower scatter window width of 15% immediately adjacent to the primary window. The energy windows for ^177^Lu were 113 keV ± 15% (with a lower scatter window width of 15% immediately adjacent to the 113 keV window), and a second primary window of 208 keV ± 15%. Quantitative reconstruction used the Ordered Subset Conjugate Gradient method with parameters that had been optimised locally for quantitative accuracy (for ^99 m^Tc – 48 iterations, 1 subset and 5 mm filtering; and for ^177^Lu-72 iterations, 1 subset and 0 mm filtering).
Feature extraction
Image analysis was performed using Lifex v6.3 [25] (www.lifexsoft.org): pixel size was 1.95 × 1.95 × 1.95 mm with discretisation to 64 bins (as recommended in [10] and [26]) and SUV range of 0–20 to give bin width of 0.3 SUV/bin (as per [26]). The choice of a fixed bin width and ~ 2 mm isotropic voxel size meets the recommendations of Hatt et al. [27], and also showed the most reproducible features in one study of PET Textural Analysis [28].
For the uniform phantom, 29 spherical Volumes of Interest (VOIs) of increasing size from 0.9 ml up to 1021 ml (diameters from 10 to 122 mm, in 4 mm increments) were placed expanding from the centre of the phantom and avoiding the phantom edges. Sixty-seven Textural Analysis features compliant with the IBSI [29] (and applicable to SPECT imaging), were extracted. The measured values were correlated against VOI volume graphically for visual interpretation.
For the Revolver phantom, VOIs using a threshold SUV of 2.5 times the background was drawn separately over each Revolver insert, from which the 67 features were extracted. The Coefficient of Variation (CoV) was measured across the four scans for each feature (and each Revolver size and radionuclide) then compared to the suggested upper threshold of 10% from the supplementary material of the EANM/SNMMI radiomics guidelines [1].
Feature reduction
It is important that any feature selected for clinical analysis should behave similarly across a range of volumes, as tumour size will vary considerably between patients and diseases. The graphs of volume dependency for each feature (supplementary material) were visually inspected to determine those features that showed non-converging behaviour (as described by Forgacs et al. [15]) and hence should be excluded from further analysis. Those features with a known or intrinsic correlation with volume (e.g. SUVs and shape-related features such as sphericity) but have been shown to have clinical value [30, 31] and are in common usage within the literature were not excluded.
Features must also be robust to repeat measurements (for example to allow confidence in assessing changes following treatment), therefore for the Revolver phantom experiment, those features that showed CoV > 10% in any Revolver insert were excluded.
Results
Volume dependency

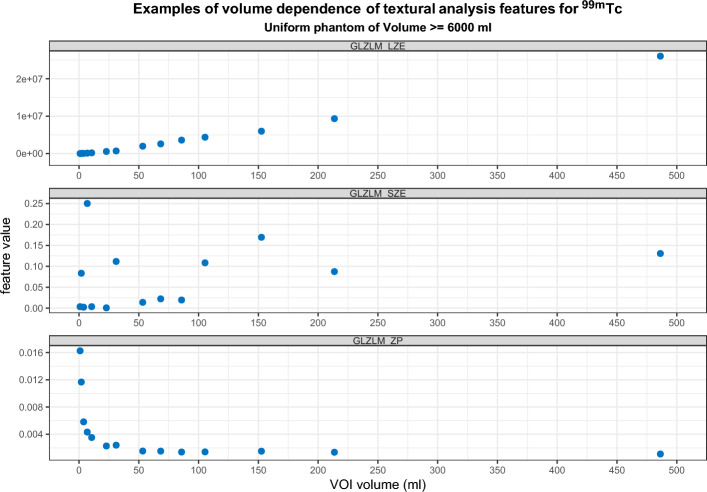

Graphs displaying the volume dependency against 67 features for both radionuclides (up to a VOI of 150 ml) are contained in the supplementary information. Forgacs et al. demonstrated three typical patterns of volume dependency [15]: Fig. 3 shows examples of these three patterns taken from this work. All converging features showed a volume dependency at volumes below approximately 25 ml (Table 1). Features that showed convergence with increasing volume were identified by visual inspection (supplementary material).Fig. 3. Examples of (top) positive correlation; (middle) random distribution; and (bottom) convergence with increasing volumeTable 1Non-converging features following volume dependency testing^99 m^Tc^177^LuSUVQ1SUV SkewnessSUVQ2SUV KurtosisSUVQ3SUV Excess KurtosisDiscretised SUVmeanDiscretised SUVminDiscretised SUVmaxDiscretised SUVmaxDiscretised TLSREDiscretised SUVQ3GLCM homogeneityDiscretised SkewnessGLCM contrastDiscretised SUVpeak 0.5 mlGLCM dissimilarityDiscretised SUVpeak 1 mlGLRLM LGREDiscretised TLSREGLRLM HGREGLRLM HGREGLRLM SRLGEGLRLM GLNUGLRLM GLNUGLRLM RLNUGLRLM RLNUNGLDM BusynessNGLDM ContrastGLZLM SZENGLDM BusynessGLZLM LZEGLZLM SZEGLZLM LGZEGLZLM LZEGLZLM HGZEGLZLM LGZEGLZLM SZLGEGLZLM HGZEGLZLM SZHGEGLZLM SZLGEGLZLM LZLGEGLZLM SZHGEGLZLM LZHGEGLZLM LZLGEGLZLM GLNUGLZLM LZHGEGLZLM ZLNUGLZLM GLNUGLRLM LREGLZLM ZLNU
Reproducibility in inhomogeneous volume

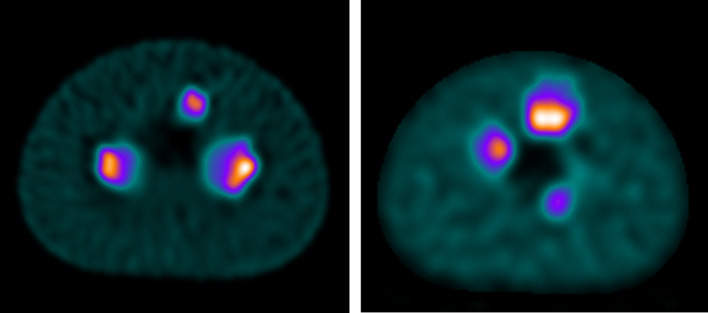

An example slice from the reconstructed images is shown in Fig. 4 for each of the radionuclides tested. The average volume of the VOI after application of thresholding is shown in Table 2.Fig. 4. Axial slices of (left) ^99 m^Tc and (right) ^177^Lu Revolver phantomsTable 2Average VOI size after application of 40% SUVmax threshold: mean ± standard deviationRevolver insert (syringe size)^99 m^Tc^177^Lu2.5 ml × 733.3 ± 0.5 ml30.3 ± 1.3 ml5 ml × 766.3 ± 1.0 ml64.0 ± 3.7 ml10 ml × 7141.0 ± 1.1 ml121.9 ± 6.7 ml
The features that exceed the 10% CoV threshold suggested by the EANM/SNMMI radiomics guidelines are summarised in Tables 3 and 4 for each Revolver insert, where multiple failures across the three Revolver sizes are emphasised.Table 3. Textural analysis features with coefficient of variation > 10% for ^99 m^TcCoV > 10% in 1 Revolver insertCoV > 10% in 2 Revolver insert2CoV > 10% in 3 Revolver insertsDiscretised SUV excess KurtosisDiscretised Histogram Excess KurtosisGLZLM LZESUV excess KurtosisGLZLM LZLGEGLZLM SZHGEGLZLM SZLGEGLZLM ZLNUNGLDM BusynessTable 4Textural analysis features with coefficient of variation > 10% for ^177^LuCoV > 10% in 1 Revolver insertCoV > 10% in 2 Revolver insert2CoV > 10% in 3 Revolver insertsCompacityDiscretised Histogram KurtosisDiscretised histogram Excess KurtosisDiscretised SUV KurtosisGLZLM SZEDiscretised SUV excess KurtosisDiscretised SUV SkewnessGLZLM SZHGEGLCM EnergyDiscretised SUVminGLZLM ZPGLZLM GLNUGLZCM contrastNGLDM BusynessGLZLM HGZEGLRLM LGRENGLDM ContrastGLZLM LGZEGLRLM LRLGESUVminGLZLM LZEGLRLM SRLGEGLZLM LZLGESUV KurtosisGLZLM SZHGESUV SkewnessGLZLM SZLGEGLZLM ZLNUSUV Excess Kurtosis
Final feature reduction
The remaining features from the volume dependency and Revolver phantoms were combined to produce a list of remaining features: these features were suggestive for future exploration in clinical studies using data acquired and reconstructed with the local parameters as listed in Table 5: it consists of 39 features for ^99 m^Tc and 33 features for ^177^Lu.Table 5. Remaining features following reduction^99 m^Tc^177^LuSUVminSUVminSUVmeanSUVmeanSUVstdSUVstdSUVmaxSUVmaxSUV SkewnessSUVQ1SUV KurtosisSUVQ2SUVpeak 0.5 mlSUVQ3SUVpeak 1.0 mlSUVpeak 0.5 mlTLSRESUVpeak 1.0 mlDiscretised SUVminTLSREDiscretised SUVstdDiscretised SUVmeanDiscretised SUVQ1Discretised SUVstdDiscretised SUVQ2Discretised SUVQ1Discretised SUVQ3Discretised SUVQ2Discretised SUV skewnessDiscretised histogram skewnessDiscretised SUV kurtosisDiscretised histogram entropy log10Discretised SUVpeak 0.5 mlDiscretised histogram entropy log2Discretised SUVpeak 1.0 mlDiscretised histogram energyDiscretised histogram energySphericityDiscretised histogram skewnessSurface areaDiscretised histogram kurtosisGLCM homogeneityDiscretised histogram entropy log10GLCM correlationDiscretised histogram entropy log2GLCM entropy log10SphericityGLCM entropy log2Surface areaGLCM dissimilarityCompacityGLRLM SREGLCM energyGLRLM SRHGEGLCM correlationGLRLM LRHGEGLCM entropy log10GLRLM RPGLCM entropy log2NGLDM coarsenessGLRLM SRENGLDM contrastGLRLM LREGLZLM ZPGLRLM SRHGEVolumeGLRLM LRLGEGLRLM LRHGEGLRLM RPNGLDM coarsenessGLZLM ZPVolume
Discussion
With the recent publication of EANM guidelines for quantitative SPECT-CT [32], there is greater emphasis on the harmonisation of quantitative SPECT-CT; though further work is needed to harmonise acquisition and reconstruction parameters in the same way that EARL accreditation aids harmonisation for PET-CT [33]. This paper confirms that the methodology outlined in EANM and SNMMI guidelines on radiomics [1] are applicable to SPECT, though the specific features selected should be confirmed by testing at other centres, due to differences in acquisition and processing parameters as well as inherent differences in camera performance that may affect reproducibility (as demonstrated in PET radiomics [34]).
For some features, a direct dependence on volume is to be expected (e.g. for surface area) although that in and of itself is not a reason for exclusion from further analysis, as it may be of clinical value. For example, two tumours may have the same volume, but an irregular-shaped lesion would have a greater surface area. This may have clinical implications: one study has proposed that the density of somatostatin receptors would be higher for such an irregular-shaped tumour, therefore somatostatin receptor radiopharmaceuticals would show greater uptake, and hence a feature such as low sphericity could be predictive [31]. Some calculated features (such as those that combine SUV and volume, for example, Total Lesion Somatostatin Receptor Expression) are also specifically constructed so as to be dependent on volume and have been shown to have predictive value in patients [35].
As well as theoretical limitations of testing and excluding features due to volume dependence (as outlined in the point above), the practical implementation of testing with spherical VOIs in an image made up of rectangular voxels also has drawbacks. The VOI will not be truly spherical, hence affecting the measurement of some features, e.g. sphericity. The pixelation will be more prominent at lower volumes and may imply a volume dependence not truly inherent to the feature. Spherical lesions are also unlikely to be delineated in clinical studies.
A study on tumoral homogeneity [36] used a mathematical framework to calculate a minimum tumour size for accurate inhomogeneity measurement in PET of 45 ml (though dependent on their assumptions in imaging parameters). They propose that this limit is not just influenced by technical factors, but also the biology of the tumour, hypothesising that smaller tumours will not have sufficient size to allow for the potential biological variations (e.g. hypoxia, necrosis) that result in inhomogeneity to exist [36]. The limitations of their minimum volume calculation, as highlighted by Hatt et al. [27] are that it was performed only for a single feature (GLCM entropy), fixed bin size quantisation was used and testing was only in 2D. It has been shown that using fixed bin width (used in this study) instead of fixed bin size is that it can reduce the correlation of features with volume [37]. A different study looking at both simulated spherical lesions and multiple cohorts of patient images found (for a limited set of features) that while a volume dependency did exist, the correlation was limited above volumes of 10 ml, and useful information could be extracted, potentially down to volumes greater than 3 ml – for example with Entropy, Dissimilarity, or Zone Percentage [10]. The work reported here did show similar results for these features, with reducing correlation with increasing volume for ^177^Lu however, the results were not replicated for ^99 m^Tc. The work here was done with spherical VOIs in a uniform phantom however and may not be directly comparable to segmented lesions in patients, as in the original study.
The importance of the number of voxels, rather than volume, is emphasised by Orlhac et al. in their guide to implementing Textural Analysis in PET [26]; they suggest a minimum of 64 voxels is required in a VOI in order to calculate robust features (for the pixel size in this study that would correspond to a minimum volume size of 0.5 ml – smaller than the VOIs used in this study).

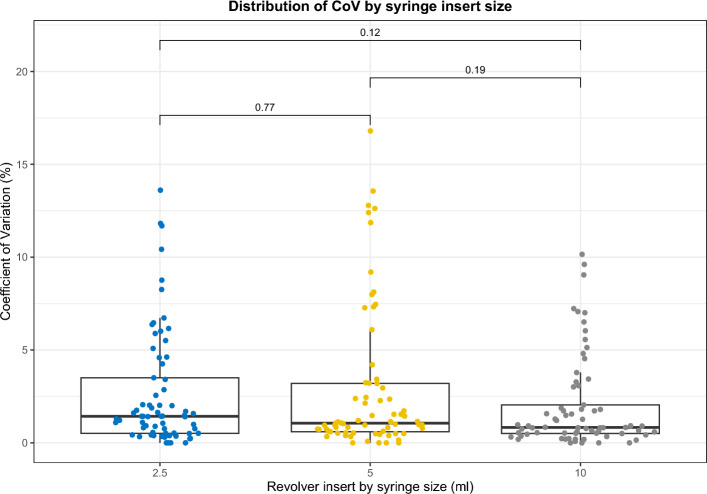

An increasing size of the Revolver insert did not appear to decrease variability in the feature values: more features exceeded the CoV threshold of 10% for the 5 ml syringes than the 2.5 ml, for both radionuclides. There was no significant difference between the distributions of CoV results for any of the three Revolver insert sizes (Fig. 5). The higher number of features exceeding CoV > 10% for ^177^Lu compared to ^99 m^Tc may be due to higher noise in the images, potentially caused by the lower frequency of gamma emissions from ^177^Lu than ^99 m^Tc, or due the differing number of iterations and post-reconstruction filtering applied in the optimised reconstructions for each radionuclide. However, results from uniform phantom acquisitions where both radionuclides were reconstructed with the same reconstruction parameters showed that ^177^Lu had a higher CoV than ^99 m^Tc (20.2% versus 14.3%, p < 0.001) and highlights the higher noise in ^177^Lu images.Fig. 5. Distribution of CoV results for ^99 m^Tc by syringe size
