Numerical Simulation of Temperature Field Distribution During Directional Annealing of TiAl Alloy with Different Parameters

TL;DR

This paper simulates how temperature distribution affects the directional annealing of TiAl alloy to grow columnar crystals.

Contribution

A bidirectional temperature gradient directional annealing process is proposed and optimized for TiAl columnar crystal growth.

Findings

Reducing graphite ring thickness and gap width flattens the α phase boundary.

Optimal parameters for α phase zone and temperature gradient are identified as 10 mm, 5 mm, 50 mm, and 50 mm.

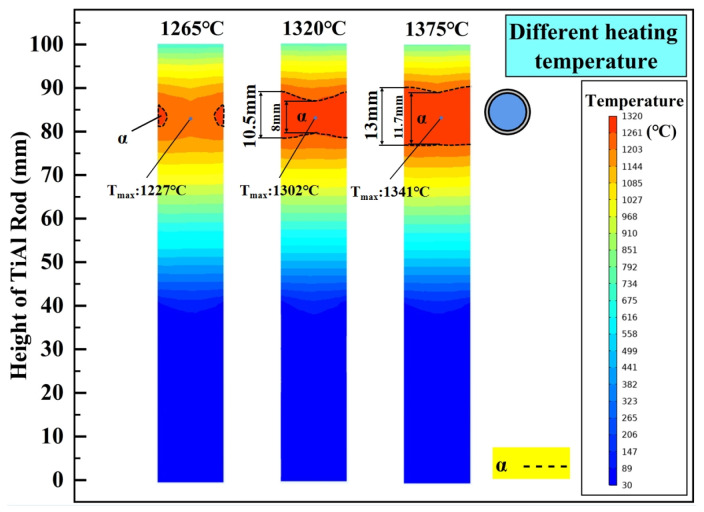

Higher heating temperatures like 1375 °C improve the temperature field for directional annealing.

Abstract

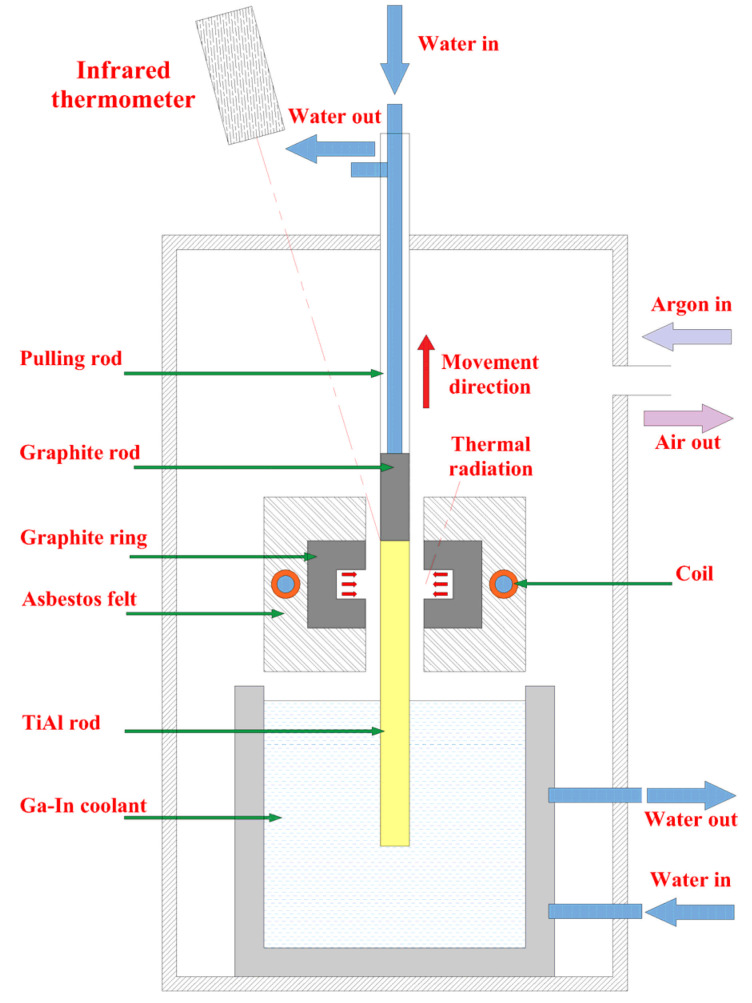

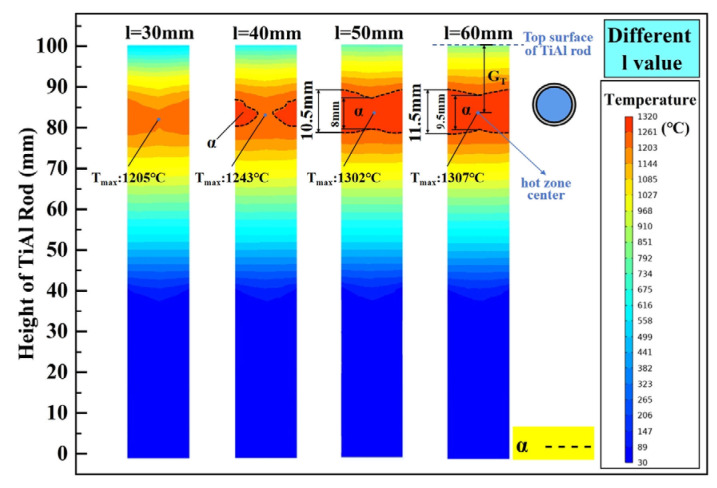

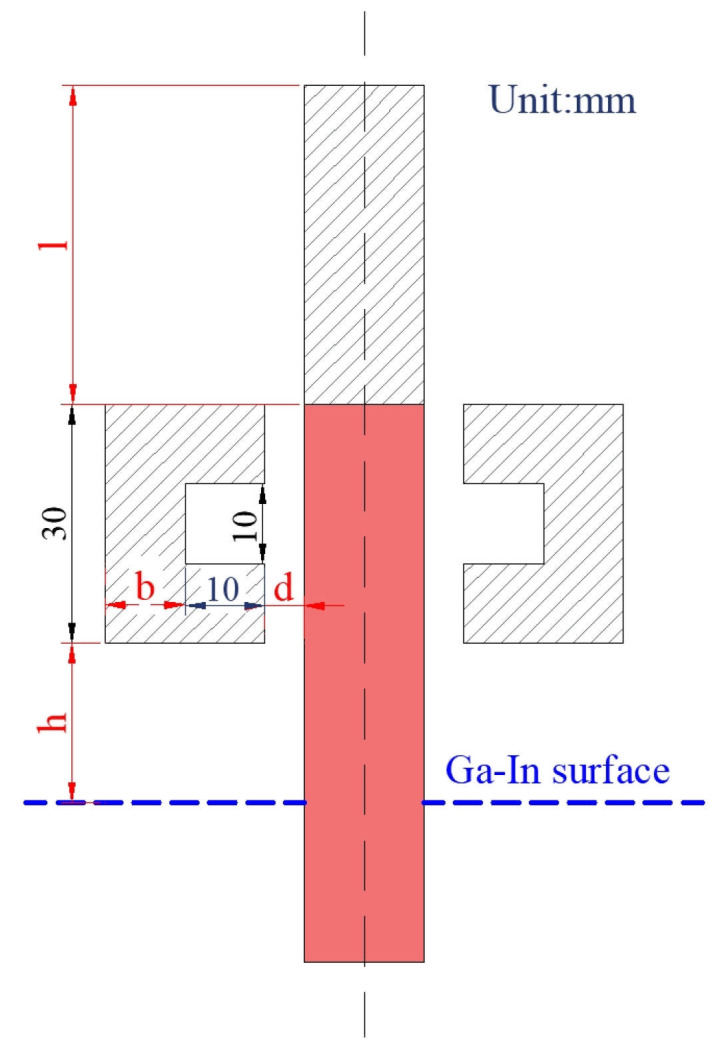

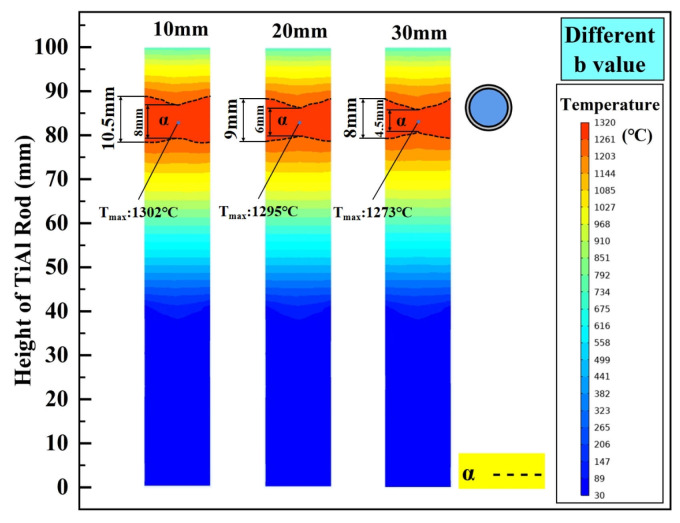

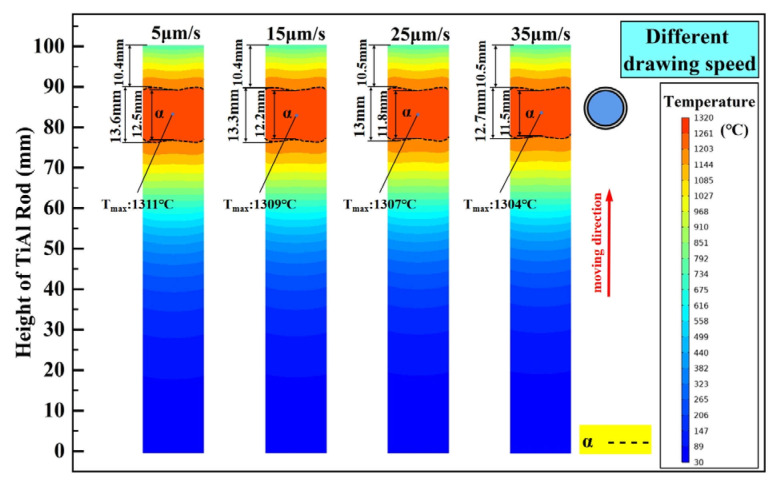

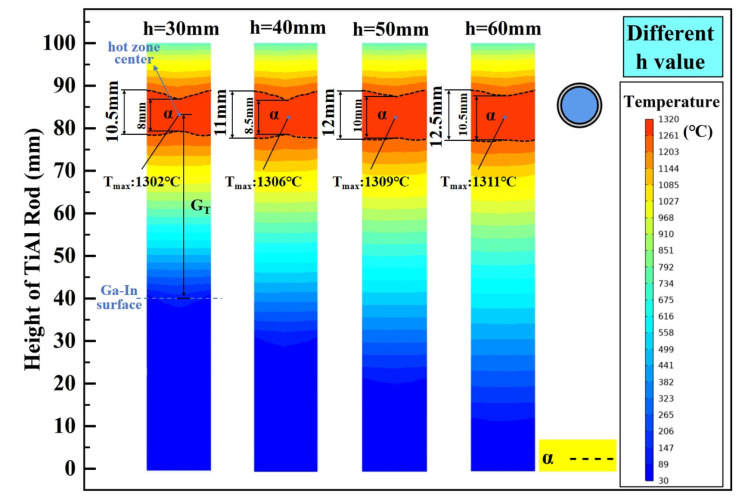

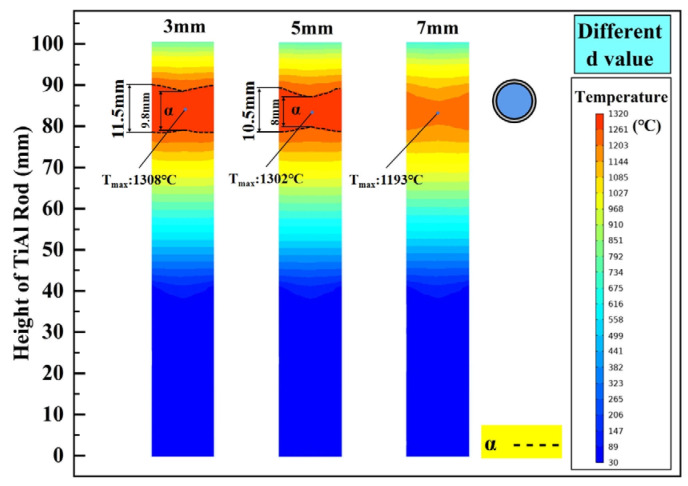

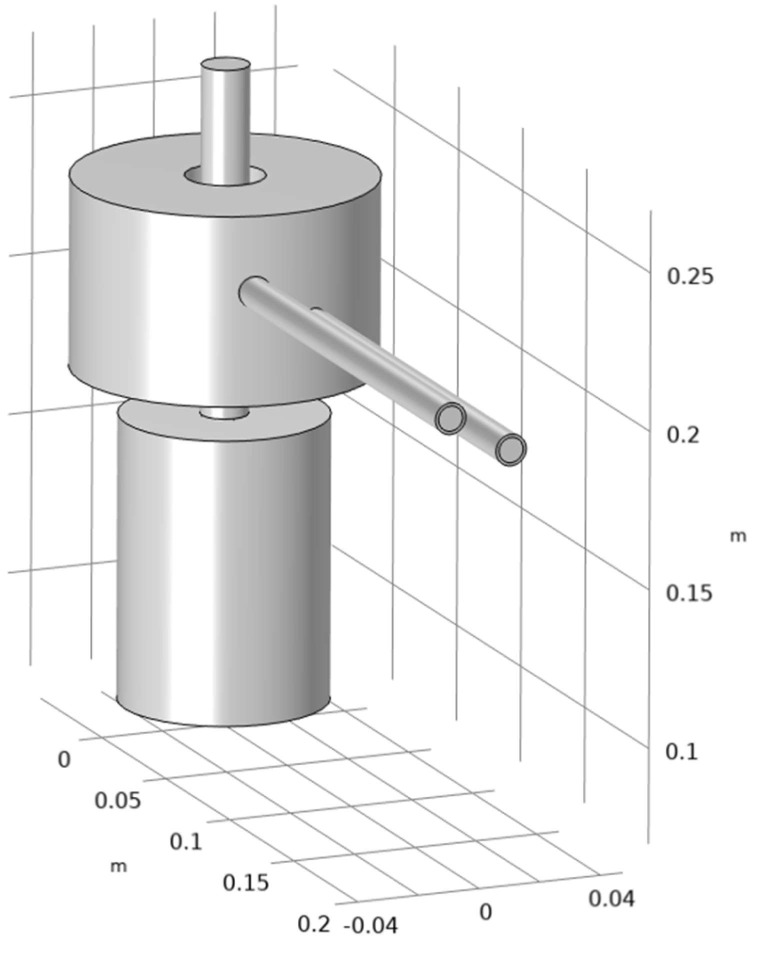

In this paper, a bidirectional temperature gradient directional annealing process for growing TiAl columnar crystals was proposed, and the influences of structural parameters and process parameters on the temperature distributions of TiAl rods were discussed through numerical simulation. The results indicate that the α phase zone is expanded and its boundary becomes planar as the thickness of graphite ring (b) and gap width (d) decrease. Increasing the graphite rod length (l) and the height of the graphite ring from the Ga-In coolant surface (h) results in an expanded α phase zone with flattened boundaries, but the temperature gradient decreases. Taking all the α phase zone height, its boundary shape, and the temperature gradient into consideration, the optimal b, d, l, and h are 10 mm, 5 mm, 50 mm, and 50 mm, respectively. The higher heating temperature within the α phase temperature range, such as 1375 °C, is favorable for the establishment of the required temperature field during directional annealing. The effect of drawing speed is more complicated. Although its effect on the temperature field of the TiAl rod is almost negligible, it will seriously affect the microstructure of the annealed alloy, and it needs to be optimized by subsequent experiments.
