Micro-CT evaluation of dentinal microcrack formation in mesiobuccal canals of maxillary molars following instrumentation with heat-treated rotary and reciprocating systems
Fatemeh Soltaninejad, Yazdan Shantiaee, Babak Zandi, Arsham Moslemi, Seyed Sepehr Mirebeigi-Jamasbi
TL;DR
This study used micro-CT scans to assess how different rotary systems affect the formation of dentinal microcracks in maxillary molars during root canal preparation.
Contribution
The study provides new empirical evidence on the formation of dentinal microcracks using heat-treated rotary and reciprocating systems in maxillary molars.
Findings
All three rotary systems caused significant increases in dentinal microcracks.
The VDW.ROTATE system showed a slightly higher percentage of cracked sections but no significant difference between systems.
No specific rotary system was found to significantly correlate with microcrack formation.
Abstract
The goal of root canal preparation is to eliminate microorganisms and debris from the root canal system, while providing space for the placement of root filling materials. However, the process can lead to the formation of dentin microcracks, increasing the risk of vertical root fractures. This study used micro-CT to evaluate the formation of dentinal microcracks following instrumentation with One Curve, EdgeOne Fire, and VDW.ROTATE systems. Thirty-three extracted maxillary molars with non-calcified Vertucci type 4 s mesiobuccal canals were included. After pre-instrumentation micro-CT scans, a single endodontist prepared the canals with three aforementioned rotary systems. Post-instrumentation scans were conducted and axial sections from both the pre- and post-preparation scans were analyzed by two blinded observers to identify newly formed microcracks. Cohen’s Kappa coefficient…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsEndodontics and Root Canal Treatments · Dental Radiography and Imaging · Dental materials and restorations
Background
The primary objective of chemo-mechanical root canal preparation is to eliminate microorganisms, pulp tissue, and debris from the root canal system while shaping the canal to provide adequate space for the placement of root filling materials. Advances in nickel-titanium (NiTi) instruments have greatly facilitated this process [1, 2]. Various manufacturers have enhanced these tools by improving key features such as flexibility and efficiency to reduce treatment time. Rotary systems for root canal preparation can be categorized into two types. The first is the multiple-file (sequential) method, where several files are used in a specific sequence to shape the canal, as seen with VDW.ROTATE system. The second method involves single-file systems, such as One Curve, which rely on a single file during preparation and are favored for their simplicity and ease of use [3].
The One Curve system is a single-file, heat-treated NiTi instrument introduced in 2018, made from C-Wire alloy. This design leverages shape memory technology, allowing the file to maintain flexibility while effectively shaping canals. It features a size 25 tip, a constant 6% taper, and variable cross-sections, transitioning from a triangular shape at the tip to an S-shaped configuration near the shaft, which is intended to optimize cutting efficiency and maintain a centered trajectory [4].
The VDW.ROTATE system, made from heat-treated Blue-wire NiTi alloy, offers a range of taper sizes tailored for narrow root canals [5]. Its design includes a coronal taper to preserve dentin and facilitate preparation in canals with limited access. The files (sizes 15/0.04, 20/0.05, and 25/0.04) feature an S-shaped cross-section, an off-centered design, and a constant taper, enhancing cutting performance and reducing canal wall stress [6].
EdgeOne Fire, a reciprocating file system constructed from FireWire NiTi alloy, is available in 21 mm, 25 mm, and 31 mm lengths. It is claimed to have five times the cyclic fatigue resistance of WaveOne Gold while being cheaper. EdgeOne Fire operates with the same reciprocating angles as WaveOne Gold, allowing users to switch easily between the two systems [7].
During root canal preparation, an amount of dentin is removed from the canal wall, which can increase the tooth’s susceptibility to root fractures [8]. Research has indicated that the process of root canal preparation may contribute to the formation of dentin microcracks within the canal walls [9]. Under masticatory and physiological forces, these microcracks can propagate and evolve into VRFs, potentially resulting in tooth loss [10]. Improper matching of the file to the canal’s anatomy can lead to uneven dentin removal, unnecessarily weakening the root structure [11]. Microscopic studies have demonstrated a correlation between root canal preparation and the formation of microcracks [10]. These microcracks are thought to arise due to lateral forces and strain exerted on the canal walls, which is particularly evident when using instruments with larger tapers or when treating teeth with significant root curvature [12].
Some studies using tooth sectioning followed by light microscopy have identified a relationship between root canal preparation with rotary instruments and the formation of microcracks in the canal walls [13, 14]. However, modern approaches recommend the use of micro-computed tomography (micro-CT) as it is a non-destructive technique, preserving tooth integrity while allowing detailed evaluation of dentin and its alterations. Due to its high precision, micro-CT is now widely used for assessing dentin microcracks following the use of rotary files [9, 15]. Discrepancies exist among the findings of various studies. For instance, Cassemiro et al., De-Deus et al., and Shantiaee et al. reported no dentin microcracks resulting from any of the preparation methods investigated, whereas Ceyhanli et al. found that the rotary files used in their study increased the incidence of microcracks [9, 15–17]. To the best of our knowledge, no previous study has evaluated microcrack formation associated with the VDW.ROTATE system or directly compared it with the One Curve and EdgeOne Fire systems.
The aim of the present study is to use micro-CT to assess the formation of new microcracks following the preparation of the second mesiobuccal canal of maxillary molars using One Curve, EdgeOne Fire, and VDW.Rotate file systems. The study includes two null hypotheses. The first one states that there is no significant dentinal microcrack formation when using the One Curve, EdgeOne Fire, and VDW.Rotate file systems. The second null hypothesis states that there is no difference in the amount of microcrack formation among these file systems.
Methods
This ex vivo study was conducted following approval by the Ethics Committee of Shahid Beheshti University of Medical Sciences (IR.SBMU.DRC.REC.1401.071). Human maxillary molars, previously extracted due to periodontal problems at the Oral and Maxillofacial Surgery Department of Shahid Beheshti Dental School, were collected from 10 January 2023 to 20 January 2023 and used for the investigation. The teeth were anonymized, and the authors did not have access to any information that could identify individual participants during or after data collection. Teeth were included if they had mesiobuccal roots with a second mesiobuccal canal classified as Vertucci type 4, with a length of 19 to 22 mm, and a canal curvature between 20 and 40 degrees. A stereomicroscope (Zeiss Stemi 305, Oberkochen, Germany) was utilized for the initial evaluation of the teeth, similar to previous studies [15, 18, 19]. The canal had to be non-calcified and able to pass a size 8 file. Teeth with immature apices, external or internal resorption, calcification, root decay, cracks, as well as those with previous root canal treatments, were excluded from the study. Based on an α of 0.05 and a power of 80%, the sample size for each group was calculated to be 11 teeth, with a total of 33 teeth included in the study. To select eligible teeth, candidate teeth stored in a 0.1% thymol solution were first prepared by separating the crowns from the roots using a diamond disc under water cooling. The roots were then examined for cracks under x12 magnification using a stereomicroscope. A size 8 K-file (Mani Inc., Tochigi, Japan) was used to determine both the working length and Vertucci canal type. To provide an artificial periodontal ligament space, similar to previous studies, a single layer of aluminum foil was wrapped around the roots before embedding them in tubes filled with acrylic resin (Kulzer, Hanau, Germany). Once the resin had set, the aluminum foil was removed, creating a space around the root. This space was then filled with silicone imoression material (GC Corporation, Tokyo, Japan), and the root was promptly repositioned in the block [17, 19]. One week prior to root canal preparation, the presence of calcification was assessed by analyzing axial sections obtained from the LOTUS inVivo device (Behin Negareh Co., Tehran, Iran), using exposure settings of 80 kV, 40 µA, with a 2-second exposure time and a resolution of 16 micrometers.
The eligible teeth were randomly assigned to the three preparation system groups, with 11 teeth in each group. In the One Curve group (Micro Mega, Besancon, France), a single-file system, after confirming canal patency with a size 8 K-file (Mani Inc., Tochigi, Japan), the One G glider file was used with continuous rotation at a speed of 250–400 rpm and a torque of 1.2 N·cm, using the X-Smart rotary motor (Dentsply Sirona, Ballaigues, Switzerland). Once the glider file reached the working length, the main file (size 25/0.06) was employed at a speed of 300–450 rpm and a torque of 2 N·cm. Each time the file entered the root canal, it was accompanied by a brushing motion along the canal walls. After three strokes, the file was removed, the debris was cleared using sterile gauze, and the canal was rinsed with 10 mL of normal saline. The file was then reinserted into the canal until it reached the working length. This process was followed for all canals. In the VDW.ROTATE group (VDW, Munich, Germany), a sequential rotary system, the same protocol as the One Curve group was used. A 15/0.04 glide path file was employed with a torque of 1.3 N·cm and a speed of 350 rpm using the X-Smart rotary motor. The enlargement file (size 20/0.05) and the main file (25/0.06) was used with a speed of 350 rpm and a torque of 2 N·cm. In the EdgeOne Fire group (Edge Endo, Albuquerque, New Mexico, USA), reverse reciprocating movements were used. The EdgeOne Fire Glide Path file acted as the glider file, and the main file was size 25/0.06. The X-Smart rotary motor, set to the WaveOne mode, was used with a speed of 350 rpm and reciprocal movements of 150 degrees counterclockwise and 30 degrees clockwise.
The canal preparation procedures were performed by an endodontist at the same time each day, with a maximum of five canals prepared daily. This approach was taken to ensure consistent application of force during preparation and to minimize the potential impact of operator fatigue on the results. Additionally, to prevent file fatigue or structural changes, each file was used for the preparation of three canals. After completing the preparation, the samples were rescanned using micro-CT with the same parameters as before preparation. Axial sections from both the pre- and post-preparation scans were examined simultaneously, similar to many previous studies assessing dentinal microcracks [9, 15–17]. Two blinded observers reviewed all sections and recorded those showing microcracks (Fig. 1).

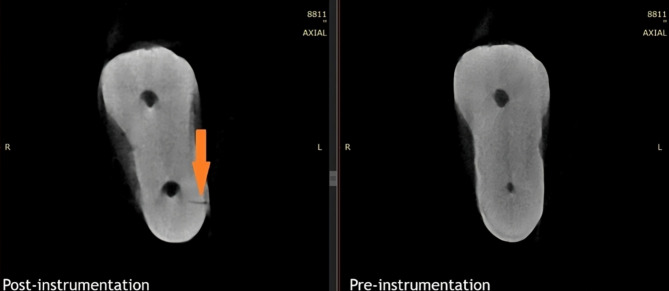

Fig. 1. Evaluation of axial micro-CT sections before and after preparation to find microcracks. The arrow indicates a microcrack in this sample

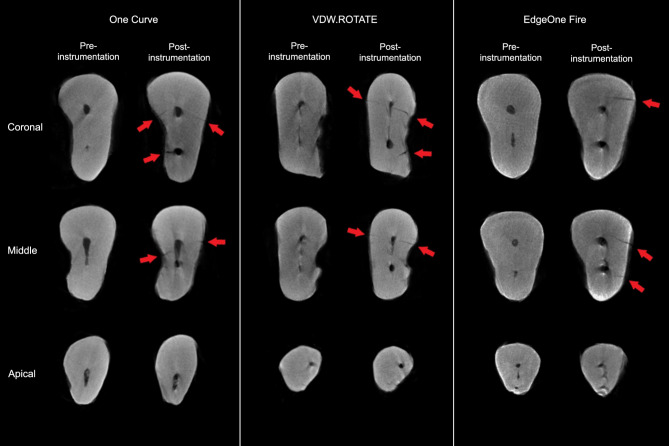

Fig. 2. Examples of micro-CT sections before and after root canal preparation for each study group. Arrows indicate the presence of microcracks
