Contrast and luminance dependence of target choice and visual orientation in walking stick insects

TL;DR

Stick insects prefer targets with high contrast and low light, using both contrast and brightness to navigate.

Contribution

The study reveals two parallel visual mechanisms—contrast-based edge orientation and luminance-based phototaxis—in stick insect navigation.

Findings

Stick insects show a strong preference for high-contrast edges but are biased toward low-luminance areas.

Early orientation is based on luminance, while steering toward high-contrast regions occurs later.

Turning toward distractors increases as the contrast of the original target decreases.

Abstract

When presented with static images, animals show robust preferences for particular visual features, and reliably turn towards and approach selected visual landmarks. In target choice paradigms, stick insects tend to approach edges with high image contrast, but also show robust orientation based on luminance alone. To better understand which stimulus features actually govern turning towards static visual targets, this study tests the relative importance of two elementary cues of spatial vision – luminance and contrast. We do so in a large open-field arena, using luminance-modulated, static 360° patterns with and without high-contrast edges. We show that target choice strongly depends on image contrast, though with a bias towards areas of low luminance. Comparison of heading directions during approach with terminal locations at the arena wall suggests an early, coarse orientation based on luminance, with subsequent steering towards high-contrast regions. When walking towards a target with high-contrast edges, the likelihood to turn away towards a Gaussian distractor image increases with decreasing edge contrast of the original target. Subjective equality of the two images occurs for an approximate 2:1 weighing of contrast and luminance, indicating that a stronger contrast-dependent edge-orientation mechanism acts in parallel with a weaker luminance-dependent phototaxis mechanism. Given the significance of stick insects as study organisms for the control of legged locomotion, future research may now test whether the two visual orientation mechanisms lead to distinct turning responses at the level of step pattern or leg movement variables.

The online version contains supplementary material available at 10.1038/s41598-025-90650-8.

Figures

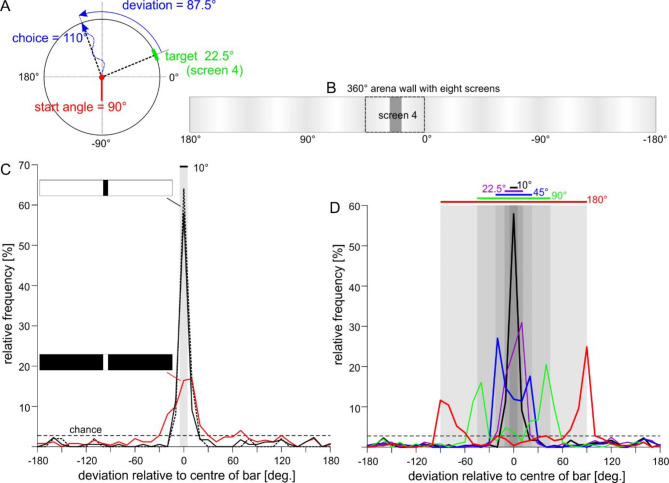

Stick insects orient towards edges. (A) Schematic of experiment 1 with a single landmark centred on the *target angle* (green). The *start angle* describes the heading of the animal at trial onset (red). The *choice angle* describes the head position at time of arrival at the arena wall (blue). The *deviation* is the difference *choice angle - target angle*. (B) The circular projection was divided into a sequence of eight screens, resulting in a periodic, low-contrast background pattern with a period of 45°. The target was always centred on one of the eight screens (e.g., on screen 4). (C) Par

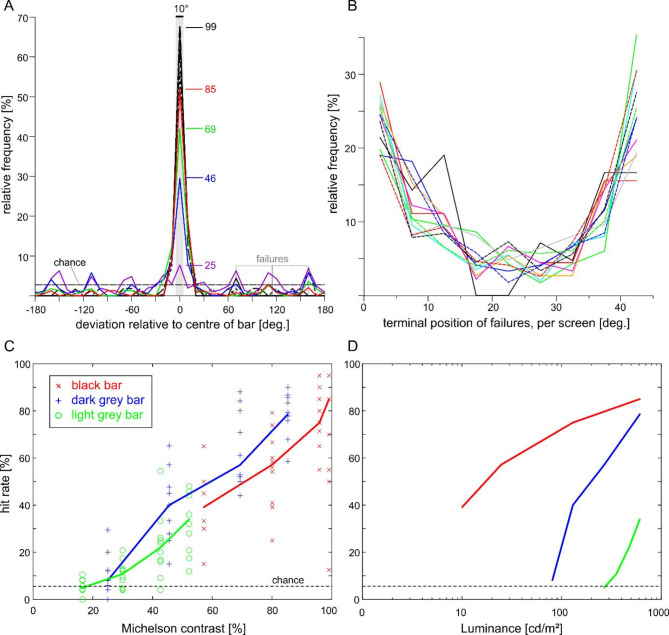

Visual orientation behaviour is governed by image contrast and modulated by luminance. Part C of experiment 1. A) Choice frequencies for a dark grey bar (48 cd/m^2^) depend on background luminance. Each colour shows the choice angle distribution of a separate cohort (*N* = 10 animals); four black lines show controls per cohort (*n* = 10 trials per cohort). Line segments with numbers indicate the Michelson contrast of the bar in front of the background). The lower the contrast, the more often animals arrived at the wall in a background sector (failure trials). Dashed horizontal line marks chanc

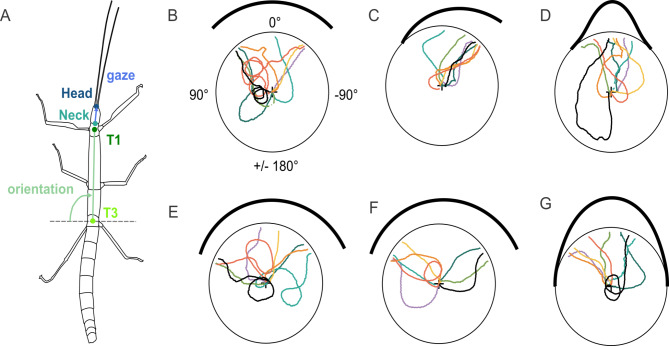

Approach trajectories for different visual stimulus patterns. (A) Body features tracked for further analysis. Green and blue lines show the axes used to compute body orientation and viewing direction, i.e. gaze angle, respectively. (B-G) Coloured lines show the prothorax (T1) trajectories of the first pattern approach of each animal (*N* = 8 per pattern, colours correspond to individual animals), with the circle representing the arena wall. Luminance of visual patterns is displayed by thick black lines such that increasing distance from the circle indicates increasing darkness (zero distance i

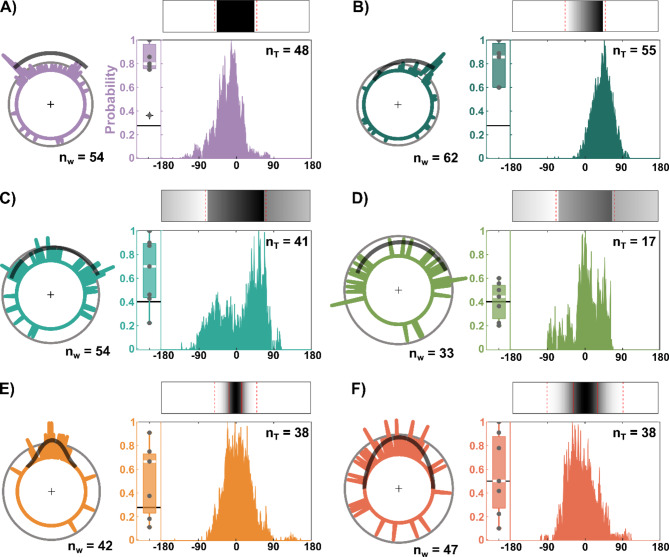

Low luminance predicts viewing direction while contrast predicts where animals reach the wall. Each panel comprises four summary graphs for a particular visual pattern: (1) Circular distributions show the final head positions of all trials that terminated at the arena wall. The number of these “at wall“-trials is given below (n_w_). Visual patterns are displayed as thick black lines, with luminance being proportional to the distance from the inner circle. Thin grey circles show the 95% confidence level of a random distribution. (2) Box plots show the likelihood per animal to be on target, give

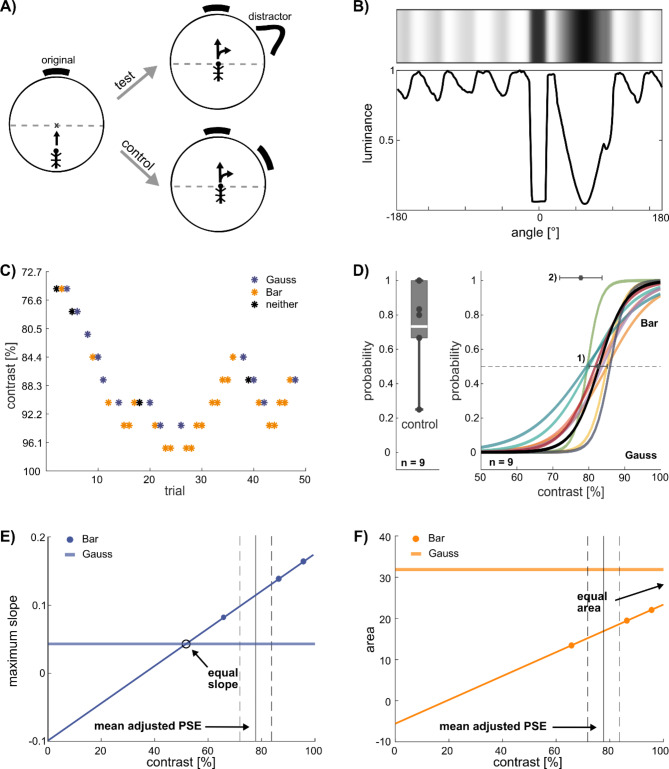

Both luminance and contrast determine the attractiveness of visual targets. (A) Two-alternative choice paradigm. The side of the distractor pattern was randomized. (B) Smoothed image of the arena screen (top) with corresponding normalized luminance measurement. Patterns are described by angles as seen from the arena centre. Note that periodic luminance modulations remained despite improved soft edge blending compared to experiment 2. (C) Exemplar staircase of one animal. (D) Boxplot shows the probability of an animal to choose the original pattern over the distractor pattern in control trials.

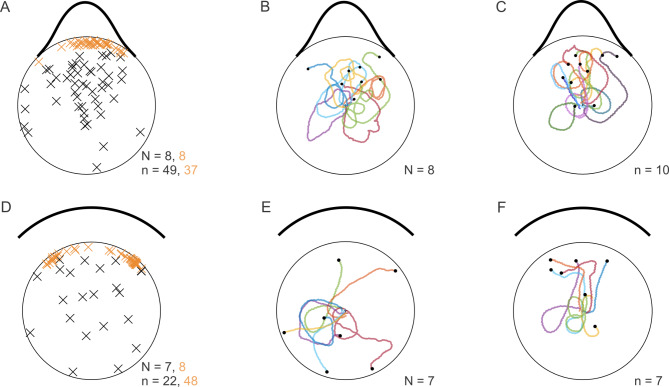

Comparison of trajectories of trials in which animals were ‘off target’ for Gaussian and Bar patterns. (A, D) Final head positions for ‘*on target*’ (orange) and ‘*off target*’ (black) trials of N animals in a total of n trials. Animals that were ‘*off target’* showed a tendency to approach the region subtended by the Gaussian pattern, as revealed by a non-uniform distribution of final positions (black crosses) for the Gaussian pattern (A) but a random distribution in D. (B, E) For illustration of different overall walking behaviour, coloured lines show the prothorax (T1) trajectories of one r
