Evaluation of Pulse Wave Analysis for Detecting Arterial Tone Changes During Transradial Access Coronary Angiography
Anna Strüven, Jenny Schlichtiger, Kathrin Diegruber, John M Hoppe, Stefan Brunner, Christopher Stremmel
TL;DR
This study evaluates pulse wave analysis during coronary angiography to detect changes in arterial tone, finding it feasible but not effective in identifying significant vascular changes.
Contribution
The study introduces the feasibility of using pulse wave analysis during transradial coronary angiography to detect arterial tone changes.
Findings
Radial artery spasm occurred in 8% of patients during the procedure.
Pulse wave parameters showed no significant changes throughout the procedure.
Small, non-significant drops in blood pressure were observed at specific procedural steps.
Abstract
Introduction: According to guideline recommendations, transradial access coronary angiography and percutaneous coronary intervention are the current gold standards. Although it reduces overall mortality and major bleeding, a significant proportion of patients develop radial artery spasms. In this trial, we aimed to investigate potential risk constellations during the whole procedure of coronary angiography by repetitive pulse wave analysis (PWA) measurements. Materials and methods: In this prospective pilot study, we included 36 patients with a guideline-based indication for coronary angiography. Repetitive PWA measurements were performed at the following time points: baseline, after sheath insertion, after administration of nitroglycerin, after guidewire crossing, and at the end of the procedure. We aimed to identify critical procedural steps that alter vascular tone and predispose to…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2| Category | n (%)* |
| Age (median (IQR)) | 69 (64; 78) |
| Gender (male) | 27 (75) |
| BMI (median (IQR)) | 25.8 (23.8; 29.4) |
| Smoker (current and former) | 18 (50) |
| Arterial hypertension | 30 (83) |
| Dyslipidemia | 28 (78) |
| Diabetes mellitus type 2 | 13 (36) |
| Family history of coronary artery disease | 12 (33) |
| Impaired renal function | 11 (31) |
| Renal replacement therapy | 0 (0) |
| Ejection fraction | |
| Normal (>55%) | 19 (53) |
| Slightly reduced (45-55%) | 9 (25) |
| Moderately reduced (35-45%) | 6 (17) |
| Severely reduced (<35%) | 2 (6) |
| Atrial fibrillation | 11 (31) |
| TIA/stroke | 6 (17) |
| COPD | 5 (15) |
| Asthma | 2 (6) |
| Cancer | 2 (6) |
| Peripheral artery disease | 4 (11) |
| Carotid artery disease | 3 (8) |
| Known coronary artery disease | 29 (81) |
| History of myocardial infarction | 5 (14) |
| Current PCI | 17 (47) |
| Indication for coronary angiography | |
| Acute coronary syndrome | 8 (22) |
| Stable angina/chronic coronary syndrome | 28 (78) |
| Medication on admission | |
| Betablockers | 21 (58) |
| Calcium channel blockers | 12 (33) |
| Diuretics | 10 (28) |
| ACE-inhibitors/ARBs | 29 (81) |
| Aldosterone antagonists | 2 (6) |
| Alpha blockers | 1 (3) |
| Nitrates | 0 (0) |
| ASA | 16 (44) |
| Clopidogrel | 4 (11) |
| Prasugrel | 2 (6) |
| Ticagrelor | 0 (0) |
| NOAC | 12 (33) |
| Phenprocoumon | 1 (3) |
| Baseline (n=36) | Radial access (n=36) | Post medication (n=16) | Wire crossing (n=16) | After procedure (n=21) | |
| HR (bpm) | 74 (64; 94) | 75 (65; 91) | 74 (62; 104) | 75 (64; 96) | 75 (71; 87) |
| PWV (m/s) | 10.8 (8.9; 12.8) | 10.9 (8.5; 12.4), (-0,46) | 11.3 (8.4; 12.7), (0,12) | 11.3 (8.5; 12.5), (-0,08) | 11.6 (8.7; 13.4), (0,62) |
| AugP (mmHg) | 17.0 (12.0; 25.0) | 12.5 (5.0; 24.3), (-3,52) | 21.0 (6.5; 26.5), (2,05) | 13.5 (4.7; 32.3), (0,46) | 16.0 (10.0; 27.8), (4,54) |
| Aix75 (%) | 34.0 (25.0; 43.0) | 32.5 (19.0; 38.8), (-1,87) | 33.0 (25.0; 54.0), (7,33) | 32.0 (14.8; 48.5), (-7,44) | 36.0 (27.5; 40.0), (1,94) |
| pBPsys (mmHg) | 151 (137; 169) | 144 (124; 161) | 144 (113; 162) | 142 (122; 168) | 144 (133; 173) |
| pBPdia (mmHg) | 86 (78; 92) | 86 (75; 92) | 82 (71; 92) | 80 (64; 90) | 84 (80; 94) |
| cBPsys (mmHg) | 142 (124; 160) | 130 (114; 151) | 130 (107; 155) | 143 (110; 158) | 135 (122; 162) |
| cBPdia (mmHg) | 87 (78; 93) | 87 (75; 92) | 83 (76; 92) | 85 (67; 92) | 87 (83; 99) |
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsVascular Procedures and Complications · Hemodynamic Monitoring and Therapy · Cardiac Imaging and Diagnostics
Introduction
In recent years, transradial access (TRA) has become the gold standard for coronary angiography and percutaneous coronary interventions. Several randomized trials have been decisive for this development, including the large radial versus femoral access for coronary angiography and intervention in patients with acute coronary syndromes (RIVAL) and minimizing adverse hemorrhagic events by TRA site and systemic implementation of angiox (MATRIX) trials. The 2011 RIVAL trial (7021 patients) suggested TRA benefits in selected patients in high-volume radial access centers, which were confirmed more generally in the 2015 MATRIX trial (8404 patients) concerning all-cause mortality and major bleeding [1,2].
A recent meta-analysis by Gargiulo et al. summarized the results for TRA versus transfemoral access (TFA): TRA reduces all-cause mortality (TRA 1.6% vs. TFA 2.1%, p=0.012, relative risk reduction 24%) and major bleedings (TRA 1.5% vs. TFA 2.7%, p<0.001, relative risk reduction 51%) at 30 days [3]. These data have led to a Class IA recommendation for the radial approach in the latest worldwide guideline recommendations for acute coronary syndrome with and without ST-segment elevation [4-6]. However, it is also interesting to trace the historical development at this point: While this recommendation was already established in Europe by the mid-2010s, the TRA in the USA only reached the highest recommendation level in 2021, after a hesitant development [6,7].
Despite the overall advantage of TRA, some relevant potential complications should not be neglected. These include vasospasm (4-20%), catheter kinking (3%), arterial dissection (1%) or perforation (0.1%), access site cross over (5%), post-procedural artery occlusion (5%), hematoma (5%), pseudoaneurysm, and arteriovenous fistula (0.1%) as well as nerve injury (1%) [8].
As vasospasm is the most common complication, with reported rates of 4% to 20%, we need to pay special attention to this problem. Moreover, some cases make the examination challenging or even impossible. This is predominantly seen in younger female patients with a small diameter of the radial artery or in patients with anxiety and a consequent increase in sympathetic tone. Besides these factors, the number of puncture attempts or catheters used and procedure duration are reported to have an influence [9-12].
There are various concomitant medications to prevent or resolve a spasm once it has occurred. These include intravenous administration of benzodiazepines or opiates and intra-arterial administration of nitroglycerin or calcium antagonists (verapamil). Especially, the use of sedation and analgesia (fentanyl 0.5 µg/kg and midazolam 1 mg) has shown a reduction of radial artery spasm to 2.6% versus 8.3% in the control group [11]. A systematic review on various medications in comparable coronary angiography study populations has shown a significant spasm reduction with verapamil 5 mg (4%), nicardipine (3%), nitroglycerin 100 µg (4%), or 200 µg (2%) versus no reduction with placebo (12%), verapamil 2.5 mg (12%), and nicorandil (16%) [13]. However, it is still unclear which is the ideal drug therapy and whether these should be given as a preventive measure [14].
In the present study, we recorded arterial stiffness using a non-invasive BR-102 plus pulse wave analyzer (Schiller, Germany) at different time points during coronary angiography. Pulse wave analysis (PWA) is a useful diagnostic tool to record multiple parameters of arterial stiffness beyond simple blood pressure measurements, and it is recommended for cardiovascular risk assessment according to current guidelines [15]. To date, there is no established tool for the non-invasive detection of (impending) vasospasm, so PWA was chosen as the most promising diagnostic approach, as short-term alterations in vascular tone caused by vasoactive drugs were reliably detected in previous studies, with an index of augmentation pressure (AugP)/heart rate-corrected augmentation index at 75 bpm (Aix75) being the most sensitive PWA parameter [16-18]. We hypothesized that simultaneous pulse wave recordings could register changes in vascular properties during coronary angiography as a possible predictor for the occurrence of radial artery spasms.
Materials and methods
Patients
From July 2021 to May 2022, we prospectively enrolled 36 randomly selected patients at the Ludwig-Maximilians-University (LMU) Hospital in Munich, Germany. The main inclusion criteria were a guideline-based indication for TRA coronary angiography either for stable angina (n=28; 78%) or acute coronary syndrome (n=8; 22%). All patients included in this study provided informed consent prior to the examination and were >18 years of age. Individuals with a primary indication for TFA (e.g., after coronary artery bypass graft) were excluded from this trial. Additionally, we excluded patients with ST-segment elevation myocardial infarction and those in an unstable hemodynamic condition. Anatomical considerations (e.g., radial artery diameter) or a history of radial artery spasm were not assessed and did not influence enrollment or treatment. The study was conducted in accordance with the Declaration of Helsinki as well as German data protection laws, and it was approved by the Institutional Review Board of Ludwig-Maximilians-University (LMU) (approval number: 370-16).
Study design and data acquisition
According to the manufacturer's instructions, PWA was performed with a BR-102 plus pulse wave analyzer in the supine position. The cuff for non-invasive pulse wave measurements was positioned on the right arm to register potential unilateral changes on the access site. We included a second validation cohort (n=5) with contralateral pulse wave measurements to differentiate local versus systemic effects. Patients suffering from anxiety received an intravenous injection of diazepam 5 mg, according to our local standard procedure. In all cases, local anesthesia was administered prior to access site puncture. After sheath insertion, intra-arterial blood pressure was recorded, followed by an intra-arterial injection of nitroglycerin 100 µg in all cases with a systolic blood pressure >100 mmHg. Pulse wave measurements were performed at baseline prior to the examination (n=36), after catheter sheath insertion (n=36), after administration of nitroglycerin (n=16), after guidewire crossing (n=16), and at the end of the procedure after removal of the arterial sheath (n=21). As the evaluation after nitroglycerin administration and wire crossing was included in a later optimized study protocol, the number of informative values is lower for these time points. An additional minor proportion of values was lost due to technical issues. Our study aimed to identify critical procedural steps that alter vascular tone and predispose to vasospasm.
Statistical analysis
For our pilot study, we aimed to detect moderate to strong effects (Cohen’s d = 0.7) with the PWA since weaker effects would presumably not be sufficient to guide a methodological approach in the practice of radial artery spasm prevention during coronary angiography. The required sample size for our pilot study was estimated using a paired sample Wilcoxon signed-rank test. Based on Cohen’s guidelines, Cohen’s d = 0.7 effect size was converted to an equivalent Wilcoxon effect size (r ≈ 0.49). With a significance level (α) of 0.05 and a power (1 - β) of 0.80, the calculated minimum sample size was 35 participants. Sample size estimation was performed using G*Power (Heinrich-Heine-Universität Düsseldorf, Düsseldorf, Germany) and validated with statistical power analysis in Python (Python Software Foundation, Wilmington, DE, USA). Due to the nature of our study with intraindividual comparisons, we did not include a control group.
Results are presented as median and IQR. Due to the limited sample size, we did not assume normality. P-values were calculated by paired sample Wilcoxon signed-rank tests and corrected for multiple comparisons using the Holm-Sidak method for all parameters and all time points; p<0.05, p<0.01, and p<0.001. Statistics were calculated using Prism 9 (GraphPad Software Inc., La Jolla, CA, USA).
Results
Study cohort and baseline characteristics
In this study, we included 36 patients with stable angina (n=28; 78%) or acute coronary syndrome (n=8; 22%) and an indication for TRA coronary angiography according to current guideline recommendations. The median age of our cohort was 69 (64; 78) years, and 75% were male. Median height was 175 (168; 179) cm with a weight of 79 (67; 95) kg, resulting in a calculated BMI of 25.8 (23.8; 29.4) kg/m² (Table 1).
In terms of cardiovascular risk, three-quarters suffered from hypertension and dyslipidemia, 50% (n=18) were current or former smokers, and one-third had diabetes (n=13, 36%) and/or a family history of heart disease (n=12, 33%). Coronary artery disease was known in 81% (n=29) of all patients, and 14% (n=5) had a previous myocardial infarction. Almost half of the examined patients received a percutaneous coronary intervention (n=17, 47%). Baseline medication involved acetylsalicylic acid in 44% (n=16) and new-generation oral anticoagulants in 33% (n=12). Only six (17%) patients had a P2Y12 inhibitor therapy on admission. Antihypertensive medication was mainly based on angiotensin-converting enzyme inhibitors (n=29, 81%), beta-blockers (n=21, 58%), calcium channel blockers (n=12, 33%), and diuretics (n=10, 28%) (Table 1).
Pulse wave velocity and augmentation index remaining stable

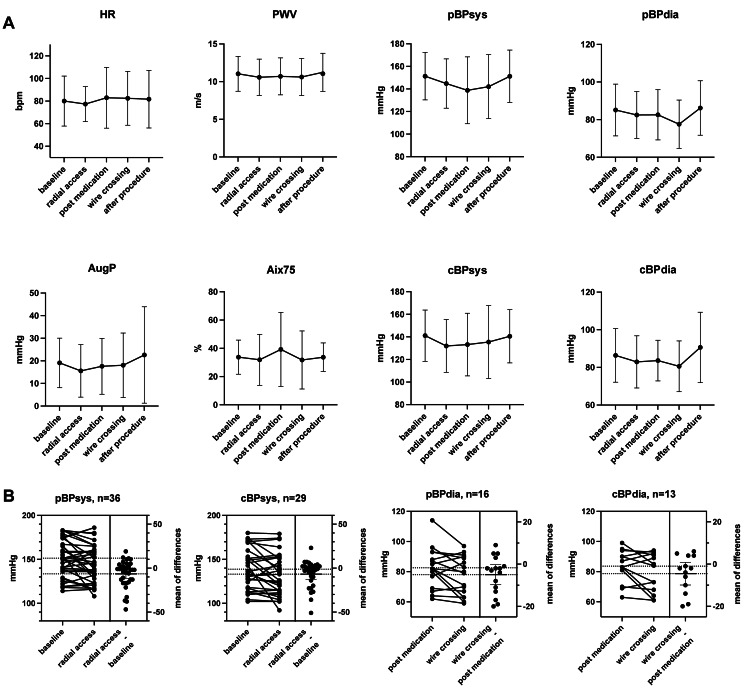

Vascular tone was assessed by repetitive pulse wave velocity (PWV) measurements before the examination, after establishing a radial access, post intra-arterial application of nitroglycerin, after guidewire crossing, and at the end of the procedure after removal of the radial artery sheath. Measurements were recorded one to three minutes after the completion of each step. Baseline PWV was 10.8 (8.9; 12.8) m/s, AugP was 17.0 (12.0; 25.0) mmHg, and Aix75 was 34.0 (25.0; 43.0) %. Although we observed a slight non-significant numerical trend toward a decrease in AugP (12.5 mmHg, unadjusted p=0.39, adjusted p=0.99) and Aix75 (32.5%, unadjusted p=0.66, adjusted p=0.99) after the establishment of the radial access, there was no significant change for any classical pulse wave parameter throughout the examination, even irrespective of an additional application of nitroglycerin or any baseline antihypertensive medication, including calcium channel blockers (Figure 1, Table 2). Our validation cohort recorded comparable results with contralateral pulse wave measurements (Figure 2). Radial artery spasm was observed in three of 36 cases (n=3/36, 8%), and a switch to TFA was necessary in one case (n=1/36, 3%). Interestingly, the administration of diazepam (n=5/36) for pre-interventional anxiety treatment did not lead to any significant changes in pulse wave parameters.
