Correlation of T2-Weighted Magnetic Resonance Imaging (MRI), Computed Tomography (CT), and Cone Beam Computed Tomography (CBCT) Radiomic Features for Prostate Cancer

TL;DR

This study compares radiomic features from different imaging techniques for prostate cancer patients to understand how they correlate during radiotherapy.

Contribution

The study introduces a novel analysis of correlations between radiomic features from T2w MRI, CT, and CBCT in prostate cancer patients undergoing radiotherapy.

Findings

CT radiomic features showed higher intramodality correlations compared to T2w MRI and CBCT.

There were no high correlations between radiomic features from CT/CBCT and T2w MRI.

Differences in radiomic features across imaging modalities suggest distinct information extraction capabilities.

Abstract

Radiomics extracted from cone beam computed tomography (CBCT) can be assessed at time points during treatment and may provide an advantage over assessments in a pre-treatment setting using diagnostic images, like magnetic resonance imaging (MRI) or computed tomography (CT), for prostate cancer (pCa) patients receiving radiotherapy (RT). The purpose of this study was to analyze correlations between prostate radiomic features (RFs) derived from T2-weighted (T2w) MRI, CT, and first fraction CBCT for patients receiving RT for pCa. Forty-seven patients were analyzed. The prostate volumes were manually segmented, and 42 radiomic features were extracted, of which seven volume-normalized RFs were considered. The absolute Spearman correlation was calculated among the RFs of the aforementioned imaging modalities (RM) and prostate volume (RV) since the motivation of this paper was to analyze the strength of the correlation. The Benjamini-Hochberg adjustment was applied to p-values to account for multiple comparisons. No high correlations were found between CT/CBCT vs. T2w. The intramodality RM demonstrated that CT RFs were much higher than the other modalities. For example, intramodality RM≥0.95 the percentage of RFs was 17% for CT, 9% for CBCT, and 4.5% for T2w. The differences in RFs across different modalities can be viewed positively: the lack of correlation between RFs across T2w and CT/CBCT could indicate a fundamental difference in the extractable image information. It could also indicate that some RFs did not have any extractable information. A future study will include evaluating the predictive performance of patient outcomes using radiomic features from CT, CBCT, and T2w, which could help in answering such questions.

Figures

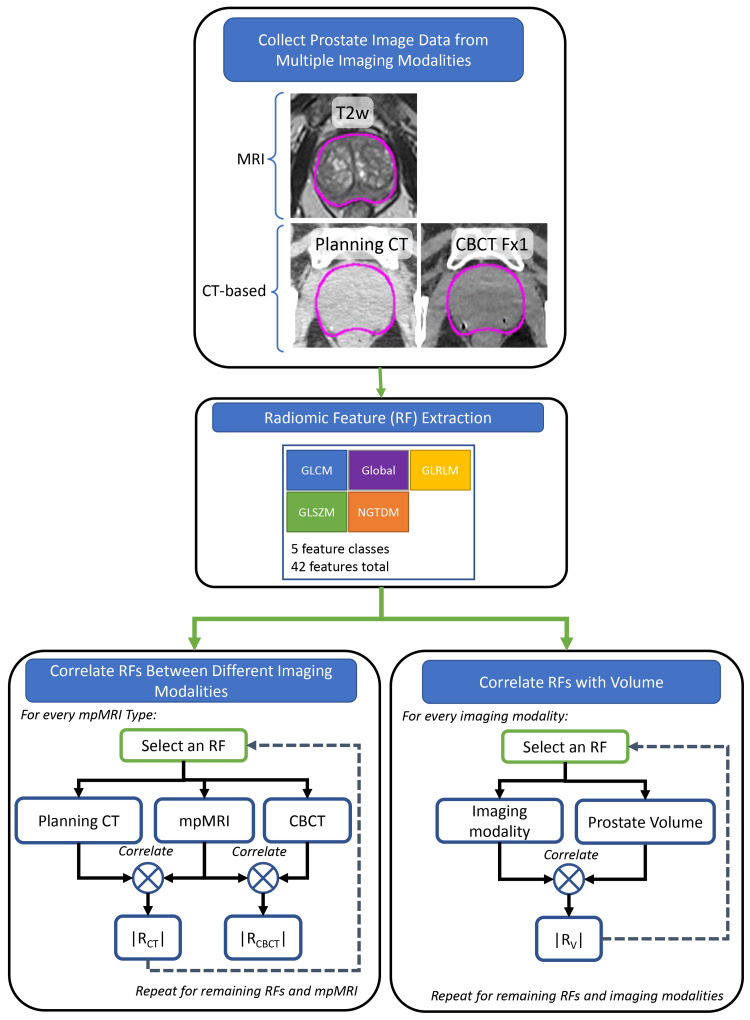

Workflow for estimating the correlation of RFs between T2w, CT, and CBCT, and RFs vs. prostate volume for each imaging modality.CT: Computed Tomography, CBCT: Cone Beam Computed Tomography, RF: Radiomic Features

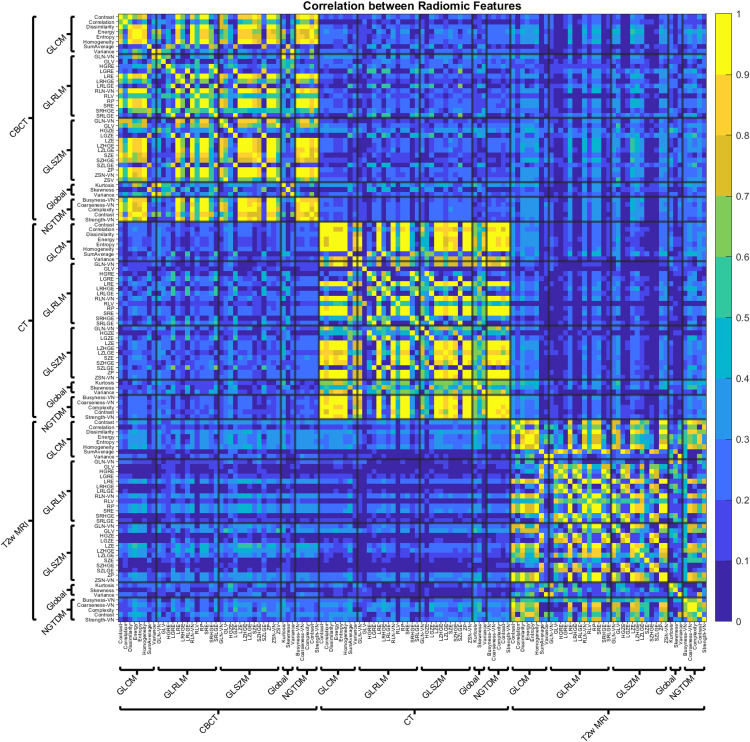

Initial correlation matrix of all the combinations of RFs and modalities considered in this study. Only the upper triangular part of the correlation matrix was considered for the statistical analysis to avoid overcounting and trivial comparisons.

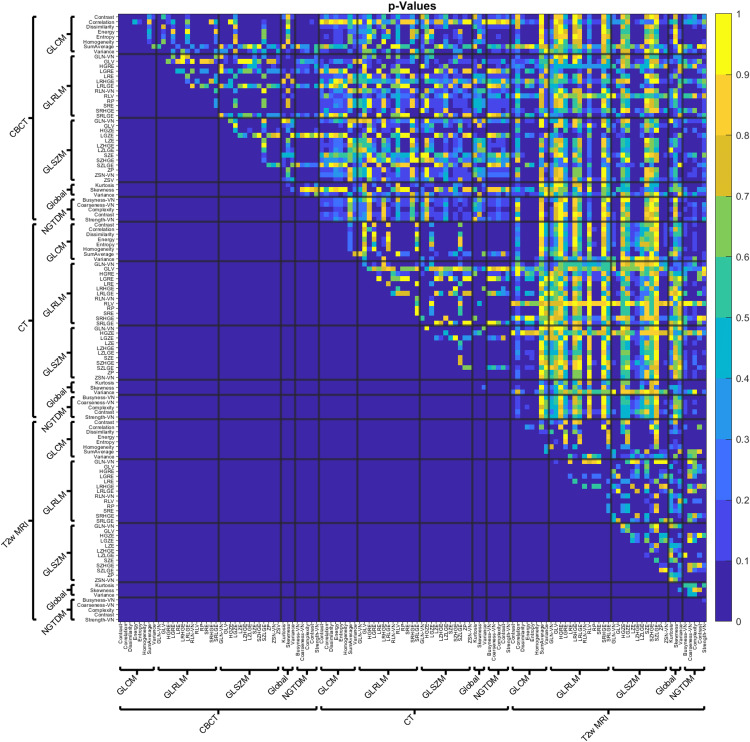

Adjusted p matrix for the correlations considered in this study.

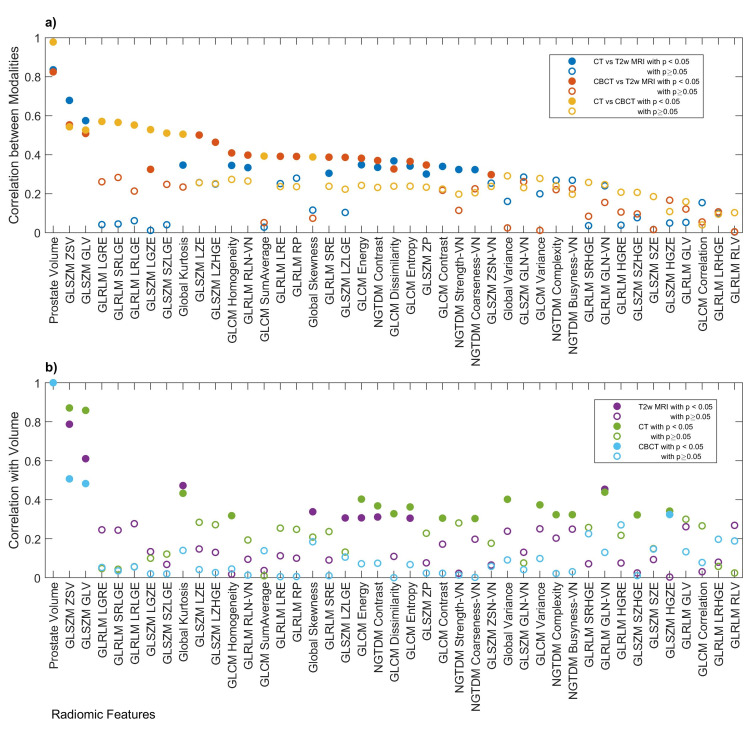

a) Intermodality correlation of RF, RM, vs. RF. Only the same RF comparisons are shown for brevity. b) RF correlation with volume, RV,vs. RF. Values sorted based on max |RM| across all the different modalities in descending order. Redundant RF with pM>0.05 across all modality comparisons was removed from the figure.

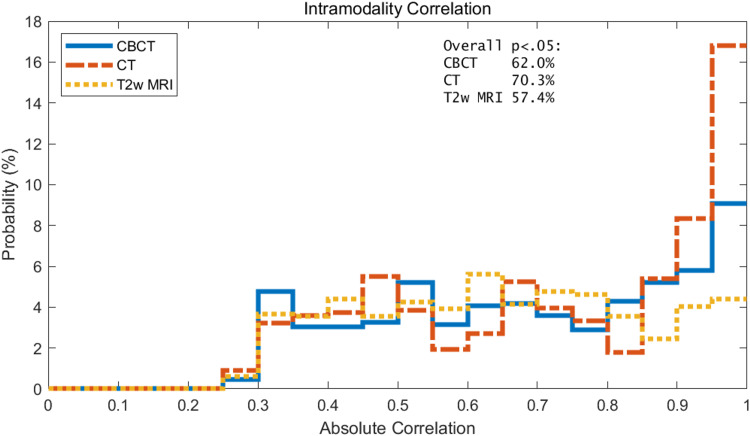

Histogram of the intramodality correlation of RFs for CBCT, CT, and T2w of the prostate. Results shown only include the statistically significant data, i.e., p<0.05. Overall percentages of features that were statistically significant by modality are shown in text box in upper right corner.

Histogram of the intramodality correlation of RFs for CBCT, CT, and T2w of the prostate. Results shown only include the statistically significant data, i.e., p<0.05. Overall percentages of features that were statistically significant by modality are shown in text box in upper right corner.

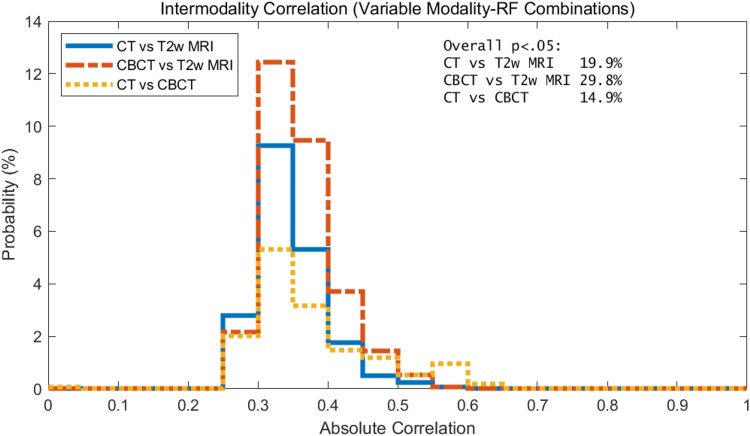

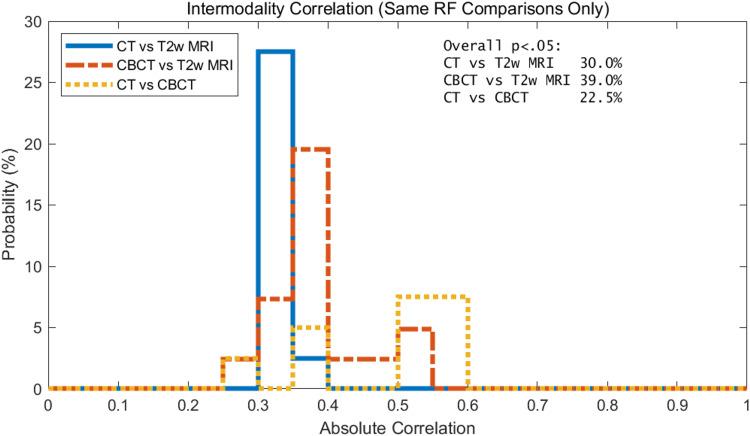

Histogram of the intermodality correlation of RFs for CBCT, CT, and T2w of the prostate for variable modality-RF combinations. Results shown only include the statistically significant data, i.e., p<0.05. Overall percentages of features that were statistically significant by modality are shown in text box in upper right corner.
