Optimization of electrode position in electric field treatment for pancreatic cancer
Sangcheol Kim, Yousun Ko, Dongho Shin, Haksoo Kim, Sung Uk Lee, Jonghyun Kim, Tae Hyun Kim, Myonggeun Yoon
TL;DR
This study shows that adjusting electrode positions in electric field treatment can improve pancreatic cancer therapy by optimizing electric field intensity.
Contribution
The study introduces a method to optimize electrode placement for electric field treatment using patient-specific 3D models and simulation.
Findings
Optimal electrode positions improved the mean electric field by 7.41% and the minimum electric field by 7.20%.
Treatment planning based on anatomical characteristics can enhance electric field intensity applied to pancreatic tumors.
Simulated plans showed significant variations in electric field metrics compared to the reference plan.
Abstract
In electric field-based cancer treatment, the intensity of the electric field applied to the tumor depends on the position of the electrode array, directly affecting the efficacy of treatment. The present study evaluated the effects of changing the position of the electrode array on the efficacy of electric field treatment for pancreatic cancer. A 3D model was created based on computed tomography images of 13 pancreatic cancer patients. An electrode array was placed on the surface of the model at various positions, and the electric field was calculated for each. Six treatment plans were created for each patient by rotating each electrode array ± 15⁰, ± 30⁰ in the axial plane, and ± 10⁰ in the sagittal plane relative to the reference plan. The frequency was set at 150 kHz and the current density at 31 mArms/cm2 for calculation of all treatment plans. The mean electric field, minimum…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
Topics3D Printing in Biomedical Research · Pancreatic and Hepatic Oncology Research · Microfluidic and Bio-sensing Technologies
Introduction
Pancreatic cancer is the seventh most common cause of cancer-related deaths in both men and women worldwide and the fourth leading cause of cancer-related deaths in the United States [1, 2]. Estimates indicated that 64,050 persons would be newly diagnosed with pancreatic cancer in the United States in 2023 [1]. Pancreatic ductal adenocarcinoma (PDAC) accounts for approximately 85% of pancreatic malignancies. Although overall survival (OS) has improved significantly in recent years among patients with some types of cancer, OS remains low in patients with PDAC [3]. Due to a lack of effective treatment options, PDAC has been projected to surpass breast cancer as the leading cause of cancer-related deaths in Europe by 2025 [4]. These findings highlight the urgent need for new, innovative treatment methods for pancreatic cancer.
Electric field therapy is a new and alternative cancer treatment modality that targets tumor cells through multiple mechanisms, stopping cell division and ultimately leading to cell death [5]. Electric field therapy has shown clinical benefit for patients with glioblastoma (GBM), suggesting that it may be effective against other cancers. PDAC may be a good candidate for electric field therapy, which is effective for local control, as these tumors tend to spread locally within the abdomen to the liver and peritoneum [6]. In addition, electric field therapy has shown promising results in vitro and in orthotopic tumor models [7, 8]. Moreover, the phase 2 PANOVA-2 trial found that electric field therapy plus gemcitabine (1000 mg/m^2^) or gemcitabine plus nab-paclitaxel (125 mg/m^2^) was safe and well-tolerated in patients with PDAC; based on these preliminary findings, a randomized phase 3 trial (PANOVA-3) is currently in progress [9]. These factors suggest that electric field therapy has potential as a treatment option for pancreatic cancer.
In electric field therapy, an electric field at frequencies ranging from 150 to 200 kHz is applied to an electrode array attached to the surface of a patient’s body [10, 11]. The effectiveness of electric field therapy has been found to be related to the intensity of the electric field applied to the tumor, with a therapeutic threshold of ∼ 1 V/cm [12, 13]. Because the distribution of the electric field in the body can be significantly altered by the placement of the electrode array, optimizing the position of the array is required to increase the intensity of the electric field applied to the tumor. To date, however, few studies have assessed the effect of array placement on the optimization of electric field distribution. In the absence of a 3D treatment planning system, electrode placement-based optimization of the electric field to treat pancreatic cancer is particularly challenging, due to the inhomogeneity of abdominal tissues [14]. The present study used a newly developed 3D treatment planning system to calculate the effects of electrode arrangement on 3D electric field intensity in electric field therapy. The effects of changing the position of the electrode array were evaluated by determining the minimum and mean electric field of the tumor, the homogeneity index (HI) and the coverage index (CI), parameters commonly used in comparing plans for radiation therapy [15].
Methods
Patient data and segmentation
The simulation was based on 3D CT data obtained from 13 pancreatic cancer patients who had undergone radiotherapy at the National Cancer Center Korea (Table 1). Before simulation, the CT data underwent segmentation for bone, lung, heart, esophagus, liver, gallbladder, stomach, pancreas, spleen, kidney, large intestine, small intestine, bladder, muscle and gross tumor volume (GTV), with segmentation confirmed by medical professionals.
Table 1. Patient characteristics and treatment settingsNumber of patientsNumber of malesNumber of femalesPathologyModalityFrequency (kHz)Current density (mA_rms_/cm^2^)1376pancreatic cancerCT15031
Treatment planning simulation
OncoField v1.1.0 (FieldCure, Seoul, ROK) was used for treatment planning simulation of electric field therapy. Based on the study by Rivera et al., the protocol used for plan comparison in this study is outlined as follows [9]. The treatment device generates 150 kHz electric fields in two sequential, perpendicular orientations, delivering a maximum output of 1414 mA RMS (31 mA RMS/cm²) through two pairs of transducer arrays connected to the electric field generator (Table 1). In general, patients were instructed to wear the device for a minimum of 18 h per day to maximize treatment efficacy. Based on clinical trial results, two pairs of electrode arrays, composed of 20 and 13 individual electrodes, were placed in the anterior-posterior and right-left positions, respectively (Fig. 1) [9]. The selection of 20 and 13 electrodes in this study is based on their current clinical use in the treatment of pancreatic and lung cancer [9, 16]. The reference point of the electrode array was set to the center of the tumor, with the two pairs of electrode arrays (anterior to posterior, left to right) created based on the tumor center. This plan was designated the reference plan, with the reference orientation (θ = 0⁰). For comparison, four and two additional trial plans were created by rotating the four electrode arrays by θ = ±15⁰ and θ = ±30⁰ in the axial plane and θ = ±10⁰ in the sagittal plane relative to the reference orientation. Therefore, seven simulation plans were created for each patient by combining one reference plan and six trial plans (Fig. 1).

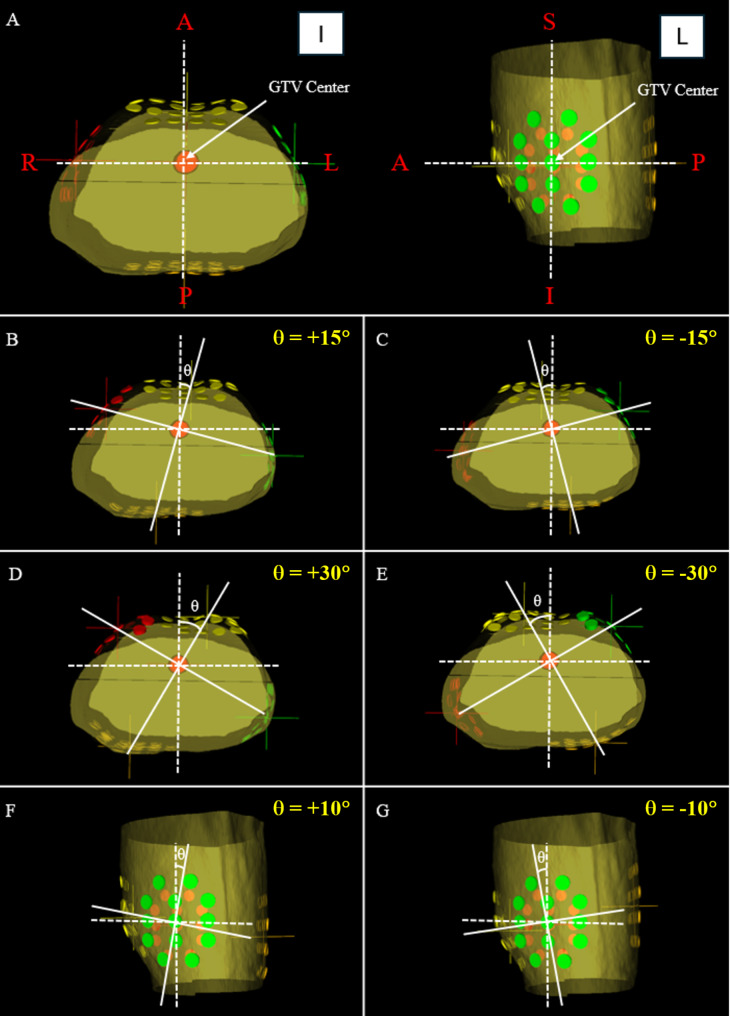

Fig. 1. An example of one reference plan and six trial plans. A Reference plan. B Trial plan rotated θ = +15⁰ in the axial plane. C Trial plan rotated θ = -15⁰ in the axial plane. D Trial plan rotated θ = +30⁰ in the axial plane. E Trial plan rotated θ = -30⁰ in the axial plane. F Trial plan rotated θ = +10⁰ in the sagittal plane. G Trial plan rotated θ = -10⁰ in the sagittal plane. Here, A, P, L, R, S and I represent anterior, posterior, left, right, superior and inferior, respectively, with angles measured in a clockwise direction defined as positive.
Evaluations
For comparison, the minimum and mean intensities of the electric field inside each tumor were calculated for each plan. In addition, based on the simulation results, the homogeneity index (HI) and the coverage index (CI) were calculated [15]. In radiotherapy, HI, an objective tool analyzing the uniformity of dose distribution for the target volume, can be calculated using Eq. (1):
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$HI = \frac{{{D_{max}} - {D_{min}}}}{{{D_P}}}$$\end{document}where Dmax, Dmin and Dp are the maximum, minimum and prescribed doses, respectively, for the target volume. Because the intensity of the electric field can be regarded as the dose in electric field therapy, Dmax, Dmin and Dp can be defined as the maximum, minimum and prescribed intensities, respectively, of the electric field. The prescribed dose, Dp, was set at the mean intensity of the electric field for the reference plan. By definition, a lower HI is indicative of a more homogeneous target dose.
The CI, an objective tool to analyze the coverage of the target volume by the prescribed dose, can be calculated using Eq. (2):
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$CI = \frac{{{V_{100}}_{GTV}}}{{{V_{GTV}}}}$$\end{document}where V100GTV represents the volume receiving at least 100% of Dp within the GTV, and VGTV represents the volume of the entire GTV. Therefore, a CI closer to 1 is indicative of better coverage of the target volume by the prescribed dose.
For comparison, HI and CI were normalized to the values of the reference plan. The plan with the lowest values of HI was selected as the best plan, whereas the plan with the highest minimum, mean intensities of the electric field and CI was selected as the best plan. In addition to these evaluation metrics, plans were qualitatively compared based on their dose-volume histograms (DVH), a plot of the volume of a given structure receiving a certain dose or higher as a function of dose [17]. DVH, a histogram relating dose to tissue volume, is generally used when comparing competing treatment plans in radiotherapy.
Results
Figure 2 shows axial CT slice images at the center of the tumor for all 13 patients. Table 2 compares various indices of the reference plan with the indices of the six trial plans. The best of the six trial plans was selected based on previously described criteria. The values in Table 2 represent the percentage improvement of indices of the best trial plan compared with the reference plan. Comparisons of mean and minimum electric field intensities showed that the trial plans outperformed the reference plans in all 13 patients. Similarly, comparisons of CI showed that the trial plans performed better than the reference plans in all patients. Evaluation of HI showed that the trial plans were equal to or greater than the reference plan in all 13 patients.

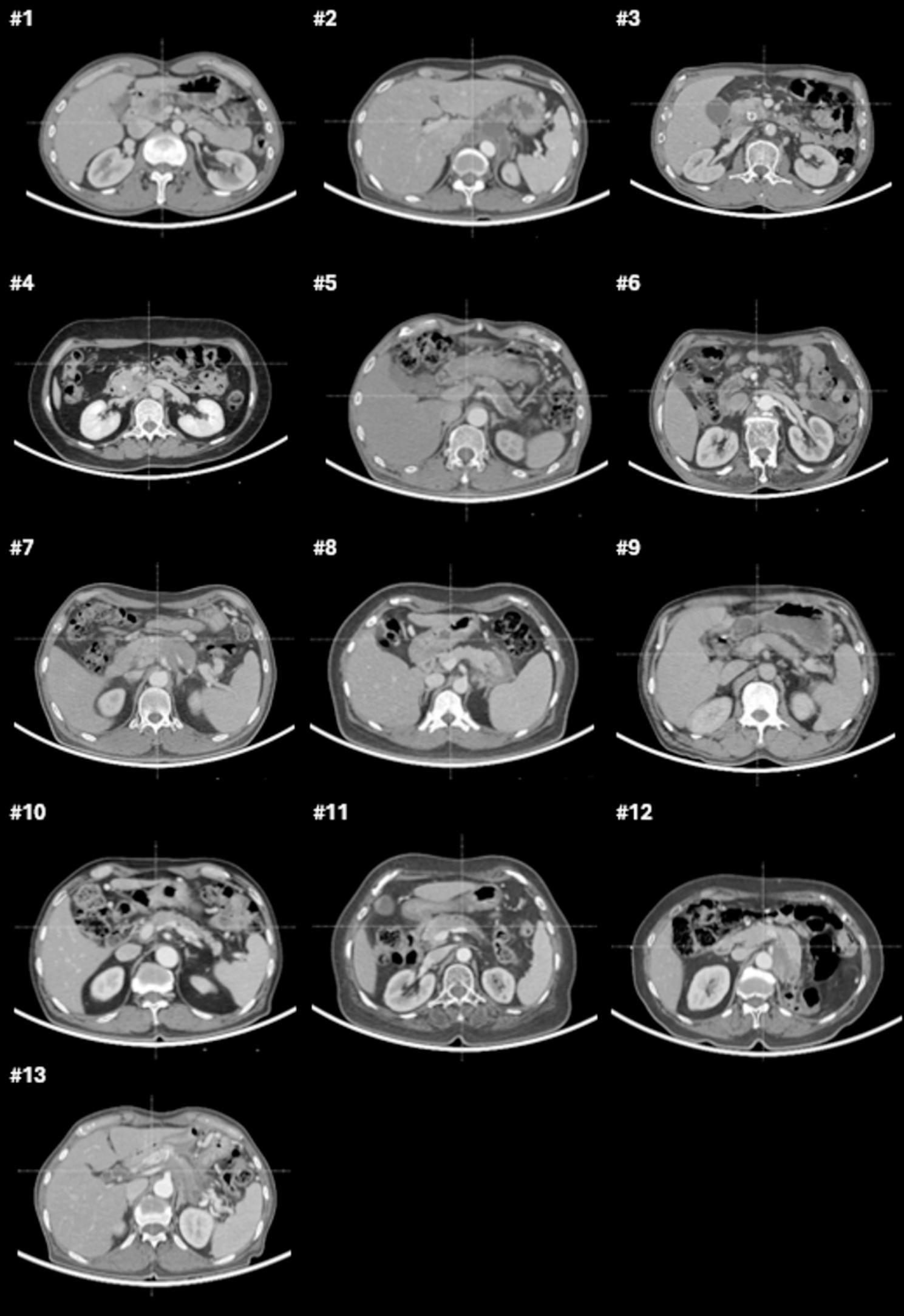

Fig. 2. Axial CT slice images taken at the reference point are provided for all 13 patients, offering a visual representation of the anatomical structures and electrode placements used in the study.
Table 2. Percentage improvement of the best trial plan compared with the reference plan in the 13 patients with PDACVariables (%)12345678910111213Mean Intensity8.618.009.2610.986.063.247.7311.315.649.004.955.106.50Minimum Intensity9.428.547.307.508.205.419.845.7410.5313.873.182.841.19 HI 9.294.940.007.719.590.004.102.730.004.9213.120.003.03 CI 10.6311.009.088.849.834.688.8910.429.438.989.394.893.87
Figures 3 and 4 show the electric field intensity distributions for the first and second representative patients, respectively, across the different trial plans. These plots show that the electric field intensity within each tumor was dependent on the positions of the electrodes. Figure 5 shows the DVH for the GTV of these two representative patients. Plan1 indicates the reference plan; Plan2, Plan3, Plan4 and Plan5 represent trial plans rotated by θ = +15⁰, -15⁰, + 30⁰, and − 30⁰, respectively, in the axial plane; and Plan6 and Plan7 represent trial plans rotated by θ = +10⁰ and − 10⁰, respectively, in the sagittal plane.

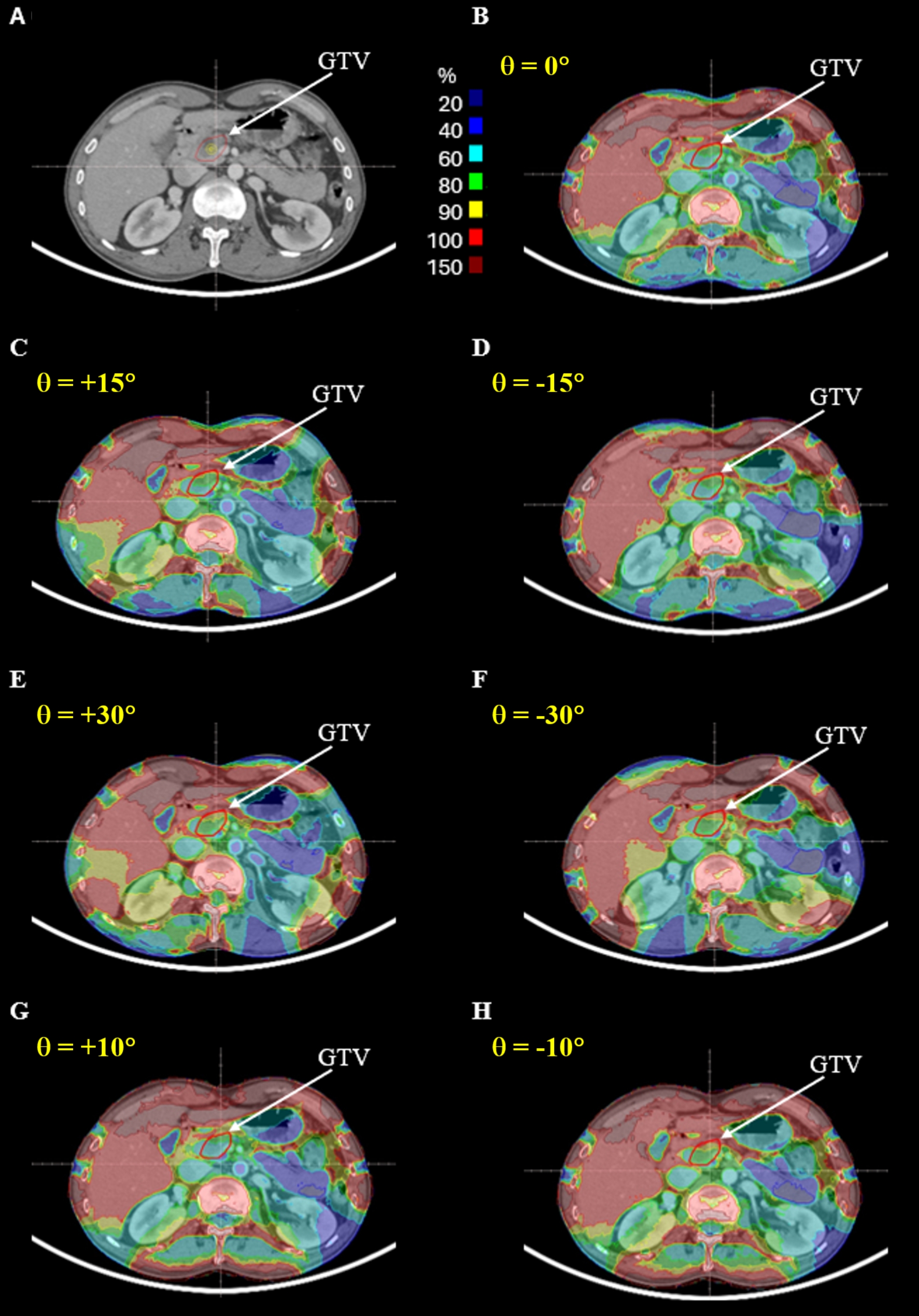

Fig. 3. Dependence of electric field distribution on electrode locations for representative patient 1. A Axial CT image at the center of the tumor. B Reference plan. C Trial plan rotated θ = +15⁰ in the axial plane. D Trial plan rotated θ = -15⁰ in the axial plane. E Trial plan rotated θ = +30⁰ in the axial plane. F Trial plan rotated θ = -30⁰ in the axial plane. G Trial plan rotated θ = +10⁰ in the sagittal plane. H Trial plan rotated θ = -10⁰ in the sagittal plane.

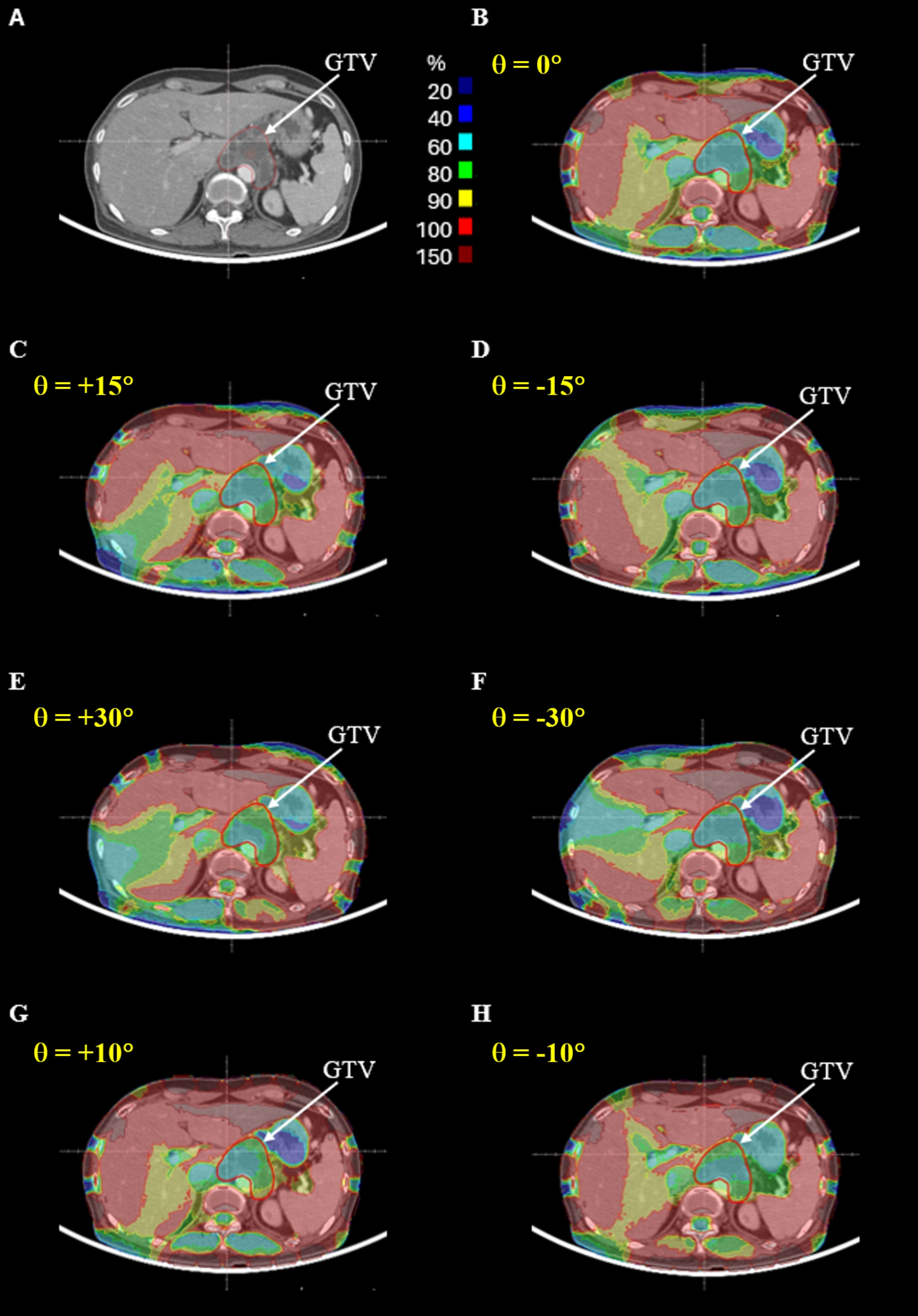

Fig. 4. Dependence of electric field distribution on electrode locations for representative patient 2. A Axial CT image at the center of the tumor. B Reference plan. C Trial plan rotated θ = +15⁰ in the axial plane. D Trial plan rotated θ = -15⁰ in the axial plane. E Trial plan rotated θ = +30⁰ in the axial plane. F Trial plan rotated θ = -30⁰ in the axial plane. G Trial plan rotated θ = +10⁰ in the sagittal plane. H Trial plan rotated θ = -10⁰ in the sagittal plane.

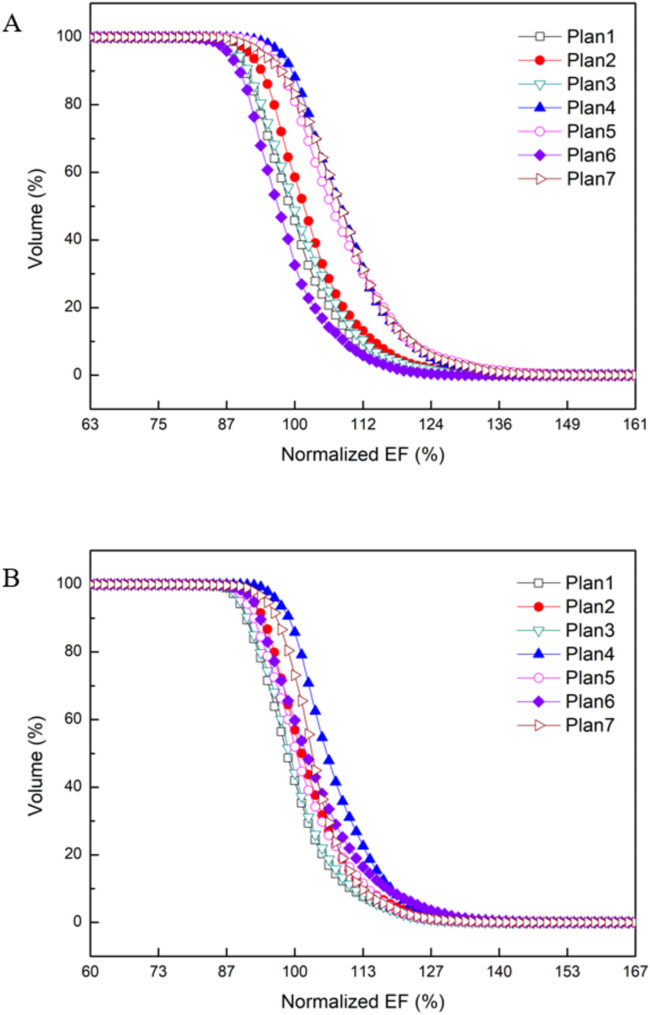

Fig. 5A Dose volume histograms (DVHs) of representative patient (1). B DVHs of representative patient (2). Here, normalized EF means the normalized electric field in which 100% is the intensity of the mean electric field inside the tumor for the reference plan.
