Sexual Dimorphism of Tarsal Attachment Devices and Their Relation to Mating in Coccinellidae
Valerio Saitta, Manuela Rebora, Silvana Piersanti, Giorgia Carboni Marri, Paolo Masini, Elena Gorb, Alessia Iacovone, Gianandrea Salerno, Stanislav Gorb
TL;DR
This study explores how male and female coccinellid beetles have evolved different attachment structures for mating, with males developing specialized setae and claws based on the texture of female elytra.
Contribution
The study reveals novel morphological adaptations in male coccinellid attachment devices linked to female elytral surface structures and body size.
Findings
Disco-setae in males are present only in some species and are localized on hairy pads used during mating.
Morphology of discoid setae correlates with female elytral texture, with larger tips on smooth elytra and smaller on hairy ones.
Claw dimorphism is more pronounced in males with hairy elytra and absent in larger species with pad dimorphism.
Abstract
This study investigates the coevolution of male attachment devices and female elytral morphology in coccinellid beetles, focusing on the sexual dimorphism of claws and adhesive pads. We analyzed 11 species from different tribes with different feeding regime, examining the structure of male and female attachment organs (claws and hairy pads) in relation to the surface structure of female elytra. Our findings show that disco‐setae, which enhance adhesion during mating, are present only in males of some species and are localized on the hairy pads of their legs. These setae exhibit morphological adaptations based on the surface structure of female elytra, with larger discoid setal tips in species with smooth elytra and smaller tips in those with hairy elytra. Additionally, male beetles with hairy elytra possess dimorphic claws, which enhance attachment efficiency compared to species with…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsForest Insect Ecology and Management · Insect-Plant Interactions and Control · Entomopathogenic Microorganisms in Pest Control
Introduction
1
Insects, the most diverse taxon in the animal kingdom (Wiegmann and Trautwein 2014), are characterized by complex chemical and mechanical interactions with their environment (Ryan and Byrne 1988; Frazier and Chyb 1995) and diverse adaptations. Among these adaptations, insects exhibit an excellent ability to attach to surfaces, primarily due to specialized attachment devices generally located on tarsi, which include sclerotized claws and soft adhesive pads (Gorb 2001). Claws are used to interlock with coarsely rough surfaces (Dai et al. 2002) or plants trichomes (Saitta et al. 2022; Salerno, Rebora, Piersanti, Saitta et al. 2022) and their different shapes are often associated with specific substrates, where insects live (Friedemann et al. 2014; Salerno, Rebora, Piersanti, Saitta et al. 2022). On the other hand, the pads can adhere to several types of substrates (Gorb 2001; Dirks and Federle 2011). The high resilin content in these pads (Michels and Gorb 2012; Peisker et al. 2013; Rebora et al. 2018, 2021) make them soft and flexible, allowing for maximum contact with smooth and microrough surfaces (Beutel and Gorb 2001; Gorb 2001). Two types of pads can be distinguished: (1) hairy pads, covered with relatively long and flexible setae, which are commonly found in flies, beetles, and earwigs, and (2) smooth pads, such as arolia, typically observed in cockroaches and bees or euplantulae observed in grasshoppers, stick insects and mantids. The material flexibility in both types of the pads allows them to adapt and optimize contact with a variety of substrates (reviewed in Gorb 2001, 2005, 2008; Federle 2004). In all insect species, the interaction between adhesive organs and the substrate is further facilitated by a thin layer of liquid pad secretion, which enhances the contact area, particularly on uneven surfaces, and generates capillary forces (see review by Dirks and Federle 2011).
Sexual dimorphism in attachment ability and structure of adhesive devices has been observed in various insect species, often linked to the need to adhere to the host surface during oviposition as observed in hymenopteran parasitoids (Rebora et al. 2022; Salerno et al. 2024) or to the female during mating, such as the case in some Coleoptera (Gorb et al. 2010; Heepe et al. 2017; Voigt et al. 2008, 2017). In many species of beetles, there are distinct differences between shapes of the adhesive setae in females and males (Stork 1980; Voigt et al. 2008). Females typically possess needle‐shaped or slightly spatulated setae, while males have, in addition to these, highly specialized setae with a round to oval plate at the distal end of a rigid shaft, called disco‐setae (terminology according to Stork 1980). To the best of our knowledge, the disco‐setae are present in more than 85 Coleoptera species (in both the Adephaga and Polyphaga suborders) belonging to Caraboidea, Staphylinoidea, Coccinellidae, Chrysomeloidea, and Curculionoidea (Liu and Liang 2016; Stork 1980; Voigt et al. 2008). Data concerning the presence of disco‐setae for numerous families of Coleoptera are lacking. The sexual dimorphism is spectacular in Dytiscinae (Bergsten et al. 2001). These specialized setae are able to provide strong adhesive performance on smooth surfaces (Gorb, Varenberg et al. 2007), such as female elytra during mating (Alcock 2006). In line with this, higher adhesive forces have been measured in males on smooth surfaces compared to females in Harmonia axyridis Pallas (Coleoptera: Coccinellidae) (Gorb et al. 2019), probably due to the sexual dimorphism in the microstructure of their adhesive pads. A similar difference in attachment ability to smooth surfaces between males and females has also been observed in the rosemary beetles Chrysolina americana Linneaus (Coleoptera: Chrysomelidae), where pull‐off force measurements have been performed on both female elytra and flat glass (Voigt et al. 2017). It has been found that on convex elytra, insects performed better than on flat glass, with males exerting higher force than females.
Given the necessity for male beetles to firmly adhere on female elytra during mating, males of different species have evolved different copulation modalities in relation to the elytral morphology. In general, female elytra provide support for males during mating (Goczał and Beutel 2023) and their surfaces in Coleoptera can be either smooth (Heepe et al. 2017), hairy due to microtrichia coverage (Gorb and Gorb 2020), exhibit reticulated patterns or conspicuous longitudinal furrows as seen in dytiscids (Drotz et al. 2010). In this context, sexually antagonistic coevolution has been suggested in male and female diving beetles (family Dytiscidae), where the reticulated structure of the female's elytra may reduce males adhesion during copulation (Karlsson Green et al. 2013). In some species of Coleoptera, males hold the female's abdomen with all six legs, as observed in Gastrophysa viridula De Geer (Coleoptera: Chrysomelidae) (Matsumura et al. 2023). In other beetles, such as C. americana (Linneaus), the hindlegs may touch the substrate (Voigt et al. 2017), while in Leptinotarsa decemlineata Say (Coleoptera: Chrysomelidae), the fore‐ and midlegs are positioned on elytra and the hindlegs are wedged on the elytra margin and the abdominal sclerites (Voigt et al. 2008).
The family Coccinellidae includes more than 6000 described species (Ahmad et al. 2024; Canepari 2009), exhibiting a wide trophic range that includes myrmecophages (Vantaux et al. 2010), micophages (Younes et al. 2015), phytophages (Piersanti et al. 2022) causing serious damages to crops, and zoophages (Heepe et al. 2017) employed in biological control programs (Hodek et al. 2012). The interactions between coccinellids and their environment have been extensively studied, particularly regarding their chemical and mechanical ecology (Hodek 1973; Gordon 1985; Iperti and Prudent 1986; Roy and Wajnberg 2008; Pell et al. 2008; Gorb et al. 2008, 2017, 2019; Gorb and Gorb 2020; Hodek et al. 2012; Moon et al. 2012; Yao et al. 2021; Salerno, Rebora, Piersanti, Büscher et al. 2022; Salerno, Rebora, Piersanti, Saitta et al. 2022; Piersanti et al. 2022, 2023; Saitta et al. 2023, 2025; Sevarika and Romani 2024). However, only limited information is available about the male attachment ability and behavior during copulation in Coccinellidae.
In this study, we hypothesize a coevolution between the morphology of claws and adhesive setae of males and the surface structure of female elytra. Using scanning electron microscopy, we examined 11 species of Coccinellidae to assess sexual dimorphism in the structure of attachment devices (claws and hairy pads) of males and females in relation with the elytral surface. Additionally, behavioral observations during mating were performed in order to determine, which legs and attachment devices are used by males to adhere to females. Our data aim to provide insights on the evolutionary dynamics shaping the diversity of tarsal attachment devices and their role in reproductive strategies within this ecologically important beetle family.
Materials and Methods
2
Examined Species
2.1
For this study, we selected 11 species of Coccinellidae with different feeding habits (from zoophagous to phytophagous) (Table S1) spread over the clade (see Che et al. 2021). In particular, we selected H. axyridis, Propylea quatuordecimpunctata (L.), Coccinella septempunctata (L.), and Adalia bipunctata (L.) from the tribe Coccinellini, Chnootriba elaterii (Rossi), Henosepilachna argus Geoffroy, and Subcoccinella vigintiquatuorpunctata L. from the tribe Epilachnini, Nephus conjunctus Wollaston and Cryptolaemus montrouzieri (Muslant) from the tribe Scymnini, Exochomus quadripustulatus (L.) from the tribe Chilocorini, and Delphastus catalinae (Horn) from the tribe Seranginini.
H. axyridis, C. septempunctata, C. elaterii, H. argus, and S. vigintiquatuorpunctata were reared in net cages (300 mm × 300 mm × 300 mm) (Vermandel, Hulst, The Netherlands) under controlled conditions (16:8 D:L photoperiod, temperature of 25 ± 1°C, and a relative humidity of 60 ± 10%) in the Department of Agricultural, Food and Environmental Sciences, University of Perugia, Italy. H. axyridis and C. septempunctata were reared on Vicia faba L. (Fabaceae) plants infested with Aphis fabae Scopoli (Hemiptera: Aphididae), C. elaterii—on Cucumis melo L. (Cucurbitaceae), H. argus—on Ecballium elaterium (L.) (Cucurbitaceae), and S. vigintiquatuorpunctata on Silene alba (Mill) (Caryophyllaceae). Adults of both sexes of P. quatuordecimpunctata, A. bipunctata, N. conjunctus, C. montrouzieri, E. quadripustulatus, and D. catalinae were kindly supplied by the company (Bioplanet, Cesena, Italy).
Scanning Electron Microscopy (SEM) and Image Analysis
2.2
Legs and elytra of both sexes were cut off from animals anesthetized by CO_2_, then dehydrated, mounted on metal stubs using double‐sided adhesive carbon tape, sputter‐coated with gold–palladium (thickness 8 nm), and observed in a Hitachi Tabletop SEM TM‐3000 (Hitachi High‐Technologies Corp., Tokyo, Japan) at 15 kV. In both sexes, the claws, the ventral side of the proximal and distal tarsomere of the fore‐, mid‐ and hindlegs, and the elytra were observed.
The obtained images were analyzed using the image analysis program ImageJ (Schneider et al. 2012). In our analysis, we considered the “male setae,” that is, disco‐setae, found only in males and used for holding females during copulation according to Stork (1980). In particular, we calculated:
- –density of the disco‐setae (Figure 1a,b), that is, number of disco‐setae on area covered by these setae, on the distal and proximal tarsomeres of for‐, mid‐, and hindlegs (n = 6);
- –percentage of the area covered by disco‐setae in relation to the total area of the tarsomere for the distal and proximal tarsomere of for‐, mid‐, and hindlegs (n = 6);
- –area of the discoidal terminal plate of the disco‐setae (n = 6) in the proximal tarsomere of the forelegs (Figure 1c). We considered the male foreleg proximal tarsomere as a representative segment of the tarsus, because the foreleg is always positioned on female elytra. Data among the different species were compared using one‐way analysis of variance (ANOVA) followed by Tukey's test for multiple comparison.
- –density of elytra setae on female elytra calculated in a square of 300 µm × 300 µm.

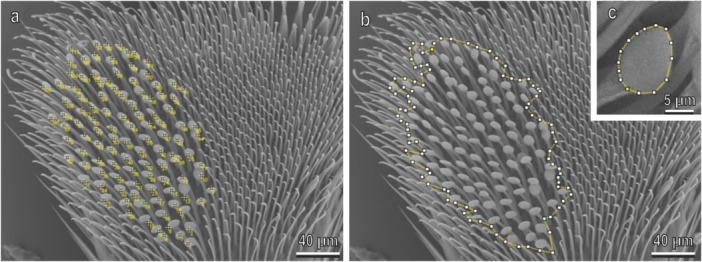

The distal tarsomere of the male midleg in Harmonia axyridis: (a) disco‐setae; (b) area covered by disco‐setae; and (c) area of a discoidal terminal plate of a disco‐seta.
Contact Angle Measurements on Elytra
2.3
Wettability of female elytra in 11 Coccinellidae species was characterized by determining the contact angle (CA) of water using a high‐speed optical CA measuring instrument OCAH 200 (Dataphysics Instruments GmbH, Filderstadt, Germany). We used Aqua millipore and different drop methods: 1 µL droplet for H. axyridis, A. bipunctata, C. septempunctata, P. quatuordecimpunctata, E. quadripustulatus (sessile drop method), C. elaterii and H. argus (sessile drop needle‐in method), 0.5 µL for C. montrouzieri and S. vigintiquatuorpunctata (sessile drop needle‐in), and 0.4 µL for N. conjunctus (sessile drop needle‐in) and D. catalinae (sessile drop). Ten female elytra (n = 10) of each species were measured.
Behavioral Observations
2.4
For each of the 11 species, we observed and photographed 5–15 couples during mating and recorded the positions of the male fore‐, mid‐, and hindleg on the female body or substrate. Some species (S. vigintiquatuorpunctata, N. conjunctus, C. montrouzieri, E. quadripustulatus, and D. catalinae) were observed under the optical stereomicroscope Wild M420 (Leica Microsystems GmbH, Wetzlar, Germany) connected with Koppace FHD Camera V 2.0, while H. axyridis, P. quatuordecimpunctata, C. septempunctata, A. bipunctata, C. elaterii, and H. argus were photographed with a Nikon D90 digital camera.
Results
3
Harmonia axyridis (Tribe: Coccinellini)
3.1
The pretarsal claws of H. axyridis are similar on the fore‐, mid‐, and hindlegs and show a deep cleft separating a wide basal tooth (dentate or appendiculate claws) from the distal portion of the claw (Figure 2a–c). No sexual dimorphism is present in the claw morphology (Figure 2a–c,j–l). The first and the second tarsomere of the fore‐, mid‐, and hindlegs have each a hairy pad with numerous tenent setae (Figure 2d–i,m–r). Only in male, disco‐setae with a wide discoidal terminal plate are visible in the first and second tarsomeres of the fore‐ and midlegs (Figure 2m,n,p,q). In the second tarsomere, the disco‐setae are concentrated in the lateral portion of the pad (Figure 2m,n). The density of the disco‐setae is similar on both tarsomeres and on both legs (Figure 3a). In the foreleg, the percentage of the area covered by disco‐setae on the total area of the tarsomere is about 40% on both tarsomeres, while in the midleg it is about 30% in both tarsomeres (Figure 3b). Elytra in both sexes are rather smooth with few scattered pits and short hairs (Figure 2t–w) and a thin layer of wax covers the elytra cuticle (Figure 2t–w). The female elytra are hydrophobic: the CA of water is 91.5° ± 0.9°. During mating, the male is contacting the female elytra with the mid‐ and forelegs. The position of the hindlegs is variable and they are often in contact with the substrate (Figures 2s and 4).

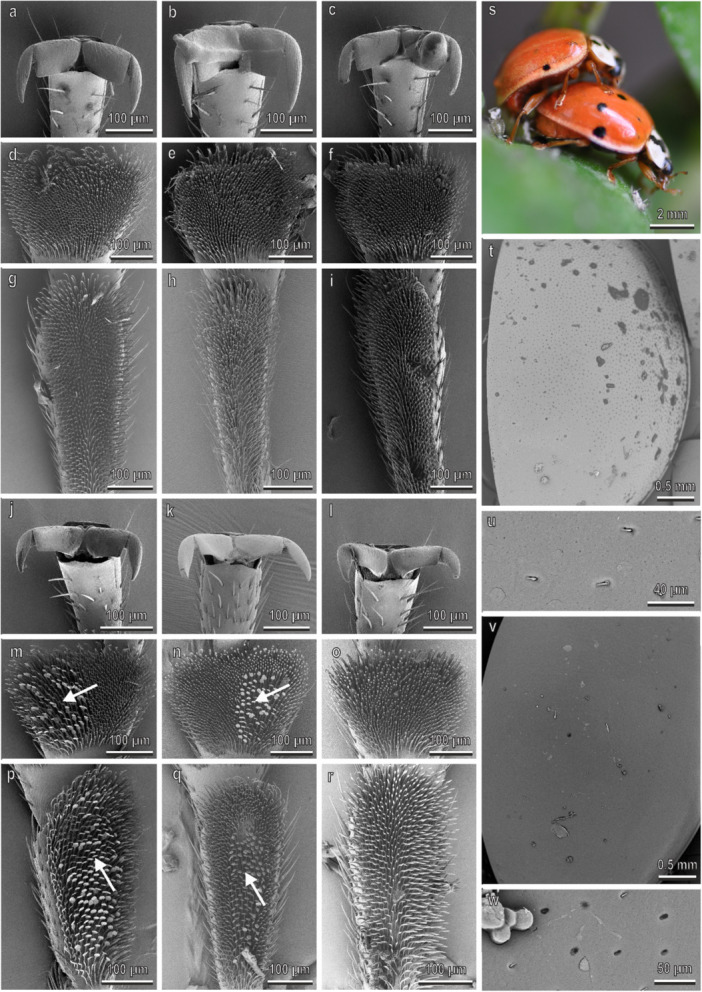

Harmonia axyridis. Female attachment devices (a–i), female elytra (t and u), male attachment devices (j–r), and male elytra (v and w) in the SEM: claws (a–c and j–l), distal (d–f and m–o) and proximal (g–i and p–r) tarsomeres of the fore‐ (a, d, g, j, m, p), mid‐ (b, e, h, k, n, q), and hindlegs (c, f, i, l, o, r). (s) The position of the male on the female during mating is shown. Arrows denote the disco‐setae on the male tarsi.

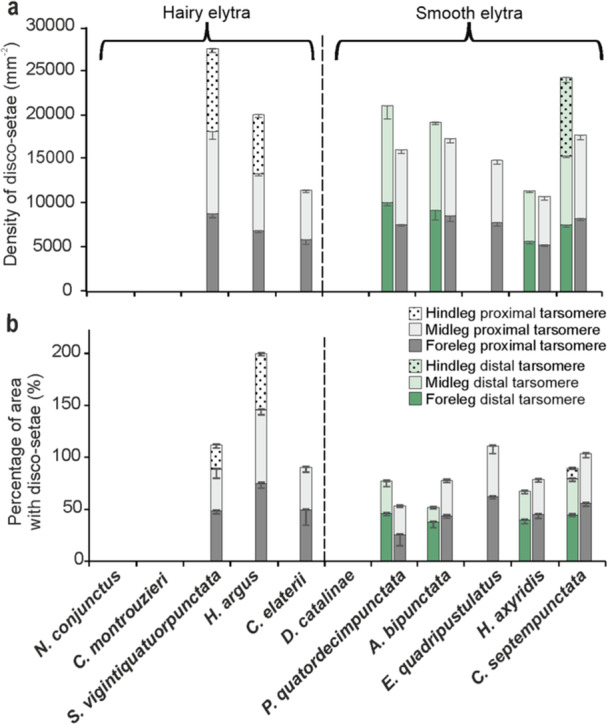

Density of disco‐setae (mean ± SE) (a) and percentage of area covered by disco‐setae (mean ± SE) (b) in the males' tarsomere in relation to the hairy or smooth females' elytra in 11 Coccinellidae species.

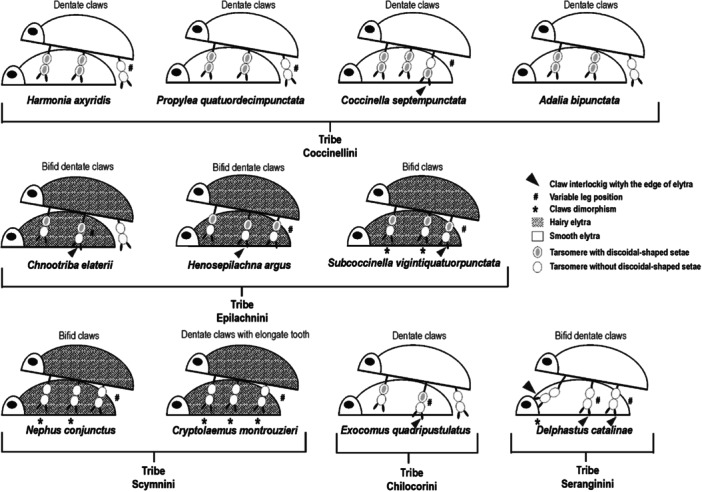

Mating postures of 11 Coccinellidae species belonging to different tribes. For males, presence or absence of dimorphic claws (asterisk), the disco‐setae (gray points) in the fore‐, mid‐, and hindlegs and their position on the females' elytra (placed or interlocked (arrowhead)) and/or on the substrate are presented in relation to the hairy or smooth females' elytra.
Propylea quatuordecimpunctata (Tribe: Coccinellini)
3.2
In P. quatuordecimpunctata (Figure 5), claws, tarsi, and elytra in both sexes are very similar to those in H. axyridis. The density of the disco‐setae in the second tarsomere is higher than 10,000 mm^−2^ in the second tarsomere and about 8000 mm^−2^ in the first tarsomere in the fore‐ and midlegs (Figure 3a). In both legs, the percentage of the area covered by disco‐setae is about 30% in all the tarsomeres (Figure 3b). A thin wax layer covers the elytra cuticle (Figure 2t–w). The water CA with the female elytra is 88.5° ± 0.8°. During mating, the male is contacting the female similar to the way described in H. axyridis (Figures 4 and 5s).

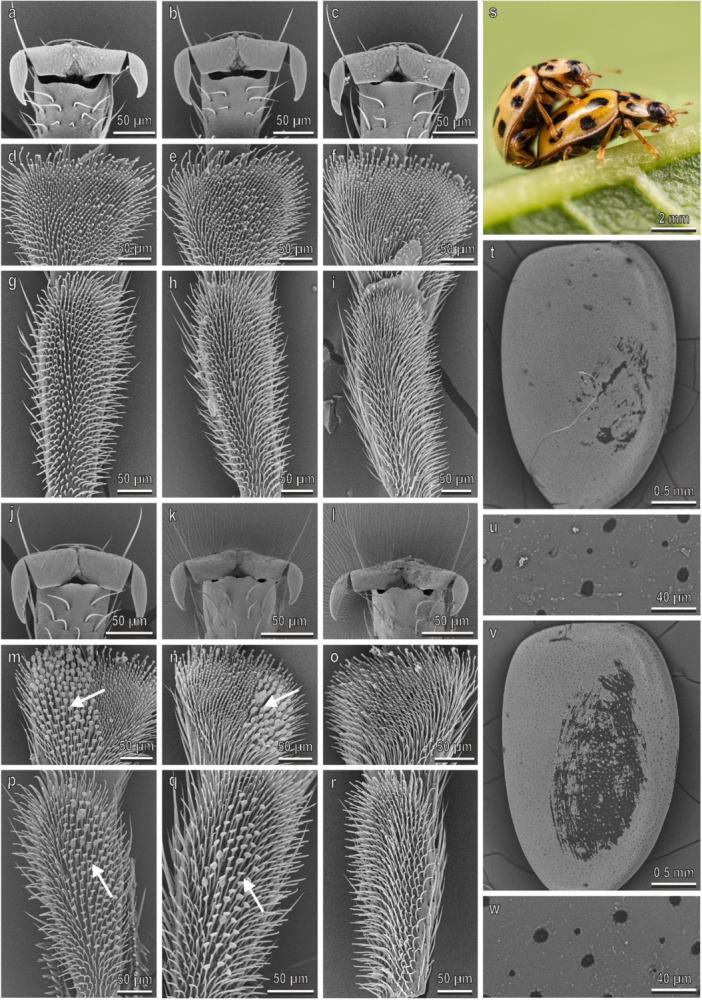

Propylea quatuordecimpunctata. Female attachment devices (a–i), female elytra (t and u), male attachment devices (j–r), and male elytra (v and w) in the SEM: claws (a–c and j–l), distal (d–f and m–o) and proximal (g–i and p–r) tarsomeres of the fore‐ (a, d, g, j, m, p), mid‐ (b, e, h, k, n, q), and hindlegs (c, f, i, l, o, r). (s) The position of the male on the female during mating is shown. Arrows denote the disco‐setae on the male tarsi.
Coccinella septempunctata (Tribe: Coccinellini)
3.3
In C. septempunctata (Figure 6), claws, tarsi and elytra in both sexes are very similar to those in H. axyridis with the only exception that the male disco‐setae are visible in a low number also on the second tarsomere of the hindlegs (Figure 6o). Elytra in both sexes are very smooth with some scattered pits and short hairs (Figure 6t–w). The density of the disco‐setae in the second tarsomere is about 8000 mm^−2^ in all the three legs (Figure 3a). In the first and second tarsomeres of the fore‐ and midlegs, the percentage of the area covered by disco‐setae is higher than 40%, while in the second tarsomere of the hindlegs it is about 10% (Figure 3b). A thin layer of wax covers the elytra cuticle (Figure 6t–w). The water CA with female elytra is 83.4° ± 1.9° (hydrophilic). During mating, the male is in contact with the female elytra using the mid‐ and forelegs. The position of the hindlegs is variable, often in contact with the female elytra showing the claw interlocking with the elytra edge (Figures 4 and 6s).

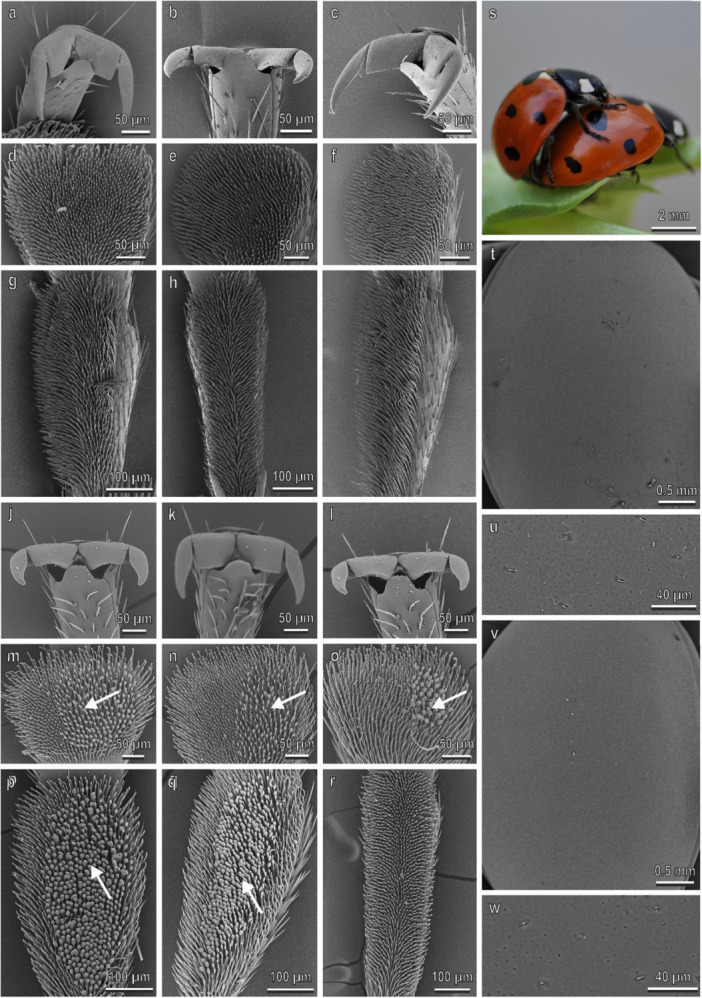

Coccinella septempunctata. Female attachment devices (a–i), female elytra (t and u), male attachment devices (j–r), and male elytra (v and w) in the SEM: claws (a–c and j–l), distal (d–f and m–o) and proximal (g–i and p–r) tarsomeres of the fore‐ (a, d, g, j, m, p), mid‐ (b, e, h, k, n, q), and hindlegs (c, f, i, l, o, r). (s) The position of the male on the female during mating is shown. Arrows denote the disco‐setae on the male tarsi.
Adalia bipunctata (Tribe: Coccinellini)
3.4
In A. bipunctata (Figure 7), claws and tarsi in both sexes are very similar to those in H. axyridis. The density of the disco‐setae is about 9000 mm^−2^ and is similar in the two tarsomeres and in the two legs (Figure 3a). In the foreleg, the percentage of the area covered by disco‐setae is about 40% in both tarsomeres, while in the midleg such percentage is about 34% in the first tarsomere and about 14% in the second tarsomere (Figure 3b). The elytra are rather smooth in both sexes with numerous pits; the cuticle is covered with a thin layer of wax (Figure 7t–w). The water CA with the female elytra is 90° ± 1°. During mating, male contacts the female elytra with the mid‐ and forelegs, while the hindlegs are contacting the substrate (Figures 4 and 7s).

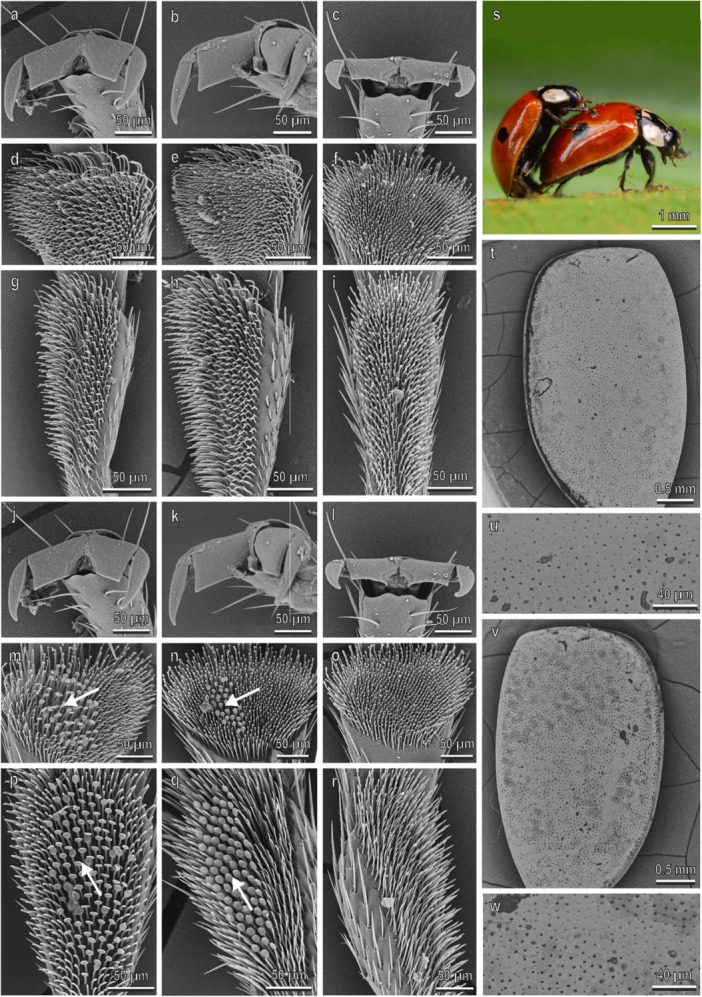

Adalia bipunctata. Female attachment devices (a–i), female elytra (t and u), male attachment devices (j–r), and male elytra (v and w) in the SEM: claws (a–c and j–l), distal (d–f and m–o) and proximal (g–i and p–r) tarsomeres of the fore‐ (a, d, g, j, m, p), mid‐ (b, e, h, k, n, q), and hindlegs (c, f, i, l, o, r). (s) The position of the male on the female during mating is shown. Arrows denote the disco‐setae on the male tarsi.
Chnootriba elaterii (Tribe: Epilachnini)
3.5
In C. elaterii, the pretarsal claws are similar in all the legs (Figure 8a–c). They are bifid and show a basal tooth (bifid dentate or bifid appendiculate claws) separated from the distal bifid claw by a deep cleft. There is no sexual dimorphism in the claw morphology (Figure 8a–c,j–l). The first and second tarsal segments bear each a hairy pad with numerous tenent setae (Figure 8d–i,m–r). In males, the first tarsomere of the fore‐ and midlegs has disco‐setae with a discoidal terminal plate, which is very reduced compared with the above reported species (Figure 8p,q). The density of the disco‐setae is about 6000 mm^−2^ and is similar in both legs (Figure 3a). The percentage of the area covered by disco‐setae is about 45% in both legs (Figure 3b). Long setae cover the elytra in both sexes (Figure 8t–w); their density on the female elytra is 600 ± 103.2 mm^−2^. Among the setae, wax filaments extruded from cuticular pores are visible (Figure 2u,w). The female elytra have superhydrophobic properties showing a very high (161.3° ± 0.9°) CA of water. During mating, male keeps its forelegs in contact with the female elytra, whereas its midlegs are either contacting the female elytra or the claws are interlocking with the elytra edge; the hindlegs are on the substrate (Figures 4 and 8s).

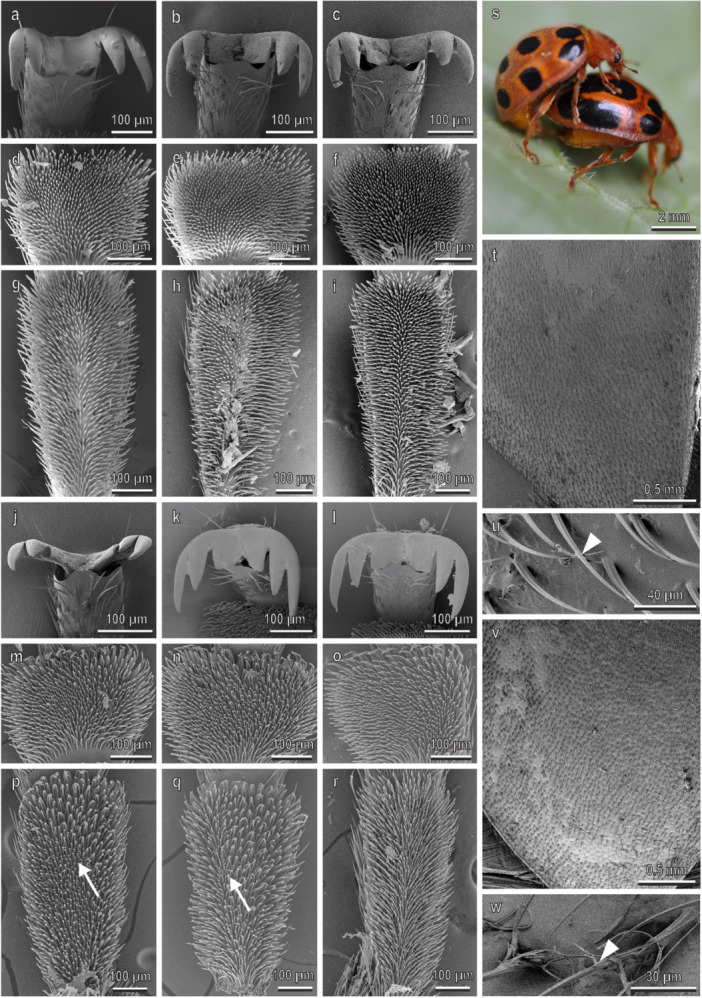

Chnootriba elaterii. Female attachment devices (a–i), female elytra (t and u), male attachment devices (j–r), and male elytra (v and w) in the SEM: claws (a–c and j–l), distal (d–f and m–o) and proximal (g–i and p–r) tarsomeres of the fore‐ (a, d, g, j, m, p), mid‐ (b, e, h, k, n, q), and hindlegs (c, f, i, l, o, r). (s) The position of the male on the female during mating is shown. Arrows denote the disco‐setae on the male tarsi; arrowheads point to the setae on male and female elytra.
Henosepilachna argus (Tribe: Epilachnini)
3.6
In H. argus (Figure 9), claws, tarsi and elytra in both sexes are very similar to those in C. elaterii. The male hairy pads show disco‐setae with a very reduced discoidal terminal plate only in the first tarsomere of all the three legs (Figure 9p–r). Both the density of disco‐setae (about 6500 mm^−2^) (Figure 3a) and the percentage of the area covered by disco‐setae (about 70%) (Figure 3b) are similar in the three legs. The density of the elytra setae on the female elytra is 667 ± 17 mm^−2^. An extrusion of wax is visible among the setae of the elytra (Figure 9u,w). Water CA on the female elytra is 162.1.5° ± 1.2°. During mating (Figures 4 and 9s), male keeps its forelegs in contact with the female elytra. Claws of the midlegs are interlocking with the elytra edge and the hindlegs are either on the elytra or on the substrate (or even raised).

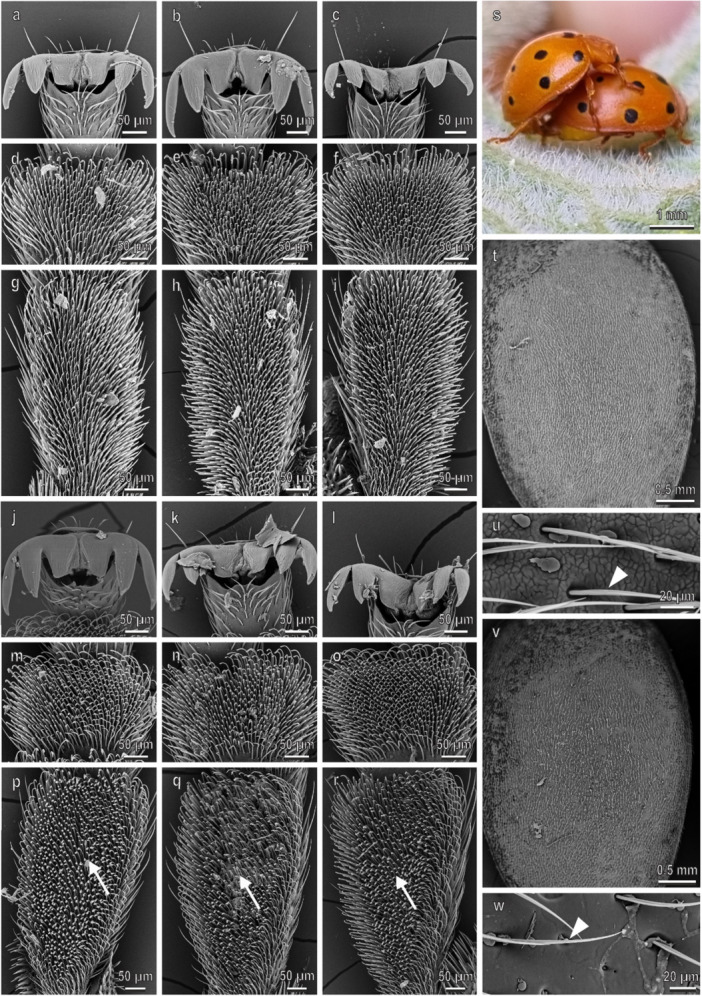

Henosepilachna argus. Female attachment devices (a–i), female elytra (t and u), male attachment devices (j–r), and male elytra (v and w) in the SEM: claws (a–c and j–l), distal (d–f and m–o) and proximal (g–i and p–r) tarsomeres of the fore‐ (a, d, g, j, m, p), mid‐ (b, e, h, k, n, q), and hindlegs (c, f, i, l, o, r). (s) The position of the male on the female during mating is shown. Arrows denote the disco‐setae on the male tarsi; arrowheads point to the setae on male and female elytra.
Subcoccinella vigintiquatuorpunctata (Tribe: Epilachnini)
3.7
In S. vigintiquatuorpunctata, the pretarsal claws are bifid, (without any basal tooth) (Figure 10a–c). There is slight sexual dimorphism in the claw morphology of the forelegs and midlegs, with the male showing a narrower cleft and slightly longer claws compared with female (compare Figure 10a,b with 10j,k). In the male first tarsomere of all the legs, disco‐setae are visible (Figure 10p–r). The density of disco‐setae is about 9000 mm^−2^ and is similar in the three legs (Figure 3a). The percentage of the area covered by disco‐setae is about 40% in the foreleg and midleg and 20% in the hindleg (Figure 3b). Long setae cover the elytra in both sexes (Figure 10t–w). The density of the setae on the female elytra is 604 ± 24 mm^−2^. Among the elytra setae, the elytra surface bears wax extrusions (Figure 2u,w). The female elytra show a high (138° ± 4.8°) CA of water (highly hydrophobic). During mating (Figures 4 and 10s), male keeps its forelegs and midlegs in contact with the female elytra, whereas claws of its hindlegs are interlocking with the female elytra edge.

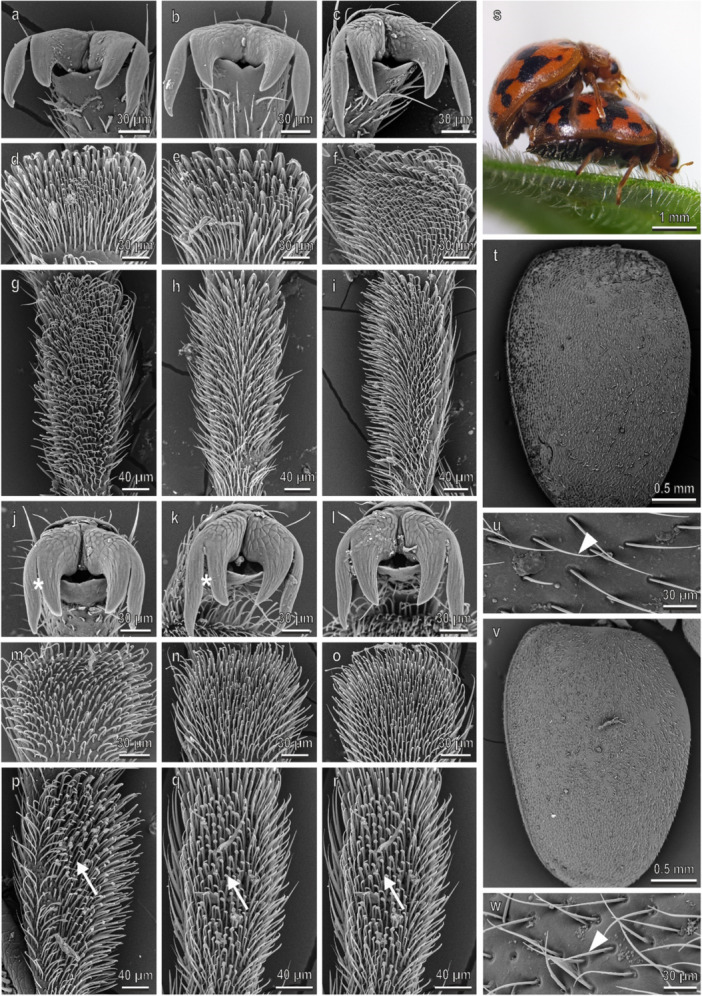

Subcoccinella vigintiquatuorpunctata. Female attachment devices (a–i), female elytra (t and u), male attachment devices (j–r), and male elytra (v and w) in the SEM: claws (a–c and j–l), distal (d–f and m–o) and proximal (g–i and p–r) tarsomeres of the fore‐ (a, d, g, j, m, p), mid‐ (b, e, h, k, n, q), and hindlegs (c, f, i, l, o, r). (s) The position of the male on the female during mating is shown. Arrows denote the disco‐setae on the male tarsi; arrowheads point to the setae on male and female elytra. The dimorphic claws of male are characterized by a narrower cleft (asterisk) and longer claws compared to female.
Nephus conjunctus (Tribe: Scymnini)
3.8
In N. conjunctus, the pretarsal claws are bifid in both sexes and, in the female, they are similar in the fore‐, mid‐, and hindlegs (Figure 11a–c). There is sexual dimorphism in the claw morphology of the fore‐ and midlegs: the male has a much narrower cleft and longer claws compared to the female (compare Figure 11a,b with 11j,k). No sexual dimorphism is present in the hairy pads, since disco‐setae are absent in the male tarsomeres (Figure 10m–r). Long setae cover the elytra in both sexes (Figure 11t–w). The density of the setae on the female elytra is 989 ± 39 mm^−2^. Wax filaments are well visible among the setae of the elytra (Figure 2u,w). The female elytra show a water CA of 166.0° ± 1.3° (superhydrophobic). During mating (Figures 4 and 11s), male has its fore‐ and midlegs in contact with the female elytra, while its hindlegs are either on the elytra or raised.

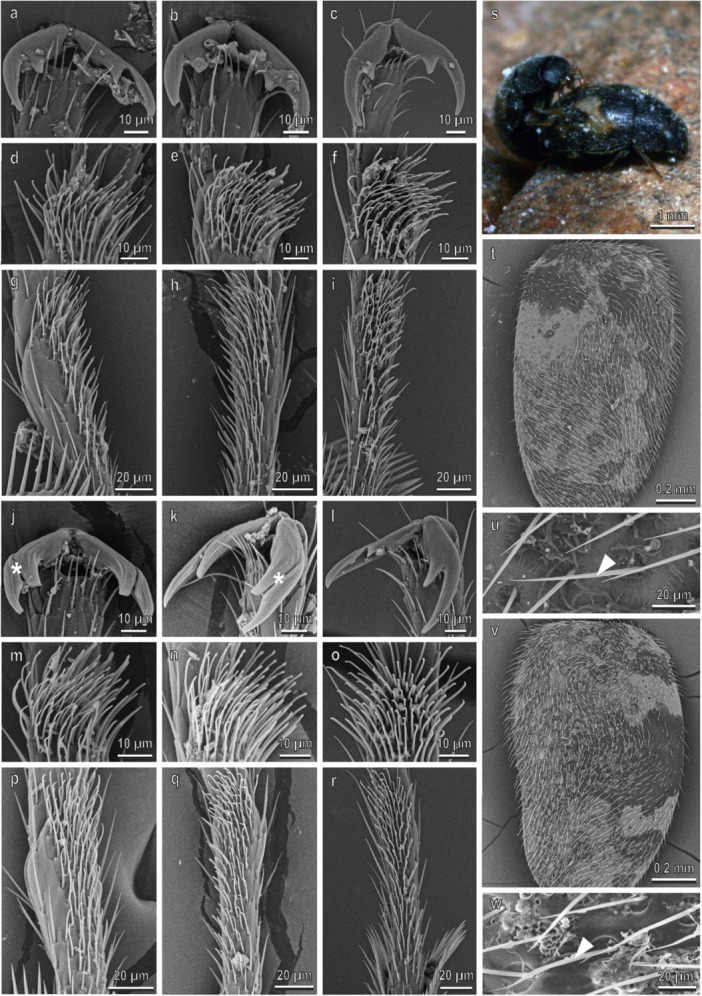

Nephus conjunctus. Female attachment devices (a–i), female elytra (t and u), male attachment devices (j–r), and male elytra (v and w) in the SEM: claws (a–c and j–l), distal (d–f and m–o) and proximal (g–i and p–r) tarsomeres of the fore‐ (a, d, g, j, m, p), mid‐ (b, e, h, k, n, q), and hindlegs (c, f, i, l, o, r). (s) The position of the male on the female during mating is shown. Arrowheads point to the setae on male and female elytra. The dimorphic claws of male are characterized by a narrower cleft (asterisk) and longer claws compared to female.
Cryptolaemus montrouzieri (Tribe: Scymnini)
3.9
In C. montrouzieri, the pretarsal claws are dentate, with a wide basal tooth in the females and are similar in the three legs (Figure 12a–c). There is a sexual dimorphism in the claw morphology of all the three legs, with the male showing a more elongated tooth and deeper cleft compared with female (compare Figure 12a–c with 12j–l). There is no sexual dimorphism in the structure of the hairy pads (no disco‐setae in the male) (Figure 12m–r). Long setae cover the elytra in both sexes (Figure 12t–w); their density on the female elytra is 589 ± 79 mm^−2^. Wax filaments are clearly visible among the setae of the elytra (Figure 2u,w). Water CA on the female elytra is 169.3° ± 1.5°. During mating (Figures 4 and 12s), male contacts the female elytra using the fore‐ and midlegs, its hindlegs are either on the elytra or raised.

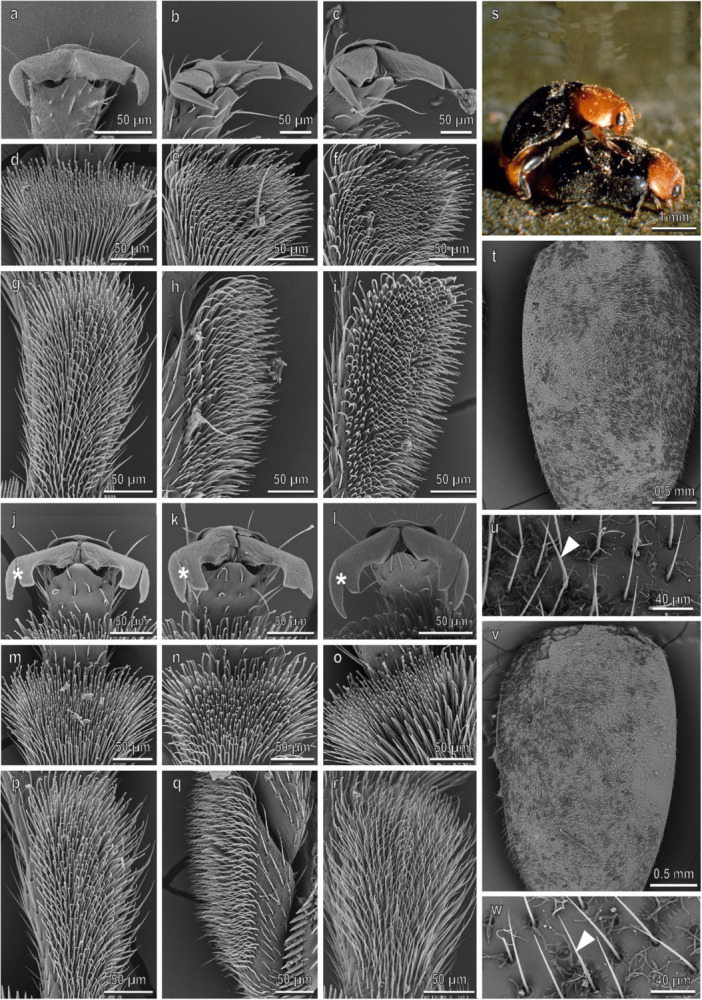

Cryptoleamus montrouzieri. Female attachment devices (a–i), female elytra (t and u), male attachment devices (j–r), and male elytra (v and w) in the SEM: claws (a–c and j–l), distal (d–f and m–o) and proximal (g–i and p–r) tarsomeres of the fore‐ (a, d, g, j, m, p), mid‐ (b, e, h, k, n, q), and hindlegs (c, f, i, l, o, r). (s) The position of the male on the female during mating is shown. Arrowheads point to the setae on male and female elytra. The dimorphic claws of male show a more elongated tooth (asterisk) and deeper cleft compared with female.
Exochomus quadripustulatus (Tribe: Chilocorini)
3.10
The claws are similar in all the legs of both sexes (Figure 13a–c,j–i) and show a deep cleft separating a wide basal tooth (dentate claws) from the distal portion of the claw. The first tarsomere of the fore‐ and midlegs in the male shows disco‐setae with a wide discoidal terminal plate (Figures 3a and 13p,q). The density of the disco‐setae (about 7000 mm^−2^) is similar (only the first tarsomere has disco‐setae) in both legs (Figure 3a). In both legs, the percentage of the area covered by disco‐setae is about 50% (Figure 3b). The elytra in both sexes are rather smooth, with few scattered pits and short setae (Figure 13t–w). A thin layer of wax covers the elytral cuticle (Figure 13t–w). The female elytra show a water CA of 92° ± 1.6°. During mating, the male is in contact with the female elytra using the fore‐ and midlegs, while the hindlegs are kept on the substrate (Figures 4 and 13s).

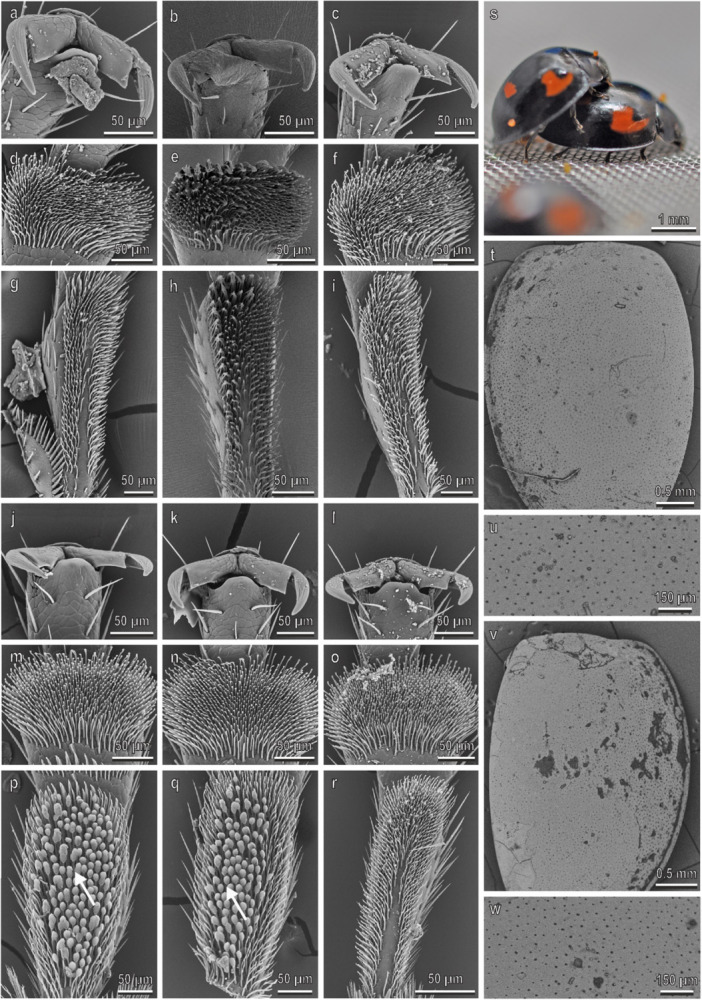

Exocomus quadripustulatus. Female attachment devices (a–i), female elytra (t and u), male attachment devices (j–r), and male elytra (v and w) in the SEM: claws (a–c and j–l), distal (d–f and m–o) and proximal (g–i and p–r) tarsomeres of the fore‐ (a, d, g, j, m, p), mid‐ (b, e, h, k, n, q), and hindlegs (c, f, i, l, o, r). (s) The position of the male on the female during mating is shown. Arrows denote the disco‐setae on the male tarsi.
Delphastus catalinae (Tribe: Seranginini)
3.11
A pair of simple pretarsal claws similar in the three legs is present in females (Figure 14a–c). There is a sexual dimorphism in the claw morphology of the forelegs, with the male showing bifid dentate claws in the forelegs (compare Figure 14a with 14j), while the claws of mid‐ and hindlegs are similar to those of the female (Figure 14b,c,k,l). No sexual dimorphism is detected in the hairy pads (no disco‐setae in the male pads) (Figure 14m–r). The elytra in both sexes are very smooth, with a thin wax layer covering the cuticle (Figure 14t–w). The female elytra have a water CA of 86.1° ± 1.1°. During mating (Figures 4 and 14s), male interlocks the bifid dentate claws of the forelegs with the anterior edge of the female elytra and keeps its midlegs in contact with the female elytra; its hindlegs are either kept on the elytra or raised.

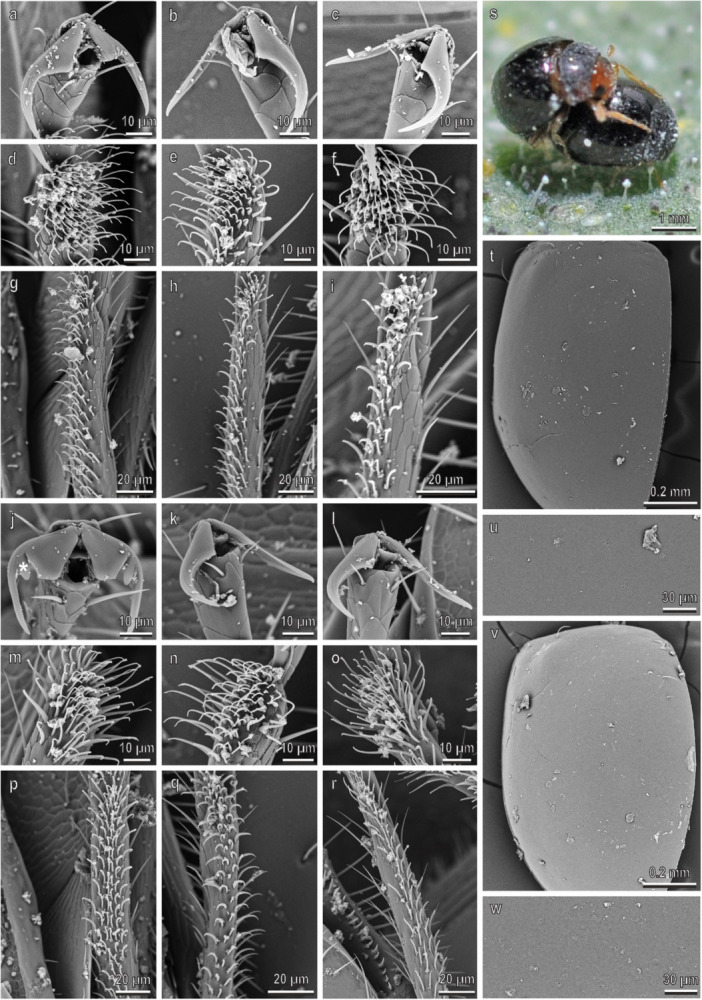

Delphastus catalinae. Female attachment devices (a–i), female elytra (t and u), male attachment devices (j–r), and male elytra (v and w) in the SEM: claws (a–c and j–l), distal (d–f and m–o) and proximal (g–i and p–r) tarsomeres of the fore‐ (a, d, g, j, m, p), mid‐ (b, e, h, k, n, q), and hindlegs (c, f, i, l, o, r). In (s) The position of the male on the female during mating is shown. The foreleg of male presents a dimorphic bifid claw (asterisk), not recorded in female.
Overall Comparison
3.12
On the whole, we can observe that among coccinellid species with hairy elytra, males of species with small sizes (N. conjunctus and C. montrouzieri) do not possess disco‐setae, but have sexually dimorphic claws, while large‐sized species (S. vigintiquatuorpunctata, H. argus, and C. elaterii) show disco‐setae (Figure 15). The area of discoidal terminal plate of these setae does not significantly differ among species and is smaller in comparison to species with smooth elytra (F = 352.1; d.f. = 10, 109; p < 0.001) (Figure 15). An intermediate condition is represented by S. vigintiquatuorpunctata males, where disco‐setae are present together with slightly modified claws. Among coccinellid species with smooth elytra, small‐sized species (D. catalinae) does not show disco‐setae in males, but sexually dimorphic claws, while species of larger sizes have disco‐setae (Figure 15). In the latter cases, the area of discoidal terminal plate is higher in larger species (E. quadripustulatus, H. axyridis, C. septempunctata) and lower in smaller species (P. quatuordecimpunctata, A. bipunctata) (Figure 15).

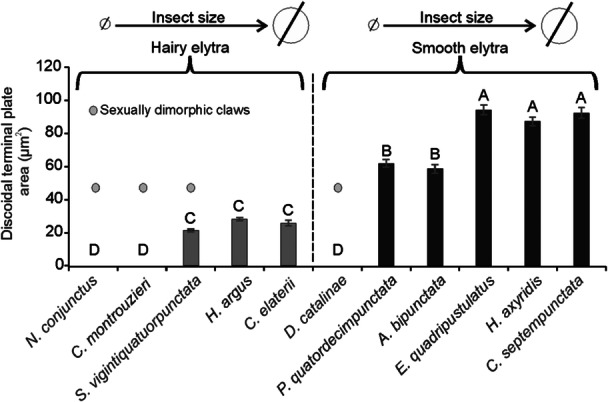

Area (mean ± SE) of discoidal terminal plate of males' specialized disco‐setae and presence of dimorphic claws in relation to the hairy or smooth females' elytra and body size in 11 Coccinellidae species.
Discussion
4
In Coleoptera, the structure of female elytra and male attachment devices are shaped by ongoing adaptations and counter‐adaptations driven by reproductive strategies and female mate selection, reflecting a complex interplay of cooperative and noncooperative interactions with males (Alcock 2006). Previous studies have provided evidence of coevolution—sometimes cooperative, sometimes antagonistic—between male attachment organs and female elytra in some selected species from the families of Dytiscidae (Drotz et al. 2010), Chrysomelidae (Voigt et al. 2008), and Coccinellidae (Gorb and Gorb 2020). However, none of them has investigated these aspects in a comparative manner within one family. The present study sheds light for the first time on this relationship in 11 species of Coccinellidae belonging to different tribes from morphological and behavioral perspectives.
Our data reveal that disco‐setae are present only in males of some species and are located on the hairy pads of legs, which hold on female elytra during mating, while these setae are not recorded in legs, which rest on the substrate (Figure 4). Similar situation was found also in the males of the chrysomelid beetle L. decemlineata, where the hindlegs lacking disco‐setae are in contact with the female elytra margin and the abdominal sclerites during copulation (Voigt et al. 2008). This phenomenon likely occurs because the evolutionary cost of the sexual dimorphism is justified only for the fore‐ and midlegs that play a greater role in copulation. Ladybirds mate often and for a long time, with duration ranging from 45 min in C. septempunctata (Rana and Kakker 2000) to 2–3 h in H. axyridis (Hodek et al. 2012) and several days in Aiolocaria hexaspilota (Crotch) (Iwata 1932). Such a long mating time requires males to have a strong adhesion system to ensure a successful female insemination. In this context, many authors have emphasized the crucial role of dimorphic setae in Coleoptera during mating (Voigt et al. 2008, 2017; Bullock and Federle 2009; Matsumura et al. 2023). Previous studies comparing the adhesion of disco‐setae with the adhesion of pointed setae on the females body during copulation (Voigt et al. 2008; Matsumura et al. 2023), revealed that the disco‐setae adhere stronger to female surfaces than pointed setae. Matsumura et al. (2023) suggested that the development of these disco‐setae in males could be related to the epicuticular grease layer present on the insect cuticle which makes adhesion particularly challenging. Indeed, disco‐setae are particularly effective on smooth flat or convex surfaces like elytra of some species (Bullock and Federle 2011; Voigt et al. 2017). In rare cases, elytra may be more or less convex. This excellent adhesive property has inspired biologists and engineers to develop bio‐inspired, glue‐free adhesive materials for robotic applications by mimicking the microstructure of beetle and fly feet (Gorb, Sinha et al. 2007).
Elytral setae, along with longitudinal rows and punctures, are a common modification of coleopteran elytral surface (Beutel and Leschen 2016). For example, in many representatives of Dytiscidae, elytra showing a sexual dimorphism are impressed with primary and secondary reticulation in females. These reticulation patterns have taxonomical significance (Drotz et al. 2010) and in the past, were assumed to aid males during mating (Darwin 1871). Further studies suggested that these elytra sculptures reduce male adhesion and are therefore a sexually antagonistic trait associated with sexual conflict (Miller 2003; Karlsson Green et al. 2013; Bilton et al. 2016). To our best knowledge, the function of setae, covering the elytra in Coccinellidae, remains unclear. We hypothesize that for large coccinellids inhabiting dry environments and feeding on plants rich in glandular trichomes (e.g., C. elaterii and H. argus), the presence of hairy elytra (as well as wax filaments) may help to prevent water loss, as observed in the abdominal cuticle of the tenebrionid beetle Ulomoides dermestoides (Fairmaire) (Coleoptera: Tenebrionidae) (Qian et al. 2016). Additionally, our data show that these hairs together with wax filaments render the cuticle to a superhydrophobic state, a property that may: (1) protect phytophagous ladybirds from the sticky plant exudates or glandular trichome secretions; (2) serve as self‐cleaning mechanism against solid particles; (3) shield ladybirds from honeydew produced by prey, such as mealybugs. Further investigations are needed to clarify these aspects.
While comparing the discoidal terminal plate area of male disco‐setae between studied coccinellid species with smooth or hairy elytra (Figure 15), we observed larger terminal elements in species, where females have smooth elytra, and smaller setal tips, when females have hairy elytra. This reduction in size of discoid setal tips is probably an adaptation of male setae for adhesion enhancement due to reaching the smooth surface beneath the elytral setae. Additionally, our investigation revealed that coccinellid species with hairy elytra tend to develop bifid claws (Figures 4 and 15), which may enhance attachment efficiency compared to dentate claws typical in species with smooth elytra. As previously hypothesized by Gorb and Gorb (2020) for C. montrouzieri, we can suppose that in species with hairy elytra, males may use their bifid claws with deep clefts to interlock with the elytra setae on the female's elytra during mating. This hypothesis is further supported by the presence of sexual dimorphism in the claw shape found in beetles with hairy elytra, such as S. vigintiquatuorpunctata, N. conjunctus, and C. montrouzieri (Figure 15).
Claws with multiple clefts have been observed in various insect species, which often apply serrate or pectinate claws to attach to surfaces covered by long hair‐like structures. Such claws have been described from the avian ectoparasite Craterina pallida Latreille (Diptera: Hippoboscidae), which attaches to the bird feathers using tridentate claws (Petersen et al. 2018), or the bee louse Braula coeca Nitzsch (Diptera: Braulidae) attaching to honey bee hairs with its tiny comb‐like claws (Büscher et al. 2021). Similarly, coccinellids with clefts in their claws revealed a higher attachment ability to flexible plant trichomes compared to Coleoptera with simple divergent claws (Salerno, Rebora, Piersanti, Saitta et al. 2022).
In our study, D. catalinae was the only species, where we observed a combination of males having bifid claws and smooth female elytra. Here, males use their specialized claws to interlock with the anterior edge of the elytra, a unique coccinellid mating strategy observed only in this small species. Notably, despite the smooth elytra, D. catalinae lacks disco‐setae (Figure 4). This finding is particularly intriguing given the small size of beetle individuals. Indeed, the morphology of hairy adhesive organs may be affected also by the animal size (Arzt et al. 2003; Labonte and Federle 2015). It is widely recognized that smaller animals tend to have a better attachment due to their larger surface‐to‐mass ratio compared to larger animals (Labonte and Federle 2015; Salerno et al. 2020). During the ontogenesis, hemimetabolan insects tend to compensate for the decrease of attachment efficiency, caused by a nonproportional increase of the body mass, by enlarging the attachment devices or developing additional adaptations that enhance the attachment performances (Gorb and Gorb 2004; Labonte and Federle 2015) as studied in Nezara viridula (L.) (Hemiptera: Pentatomidae) (Salerno et al. 2020) and Coreus marginatus (L.) (Hemiptera: Pentatomidae) (Gorb and Gorb 2004). Our data suggest a relationship between the size of coccinellid species (Table S1) and the morphology of male attachment devices used during mating (Figure 15). In particular, we observed that in larger species (ranging from 4 to 8 mm), such as C. elaterii, H. argus, C. septempunctata, H. axyridis, A. bipunctata, E. quadripustulatus, and P. quatuordecimpunctata, sexual dimorphism is observed only in adhesive pads (disco‐setae in males) and does not affect the claws. Conversely in smaller species (ranging from 1.5 to 4 mm), such as C. montrouzieri, N. conjunctus, and D. catalinae, sexual dimorphism is present only in claws and does not affect the setae (Figures 4 and 15). It appears that the sexual dimorphism in pad setae, due to its evolutionary cost, develops only in larger species (where no claw dimorphism is observed), whereas in smaller species, claws dimorphism alone is sufficient to ensure a firm hold on the females, avoiding any investment in other adhesive devices. Also in smaller species due to their relatively stronger efficiency of adhesive pads due to the scaling effects mentioned above, the performance of their adhesive pads might be sufficient to maintain strong attachment during copulation even on the challenging surfaces of female elaytra. Interestingly, S. vigintiquatuorpunctata stands out as an exception, exhibiting sexual dimorphism in both pad setae and claws. This is probably owed to the intermediate size of this ladybird. We observed that larger coccinellid species, such as E. quadripustulatus, C. elaterii, H. argus, and C. septempunctata, use occasionally claws to firmly hold on elytra edge. When males interlock their claws with the elytral edge, a significant increase in attachment force can be achieved, as suggested by Voigt et al. (2017) for C. americana (Chrysomelidae). In this context, an intriguing structure—the costal edge of the elytra—was reported in C. septempunctata by Fu et al. (2024) and it is likely that male claws are adapted to interlock with this elytral rib.
At the end, we would like to emphasize that understanding the fundamental mechanisms that regulate the insect biological cycle (Chown and Nicolson 2004; Shields 2017) could be potentially used for their monitoring and control (Bernays and Chapman 2007; Gorb 2001; Salerno et al. 2021; Schoonhoven et al. 2005).
Conclusions and Outlook
5
The present comparative study on 11 species of Coccinellidae belonging to different tribes highlights the co‐evolutionary relationships between the morphology of female elytra and the male attachment devices from the morphological and behavioral points of view. In particular, we show the following: (1) Disco‐setae are present only in males of some species and are located on the hairy pads of legs, which during mating hold on female elytra. These special setae are absent in legs, which are positioned on the substrate. (2) In species, where males have disco‐setae the area of the discoid setal tip is considerably extended, when females have smooth elytra, and is reduced, when females have hairy elytra. (3) Males of coccinellid species with hairy elytra tend to possess bifid claws, which can be useful for mating compared to dentate claws typical in species with smooth elytra. (4) Sexual dimorphism in pad setae evolved only in larger species, where claw dimorphism is absent. In smaller species, the claws dimorphism is sufficient evolutionary adaptation in males, to firmly hold the females, thus avoiding further investment in other attachment devices. These relationships are important for elucidating the evolutionary mechanisms driving diversification within the Coccinellidae family. Furthermore, insights into the functional significance of these morphological traits involved in Coccinellidae mating behavior can provide valuable implications also for pest management strategies, biological control practices (improving the mass rearing techniques), and environmental conservation efforts in this important family of Coleoptera.
Author Contributions
Valerio Saitta: conceptualization, investigation, writing – original draft, writing – review and editing, methodology, data curation. Manuela Rebora: conceptualization, writing – original draft, writing – review and editing, methodology, supervision. Silvana Piersanti: writing – review and editing. Giorgia Carboni Marri: investigation. Paolo Masini: visualization. Elena Gorb: conceptualization, writing – original draft, writing – review and editing, supervision. Alessia Iacovone: investigation, methodology, writing – review and editing. Gianandrea Salerno: conceptualization, writing – original draft, writing – review and editing, methodology, formal analysis, data curation, supervision. Stanislav Gorb: conceptualization, methodology, writing – review and editing, supervision.
Supporting information
Supporting information.
