The genome sequence of a soldier beetle, Malthinus seriepunctatus Kiesenwetter, 1851
Ryan Mitchell, Michael F. Geiser, Maxwell V. L. Barclay, Doga Cedden, Hume Douglas, Zachary P Cohen
TL;DR
This paper presents the genome sequence of the soldier beetle Malthinus seriepunctatus, including a detailed assembly of its chromosomes and mitochondrial DNA.
Contribution
The study provides the first genome assembly for Malthinus seriepunctatus, including chromosomal pseudomolecules and the mitochondrial genome.
Findings
The genome assembly is 338.81 megabases long, with 99.73% scaffolded into 6 chromosomal pseudomolecules.
The mitochondrial genome is 20.41 kilobases in length and has been fully assembled.
Abstract
We present a genome assembly from a specimen of Malthinus seriepunctatus (a soldier beetle; Arthropoda; Insecta; Coleoptera; Cantharidae). The genome sequence has a total length of 338.81 megabases. Most of the assembly (99.73%) is scaffolded into 6 chromosomal pseudomolecules, including the X sex chromosome. The mitochondrial genome has also been assembled and is 20.41 kilobases in length.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5| Project information | |||
|---|---|---|---|
|
| Malthinus seriepunctatus | ||
|
| PRJEB71564 | ||
|
|
| ||
|
| SAMEA111457897 | ||
|
| 1588223 | ||
| Specimen information | |||
|
|
|
|
|
|
| icMalSeri1 | SAMEA111457959 | head and thorax |
|
| icMalSeri1 | SAMEA111457897 | whole organism |
| Sequencing information | |||
|
|
|
|
|
|
| ERR12512738 | 8.80e+08 | 132.85 |
|
| ERR12408804 | 2.63e+06 | 23.63 |
| Genome assembly | ||
|---|---|---|
| Assembly name | icMalSeri1.1 | |
| Assembly accession | GCA_963924605.1 | |
|
|
| |
| Assembly level for primary assembly | chromosome | |
| Span (Mb) | 338.81 | |
| Number of contigs | 333 | |
| Number of scaffolds | 48 | |
| Longest scaffold (Mb) | 133.53 | |
| Assembly metric | Measure |
|
| Contig N50 length | 2.08 Mb |
|
| Scaffold N50 length | 55.19 Mb |
|
| Consensus quality (QV) | Primary: 63.1; alternate:
|
|
|
| Primary: 87.98%; alternate:
|
|
| BUSCO
| C:99.0%[S:97.6%,D:1.4%],
|
|
| Percentage of assembly mapped to
| 99.59% |
|
| Sex chromosomes | X |
|
| Organelles | Mitochondrial genome:
|
|
| INSDC
| Name | Length
| GC% |
|---|---|---|---|
| 1 | 133.53 | 32.5 | |
| 2 | 55.19 | 32.5 | |
| 3 | 52.21 | 32.5 | |
| 4 | 44.29 | 32.5 | |
| 5 | 37.64 | 33 | |
| X | 14.55 | 32.5 | |
| MT | 0.02 | 32.5 |
| Software tool | Version | Source |
|---|---|---|
| BEDTools | 2.30.0 |
|
| BLAST | 2.14.0 |
|
| BlobToolKit | 4.3.9 |
|
| BUSCO | 5.5.0 |
|
| bwa-mem2 | 2.2.1 |
|
| Cooler | 0.8.11 |
|
| DIAMOND | 2.1.8 |
|
| fasta_windows | 0.2.4 |
|
| FastK | 427104ea91c78c3b8b8b49f1a7d6bbeaa869ba1c |
|
| Gfastats | 1.3.6 |
|
| GoaT CLI | 0.2.5 |
|
| Hifiasm | 0.19.8-r603 |
|
| HiGlass | 44086069ee7d4d3f6f3f0012569789ec138f42b84
|
|
| MerquryFK | d00d98157618f4e8d1a9190026b19b471055b22e |
|
| Minimap2 | 2.24-r1122 |
|
| MitoHiFi | 3 |
|
| MultiQC | 1.14, 1.17, and 1.18 |
|
| NCBI Datasets | 15.12.0 |
|
| Nextflow | 23.04.1 |
|
| PretextView | 0.2.5 |
|
| purge_dups | 1.2.5 |
|
| samtools | 1.19.2 |
|
| sanger-tol/ascc | - |
|
| sanger-tol/
| 0.5.1 |
|
| Seqtk | 1.3 |
|
| Singularity | 3.9.0 |
|
| TreeVal | 1.2.0 |
|
| YaHS | 1.2a.2 |
|
- —Wellcome Trust
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsForest Insect Ecology and Management · Insect Resistance and Genetics · Coleoptera Taxonomy and Distribution
Species taxonomy
Eukaryota; Opisthokonta; Metazoa; Eumetazoa; Bilateria; Protostomia; Ecdysozoa; Panarthropoda; Arthropoda; Mandibulata; Pancrustacea; Hexapoda; Insecta; Dicondylia; Pterygota; Neoptera; Endopterygota; Coleoptera; Polyphaga; Elateriformia; Elateroidea; Cantharidae; Malthininae; Malthinus; Malthinus seriepunctatus Kiesenwetter, 1851 (NCBI:txid1588223)
Background
The family Cantharidae, commonly known as “soldier beetles” comprises over 6,000 described species worldwide, of which 41 species are recorded from Britain and Ireland ( Duff, 2018). 16 of them are classified under the subfamily Malthininae. Malthinus Latreille, 1806 is the second most diverse genus of the subfamily worldwide, currently including over 300 described species from the Palaearctic, Nearctic and Oriental regions, as well as Central America, South Africa and Madagascar ( Delkeskamp, 1977; Kazantsev & Brancucci, 2007; Ramsdale, 2002; Švihla, 2009; Wittmer, 1980). In the British fauna, only four species are present: M. seriepunctatus Kiesenwetter, 1851, M. balteatus Suffrian, 1851, M. flaveolus (Herbst, 1786), M. frontalis (Marsham, 1802). The genome sequence for M. flaveolus has already been published ( Telfer et al., 2024).
The British members of Malthinus can be identified using Duff (2020) or Wittmer (1979). They are small, weakly sclerotised Cantharidae, often with shortened elytra, but with fully functional hind wings. Malthinus is distinguished from the related British genus Malthodes Kiesenwetter, 1852 by the distinctive head shape, with a rather narrow “neck” and protruding eyes (particularly large in the males), located at the widest part of the head. While all British members of Malthodes are black or dark brown when fully coloured (often excluding the apices of the elytra and/or the prothorax), Malthinus have at least partially yellow legs, and often a mostly yellowish or pale brownish underside. M. seriepunctatus and the related M. balteatus are distinguished from the other British Malthinus by the distinctly punctate elytra, with punctures arranged into regular rows, plus the hourglass-shaped dark pronotal pattern (sometimes reduced into two roughly triangular dark blotches). M. seriepunctatus varies from 3.5 to 5 mm in length, on average larger than M. balteatus, which is only 3–4 mm. The latter also has darker elytra. In M. seriepunctatus, the elytra are light brown, sometimes with a darker brownish suture, and always with a sulphur yellow apex.
M. seriepunctatus is a western Palaearctic species found in large parts of western and Central Europe, as well as Algeria. It is present in Ireland, the Iberian Peninsula, Italy and eastwards to Latvia and Ukraine, but absent from large parts of Scandinavia, eastern and south-eastern Europe ( Chumak et al., 2015; Kazantsev, 2012; Kazantsev & Brancucci, 2007; Telnov et al., 2005). Within the UK, it is present in most of England (except parts of the North), Wales, Northern Ireland and a handful of localities in Scotland, where it seems to be very scarce ( Alexander, 2003; NBN Atlas Partnership, 2024). As a generally common species, particularly in the South of England, its conservation status was assessed as “Least Concern” by Alexander (2014).
M. seriepunctatus is primarily a woodland species, with adults found on foliage of various trees and shrubs, often sitting on the underside of the leaves, between late April and mid-August ( Alexander, 2003; own observations). Adult beetles are assumed to be predators hunting smaller arthropods on foliage, even though exact observations on the feeding habits of Malthininae are still scarce ( Alexander, 1991; Ramsdale, 2002).
Larvae of Malthinus are saproxylic predators, usually found under bark and in dead wood ( Alexander, 1991). The larvae of M. seriepunctatus were studied by Fitton (1976), who provided a key to British Cantharidae genera. A key to the larvae of all British Malthinus species except M. balteatus was provided by Klausnitzer (1997).
A karyotype for M. seriepunctatus was illustrated by James & Angus (2007). Here we present a chromosomally complete genome sequence for Malthinus seriepunctatus, based on a female specimen from Hartslock Nature Reserve, England, United Kingdom ( Figure 1). This genome will aid research in the taxonomy and phylogeny of the group, as well as potential applications for environmental DNA and research on the pre-imaginal stages.
Photograph of the Malthinus seriepunctatus (icMalSeri1) specimen used for genome sequencing.
Genome sequence report
Sequencing data
The genome of a specimen of Malthinus seriepunctatus ( Figure 1) was sequenced using Pacific Biosciences single-molecule HiFi long reads, generating 23.63 Gb from 2.63 million reads. Based on the genome size estimated in GenomeScope, the sequencing data provided approximately 70.0x coverage of the genome. Chromosome conformation Hi-C data produced 132.85 Gb from 879.78 million reads. Table 1 summarises the specimen and sequencing information, including the BioProject, study name, BioSample numbers, and sequencing data for each technology.
Table 1.: Specimen and sequencing data for Malthinus seriepunctatus.
Assembly statistics
The primary haplotype was assembled, and contigs corresponding to an alternate haplotype were also deposited in INSDC databases. The assembly was improved by manual curation, which corrected 59 misjoins or missing joins and removed 15 haplotypic duplications. These interventions reduced the total assembly length by 1.74% and decreased the scaffold count by 25.76%. The final assembly has a total length of 338.81 Mb in 48 scaffolds, with 285 gaps, and a scaffold N50 of 55.19 Mb ( Table 2).
Table 2.: Genome assembly data for Malthinus seriepunctatus.
The snail plot in Figure 2 provides a summary of the assembly statistics, indicating the distribution of scaffold lengths and other assembly metrics. Figure 3 shows the distribution of scaffolds by GC proportion and coverage. Figure 4 presents a cumulative assembly plot, with separate curves representing different scaffold subsets assigned to various phyla, illustrating the completeness of the assembly.

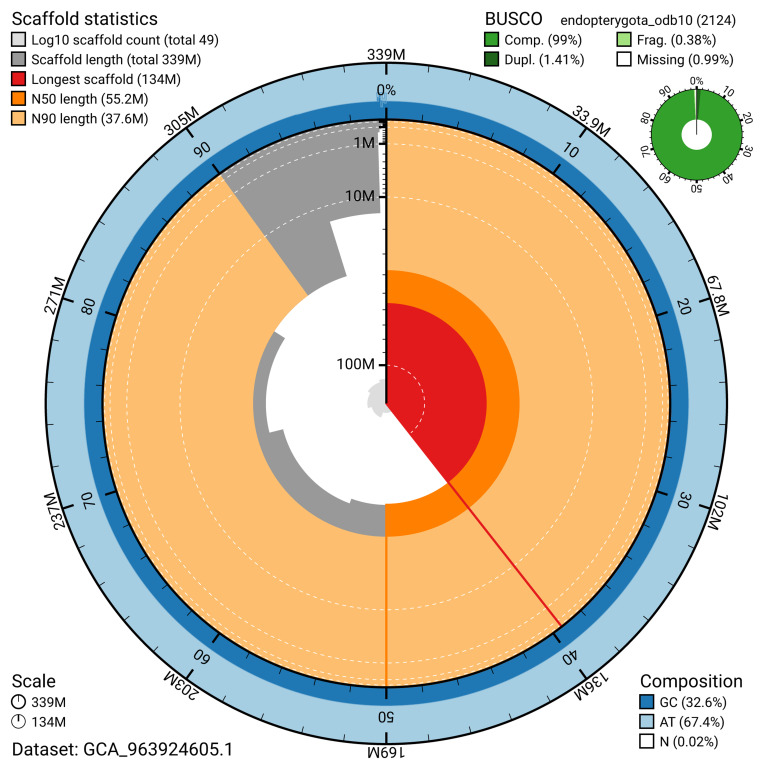

Genome assembly of Malthinus seriepunctatus, icMalSeri1.1: metrics.The BlobToolKit snail plot provides an overview of assembly metrics and BUSCO gene completeness. The circumference represents the length of the whole genome sequence, and the main plot is divided into 1,000 bins around the circumference. The outermost blue tracks display the distribution of GC, AT, and N percentages across the bins. Scaffolds are arranged clockwise from longest to shortest and are depicted in dark grey. The longest scaffold is indicated by the red arc, and the deeper orange and pale orange arcs represent the N50 and N90 lengths. A light grey spiral at the centre shows the cumulative scaffold count on a logarithmic scale. A summary of complete, fragmented, duplicated, and missing BUSCO genes in the endopterygota_odb10 set is presented at the top right. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/GCA_963924605.1/dataset/GCA_963924605.1/snail.

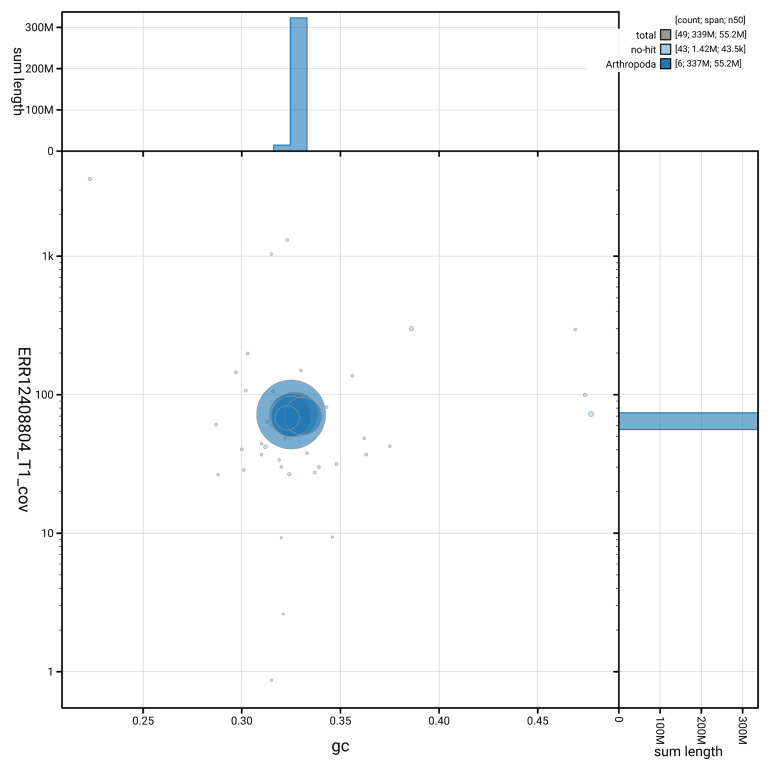

Genome assembly of Malthinus seriepunctatus, icMalSeri1.1: BlobToolKit GC-coverage plot.Blob plot showing sequence coverage (vertical axis) and GC content (horizontal axis). The circles represent scaffolds, with the size proportional to scaffold length and the colour representing phylum membership. The histograms along the axes display the total length of sequences distributed across different levels of coverage and GC content. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/GCA_963924605.1/blob.

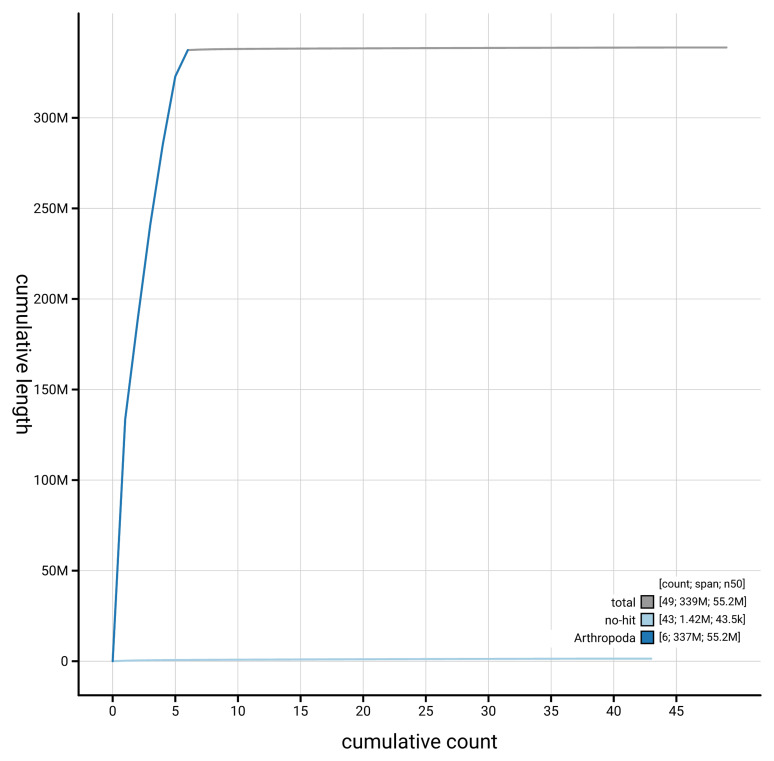

Genome assembly of Malthinus seriepunctatus, icMalSeri1.1: BlobToolKit cumulative sequence plot.The grey line shows cumulative length for all scaffolds. Coloured lines show cumulative lengths of scaffolds assigned to each phylum using the buscogenes taxrule. An interactive version of this figure is available at https://blobtoolkit.genomehubs.org/view/GCA_963924605.1/dataset/GCA_963924605.1/cumulative.
Most of the assembly sequence (99.59%) was assigned to 6 chromosomal-level scaffolds, representing 5 autosomes and the X sex chromosome. These chromosome-level scaffolds, confirmed by Hi-C data, are named according to size ( Figure 5; Table 3). During curation chromosome X was assigned based on synteny with Malthinus flaveolus (GCA_950108345.1) ( Telfer et al., 2024).

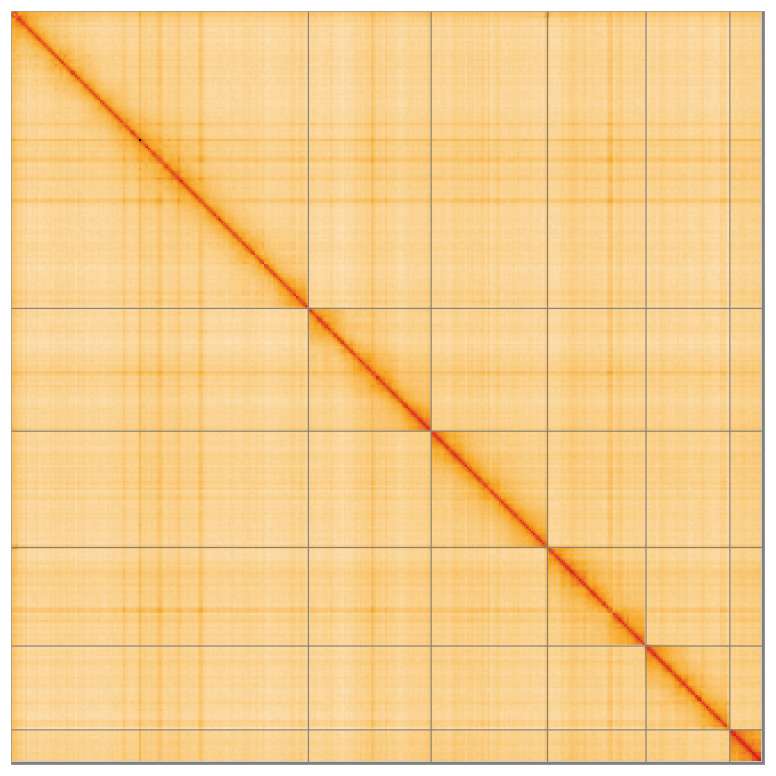

Genome assembly of Malthinus seriepunctatus: Hi-C contact map of the icMalSeri1.1 assembly, visualised using HiGlass.Chromosomes are shown in order of size from left to right and top to bottom. An interactive version of this figure may be viewed at https://genome-note-higlass.tol.sanger.ac.uk/l/?d=LeuGAZXESaec64kt69kbVA.
Table 3.: Chromosomal pseudomolecules in the genome assembly of Malthinus seriepunctatus, icMalSeri1.
The mitochondrial genome was also assembled. This sequence is included as a contig in the multifasta file of the genome submission and as a standalone record in GenBank.
Assembly quality metrics
The estimated Quality Value (QV) and k-mer completeness metrics, along with BUSCO completeness scores, were calculated for each haplotype and the combined assembly. The QV reflects the base-level accuracy of the assembly, while k-mer completeness indicates the proportion of expected k-mers identified in the assembly. BUSCO scores provide a measure of completeness based on benchmarking universal single-copy orthologues.
The primary haplotype has a QV of 63.10, and the combined primary and alternate assemblies achieve an estimated QV of 60.3. The k-mer completeness for the primary assembly is 87.98%, and for the alternate haplotype it is 86.35%, and the combined assemblies achieve a k-mer completeness of 99.19%. BUSCO analysis using the endopterygota_odb10 reference set ( n = 2,124) indicated a completeness score of 99.0% (single = 97.6%, duplicated = 1.4%).
Table 2 provides assembly metric benchmarks adapted from Rhie et al. (2021) and the Earth BioGenome Project Report on Assembly Standards September 2024. The primary assembly achieves the EBP reference standard of 6.C.Q63.
Methods
Sample acquisition and DNA barcoding
An adult female Malthinus seriepunctatus (specimen ID NHMUK013805900, ToLID icMalSeri1) was collected from Hartslock Nature Reserve, England, UK (latitude 51.51, longitude –1.11) on 2021-07-29, using an aerial net. The specimen was collected by Ryan Mitchell (independent researcher), identified by Michael Geiser (Natural History Museum) and preserved by dry freezing (–80 °C).
The initial identification by morphology was verified by an additional DNA barcoding process according to the framework developed by Twyford et al. (2024). A small sample was dissected from the specimen and stored in ethanol, while the remaining parts were shipped on dry ice to the Wellcome Sanger Institute (WSI) ( Pereira et al., 2022). The tissue was lysed, the COI marker region was amplified by PCR, and amplicons were sequenced and compared to the BOLD database, confirming the species identification ( Crowley et al., 2023). Following whole genome sequence generation, the relevant DNA barcode region was also used alongside the initial barcoding data for sample tracking at the WSI ( Twyford et al., 2024). The standard operating procedures for Darwin Tree of Life barcoding have been deposited on protocols.io ( Beasley et al., 2023).
Metadata collection for samples adhered to the Darwin Tree of Life project standards described by Lawniczak et al. (2022).
Nucleic acid extraction
The workflow for high molecular weight (HMW) DNA extraction at the Wellcome Sanger Institute (WSI) Tree of Life Core Laboratory includes a sequence of procedures: sample preparation and homogenisation, DNA extraction, fragmentation and purification. Detailed protocols are available on protocols.io ( Denton et al., 2023b).
The icMalSeri1 sample was prepared for DNA extraction by weighing and dissecting it on dry ice ( Jay et al., 2023). Tissue from the head and thorax was homogenised using a PowerMasher II tissue disruptor ( Denton et al., 2023a).
HMW DNA was extracted in the WSI Scientific Operations core using the Automated MagAttract v2 protocol ( Oatley et al., 2023a). For ultralow input (ULI) PacBio sequencing, DNA was fragmented using the Covaris g-TUBE method ( Oatley et al., 2023b). Sheared DNA was purified by solid-phase reversible immobilisation, using AMPure PB beads to eliminate shorter fragments and concentrate the DNA ( Strickland et al., 2023). The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer using the Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system.
Hi-C sample preparation
Tissue from the whole organism of the icMalSeri1 sample was processed for Hi-C sequencing at the WSI Scientific Operations core, using the Arima-HiC v2 kit. In brief, 20–50 mg of frozen tissue (stored at –80 °C) was fixed, and the DNA crosslinked using a TC buffer with 22% formaldehyde concentration. After crosslinking, the tissue was homogenised using the Diagnocine Power Masher-II and BioMasher-II tubes and pestles. Following the Arima-HiC v2 kit manufacturer's instructions, crosslinked DNA was digested using a restriction enzyme master mix. The 5’-overhangs were filled in and labelled with biotinylated nucleotides and proximally ligated. An overnight incubation was carried out for enzymes to digest remaining proteins and for crosslinks to reverse. A clean up was performed with SPRIselect beads prior to library preparation. Additionally, the biotinylation percentage was estimated using the Qubit Fluorometer v4.0 (Thermo Fisher Scientific) and Qubit HS Assay Kit and Arima-HiC v2 QC beads.
Library preparation and sequencing
Library preparation and sequencing were performed at the WSI Scientific Operations core.
** PacBio HiFi **
The sample requires Covaris g-TUBE shearing to approximately 10 kb prior to library preparation. Ultra-low input libraries were prepared using PacBio SMRTbell® Express Template Prep Kit 2.0 and PacBio SMRTbell® gDNA Sample Amplification Kit. To begin, samples were normalised to 20 ng of DNA. Initial removal of single-strand overhangs, DNA damage repair, and end repair/A-tailing were performed per manufacturer’s instructions. From the SMRTbell® gDNA Sample Amplification Kit, amplification adapters were then ligated. A 0.85X pre-PCR clean-up was performed with Promega ProNex beads and the sample was then divided into two for a dual PCR. PCR reactions A and B each followed the PCR programs as described in the manufacturer’s protocol. A 0.85X post-PCR clean-up was performed with ProNex beads for PCR reactions A and B and DNA concentration was quantified using the Qubit Fluorometer v4.0 (Thermo Fisher Scientific) and Qubit HS Assay Kit and fragment size analysis was carried out using the Agilent Femto Pulse Automated Pulsed Field CE Instrument (Agilent Technologies) and gDNA 55kb BAC analysis kit. PCR reactions A and B were then pooled, ensuring the total mass was ≥500 ng in 47.4 μl. The pooled sample then repeated the process for DNA damage repair, end repair/A-tailing and additional hairpin adapter ligation. A 1X clean-up was performed with ProNex beads and DNA concentration was quantified using the Qubit and fragment size analysis was carried out using the Agilent Femto Pulse Automated Pulsed Field CE Instrument (Agilent Technologies). Size selection was performed using Sage Sciences' PippinHT system with target fragment size determined by analysis from the Femto Pulse, usually a value between 4000 and 9000 bp. Size selected libraries were then cleaned-up using1.0X ProNex beads and normalised to 2 nM before proceeding to sequencing.
Samples were sequenced using the Sequel IIe system (Pacific Biosciences, California, USA). The concentration of the library loaded onto the Sequel IIe was in the range 40–135 pM. The SMRT link software, a PacBio web-based end-to-end workflow manager, was used to set-up and monitor the run, as well as perform primary and secondary analysis of the data upon completion.
** Hi-C **
For Hi-C library preparation, DNA was fragmented using the Covaris E220 sonicator (Covaris) and size selected using SPRISelect beads to 400 to 600 bp. The DNA was then enriched using the Arima-HiC v2 kit Enrichment beads. Using the NEBNext Ultra II DNA Library Prep Kit (New England Biolabs) for end repair, a-tailing, and adapter ligation. This uses a custom protocol which resembles the standard NEBNext Ultra II DNA Library Prep protocol but where library preparation occurs while DNA is bound to the Enrichment beads. For library amplification, 10 to 16 PCR cycles were required, determined by the sample biotinylation percentage. The Hi-C sequencing was performed using paired-end sequencing with a read length of 150 bp on an Illumina NovaSeq 6000 instrument.
Genome assembly, curation and evaluation
** Assembly **
The HiFi reads were first assembled using Hifiasm ( Cheng et al., 2021) with the --primary option. Haplotypic duplications were identified and removed using purge_dups ( Guan et al., 2020). The Hi-C reads were mapped to the primary contigs using bwa-mem2 ( Vasimuddin et al., 2019). The contigs were further scaffolded using the provided Hi-C data ( Rao et al., 2014) in YaHS ( Zhou et al., 2023) using the --break option for handling potential misassemblies. The scaffolded assemblies were evaluated using Gfastats ( Formenti et al., 2022), BUSCO ( Manni et al., 2021) and MERQURY.FK ( Rhie et al., 2020).
The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.
** Assembly curation **
The assembly was decontaminated using the Assembly Screen for Cobionts and Contaminants (ASCC) pipeline (article in preparation). Flat files and maps used in curation were generated in TreeVal ( Pointon et al., 2023). Manual curation was primarily conducted using PretextView ( Harry, 2022), with additional insights provided by JBrowse2 ( Diesh et al., 2023) and HiGlass ( Kerpedjiev et al., 2018). Scaffolds were visually inspected and corrected as described by Howe et al. (2021). Any identified contamination, missed joins, and mis-joins were corrected, and duplicate sequences were tagged and removed. Sex chromosomes were identified by synteny analysis. The curation process is documented at https://gitlab.com/wtsi-grit/rapid-curation (article in preparation).
** Assembly quality assessment **
The Merqury.FK tool ( Rhie et al., 2020), run in a Singularity container ( Kurtzer et al., 2017), was used to evaluate k-mer completeness and assembly quality for the primary and alternate haplotypes using the k-mer databases ( k = 31) that were computed prior to genome assembly. The analysis outputs included assembly QV scores and completeness statistics.
A Hi-C contact map was produced for the final version of the assembly. The Hi-C reads were aligned using bwa-mem2 ( Vasimuddin et al., 2019) and the alignment files were combined using SAMtools ( Danecek et al., 2021). The Hi-C alignments were converted into a contact map using BEDTools ( Quinlan & Hall, 2010) and the Cooler tool suite ( Abdennur & Mirny, 2020). The contact map is visualised in HiGlass ( Kerpedjiev et al., 2018).
The blobtoolkit pipeline is a Nextflow port of the previous Snakemake Blobtoolkit pipeline ( Challis et al., 2020). It aligns the PacBio reads in SAMtools and minimap2 ( Li, 2018) and generates coverage tracks for regions of fixed size. In parallel, it queries the GoaT database ( Challis et al., 2023) to identify all matching BUSCO lineages to run BUSCO ( Manni et al., 2021). For the three domain-level BUSCO lineages, the pipeline aligns the BUSCO genes to the UniProt Reference Proteomes database ( Bateman et al., 2023) with DIAMOND blastp ( Buchfink et al., 2021). The genome is also divided into chunks according to the density of the BUSCO genes from the closest taxonomic lineage, and each chunk is aligned to the UniProt Reference Proteomes database using DIAMOND blastx. Genome sequences without a hit are chunked using seqtk and aligned to the NT database with blastn ( Altschul et al., 1990). The blobtools suite combines all these outputs into a blobdir for visualisation.
The blobtoolkit pipeline was developed using nf-core tooling ( Ewels et al., 2020) and MultiQC ( Ewels et al., 2016), relying on the Conda package manager, the Bioconda initiative ( Grüning et al., 2018), the Biocontainers infrastructure ( da Veiga Leprevost et al., 2017), as well as the Docker ( Merkel, 2014) and Singularity ( Kurtzer et al., 2017) containerisation solutions.
Table 4 contains a list of relevant software tool versions and sources.
Wellcome Sanger Institute – Legal and Governance
The materials that have contributed to this genome note have been supplied by a Darwin Tree of Life Partner. The submission of materials by a Darwin Tree of Life Partner is subject to the ‘Darwin Tree of Life Project Sampling Code of Practice’, which can be found in full on the Darwin Tree of Life website here. By agreeing with and signing up to the Sampling Code of Practice, the Darwin Tree of Life Partner agrees they will meet the legal and ethical requirements and standards set out within this document in respect of all samples acquired for, and supplied to, the Darwin Tree of Life Project.
Further, the Wellcome Sanger Institute employs a process whereby due diligence is carried out proportionate to the nature of the materials themselves, and the circumstances under which they have been/are to be collected and provided for use. The purpose of this is to address and mitigate any potential legal and/or ethical implications of receipt and use of the materials as part of the research project, and to ensure that in doing so we align with best practice wherever possible. The overarching areas of consideration are:
• Ethical review of provenance and sourcing of the material
• Legality of collection, transfer and use (national and international)
Each transfer of samples is further undertaken according to a Research Collaboration Agreement or Material Transfer Agreement entered into by the Darwin Tree of Life Partner, Genome Research Limited (operating as the Wellcome Sanger Institute), and in some circumstances other Darwin Tree of Life collaborators.
