Effect of weathered on the pore characteristics of different rocks in coal-bearing strata
Dong Feng, Enke Hou, Xiaoshen Xie, Pengfei Hou, Jiangbo Wei
TL;DR
This study examines how weathering affects the pore structures of rocks in coal-bearing strata, impacting water enrichment and mining safety.
Contribution
The paper introduces a novel analysis of how weathering alters pore characteristics and fractal dimensions in sandstones from coal-bearing strata.
Findings

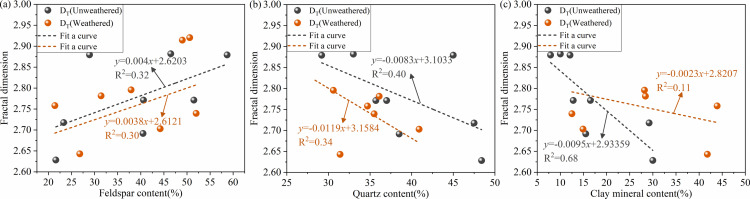

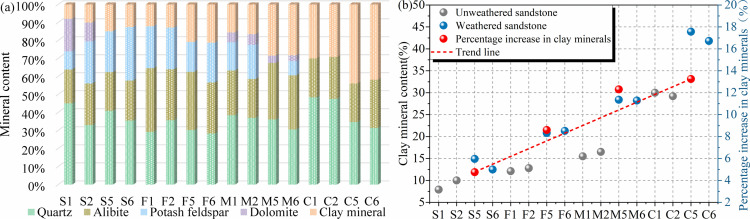

Weathering increases clay mineral content and changes pore size distribution in sandstones.

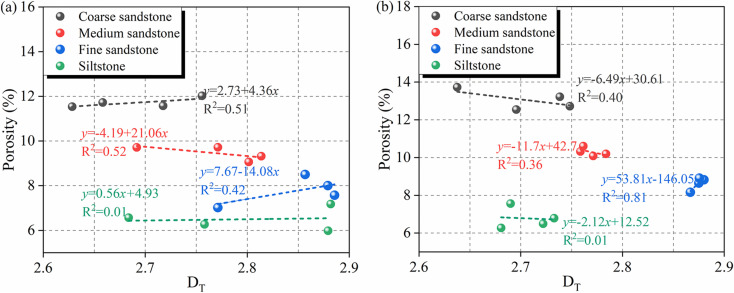

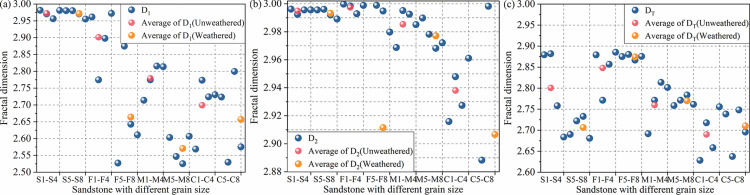

Fractal dimensions decrease with increasing particle size across different lithologies.

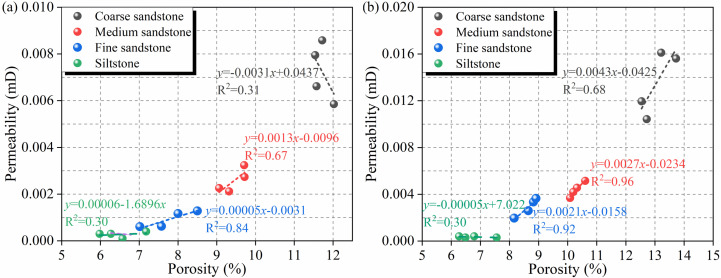

Weathered rocks show higher macropore prevalence and altered porosity-permeability relationships.
Abstract

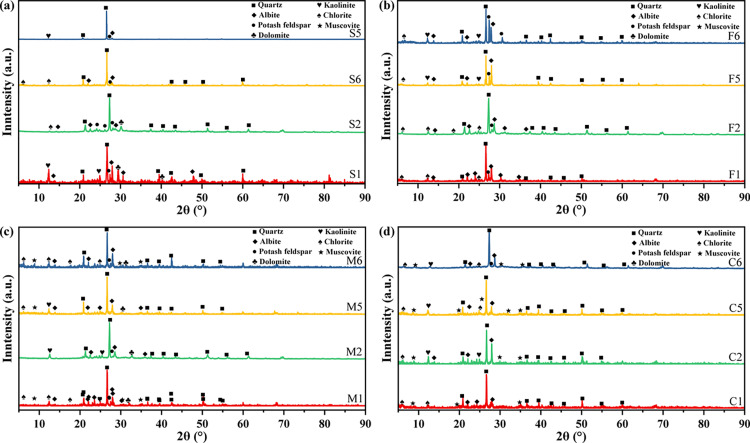

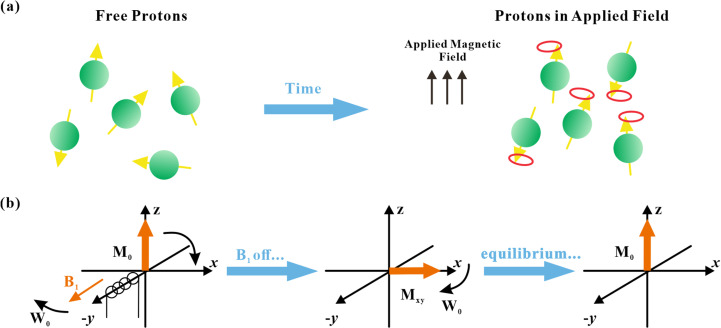

This study aims to explore how weathered controls the microscopic pore development of rocks. Siltstones to coarse sandstones were selected from the main rocks of the Jurassic strata of the northern Ordos Basin. The pore structure, mineral composition, the pore size distribution (PSD), porosity, permeability and fractal characteristics of unweathered and weathered rocks were analysed using a combination of X-ray diffraction (XRD), scanning electron microscopy (SEM) and low-field nuclear magnetic resonance (LF-NMR). The study showed that the microstructure of different sandstones has obvious differences, the total porosity and permeability of rocks are usually positively correlated with the grain size of the rock, and the microscopic pore structure of rocks of the same lithology changes from small pore type to large pore type after weathered. The results show that weathered rocks had the…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9

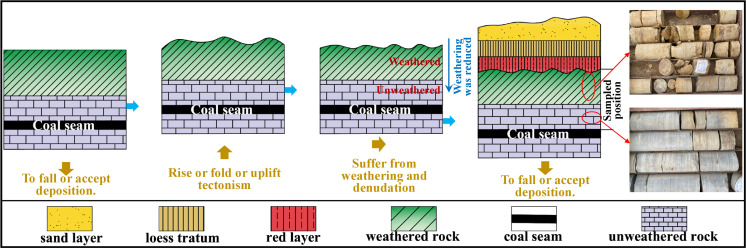

Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19

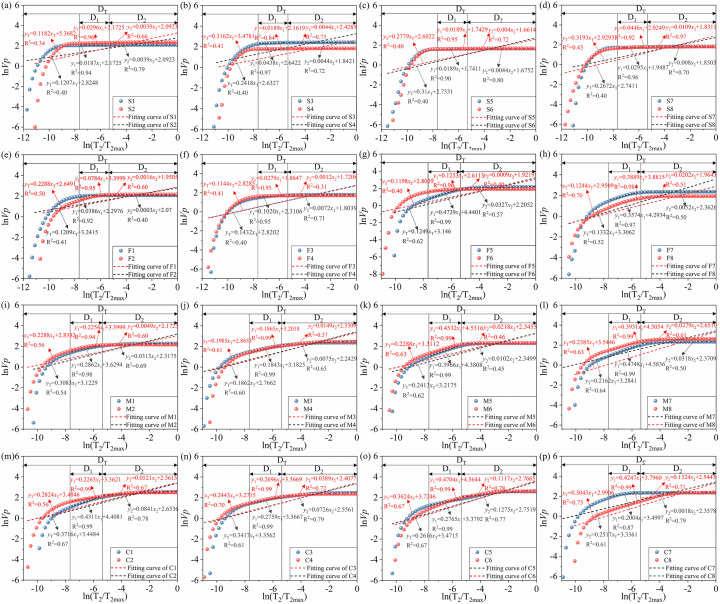

Figure 20
Figure 21

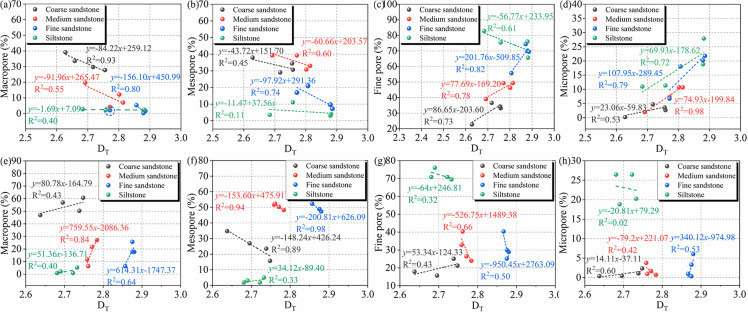

Figure 22
Figure 23

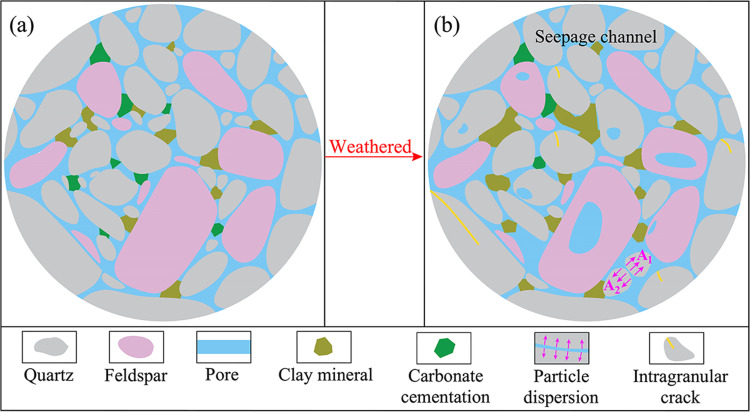

Figure 24
Figure 25

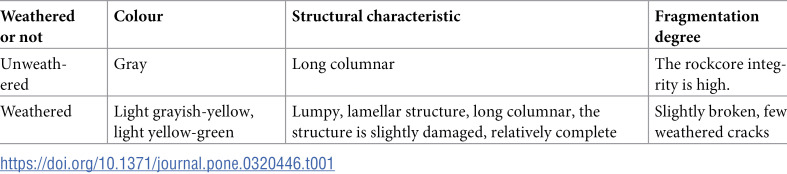

Figure 26

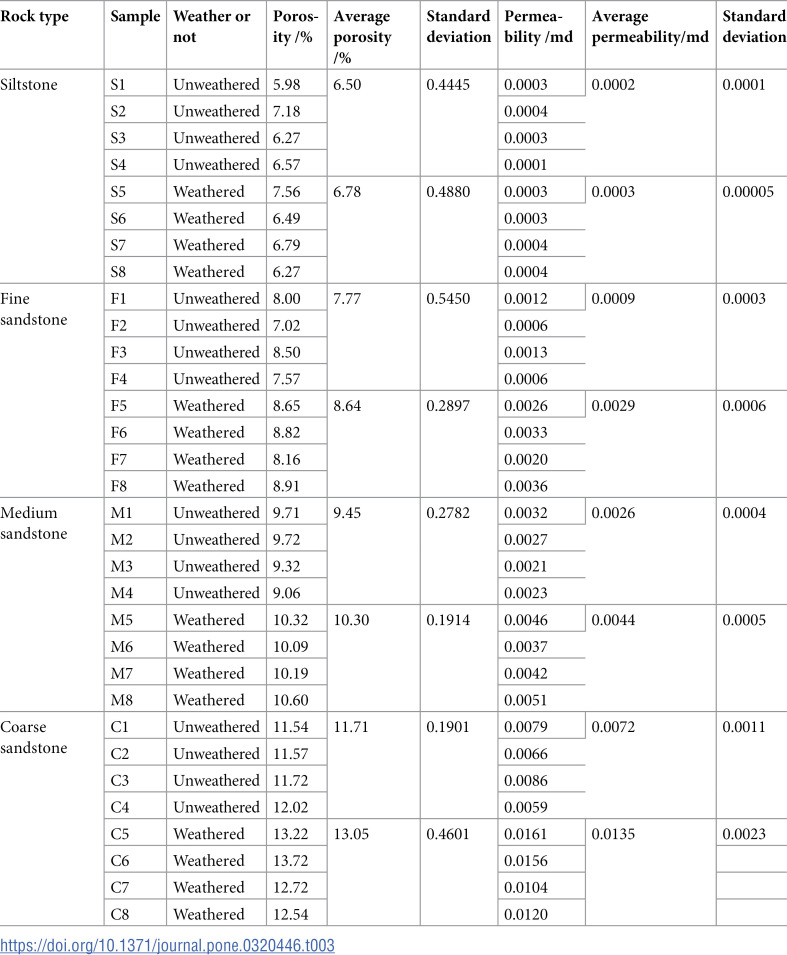

Figure 27
Figure 28
Figure 29Peer Reviews
