Single enantiomer propeller-shaped polynuclear complexes as catalysts-proof-of-concept for enantioinduction in a Michael addition reaction

TL;DR

Scientists created chiral metal complexes that can act as catalysts in a chemical reaction, showing a new way to induce chirality.

Contribution

The study introduces a new type of chiral catalyst based on propeller-shaped polynuclear complexes.

Findings

Propeller-shaped complexes were synthesized in enantiomerically pure form.

The complexes catalyzed a Michael addition reaction with 1 mol% loading.

Enantioselectivity was influenced by the complex's topology rather than ligand-metal binding.

Abstract

We report a family of propeller-shaped polynuclear metal complexes whose overall chirality is dictated by a single stereogenic centre within their component amino alcohol-ligand. These topologically intriguing complexes are readily prepared in enantiomerically pure form and are shown here to catalyse the conjugate addition of barbituric acids and their derivatives to nitroalkenes, with a catalyst loading of 1 mol%. Although only low levels of enantioinduction are observed, control experiments indicate that the enantioselectivity is dictated by the overall topology of the complex and not governed by binding to the tetrametallic entity, heralding a potentially new mode of catalysis.

Figures

Full text

Recent years have witnessed an explosion of interest in well-defined molecular species with structures that can be determined to atomic resolution and have constant dimensions within a set tolerance. For polynuclear complexes (PCs), interest in this field has focused on the relevance of these structures to bioinorganic chemistry and attempts to model the metal cluster at the heart of the oxygen-evolving centre of nature’s photosystem II [1,2]. Recently, PCs have also found applications as homogeneous catalysts [3,4]. However, the application of these entities as asymmetric catalysts is in its infancy, and the role of PCs in catalysis is not yet fully understood [5,6]. By contrast, traditional homogeneous metal-based catalysts, which consist of single metal atoms in combination with organic ligands to tune their activity and selectivity [7–9] have received extensive attention for decades, with their application and optimisation frequently assisted by computational analysis (e.g. using density functional theory (DFT)) [10]. However, their high nuclearity and sheer size make computational optimisation very time-consuming and expensive for PCs [11]. A further confounding factor when exploring catalysis involving PCs is that the bimetallic clusters are generally formed in situ, so the structures of the resultant active catalytic clusters are difficult to determine [12]. To develop a rational understanding of PCs in asymmetric catalysis, we considered an alternative approach. Herein we detail and implement a new synthetic approach that inspects topology in coordination chemistry for a higher-level description. This strategy is dependent upon single-crystal X-ray diffraction [13], Electron Paramagnetic Resonance (EPR) [14], Nuclear Magnetic Resonance (NMR) [15] and synthesis to permit correlation of structures in solution and solid form with their function as catalysts. This approach established the use of tetranuclear bimetallic 3d/4f PCs as Lewis acidic catalysts in a Michael addition reaction [16]. Fine-tuning the metal centres while retaining the topology of the catalyst allowed us to monitor the reaction with EPR, NMR and UV–Vis and identify the cooperative character of these bimetallic entities. To capitalize on these initial discoveries, we initiated a project to introduce chirality into this cooperative catalytic system. In this regard, we considered the chiral organic ligand H_2_L^R/S^ (figure 1).

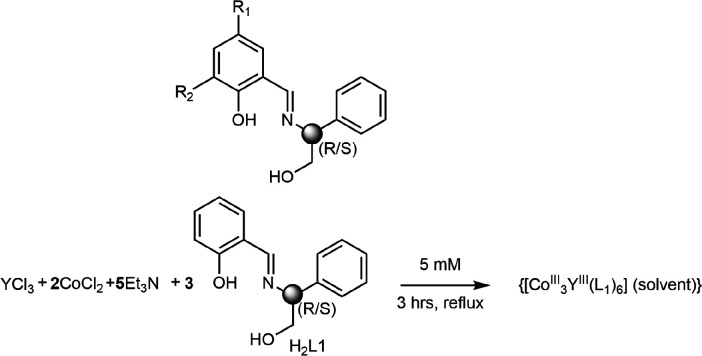

This ligand can be synthesized in one high-yielding condensation reaction from commercial salicylaldehydes and amino alcohols derived from chiral α-amino acids. Both enantiomers of the ligands are therefore readily accessible. This ligand scaffold has been reported within 3d-transition metal-based PCs displaying interesting magnetic properties [17–23] but, to the best of our knowledge, has never been used in 3d/4f chemistry to yield well-defined PCs with application in catalysis. The assembly of H_2_L^R/S^ with nitrate or chloride Co^II^/Y^III^ salts in CH_3_CN or EtOH harvests, in one step, a tetranuclear C_3_-symmetry propeller-shaped entity formulated {[Co^III^_3_Y^III^(L1)6] (solvent)} (1 solvent) (see electronic supplementary material).

Derivatives of 1 are diamagnetic, which permits reaction monitoring by both ^1^H and ^89^Y NMR spectroscopy. As such, differences in the coordination environment of the Y centre may be observed. Critically, enantiomeric ligands yielded isoskeletal and enantiomeric PCs, as shown in figure 2. The best yield was obtained when starting with the metal chloride salts in EtOH (79% yield). Crystals were obtained after slow evaporation, which causes the in situ oxidation of the Co^II^ salt to the diamagnetic Co^III^ salt. All the materials lose crystallinity upon exposure to air, but with no alteration of their topology (see electronic supplementary material for TGA graphs). These compounds were further characterized by ^1^H, ^15^N, ^89^Y NMR, thermogravimetric analysis (TGA), Circular dichroism (CD), Electrospray ionization mass spectrometry (ESI-MS) and elemental analysis (see electronic supplementary material). Single-crystal X-ray diffraction studies of the isoskeletal [24] species 1^S^-EtOH, 1^R^-EtOH and 1^S^-CH_3_CN were also carried out (electronic supplementary material, table S1). The Flack parameter was close to zero (e.g. −0.026(5) for 1^R^-EtOH) in each case, allowing confident determination of absolute configuration.

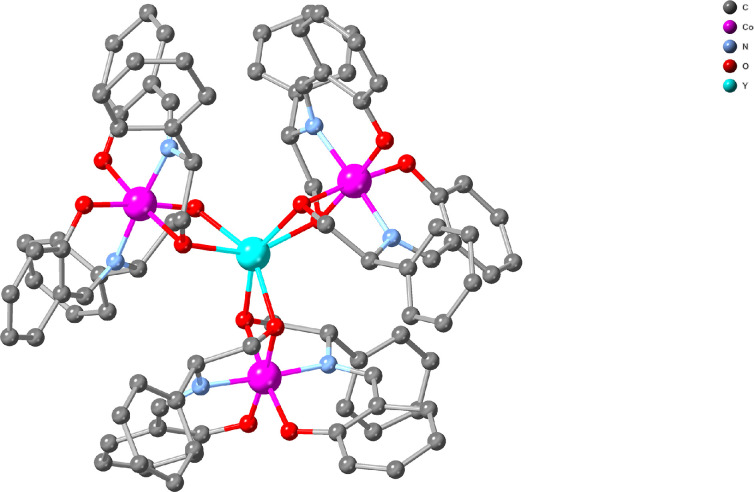

The Y metal sits in the centre with the Co^III^ atoms and associated pairs of organic ligands forming the three propeller wings (figure 2).

Bond distances and angles are within the range that is typical for Co^III^ and Y^III^ centres. The three Co–Y distances span from 3.232(2) to 3.258(2) Å for 1^S^-EtOH, and in the same range for the other compounds. Two organic ligands are constituents of the octahedral environment of the Co^III^, forming a meridional monoanionic metalloligand {Co^III^(L1)2}^−^. As noted above, the point chirality within the organic ligand is faithfully translated to the octahedral Co centre. The enantiomerically pure H_2_L^R^ produces the corresponding meridional {Co^III^(L1)2}^−^ with Λ-configuration, whereas H_2_L^S^ yields the Δ-configuration [25,26]. Then three of these metalloligands coordinate to the Y^III^ centre, therefore, its coordination geometry can be best described as distorted trigonal antiprismatic. The {Co^III^(L1)2}^−^with the Λ-configuration will provide the Λ-enantiomer of the full PC, whereas the {Co^III^(L1)2}^−^ with the Δ-configuration will give the Δ–enantiomer. A visual representation is provided in electronic supplementary material, figure S1. The dihedral angle of the two planes of the trigonal antiprism (Y^III^ centre) differs (1.15^o^ for 1^R^-EtOH and 0.73^o^ for 1^S^-EtOH) and deviates from zero, indicating distortion. This is the only structural difference between these two enantiomers that can be identified. This difference is probably a crystallization artefact and will not persist upon dissolution (cf. figure 3). To obtain better insight into the interaction of the propeller-shaped moiety with lattice solvent molecules, a crystallographic dataset at a lower temperature was recorded: 1^S^-EtOH (100K). In this case, the oxygen atoms of the salicylic moiety can be seen to participate in H-bonding interactions with the lattice EtOH solvent molecules (electronic supplementary material, figure S3). A space-fill representation shows how the salicylic oxygen atoms point towards the lattice molecules and that the coordination sphere of the Y centre is blocked (electronic supplementary material, figure S4).

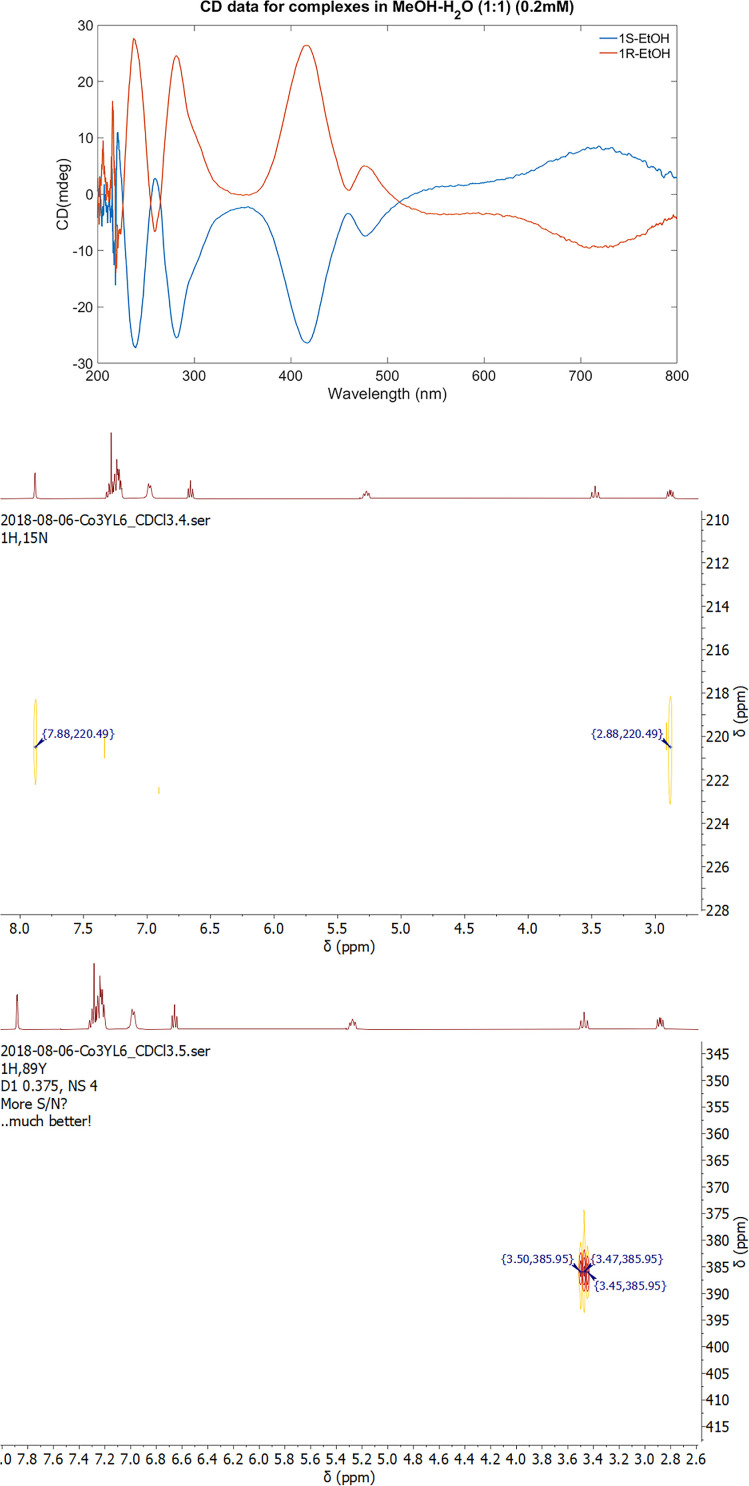

The enantiomeric nature of the PCs in solution was confirmed by CD in MeOH (figure 3). To identify the integrity of the PC in solution, various ESI-MS data in MeOH, EtOH and CH_3_CN as solvents were also recorded. In all cases, a dominant peak of approximately m/z = 1700 Da was identified, with another minor peak in the region of m/z = 2200 Da. The latter can be attributed to the formation of a Co^III^4_Y^III^L_8 species (electronic supplementary material, scheme S1); however, efforts to isolate this species were unsuccessful, and there was no evidence of this species observed by ^1^H and ^89^Y-NMR spectroscopy even after 24 h. Indeed, its formation may be a by-product of mass spectrometric analysis. The ^1^H and ^89^Y NMR spectra confirm that the solid-state structure determined by X-ray crystallography is retained in the solution state. Coordination of oxygen to the Y centre is confirmed by the observation of ^1^H,^89^Y-HMBC correlations from one of the alkoxy protons at δ_H_ = 3.47 ppm to the ^89^Y centre at δ_Y_ = 386 ppm, mediated by a ^3^J_YH_ = 1.1 Hz coupling that is also observable as a modest broadening of the triplet in the 1D ^1^H spectrum (figure 3). Coordination of Co(III) to the nitrogen centres is also confirmed by the change in ^15^N shift of the free ligand at δ_N_ = 298 ppm to the bound ligand at δ_N_ = 221 ppm*,* i.e. a coordination shift change of −77 ppm [27].

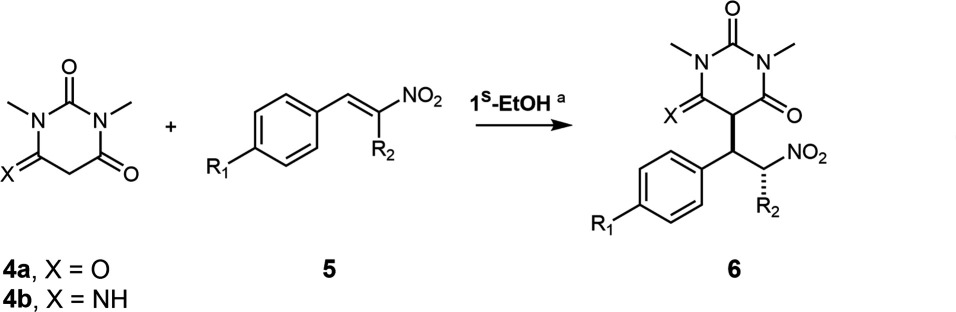

Complexes {[Fe^III^4(L2)6] (solvent)} 2 and {[Co^III^_3_Y^III^(L3)6] (solvent)} 3 derived from both (R)- and (S)-ligands have been described previously [22,23]. Building on our previous results [16], we initially investigated the efficacy of 1^S^-EtOH as a catalyst for the Michael addition reaction of 1,3-dimethyl barbituric acid 4a and selected derivatives with trans-β-nitrostyrene 5a (table 1). For 1,3-dimethylbarbituric acid 4a, good yields were obtained after 15 min using 1% catalyst loading in EtOH/H_2_O (3/2) (entries 1−5), but the yields dropped off for the imine derivative 4b (entries 6−9). Having confirmed the catalytic efficacy of enantiomerically pure PC 1^S^-EtOH, we decided to examine the ability of this PC and its congeners to induce asymmetry. We selected to switch to chloroform as the solvent for these studies, as it is less polar, and this was anticipated to enhance the influence of non-covalent interactions that typically induce asymmetry in such reactions. We were also interested in the role of the recrystallized solvent molecule that forms part of the unit cell of the PC (MeCN versus EtOH) and the consequent availability of the central Y coordination sphere (table 2).

When we used 1^S^-EtOH as a catalyst, Michael addition product (−)−6b was formed with 13% ee (table 2, entry 1). Interestingly, when we used 1^R^-CH_3_CN as a catalyst, which differs only in the solvent molecule that is crystallized in the unit cell, product 6b was formed with 0% ee (table 2, entry 2), but, with the addition of EtOH (1.6 equiv.) to the reaction, (+)−6b was formed with 7% ee (table 2, entry 3). The use of alternative alcohol additives such as phenols and hexafluoroisopropanol was ineffective in altering the ee (see electronic supplementary material, S12). These experiments suggested that the co-crystallized solvent plays a vital role in stereoinduction. Monitoring the reactions by ^1^H and ^89^Y NMR spectroscopy confirmed that the coordination environment of the Y^III^ centre remains intact. Titration of the complex with 0.7−27 eq. of trans-β-methyl-β-nitrostyrene 5b in CDCl_3_ leads to no change in ^1^H or ^89^Y MR chemical shifts, suggesting that binding of this substrate does not occur. This is in keeping with the X-ray structural data, which show that the Y centre is sterically buried. Collectively, these findings suggest that it is an aspect of the topology of the PC as a whole, or at least substrate–ligand interactions distal from the metal centres rather than those in close proximity to a substrate-interacting metal centre, that are responsible for the, admittedly rather modest, asymmetric induction. To further explore this, complexes 3^R^-CH_3_CN and 3^S^-CH_3_CN, which feature fluorine substituents para to the phenol group in the chiral ligands (figure 1), were tested as catalysts. These catalysts behaved very similarly, affording the Michael addition products, (+)−6b and (−)−6b, with a modest ee of 9% and 12%, respectively (table 2, entries 4 and 5).

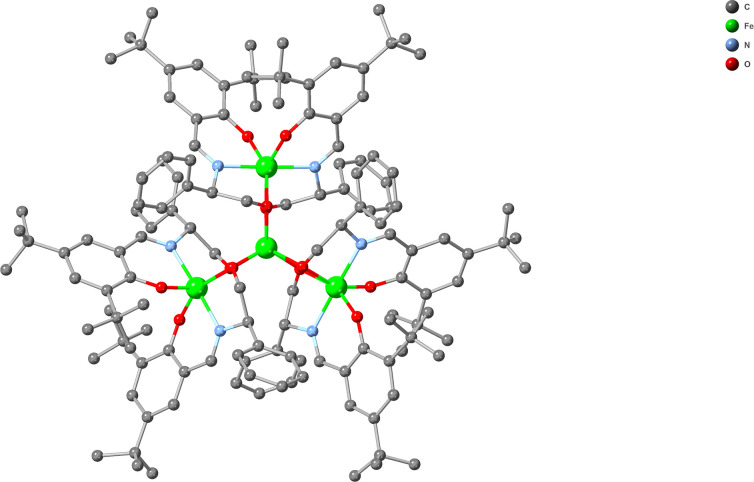

To test the hypothesis that macromolecular catalyst symmetry could be responsible for enantioselectivity, we decided to explore the catalytic activity of the topologically equivalent, well-defined propeller-shaped PCs, Fe^III^4 (2^R^-Fe_4_-EtOH and 2^S^-Fe_4_-EtOH), in this reaction (table 2, entries 6−10). A report has confirmed the integrity and oxidation state of these Fe^III^4 centres in the solid state and solution (figure 4 and electronic supplementary material, figures S5 and S6) [22]. The reason for exploring these particular complexes as potentially analogous catalysts was twofold: first, different metal centres may yield different substrate-binding behaviour (i.e. Fe versus Co/Y), and second, the presence of the bulky groups on the salicyl ligands may influence the approach of the substrates to the metal centres (i.e. 2 × C(CH_3_)3 versus 2 × H, H/F). Although both 2^R^-Fe_4_-EtOH and 2^S^-Fe_4_-EtOH PC complexes efficiently catalysed the Michael addition reaction, the product 6b was essentially racemic (ee = 0 ± 3) regardless of the presence or absence of EtOH as an additive (table 2, entries 6−10).

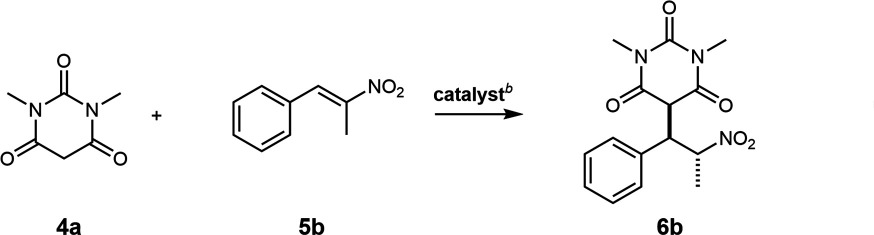

Given that this outcome was in contrast with the modest, but definitively non-zero, enantioselectivities observed for the bimetallic Co/Y complexes 1^S^-EtOH, 1^R^-CH_3_CN, 3^R^-CH_3_CN and 3^S^-CH_3_CN, we investigated whether there is leaching of free Co^III^ and/or Y^III^ metal cations from the bimetallic Co/Y cluster complexes. These metal cations could perhaps ligate to the ligands and facilitate the asymmetric Michael addition reaction. We performed control experiments by reacting equimolar quantities of 1,3-dimethyl barbituric acid 4a with trans-β-methyl-β-nitrostyrene 5b under the standard conditions but with (i) no catalyst or metal salts; (ii) 6 mol% of the ligand L1 + 3 mol% of Co(NO_3_)2 + 1 mol% of Y(NO_3_)3 + 1.6 equiv. of EtOH; and (iii) 6 mol% of the ligand L1 alone with no metal sources. These control reactions were monitored periodically by ^1^H-NMR spectroscopy at t = 5 min, 24 h, 48 h and 72 h. No trace of the Michael addition product 6b was observed during these studies (electronic supplementary material, figure S11). This demonstrates that the reactions are exclusively catalysed by the bimetallic Co/Y cluster complexes and not by the residual metal ions and/or ligands leached from these complexes. The chiral topology of the bimetallic Co/Y cluster complexes appears to directly control the enantioselectivity of this process.

In asymmetric catalysis, many cooperative factors may influence the enantioselectivity, including the overall symmetry of the complex [28]. In the present communication, by monitoring the catalyst and performing control experiments with analogously shaped molecules, we have demonstrated that it is possible to slightly influence the stereoselectivity of an organic transformation by retaining the overall topology of propeller-shaped complexes in the absence of metal–substrate binding. This is in contrast to the mechanisms by which bimetallic catalysts have previously been shown to activate reactants via direct cooperative interactions with the dual-metal centres [16] or via metallic interactions on the surface of PCs [29]. Notably, the observed sense of enantiomeric induction in the reactions studied depends on the overall topology of the catalyst. A recent example has demonstrated propellers that can sense the chirality of various organic solvents [30]. However, to the best of our knowledge, this is the first example of asymmetric induction attributable to the chiral propeller topology of 3d/4f PCs. Further research designed to aid our understanding of how the surface interactions of these PCs lead to reaction rate enhancement and what molecular mechanisms are operative leading to enantiomeric enrichment in the products of this type of reaction is underway in our laboratories. We consider the present metal-based catalyst as a new type of catalyst, which offers a conceptually new approach to asymmetric catalysis by coordination chemistry of 3d/4f-based materials.
