GPU Ray Tracing for the Analysis of Light Deflection in Inhomogeneous Refractive Index Fields of Hot Tailored Forming Components
Pascal Kern, Max Brower-Rabinowitsch, Lennart Hinz, Markus Kästner, Eduard Reithmeier
TL;DR
This paper uses GPU ray tracing to study how light bends in hot forming processes, helping improve quality monitoring by predicting optical distortions.
Contribution
The novel use of GPU-accelerated ray tracing to analyze light deflection in inhomogeneous refractive index fields during hot-forming.
Findings
GPU ray tracing effectively simulates light deflection in inhomogeneous refractive index fields.
Simulation results help optimize measurement positions to reduce uncertainties in optical geometry reconstruction.
The method improves the reliability of quality control in hot-forming processes.
Abstract
In hot-forming, integrating in situ quality monitoring is essential for the early detection of thermally induced geometric deviations, especially in the production of hybrid bulk metal parts. Although hybrid components are key to meeting modern technical requirements and saving resources, they exhibit complex shrinkage behavior due to differing thermal expansion coefficients. During forming, these components are exposed to considerable temperature gradients, which result in density fluctuations in the ambient air. These fluctuations create an inhomogeneous refractive index field (IRIF), which significantly affects the accuracy of optical geometry reconstruction systems due to light deflection. This study utilizes existing simulation IRIF data to predict the magnitude and orientation of refractive index fluctuations. A light deflection simulation run on a GPU-accelerated ray tracing…
Click any figure to enlarge with its caption.

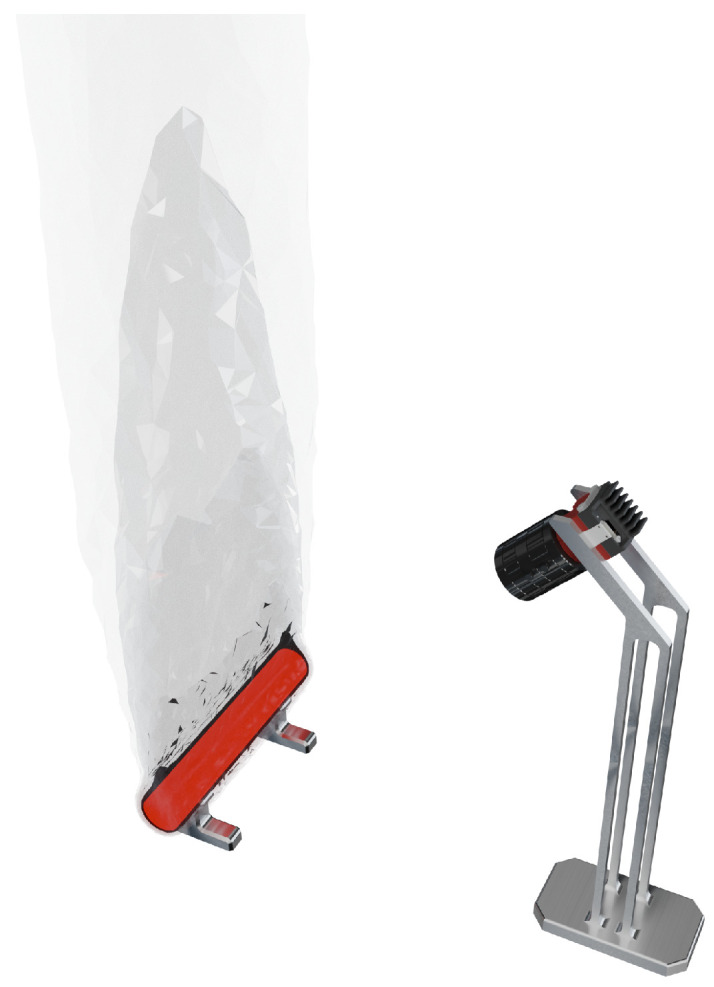

Figure 1

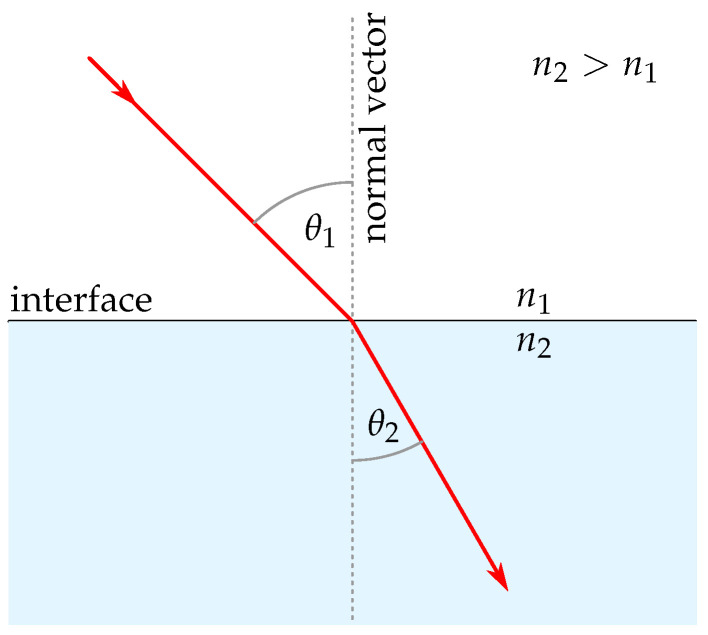

Figure 2

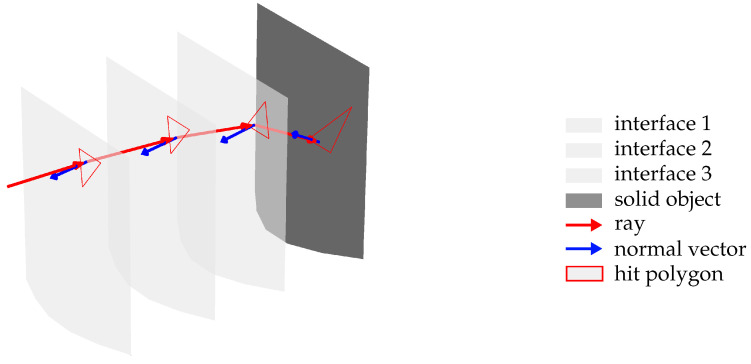

Figure 3
Figure 4

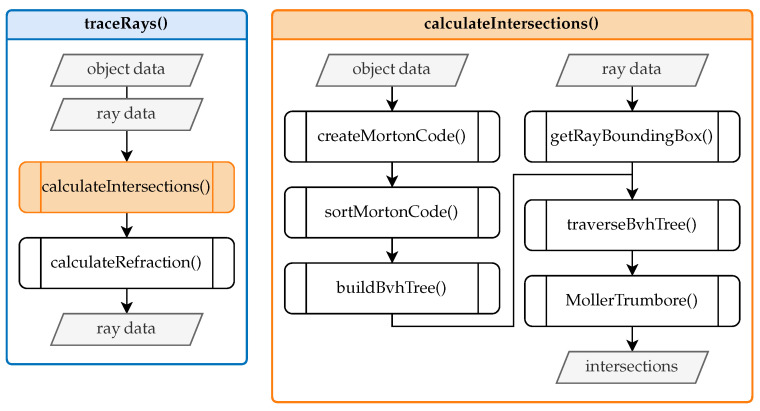

Figure 5

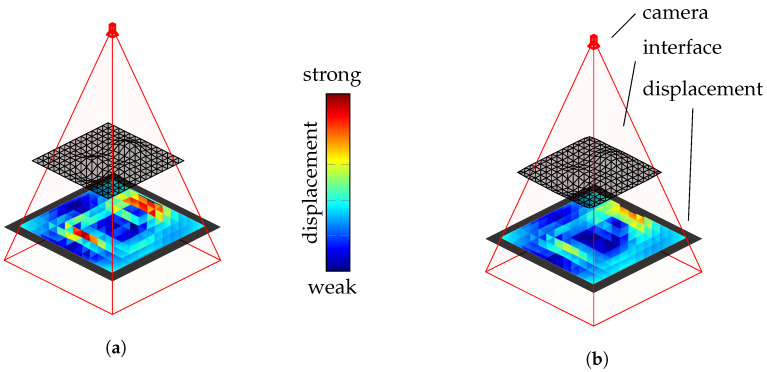

Figure 6

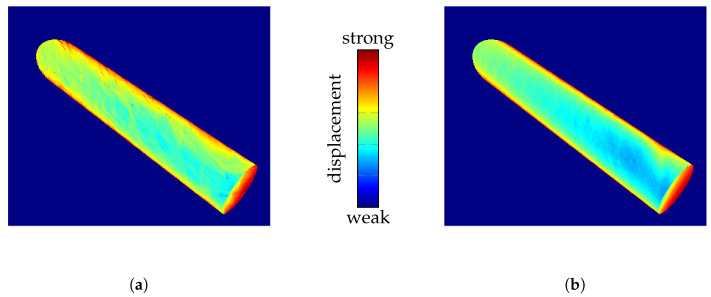

Figure 7

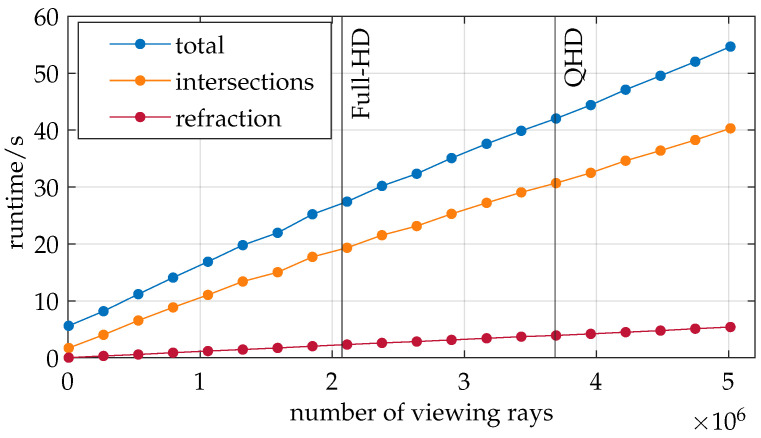

Figure 8

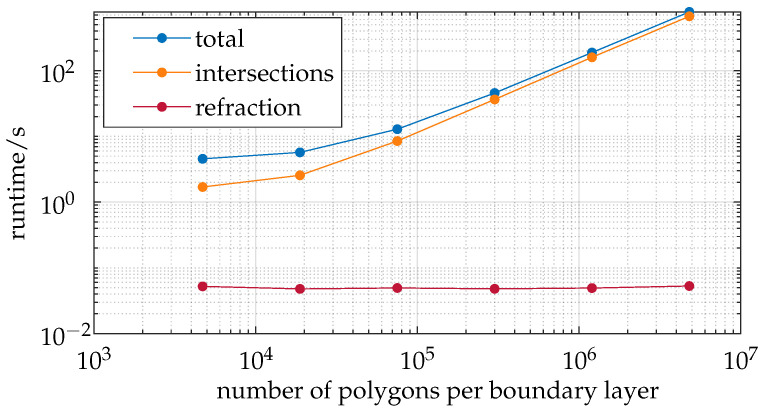

Figure 9

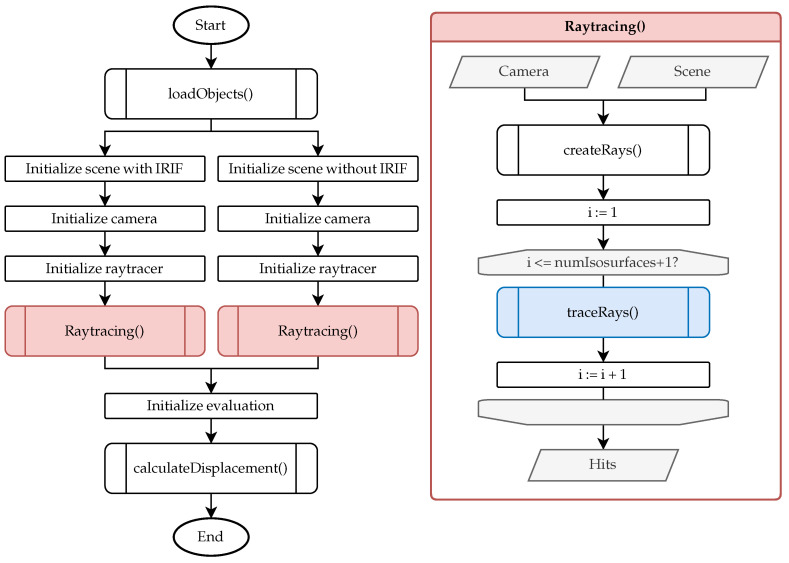

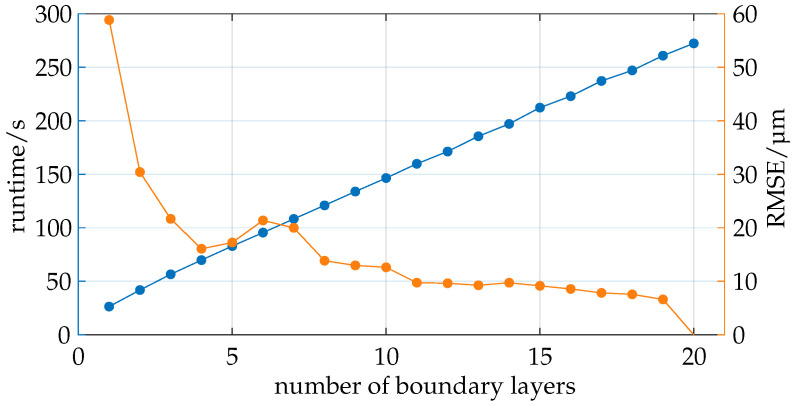

Figure 10

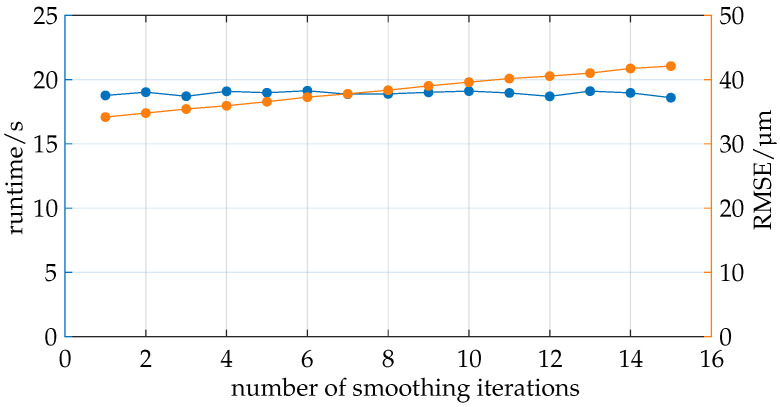

Figure 11

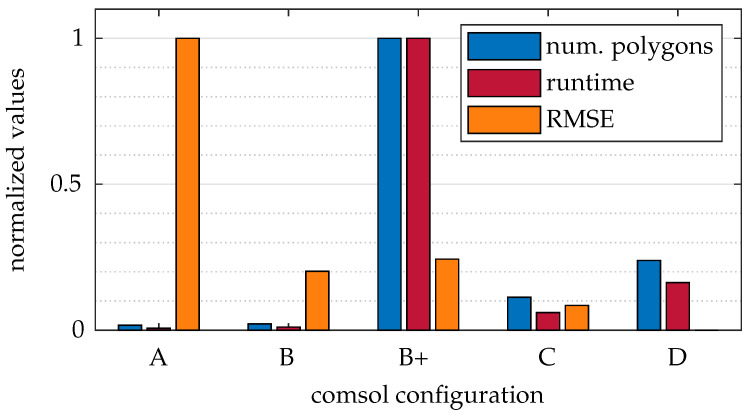

Figure 12

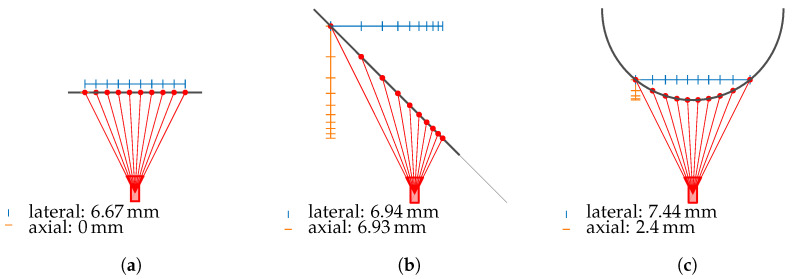

Figure 13

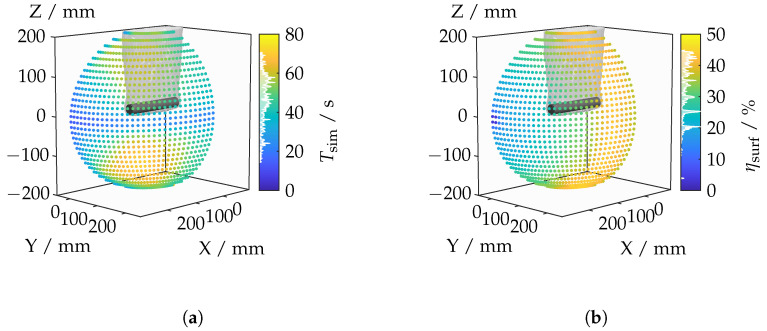

Figure 14

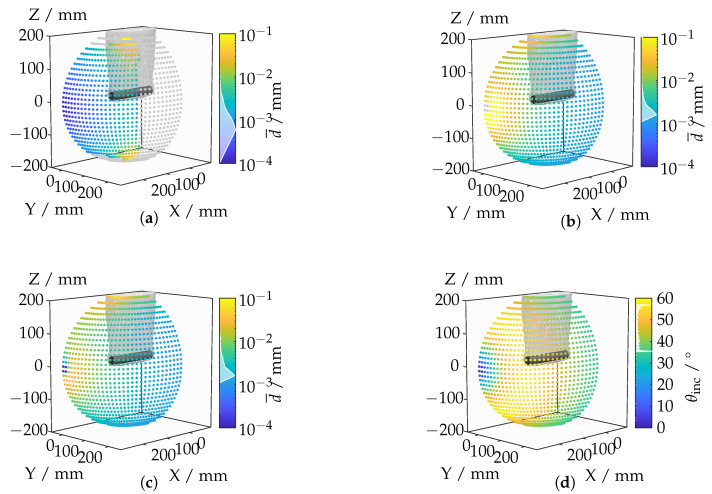

Figure 15

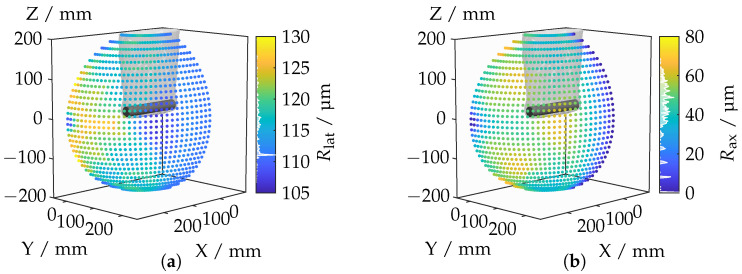

Figure 16

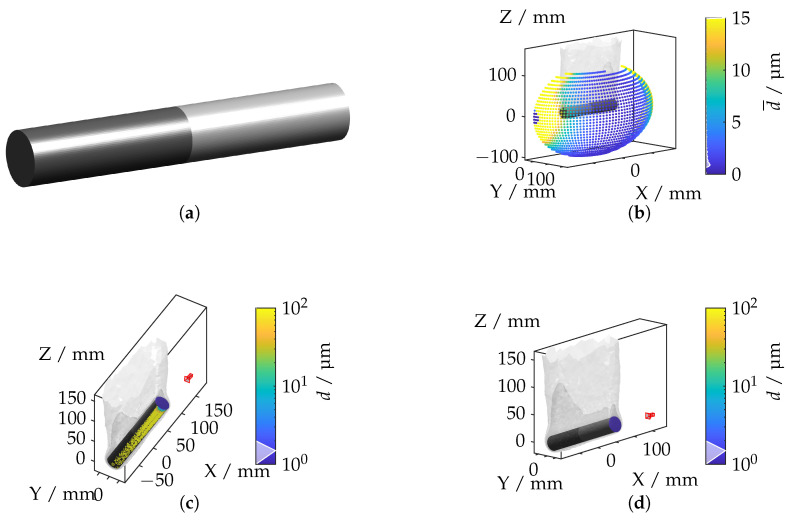

Figure 17

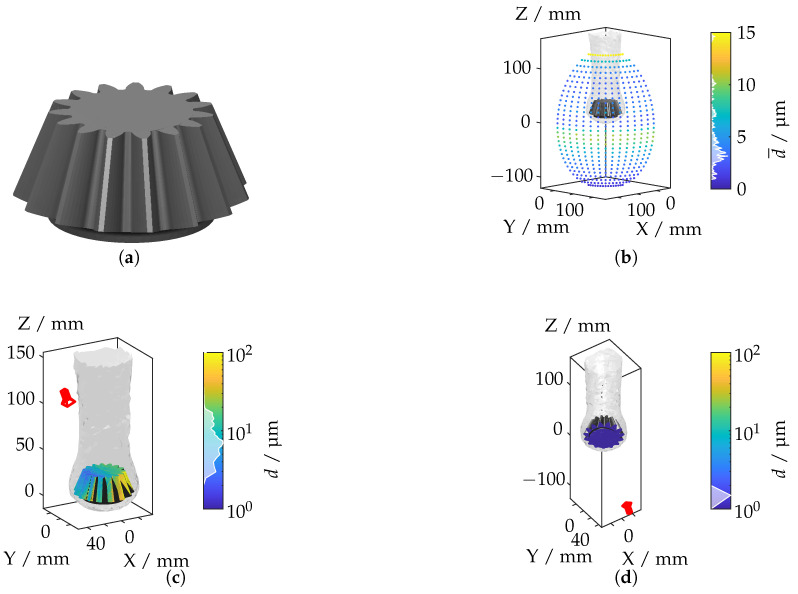

Figure 18

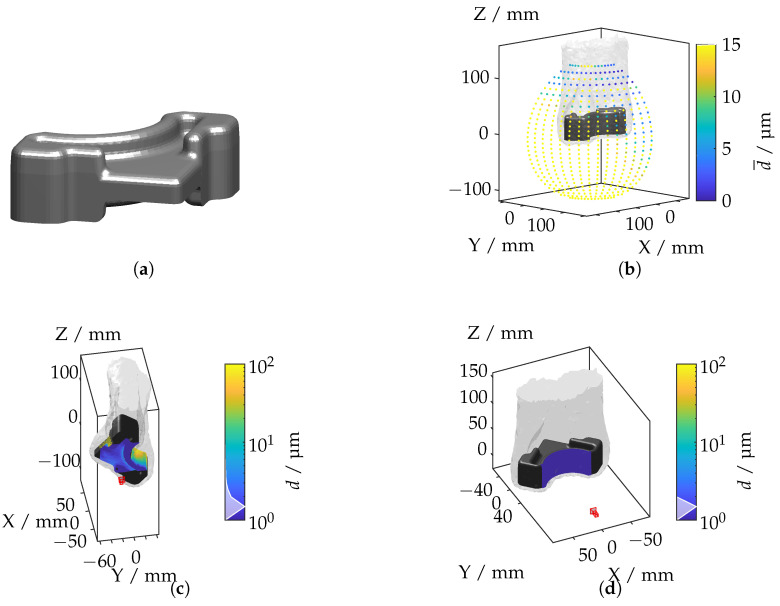

Figure 19

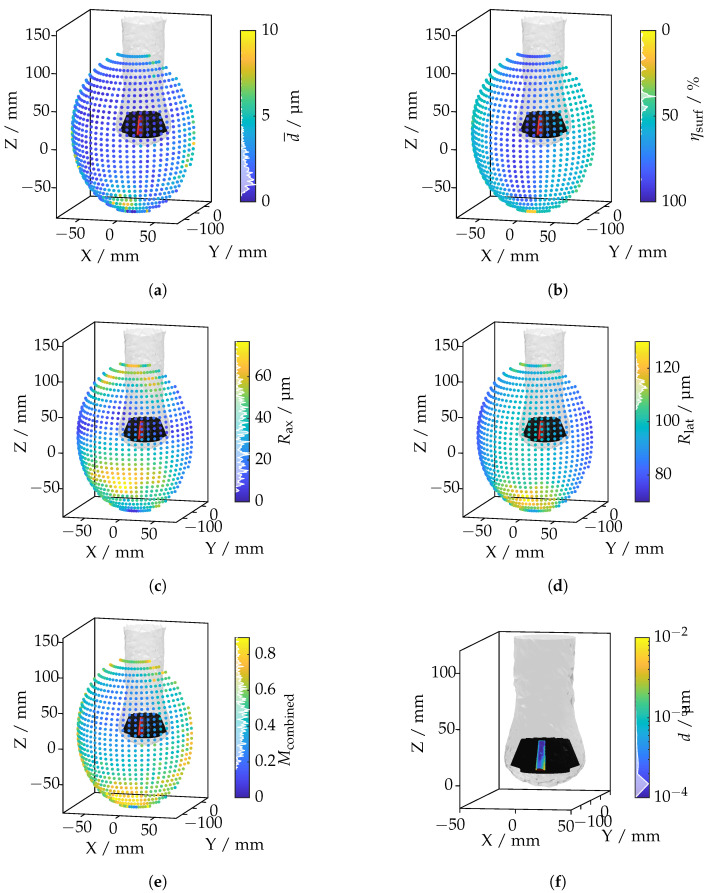

Figure 20

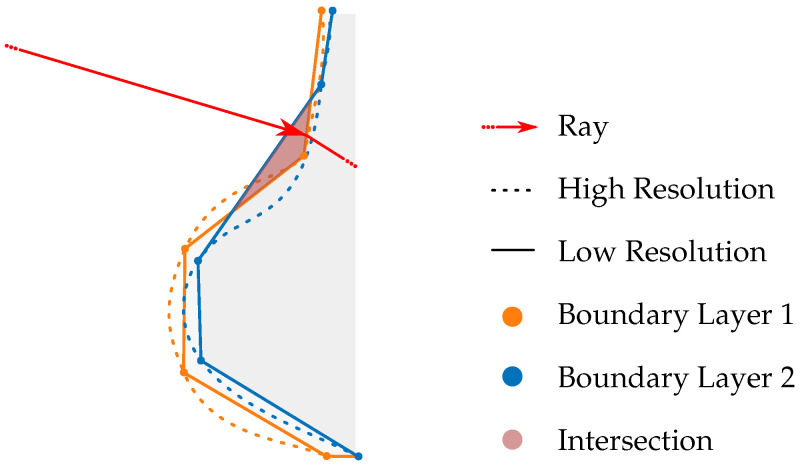

Figure 21

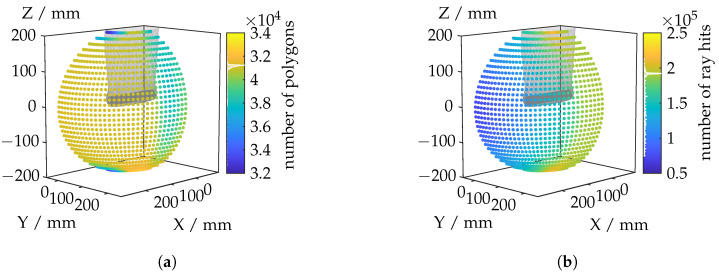

Figure 22

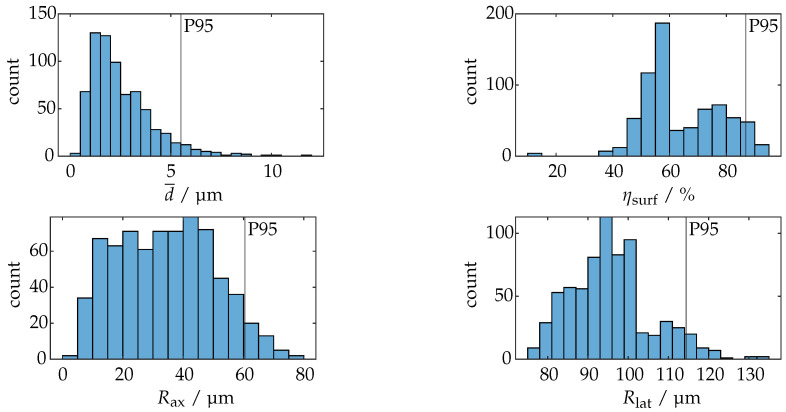

Figure 23

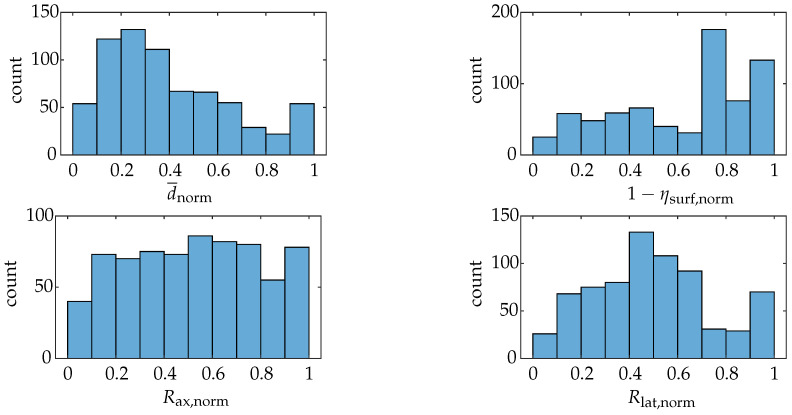

Figure 24Peer Reviews
