A Review on Micro-Watts All-Digital Frequency Synthesizers
Venkadasamy Navaneethan, Boon Chiat Terence Teo, Annamalai Arasu Muthukumaraswamy, Xian Yang Lim, Liter Siek

TL;DR
This paper reviews low-power all-digital frequency synthesizers for IoT applications, focusing on their design and implementation in CMOS technology.
Contribution
The paper provides a comprehensive review of divider-less low-power frequency synthesizers and architectural advancements in ADPLLs.
Findings
All-digital frequency synthesizers are well-suited for low-power IoT applications due to their CMOS compatibility.
Architectural innovations like DTC-assisted TDC and embedded TDC reduce power consumption in ADPLLs.
Hybrid PLLs and ADFLLs are explored as alternatives for low-power frequency synthesis.
Abstract
This paper reviews recent developments in highly integrated all-digital frequency synthesizers suitable to deploy in low-power internet-of-things (IoT) applications. This review sets low power consumption as a key criterion for exploring the all-digital frequency synthesizer implemented in CMOS fabrication technology. The alignment with mainstream CMOS technology offers high-density, comprehensive, robust signal processing capability, making it very suitable for all-digital phase-locked loops to harvest that capacity, and it becomes inevitable. This review includes various divider-less low-power frequency synthesizers, including all-digital phase-locked loops (ADPLL), all-digital frequency-locked loops (ADFLL), and hybrid PLLs. This paper also discusses the latest architectural developments for ADPLLs to lead to low-power implementation, such as DTC-assisted TDC, embedded TDC, and…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

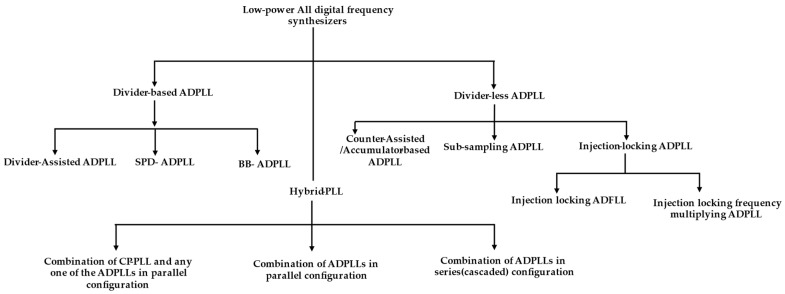

Figure 1

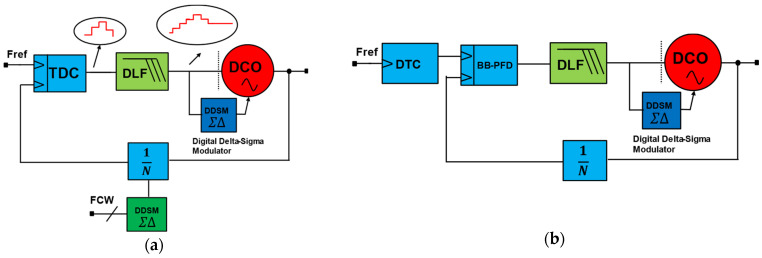

Figure 2

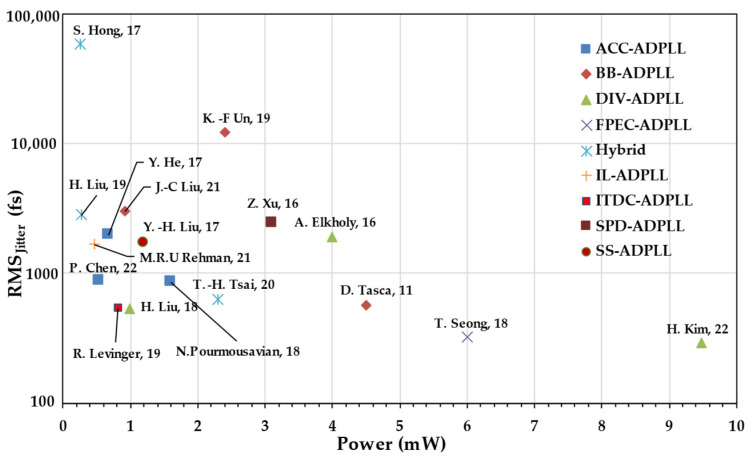

Figure 3

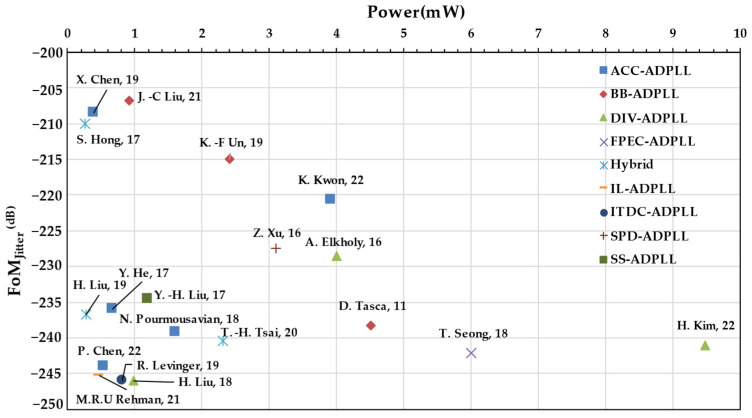

Figure 4

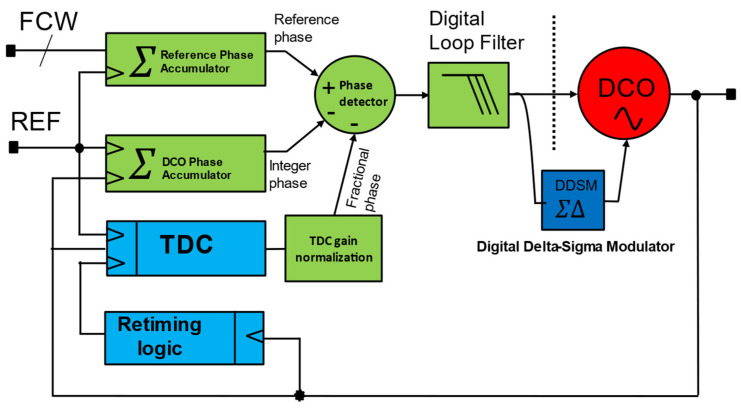

Figure 5

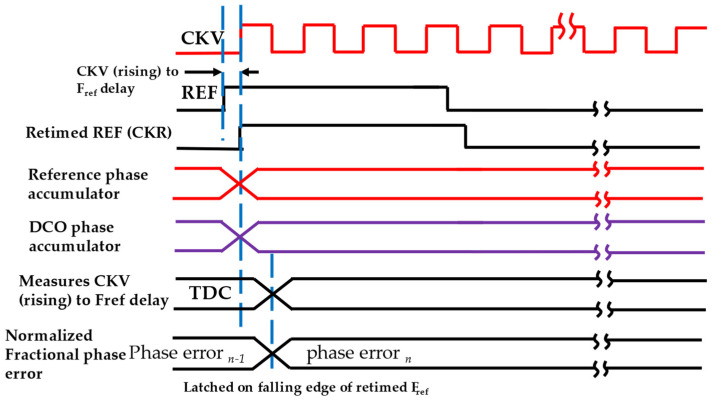

Figure 6

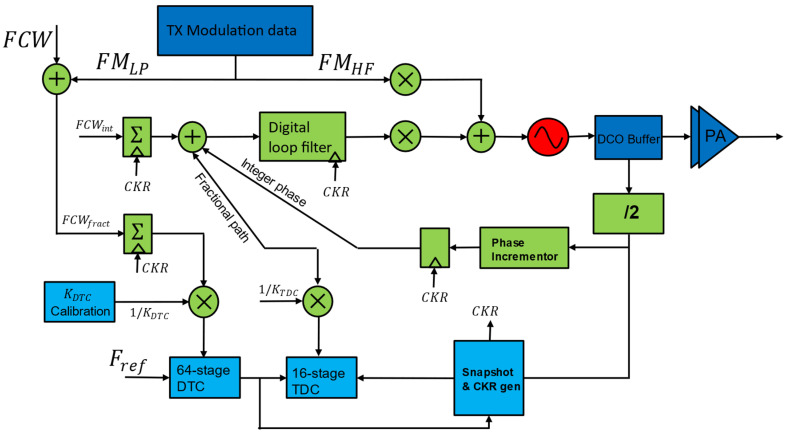

Figure 7

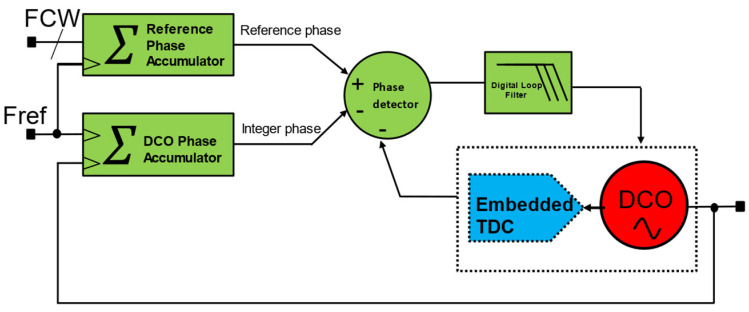

Figure 8

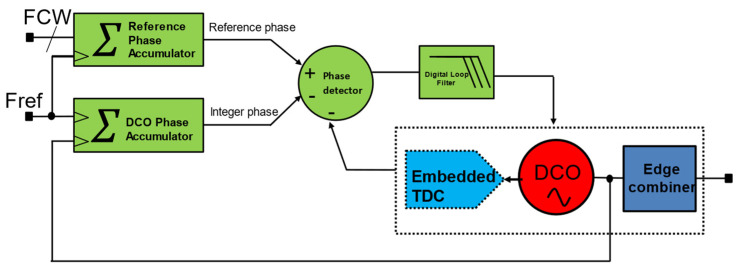

Figure 9

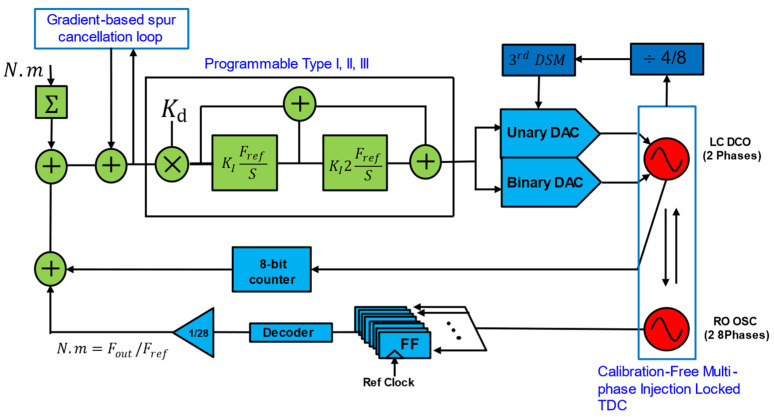

Figure 10

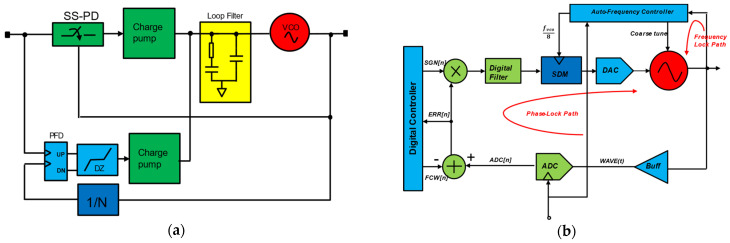

Figure 11

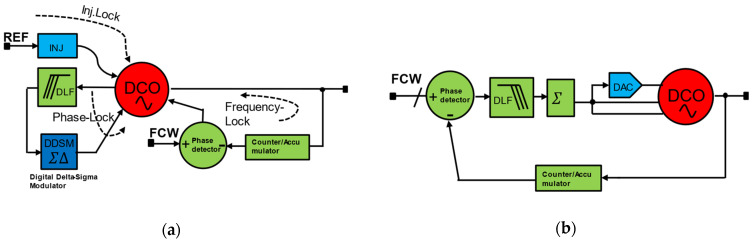

Figure 12

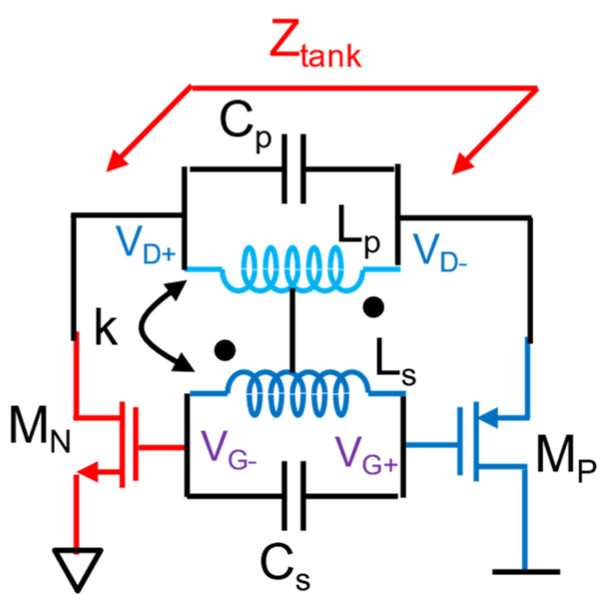

Figure 13

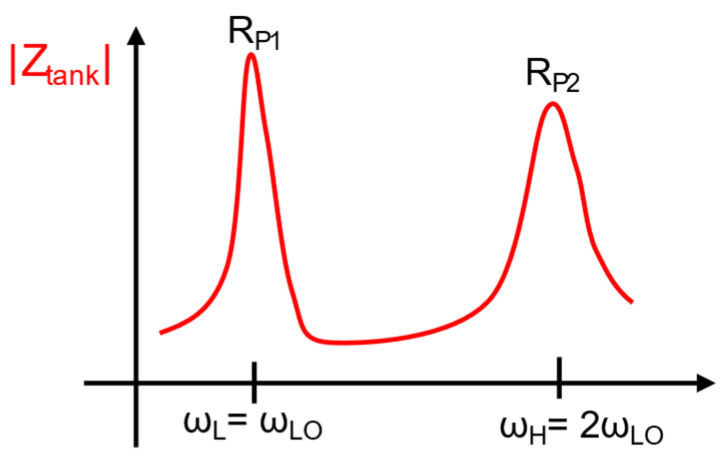

Figure 14

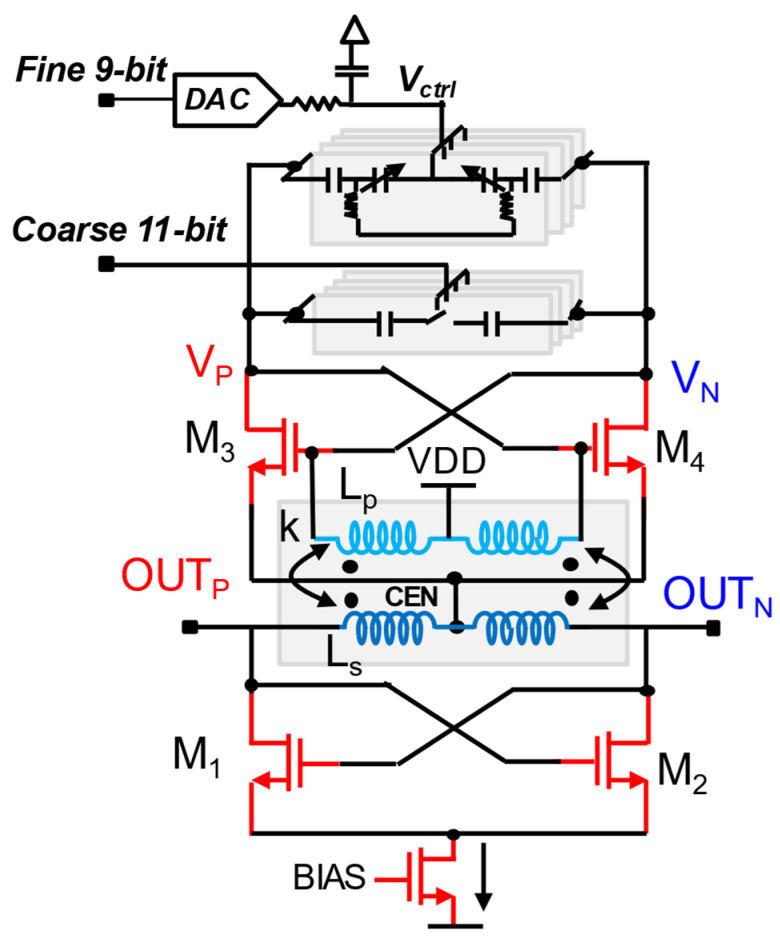

Figure 15

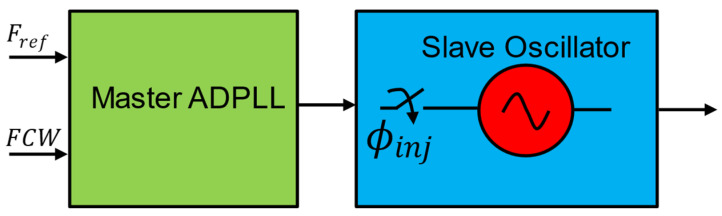

Figure 16

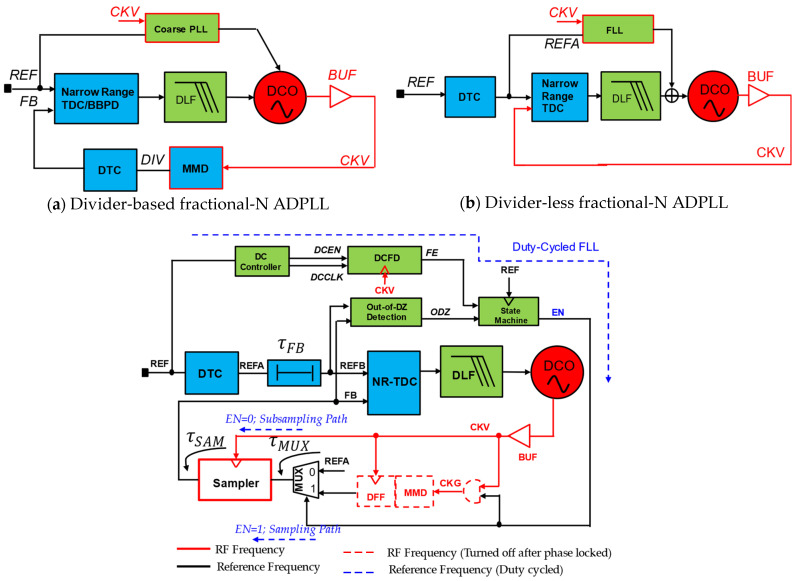

Figure 17Peer Reviews
