The Development of a Nomogram Predictive Model for Intracardiac Thrombosis Risk: A Study Based on Risk Factors in Patients with Acute Myocardial Infarction

TL;DR

This study creates a predictive model to assess the risk of heart-related blood clots in patients with heart attacks, using factors like gender and blood clotting levels.

Contribution

The study introduces a novel nomogram model for predicting intracardiac thrombosis risk in acute myocardial infarction patients.

Findings

Male gender, anterior wall myocardial infarction, ventricular aneurysm, and lower prothrombin activity are independent risk factors for ICT.

The nomogram model achieved high accuracy (AUC: 0.910) in predicting ICT risk.

Calibration and sensitivity analyses confirmed the model's robustness and reliability.

Abstract

Background/Objectives: Intracardiac thrombosis (ICT) is a serious complication in acute myocardial infarction (AMI) patients. This study aimed to identify potential risk factors of ICT in AMI patients, providing valuable insights for clinical management. Methods: A case–control study was conducted involving consecutive AMI patients admitted to the First Affiliated Hospital of Xi’an Jiaotong University between January 2019 and December 2022. Binary logistic regression identified independent risk factors of ICT and a nomogram prediction model was constructed and validated for accuracy. Conclusions: A total of 7341 patients with ICT and 74 without ICT were included. Multivariate logistic regression identified male gender, acute anterior wall myocardial infarction (AWMI), ventricular aneurysm, and lower prothrombin activity as independent risk factors of ICT in AMI patients. A nomogram based on these factors demonstrated excellent performance (AUC: 0.910, 95% CI: 0.877–0.943, p < 0.001), with calibration and sensitivity analyses confirming its robustness. This nomogram provides an accurate tool for predicting ICT risk, facilitating personalized management and early intervention in AMI patients.

Figures

Full text

1. Introduction

Acute myocardial infarction (AMI) refers to myocardial tissue death resulting from an unstable ischemic condition [1]. The prognosis of AMI is closely related to its complications. Intracardiac thrombosis (ICT) is a rare but severe complication in AMI patients, involving pathological thrombus formation within the heart chambers, including the left atrial appendage [2,3]. Currently, no global reports exist on the incidence of ICT in AMI patients. A large-scale analysis of 11,724 autopsy reports found that 276 (2.4%) had ICT, with most deaths (73.3%) attributed to systemic embolism or pulmonary embolism [4]. Regarding intracardiac thrombi, research mainly focuses on the left ventricular thrombus (LVT) in AMI patients, with an incidence of about 4% [5,6]. The onset of ICT is often subtle, making early diagnosis challenging, yet it is associated with high mortality and serious complications. Detachment of the thrombus can lead to pulmonary embolism, cerebral infarction, and other events. Furthermore, the thrombus can impair cardiac function, resulting in heart failure or even cardiac rupture [7]. Therefore, early diagnosis of ICT in AMI patients is critical.

Advancements in diagnostic technologies have increased the detection rate of ICT among AMI patients [8]. However, most studies focus on symptomatic embolic events, which are typically diagnosed after other severe complications have occurred, potentially underestimating the true incidence of ICT. Transthoracic echocardiography (TTE) is the most used diagnostic tool, but its accuracy is limited by operator variability [9]. Delayed-enhancement cardiac magnetic resonance imaging (DE-CMR) is considered the gold standard in ICT diagnosis but its high cost limits its routine clinical use [10]. Given the limitations of current diagnostic methods, early screening and management of high-risk ICT patients remain complex and urgent issues.

Currently, most studies on this topic focus on exploring the risk factors of LVT after AMI [11]; there are no clinical studies that specifically examine the risk factors of ICT in AMI patients. Therefore, identifying specific risk factors of ICT in AMI patients and developing reliable predictive models are of paramount importance. Our study aims to analyze hospital examination results of AMI patients and develop a nomogram-based prediction model for ICT.

2. Materials and Methods

2.1. Study Design and Patients

This retrospective observational study was carried out at the First Affiliated Hospital of Xi’an Jiao Tong University (No. 277, West Yanta Road, Xi’an, Shaanxi Province, 710061, China), focusing on consecutive patients diagnosed with AMI between January 2019 and December 2022. Diagnoses of AMI and ICT conformed to universal criteria [12,13] and treatment protocols adhered to the 2023 ESC guidelines for the management of acute coronary syndromes [14]. The study included patients with confirmed AMI cases, covering both non-ST-segment elevation myocardial infarction (NSTEMI) and ST-segment elevation myocardial infarction (STEMI). In patients with ICT, diagnosis required the detection of thrombi at various cardiac locations via echocardiography during hospitalization [3,15]. These locations included the left and right ventricles, left and right atria, atrial appendages, apex, and multiple other sites. We excluded patients with missing laboratory data for most of the tests. For patients with missing values in only a few laboratory items, we applied multiple imputation to handle the missing data.

Patients were grouped into those with ICT and those without ICT. We then compared demographic details, laboratory results, and other clinical factors between the two groups to identify risk factors linked to ICT.

This study was conducted in accordance with the Declaration of Helsinki (1975, revised in 2013) and received prior ethical approval from the Institutional Review Board of Xi’an Jiao Tong University (Approval No. XJTU1AF2025LSYY-359). As a retrospective analysis utilizing fully anonymized clinical data obtained from the Biobank of The First Affiliated Hospital of Xi’an Jiao Tong University, the requirement for written informed consent was formally waived by the ethics committee. All data-handling procedures complied with the biobank’s established protocols for the secondary use of biomedical data. The study flowchart was presented below (Figure 1).

2.2. Data Collection

Comprehensive baseline data were meticulously collected upon admission, including demographic details, specific AMI locations ascertained from initial electrocardiograms (ECG) [12,14], existing comorbidities, and Killip classification for heart failure. Laboratory data were obtained from the hospital’s electronic health records and included a range of tests, such as complete blood counts, comprehensive metabolic panels, renal function markers (e.g., blood urea nitrogen and serum creatinine), cardiac biomarkers like NT-proBNP, liver function assessments, D-dimer levels, and additional coagulation-related parameters. All laboratory measurements were obtained immediately following admission to ensure their accuracy and consistency.

2.3. Statistical Analyses

We initiated our analysis by evaluating continuous variables for normality, presenting them as either means ± standard deviations (SDs) or as medians with interquartile ranges (IQRs), depending on their distribution pattern. Categorical variables were detailed using frequencies and percentages. We employed independent samples t-tests for the analysis of normally distributed continuous variables during group comparisons. Conversely, the Mann–Whitney U test was utilized for variables with a non-normal distribution. Comparisons of categorical data were made using Pearson’s chi-square test or Fisher’s exact test where necessary.

Our exploratory phase involved univariate logistic regression to pinpoint potential risk factors of ICT in AMI patients. Significant variables (p < 0.05) were then incorporated into a multivariate logistic regression to ascertain independent predictors of ICT. The strength of these associations was expressed through odds ratios (ORs) and 95% confidence intervals (CIs). Based on insights gained from the multivariate analysis, we developed a clinical nomogram to predict the individual risk of ICT in AMI patients. We evaluated the model’s efficacy using the area under the receiver operating characteristic (ROC) curve (AUC). To assess model calibration, we used calibration curves that compared predicted probabilities of ICT with observed outcomes, where the x-axis represents the estimated risk of ICT and the y-axis displays the observed likelihood of its occurrence. The ideal prediction is depicted by a diagonal dashed line while the pre- and post-adjustment calibrations are shown by dashed and solid lines, respectively.

To ensure the robustness and reliability of our findings, we conducted a thorough sensitivity analysis, excluding any cases with incomplete data to avoid bias and improve the generalizability of our results. This refined dataset was subsequently reanalyzed to confirm the predictive accuracy and performance metrics of our model.

Statistical analyses were performed using SPSS software (version 27.0, IBM, Armonk, NY, USA) and R software (version 4.4.2), applying two-tailed tests with a significance level maintained at p < 0.05.

3. Results

3.1. The Subsection of Characteristics of the Studied Population

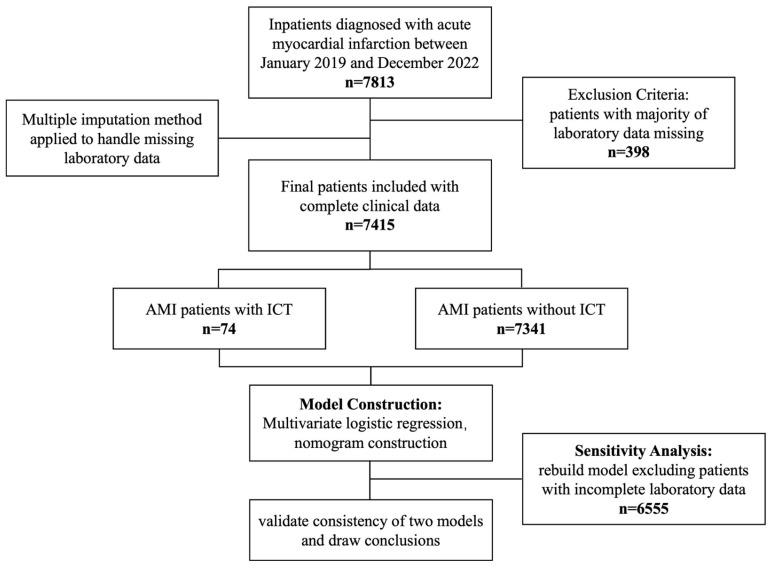

A total of 7813 patients diagnosed with AMI were treated at the First Affiliated Hospital of Xi’an Jiao Tong University. After excluding 398 patients due to incomplete laboratory data, 7415 patients remained eligible for analysis. To address missing laboratory data, we performed five multiple imputations and combined the results using Rubin’s rule. This approach was chosen to minimize bias and maximize the use of available data, ensuring robust estimates of risk factors. Among the analyzed cohort, 74 patients (0.99%) were diagnosed with ICT. The clinical characteristics of the studied participants are summarized in Table 1. Our findings indicate that male patients were at a significantly greater risk of developing ICT following AMI. Moreover, individuals with acute anterior wall myocardial infarction (AWMI) or those presenting with a ventricular aneurysm were found to be at a markedly higher risk of ICT, with both conditions showing statistically significant associations (p < 0.001). In laboratory analyses, the ICT group exhibited elevated levels of D-dimer, prothrombin time (PT), and international normalized ratio (INR), while prothrombin activity was notably reduced. The observed differences in D-dimer, PT, INR, and prothrombin activity were all statistically significant (p < 0.001).

3.2. Risk Factors of ICT in AMI Patients

We assessed baseline demographic and clinical characteristics between the ICT and non-ICT groups, including multicollinearity testing of the variables involved. Variables with a variance inflation factor (VIF) exceeding 10, such as white blood cell count, lymphocyte count, and neutrophil count, were excluded from the analysis. Variables with significant differences (p < 0.05) and of clinical relevance were included in the univariate logistic regression analysis (Table 2). Univariate logistic regression identified potential risk factors, with statistical significance at a p-value ≤ 0.05, and advanced to multivariate logistic regression. This analysis confirmed several independent risk factors of ICT post-AMI: male gender (OR: 2.936; 95% CI: 1.304–6.609; p = 0.009), AWMI (OR: 5.186; 95% CI: 2.569–10.467; p < 0.001), ventricular aneurysm (OR: 21.216; 95% CI: 12.455–36.138; p < 0.001), and decreased prothrombin activity (OR: 1.039; 95% CI: 1.018–1.062; p < 0.001), as detailed in Table 3.

3.3. The Construction of the Nomogram Model

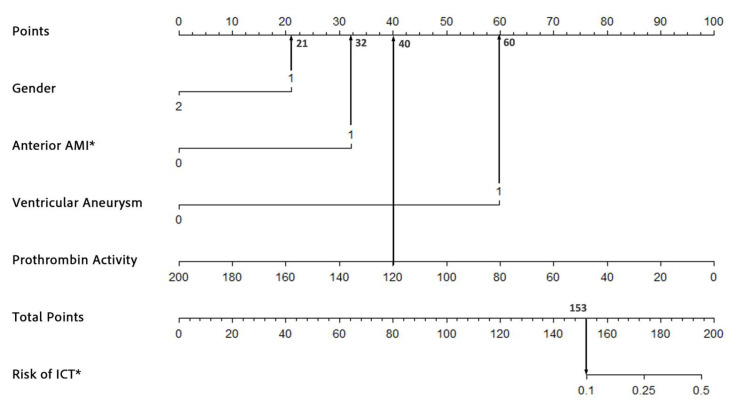

The nomogram was developed based on the results of the multivariate logistic regression analysis. Four independent risk factors—male gender, acute anterior wall myocardial infarction (AWMI), ventricular aneurysm, and decreased prothrombin activity—were identified and included in the model. Variance inflation factors (VIFs) confirmed no multicollinearity among these variables (VIFs: 1.004, 1.359, 1.075, and 1.008). The regression coefficients for each predictor were scaled to assign points on the nomogram. For example, the coefficient for male gender was converted to a score of 21 points, while ventricular aneurysm, being the strongest predictor, was assigned 60 points. The total score for each patient was calculated by summing the points for all predictors and the corresponding risk of ICT was estimated using the nomogram’s probability scale. The nomogram provides clinicians with a user-friendly tool to estimate the risk of ICT in AMI patients. For instance, a 55-year-old male patient (21 points) presenting with AWMI (32 points), ventricular aneurysm (60 points), and a prothrombin activity of 120% (40 points) would receive a total score of 153 points, corresponding to a 10% risk of ICT (Figure 2). The nomogram is intended for use at the time of AMI diagnosis, leveraging data collected within the first 24 h of hospitalization; it is a practical tool for clinicians to assess individual risk and tailor thrombosis prevention strategies.

3.4. Model Accuracy Assessment

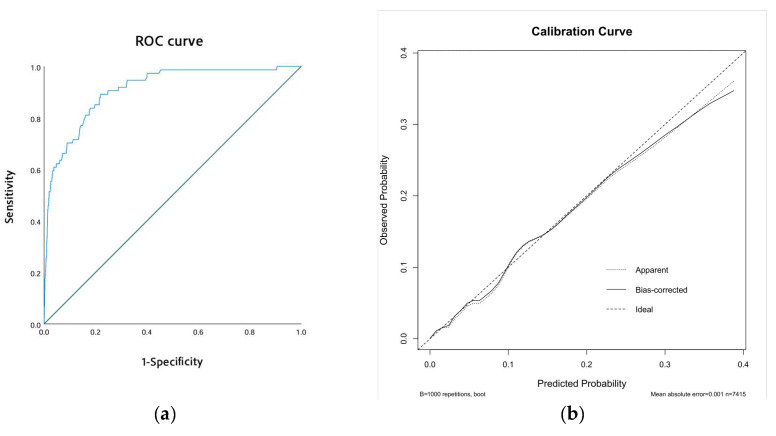

The performance of our predictive model was assessed through receiver operating characteristic (ROC) curves and calibration curves. The ROC curve revealed an area under the curve (AUC) of 0.910 (95% CI: 0.877–0.943, p < 0.001), indicating excellent discriminatory ability (Figure 3a). Additionally, the calibration curve showed strong alignment between predicted probabilities and observed outcomes. This was further supported by the Hosmer–Lemeshow test, which yielded a chi-square value of 6.974 and a p-value of 0.538, confirming the model’s reliable calibration (Figure 3b).

3.5. Sensitivity Analysis

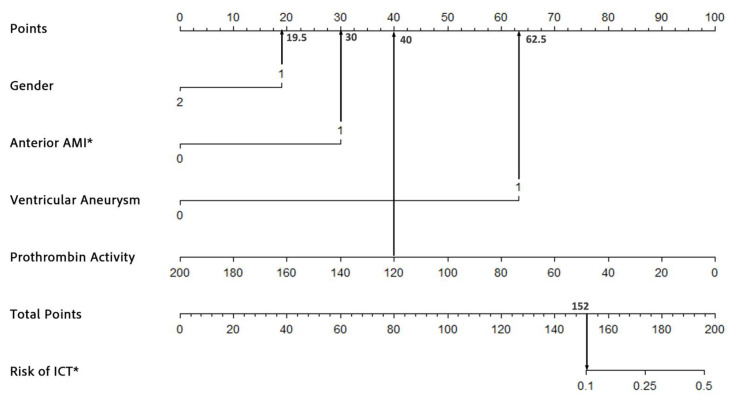

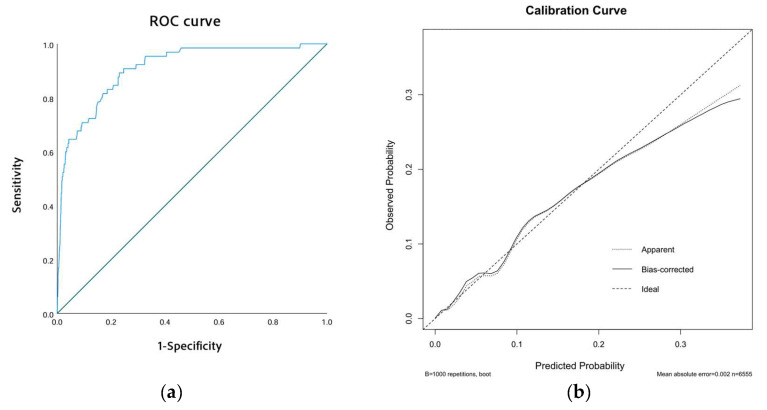

To assess the robustness and accuracy of the model, we conducted a sensitivity analysis. In the sensitivity analysis, we excluded patients with incomplete laboratory data, resulting in a final cohort of 6555 patients. We re-ran the logistic regression analysis and reconstructed the nomogram using the same patient characteristics as the original model. As shown in Table 3, the logistic regression analysis identified the same four significant risk factors as those obtained with the imputed dataset. For instance, a male patient (19.5 points) with AWMI (30 points), ventricular aneurysm (62.5 points), and a prothrombin activity of 120% (40 points) would have a cumulative score of 152, corresponding to an estimated risk of 10%. This demonstrated consistency in both the total score and ICT risk estimation (Figure 4), further supporting the robustness of the model. The ROC and calibration curves, as derived from the sensitivity analysis, are presented in Figure 5a,b, respectively. The ROC curve yielded an area under the curve (AUC) of 0.908 (95% CI: 0.872–0.945, p < 0.001), demonstrating robust discriminative ability. Furthermore, the calibration curve displayed excellent concordance between predicted probabilities and observed outcomes, which was substantiated by a Hosmer–Lemeshow test with a chi-square value of 7.334 and a p-value of 0.501. These findings underscore the model’s stability and reliability in predicting the risk of ICT in patients with AMI.

4. Discussion

We included 7415 patients diagnosed with AMI during hospitalization, of whom 74 developed ICT. The independent risk factors of ICT after AMI were identified as male gender, anterior wall infarction, presence of ventricular aneurysm, and lower prothrombin activity. Based on these four risk factors, we developed a robust nomogram prediction model.

Gender plays a pivotal role in the development of ICT. Our study demonstrates that male patients are at significantly higher risk of ICT compared to female patients, which aligns with findings from prior research. A meta-analysis shows that male patients with AMI experience a higher incidence of thromboembolic complications, including ICT, with an adjusted odds ratio (OR) of 1.6. This underscores the gender-related disparity in ICT incidence following AMI [16]. Several underlying mechanisms may contribute to this increased risk. First, the protective effects of estrogen are a critical factor. Estrogen enhances the activity of anticoagulant proteins, such as protein C, improves endothelial function, and inhibits platelet aggregation [17]. The absence of estrogen in males removes this cardiovascular protection, thereby increasing the risk of thrombosis [18]. Furthermore, males may exhibit less favorable endothelial function, rendering them more susceptible to endothelial injury, a key initiator of thrombosis [19,20]. Anatomically, male hearts are typically larger and have thicker ventricular walls, which lead to higher blood flow velocity and increased shear stress on the vascular endothelium. This heightened shear stress contributes to endothelial damage, thereby raising the likelihood of ICT formation [21,22]. Additionally, lifestyle factors, such as higher rates of smoking, alcohol consumption, and poor dietary habits among men, exacerbate these risks [18]. In conclusion, male gender is a robust predictor of ICT risk. This finding emphasizes the need for gender-specific risk assessments in clinical practice and highlights the importance of tailored prevention and treatment strategies to address gender-based disparity in ICT outcomes.

AWMI is a significant risk factor of ICT, consistent with previous studies. In a prospective study by Andre Keren et al., 31% of patients with AWMI developed thrombus prior to discharge, compared to none in the inferior wall MI group (p < 0.001) [23,24]. Involvement of the left anterior descending artery (LAD) in AWMI leads to extensive myocardial injury and necrosis of the anterior wall, impairing left ventricular function. This myocardial necrosis induces local wall motion abnormalities, contributing to blood stagnation and elevating the risk of thrombus formation [25]. Post-infarction structural remodeling triggers hemodynamic changes, creating low-flow regions near the infarct zone, which are high-risk areas for thrombosis [25,26]. Additionally, AWMI can cause ventricular electrophysiological changes, including atrial fibrillation (AF), which is closely associated with thrombus formation due to irregular atrial contractions and blood stasis [27]. This relationship underscores the strong association between AWMI and elevated ICT incidence, highlighting the importance of targeted monitoring. Implementing routine thrombus screening and proactive anticoagulation therapy in patients with AWMI could further reduce ICT incidence.

Ventricular aneurysm significantly differed between the ICT and control groups in our study. Andre et al. identified ventricular aneurysm as an independent risk factor of thrombus formation during hospitalization, with 13 out of 130 patients developing new thrombi over a six-month follow-up period [23]. Ventricular aneurysm, primarily caused by AWMI, leads to myocardial injury, scar formation, and ventricular wall bulging. This results in increased myocardial compliance, impaired contractile function, and blood stasis. Previous studies have linked local contractile dysfunction in the ventricular aneurysm region to ICT formation [28]. Reduced blood flow and disturbed hemodynamics in this area are key mechanisms for thrombus development [25]. Additionally, ventricular aneurysm alters ventricular structure, promoting thrombus retention through fibrosis and scarring, which provide surfaces for thrombus adhesion and growth [29]. Long-term anticoagulation is often required in AMI patients with ventricular aneurysm to manage chronic blood stasis, necessitating more aggressive anticoagulation to prevent thrombus recurrence. Optimizing anticoagulation therapy by adjusting dosages and duration based on individual patient risk profiles could enhance thrombus recurrence prevention in these patients [30].

Our analysis revealed a significant association between reduced prothrombin activity and ICT occurrence, highlighting the role of coagulation dysfunction in ICT pathogenesis. Previous studies have shown a correlation between abnormal coagulation markers and myocardial injury. For instance, a study of 987 STEMI patients found a significant correlation between peak TnT and D-dimer and F1 + 2 as well as between NT-proBNP and D-dimer and F1 + 2 [31,32]. Myocardial injury contributes to thrombus formation through decreased coagulation capacity, which weakens stable clot formation and promotes unstable clots prone to fragmentation and reformation, increasing ICT risk [33]. Additionally, lower prothrombin activity may exacerbate thrombus formation by modulating the inflammatory response, as thrombosis in AMI patients is closely associated with inflammation markers like C-reactive protein (CRP) and interleukins, which enhance thrombotic activity [34]. Targeting prothrombin activity through therapeutic interventions, such as prothrombin complex concentrates or novel anticoagulants, may be strategies to stabilize clot formation and reduce ICT incidence in AMI patients.

Compared to previous clinical research on similar topics, our study presents several significant advantages. First, we developed a nomogram integrating four key risk factors—male gender, AWMI, ventricular aneurysm, and reduced prothrombin activity—which consolidates multiple risk factors into a single, user-friendly model. This enables precise prediction of ICT risk through simple calculations, facilitating clinical decision-making and personalized medicine. Second, our large sample size enhances the model’s applicability across diverse patient populations. Third, multiple validation methods, including ROC curve analysis and calibration curves, confirm the model’s accuracy and robustness. Sensitivity analyses further support the model’s reliability, highlighting its potential utility in improving clinical outcomes. The nomogram is a practical tool for clinicians to identify high-risk patients and tailor management strategies accordingly. For patients with a high predicted risk of ICT (e.g., a nomogram score ≥ 150), we recommend a comprehensive approach including the following: 1. Imaging surveillance: regular transthoracic echocardiography (TTE) to monitor thrombus formation, particularly in patients with anterior wall infarction or ventricular aneurysm. 2. Prophylactic anticoagulation: the initiation of low-molecular-weight heparin (e.g., enoxaparin) in high-risk patients without contraindications. 3. Therapeutic anticoagulation: an escalation to therapeutic anticoagulation (e.g., warfarin or direct oral anticoagulants) if a thrombus is detected, following current guidelines [3]. This integrated approach can help reduce the incidence of ICT and improve outcomes in high-risk AMI patients.

This study has several limitations. First, although our sample size of 7415 AMI patients is substantial, it is confined to a single center, which may limit the generalizability of the findings. Second, the ICT incidence rate of 1% is lower than that reported in other studies (5–8%) [35,36]. This may be due to the lack of recent prevalence data as well as advancements in treatments that reduce ICT incidence. Moreover, as a leading medical center in Northwestern China, our center’s timely interventions have significantly lowered complication rates. Additionally, the retrospective design introduces potential selection and information biases. Future larger-scale multi-center studies are needed to validate these findings and address regional variations. Despite these limitations, this study is the first to investigate ICT risk factors in AMI patients, filling a significant gap in research.

5. Conclusions

In conclusion, this study identifies male gender, AWMI, ventricular aneurysm and lower prothrombin activity as significant risk factors of an increased incidence of ICT in patients with AMI. Given the association between these risk factors and ICT, clinicians should closely monitor AMI patients who present with these characteristics. Based on these risk factors, we have developed a nomogram model to facilitate clinical pre-assessment of ICT risk. Validation of the model demonstrated good accuracy, with the calibration curve showing strong concordance between predicted probabilities and actual outcomes, as confirmed by a Hosmer–Lemeshow test (chi-square = 6.974, p = 0.538), affirming the model’s reliable calibration. This model offers clinicians a visual tool to estimate the likelihood of ICT in AMI patients, utilizing four readily available clinical variables. By stratifying patients according to their risk profile, the nomogram serves as a powerful tool for early prevention and diagnosis of ICT, ultimately guiding more individualized management strategies for AMI patients. For patients identified as high-risk, adopting more aggressive treatment strategies is crucial to improving their prognosis.
