1. Introduction
Hematological cancers constitute a group of malignancies originating from cells in the blood, bone marrow, and lymph nodes. These cancers are broadly categorized into three principal groups: leukemia, lymphoma, and myeloma. Leukemia arises specifically from blood and bone marrow cells and can be further classified into lymphocytic and myelogenous types. Lymphoma, on the other hand, originates in the lymph nodes and is divided into Hodgkin and non-Hodgkin subtypes. Multiple myeloma is distinguished by the proliferation of a specific variant of plasma B cells within the bone marrow, leading to the production and secretion of monoclonal immunoglobulins [1]. In the treatment of hematological cancers, the employed specific drug regimen can differ significantly from one condition to another. However, it is important to note that a variety of chemotherapeutic agents are commonly utilized, including cytostatic drugs, alkylating agents, alkaloids, antibiotics, tyrosine kinase inhibitors, and antimetabolites [2]. These agents play a crucial role in inducing the death of cancer cells, contributing to effective patient management. The majority of patients ultimately develop resistance to pharmacological treatments, necessitating the exploration of alternative medications or drug combinations to address this challenge [1]. Regrettably, this results in a cyclical dilemma that complicates the selection of the most suitable treatment options. Traditional two-dimensional (2D) in vitro cultures are insufficient for long-term studies and do not provide a reliable foundation for clinical extrapolation, as they do not encompass all the growth factors present in the in vivo environment [3]. Moreover, the absence of certain in vivo criteria, such as spatial arrangement, shear stress, and geometric simulation in both 2D and 3D cell cultures, complicates the process of translating findings from murine models to human applications. The findings reveal that the average cost to transition a potential drug from the laboratory to clinical application is approximately USD 2.8 billion [4,5]. As such, there is a pressing need for practical bedside tools that can effectively predict patient responses to medications and inform the development of tailored treatment strategies. To effectively determine the most appropriate treatment options for patients with hematological cancers and to successfully apply personalized therapy approaches in clinical practice, it is crucial to focus on the following objectives: (1) to streamline the time required to utilize tools that identify effective treatment strategies, (2) to proactively assess both drug resistance and sensitivity, and (3) to identify cellular biomarkers that may indicate potential side effects associated with the treatment [6].
Organ-on-a-chip (OoC) systems represent a significant advancement in microfluidic technology, integrating principles from both biology and engineering to accurately simulate human tissues and organs at the microscale [7]. These innovative platforms leverage the microsystem technology to design OoCs that exhibit specific biochemical and physiological properties tailored to emerging research needs [8,9]. This technology facilitates the development of intricate microfluidic channels, which are complemented by miniature actuators embedded within the OoC systems [10]. The chips utilized in OoC systems have complex microchannel networks that adeptly manipulate minute volumes of solutions. The development of human disease models using OoC systems not only enhances the understanding of various diseases but also plays a crucial role in the formulation of effective therapeutics. The choice of an appropriate OoC system is guided by the biochemical and physiological attributes of the biological system intended for simulation. While there have been advances in OoC systems, the research on bone-on-a-chip (BoC) models in the context of hematological cancers remains limited. BoC systems provide a cutting-edge platform that replicates the microenvironment of bone tissue in vitro, utilizing advanced microfluidic and organotypic technologies. These systems facilitate the co-culture of bone cells, including osteoblasts, osteoclasts, osteocytes, and bone marrow stromal cells, within microfluidic chips. This setup enables real-time observation of interactions among cells and between cells and the extracellular matrix [11]. Additionally, BoC systems are capable of simulating the mechanical stresses and biochemical gradients inherent to natural bone tissue. These capabilities enhance the accuracy of disease modeling, particularly for hematological cancers, osteoporosis, and bone metastasis. The advances in BoCs over the years are summarized in chronological order in Table 1. Existing studies [12,13,14] have mainly focused on the characterization of bone tissue and cannot adequately model hematological cancers.
The intricate nature of bone tissue, characterized by various cell types and matrix components, along with the diverse symptoms present in hematological cancers, poses significant challenges in predicting the treatment efficacy. While 2D cultures offer straightforward cell sheets and 3D cultures provide more intricate structures, BoC systems excel in simulating a dynamic fluidic microenvironment, along with realistic cell–cell and cell–matrix interactions. These platforms are capable of accurately recreating the complex signaling interactions present in the bone marrow microenvironment, thereby enhancing the predictability of drug responses, particularly in hematological cancers. Moreover, BoC systems can replicate natural mechanical forces, such as fluid shear stress and mechanotransduction, as well as biochemical gradients akin to those found in bone tissue. These characteristics provide significant benefits for both cell differentiation and disease modeling. Traditional animal models may not fully capture human physiology, whereas BoC platforms utilize human cells and tissues, yielding more precise and reliable results in terms of drug efficacy and toxicity. Additionally, these systems facilitate the development of personalized disease models with the use of patient-derived cells, thereby contributing to the advancement of personalized medicine. To enhance the clinical predictive capabilities of BoC platforms, the integration of biosensors can facilitate dynamic and real-time data collection. This approach can significantly improve the accuracy and reliability of patient assessments. It is, therefore, crucial to develop BoC systems that are designed for bedside application and proficient in characterizing the bone microenvironment in vivo. Such systems will enable us to anticipate drug responses in the context of hematological cancers, mitigate the risk of drug resistance, and facilitate the implementation of personalized therapeutic approaches.
In this review, we present an overview of the various types of hematological cancers and the currently employed treatment regimens. We also detail the critical factors necessary for accurately describing bone physiology within BoC systems and identify the most appropriate techniques for the construction of BoC models. Moreover, we summarize the hematological cancer models that have been developed to date, emphasizing the techniques and biomaterials essential for effective modeling. Furthermore, we explore the research surrounding drug development and imaging strategies pertinent to hematological cancers, with a particular focus on the role of biosensors. Finally, we provide an overview of the microfluidic platforms that have been commercialized to date and discuss the potential of BoCs for advancements in clinical and commercial applications. An outline table of the review is provided in Table 2.
2. The Biological Landscape of Hematologic Cancers
Blood serves as the vital fluid that delivers oxygen and essential nutrients to every cell in the human body. Blood cells are generated through the processes of division, proliferation, and differentiation of pluripotent stem cells located in the bone marrow. Lymphoid stem cells are responsible for the formation of T lymphocytes, B lymphocytes, and natural killer (NK) cells, while myeloid stem cells give rise to erythrocytes, platelets, monocytes, and granulocytes. Hematologic cancers can emerge at any stage of lymphocyte development, often as a result of malignant transformation or mutations occurring within the stem cells [19]. Hematologic cancers arise from the uncontrolled proliferation of abnormal cancer cells rather than the body’s normal immune response to infections. For diagnostic purposes, a comprehensive range of standard tests is employed. These tests typically include biochemical analyses, hemograms, urine examinations, immunophenotyping, bone marrow aspirates, cytogenetic and molecular analyses, along with various imaging techniques. Leukemia is primarily classified into two principal categories based on the origin of the cells involved: lymphoid and myeloid. Each of these categories is further divided into acute and chronic types according to the progression rate of the disease [20]. Chronic leukemias are characterized by a slow progression from mature cells, while acute leukemias exhibit rapid development from immature cells [21]. Additionally, leukemias can be subdivided based on specific chromosomal abnormalities and morphological characteristics that result from lineage selection [22]. Acute lymphoblastic leukemia (ALL) is recognized as the most prevalent type of leukemia [23]. B-cell ALL is predominantly found in pediatric populations, whereas T-cell ALL is more frequently observed in adults [24]. ALL is characterized by loss of appetite, weight loss, and night sweats. The treatment regimens for ALL typically include daunorubicin, vincristine, prednisone, and asparaginase (Table 3). Chronic lymphocytic leukemia (CLL) is generally diagnosed in older patients and is primarily associated with the formation of B-cell tumors [25]. Fatigue, night sweats, and susceptibility to infections are common in CLL. Therapeutic options for CLL include ibrutinib, zanubrutinib, acalabrutinib, obinutuzumab, and rituximab (Table 3). Acute myeloid leukemia (AML) is a well-recognized type of myeloid leukemia in adults; bleeding under the skin and skin rashes can be seen. AML treatment approaches include cytarabine, daunorubicin, and idarubicin (Table 3) [26]. Chronic myeloid leukemia (CML) is characterized by the presence of the Philadelphia chromosome and generally exhibits a gradual progression [27]. CML is characterized by a sensation of fullness in the abdominal area, as well as discomfort in the left upper quadrant, which can be attributed to splenic enlargement. The treatment options available for CML include imatinib, dasatinib, and nilotinib (Table 3) [28].
Lymphomas constitute a category of malignancies that originate from malignant lymphocytes, primarily located within the lymph nodes [21]. These abnormal lymphocytes can potentially spread to various regions of the body through the lymphatic system [19]. Lymphomas are classified into two primary groups: Hodgkin lymphoma (HL) and non-Hodgkin lymphoma (NHL) [2]. HL is further subdivided into classical and non-classical forms, whereas NHL is categorized based on the types of involved lymphocytes, including B cells, T cells, and natural killer (NK) cells [2]. HL is derived from B lymphocytes and is associated with a notably high cure rate [29]. A hallmark feature of HL is the presence of multinucleated Reed–Sternberg cells [30]. HL presents symptoms of unilateral, painless lymph node enlargement in the neck area, fever, night sweats, and weight loss. The chemotherapeutic agents commonly employed in the treatment of HL encompass doxorubicin, bleomycin, vinblastine, and dacarbazine (Table 3) [31]. In contrast, Reed–Sternberg cells are not present in NHL, which is related to genetic mutations that affect the development of T, B lymphocytes, and NK cells. It is characterized by a feeling of pressure and organ involvement accompanied by lymphadenopathy (neck, axillary, and inguinal). Within NHL, B-cell lymphoma constitutes the most prevalent form, with diffuse large B-cell lymphoma (DLBCL) recognized as the most aggressive subtype [32]. Lymphomas that remain localized within the lymph nodes are known as nodal lymphomas, while those that spread to other organs through the circulatory system are called extranodal lymphomas [33]. Therapeutic strategies for NHL generally involve using cyclophosphamide, doxorubicin, vincristine, and prednisone (Table 3). In cases where CD-20^+^ B cells are identified, rituximab is often incorporated into the treatment regimen (Table 3) [34].
Multiple myeloma (MM) is a complex hematological malignancy characterized by the abnormal proliferation of malignant plasma cells within the bone marrow [35]. These malignant cells originate from mutations that occur during the differentiation of B cells into plasma cells, leading to the production of abnormal antibodies known as M proteins [36]. The detection of these M proteins in urine serves as a key diagnostic marker for the disease [1]. The progression of MM typically encompasses several stages: monoclonal gammopathy of unknown significance (MGUS), smoldering multiple myeloma (SMM), and active multiple myeloma [37]. Patients may experience a range of complications due to the dysregulated secretion of M proteins, which can manifest as hypercalcemia, renal impairment, anemia, and bone lesions, collectively referred to as the “CRAB” symptoms [38]. For the treatment of MM, first-line therapy commonly involves a combination of bortezomib, lenalidomide, and dexamethasone, which is effective in managing the disease (Table 3) [39].
3. Simulating Bone in Microfluidic Chip Platforms
The skeletal system is primarily composed of bones, which play a crucial role in maintaining the body’s structural integrity while also encompassing elements of the nervous and circulatory systems, thereby facilitating muscle movements. The bone tissue is continually exposed to various mechanical influences, including tensile and compressive stresses, shear stresses induced by fluid movement, and stiffness from the extracellular matrix (ECM) [40]. Long bones consist of spongy (trabecular) bone and cortical bone [41]. The bone marrow is recognized as the principal site for the development of both blood and immune cells [42]. The osteons are sophisticated structures composed of lamellae that incorporate circulatory and nervous system elements known as Haversian canals (Figure 1) [17]. The processes of proliferation, differentiation, and apoptosis in bone cells (osteoblasts, osteocytes, and osteoclasts) are regulated by intercellular interactions and their relationship with the ECM [43]. Osteoclasts are multinucleated cells that differentiate from hematopoietic stem cells and are activated by osteocytes and osteoblasts to play a crucial role in bone resorption and remodeling (Figure 1) [44]. Osteoblasts, which originate from mesenchymal cells (MSC), can differentiate into osteocytes when they become embedded in lacunar spaces (Figure 1) [45]. During this process, osteoblasts perform a vital function in enhancing the hardness of the osteoid tissue by secreting various components of the bone ECM along with essential minerals [46]. The overall process can be delineated into three primary stages: (1) the proliferation of osteoblasts alongside the secretion of collagen and calcium-phosphate crystals; (2) a reduction in osteoblast proliferation, accompanied by an increase in osteoclast activity and the secretion of alkaline phosphatase (ALP) as the bone matrix matures; and (3) mineralization, which involves a decrease in ALP synthesis and the subsequent differentiation of osteocytes [45,47]. Microfluidic devices are promising platforms for enabling precise control over parameters such as media perfusion, interstitial flow, and shear stress through the use of microchannels (Figure 1) [45]. This technology effectively simulates a physiological three-dimensional environment, facilitating the study of continuous mechanical loads and dynamic fluid flows, which are vital stimuli for bone development (Figure 1) [48]. Moreover, microfluidic chip platforms are highly versatile and allow for the collection of comprehensive data while minimizing the use of samples and materials [17]. They offer the capability to culture cells in distinct compartments, thereby supporting spatial and temporal separation of various cell types [49]. To effectively recapitulate BoC systems at the microscale, it is imperative to select appropriate materials and adapt designs that are tailored to the specific tissue in question.
BoC platforms should be designed to accurately represent the geometric structure and spatial arrangement of cells specific to the bone tissue. Recent studies explored the innovative use of bone scaffolds or actual bone as molds to create biologically relevant simulations [13,50]. The resulting 3D biomimetic bone platforms demonstrated a strong capacity to replicate the trabecular structure of bone in vivo, as confirmed by nanocomputed tomography imaging [13]. Moreover, a network of osteocytes was developed within a microfluidic system featuring porous microbeads to model the lacunocanalicular structure associated with bone remodeling [51]. The trabecular bone model was illustrated on a device containing demineralized bone paper, demonstrating that bone remodeling occurred due to cell contact and paracrine interactions [52]. A recent study on osteonecrosis revealed that osteocytes treated with bisphosphonates had an adverse impact on osteoblast proliferation and bone formation when exposed to mechanical and inflammatory signals [53]. Another recent study examined bone remodeling in a scaffold-free three-dimensional environment and reported that MSCs successfully differentiated into osteoblasts [54]. The introduction of monocytes into the co-culture facilitated the fusion of these cells with osteoclasts [54]. The microfluidic system employed in the related study demonstrated its suitability for drug development, allowing for cell culture for 35 days [54]. Additionally, calcium was identified in osteocyte and osteoblast cells that were printed to investigate their functions and the effects of fluid shear stress on bone remodeling [55].
The bone tissue maintains a delicate balance between cell formation and destruction, influenced by mechanical forces such as tension and compression during movement. This process of mechanotransduction aligns bone cells according to the direction of the applied force vector, subsequently enhancing osteogenesis [56,57,58]. For BoCs to accurately model bone behavior, the incorporation of these naturally occurring tension and compression movements is essential, requiring careful consideration of the intensity and timing. The stiffness of the bone tissue is typically in the range of 13–18 GPa, providing the necessary mechanical support for the proliferation and differentiation of bone-forming cells [59,60,61]. For instance, a bone scaffold that was decellularized using a microfluidic system and supplemented with collagen and calcium achieved a notable hardness of 2 GPa [13]. In BoC systems, the degree of mineralization is also an important indicator of tissue stiffness, which is measured by Young’s modulus (Pa) [62]. A study reported that Young’s modulus of bone matrix was 3.5 MPa before mineralization and increased to 4.6 MPa following the process [63]. However, it is important to note that a significant limitation in BoC systems is that the chip must be opened to achieve measurements of Young’s modulus of the bone tissue [62]. Furthermore, it was demonstrated that the shear stress positively influenced osteogenic differentiation [55]. In a BoC system designed with robotic printing, where osteoblast and osteocyte microarrays were in communication, calcium response as a result of mechanical stimulation was detected [55]. Specifically, preosteoblastic cells cultured in a microfluidic system at a flow rate of 50 μL/min for seven days exhibited a greater proliferation than those in a static culture [64]. Notably, intermittent fluid shear stress applied within the microfluidic system was shown to enhance the osteogenic differentiation of MSCs [12]. However, it is important to recognize that an excessive increase in the fluid flow rate may hinder cell attachment.
The integration of biosensors into microfluidic chips facilitates real-time monitoring of biomarkers present in the cultivated tissue without the need to open the chip [65]. Biosensors on this task can be classified into three categories: optical, mechanical, and electrical, based on their response to stimuli [66]. Optical sensors identify light stimuli produced during biological reactions and are particularly effective for measuring parameters such as pH, glucose, lactate concentrations, and gases, including oxygen or carbon dioxide, within the chip environment [67]. Mechanical sensors evaluate the mechanical properties of cells, including the stress, strain, mass of biomolecules, and force and displacement on the chip [68]. Electrical sensors are designed to detect biological reactions through electrical means. Among these, transepithelial electrical resistance (TEER) sensors have been widely employed in various platforms to assess diverse biomolecules based on impedance, pH, and electrochemical affinity [69]. There are several biological methods for detecting tissue biomarkers following growth on BoC platforms, summarized in Table 4.
Bone formation and resorption are primarily governed by the activities of osteoblasts and osteoclasts, while osteocytes play a crucial role in maintaining the balance between these processes [17]. To effectively monitor the interactions among these three cell types in BoC systems, various biomarkers, including Osteocalcin, Col1, and BSP, were identified through immunohistochemical methods [70,71]. In a recent study focusing on the communication mechanisms between osteoblasts and osteocytes through calcium fluctuations, Fluo-4 fluorescent dye was employed [55]. Furthermore, Alizarin red and von Kossa dyes have been widely utilized in BoC systems, highlighting their significance in this field [12,72]. Cells can be visualized through the application of various fluorescent dyes in conjunction with a fluorescent microscope. The nucleus of the cell serves as a critical source of information regarding cell morphology and polarization. Staining agents such as DAPI and Hoechst 33342 are commonly employed for this purpose [76]. The states of the nuclei can be quantitatively assessed using the nuclear shape index formula, expressed as 4π × area/perimeter [73]. This methodology was integrated into the analytical processes of recent BoC studies that investigated osteogenesis [18]. The ELISA method serves as a valuable tool for evaluating cell secretions within BoC systems. For instance, Ma et al. employed this method to monitor the cytokines TNF-α and IL-6, assessing the impact of drug application on cell proliferation in a bone marrow chip model [74]. Another study focusing on bone remodeling utilized ELISA to quantify the concentrations of osteoprotegerin (OPG) and receptor activator of nuclear factor-kappa B ligand (RANKL), providing an understanding of the interactions between osteoblasts and osteoclasts [52]. Various biomolecules can be detected through enzymatic reactions using BoC models. ALP is an important indicator for assessing the development of osteoblasts, while tartrate-resistant acid phosphatase (TRAP) is utilized to identify the presence of osteoclasts [62]. For example, ALP was effectively employed to evaluate osteogenic differentiation with a BoC platform that explored osteoporosis [18]. Lipids in BoC systems are identified using dyes such as Nile Red and BODIPY derivatives. Nile Red is often favored in BoC models due to its exceptional fluorescence properties [62]. Additionally, BODIPY derivatives, which exhibit fluorophore characteristics, were found to be applicable in BoC systems [75]. In BoC systems, gene expression is typically assessed through mRNA analysis, which necessitates the opening of the chip. For the evaluation of osteogenesis, mRNA levels of RUNX2, ALP, Col1, BSP2, and osteocalcin were examined [18,70]. In the context of osteoclastogenesis, the mRNA levels of TRAP, CTSK, MMP-9, RANK, OPG, and RANKL serve as important indicators [18]. Furthermore, for the assessment of vascularization, the analysis of the ratios of VEGFR1 and VEGFR2 mRNA was conducted [50]. These detection techniques can be developed thanks to the biosensor technology and seamlessly integrated into BoC platforms. This integration has the potential to accelerate the transition from fundamental research to clinical applications by providing accurate and precise measurements while capitalizing on the miniaturization of the devices.
4. Materials and Manufacturing Processes for Fabrication of BoC Platforms
The materials selected for fabricating BoC platforms must fulfill several critical criteria. They should effectively support cell culture, maintain non-toxicity, demonstrate adequate permeability, and provide transparency for microscopic examination. Some materials that were used with biomaterials to represent the bone microenvironment are shown in Table 5. Elastomeric polymers are recognized for their significant advantages in BoC platforms, primarily due to their ease of processing and cost-effectiveness [77]. Among these materials, polydimethylsiloxane (PDMS) is the most widely used elastomer, noted for its exceptional elasticity and stability, which stem from the Si–O bonds in its structure [78]. In addition to these properties, PDMS plays a crucial role in microfluidic systems owing to its favorable optical characteristics, gas permeability, and biocompatibility [79]. PDMS-based microfluidic chips can be effectively fabricated through various accessible and standard methods, including soft lithography, laser engraving, and injection molding. However, it is important to consider some limitations associated with PDMS. Its incompatibility with certain organic solvents might result in undesirable outcomes within small-channel applications [80]. Furthermore, the potential for leakage of uncross-linked oligomers from PDMS could adversely affect cellular systems [81]. Another notable drawback is the adsorption of small molecules by PDMS, which poses challenges in microfluidic drug research efforts [82]. It is important to note that the propensity of PDMS to adsorb hydrophobic molecules, along with its sensitivity to solvents, presents limitations for long-term and commercial applications. Notably, related studies indicated that PDMS can interact with specific compounds, potentially impacting drug absorption and thereby diminishing the clinical predictability of preclinical safety assessments [83]. Moreover, the findings of the study by Moore et al., who compared the absorption capacities of MM cells with the drugs bortezomib and carfilzomib on PDMS and thermoplastic devices, indicated that PDMS exhibited a greater ability to absorb these pharmaceutical compounds [84]. PDMS is an effective material for laboratory-scale prototyping; however, it presents challenges related to cost and repeatability when considering large-scale production. Overall, while PDMS offers many advantages, careful attention should be given to these limitations for its effective application.
Thermoplastic materials are distinguished by their capacity to retain shape over extended periods. These materials are biocompatible, transparent, resistant to leaks, and exhibit minimal absorption of hydrophobic molecules [89]. The most commonly utilized thermoplastic materials for BoC are Polymethyl methacrylate (PMMA) and Cyclic Olefin Polymers (COC). PMMA is particularly regarded as an optimal choice for chip development due to its excellent biocompatibility, rigidity, durability, and thermal stability [90]. A key advantage of PMMA chips is their low permeability to small and hydrophobic molecules, which significantly enhances their potential applications in drug studies [91]. Furthermore, although PMMA chips demonstrate resistance to water, it is advisable to utilize adhesive bonding or thermal bonding methods to ensure effective sealing [90,92,93]. PMMA offers significant commercial viability and cost advantages due to its compatibility with industrial manufacturing techniques, such as injection molding. These attributes position PMMA as a highly suitable option for large-scale production and various commercial applications. PMMA is more advantageous for industrial manufacturing processes, as it offers both cost-effectiveness and scalability for commercial applications. COC chips are advantageous for large-scale production of BoCs due to their cost-effectiveness and durability. This thermoplastic material is often favored for applications related to devices, particularly those involving biosensors [94]. However, it is important to note that non-polar organic substances might compromise the structural integrity of COC. Furthermore, COC materials introduce challenges in drug research, which stem from their hydrophobic surfaces [95]. These challenges can be effectively addressed through surface modifications, such as photografting or UV-initiated polyacrylamide grafting techniques [96,97].
Glass is a noteworthy material for BoCs due to its unique properties. As an amorphous material, glass offers electrical resistance and optical transparency, making it suitable for various applications [98]. The processing of glass is typically informed using photolithography and wet or dry etching techniques [99]. One of the advantages of glass is its excellent resistance to chemicals and low background fluorescence [100]. Furthermore, glass chips facilitate cell adhesion and do not absorb small hydrophobic molecules, enhancing their functionality [101]. However, the use of glass in cell culture studies is somewhat restricted, as it lacks gas permeability [102]. Additionally, glass chips are often less favored because of their rigid structure and higher production costs [103].
Natural polymers derived from animals, plants, and microorganisms have increasingly been recognized as valuable alternatives for BoC systems [104]. Their notable properties, including flexibility, biocompatibility, and gas permeability, distinguish them in the field [105]. Examples of such natural polymers encompass collagen, elastin, keratin, various polysaccharides, and glycoproteins [106]. Synthetic derivatives provide effective solutions to the purification and sterilization challenges often associated with natural polymers. Moreover, the properties of synthetic biomaterials, such as strength and degradation rates, can be precisely modified through adjustments to molecular weight, concentration, and cross-linking mechanisms [107]. The utilization of natural polymers in BoC systems has a promising potential of advancing our understanding of hematological cancers and enhancing the impact of drug research.
Regarding the development of biocompatible materials for BoC systems, the implementation of the 3D bioprinting technology can effectively reduce repetition errors, allowing for the efficient mass production of standardized chips [108]. A variety of 3D bioprinting techniques—including stereolithography, inkjet printing, laser-assisted bioprinting, and fused deposition modeling—are applicable in the fabrication of microfluidic chips [109]. These methods facilitate the precise layer-by-layer patterning of cells and ECM components that constitute the complex tumor microenvironment (TME) on microfluidic chips [110]. 3D-bioprinted scaffolds can be further enhanced by incorporating Bone Morphogenetic Protein (BMP), which promotes bone formation; Vascular Endothelial Growth Factor (VEGF), which supports vascularization; and platelet-rich fibrin, which facilitates the differentiation of MSCs [111,112]. Moreover, additive manufacturing and 3D bioprinting technologies act as key factors for developing microfluidic chips that can be utilized in disease modeling and drug research through the integration of stem cells [113]. In a recent study by Kemas et al. [83], it was found that PDMS exhibited a high absorption capacity for hydrophobic compounds. This characteristic could result in false negative findings during preclinical toxicity testing. For example, hepatotoxic compounds, such as chlorpromazine, might be incorrectly classified as safe when evaluated using PDMS devices [83]. In contrast, true toxic effects can be effectively identified with thiol-ene epoxy (TEE) devices, which demonstrate lower absorption rates. Consequently, it is advisable to consider low-absorption polymers such as TEE and polytetrafluoroethylene (PTFE) (polytetrafluoroethylene) for the development of BoC platforms. Furthermore, the application of coatings made from polyethylene glycol (PEG) or PTFE on the surface of PDMS can mitigate absorption rates. Considering these findings, there is a need to explore new material options for BoC systems and to investigate innovative polymers that not only possess low absorption characteristics but also meet the necessary optical and mechanical performance criteria.
5. Modeling Hematological Cancers in BoC
Cancer often possesses a complex microenvironment that features unique ECM, irregular vascularization, and limited perfusion. To accurately characterize a tumor tissue on a microfluidic platform, it is essential to incorporate cell cultures, appropriate growth factors, suitable media, and relevant readout components [114]. A BoC platform must be designed to integrate essential components, including bone, bone marrow, and immunological cells, to accurately represent hematological cancers. TME plays a critical role in the simulation of hematological cancers within BoC platforms. TME consists of both ECM components and a diverse range of cells that surround the tumor. This platform must also simulate the interactions among these cells as well as their relationship with the ECM. These cellular components are essential for protecting cancer cells from the immune system and enabling resistance to hypoxic conditions and pharmacological treatments [115]. TME, hematopoietic cells—including myeloid cells, T and B lymphocytes, NK cells, macrophages, and osteoclasts—coexist with non-hematopoietic cells such as stromal cells, MSCs, osteoblasts, osteocytes, fibroblasts, adipocytes, and endothelium [116]. Cell lines used to recapitulate the bone microenvironment are given in Table 6. MSCs are multipotent cells derived from the bone marrow, characterized by their ability to differentiate into various cell types [117]. Primary MSCs embedded in fibrin gel demonstrated the presence of smooth muscle and vascularization markers in a BoC model, which was developed using osteoblasts and GFP-labeled endothelial cells [88]. Furthermore, induced pluripotent stem cells (iPSCs) offer extended opportunities due to their ability to differentiate into a wide range of cell types [118]. Osteoblasts, which originate from MSCs, are integral to the formation of osteocytes. On the other hand, osteoclasts facilitate bone resorption, and their activity is modulated by OPG and RANKL secreted by osteoblasts [119]. Various cell types, such as mononuclear cells, leukocytes, and monocytes, have been employed in microfluidic chip platforms owing to their potential for osteoclast-like differentiation [120,121,122]. Paracrine factors released from osteocytes play a pivotal role in balancing the functions of osteoblasts and osteoclasts [41]. Osteoblasts, osteoclasts, and osteocytes function in a coordinated manner to sustain bone homeostasis [40]. This intricate collaboration effectively regulates the continuous processes of bone formation and resorption throughout an individual’s lifespan [123]. Stromal cells have been shown to reduce drug toxicity when included in co-culture and microfluidic chip studies, highlighting their supportive functions to other cell types [124,125]. Moreover, numerous studies explored primary stromal cells sourced from volunteer donors to examine their role in providing stromal support [14]. It is also essential to incorporate blood vessels and nerves within BoC systems, given their critical roles in the bone tissue [126,127]. Endothelial cells are essential for modeling bone tissue and promoting angiogenesis [128]. These cells also contribute to the secretion of growth factors and enhance the resistance to various pharmaceuticals [129,130]. Human umbilical vein endothelial cells (HUVECs) are commonly employed to model the vascularization process in BoC platforms [50]. To demonstrate vascularization on these platforms, HUVEC and MG63 cells were cultured on alginate microfibers, resulting in the formation of a double-layered osteon-like structure that resembled in vivo conditions [131]. In a different microfluidic system, bone, stromal, and endothelial cells were cultured in distinct compartments while still maintaining the interaction, which enhanced the endothelial cells’ capability to promote angiogenesis [87]. A recent study successfully simulated the vascular and nervous systems within the bone niche and demonstrated the ability to inhibit the neuronal growth associated with pain in inflammatory diseases through the use of nanoparticles [132]. Consequently, it is imperative to incorporate these cells into hematologic cancer microfluidic chip models specifically designed for drug research [133].
BoC platforms designed for modeling hematological cancers should exhibit a well-defined three-dimensional network of cells across various cultures and developmental stages while also demonstrating mechanical properties akin to those of natural bone tissue. The distinction between 2D and 3D cell cultures within microfluidic systems is a critical consideration. Related studies demonstrated that cells cultivated in 2D exhibited greater drug toxicity compared to those grown in 3D [134]. Furthermore, inconsistencies often arise between the drug toxicity in clinical studies and that in 2D cell cultures [135]. This difference is likely attributed to the lack of complex in vivo tissue architecture, intercellular communication, and interactions with the ECM in 2D environments [136]. Moreover, the integration of 3D cell cultures and stem cells into microfluidic chips allows for a more accurate representation of tissue and organ-specific metabolism, gene expression, and physiological processes [137]. Additionally, a related study demonstrated that 3D tumor spheroids cultivated on microfluidic devices were well-suited for drug screening applications [138]. The interactions between the tumor cells and ECM are instrumental in facilitating various cancer-related processes, including growth, proliferation, inflammation, immune suppression, angiogenesis, drug resistance, and metastasis [139]. ECM components —such as collagen, fibronectin, laminin, hyaluronic acid, and heparan sulfate— along with soluble factors, including cytokines, chemokines, and growth factors, significantly contribute to tumorigenesis [140]. Biomaterials play a vital role in providing sufficient mechanical support to cells by effectively mimicking the ECM [67]. Some ECM materials used in coatings to support the bone microenvironment are given in Table 4. It is essential to select suitable materials for the construction of artificial ECMs that are biocompatible, non-toxic, porous, and biodegradable [141]. The flexibility of the bone tissue matrix is primarily provided by type I collagen, whereas hydroxyapatite (HA) is responsible for bone stiffness [142]. Given that collagen alone cannot fully recapitulate the complexity of the bone and bone marrow microenvironment, the incorporation of hydrogels such as fibronectin and Matrigel is preferred in BoC platforms [143]. The integration of collagen with either fibronectin or Matrigel hydrogels effectively sustains numerous physiological cell functions. This strategic combination enhances cell viability and leads to a cell phenotype that is close to in vivo conditions [144]. Moreover, these hydrogels were shown to modulate cellular responses to various therapeutic approaches, including chemotherapy, immunotherapy, and radiation therapy [145]. Fibronectin, a critical element of the ECM, facilitates the essential communication between the intracellular and extracellular environments by binding to integrin receptors on cell surfaces, thereby influencing cell behavior [146]. Extensive research efforts demonstrated that fibronectin enhances cell adhesion and spreading while also affecting the cell migration pathways [147]. Matrigel is a gelatinous mixture that is comprised of proteins and growth factors secreted by Engelbreth–Holm–Swarm mouse sarcoma cells. It contains a variety of growth factors, including epidermal growth factor (EGF), fibroblast growth factor (FGF), nerve growth factor (NGF), platelet-derived growth factor (PDGF), insulin-like growth factor 1 (IGF-1), and transforming growth factor beta (TGF-β) [148]. In addition, HA provides a supportive environment for the proliferation of osteoblasts within BoC platforms and contributes to mechanical durability [149]. It plays a pivotal role in maintaining the balance of calcium and phosphate ions in the bone tissue, thereby being a key player in the bone regeneration process involving osteoblasts and osteoclasts [13]. To accurately simulate the characteristics of each hematological cancer within the in vitro BoC model, it is essential to incorporate the unique physical, mechanical, and biochemical properties associated with each pathology. Additionally, to effectively capture in vivo drug responses in BoC platforms, it is imperative to consider and integrate all these processes into the design of microfluidic chips.
BoC platforms developed to date primarily focused on bone metastasis in various solid tumors and processes of bone vascularization and remodeling [40]. One notable advancement was linked to a microfluidic system designed to investigate the impact of fibroblast-like synoviocyte migration and invasion on bone erosion, which was pertinent for both rheumatoid arthritis treatment and drug screening [150]. Additionally, a neurovascularized bone chip was utilized to further understand the mechanisms underlying osteoarthritis and evaluate the effects of various therapeutic agents [132]. Considering the bone’s relationship with the circulatory system, there have been considerable research efforts focusing on cancers that metastasize to the bone [151]. For instance, a microfluidic platform was employed to elucidate the role of CXCR2 and CXCL5 in breast cancer metastasis to bone [152]. Furthermore, a study examining the metastatic colonization of breast cancer within the perfused perivascular bone niche indicated that resistance to treatment could be associated with slow cell proliferation [50]. In the context of prostate cancer, co-cultured cells exhibited a more protrusive phenotype compared to the parental cell line, suggesting a potential link to reactive oxygen species [86].
The current efforts in exploring hematological cancers and the cytotoxic effects of drugs on BoC platforms are notably limited. The literature was comprehensively reviewed, with relevant studies elaborated upon in detail. Additionally, comprehensive strengths, weaknesses, opportunities, and threats (SWOT) analyses are presented in the related tables for clarity and ease of reference (Table 7, Table 8 and Table 9). A comparative analysis of the cytotoxic effects of the drug cytarabine across 2D static, 3D static, and 3D microfluidic cultures revealed that the 3D models exhibited reduced sensitivity to the drug (Figure 2) [153]. This innovative system facilitated an understanding of the interactions between cell-to-cell and cell-to-ECM models. In a study involving the TF-1 acute myeloid leukemia (AML) cell line and a stromal cell line, researchers cultured the cells using both conventional 2D methods and 3D microfluidic techniques, effectively characterizing the bone marrow niche [154]. They utilized scanning electron microscopy to compare cell morphologies across 2D and microfluidic cultures and assessed the cytotoxic effects of both azacitidine and cytarabine. Additionally, BCL2 expression levels were analyzed to determine the apoptosis rate through quantitative real-time polymerase chain reaction (qRT-PCR) [154]. Their results indicated that the 3D microfluidic system produced more normal cell morphologies and proliferation. Furthermore, drug resistance was found to be heightened in the 3D microfluidic cultures, with a correspondingly lower apoptosis rate compared to 2D cultures. The evaluation of daunorubicin resistance in AML patients was conducted through a dielectrophoretic chip-based assay, which allowed for single-cell level trapping (Figure 2) [155]. To assess multidrug resistance (MDR) in patients, this study employed inhibitors targeting key ABC transporters (ABCB1, ABCC1, and ABCG2) [155]. The findings revealed the presence of MDR+ cells in both pretherapy and relapse patient cases, suggesting that these cells might contribute to the mechanisms underlying relapse. A recent study introduced a microfluidic system that employed coupled dielectrophoretic detection and impedimetric counting to identify drug-resistant leukemia cells (Figure 2) [156]. This innovative system demonstrated the capability to differentiate imatinib-resistant cells from their wild-type counterparts, as well as to distinguish doxorubicin-resistant CCRF-CEM cells from their wild-type equivalents (Figure 2). Additionally, a biomimetic system was established to model leukemic cell-induced bone marrow angiogenesis, utilizing three different leukemia cell lines alongside endothelial and stromal cells (Figure 2) [157]. The secretions of angiogenic factors VEGF and bFGF in both monoculture and coculture were compared using qRT-PCR [157]. Those leukemic, endothelial, and stromal cells demonstrated increased angiogenesis during coculture, highlighting the critical role of cell-to-cell interactions. In another study, Aljitawi et al. investigated the drug responses of doxorubicin through the co-culturing of the HL60 leukemia cell line with stromal cells in both 2D and 3D configurations [158]. Accordingly, the cells in the 3D culture exhibited greater resistance to drug-induced apoptosis, and it was proposed that the different resistance observed in leukemia cell lines may be mediated by N-cadherin, which provided valuable insights into how various culture techniques could lead to different drug responses [158].
An investigation of the heterogeneous nature of lymphoma, particularly the emergence of malignant B and T cells and their impact on disease progression, utilized a DLBCL 3D organoid model (Figure 3) [159]. Within this 3D microenvironment, B cells were observed to secrete the B-cell receptor (BCR), resulting in enhanced cellular proliferation and increased resistance to the drug Panobinostat (Figure 3). This innovative system holds promise for facilitating long-term studies on hematological cancers and their response to various therapeutic agents. Moreover, a microfluidic gene expression array was developed to assess the patterns and cytotoxicity of NK cells in cases of B-cell NHL (Figure 3) [160]. The related findings suggest that lymphoma cells making a singular contact with primary NK cells exhibited accelerated cell death rates compared to those making multiple brief contacts. Notably, when evaluating the cytotoxicity of the NK-92 cell line within this microfluidic platform, it displayed greater effectiveness compared to primary NK cells. This microfluidic technology presents a significant advancement in enabling NK-based genetic analyses and cytotoxicity assessments at both clinical and single-cell levels (Figure 3). A novel system successfully cultured patient-derived Follicular lymphoma (FL) cells in a microfluidic environment, allowing for the formation of spheroids (Figure 3) [161]. Furthermore, the efficacy of obinutuzumab and nivolumab was evaluated within this framework, demonstrating a significant reduction in tumor burden (Figure 3). This device effectively simulated the pathological environment of FL with primary cells and presents a promising platform for the exploration of novel immunotherapeutic strategies. Additionally, a lymphoma–chip model incorporating immune, endothelial, and cancer cells was developed to simulate in vivo conditions pertinent to DLBCL (Figure 3) [162]. This system was characterized by a hydrogel-based circular microchannel consisting of readily accessible and cost-effective materials, thereby negating the requirement for advanced microfabrication techniques. The successful formation of microvessels on this chip indicates its potential as a suitable platform for drug research (Figure 3).

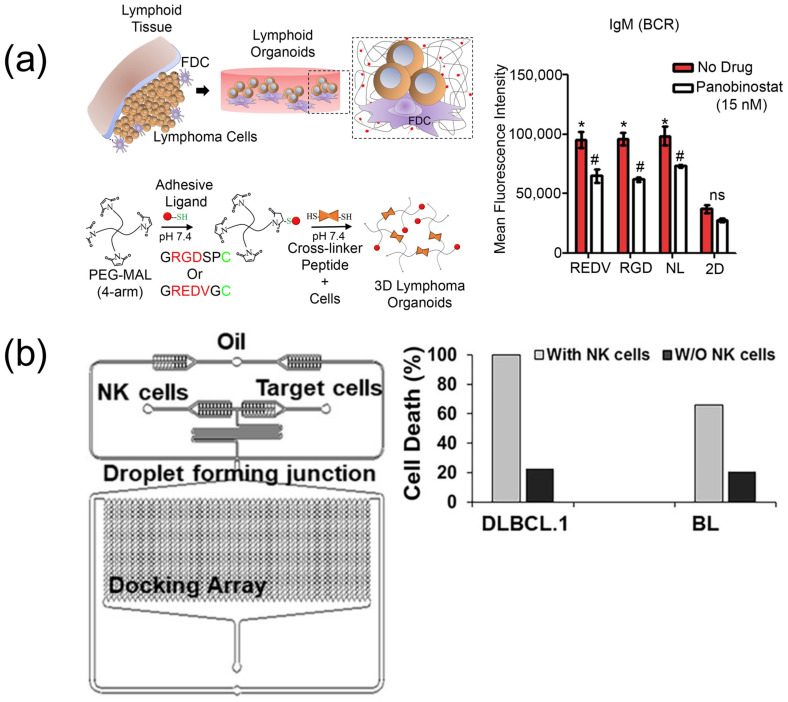

*Related studies on the characterization of the lymphoma microenvironment. (a) Organoids were formed by encapsulating B- and T-cell lymphomas with follicular dendritic cells in a hydrogel, and the effect of Panobinostat on BCR expression was investigated (ns: non-significant, # and : p < 0.05) [159], Copyright 2015, Biomaterials. (b) Droplet microfluidic platform developed for B-cell NHL and the effect of NK cells on patient samples [160], Copyright 2017, Frontiers in Immunology. (c) Nine FL patient samples with morphologies observed by bright-field microscopy and 3D reconstruction by IMARIS (880 confocal acquisitions at ×10 magnification) of treatment responses for patients 2, 3, and 4 [161], Copyright 2023, Journal for Immunotherapy of Cancer. (d) General schematic of DLBCL-on-a-chip and confocal micrographs from specific regions. MLMVECs were cultured in the DLBCL hydrogel in compartment A and the PDMS macrostructure in compartment B. The endothelial monolayer (white dotted line) in compartment C recapitulates the DLBCL tumor microenvironment by proliferating close to T cells, B cells, and macrophages within the DLBCL hydrogel [162], Copyright 2017, Lab on a Chip.
A three-dimensional model was proposed to generate oxygen and drug gradients, thereby effectively illustrating the interactions among MM cells, stromal cells, and endothelial cells in bone marrow (Figure 4) [163]. This advanced system provides valuable insights into drug resistance, significantly contributing to our understanding of MM pathophysiology (Figure 4). A hexagonal platform was developed to investigate the interactions among osteoblasts, primary MM cells, and bone marrow mononuclear cells [164]. This system incorporates a patient-derived plasma medium, enabling the primary MM cells to sustain their viability for three weeks. However, the characteristics of the MM disease hindered the development of osteoblasts within this model. Consequently, a high-throughput well plate-based perfusion device, which facilitated the extension of primary MM cell viability through the renewal of perfusion flow, plasma, and osteoblasts, was fabricated (Figure 4) [165]. A PDMS device was developed for the co-culture of the RPMI8226 multiple myeloma cell line in conjunction with the Hs.5 stromal cell line using perfusion channels (Figure 4) [166]. The response of the MM cells to Bortezomib was assessed using this device, which showed notable translocations of NF-κB and STAT3 in the cells. Additionally, a primary sample from a chronic lymphocytic leukemia patient was analyzed to validate this chip’s efficacy, and it demonstrated significant NF-κB activation [166].

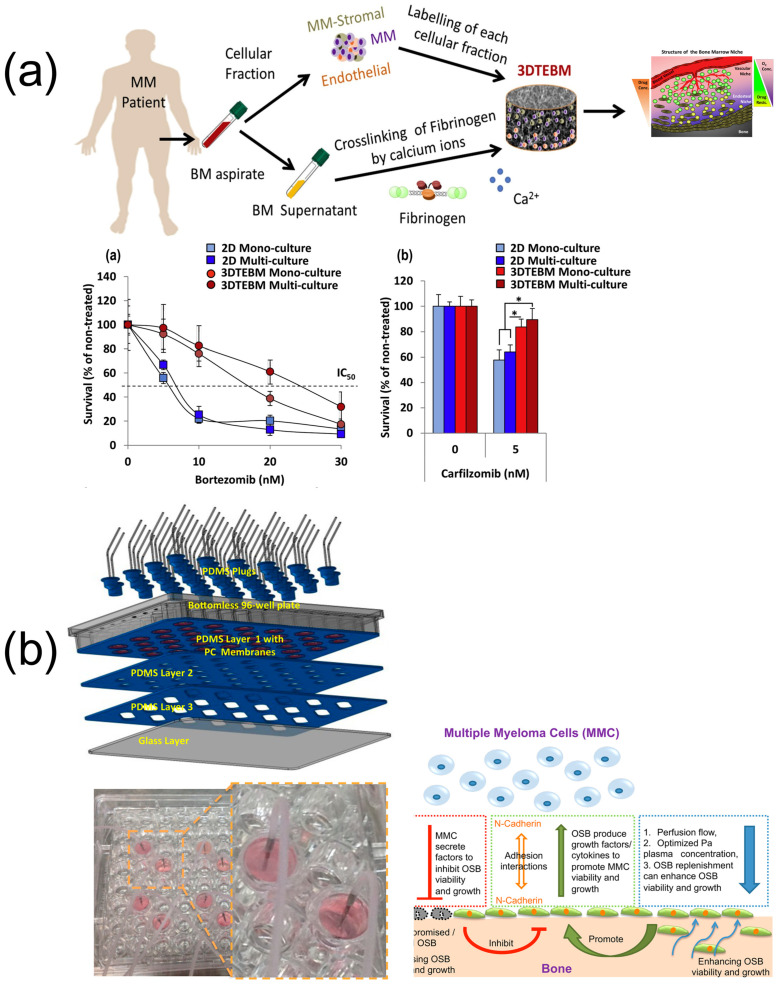

Related studies on MM microenvironment (a) Schematic of 3D cultured cells and bone marrow microenvironment. Survival rates of MM cells in 24 hours (sub-a) bortezomib and (sub-b) carfilzomib treatment in different culturing techniques (: p < 0.05) [163], Copyright 2015, Biomaterials. (b) Schematic of the 96-well plate-based perfusion device and the interactions required for maintenance of MM samples from the patient [165], Copyright 2015, Plos One. (c) Microfluidic platform where MM and stromal cells communicate via diffusion channels and IL-6, VEGF, and TNF-α concentrations under different coculture conditions (*: p < 0.05, **: p < 0.01, **: p < 0.001) [166,167], Copyright 2012, Blood and Copyright 2016, Biomicrofluidics. (d) Schematic of the double-layered hydrogel bead generator and therapeutic effect of bortezomib and lenalidomide in patient-derived MM cells [168], Copyright 2020, Micromachines.
The co-cultured cells engaged in paracrine interactions through the secretion of cytokines, including IL-6, VEGF, and TNF-α (Figure 4) [167]. Moreover, STAT3 nuclear translocation was characterized at a single-cell level [167]. This device was also utilized for microfluidic co-culture (MicroC^3^) of the CD138 MM cells, both negative and positive, derived from a patient, and the responses of the patient cells to Bortezomib treatment were evaluated within this system [169]. This developed platform revealed the potential of diagnostic testing; however, challenges related to the proliferation and storage of primary MM cells constrained further stages of testing. Recently, a droplet microfluidic platform was presented to establish a three-dimensional biomimetic environment that closely resembled in vivo conditions for patient-derived MM cells and MSCs (Figure 4) [168]. Notably, the patient-derived MM cells demonstrated the ability to survive independently, without the presence of MSCs within the device. Furthermore, the MM cells within the droplets exhibited a continuous response to therapeutic agents (Figure 4). This microfluidic platform could be regarded as a promising platform for evaluating drug cytotoxicity in an ex vivo context.
6. Drug Testing and Imaging in BoC Platforms
In the context of disease modeling and drug research with the use of BoC platforms, cellular interactions with one another and ECM lead to the production and degradation of various biomolecules. Traditional 2D cell cultures often fail to accurately represent the drug efficacy; in contrast, 3D cell cultures provide a more realistic model, closely resembling the in vivo microenvironment. Biomolecules, such as mRNA, proteins, lipids, and various ions, serve as important biomarkers that provide critical insights into the disease status [62]. The integration of microfluidic platforms into drug research, testing, and their development not only improves the success rates but also reduces the associated costs and shortens the timeline for obtaining results [170]. Moreover, biosensors can be effectively combined into microfluidic chips to detect disease patterns and drug responses within BoC platforms. For instance, sensors capable of detecting metabolites such as glucose and lactate, along with important substances like oxygen and calcium, can be seamlessly incorporated into the platform [65]. This integration enhances the platform’s ability to explain biological processes and therapeutic responses. The identification of disease biomarkers through biosensors in BoC platforms primarily involves in vitro diagnostic tests. In this process, samples are obtained from cancerous tissue via conventional biopsy or liquid biopsy methods. A range of molecular techniques is utilized to detect hematologic cancer biomarkers, including immunohistochemistry, enzyme-linked immunosorbent assay (ELISA), electrophoretic mobility shift assays (EMSA), fluorescence in situ hybridization (FISH), flow cytometry immunophenotyping, reverse transcription polymerase chain reaction (RT-PCR), and chromosome analysis [171]. It is important to note that many of the current testing methods necessitate the disassembly of the chip and fragmentation of the disease model for use in BoC platforms. Biosensors emerge as the most appropriate tools for conducting analysis and detection directly on the chip, preserving the integrity of the disease model. Furthermore, sensors can be employed for high-throughput screening of analytes within a range of devices [172]. Low signal-to-noise ratios in microfluidic platforms might significantly compromise the sensitivity of biosensors, especially in dynamic environments [173]. The challenge of detecting low concentrations of biomolecules released from cells underscores the necessity for advanced detection techniques. Moreover, surface coatings and electrode materials utilized in biosensors must demonstrate compatibility with the cell culture medium [174]. In order to achieve biocompatibility, surface modifications may be necessary, particularly for metal electrodes such as gold and platinum, as well as for polymer-based sensors [175]. However, it is important to note that these modifications have the potential to affect the sensor performance or contribute to the deterioration over extended periods of use. The incorporation of biosensors into BoC systems can significantly elevate manufacturing costs. This challenge is especially pronounced in complex systems that require multiple sensors, which may lead to increased expenses for electronic components and data acquisition devices. Additionally, the transition from laboratory prototypes to industrial-scale production can pose challenges related to cost-effectiveness. It is important to consider cost-effective options as well [176]. The implementation of flexible and conductive polymers, coupled with the advancement of microelectromechanical systems (MEMS)-based sensors, has the potential to significantly enhance the functionality of BoC platforms in clinical and pharmaceutical applications [177].
Rapid readout and processing can be achieved by integrating chips with various testing units and incorporating a range of analytical systems capable of displaying diverse datasets within the overall framework. A range of sensors and detectors is incorporated within the system for drug imaging studies on microfluidic devices, offering advantages in integration, sensitivity, and rapid analysis. The methodologies for detection include fluorescence, Raman spectroscopy, mass spectrometry, and electrochemical techniques, with fluorescence being the most prominent and well-established method for monitoring cellular behavior and drug responses [178,179,180]. For example, in a recent study, P450 enzymes were analyzed via fluorescence to investigate the drug activity in liver cancer spheroids [181]. Additionally, another investigation employed Hoechst 33342/PI dye in conjunction with fluorescence microscopy to evaluate responses to various compounds [182]. A sandwich-type microfluidic chip platform facilitated the detection of breast cancer drugs using fluorescence imaging techniques [183]. Changes in the morphology of fluorescently labeled cells cultured in microfluidic chips can be effectively monitored using fluorescence microscopy. Additionally, laser-induced fluorescence analysis technology plays a crucial role in evaluating drugs’ pharmacological activities by assessing their effects on cells [76]. An innovative system featured a microvalve that enabled the creation of irinotecan gradients in hepatocellular carcinoma cells cultured on a microfluidic chip, thereby allowing for the examination of the drug’s effects at six distinct concentrations [184]. A microfluidic platform employing electrochemical detection methods was designed for the rapid screening of various compound concentrations on colon cancer cells [185]. A microfluidic system developed for simulating drug metabolism in the liver and evaluating cytotoxicity was successfully integrated with mass spectrometry [186]. Raman spectroscopy and mass spectrometry are valuable analytical techniques utilized for the detection of small molecules. Raman spectroscopy, along with surface-enhanced Raman spectroscopy, employs light scattering methods to effectively identify analytes [187], while mass spectrometry is a rapid technique that provides critical information regarding the molecular weight of the analyte [188].
Research efforts related to drug interactions with BoC platforms are limited. However, below is a summary of several studies related to bone tissue that may provide useful insights. In a related study, multiple channels were strategically arranged in a Christmas tree configuration on a microfluidic chip constructed from PDMS and hyaluronic acid materials [70]. This design facilitated the creation of a concentration gradient for drug administration, demonstrating considerable promise for the imaging of bone-related pharmacological agents. A microchamber made of PDMS and equipped with independent perfusion microchannels and an arrangement of cell chambers (measuring five by eight) could enable the simultaneous testing of seven anticancer drugs [189]. An engineered bone marrow device, developed with samples obtained from an implanted device in mice and demineralized bone powder, modeled hematopoiesis, as well as drug responses and toxicities in the bone marrow [190]. This innovation presents a valuable platform for advancing drug research in hematological diseases.
As a new approach, image analysis of BoC platforms could be supported by artificial intelligence (AI). A recent study highlighted the co-culture of IDG-SW3 and MC3T3-E1 cell lines within a well plate based on a three-dimensional gel unit [18]. This platform allowed for rapid and efficient drug testing, owing to its bone modeling and transparency. Antibody drugs designed for the treatment of osteoporosis were tested on this platform, revealing the potential for the development of bone models and drugs targeting bone-related diseases [18]. In a recent study, various small compounds were tested on vascularized microtumor tissues cultivated in 96-well plates, demonstrating the platform’s effectiveness in evaluating drug efficacy across diverse tissue types [191]. Additionally, a chip capable of multi-organ integration was designed to operate without pumps and in serum-free media, focused on the analysis of anti-leukemic drugs, and revealed significant cytotoxic effects of diclofenac and imatinib [192].
BoCs can serve a crucial role in drug development studies, facilitating the assessment of potential side effects associated with candidate drugs [193]. Moreover, in the context of personalized therapy, BoC platforms can be utilized to evaluate the patient’s response to medications, utilizing cells obtained from the individual. Unfortunately, only a few BoCs were developed specifically for hematological cancer drug screening. Detailed analyses of strengths, weaknesses, opportunities, and threats (SWOT) are shown in Table 10. For instance, a specialized microfluidic cell culture chamber array was fabricated, known as Simple, Massive, Multiplex, Alive, Retainable, and Trackable (SMART) (Figure 5) [194]. This system facilitated the production of multiplex drug concentrations and was utilized to assess the responses of primary patient samples to daunorubicin and cytarabine (Figure 5). A microfluidic platform was developed to measure peptide degradation rates at the single-cell level through the application of chemical cytometry (Figure 5) [195]. This system assessed the efficacy of tosedostat treatment in the U937 cell line (Figure 5). A recent study introduced a microfluidic chip model utilizing hydrogel spheres to screen primary DLBCL cells for their interactions with NK cells and the rCHOP chemotherapy regimen (Figure 5) [196]. This system demonstrated capabilities in assessing cell viability, identifying surface markers, and evaluating changes in secretory profiles and gene expression (Figure 5). Consequently, it allowed for the comparison of various treatment approaches in lymphoma cells, facilitating advances in therapeutic strategies. A quadratic phenotypic optimization platform (QPOP) was presented to assess patient-specific drug combinations using biopsy samples from individuals diagnosed with NHL [197]. Accordingly, among the 12 drugs evaluated, the combinations involving copanlisib and romidepsin emerged as the most effective ones. Additionally, QPOP demonstrated a reduction in disease progression when compared to conventional chemotherapy in previously treated patient groups, which demonstrated that drug testing could be performed on ex vivo samples within a short time frame. A microfluidic platform known as a suspended microchannel resonator evaluated the ex vivo drug sensitivity in MM, utilizing the mass accumulation ratio (MAR) as a key metric (Figure 5) [198]. This system was employed to assess the responses of both MM cell lines and patient samples to standard chemotherapy agents, including dexamethasone, lenalidomide, and bortezomib, as well as to peptide-based therapeutic (Figure 5). When administered individually, these drugs resulted in a decrease in the MAR; conversely, when implemented as a combination therapy, the MAR exhibited an even more significant reduction. The efficacy of this platform lies in its ability to facilitate drug evaluation without the requirement for any extended ex vivo cultivation of MM cells.
7. Future Perspectives: The Capacity in Commercialization and Interpretation of Clinical Data
The increasing variety of human diseases and the rise of resistance to existing medications underscore the critical need for the urgent development of new therapeutic drugs. However, to bring a new drug to clinical use, significant time and financial investments are necessary. For instance, the process of obtaining regulatory approval and commercializing a newly discovered drug can last up to 15 years and incur a cost of approximately USD 2.8 billion [5,67,199]. Throughout this process, comprehensive evaluations of the safety, efficacy, toxicity, and pharmacokinetics of new compounds are essential [67]. Traditionally, the efficacy of new drugs is assessed using animal models prior to clinical trials in humans. However, it is important to recognize that these animal models may not accurately predict therapeutic effectiveness and potential side effects in humans due to inherent physiological and metabolic differences between species [200]. In this context, it is imperative to adhere to the internationally accepted principles of reduction, refinement, and replacement during research activities involving animal models [201]. In the pursuit of developing personalized treatment combinations and identifying innovative therapeutic compounds, there is a pressing need for advanced predictive tools. These systems should effectively guide disease management while mitigating the risk of resistance and yielding comprehensive insights from a reduced number of samples. The microfluidic chip platforms, known as Companion Diagnostics (CDx) (U.S. Food and Drug Administration, 2016), were designed to precisely identify the most suitable treatment strategies for individual patients [202]. CDx devices have several significant advantages: (1) They enable the identification of patient groups that are likely to benefit from specific medications; (2) They allow for the assessment of potential side effects associated with drugs, identifying high-risk patients who might be adversely impacted; (3) They facilitate the monitoring of drug responses, providing opportunities for toxicity assessment and dosage adjustments [202,203]; (4) CDx devices can expedite the drug development process and contribute to cost reduction, ultimately advancing the field of personalized medicine [6,204].
Many startups and established companies have been actively working to advance the commercial availability of OoC platforms. For instance, Hesperos is an advanced multi-organ-on-chip system designed to replicate the intricate interactions among muscles, tissues, nerves, and organs [205]. Additionally, it provides valuable information about the dynamics of drug metabolism, including processes of absorption, distribution, and excretion [205]. TissUse introduced HUMIMIC chips, a multiorgan platform capable of facilitating media perfusion without requiring a pump [206]. Mimetas developed OrganoPlate, which incorporates an innovative microfluidic channel system featuring hydrogel–liquid interfaces [207]. Additionally, the Phaseguides technology enables the cultivation of 2D and 3D cell cultures without barriers [208]. Netri is an OoC system that seamlessly combines neural stem cells with sophisticated AI algorithms [209]. Emulate generated a liver chip designed to economically assess the efficacy of various drugs [210]. Moreover, AIM Biotech developed a model to examine the impact of small molecules and engineered T-cell cytotoxicity on hepatocellular carcinoma [211].
The use of OoC systems in drug screening is a developing area, and several strategic collaborations have recently been formed. TissUse, for example, is partnering with AstraZeneca [212], while Emulate partnered with Johnson & Johnson (NJ, USA) [104]. The number of studies utilizing multi-organ on-chip systems to evaluate the effects of pharmaceuticals across various organs has been steadily increasing [213]. For instance, such a system was developed to examine the pharmacokinetic activity of cisplatin in bone marrow, liver, and kidney [214]. Furthermore, another multi-organ on-chip model, which simulated the immune system, was employed to study the cardiac, skeletal, and hepatic responses to amiodarone through the mechanism of monocyte actuation [215]. Moreover, AI has significantly enhanced drug imaging by improving accuracy, efficiency, and predictive capabilities. Deep learning algorithms enable automated image analysis, facilitating the identification of molecular interactions and structural changes in drug compounds. AI-driven imaging techniques, such as machine learning-based segmentation and pattern recognition, allow for precise visualization of drug distribution at the cellular and tissue levels. Moreover, AI-powered image processing accelerates high-throughput screening and drug discovery by identifying potential therapeutic targets with greater speed and reliability [216,217]. As AI continues to evolve, its integration into drug imaging promises more efficient and personalized approaches in pharmaceutical research and development.
To achieve acceptance of BoC platforms in clinical and commercial applications, these innovations need to undergo some approval processes outlined by regulatory bodies such as the US Food and Drug Administration (FDA) and the European Medicines Agency (EMA). Current challenges include the absence of clear and standardized guidelines from these organizations regarding innovative technologies such as BoC systems, which can impede the commercialization timeline. Specifically, extensive validation studies and multi-center trials may be necessary to demonstrate the clinical predictive accuracy of in vitro models. Furthermore, the diverse production standards employed by various research groups and manufacturers for components such as microfluidic devices, biomaterials, and bio-sensor integrations further complicate the reliable reproducibility of results. This lack of standardization represents a significant barrier against the acceptance of BoC systems as trustworthy tools within the pharmaceutical industry. To address this issue, organizations such as the International Organization for Standardization (ISO) and the American Society for Testing and Materials (ASTM) must focus on developing more comprehensive standards in this field. Currently, BoC platforms utilized in research laboratories typically rely on small-scale and manual production processes. However, for their successful implementation in pharmaceutical and clinical settings, high-volume and cost-effective production solutions are required. The integration of microfluidic devices into injection molding, along with automated production lines and packaging processes, presents potential scalability solutions. Furthermore, BoC systems need to adhere to critical requirements such as sterility, biocompatibility, and extended shelf-life factors that are vital for mass production processes. To enhance the commercialization potential of BoC systems, it is imperative to expedite validation and standardization efforts in collaboration with regulatory institutions. Additionally, there is a need to develop suitable materials and design solutions tailored for large-scale production. Toward this end, the fabrication of reliable and cost-effective prototypes suitable for clinical studies will be essential for the acceptance of BoC platforms within the medical and biotechnology sectors. As a result, it is within our reach to envision the creation of BoC platforms that will empower clinical translation and personalized therapies, driving groundbreaking research in the field of hematological cancers.
8. Conclusions
BoC platforms trigger a valuable advancement in biomedical technology, particularly for the modeling of biological processes associated with the bone. These platforms hold significant potential for applications in bone regeneration, disease modeling, drug testing, and translational medicine. For personalized therapeutic approaches in hematological cancers and preclinical evaluation of potential drug candidates, BoC platforms provide a significant reduction in both cost and time. Despite this potential, platforms designed for hematological cancers and high-throughput drug testing using the BoC technology were not frequently reported in the literature. To enhance the integration of BoC devices into CDx platforms, it is essential to incorporate diverse arrays of biosensors. This integration will certainly facilitate the functionality and broaden the utility of these devices in clinical applications. Furthermore, the incorporation of optical lenses with distinct properties, along with sensors capable of accurately measuring various electrochemical properties, into microfluidic chips will significantly improve our scientific capabilities. Moreover, the application of algorithms such as AI, deep learning, and machine learning will streamline the processing and visualization of data generated by these biosensors, ultimately resulting in more efficient and precise testing. While the integration of high-throughput screening techniques into BoC platforms presents significant opportunities, it is important to recognize several existing limitations. Notably, the costs associated with robotic attachments necessary for liquid handling and data collection can be substantial. Additionally, the expenses related to data libraries for drug screening and the materials required for cell studies pose challenges that may impede the continuity of research efforts. Strengthening the collaboration among universities, clinics, and companies and supporting these interdisciplinary research efforts with generous grants will be crucial in advancing these initiatives.
