Fluoromicrometry reveals minimal influence of tendon elasticity during snake locomotion
Jessica L. Tingle, Kelsey L. Garner, Henry C. Astley
TL;DR
This study shows that elastic energy storage in tendons has minimal impact on snake movement, as muscle shortening directly causes posture changes during locomotion.
Contribution
The study provides in vivo evidence that elastic energy storage is not significant in snake locomotion, validating a mathematical model of muscle function.
Findings
Muscle shortening directly correlates with vertebral column curvature during snake movement.
Elastic energy storage in tendons does not significantly affect locomotion in corn snakes.
The mathematical model accurately predicts in vivo muscle behavior in multiarticular systems.
Abstract
Multiarticular muscle systems are widespread across vertebrates, including in their necks, digits, tails and trunks. In secondarily limbless tetrapods, the multiarticular trunk muscles power nearly all behaviors. Using snakes as a study system, we previously used anatomical measurements and mathematical modeling to derive an equation relating multiarticular trunk muscle shortening to postural change. However, some snake trunk muscles have long, thin tendinous connections, raising the possibility of elastic energy storage, which could lead to a decoupling of muscle length change from joint angle change. The next step, therefore, is to determine whether in vivo muscle shortening produces the postural changes predicted by mathematical modeling. A departure from predictions would implicate elastic energy storage. To test the relationship between muscle strain and posture in vivo, we…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

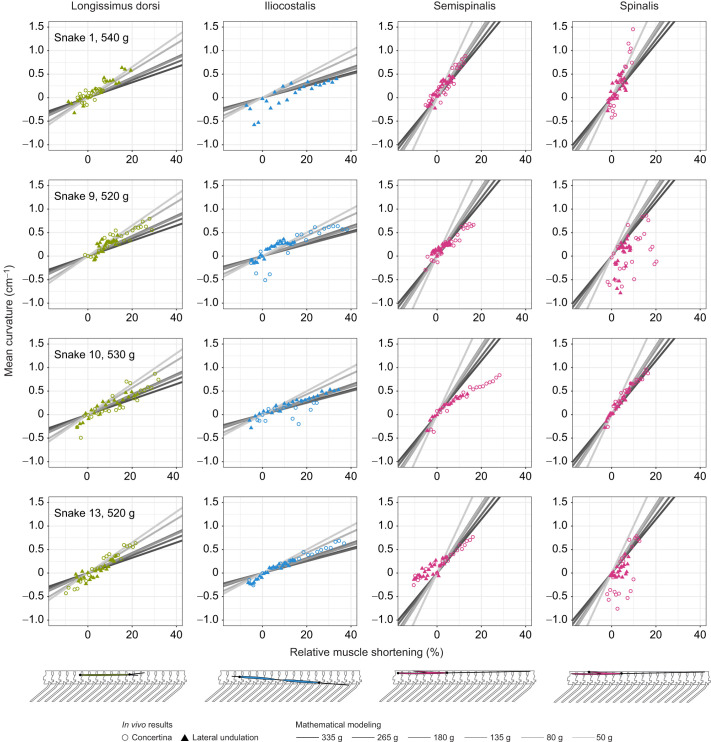

Fig. 1
Fig. 2
Fig. 3
Fig. 4- —National Science Foundationhttp://dx.doi.org/10.13039/100000001
- —National Science Foundationhttp://dx.doi.org/10.13039/100000001
- —The University of Akron
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAmphibian and Reptile Biology · Force Microscopy Techniques and Applications · Turtle Biology and Conservation
INTRODUCTION
The geometric relationship between muscles and joints has a powerful impact on functional outcomes. Although the influence of lever arms on monoarticular muscles has been understood at least since the time of Aristotle (Aristoteles and Nussbaum, 1985), and our understanding of more complex biarticular muscles has improved in recent decades (van Ingen Schenau, 1989; van Ingen Schenau et al., 1994), the mechanics of multiarticular muscles (crossing more than two joints) remain sparsely investigated (Astley, 2020; Tingle et al., 2023). Multiarticular muscle systems serve important functions across vertebrates, including propulsion and/or stabilization during locomotion (Ritter, 1992; Gramsbergen et al., 1999; O'Reilly et al., 2000; Cromwell et al., 2001; Saunders et al., 2004; Schilling and Carrier, 2010; Omura et al., 2015). They are particularly important in the many tetrapods that have secondarily evolved body plans with reduced or absent limbs, as these species rely almost completely on multiarticular trunk muscles to power movement (Jayne, 1988a,b; Wiens et al., 2006; Bergmann et al., 2020; Tingle et al., 2024).
We previously used anatomical measurements and an explicitly multiarticular mathematical modeling approach to predict the effects of muscle architecture on torque production and postural change in corn snakes (Tingle et al., 2023). As the next step towards a more complete understanding of multiarticular muscle mechanics, we need to determine whether in vivo muscle contraction produces the postural changes predicted by mathematical modeling. This modeling provides a basis for the hypothesis that muscle strain (relative length change) is directly predictable from vertebral curvature. However, some trunk muscles have long, thin tendinous connections, raising the possibility of an alternative hypothesis: that elastic energy storage could lead to a decoupling of muscle length change from joint angle change. Elastic energy storage in spring-like tendons is common in limbed tetrapods – with the tendons acting as springs, they can achieve greater power than they would through muscle activity alone (i.e. elastic power amplification or elastic catapult mechanisms) (Peplowski and Marsh, 1997; Roberts et al., 1997; Roberts and Marsh, 2003; Roberts and Azizi, 2011; Astley and Roberts, 2012).
Although elastic energy storage could occur, we did not expect to find evidence for this alternative hypothesis in most muscles of interest. In muscle–tendon units that show significant elastic effects, the tendon is often considerably longer than the muscle (Biewener and Roberts, 2000). In corn snakes, only one epaxial muscle has an especially long, thin tendon that could be capable of appreciable elastic energy storage: the semispinalis–spinalis anterior tendon spans 11 vertebrae in corn snakes (Tingle et al., 2023; Fig. 1) and >30 vertebrae in some species (see Appendix S4 from Tingle et al., 2017). However, its position very near to the midline does not give it good leverage for lateral flexion (Tingle et al., 2023), so it is unlikely to undergo much strain during the lateral bending that characterizes most forms of snake locomotion. Without undergoing such strain, it would not have the opportunity to store much elastic energy. The iliocostalis has better leverage for lateral flexion, but its longest tendon (the anterior tendon) is much shorter, spanning only four vertebrae in corn snakes (Tingle et al., 2023; Fig. 1).

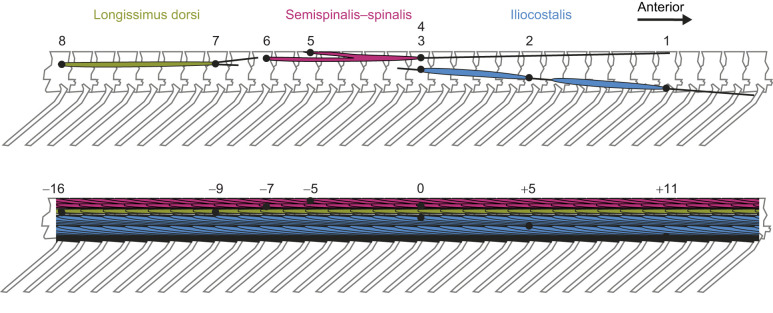

Locations of bead implantation. Beads track distances between key locations in the longissimus dorsi, semispinalis, spinalis and iliocostalis muscles. The top panel shows a single muscle of each type for clarity, whereas the bottom panel shows the tracts of overlapping muscles. For the purposes of our analyses, we numbered beads anterior to posterior (as indicated in the top panel), with beads 1–3 embedded in the iliocostalis, beads 4–6 in the semispinalis–spinalis (4–5 indicates the span of the spinalis, which is the dorsal fork of the muscle belly, and 4–6 indicates the semispinalis, which is the ventral fork), and beads 7 and 8 in the longissimus dorsi. Location 0 in the bottom panel represents the site of the first surgical incision, where we implanted beads 3 and 4; distances between other beads are noted in numbers of vertebrae anterior (positive numbers) or posterior (negative numbers) to the first incision site.
To test our competing hypotheses, we used fluoromicrometry (Camp et al., 2016) to measure muscle contraction and cineradiography to measure vertebral column curvature in living snakes, then compared in vivo results with the expectation based on our previously derived equation (Tingle et al., 2023). If fluoromicrometry demonstrates a linear relationship between vertebral column curvature and muscle strain, then muscle strain is directly predictable from vertebral bending. If joint motion and muscle strain are decoupled, with joint motion occurring without corresponding muscle length change and vice versa (Roberts et al., 1997), then elastic energy storage will be implicated.
MATERIALS AND METHODS
Animal acquisition and care, implantation of radio-opaque beads
Four wild-caught adult corn snakes, Pantherophis guttatus (Linnaeus 1766), were purchased from a commercial provider (Glades Reptiles, Bushnell, FL, USA) and kept under University of Akron IACUC protocol no. 16-08-16-ASD. These individuals ranged in mass from 520 to 540 g and in snout–vent length from 104 to 120 cm. They were kept individually in 61×122×38 cm PVC cages with aspen substrate prior to bead-implantation surgery (detailed below) and paper towel substrate after surgery. A radiant heat panel provided a temperature gradient from 29 to 23°C. They were fed pre-killed adult mice biweekly.
To mark key locations in epaxial muscles, we performed surgeries to implant radio-opaque tantalum beads measuring 0.8 mm in diameter (X-medics, Frederiksberg, Denmark). Surgeries followed aseptic technique and were performed between 9 and 18 May 2023, with snakes fasted for 5–14 days prior to surgery. Anesthesia was induced in a chamber filled with 5% isoflurane, and snakes were maintained on 5% isoflurane via intubation during surgery. They were also given carprofen (4 mg kg^−1^) during surgery for pain relief. Immediately after surgery, snakes were closely monitored in an incubation chamber at 28°C until they recovered from anesthesia, as indicated by a return to basic locomotor function. Post-surgery care was provided by University of Akron Vivarium staff, which included the administration of 2 mg kg^−1^ of carprofen every 48 h or as needed. Incision sites were monitored for proper healing and removal of sutures leading up to locomotor trials.
For each snake, we made five small incisions in the right side of the body at approximately the midpoint between the snout and the cloaca, used a syringe with a plunger to inject the beads, and then used Vetbond (3M, St Paul, MN, USA) to seal the small hole made by the syringe and 4-0 nylon monofilament sutures to close the incision. Traditionally, fluoromicrometry and sonomicrometry involve the implantation of beads or crystals inside a single muscle but between and parallel to muscle fascicles (Camp et al., 2016; Roberts and Dick, 2023). However, the anatomy of snake muscles requires a modification to bead implantation practices. Individual muscles occur in overlapping tracts (Fig. 1, bottom) in which the individual muscles are so closely apposed that clearly separating successive muscle tracts would cause unacceptable mechanical damage, requiring us to use anatomical knowledge from prior dissections for placement. All segments of a given muscle bundle (longissimus dorsi, iliocostalis, semispinalis–spinalis) are tightly wrapped together in a layer of connective tissue, keeping the segments (and the beads embedded in them) separate from those of other muscle types. Because the muscles are long with cross-sectional areas less than that of the beads, and their multiarticular nature leads to many overlapping segments of a given type of muscle, the beads were placed between two overlapping segments of the muscle of interest rather than inside a single muscle segment, a situation analogous to bead placement between fascicles of larger muscles.
Pairs of beads marked three epaxial muscles: the longissimus dorsi, the iliocostalis and the semispinalis–spinalis (Fig. 1). Each bead pair was placed such that the number of vertebrae in between them equaled approximately the number of vertebrae spanned by the muscles into which they were inserted (7 vertebrae between the two beads marking the longissimus dorsi, 11 for the iliocostalis, 7 for the semispinalis portion of the semispinalis–spinalis, and 5 for the spinalis portion). For the iliocostalis, we implanted an additional bead near the middle of the muscle–tendon unit's span to mark the location of the medial tendon (bead 2; Fig. 1). We also implanted three beads into the semispinalis–spinalis: one to indicate the anterior end of the muscle belly (bead 4), one to mark the posterior end of the spinalis (the dorsal fork of the muscle belly; bead 5) and one to mark the posterior end of the semispinalis (the ventral fork of the muscle belly; bead 6) (Fig. 1).
We confirmed bead placement via post-surgical imaging with cinefluoroscopy, which clearly showed that the beads had remained in position after 4–5 weeks of healing. In nearly all cases, beads were separated by the intended number of vertebrae (deviating no more than 2 vertebrae from the intended number), and they were located at the approximately intended distances from the vertebral column in both the medio-lateral and dorso-ventral planes. An exception was the bead pair marking the spinalis in one individual (snake 1), which were separated by only 2.5 vertebrae instead of the intended 5 vertebrae. Deviation from the intended bead placement did not seem to have a major impact on the results, so figures include data for that muscle (clearly marked in its own panel).
Biplanar videofluoroscopy of locomotor trials
For locomotor trials, we used one trackway to elicit tunnel concertina locomotion and two to elicit lateral undulation (Fig. 2). All trackways were 135 cm long and built out of extruded polystyrene (XPS) rigid foam insulation boards (Owens Corning Foamular 150). The concertina tunnel was 8.5 cm wide, a width chosen based on the 7.5 and 10 cm wide tunnels previously used to elicit concertina locomotion in a similarly sized, related species, Pantherophis obsoletus (Jayne, 1988a). Both of the lateral undulation setups were 20 cm wide with walls on the sides, providing enough space for adult corn snakes to slither unhindered. The walls had blocks (made of the same XPS foam as the trackway) protruding from them, interspersed with block-free spaces to create alternating push points. In one lateral undulation setup, 10 cm long blocks alternated with 10 cm long spaces. In the other setup, 10 cm long blocks alternated with 20 cm long spaces. In both setups, the right and left sides of the trackways had blocks out of phase by 180 deg, i.e. staggered so that a block on one wall would face a blank space on the other wall. The blocks were 5 cm wide, such that 10 cm in the middle of the trackway was totally clear. The two lateral undulation setups were intended to encourage different amounts of curvature during locomotion.

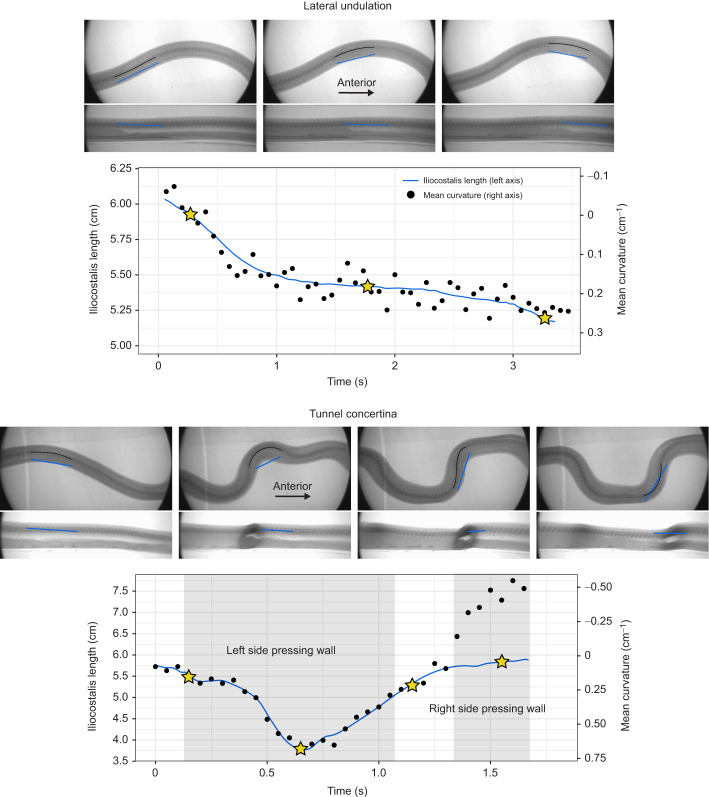

Iliocostalis muscle length versus body posture in representative trials for lateral undulation and tunnel concertina locomotion. The plots display iliocostalis muscle length alongside mean curvature of the section of vertebral column spanned by the iliocostalis over the course of the trial. Muscle length is displayed as blue lines with y-axis values on the left, and was calculated as the distance between the first and third radio-opaque beads from videos digitized in XMALab. Curvature is displayed as black points with y-axis values on the right (with negative values on top, due to our sign convention), and was calculated from still images in ImageJ. Curvature of 0 cm−1 indicates a straight body posture (no curvature); negative curvature values indicate a curve to the left (radio-opaque beads on the outside of the curve), whereas positive curvature values indicate a curve to the right (radio-opaque beads on the inside of the curve). Stars indicate frames for which still images are displayed above the plots (ventral views on top, lateral views underneath those). Colors in the images correspond to those in the plots: blue lines on the images indicate the distance between the beads (our proxy for muscle length), and black lines on the images indicate the curve of the vertebral column spanned by the two beads. Shaded areas of the tunnel concertina plot indicate approximate times when the body was pressing against the tunnel wall. Tunnel walls are barely visible, as the tunnel was made from foam that is nearly transparent to X-rays.
We conducted locomotor trials slightly more than 5 weeks post-surgery using the biplanar cineradiography system at Northeast Ohio Medical University (GE 9400 C-Arms). We tested all snakes first on the lateral undulation track with small spacing, followed by the concertina tunnel, and finally on the lateral undulation track with large spacing. For each track type, we tapped the snake's tail to encourage it to move down the trackway for 3–4 trials. Snakes were kept in an incubator at 28°C between trials on different tracks. The ambient room temperature and the trackway surfaces were kept at 24–25°C. Trials were recorded with high-speed videofluoroscopy (XC1M, XCitex, Cambridge, MA, USA), using two cameras synchronized with a 40 MHz signal from a DAQ card in the computer. For lateral undulation trials, we set both cameras to 150 frames s^−1^, 70 kV and 4.7 mA. These settings prevented motion blur while still providing high-contrast imaging of beads and bone for snakes moving at typical lateral undulation speeds. For concertina locomotion, which is typically slower than lateral undulation, we set both cameras to 100 frames s^−1^ and 4.7 mA, with the laterally oriented camera at 70 kV and the ventrally oriented camera at 60 kV. Image intensifiers were positioned perpendicular and adjacent to each other, and trackways were positioned a few centimeters above the ventral image intensifier and almost abutting the lateral one. Videos and associated files are available on XMAPortal (https://xmaportal.org/webportal/, under study name ‘Snake Fluoromicrometry’ and study identifier XMA5).
Data processing
To calculate 3D coordinates of beads over the course of each trial, we digitized videos in XMALab (Brainerd et al., 2010; Knörlein et al., 2016), using undistortion grids and a custom calibration cube to undistort and calibrate the field of view. The markers' mean reprojection errors ranged from 0.36 to 1.89 pixels (mean±s.d.: 0.82±0.31 pixels) across the trials used in our analysis. We smoothed the x, y and z values independently from each other using a cubic spline with s=0.01, implemented with the splrep() function in the SciPy package (Virtanen et al., 2020) in Python version 3.9.7. From the smoothed 3D coordinates, we calculated straight-line, 3D distance [√(x^2^+y^2^+z^2^)] between bead pairs of interest, representing the longissimus dorsi (beads 7 and 8), the iliocostalis (beads 1 and 3), the semispinalis portion of the semispinalis–spinalis (beads 4 and 6), and the spinalis portion of the semispinalis–spinalis (beads 4 and 5) (Fig. 1). The blue lines on still images in Fig. 2 represent these straight-line distances between bead pairs. The straight-line distances do not exactly correspond to the shape of the muscle at times when the body is very curved, as made clear in the concertina image where the straight line is not fully inside the body. However, they are a reasonable approximation of the muscle's length, with >90% accuracy for the most extreme body curvatures observed in this study, and ∼99% accuracy for curvatures more typical of lateral undulation.
We then calculated curvature of the snake's vertebral column in a subset of frames, selected to represent the range of curvature from most concave to straight to slightly convex, with even sampling across this range of curvature values (Fig. 3). Because we were interested in curvature in the horizontal plane, we used only the camera providing a ventral view. Although snakes may lift their bodies during both lateral undulation and tunnel concertina (Hu et al., 2009; Marvi and Hu, 2012), their motions are primarily in the horizontal plane, and we observed minimal lifting in the vertical plane for these trials. For each muscle of each snake, we chose a subset of 20–25 frames from the digitized videos for each locomotor mode (lateral undulation and tunnel concertina), pooling all trials within each locomotor mode. These frames included one where the muscle had reached its most contracted state for a given locomotor mode, one where the muscle was approximately resting length (i.e. the section of vertebral column spanned by the muscle was straight), with 18 evenly spaced frames in between, and up to 5 evenly spaced frames with the muscle stretched slightly beyond resting length. For these frames, we manually digitized the midline of the section of vertebral column spanned by the muscle of interest, using the line segment tool in the Fiji distribution of ImageJ 1.53t, Java 1.8.0_172 (Schindelin et al., 2012). We then applied a custom macro in ImageJ (see Supplementary Materials and Methods) to smooth the backbone curve and output x and y coordinates for 100 evenly spaced points along it. Finally, we calculated curvature for each segment of the smoothed backbone curve using Eqn 1, which approximates derivatives via finite differences in x and y along the snake's body length:
We then averaged the curvatures of the segments for a given time frame to get the overall curvature for the section of vertebral column in that frame. We subsequently converted curvature units from inverse pixels to inverse centimeters using a rigid object of known length that was in the camera view for some trackways.

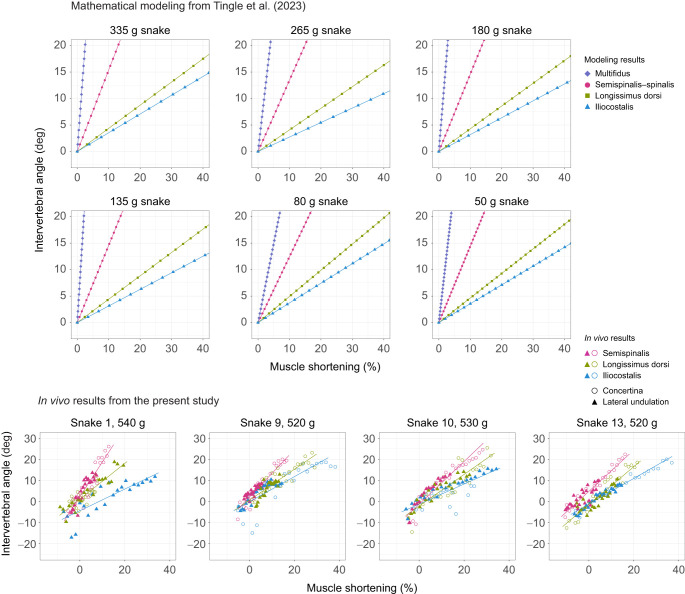

Relationship between mean vertebral column curvature and muscle strain during lateral flexion. Plots show vertebral column curvature in the lateral plane when a given muscle shortens by some percentage of its resting length. Points correspond to in vivo results from the present study for snakes (ID numbers: 1, 9, 10 and 13) performing both lateral undulation (triangles) and tunnel concertina locomotion (circles). For each individual, we include data from all trials for a given locomotor mode (up to three trials). For snake 1's iliocostalis muscle, we have data only for lateral undulation because the snake's body was pressed against the tunnel wall during that snake's only concertina trial, deforming the iliocostalis. Gray lines correspond to the mathematical modeling results for six preserved snakes of different sizes from a previous study (Tingle et al., 2023). They are included to highlight that slopes calculated for in vivo data in the present study do not strongly deviate from those predicted by mathematical modeling. Steeper slopes indicate more postural change when the muscle contracts, as measured by the mean curvature of the section of vertebral column spanned by the muscle of interest. Shallow slopes indicate that the muscle effects less postural change but greater torque.
