Chondroitin Sulfate‐Coated Heteroduplex‐Molecular Spherical Nucleic Acids
Toni Laine, Prasannakumar Deshpande, Ville Tähtinen, Eleanor T. Coffey, Pasi Virta
TL;DR
Researchers developed a new type of nanostructure to deliver antisense oligonucleotides that target Tau protein, using chondroitin sulfate to improve delivery efficiency in neurons.
Contribution
The study introduces a novel [60]fullerene-based MSNA carrier system conjugated with chondroitin sulfate tetrasaccharides for efficient Tau protein suppression.
Findings
Chondroitin sulfate conjugates improved cellular uptake of antisense oligonucleotides in hippocampal neurons.
MSNAs with different CS sulfation patterns showed varied effects on Tau suppression.
Structural stability and hybridization of MSNAs were confirmed using UV melting and SEC-MALS.
Abstract
Molecular Spherical Nucleic Acids (MSNAs) are atomically uniform dendritic nanostructures and potential delivery vehicles for oligonucleotides. The radial formulation combined with covalent conjugation may hide the oligonucleotide content and simultaneously enhance the role of appropriate conjugate groups on the outer sphere. The conjugate halo may be modulated to affect the delivery properties of the MSNAs. In the present study, [60]fullerene‐based molecular spherical nucleic acids, consisting of a 2′‐deoxyribonucleotide and a ribonucleotide sequence, were used as hybridization‐mediated carriers (“DNA and RNA‐carriers”) for an antisense oligonucleotide, suppressing Tau protein, (i. e. Tau‐ASO) and its conjugates with chondroitin sulfate tetrasaccharides (CS) with different sulfation patterns. The impact of the MSNA carriers, CS‐moieties on the conjugates and the CS‐decorations on the…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Scheme 1
Scheme 2
Figure 2
Figure 3
Figure 4|
| |
|---|---|
|
|
63.7±0.3 |
|
|
63.7±0.3 (−0.2) |
|
|
63.6±0.7 (−0.1) |
|
|
63.3±0.4 (−0.4) |
|
|
73.5±0.2 |
|
|
73.6±0.6 (+0.1) |
|
|
74.2±0.4 (+0.7) |
|
|
73.0±0.5 (−0.5) |
|
hydrodynamic size /nm | |
|---|---|
|
|
7.8±0.5 |
|
|
13.2±1.9 |
|
|
12.7±0.7 |
|
|
12.4±1.2 |
|
|
12.4±1.5 |
|
|
7.0±1.2 |
|
|
12.9±1.8 |
|
|
12.2±0.4 |
|
|
12.7±0.8 |
|
|
12.5±0.8 |
- —Academy of Finland 10.13039/501100002341
- —Business Finland Ecosystem project
- —Doctoral Programme in Exact Sciences (EXACTUS)
- —University of Turku 10.13039/501100005609
- —The Finnish Cultural Foundation
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsRNA Interference and Gene Delivery · DNA and Nucleic Acid Chemistry · Advanced biosensing and bioanalysis techniques
Introduction
Spherical nucleic acids (SNAs, introduced by Mirkin's group) are nanostructural delivery vehicles, consisting of a dense shell of oligonucleotides attached to a suitable core unit.[1, 2] The core structure can be for example gold,[1, 3] silica,[4] liposomes[5] or proteins.[6] SNAs may undergo class A scavenger receptor–mediated endocytosis,[7, 8] which has been demonstrated by the successful free uptake of antisense oligonucleotides and siRNAs[9] in more than 50 different cell lines.[3, 10] In addition, atomically uniform variants of SNAs, i. e. molecular spherical nucleic acids (MSNAs)[11, 12, 13, 14, 15, 16, 17, 18] and other dendritic oligonucleotides[19] have received growing interest as delivery vehicles. The lower oligonucleotide density of MSNAs results in weaker activation of scavenger receptors,[11, 20] but MSNAs may become attractive delivery vehicles when they are conjugated with cell/tissue‐specific ligands. The radial formulation connected to covalent conjugation may hide the oligonucleotide content and simultaneously enhance the role of appropriate conjugate groups on the outer surface, which may be tuned to find enhanced precision delivery for oligonucleotides. Indeed, our recent in vivo PET‐imaging study[15] shows that *i. v.‐*administrated MSNAs exhibit prolonged circulation times due to prevented accumulation in the kidney, and liver, in comparison to linear phosphorothioate oligonucleotides[21, 22] and most nanoparticular delivery vehicles,[23, 24] respectively. The biodistribution and targeted delivery could be further adjusted by the surface decoration (folate[25] and trastuzumab[12] demonstrated) of MSNAs.
In the present study, [60]fullerene‐based MSNAs, consisting of 2′‐deoxy oligoribonucleotide (MSNA1) or oligoribonucleotide‐strands (MSNA2), were synthesized and used as hybridization‐mediated carriers (“DNA‐ and RNA‐carriers”) for an antisense oligonucleotide sequence, suppressing Tau protein, (i. e. Tau‐ASO, cf. ON5–8) (Figure 1). Tau is a protein expressed in neurons whose hyperphosphorylation and aggregation are important factors in neurodegeneration caused by several diseases, including Alzheimer's disease.[26, 27] Regulation of pathological Tau can prevent symptoms of Alzheimer's disease and restore lost function.[28, 29, 30] Antisense oligonucleotides (ASOs) targeting Tau protein have been developed,[29, 31, 32] including positive phase I trials in humans with mild Alzheimer's disease.[31] Heteroduplex[33, 34] Tau‐ASOs are assembled on the MSNAs (MSNA3–10). On the DNA‐MSNA carrier (MSNA1), the release of the active Tau‐ASO (consisted of phosphorotioate backbone) can undergo passive dissociation or DNase‐mediated degradation of the carrier (consisted of native phosphodiester backbone). On the RNA‐MSNA (MSNA2), in turn, RNase H‐mediated degradation of the RNA‐based carrier may take place, releasing the active Tau‐ASO‐sequence. The impact of the MSNA carrier and its chemistry (DNA vs RNA, MSNA3 vs MSNA7) on hippocampal neuron uptake and activity to suppress Tau protein were studied in vitro by confocal microscopy and Western blot analysis, respectively. In addition to MSNA formulation, the role of chondroitin sulfate tetrasaccharides with different sulfation patterns as surface decoration of MSNAs (MSNA4–6 and MSNA8–10) to the hippocampal neuron uptake was examined. The glycosaminoglycan chondroitin sulfate (CS) is a linear polysaccharide important for several biological processes including cell division, cancer progression and metastasis, development of the central nervous system and central nervous system injuries and diseases.[35, 36, 37] The specific sulfation patterns determine the binding of CS to certain proteins such as neurotrophins, selectins, chemokines and midkine.[38, 39, 40, 41] The ability to interact with certain proteins makes CS a potential tool for drug delivery. In addition, CS proteoglycans have been found to bind to several neuronal receptors.[42, 43] Previously, it has been shown that coating gold nanoparticles with specific chondroitin sulfates can enhance their targeting and uptake in neuronal cells.[44] MSNAs are particularly attractive scaffolds as they can present multiples of each ligand on their outer surface. This is especially useful with weakly binding ligands whose binding is multivalent. The binding of CS to some proteins has been found to be multivalent as well.[45, 46, 47] This has prompted to research on synthetic analogues, such as polymers[48, 49] and dendrimers,[46, 50, 51, 52] that present CS‐ligands on their outer surface in an attempt to mimic natural CS polysaccharides.

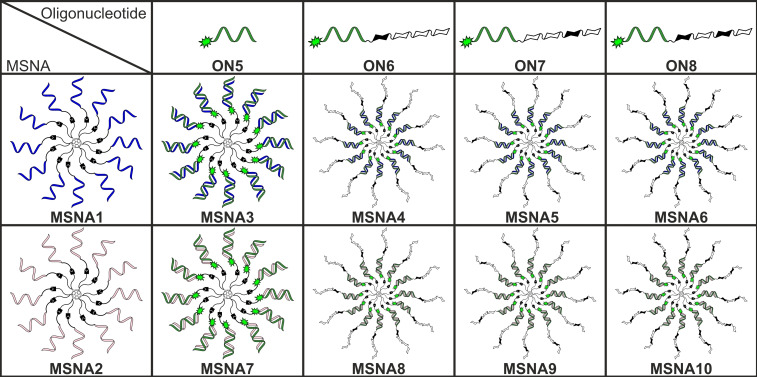

Illustration of the MSNA structures in the study. MSNA1 and MSNA2 are hybridized with ON5–8 to yield MSNA3–10 (cf. Scheme 1). Filled sugar symbols refer to sulfated N‐acetylgalactosamine units.
Results and Discussion
Synthesis of CS‐Oligonucleotide Conjugates
The synthesis of the Alexa Fluor (AF488)‐labeled CS‐oligonucleotide conjugates is outlined in Scheme 1. 5′‐(1R,8S,9 s)‐Bicyclo[6.1.0]non‐4‐yn‐9‐yl (BCN) modified phosphorothioate oligonucleotide ON1 was synthesized on a 1 μmol scale on a commercial amino‐modifier solid support using an automatic DNA/RNA synthesizer and commercially available phosphoramidite building blocks. ON1 was conjugated with azidopropyl‐modified chondroitin sulfate (CS) tetrasaccharides[53] 1–3 by strain‐promoted alkyne‐azide cycloaddition (SPAAC): ON1 was incubated with compounds 1–3 (3 equiv; following previously published procedure[53]) overnight at room temperature. The resulting CS‐oligonucleotide conjugates (ON2–4) were homogenized by RP‐HPLC and authenticity of the products was verified by MS (ESI‐TOF) spectroscopy (Figures S1–S3 and Table S1). Isolated yields of ON2–4 varied between 18 and 22 %. Oligonucleotides ON1–4 were labelled with an AF488 fluorescent dye: AF488 NHS ester (in DMSO) was added into a solution of the oligonucleotide (in aqueous borate buffer, pH 8.4) and the reaction mixture was incubated overnight at room temperature. The resulting AF488‐labeled oligonucleotide conjugates (ON5–8) were purified by RP‐HPLC and authenticity of the products was confirmed by MS (orbitrap) spectroscopy (Figures S4–S7 and Table S1). Isolated yields of ON5–8 varied between 85 % and 91 %.

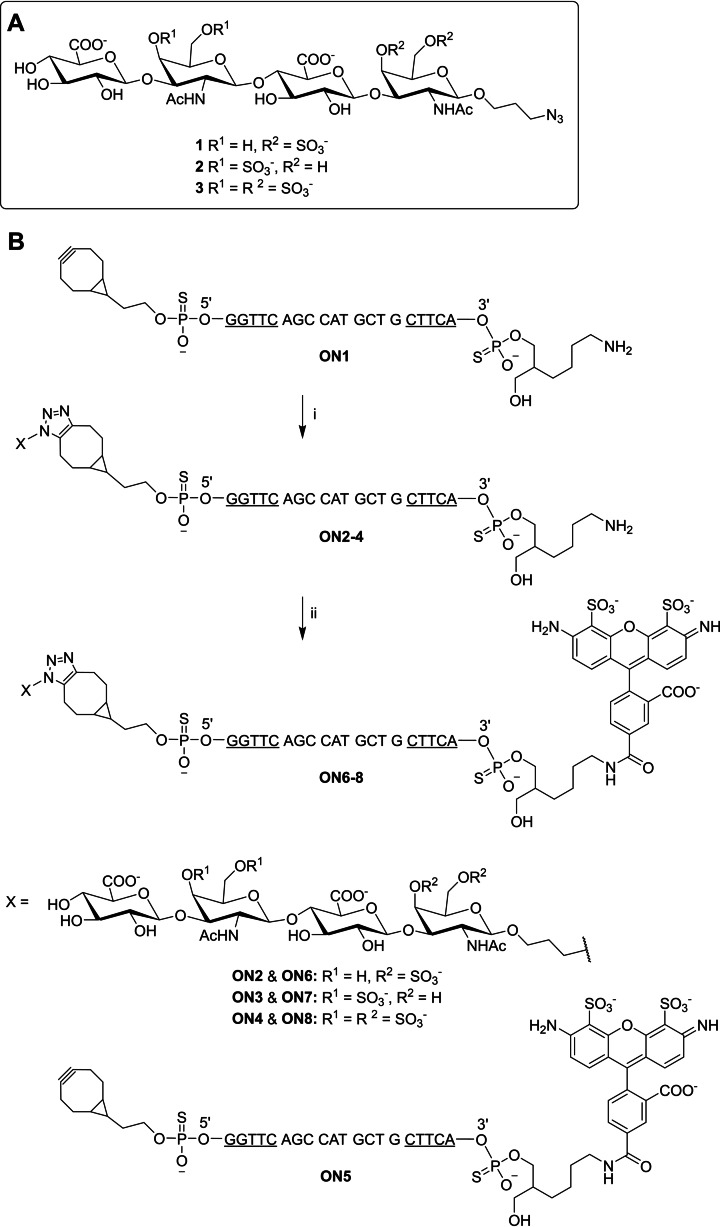

A) Structures of the azidopropyl‐modified CS tetrasaccharides. [53] B) Synthesis of AF488‐labeled oligonucleotide conjugates ON5–8. The oligonucleotides are consisted of phosphorothioate backbone. Underlined letters represent 2′‐O‐(2‐methoxyethyl) ribonucleotides, the rest are 2′‐deoxyribonucleotides. Underlined C is 5‐methylated. Reagents and conditions: (i) 3 equivalents of azidopropyl‐modified CS tetrasaccharides 1–3, H2O, overnight at room temperature. (ii) 20 equivalents of AF488 NHS ester, 0.1 M sodium borate (pH 8.4), H2O:DMSO (9 : 1, v/v), overnight at room temperature
Synthesis of MSNAs
[60]fullerene has been shown to be a valuable precursor for MSNAs. Its reaction with bis(azidoalkyl) malonates via Bingel's cyclopropanation[54] offers a radially symmetric 12‐valent polyazide core (4) that can be conjugated with oligonucleotides using SPAAC to yield MSNAs.[11] The density of oligonucleotides on 4 has been shown to be sufficient to activate scavenger A receptors and facilitate cellular uptake to breast cancer cells (MCF7), and down regulation of human epidermal growth factor receptor 2 (HER2) in ovarian cell line (SKOV3).[11] Recently, we studied biodistribution properties of the [60]fullerene‐derived MSNAs in vivo,[15] and demonstrated their potential in vitro as antibody‐conjugated[12] and glyco‐coated drug delivery vehicles.[14] Bingel's cyclopropanation with heteroalkyl malonates offers heterofunctional [60]fullerene‐derived core units, which can be used for the synthesis miktoarm MSNAs.[13, 17, 18] These MSNAs have been applied as scaffolds for abiotic intracellular catalysts[17] and enzyme‐resistant nanoflares,[18] and as more sophisticated gene regulation agents.[18] Due to the encouraging previous results, 12‐valent polyazide core (4) was used for the synthesis of MSNAs in the present study (Scheme 2): 5′‐BCN‐modified 2′‐deoxy oligoribonucleotide ON9 and oligoribonucleotide ON10 were synthesized on a 1 μmol scale using an automatic DNA/RNA synthesizer and commercially available phosphoramidite building blocks. ON9 and ON10 were attached to azide‐modified [60]fullerene core 4 using SPAAC, following the procedure reported previously by our group.[16] Because of solubility issues, the C_60_ core (4) was first conjugated with a sub‐stoichiometric amount (0.3 equivalents) of ON9 or ON10 in a mixture of DMSO and water. Thereafter, the obtained intermediate product (Scheme S1, Figures S8 and S9, Table 1) was treated with an excess of the same oligonucleotide in aqueous solution and in high salt concentration. This two‐step process alleviated the solubility issues and produced more homogenous MSNAs in 23 % (MSNA1) and 14 % (MSNA2) overall isolated yields (over two steps), purified by RP HPLC (Figure S10). Homogeneity, authenticity and hydrodynamic size of the MSNAs were verified by polyacrylamide gel electrophoresis (PAGE), size exclusion chromatography equipped with a multi angle light scattering detector (SEC‐MALS) and dynamic light scattering (DLS), respectively (cf. Figure 2, Figure 3 and Table 2).

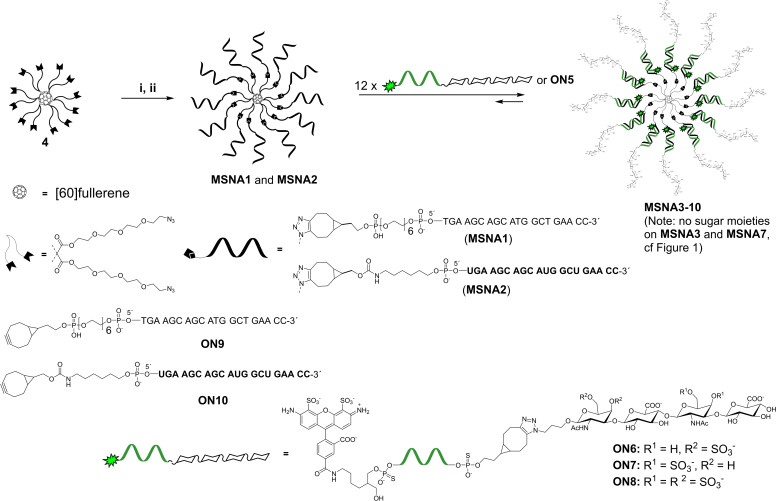

Synthesis and hybridization‐mediated assembly of MSNAs. Letters in bold represent ribonucleotides Conditions: i) ON9 or ON10 (0.3 equivalents/4), DMSO:H2O (9 : 1, v/v), overnight at room temperature; ii) ON9 or ON10 (1.2 or 1.5 equivalents / azide arm of 4), 1.5 M or 0.75 M NaCl (aq), 3 days at room temperature.
PAGE analysis of MSNAs. The ladder is only a reference and not suitable for determining the size of MSNAs. For conditions, see experimental section. (Note: With the given conditions, the excess oligonucleotide is eluted outside of the gel electropherogram)
SEC‐MALS analysis of MSNAs. For conditions, see experimental section
Hybridization with Complementary MSNA
The hybridization of the oligonucleotide conjugates ON5–8 with MSNA1 and MSNA2 was verified by UV thermal melting temperature analysis and PAGE. The melting temperature analysis was performed in 10 mmol L^−1^ sodium cacodylate buffer (pH 7.0) with 0.1 mol L^−1^ NaCl using 0.083 μmol L^−1^ the MSNA and 12 equivalents (1.0 μmol L^−1^) of the oligonucleotide. UV melting profiles of the oligonucleotide/MSNA1 complexes (MSNA3–6) showed inflection points at 63–64 °C and of the oligonucleotide/MSNA2 complexes (MSNA7–10) at 73–74 °C. The heteroduplexes on the RNA carrier (MSNA2) were ca Δ*T_m_ =10 °C more stable than the heteroduplexes on the DNA‐carrier (MSNA1). In each case the melting temperatures were high enough to convince the stability of the complexes at physiological temperature (Table 1). The impact of the CS moiety on the thermal stability of the oligonucleotide/MSNA complexes was marginal (|ΔT_m_ *|≤0.7 °C), as seen by comparing the melting temperatures of MSNA4–6 (T m=63.3–63.7 °C) and MSNA8–10 (T m=73.0–73.6 °C) to those of MSNA3 (T m=63.7 °C) and MSNA7 (T m=73.5 °C), respectively.

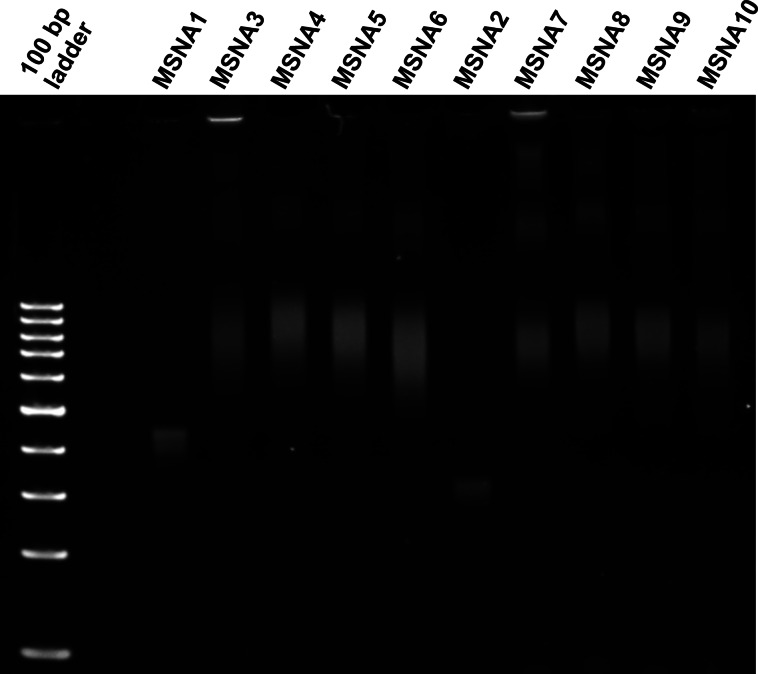

PAGE also confirmed the hybridization (Figure 2). To allow the hybridization, the samples were prepared in phosphate‐buffered saline (PBS), pH 7.4, before loading on the gel. MSNA1 and MSNA2 alone showed a distinct and relatively sharp band on gel. In both cases, a faster eluting byproduct, most probably an 11‐armed MSNA,[16] was also detected. Nevertheless, MSNA1 and MSNA2 proved relatively pure after single RP‐HPLC purification (Figure S9). Hybridization of the MSNAs with ON5–8 gave rise to a slower eluting and broad band on the gel, referring to formation of hybridization complexes MSNA3–10. Some even slower moving bands, likely caused by aggregation, were also observed. The bands of the hybridization complexes remained unchanged even if higher excess of oligonucleotides were used for the hybridization. A slight contribution of the CS decoration to the elution of the complexes could be seen.

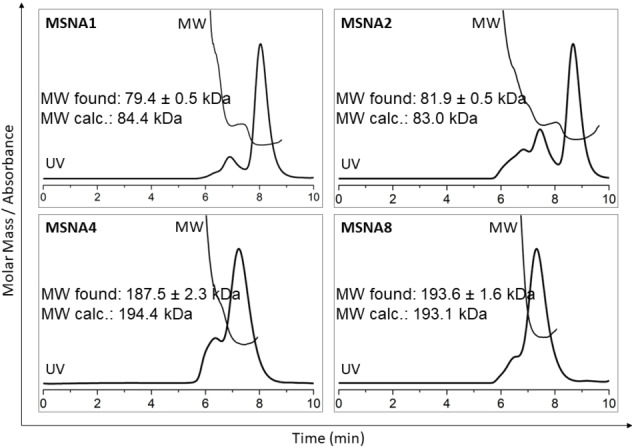

Further characterization of MSNAs was performed by SEC‐MALS and DLS. Representative SEC‐MALS profiles (MSNA1, MSNA2 and MSNA4 and MSNA8) are shown in Figure 3. Each chromatogram shows a faster eluting peak, which refers to partial aggregation of the MSNAs that was also observed on PAGE (slower eluting bands). Molecular weights (MW) of the MSNAs, extracted from MALS of the major fraction matched well with the calculated ones, including also masses for the hybridization complexes (an average refractive index increment, dn/dc of 0.1703 mL g^−1^ used). In fact, the MALS‐based molecular weight was more accurate for the hybridization complexes than for the carrier MSNAs: MSNA1: MW_found_ 79.4±0.5 kDa (MW_calcd_ 84.4 kDa), MSNA2: MW_found_ 81.9±0.5 kDa (MW_calcd_ 83.0 kDa), MSNA4: MW_found_ 187.5±2.3 kDa (MW_calcd_ 194.4 kDa), MSNA8: MW_found_ 193.6±1.6 kDa (MW_calcd_ 193.1 kDa). As seen, the difference between the observed and calculated molecular weights was less than the mass of a single oligonucleotide, verifying complete decoration and hybridization of the MSNAs. For the DLS measurements, samples were prepared in PBS (pH 7.4) and hydrodynamic size of the MSNAs was determined. For the carriers: MSNA1 and MSNA2, hydrodynamic size of 7.8 and 7.0 nm were observed. As expected, the hybridization with ON5–8 increased the size. For MSNA3–6: 12.4–13.2 nm and for MSNA7–10: 12.2–12.9 nm were observed.
Cellular Uptake and Intracellular Activity of the MSNAs
Hippocampal neurons were prepared from rats and incubated for 10 days in culture with 120 nM solutions of anti‐Tau‐oligonucleotides (ON5–ON8) and 10 nM solutions of the corresponding MSNA‐heteroduplexes (MSNA3–10). Thus, the effective Tau‐ASO concentration in the experiments was the same (i. e. 120 nM). The obtained uptake data (Figure 4C) is comparable between the oligonucleotide conjugates (ON5–ON8) and between the hybridization complexes, i. e. MSNA3–6 and MSNA7–10, but comparison between the conjugates and MSNAs can be confounded by different dissociation/degradation rates and fluorescence quenching on the MSNAs. The signal intensity refers to intact molecules, in which fluorescence quenching (Figure S11) on MSNAs has been considered. By examining the oligonucleotides (ON5–ON8) themselves, it could be seen that the CS moiety and its sulfation pattern had impact on the uptake. The CS‐tetrasaccharide with R^1^=H and R^2^=SO_3_ ^−^ (ON6, cf. Scheme 1) increased the uptake, whereas the other two CS variants (ON7 and ON8, cf. Scheme 1) decreased the uptake, compared to ON5. The deep understanding how different CS structures affect the uptake needs further studies. However, the sulfate groups more on the outer sphere (ON7 and ON8 vs ON6) seemed to have a negative effect on the uptake, which may suggest to shift the interest more towards hyaluronic‐like structures (i. e. non‐sulfated glycans). The DNA‐MSNA‐carrier increased the uptake (MSNA3), whereas the uptake by RNA‐MSNA carrier (MSNA7) remained at a similar level compared to ON5. However, the aforementioned difference between the concentrations (10 nM vs. 120 nM) of the complexes and of the oligonucleotides, as well as the potential interference in fluorescence intensity, should be considered in this evaluation. While the CS‐conjugate group could show some beneficial effect on the uptake of oligonucleotides (ON6 vs ON5), similar effect could not be found on CS‐coated MSNAs (MSNA4–6 and MSNA8–10). However, the uptakes of CS‐decorated MSNA4–6 followed the same trend as observed with Tau‐ASO‐conjugates ON6‐ON8. The effect of CS‐decoration on the uptake remained modest, considering previous findings with neurons and CS‐coated gold nanoparticles,[44] but may still encourage evaluation of other CS structures as decorates of MSNAs. The CS decoration studied in the present study probably interferes the scavenger receptor A‐mediated cellular uptake of the MSNAs, which cannot be compensated by beneficial CS‐ligand‐driven effect on the uptake, if any with hippocampal neurons (cf. ON6 vs. ON5). After the uptake experiments, the treated neurons were lyzed and introduced to Western blot assay. Total Tau level was compared to actine and normalized to untreated cells (Figures 4D and E). A marked Tau suppression could be observed in cells treated with ON5, MSNA3 (i. e. ON5 on the DNA‐MSNA carrier) and MSNA7 (i. e. ON5 on the RNA‐MSNA carrier). While the most effective Tau‐suppression could be observed with MSNA7, no clear influence caused by the chemistry of MSNAs (i. e. “DNA vs RNA carrier”) was observed. These results are positive and may encourage for further studies evaluating the concept of heteroduplex ASOs[33, 34] on MSNAs. The CS conjugate group on ON6–8 (and CS‐decoration on MSNA4–6 and MSNA8–10) interfered with Tau suppression. This was somewhat expected within these heavily‐modified demo Tau‐ASO‐sequences, the primary goal of which was to evaluate the impact of CS‐decoration on the cellular uptake of MSNAs. Modifications at both terminus of the ASO are likely to interfere RNase‐H‐mediated cleavage of the mRNA target.

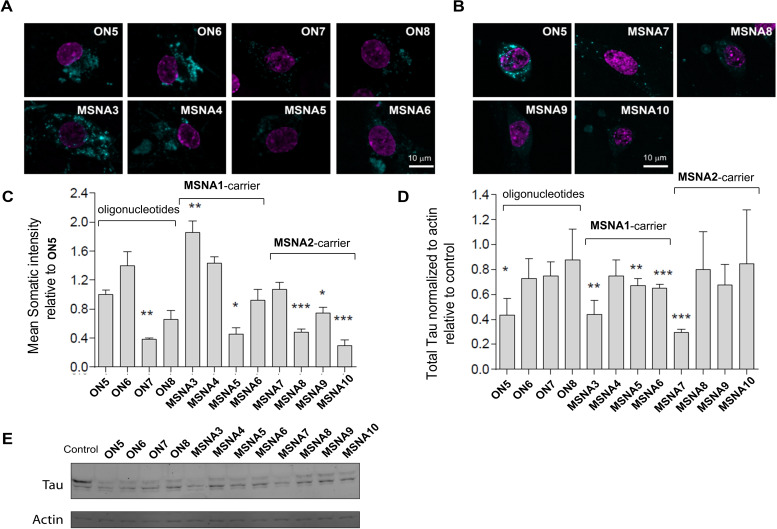

*Uptake of ON5–8 and MSNA3–10 in neurons. A–B) Maximum intensity projections of five Z‐sections of 0.4 μm each through nuclei of hippocampal neurons treated at 7 days in culture with 120 nM ON5–8 and 10 nM MSNA3–10 for 10 days are shown (the effective ASO concentration of 120 nM in each case). Signal for the conjugates is shown in cyan while nuclei are highlighted in magenta. Scale=10 μm. C) Mean somatic intensity of AF488 signal relative to ON5 from 3–6 cells +/− S.E.M for each conjugate is shown. The signal intensity refers to intact molecules (fluorescence quenching on MSNAs considered). D) Total Tau levels relative to actin and normalized to untreated cells analyzed by western blotting of Hippocampal neurons treated with indicated ASO conjugates and MSNAs as in A–B. Mean data +/− S.E.M from 3 repeats is shown. Significance was determined using Student's t‐test. *p<0.05; **p<0.01; **p<0.001. (E) Representative images for treatment in D are shown.
