Application of a human lectin array to rapid in vitro screening of sugar-based epitopes that can be used as targeting tags for therapeutics

TL;DR

This paper introduces a human lectin array to quickly test sugar-based molecules that can target specific cells for drug delivery.

Contribution

The novel use of a human lectin array for rapid in vitro screening of sugar-based targeting ligands is presented.

Findings

A human lectin array was validated for identifying selective oligosaccharide ligands for cell targeting.

Potential ligands for vascular endothelial cells, sinusoidal endothelial cells, and plasmacytoid dendritic cells were identified.

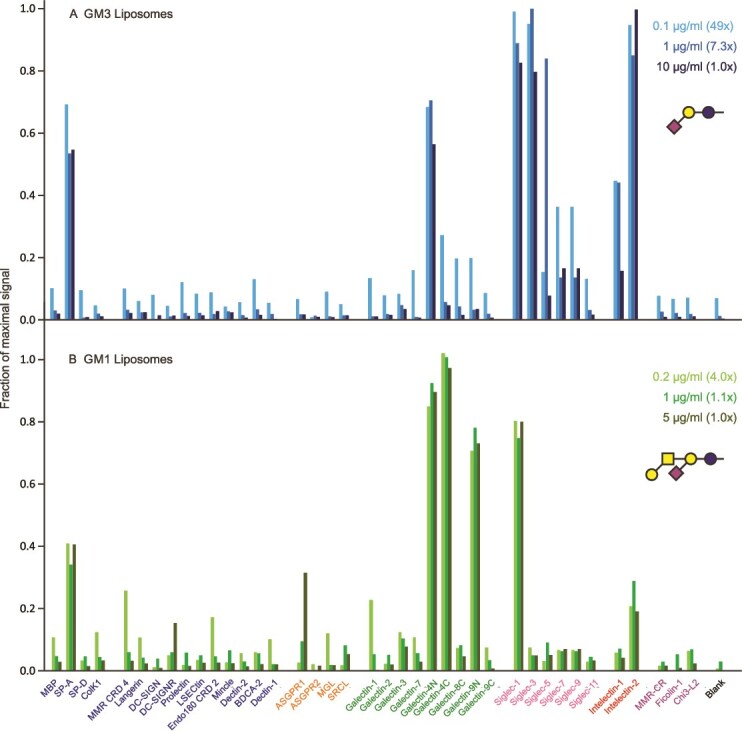

The method can assess the selectivity of glycolipid-containing liposomes for targeted delivery.

Abstract

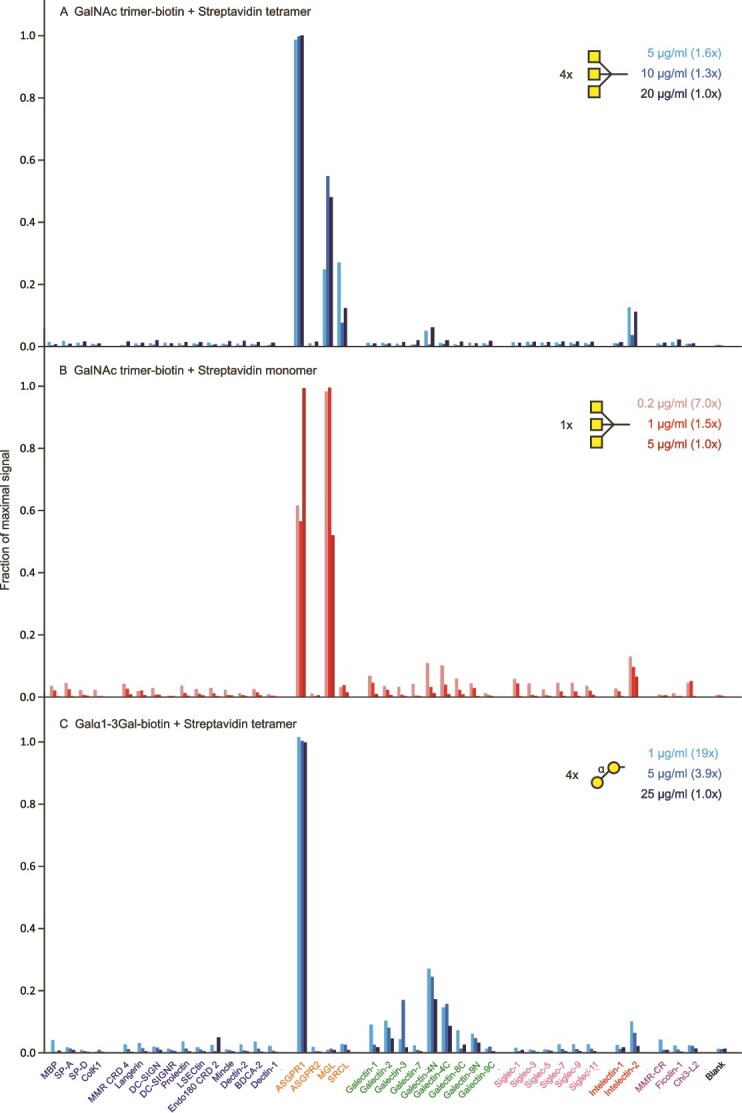

An increasing number of clinical applications employ oligosaccharides as tags to direct therapeutic proteins and RNA molecules to specific target cells. Current applications are focused on endocytic receptors that result in cellular uptake, but additional applications of sugar-based targeting in signaling and protein degradation are emerging. These approaches all require development of ligands that bind selectively to specific sugar-binding receptors, known as lectins. In the work reported here, a human lectin array has been employed as a predictor of targeting selectivity of different oligosaccharide ligands and as a rapid in vitro screen to identify candidate targeting ligands. The approach has been validated with existing targeting ligands, such as a synthetic glycomimetic GalNAc cluster ligand that targets siRNA molecules to hepatocytes through the asialoglycoprotein receptor. Additional small oligosaccharides that could selectively target other classes of cells have also been identified and the potential of larger glycans derived from glycoproteins has been investigated. In initial screens, potential ligands for targeting either vascular or sinusoidal endothelial cells and plasmacytoid dendritic cells have been identified. Lectin array screening has also been used to characterize the selectivity of glycolipid-containing liposomes that are used as carriers for targeted delivery. The availability of a rapid in vitro screening approach to characterizing natural oligosaccharides and glycomimetic compounds has the potential to facilitate selection of appropriate targeting tags before undertaking more complex in vivo studies such as measuring clearance in animals.
