Anti-Interference Spectral Confocal Sensors Based on Line Spot
Bo Wang, Jiafu Li, Mingzhe Luo, Fengshuang Liang, Jiacheng Hu
TL;DR
This paper introduces a new line-spot-based spectral confocal sensor that improves measurement stability and accuracy for applications like battery wafer thickness and surface topography.
Contribution
A novel line-spot-based spectral confocal sensor design using a binary diffractive lens and cylindrical lens is proposed and validated.
Findings
The proposed sensor achieves a measurement range of 800 μm with a line spot length of 3.8 mm and width of 0.2 mm.
Calibrated with a nanometer displacement stage, it reaches 30 nm resolution and 0.013 μm standard deviation in stability.
The sensor shows significantly better dynamic stability than traditional point spectral confocal sensors.
Abstract
Spectral confocal displacement sensors are non-contact optoelectronic sensors widely utilized for their high accuracy, speed, and ability to measure diverse surfaces. However, challenges including vibration, angular deflection, and surface quality variations can reduce sensor stability and accuracy when performing measurements such as lithium battery wafer thickness, wafer warpage, and optical component surface topography. This study proposes a line-spot-based measurement method using a binary diffractive lens and cylindrical lens with a 20× objective, and then the overall structure is simulated and optimized by using ZEMAX, which realizes a confocal measurement system with a measurement range of 800 μm, line spot length of 3.8 mm, and width of 0.2 mm. The system, calibrated with a nanometer displacement stage, achieved 30 nm resolution and significantly improved dynamic stability…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

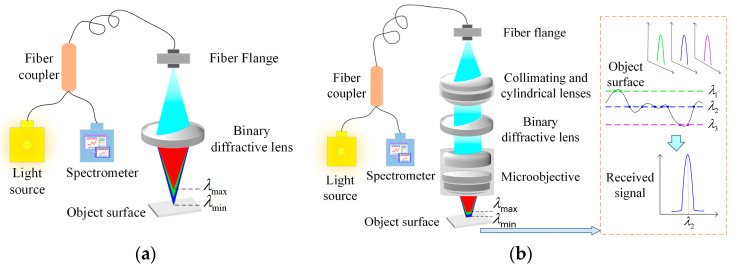

Figure 1

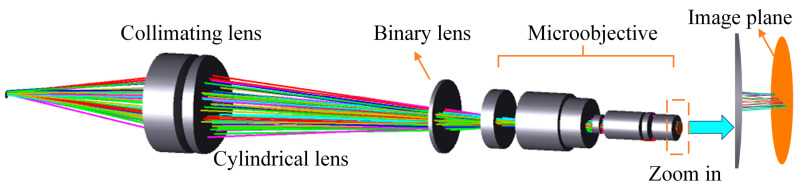

Figure 2

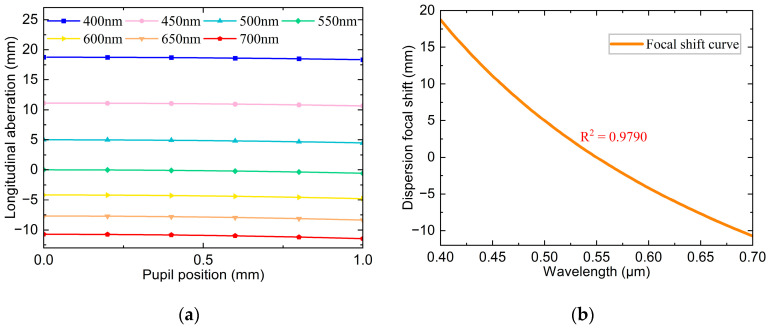

Figure 3

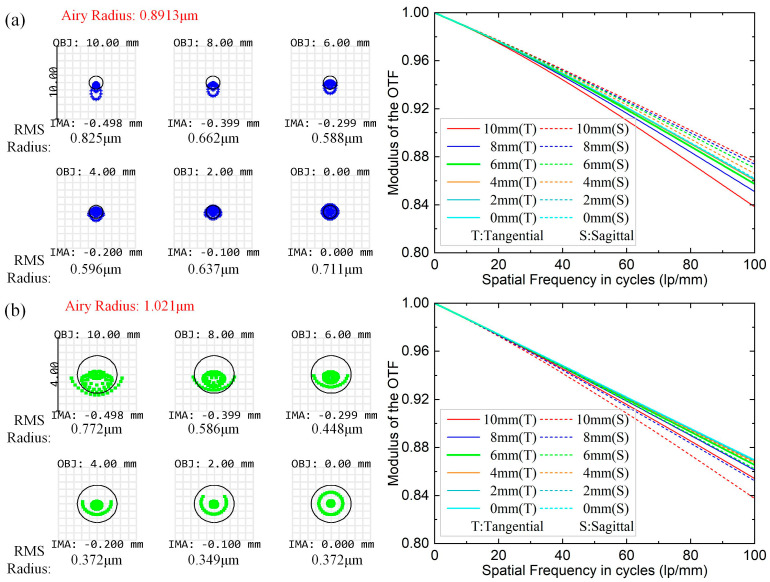

Figure 4

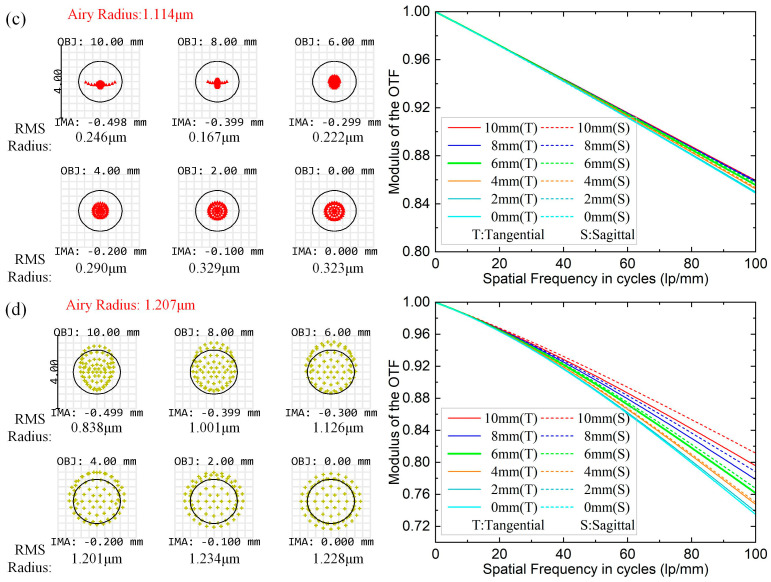

Figure 5

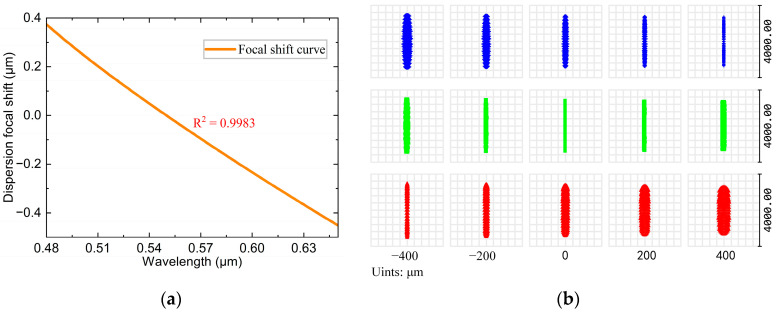

Figure 6

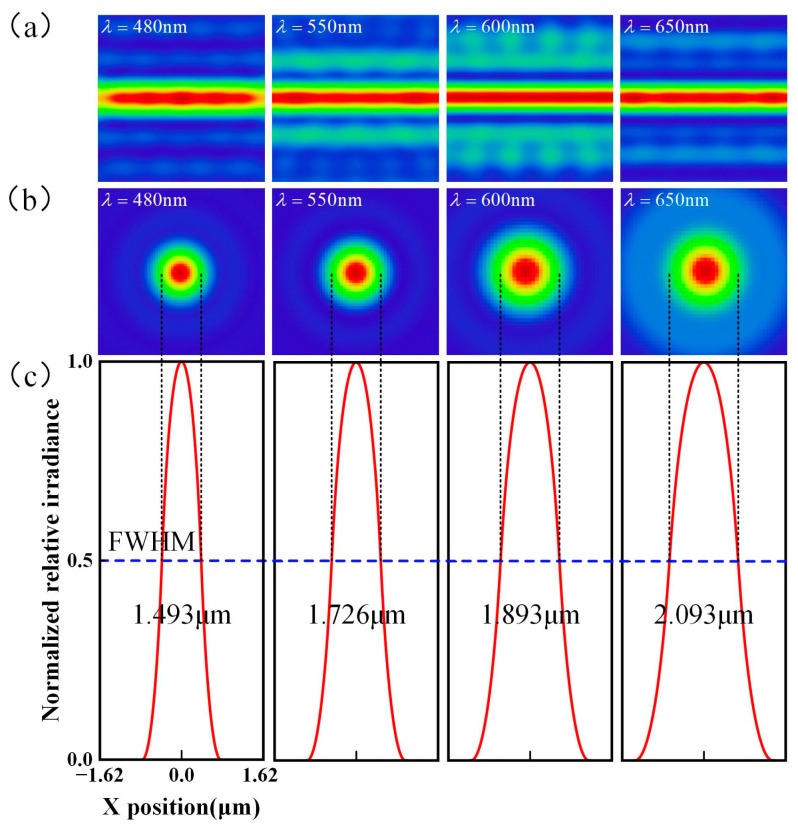

Figure 7

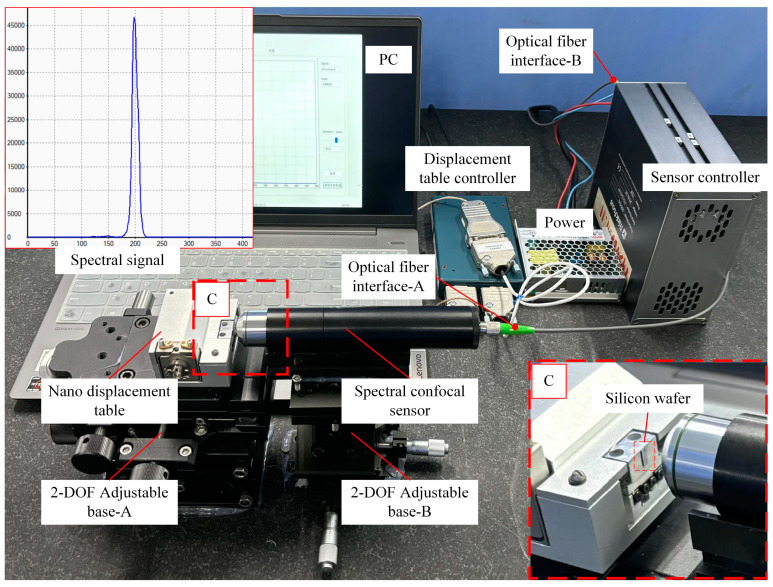

Figure 8

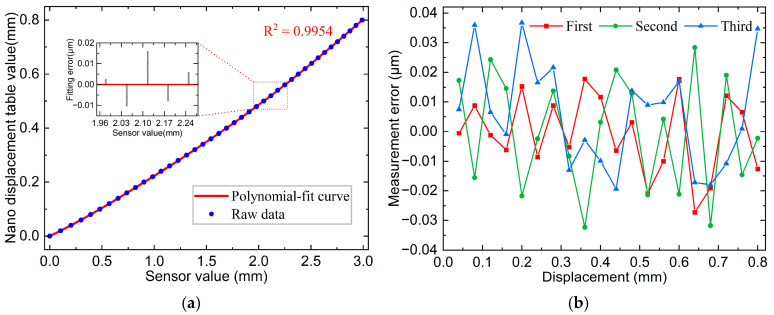

Figure 9

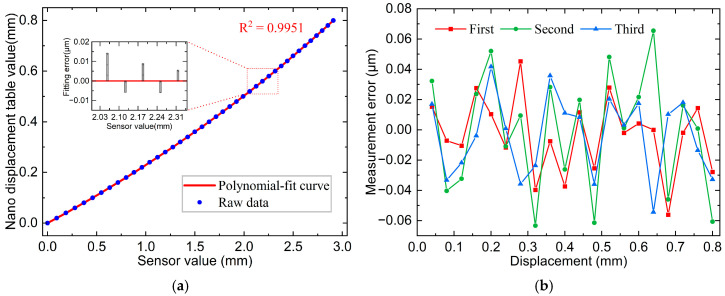

Figure 10

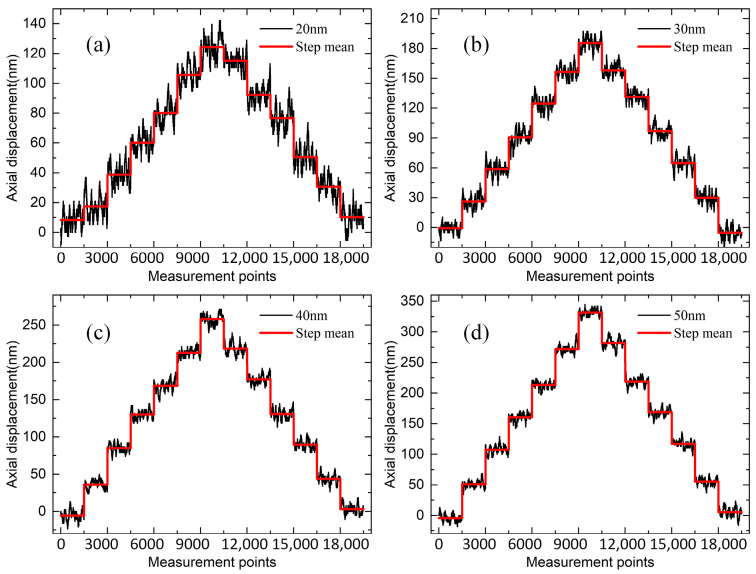

Figure 11

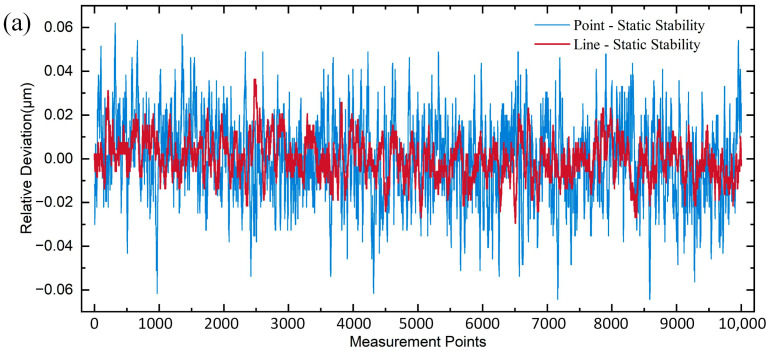

Figure 12

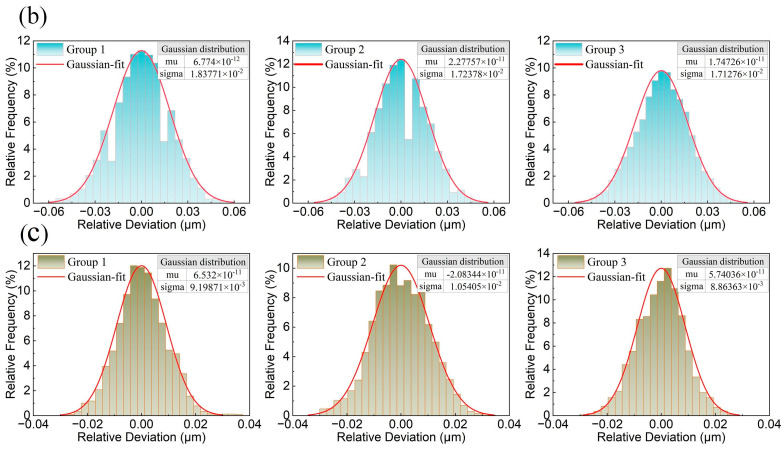

Figure 13

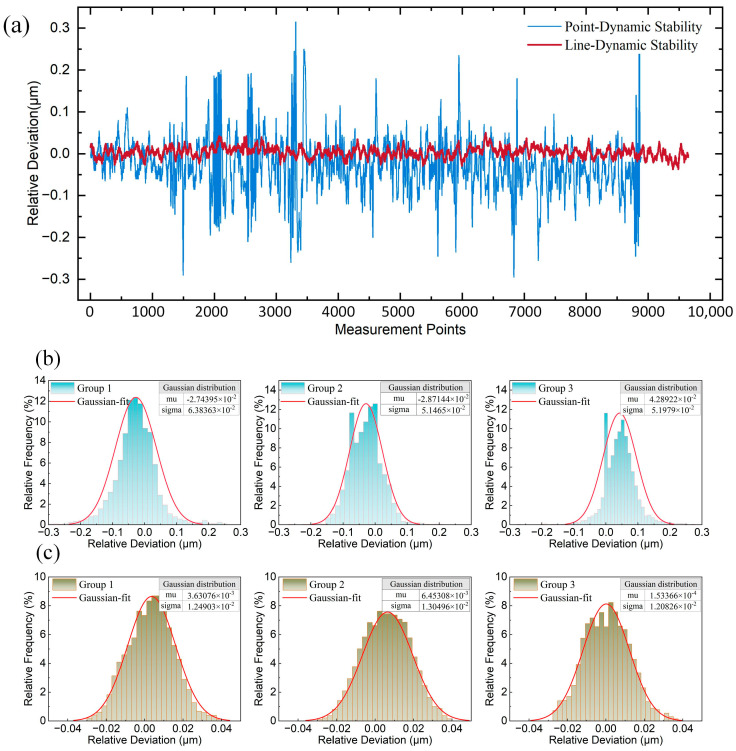

Figure 14

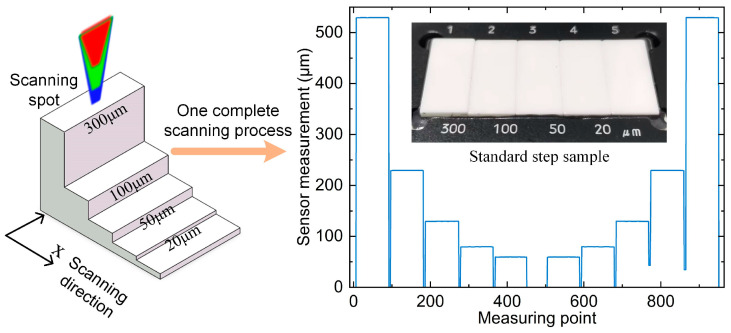

Figure 15

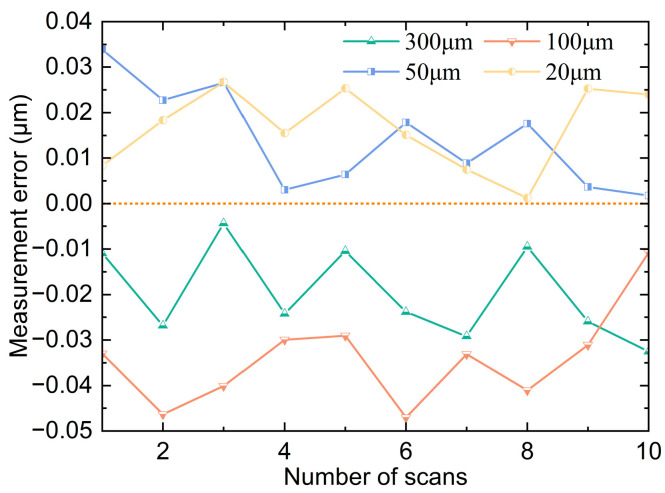

Figure 16Peer Reviews
