An NDT Method for Measuring the Diameter and Embedment Depth of the Main Rebar in Cement Poles Based on Rotating Permanent Magnet Excitation
Hejia Wang, Lan Xiong, Zhanlong Zhang, Zhenyou Liu, Hanyu Yang, Hao Wu
TL;DR
A new non-destructive method using rotating magnets improves accuracy in measuring rebar in cement poles.
Contribution
Proposes a magnetic rotation-based detection method with CNN-LSTM for rebar diameter and depth measurement.
Findings

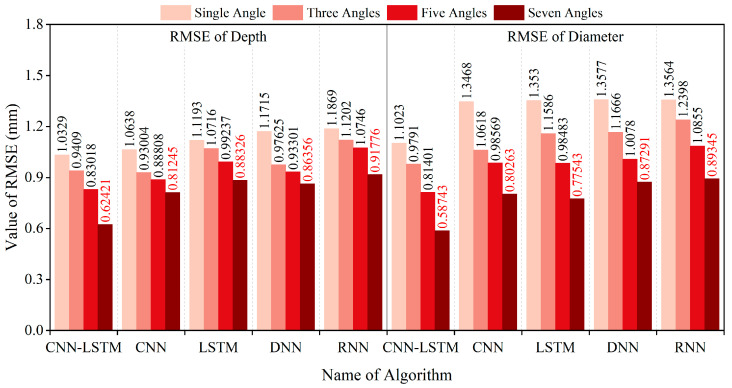

The method reduced RMSE by 46.71% for rebar diameter measurements.
The method reduced RMSE by 35.57% for rebar embedment depth measurements.
Abstract

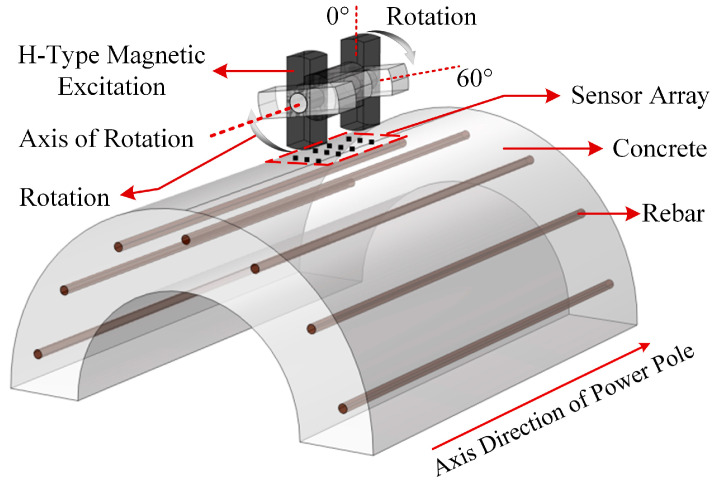

Cement poles serve as supporting components for transmission lines and are widely used in medium- and low-voltage transmission networks. The main rebar is the primary load-bearing structure of the pole, and the accurate measurement of its diameter and embedment depth is crucial for quality control and safety assessment. However, existing non-destructive testing methods lack the accuracy of quantifying the internal main rebar of cement poles, and the measurement process is complex, cumbersome, and inefficient. To address this issue, this paper proposes a magnetic rotation-based detection method for measuring the diameter and embedment depth of the main rebar within cement poles. A specially designed H-type magnetic excitation structure is proposed, coupled with a detection technique utilizing rotating permanent magnets. The magnetic induction intensity data were acquired at seven…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

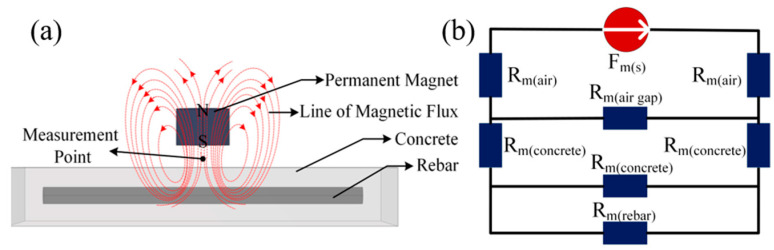

Figure 1

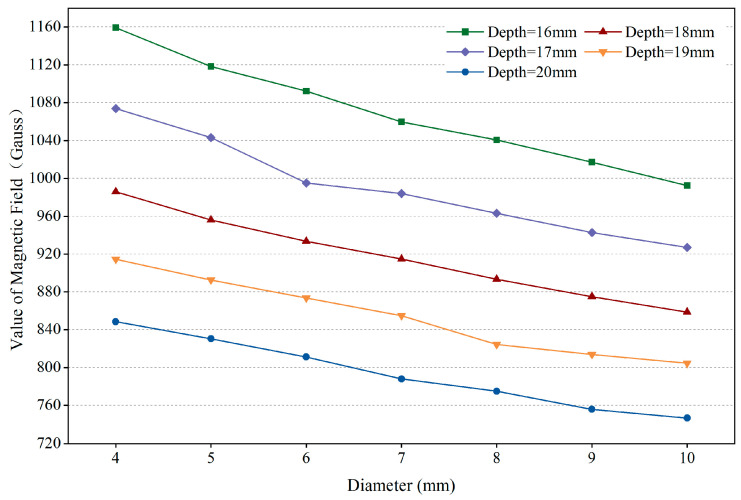

Figure 2
Figure 3

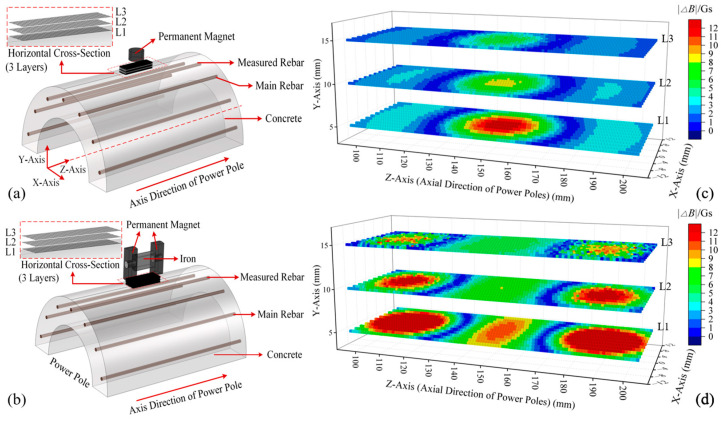

Figure 4

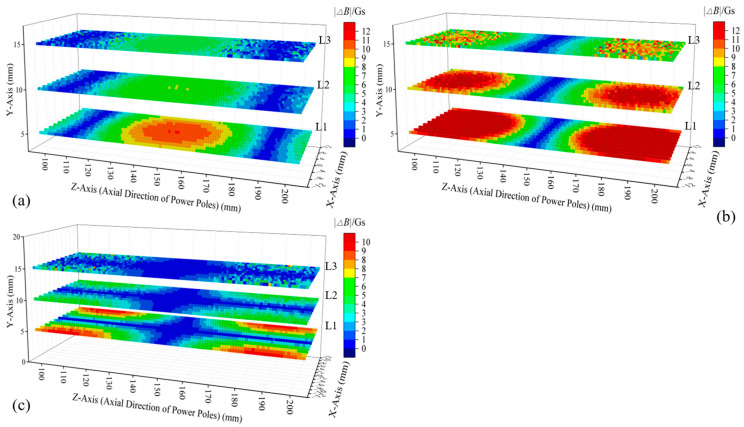

Figure 5
Figure 6

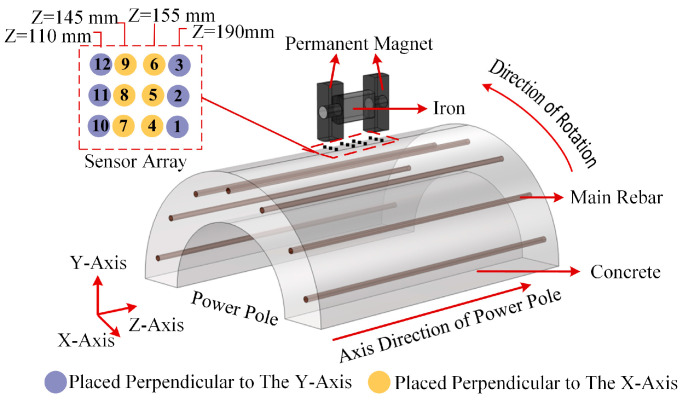

Figure 7

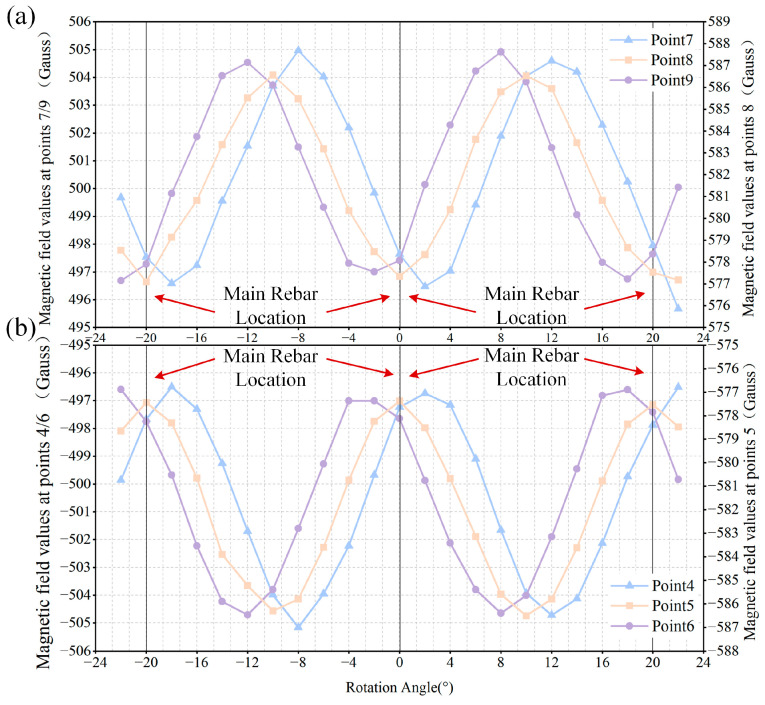

Figure 8
Figure 9

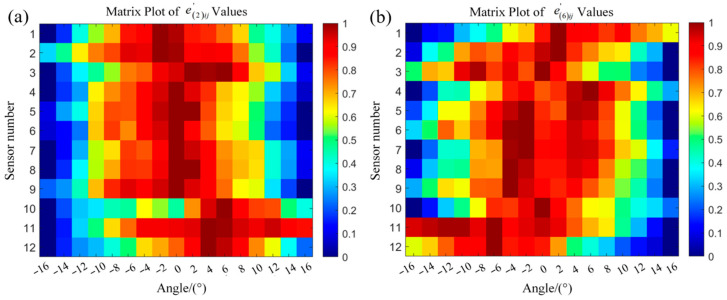

Figure 10

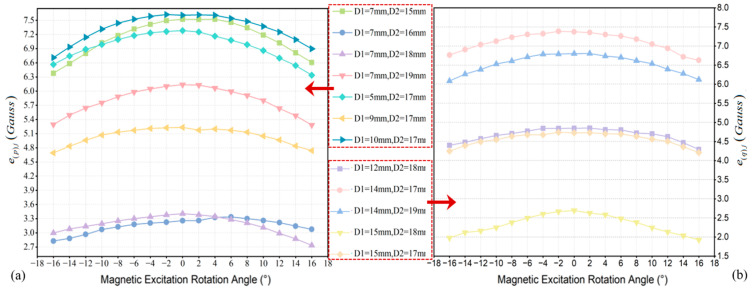

Figure 11
Figure 12

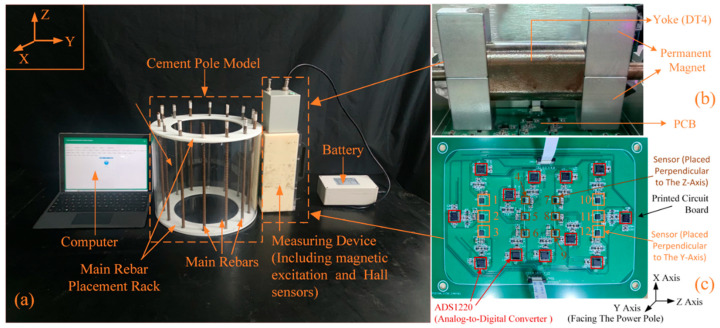

Figure 13
Figure 14
Figure 15
Figure 16

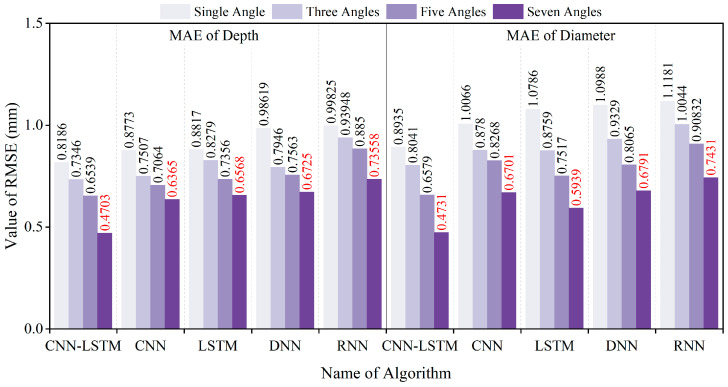

Figure 17

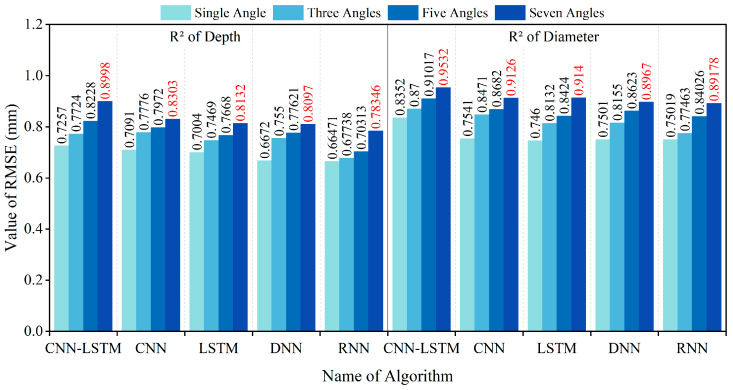

Figure 18
Figure 19Peer Reviews
