Experimental Study on Monitoring Equipment for the Scouring and Sedimentation of Wharf Bank Slopes Based on Heat Transfer Principles

TL;DR

This study introduces a new device using fiber optic sensing to monitor wharf bank slope scouring and sedimentation in real time with high precision.

Contribution

The novel device uses heat transfer principles and fiber optic sensing for dynamic monitoring of scouring and sedimentation.

Findings

Optimal performance was achieved with a 20-minute heating duration.

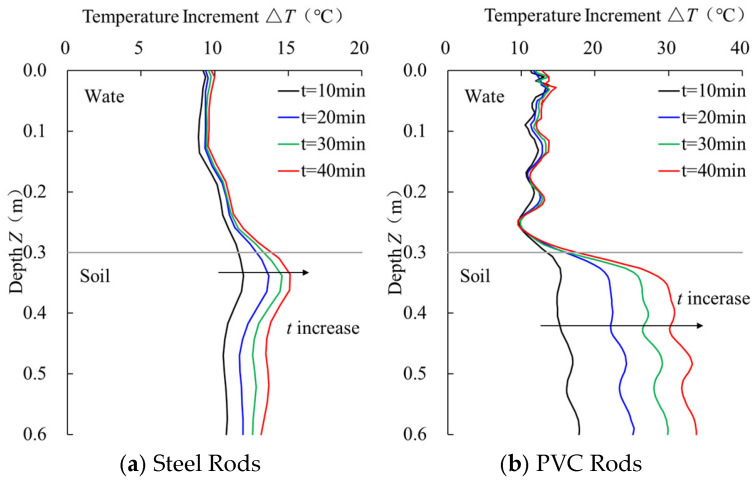

PVC sensors showed higher sensitivity, while steel sensors provided greater stability.

Abstract

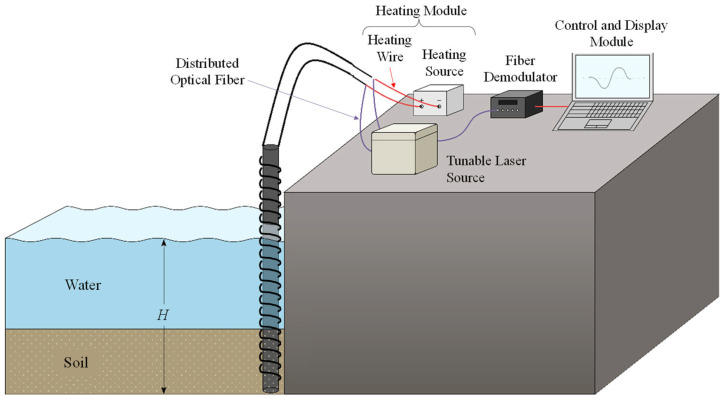

The scouring and sedimentation of wharf bank slopes significantly impact port safety and efficiency. To overcome the limitations of existing monitoring technologies in real-time capability, adaptability, and precision, this study introduces an innovative device based on distributed fiber optic sensing technology. By analyzing changes in the temperature gradient at the water–soil interface, the device enables dynamic monitoring of the results of scouring and sedimentation processes. It employs a modular design, integrating a linear heat source with fiber optic temperature sensing to capture high-resolution changes. Laboratory experiments evaluated variables such as heating duration, pipe material, pipe diameter, and fiber winding pitch. Results show optimal performance with a 20-min heating duration, with PVC sensors offering higher sensitivity and steel sensors providing greater stability. This study presents a high-precision, real-time solution for monitoring wharf bank slopes, offering insights for equipment optimization and engineering applications.
