Application Research on High-Precision Tiltmeter with Rapid Deployment Capability
Fuxi Yang, Dongxiao Guan, Xiaodong Li, Chen Dou

TL;DR
A new high-precision tiltmeter is introduced that can be rapidly deployed for efficient and reliable geophysical observations.
Contribution
The novel tiltmeter design enables rapid deployment and robust performance in field conditions.
Findings
The tiltmeter can withstand a 2 m free fall impact when locked and packaged.
It enables quick deployment without requiring professional technicians.
The device is suitable for emergency response and mobile geophysical observations.
Abstract

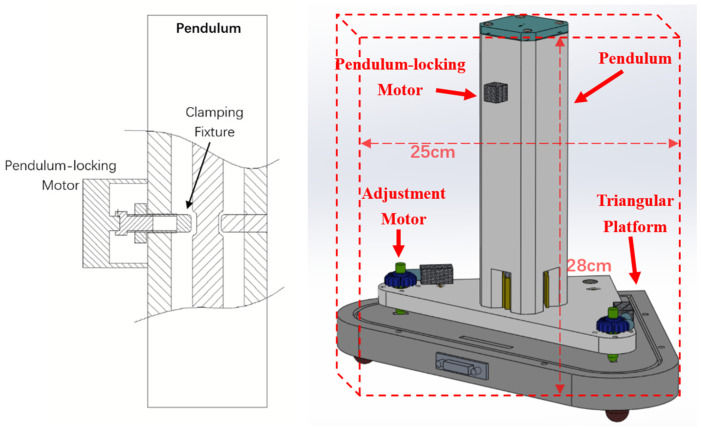

This article introduces a high-precision vertical pendulum tiltmeter with rapid deployment capability to improve the observation efficiency, practicality, and reliability of geophysical site tilt observation instruments. The system consists of a pendulum body, a triangular platform, a locking pendulum motor, a sealed cover, a ratio measurement bridge, a high-precision ADC, and an embedded data acquisition unit. The sensing unit adopts a vertical pendulum system suspended by a cross spring and a differential capacitance bridge measurement circuit, which can simultaneously measure two orthogonal directions of ground tilt. The pendulum is installed on a short baseline triangular platform, sealed as a whole with the platform, and equipped with a locking pendulum motor. When the pendulum is locked and packaged, it can withstand a 2 m free fall impact, with high reliability and easy use. It…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

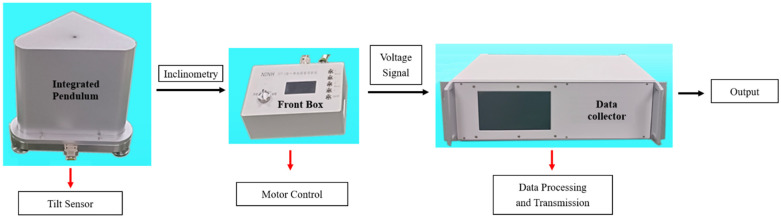

Figure 1
Figure 2

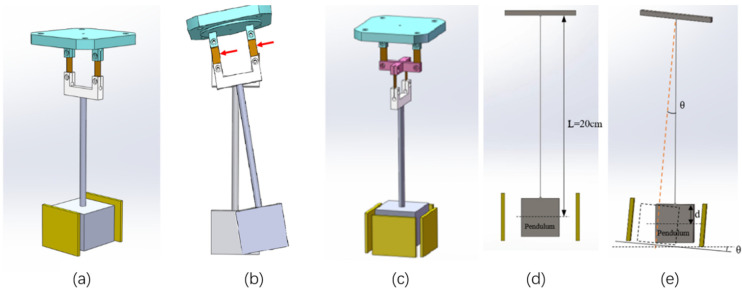

Figure 3

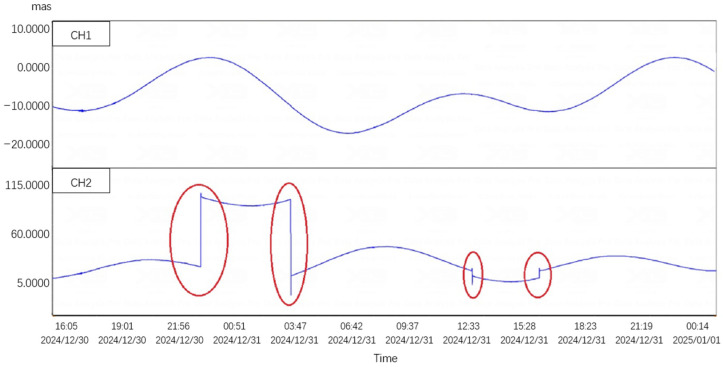

Figure 4
Figure 5

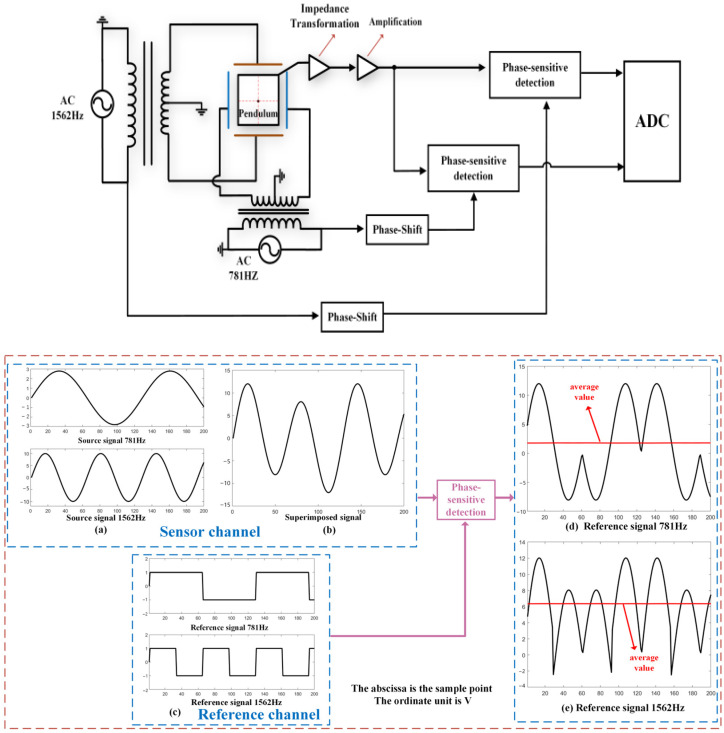

Figure 6
Figure 7

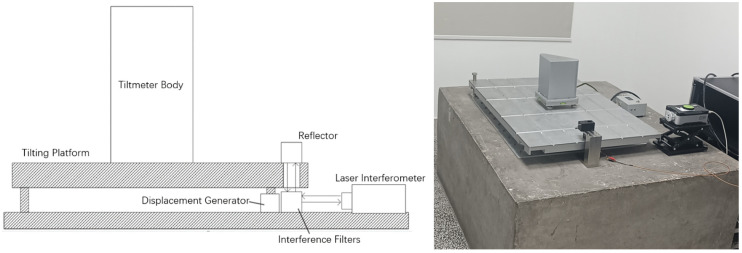

Figure 8

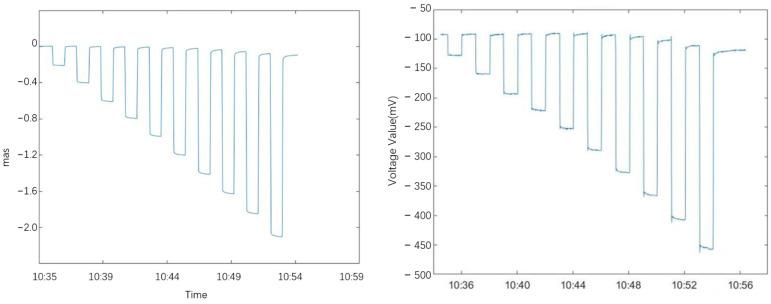

Figure 9
Figure 10
Figure 11
Figure 12

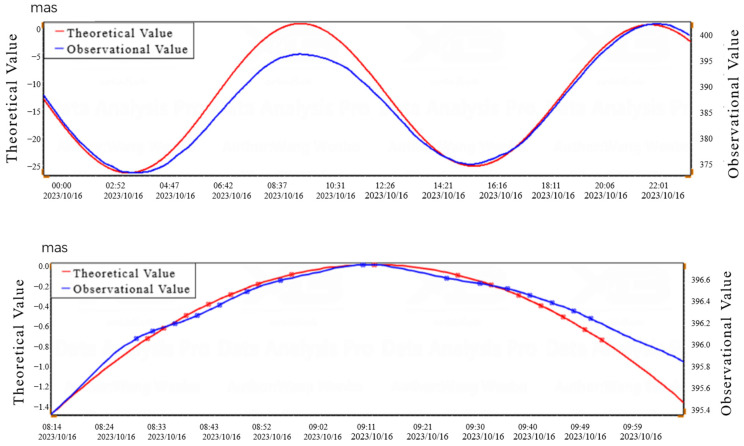

Figure 13

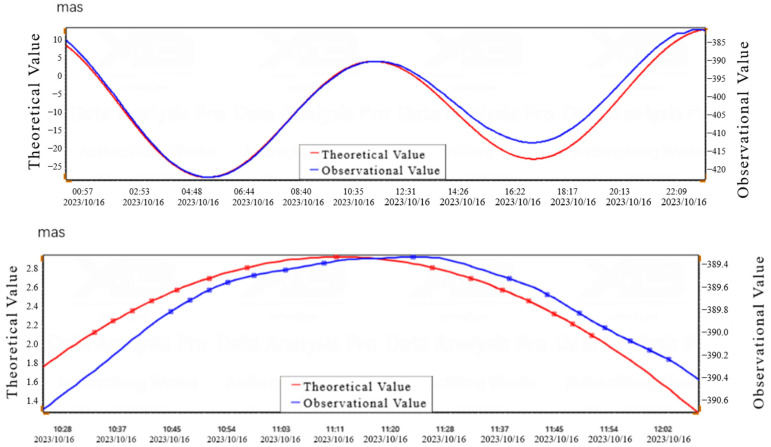

Figure 14Peer Reviews
