DQRNet: Dynamic Quality Refinement Network for 3D Reconstruction from a Single Depth View

TL;DR

DQRNet is a new method that improves 3D reconstruction from a single depth view by capturing detailed shapes more accurately.

Contribution

The novel DQRNet introduces a dynamic encoder–decoder and detail quality refiner for enhanced 3D shape reconstruction.

Findings

DQRNet captures details at boundaries and key areas better than existing methods.

The network achieves higher accuracy and robustness on the ShapeNet dataset.

Abstract

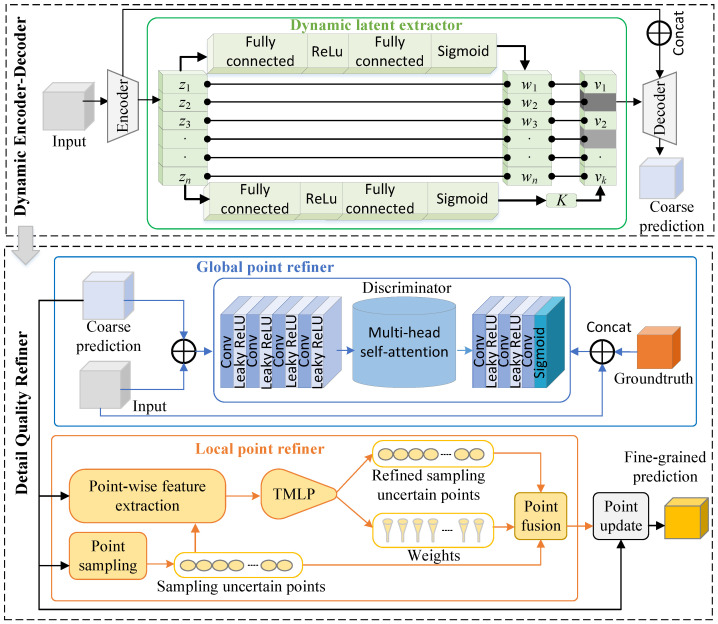

With the widespread adoption of 3D scanning technology, depth view-driven 3D reconstruction has become crucial for applications such as SLAM, virtual reality, and autonomous vehicles. However, due to the effects of self-occlusion and environmental occlusion, obtaining complete and error-free 3D shapes directly from 3D scans remains challenging, as previous reconstruction methods tend to lose details. To this end, we propose Dynamic Quality Refinement Network (DQRNet) for reconstructing complete and accurate 3D shape from a single depth view. DQRNet introduces a dynamic encoder–decoder and a detail quality refiner to generate high-resolution 3D shapes, where the former designs a dynamic latent extractor to adaptively select important parts of an object and the latter designs global and local point refiners to enhance the reconstruction quality. Experimental results show that DQRNet is able to focus on capturing the details at boundaries and key areas on ShapeNet dataset, thereby achieving better accuracy and robustness than SOTA methods.

Figures
