Novel Robotic Balloon-Based Device for Wrist-Extension Therapy of Hemiparesis Stroke Patients

TL;DR

A new robotic balloon device called Balonikotron helps stroke patients improve wrist extension and upper limb function through targeted rehabilitation.

Contribution

The novel Balonikotron device combines a balloon mechanism with a tablet-based application for real-time feedback in post-stroke rehabilitation.

Findings

The device significantly improved functional independence and self-care abilities as measured by the Barthel Index.

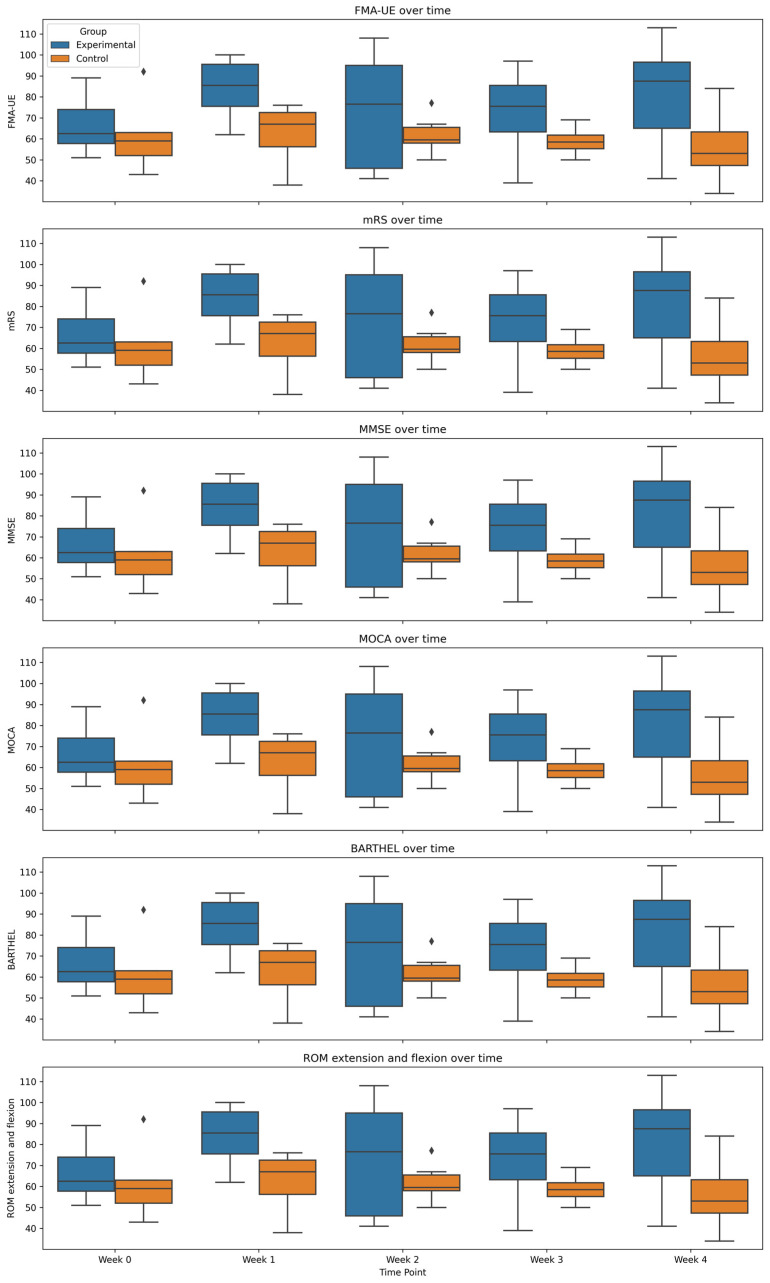

The Fugl–Meyer Assessment for the Upper Extremity showed statistically significant improvements in experimental users.

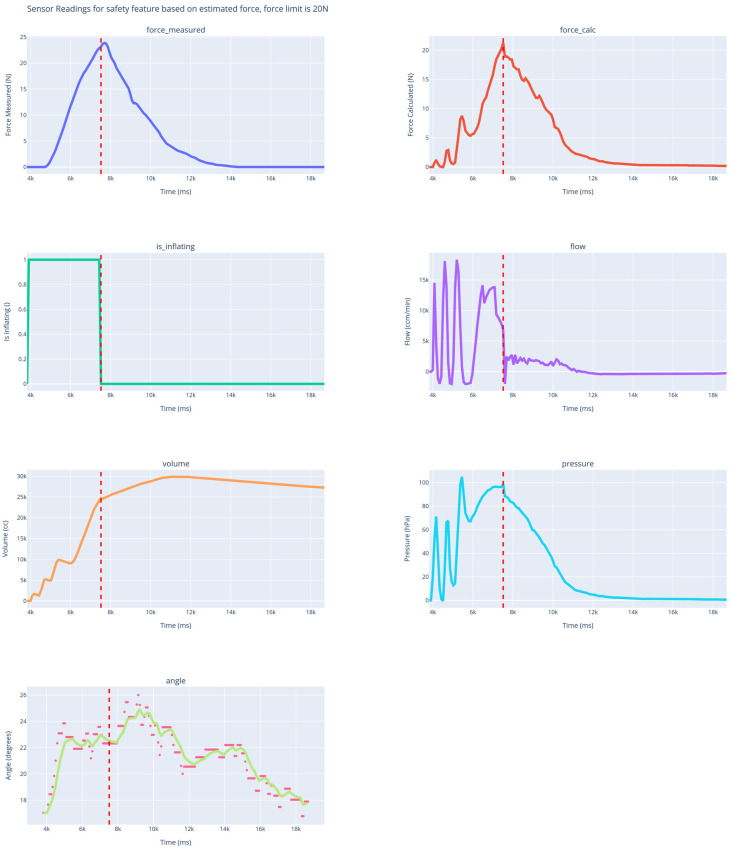

The device's model accurately predicted forces with a Pearson correlation of 0.936, enabling real-time safety monitoring.

Abstract

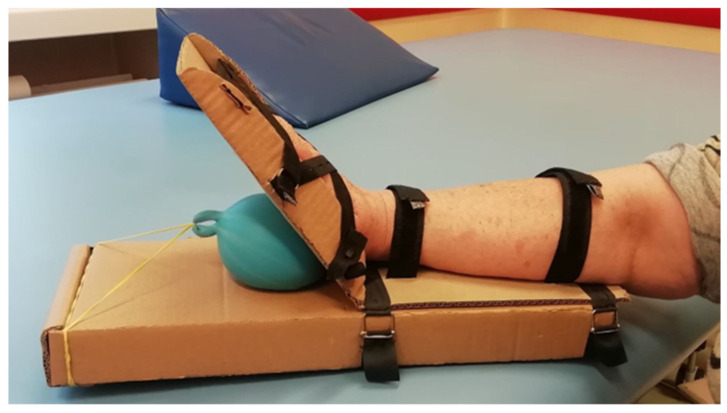

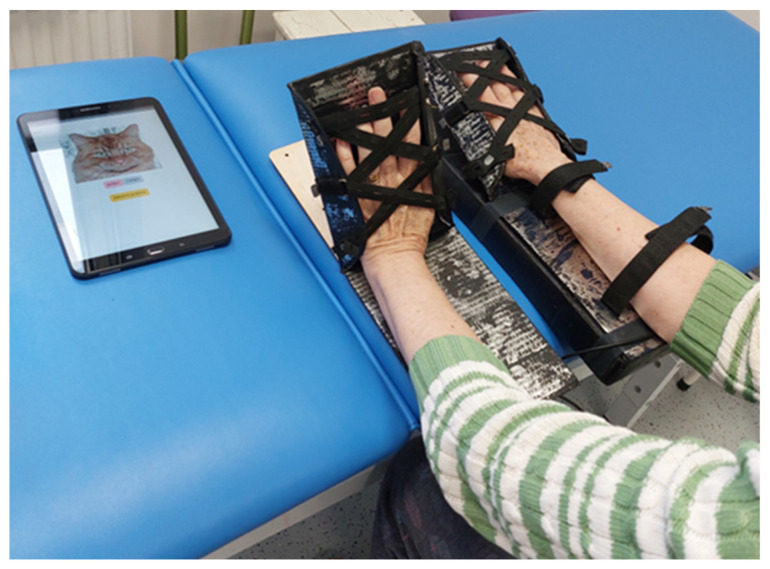

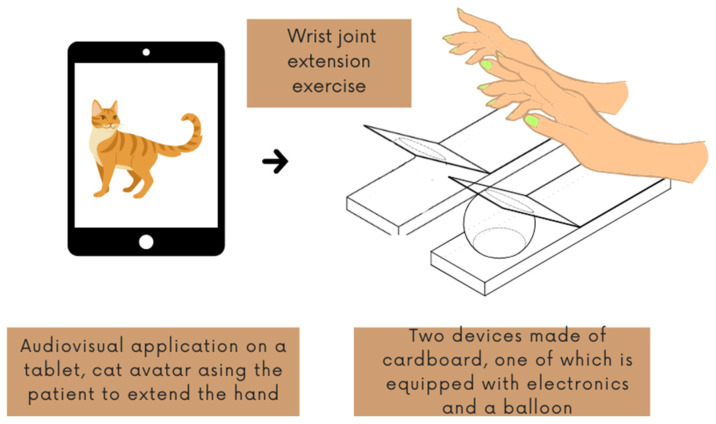

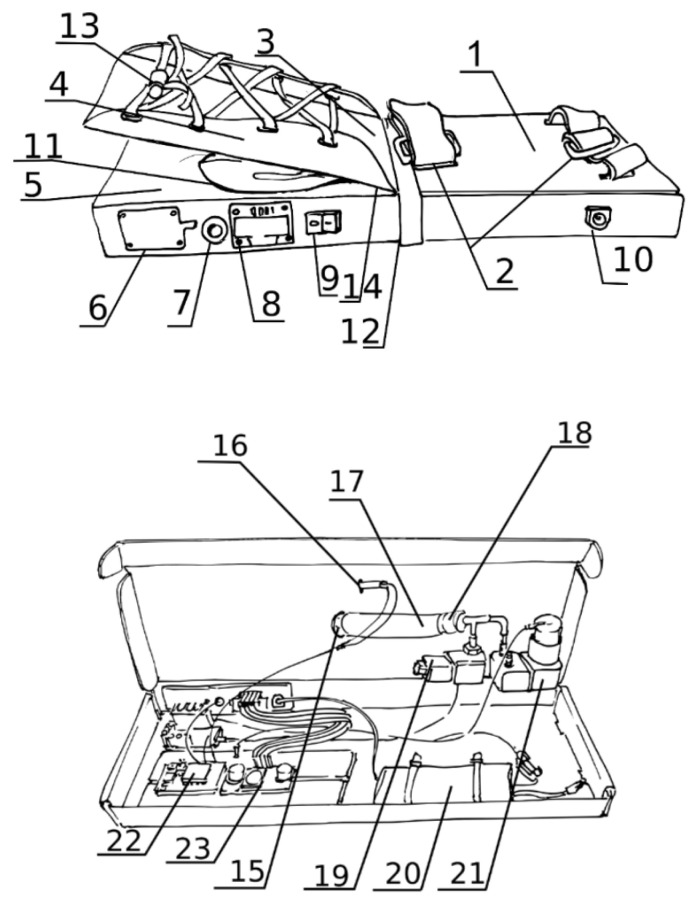

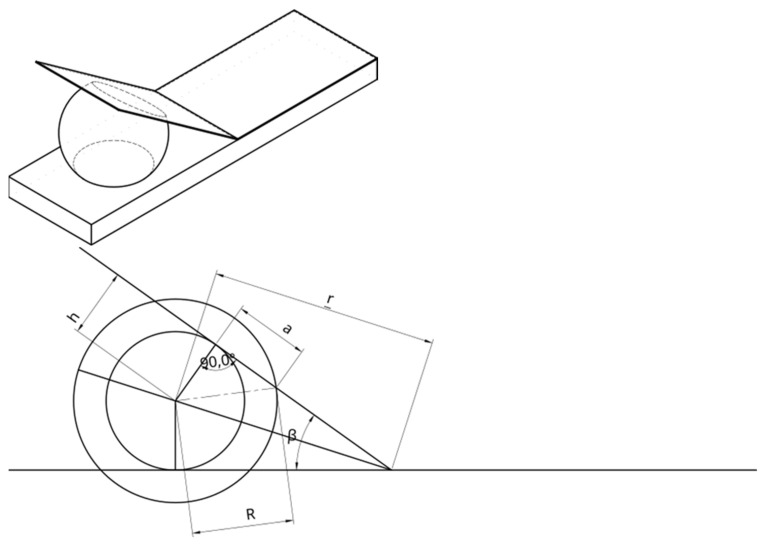

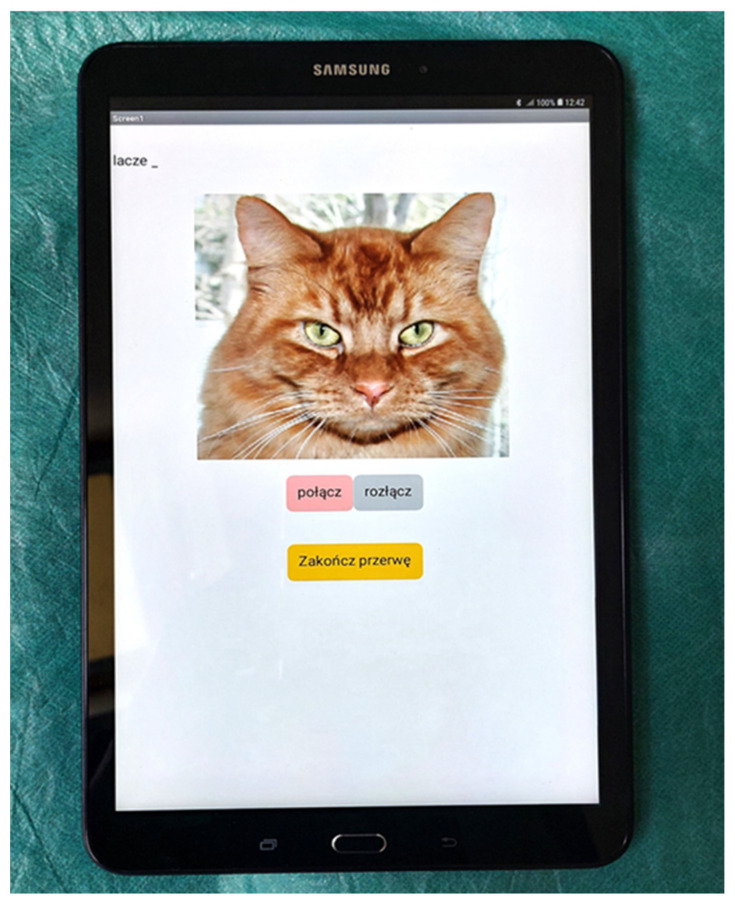

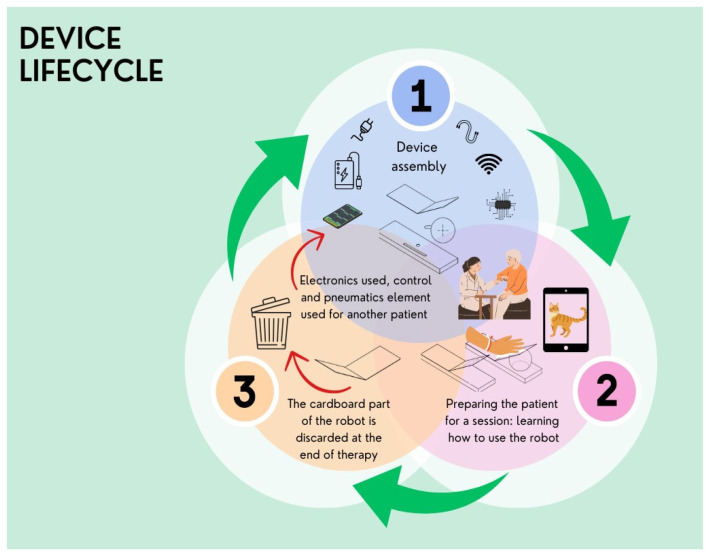

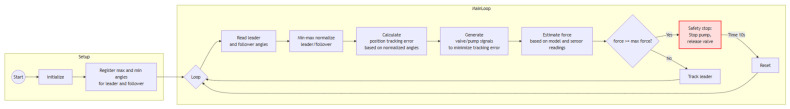

Upper-limb paresis is one of the main complications after stroke. It is commonly associated with impaired wrist-extension function. Upper-limb paresis can place a tremendous burden on stroke survivors and their families. A novel soft-actuator device, the Balonikotron, was designed to assist in rehabilitation by utilizing a balloon mechanism to facilitate wrist-extension exercises. This pilot study aimed to observe the functional changes in the paralyzed upper limb and improvements in independent and cognitive functions following a 4-week regimen using the device, which incorporates a multimedia tablet application providing audiovisual feedback. The device features a cardboard construction with a hinge at wrist level and rails that guide hand movement as the balloon inflates, controlled by a microcontroller and a tablet-based application. It operates on the principle of moving the hand at the wrist by pushing the palm upwards through a surface actuated by a balloon. A model was developed to describe the relationship between the force exerted on the hand, the angle on hinge, the pressure within the balloon, and its volume. Experimental validation demonstrated a Pearson correlation of 0.936 between the model’s force predictions and measured forces, supporting its potential for real-time safety monitoring by automatically shutting down when force thresholds are exceeded. A pilot study was conducted with 12 post-stroke patients (six experimental, six control), who participated in a four-week wrist-extension training program. Clinical outcomes were assessed using the Fugl–Meyer Assessment for the Upper Extremity (FMA-UE), Modified Rankin Scale (mRS), Mini-Mental State Examination (MMSE), Montreal Cognitive Assessment (MOCA), wrist Range of Motion (ROM), and Barthel Index (BI). Statistically significant results were obtained for the Barthel index (p < 0.05) and FMA-UE, indicating that the experimental use of the device significantly improved functional independence and self-care abilities. The results of our pilot study suggest that the Balonikotron device, which uses the principles of mirror therapy, may serve as a valuable adjunct to conventional rehabilitation for post-stroke patients with hemiparetic hands (BI p = 0.009, MMSE p = 0.151, mRS p = 0.640, FMA-UE p = 0.045, MOCA p = 0.187, ROM p = 0.109).
