Design and validation of A 30 ghz 8 × 8 slot antenna array with ridge waveguide pins/holes layers
Hasan Raza, Slawomir Koziel, Stanislaw Szczepanski
TL;DR
This paper introduces a compact, high-performance 8x8 slot antenna array for 30 GHz applications with high gain and efficiency.
Contribution
The novel pin/hole-based design eliminates electrical contacts between layers, reducing fabrication complexity and cost.
Findings
The array achieves a 33% impedance matching bandwidth from 25 to 35 GHz.
It maintains a gain of over 23 dBi across the operating frequency range.
The design uses standard milling techniques for fabrication.
Abstract
This paper presents an 8 × 8-element slot antenna array optimized for 30 GHz band applications, achieving high gain, wide impedance bandwidth, and high efficiency. The array employs a pin/hole-based design, which enables a compact structure and reduces fabrication complexity and cost, as it eliminates the need for electrical contact between its three primary layers: the metal radiating slot plate, a sub-array cavity layer, and a ridge waveguide feed network layer. The corporate feed network is realized through an array of pins and guiding ridges integrated into a metal plate, effectively distributing power to the radiating elements. A double transition from ridge waveguide to rectangular waveguide, leading to a 2.92 mm coaxial connector, ensures efficient feeding. Each component, including the radiating elements, cavity layer, power dividers, and transitions, is designed and optimized…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

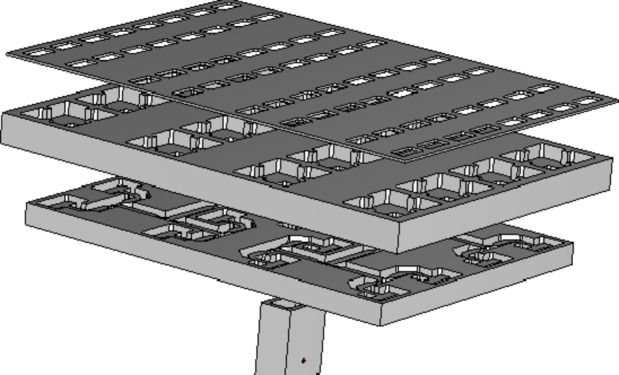

Figure 10

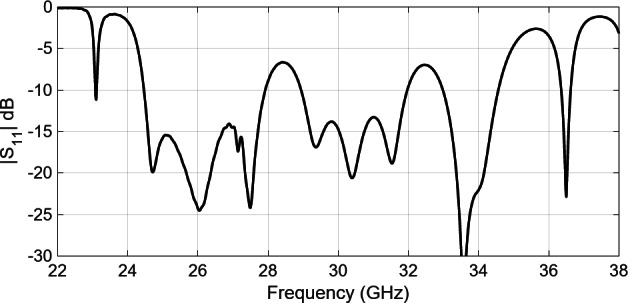

Figure 11

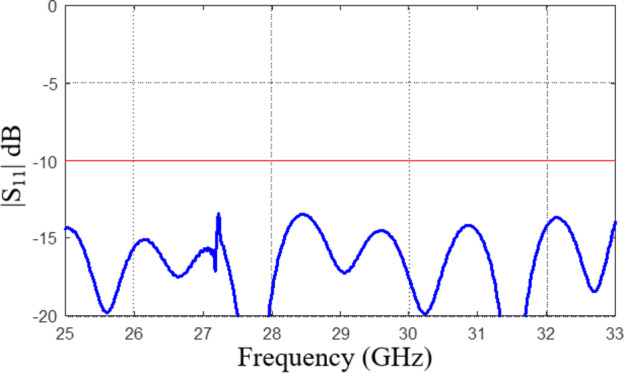

Figure 12

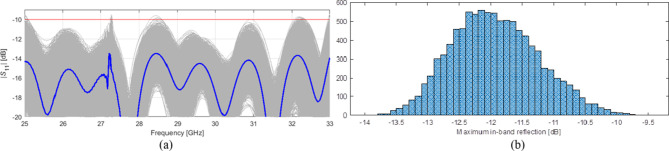

Figure 13

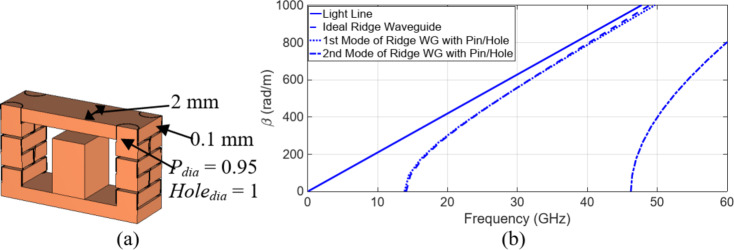

Figure 14

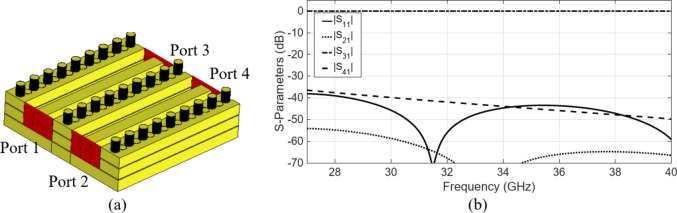

Figure 15

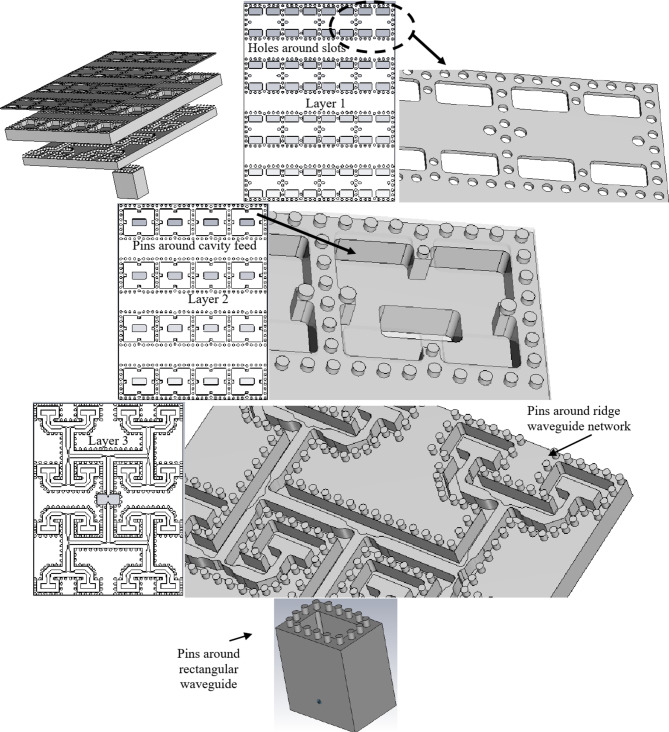

Figure 16

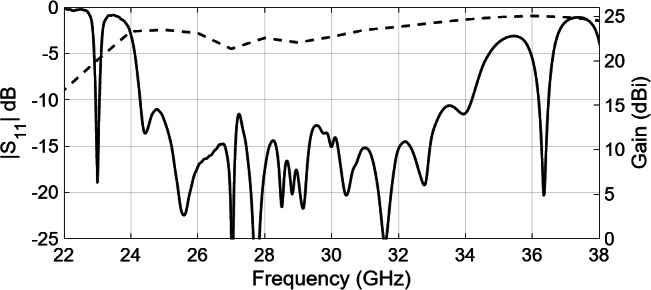

Figure 17

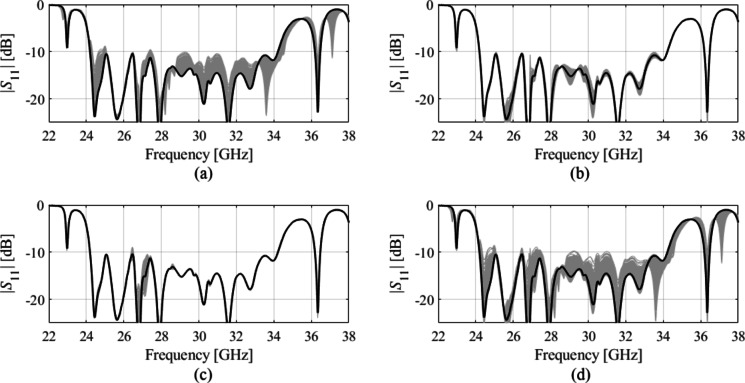

Figure 18

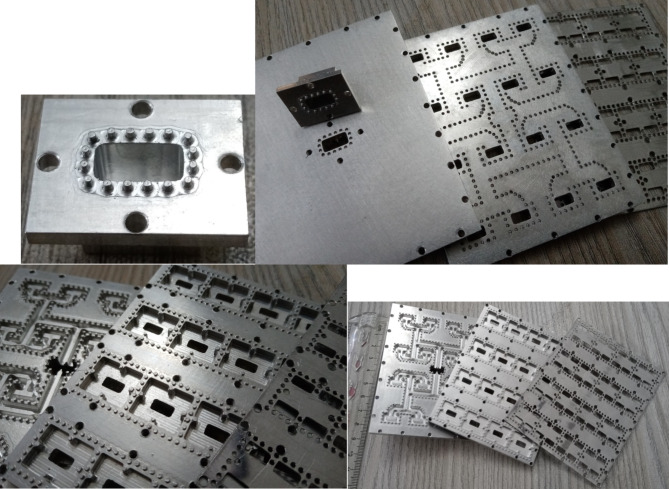

Figure 19

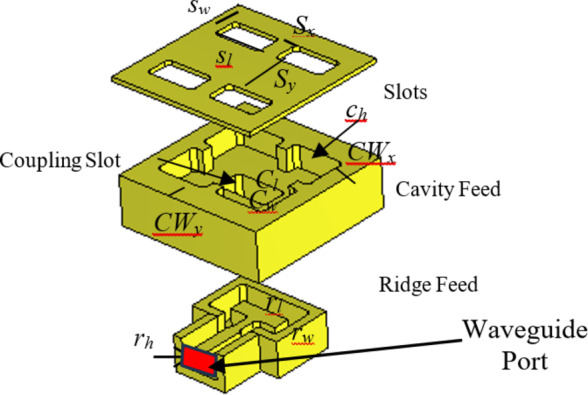

Figure 1

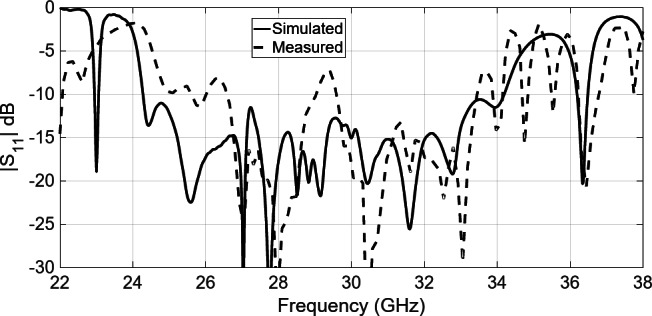

Figure 20

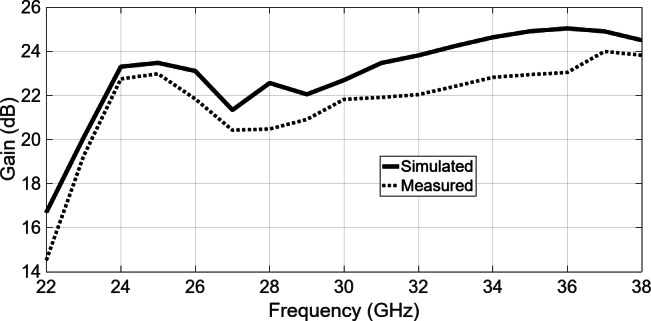

Figure 21

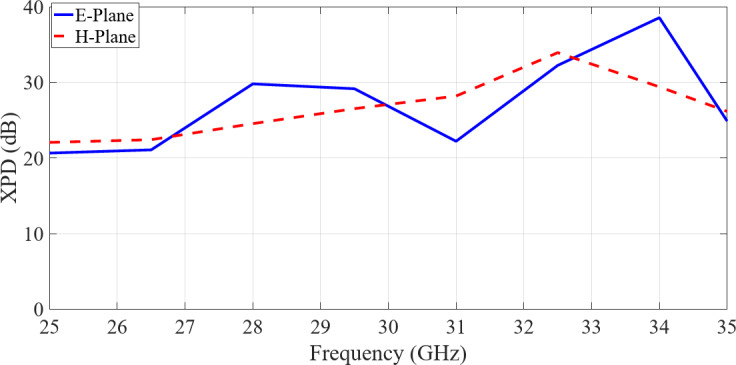

Figure 22

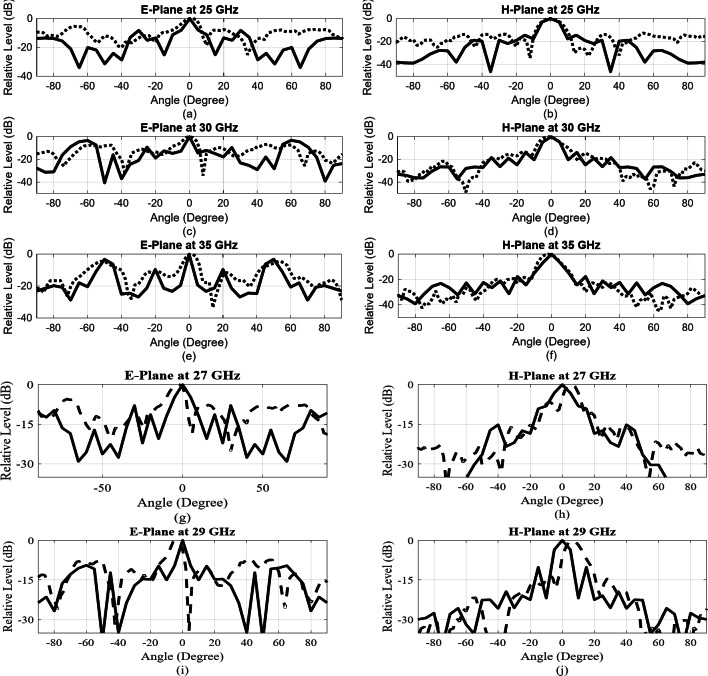

Figure 23

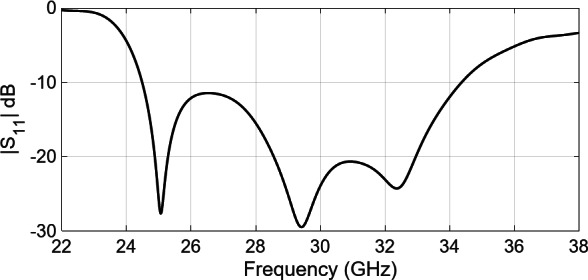

Figure 2

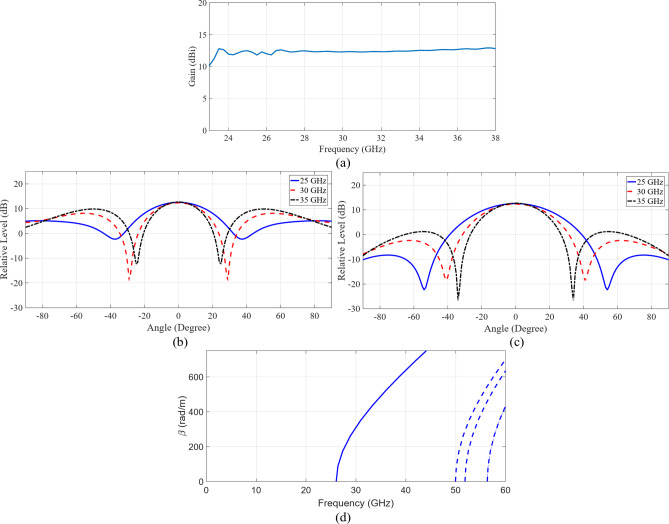

Figure 3

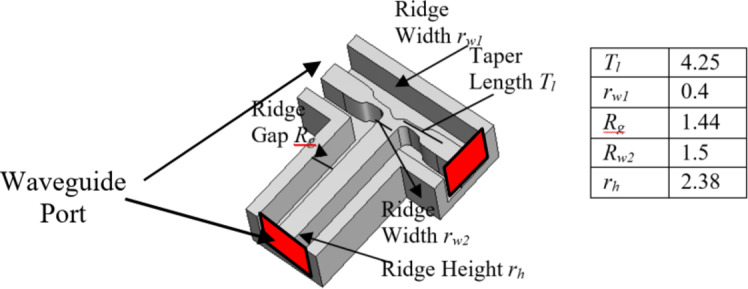

Figure 4

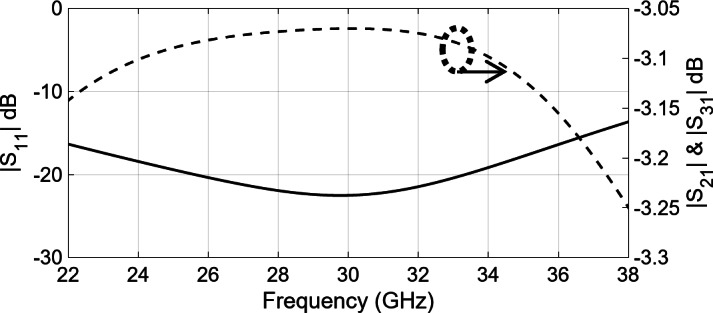

Figure 5

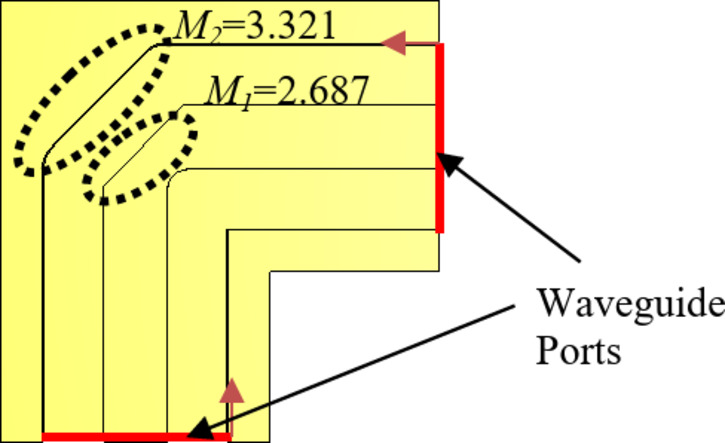

Figure 6

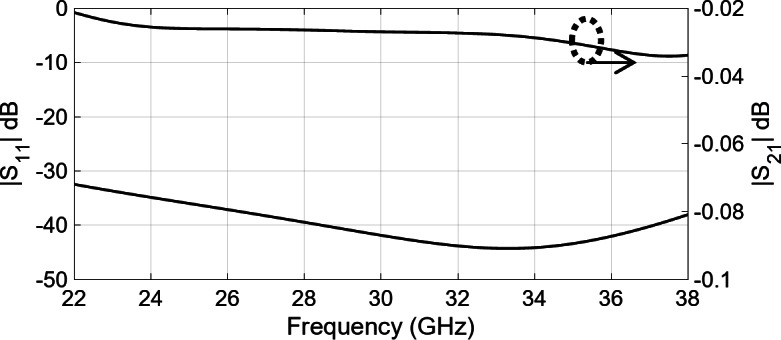

Figure 7

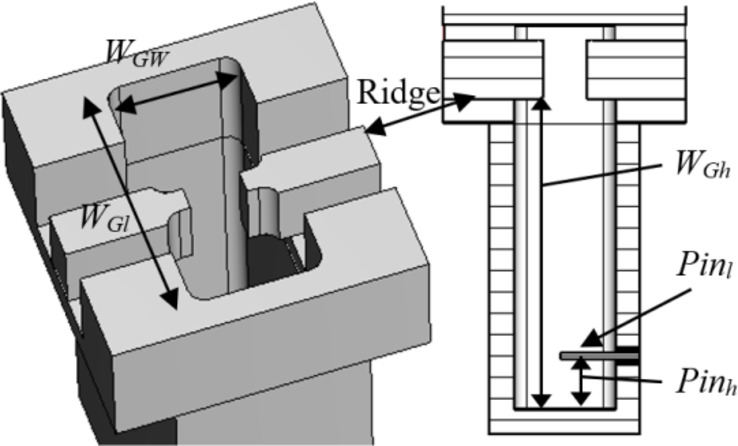

Figure 8

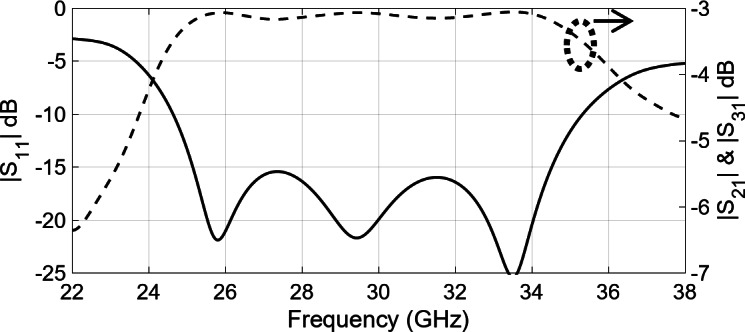

Figure 9Peer Reviews
