An exact analysis of the temperature control of optical waveguides
Frank Payne, Zipei Song, Mohan Wang, Julian A. J. Fells
TL;DR
This paper provides a precise method to analyze how temperature affects optical waveguides, enabling the design of temperature-stable devices.
Contribution
The paper introduces a single-parameter method for temperature compensation in optical waveguide design.
Findings
Expressions for both weakly and strongly guiding waveguides are derived.
A complete analytical solution for micro channel fiber design is presented.
The analysis is applied to athermal fiber Bragg gratings and arrayed waveguide grating filters.
Abstract
In this paper we present an exact analysis of the variation with temperature of the effective index of an arbitrary optical waveguide. Our results allow the design of temperature compensated devices using only a single parameter calculated at one temperature avoiding the need to perform an analysis over a range of temperatures. We derive expressions for both weakly and strongly guiding waveguides. We derive a complete analytical solution for the design of micro channel fibers where the micro channels are filled with a temperature compensating material whose refractive index equals that of the fiber cladding at a specified reference temperature. We also analyse the more general case including the effects of thermal expansion. We illustrate our analysis with the application to athermal fiber Bragg gratings and arrayed waveguide grating filters.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 10

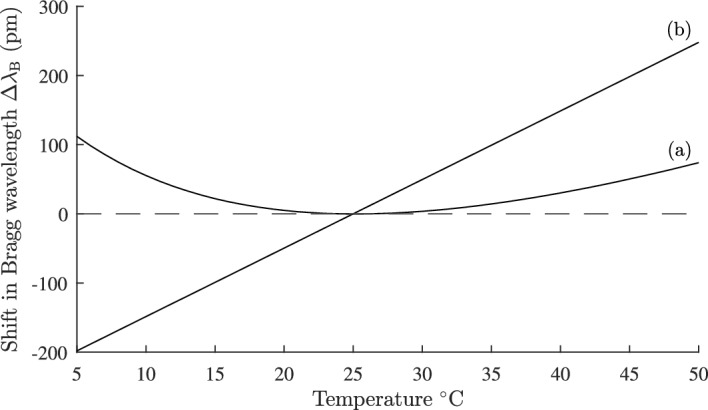

Figure 11

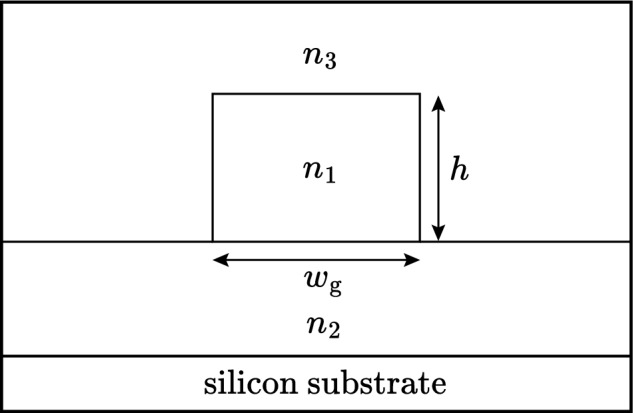

Figure 12

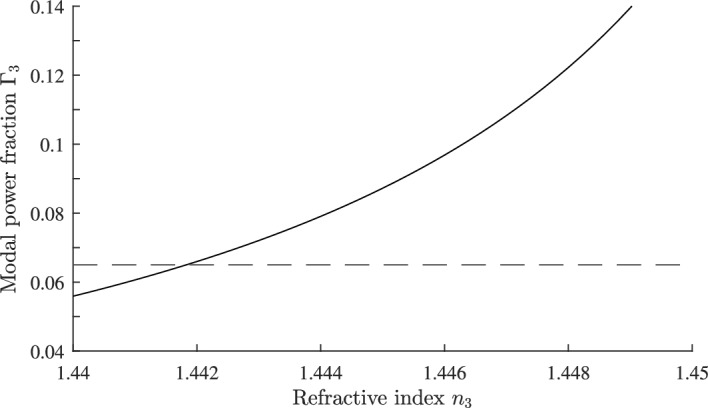

Figure 13

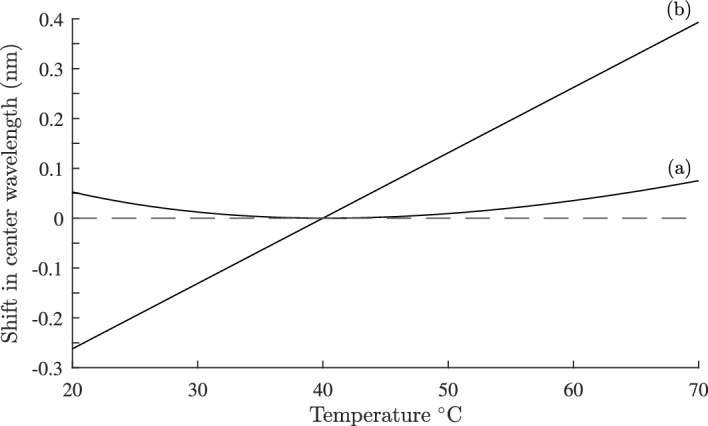

Figure 14

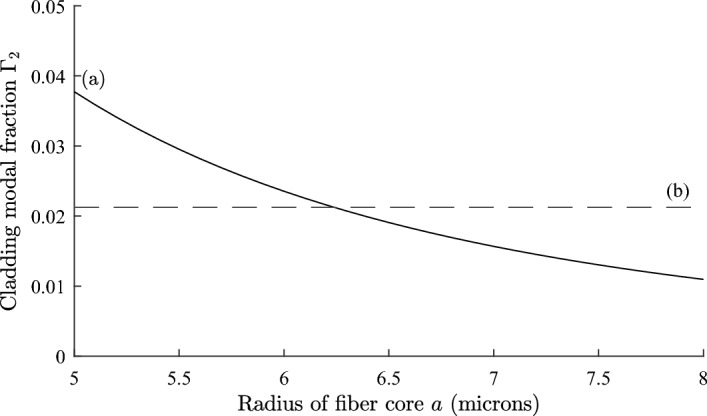

Figure 1

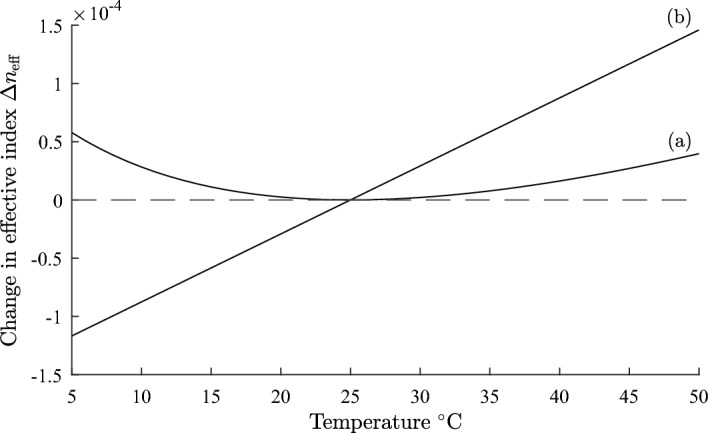

Figure 2

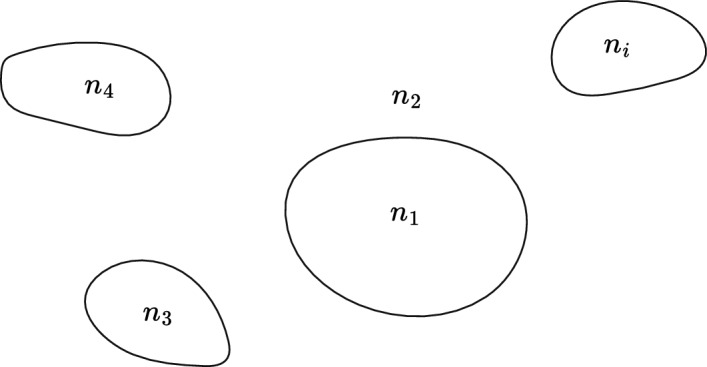

Figure 3

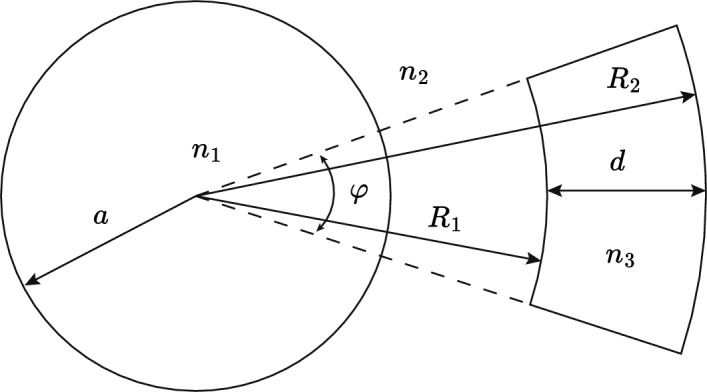

Figure 4

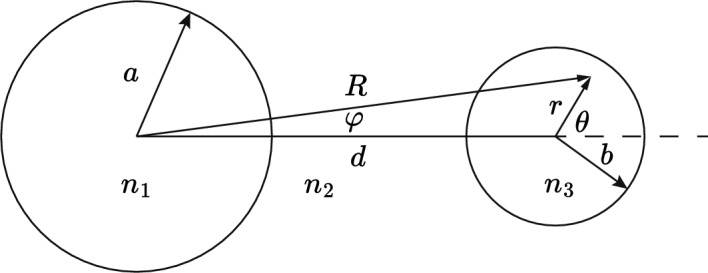

Figure 5

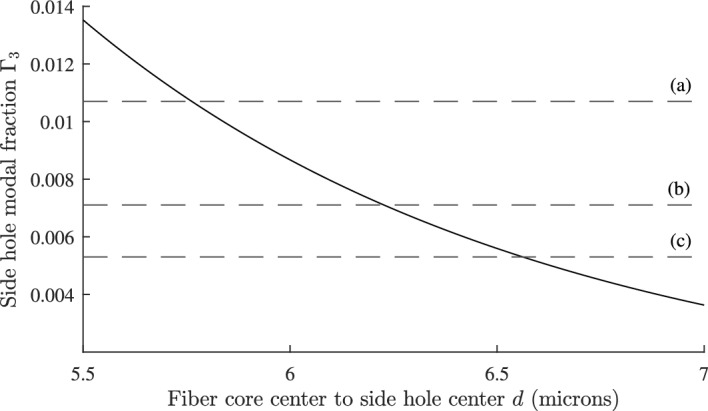

Figure 6

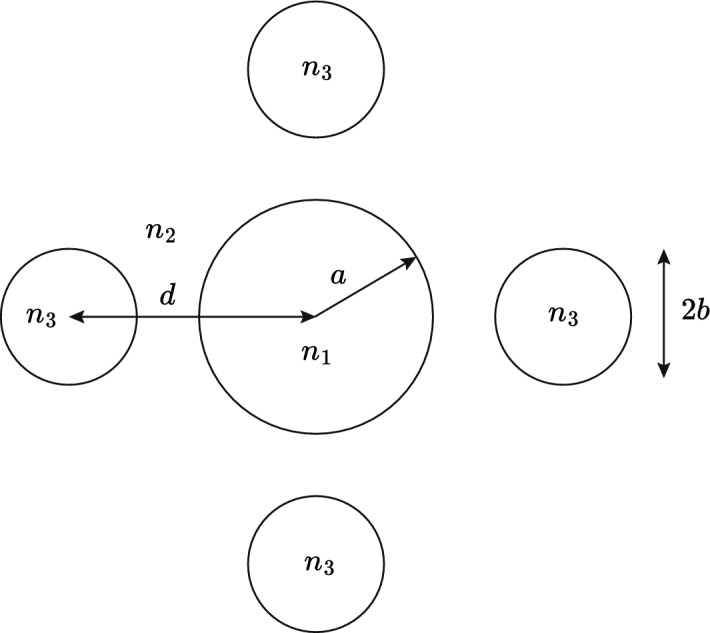

Figure 7

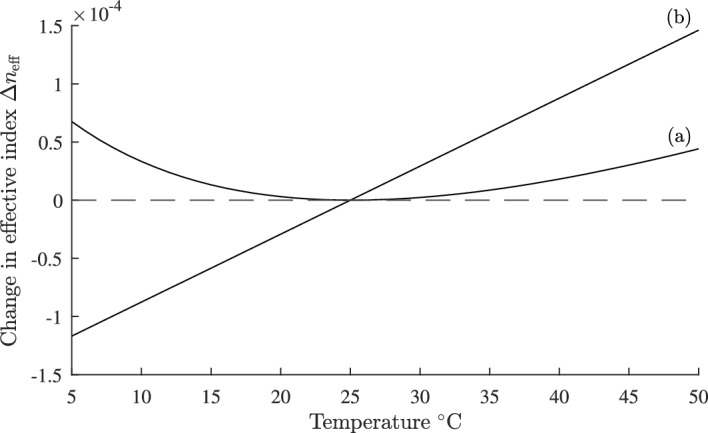

Figure 8

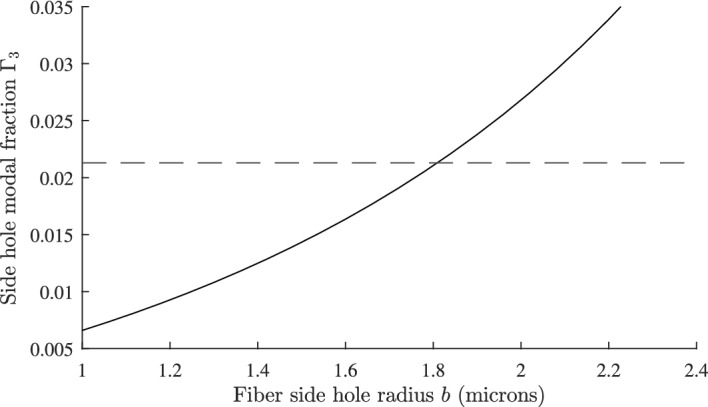

Figure 9Peer Reviews
