Synthesis of Fused sp3‐Enriched Imidazoles

TL;DR

A new method was developed to synthesize fused imidazoles with specific chemical groups using two known reactions.

Contribution

A scalable synthesis of fused sp3-enriched imidazoles using Neber and Marckwald reactions was developed.

Findings

Previously unknown α-amino ketones were prepared in bulk using the Neber rearrangement.

High-purity imidazol-2-thiones and imidazol-2-ones were synthesized using potassium thiocyanate and cyanate.

Desulfurization with Raney nickel produced new 2-unsubstituted fused imidazoles in high yields.

Abstract

A synthetic approach to imidazoles annulated to saturated six‐membered cycles featuring S, SO2, NH, NCbz was developed. It was achieved by combining the Neber rearrangement and the Marckwald reaction. The Neber rearrangement applied to cyclic ketones allowed us to prepare in hundred gram quantities previously unknown α‐amino ketones. Unstable tosyl ketoximes were used without purification immediately after their preparation. α‐Amino ketones react with potassium thiocyanate and cyanate in almost a quantitative yield affording highly pure imidazol‐2‐thiones or imidazol‐2‐ones. Desulfurization of imidazole‐2‐thiones using Raney nickel led to the formation of previously unknown 2‐unsubstituted fused imidazoles in high yields.

Imidazoles annulated to saturated six‐membered cycles featuring S, SO2, NH, NCbz have been prepared in bulk quantities. The starting previously unknown cyclic α‐amino ketones were obtained via the Neber rearrangement. Unstable tosyl ketoximes were used without purification immediately after their preparation. Marckwald reaction with desulfurization using Raney nickel led to the formation of the annulated imidazoles.

Figures

Bioactive compounds featuring partially saturated annulated imidazoles.

Retrosynthetic analysis to the fused sp3‐enriched imidazole derivatives.

Synthesis of α‐amino ketones 4 via the Neber rearrangement.

A modified approach to 3‐amino thiopyranone‐1,1‐dioxide derivative 4 e.

Marckwald approach to fused imidazoles.

Synthesis of spinaceamine 12 c and its analogues.

Molecular structure of compound 11 a according to X‐ray diffraction data. Thermal ellipsoids of non‐hydrogen atoms are shown at 50 % probability level.

Halogenation of 2‐unsubstituted imidazole 11 a.

Full text

Introduction

4,5,6,7‐Tetrahydro‐3H‐imidazo[4,5‐c]pyridine (spinaceamine), an aza analogue of tetrahydrobenzimidazole, is an alkaloid isolated from the skin of amphibians (Figure 1).[1, 2] Its various derivatives exhibit high potency as biologically active compounds. Specifically, 4‐substituted derivatives have been identified as activators of human carbonic anhydrases, including the cytosolic hCA I, II, and VII, as well as the membrane‐associated hCA IV.[3, 4, 5, 6, 7] Furthermore, the tetrahydroimidazopyridine scaffold found in numerous bioactive substances. These include pan‐JAK inhibitors,[8] CCR5 antagonists used for HIV treatment,[9] non‐hydrazine SSAO inhibitors,[10] dipeptidyl peptidase IV inhibitors for managing diabetes,[11] CB2 agonists,[12] and more (Figure 1).

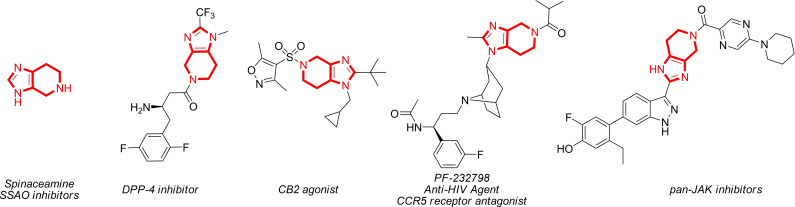

Bioactive compounds featuring partially saturated annulated imidazoles.

Imidazopyridin‐2‐ones have been investigated for their pharmaceutical applications as C5a receptor modulators[13] and anticoagulant agents to treat and prevent thromboembolic disorders (factor Xa inhibitors).[14] Hydroxy‐substituted 1H‐imidazopyridines can also serve as immunomodulators for treating various diseases, including viral and neoplastic conditions.[15] Additionally, tetrahydroimidazopyridin‐2‐ones have been identified as autotaxin inhibitors.[16] By leveraging the versatility and biological activity of its derivatives, medicinal chemists can explore their potential applications in developing novel pharmaceutical compounds with therapeutic benefits.

A common method for synthesizing annulated imidazoles involves cyclization of a saturated ring to the imidazole core. However, this method has primarily been applied to tetrahydroimidazopyridine derivatives. One example is the synthesis of partially saturated imidazopyridines, where the Pictet‐Spengler reaction plays a crucial role. This reaction involves the annulation of the tetrahydropyridine ring through the reaction of histamine with carbonyl compounds in the presence of an acid catalyst.[17, 18] Another strategy to obtain partially saturated fused imidazoles is through the annulation of the imidazole ring with a saturated fragment. This can be accomplished by reacting 2‐chloro or 2‐hydroxycyclohexanone with formamidine or formaldehyde in the presence of ammonia.[19, 20, 21] Tetrahydrobenzimidazoles can also be obtained by hydrogenation of benzimidazoles.[22, 23, 24, 25] Another approach is the reaction of α‐amino carbonyl compounds with iminoesters.[26] It should be pointed out that there is a lack of methods in the literature for the synthesis of fused imidazole derivatives to the saturated heterocycles.

Further, the Marckwald reaction is worth mentioning as one of the effective methods for annulating an imidazole nucleus to saturated fragments. The method is based on the reaction of α‐amino carbonyl compounds (aminoketones or aminoacetals) with thiocyanates. The reaction results in imidazole‐2‐thiones, which can be further used for the synthesis of 2‐unsubstituted imidazoles by the subsequent desulfurization with Raney nickel, H_2_O_2_/AcOH or HNO_3_.[27, 28, 29, 30, 31] The method is synthetically simple, does not require harsh conditions, runs in a neutral or weakly acidic medium, and provides almost quantitative yields. Recently we have developed a convenient method for the synthesis of 6,7‐dihydro‐5H‐pyrrolo[1,2‐c]imidazole via reaction of commercially available N‐Boc protected prolinal with potassium thiocyanate.[32] The Marckwald reaction represents a significant method for synthesizing sp^3^‐enriched imidazole derivatives. However, its practical application is constrained by the availability of the requisite starting α‐amino carbonyl compounds. In our opinion, a convenient method for the synthesis of cyclic α‐amino ketones required for the Marckwald reaction could be the Neber rearrangement. This is followed by the conversion of the O‐sulfonates of ketoximes into α‐amino ketones.[33, 34, 35, 36, 37] Although the Neber rearrangement has been extensively studied for acyclic structures, there is limited literature on its application to cyclic compounds,[38, 39] primarily focusing on benzannulated derivatives.[40, 41, 42, 43, 44, 45, 46, 47] Additionally, the utilization of cyclic amino ketones in the Marckwald reaction is well‐documented, particularly for 2‐aminocyclohexanone.[48]

Hence, by combining the Neber rearrangement and the Marckwald reaction, a straightforward synthetic approach for the synthesis of tetrahydrobenzimidazole derivatives and their heterocyclic analogues can be achieved. Notably, the literature lacks synthesis methods for fused imidazoles that incorporate heteroatoms other than nitrogen in the saturated fragment.

Therefore, our objective was to develop a straightforward synthetic method for the production of tetrahydrobenzimidazole derivatives and their heterocyclic analogues, employing the sequential utilization of the Neber rearrangement and the Marckwald reaction. The retrosynthetic analysis of the proposed way to the fused sp^3^‐enriched imidazole derivatives is presented in Figure 2.

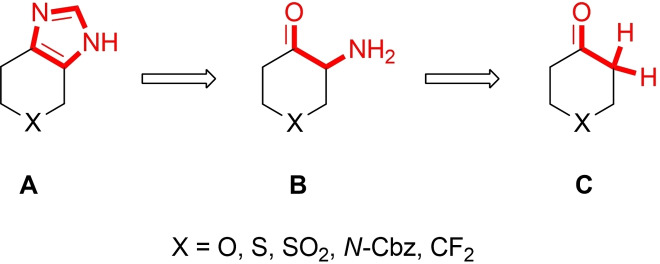

Retrosynthetic analysis to the fused sp3‐enriched imidazole derivatives.

Results and Discussion

In the initial phase of our research, we successfully obtained cyclic α‐amino ketones 4 via the Neber rearrangement. Notably, using our improved method, we were able to obtain previously unknown cyclic α‐amino ketones 4 as hydrochlorides in quantities exceeding 100 g. To synthesize the ketoximes 2, we followed a known procedure involving the reaction of cyclic ketones 1 with hydroxylamine hydrochloride in ethanol in the presence of sodium acetate (Scheme 1). The resulting ketoximes 2 were then reacted with tosyl chloride in dichloromethane using 1.1 equivalents of triethylamine. It should be mentioned that the obtained ketoxime tosylates 3 are relatively unstable, with the rearrangement occurring spontaneously when the crude oxime tosylate is exposed to ambient environment for several days.[37] The O‐Tos derivative of cyclopentanone ketoxime is particularly unstable. Due to their instability, all obtained O‐Tos ketoximes 3 were used without purification. Nevertheless, we were able to fully characterize these ketoximes with the exception of compound 3 c. For the Neber rearrangement, the obtained tosylates were subjected to treatment with potassium methylate followed by a reaction with an aqueous hydrochloric acid at room temperature. The main practical improvements we made in the Neber rearrangement is that we used t‐BuOK in MeOH and the reaction mixture was filtered into a Büchner flask filled with concentrated HCl. These simple enhancements allowed for the isolation of α‐amino ketones 4 as hydrochlorides in quantities exceeding 100 g without any purification.

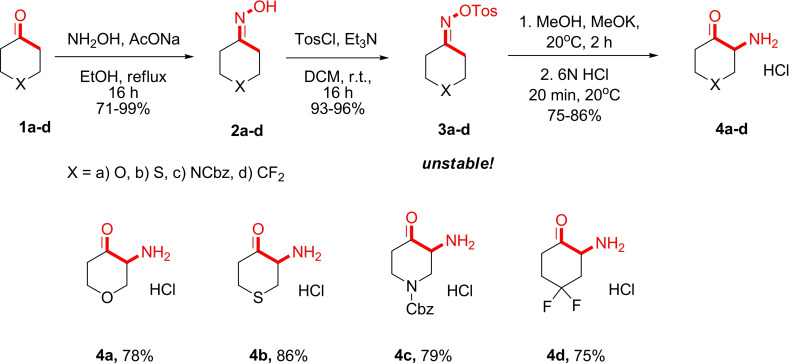

Synthesis of α‐amino ketones 4 via the Neber rearrangement.

Notably, while the thiopyran‐4‐one derivative (X=S) 1 b showed good reactivity, the use of the dihydro‐2H‐thiopyran‐4(3H)‐one 1,1‐dioxide derivative in the Neber rearrangement resulted in the formation of an unidentified mixture of products. It is likely due to the higher acidity of the methylene groups in the α‐position of thiopyran‐4‐one‐1,1‐dioxide compared to the thiopyran‐4‐one derivative. In the synthesis of 3‐amino thiopyranone‐1,1‐dioxide derivative 4 e, we employed a modified Neber rearrangement (Scheme 2). The tosyl ketoxime 3 b was heated with methanol in the presence of potassium methylate, leading to the formation of acetal 5. Since the oxidation reaction of thiopyran derivative 5 to thiopyran‐4‐one‐1,1‐dioxide 8 requires the use of oxidizing reagents (peroxy acids or hydrogen peroxide), we obtained N‐Cbz derivative 6, which made it possible to carry out sulfur oxidation in a high yield using MCPBA. Subsequent Cbz deprotection and hydrolysis of the acetal afforded 3‐amino thiopyranone‐1,1‐dioxide 4 e in a high yield.

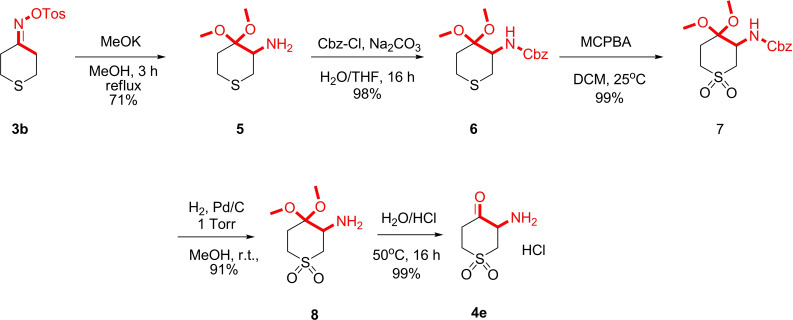

A modified approach to 3‐amino thiopyranone‐1,1‐dioxide derivative 4 e.

It is worth noting that ^1^H NMR spectra of amino ketones featuring electron‐withdrawing substituents in the cycle 4 e, 4 d (such as SO_2_ and CF_2_) quite often exhibit both hydrate and ketone forms (Figure S1). For example, in the DMSO‐d_6_ solution (with traces of water), in ^1^H NMR spectra a mixture of ketone and hydrate forms was observed, with the keto form prevailing for the derivatives of thiopyranone‐1,1‐dioxide and 4,4‐difluorocyclohexanone. In the D_2_O solution ^1^H NMR spectra showed that these amino ketones exclusively exist in the hydrate form. Conversely, in the CF_3_COOD solution, we were able to obtain ^1^H NMR spectra of these amino ketones in the keto form.

The obtained amino ketones were then subjected to the conditions of the Marckwald reaction (Scheme 3), which resulted in the formation of imidazol‐2‐thiones 9 a–e or imidazol‐2‐ones 10 b–e. It should be noted that we failed to isolate compound 10 a. It is probably due to its high solubility in water compared to the other imidazol‐2‐ones. Neither evaporation of the aqueous layer nor extraction delivered the product. Importantly, the Marckwald reaction provided these derivatives in almost quantitative yield without requiring purification. Similar to the amino ketones 4, derivatives 9 and 10 were obtained in multigram quantities, thus providing a straightforward synthetic approach to sp^3^‐enriched imidazole derivatives, which hold promise in biomedical research.

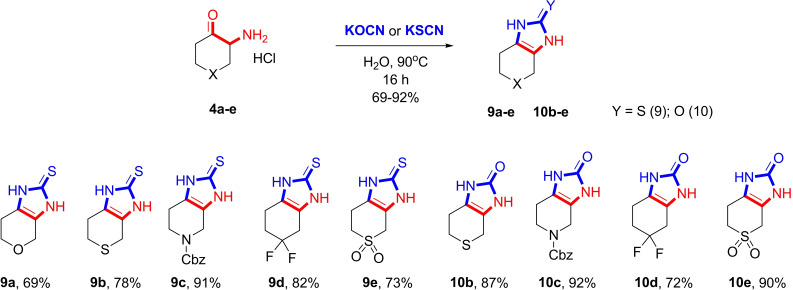

Marckwald approach to fused imidazoles.

To explore further the functionalization of the resulting products 9, we investigated the possibility of desulfurization of the derivatives 9 (Scheme 4). Desulfurization using Raney nickel led to the formation of previously unknown 2‐unsubstituted fused imidazoles 11 in high yields. Since compound 9 b contains the tetrahydrothiopyrane nucleus that is sensitive to Raney nickel, we did not try to prepare compound 11 b.

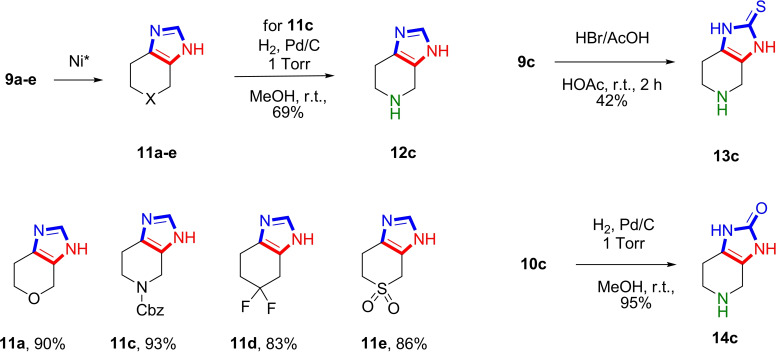

Synthesis of spinaceamine 12 c and its analogues.

The molecular and crystal structure of compound 11 a (Figure 3) was studied by the single crystal X‐ray diffraction method. The very close values of the C5−N2/C3−N1 (1.378(2) Å and 1.377(2) Å) and N2−C4/N1−C4 (1.337(2) Å and 1.334(2) Å) bond lengths as well as disordering of the hydrogen atom between two nitrogen atoms allows considering of the molecular structure of 11 a as superposition of two tautomers. The tetrahydroheterocycle adopts a half‐chair conformation where the C2, C3, C5, C6 atoms lie in the plane with an accuracy of 0.003 Å and the C1 and O1 atoms deviate from this plane by 0.332(3) Å and −0.397(3) Å, respectively.

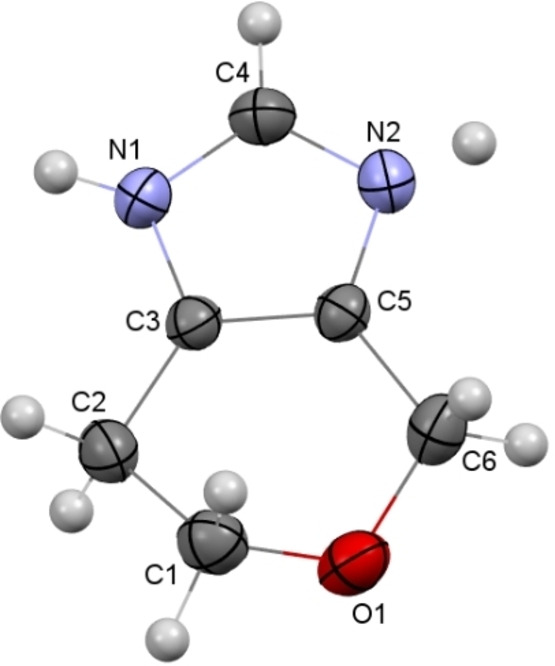

Molecular structure of compound 11 a according to X‐ray diffraction data. Thermal ellipsoids of non‐hydrogen atoms are shown at 50 % probability level.

Notably, in the case of imidazol‐2‐thione 9 c (X=N−Cbz), desulfurization with Raney nickel proceeded with the preservation of the Cbz protection affording fused imidazole 11 c. The Cbz protection was subsequently removed using hydrogen on Pd/C. This approach enabled the synthesis of spinacine derivative 12 c in moderate yield through a novel method. In contrast, for derivative 9 c (X=N−Cbz), Cbz deprotection was achieved using HBr in acetic acid, which preserved the thione group and provided a simple route to the synthesis of the previously unknown 2‐thio derivative of spinacine 13 c. In addition, 2‐oxo derivative of spinacine 14 c was obtained via N‐Cbz deprotection of 10 c using hydrogen on Pd/C (Scheme 4).

It should be noted that our previous attempts to obtain 2‐halo‐substituted imidazole 16 using NCS or NBS were unsuccessful. Likewise, our efforts to obtain derivatives of type 17 by heating imidazole‐2‐thione 9 a with SOCl_2_ or POCl_3_ were also unsuccessful. Therefore, we employed a protective group strategy for the imidazole nucleus. Initially, we obtained derivatives 15 through alkylation of the starting 11 a with MOM‐chloride in the presence of a base. The alkylation reaction did not occur selectively, leading to the formation of two regioisomers in equal ratios. By lithiating the resulting mixture with BuLi at −78 °C, followed by reaction with C_2_Cl_6_, we obtained a mixture of regioisomers of 2‐chloro‐imidazole derivatives 16. The removal of the protective group with hydrochloric acid facilitated a straightforward synthesis of 2‐chloroimidazole derivative 17 (Scheme 5).

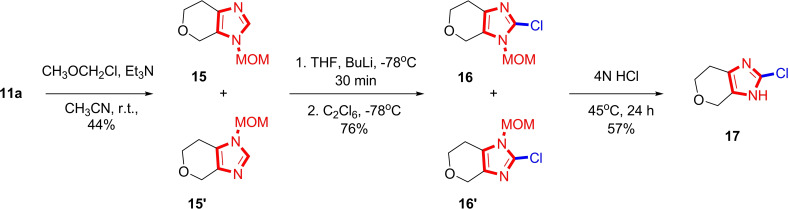

Halogenation of 2‐unsubstituted imidazole 11 a.

Conclusions

In conclusion, we have developed a method for the synthesis of previously unknown cyclic α‐amino ketones in bulk quantities via the Neber rearrangement. By combining the Neber rearrangement and the Marckwald reaction, we established a route to the synthesis of tetrahydrobenzimidazole derivatives and their heterocyclic analogues. Furthermore, the potential for further functionalization of these imidazole derivatives was investigated. The α‐amino ketones featuring electron‐withdrawing substituents in the cycle exist in equilibrium with their hydrates that was demonstrated by ^1^H NMR spectra.

General Procedure for the Neber Rearrangement

To a solution of potassium tert‐butoxide (110.0 g, 0.98 mol, 1.15 eq.) in absolute methanol (1.2 L) was added O‐tosyl oxime 3 a (230.0 g, 0.85 mol, 1 eq.) portion wise at 10 °C. The resulting mixture was stirred for 3 h at room temperature. Concentrated HCl (160 mL) was poured in a Büchner flask and the reaction mixture was filtered into it. The filtrate with concentrated HCl was stirred at room temperature for 15 minutes and evaporated till dryness under a reduced pressure at 35 °C. The residue was triturated with acetone (400 mL), filtered and washed with acetone (3×250 mL). It was dried under reduced pressure to afford aminoketones 4 a–d as hydrochlorides.

3‐Aminodihydro‐2H‐Pyran‐4(3H)‐One Hydrochloride 4 a

M.p. 146 °C, beige powder, 101.1 g (78.1 % yield). ^1^H NMR (400 MHz, DMSO‐d_6_) δ 8.67 (br.s, 3H), 4.45–4.41 (m, 1H), 4.25–4.21 (m, 1H), 4.18–4.13 (m, 1H), 3.61–3.54 (m, 2H), 2.91–2.83 (m, 1H), 2.42–2.39 (m, 1H). ^13^C NMR (126 MHz, DMSO‐d_6_) δ 201.5, 68.5, 67.7, 55.1, 41.2. HRMS (ESI/TOF−Q) m/z: [M]^+^ calcd for C_5_H_9_NO_2_, 115.0633; found 115.0639.

General Procedure for the Marckwald Synthesis

To a stirred solution of aminoketone 4 a (100.0 g, 0.66 mol, 1 eq.) in water (500 mL) was added KSCN (192.4 g, 1.98 mol, 3 eq.). The resulting mixture was heated at 90 °C for 16 hours. Upon completion, the reaction mixture was allowed to cool to room temperature and filtered off. The filter cake was washed with cold water (3×350 mL) and dried under a reduced pressure to afford imidazole derivative 10 a.

3,4,6,7‐Tetrahydropyrano[3,4‐d]Imidazole‐2(1H)‐Thione 10 a

M.p. 225–228 °C, brown powder, 72.0 g (69.9 % yield). ^1^H NMR (400 MHz, DMSO‐d_6_) δ 11.84 (s, 1H), 11.67 (s, 1H), 4.34 (s, 2H), 3.78 (t, J=5.1 Hz, 2H), 2.42 (br.s, 2H). ^13^C NMR (126 MHz, DMSO‐d_6_) δ 159.8, 120.9, 120.1, 63.8, 60.9, 21.5. HRMS (ESI/TOF−Q) m/z: [M]^+^ calcd for C_6_H_8_N_2_OS, 156.0357; found 156.0354.

Conflict of Interests

The authors declare no conflict of interest.
