A Resampling Approach for Causal Inference on Novel Two-Point Time-Series with Application to Identify Risk Factors for Type-2 Diabetes and Cardiovascular Disease
Xiaowu Dai, Saad Mouti, Marjorie Lima do Vale, Sumantra Ray, Jeffrey Bohn, Lisa Goldberg
TL;DR
This paper introduces a new resampling method to infer causal effects from two-point time-series data, applied to study risk factors for type-2 diabetes and cardiovascular disease.
Contribution
The novel 'I-Rand' resampling approach enables causal inference in two-point time-series without a control group.
Findings
Obesity is identified as a significant risk factor for type-2 diabetes and cardiovascular disease.
A low-carbohydrate diet significantly reduces the risk of type-2 diabetes and cardiovascular disease.
Abstract
Two-point time-series data, characterized by baseline and follow-up observations, are frequently encountered in health research. We study a novel two-point time-series structure without a control group, which is driven by an observational routine clinical dataset collected to monitor key risk markers of type-2 diabetes (T2D) and cardiovascular disease (CVD). We propose a resampling approach called “I-Rand” for independently sampling one of the two-time points for each individual and making inferences on the estimated causal effects based on matching methods. The proposed method is illustrated with data from a service-based dietary intervention to promote a low-carbohydrate diet (LCD), designed to impact risk of T2D and CVD. Baseline data contain a pre-intervention health record of study participants, and health data after LCD intervention are recorded at the follow-up visit, providing a…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 1
Figure 20
Figure 21
Figure 22
Figure 23
Figure 24
Figure 25
Figure 26
Figure 27
Figure 28
Figure 29
Figure 2
Figure 30

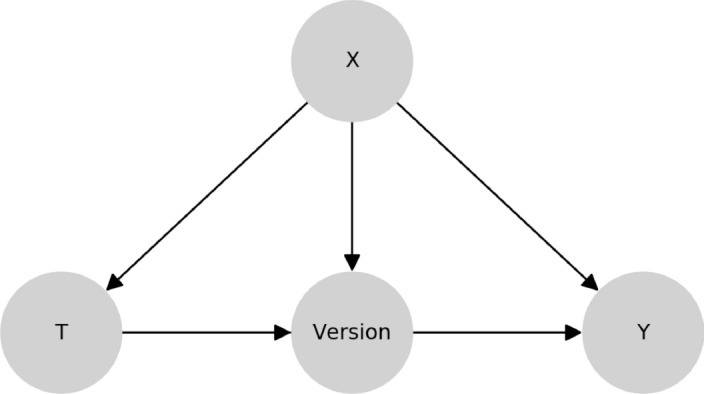

Figure 31
Figure 32
Figure 33
Figure 34
Figure 35
Figure 36
Figure 37
Figure 38
Figure 39
Figure 3
Figure 40
Figure 41
Figure 42
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 43
Figure 44
Figure 45- —http://dx.doi.org/10.13039/100009633Eunice Kennedy Shriver National Institute of Child Health and Human Development
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAdvanced Causal Inference Techniques · Diet and metabolism studies · Metabolomics and Mass Spectrometry Studies
Introduction
Cardiovascular disease (CVD), including stroke and coronary heart diseases, has become the most common non-communicable disease in the United States, and is also a severe problem globally [1, 2]. Type-2 diabetes (T2D) doubles the risk of CVD, which is the principal cause of death in T2D patients [3]. CVD and T2D produce an immense economic burden on health care systems globally. Targeted intervention for individuals at increased risk of CVD and T2D plays a crucial role in reducing the global burden of these diseases [4]. Consequently, the identification of dietary and lifestyle risk factors for T2D and CVD has become a health priority [5]. Since obesity is a substantial contributor to T2D, and consequently to the risk of CVD [6], lowering obesity through diet control may help to alleviate the T2D and CVD epidemics.
In this work, we pursue two scientific goals. First, we seek to determine whether or not obesity is a significant risk factor for T2D and CVD. Second, we ask if a low-carbohydrate diet (LCD) improves on standard care for T2D and CVD risk in patients with prediabetes or diabetes. We use causal inference tools, including the potential outcome model and mediation analysis, to quantify the impact of obesity and diet on T2D and CVD risk. To explore the link between obesity and T2D, we ask: what would the effect on T2D be if an individual were to change from a normal weight to an obese weight? Motivated by the impact of T2D in CVD risk, we seek to understand the role of T2D in mediating the effect of obesity on CVD risk. This mediation analysis is relevant to an individual with limited control over his or her T2D status and who wishes to identify factors that can be controlled. We perform mediation analysis to identify obesity as a significant risk factor for T2D and CVD and to disentangle cause-and-effect relationships in individuals with both conditions. Building on these questions, we are also interested in quantifying the effects of an LCD, which restricts the consumption of carbohydrates relative to the average diet [7], on both T2D and CVD risk. Several systematic reviews and meta-analyses of randomized control trials suggest beneficial effects of LCD in T2D and CVD [8–10]. However, the impact of LCD in a primary care setting with observational data and its cause-and-effect inferences has not been thoroughly evaluated [2, 11, 12]. As we discuss in detail later in this article, our results indicate that obesity is a significant risk factor for T2D and CVD, and that LCD can significantly lower the risks of T2D and CVD risk.
We explore our scientific questions by analyzing clinical data from patients who visited a health clinic in the UK on two occasions. These patients began a low-carbohydrate diet subsequent to the first visit, and standard measurements of their health were taken at both visits. Data on these patients naturally comprise a panel dataset with two time points. In this two-point time-series dataset, there is no control group, which poses a challenge for causal inference. We propose a novel approach to dealing with this challenge, “I-Rand," which estimates average treatment effect and its significance on a collection of sub-samples of our dataset. Each subsample contains exactly one of the two observations corresponding to each individual. The average treatment effect within each subsample relies on propensity score matching, and statistical significance is estimated with a permutation test. Such subsampling has been used previously by Hahn [13] in the analysis of spatial point patterns. We benchmark I-Rand against two alternative estimation methods. The I-Rand algorithm meets the Stable Unit Treatment Value Assumption (SUTVA) of “no-interference” for valid causal inference, unlike the pooled approach [14, 15]. On the other hand, I-Rand permits a nonparametric estimation of treatment effect and hence is robust to the model specification as compared with difference-in-differences method [16, 17]. Moreover, I-Rand enables us to draw inference on the significance of the estimated average treatment effect. We demonstrate through simulations that the I-Rand algorithm reduces error in estimates of the treatment effect compared to the pooled approach and difference-in-differences.
We compare I-Rand with the synthetic control method [18]. Both methods aim to estimate causal effects from observational data when randomized control trials are not feasible or ethical. However, there are also significant differences between our approach and the synthetic control method. The synthetic control method builds a composite unit from a pool of control units that resemble the characteristics of the treated unit prior to treatment [19]. It serves as a counterfactual to estimate what would have happened to the treated unit in the absence of the intervention. This method is particularly useful when the treatment is applied to a single unit, and is often used in macro-level data where the number of units is typically limited [20]. On the other hand, our “I-Rand" method is designed for a distinct type of observational study where we have a two-point time-series structure without a control group. Rather than creating a synthetic control group from a set of non-treated units, we independently sample one of the two time points for each individual. We then make inferences on the estimated causal effects based on matching methods [21]. Our approach offers a unique advantage when analyzing individual-level data obtained from a larger sample size, making it particularly applicable in health research where baseline and follow-up data are frequently available [22].
The article is organized as follows. Section 2 introduces basic concepts from the potential outcomes model and matching methods, and propose the new I-Rand algorithm that we use to analyze the two-point time-series data. Section 3 compares the proposed I-Rand with benchmark methods such as the pooled approach and the difference-in-differences. Section 4 explains the use of I-Rand to understand the role of the LCD in reducing the risks of T2D and CVD risk. Section 5 investigates the relationship between obesity, T2D, and CVD risk. We discuss the limitations of our methods and indicate directions for future research in Sect. 6, and conclude the paper in Sect. 7.
Motivation, Dataset, and Methodology
A Motivating Example
Cause-and-effect questions arise naturally in the context of nutrition or health, making causal analysis especially relevant. Consider the counterfactual question: If an individual changes from a regular diet to an LCD, would he / she be less likely to develop T2D? We can attempt to estimate the effect of diet on T2D from observational data. Any cause-and-effect inferences from observational data rely on restrictive assumptions and a specification of the underlying causal structure. In particular, we make the following assumptions. First, the treatment is a binary variable that indicates whether or not an individual follows an LCD. The binary treatment LCD abstracts away the degree of LCD as this data there is clinical consultation Second, body mass index (BMI) is a surrogate for obesity and mediates the effect of LCD on T2D [23]. Gender is a binary variable and age is an ordinal variable. Finally, the medical outcome T2D is an ordinal variable indicating status at time of reporting: non-diabetics, pre-diabetics, and diabetics. T2D categories rely on glycated haemoglobin (HbA1c) value. We also note that the BMI, age and gender variables reflect only the case demographics, i.e., the BMI, age and gender distributions among the tested individuals, and not the general demographics. We assume the coarse-grained causal graph in Fig. 1, and motivate it by thinking of the following data-generating process: (1) LCD affects both BMI and the risk of T2D based on established knowledge of causal effects in nutrition studies [7, 24, 25]; (2) Gender and age affect BMI and the risk of T2D, but not the treatment LCD; (3) Conditional on the status of LCD, BMI, gender and age, T2D status is sampled as the medical outcome; (4) There are no hidden confounders (i.e., causal sufficiency). We discuss the role of unobserved variables in Sect. 6. We use arrows from one variable to another in the causal graph in Fig. 1 (and all other causal graphs) to indicate causal relationships. Under these assumptions, we can estimate the effect of LCD on T2D by adjusting for the confounders using the model of potential outcomes.Fig. 1. Assumed coarse-grained causal graph for the relationship between LCD, BMI, and the outcome T2D
We will analyze the effect of LCD on the likelihood of developing T2D using Fig. 1 after describing the structure of our dataset and reviewing causal inference basics.
Data
Our work is based on routine clinical data concerning 256 patients collected between 2013 and 2019 at the Norwood General Practice Surgery in the north of England [2]. As background, Norwood serves a stable population of approximately 9,800 patients, and an eight-fold increase in T2D cases was recorded over the last three decades.
Each patient visited the Norwood General Practice Surgery twice. The average time between visits was 23 months with a standard deviation of 17 months. Each patient is offered to start an LCD subsequent to the first visit.1 Measurements of standard indicators such as age, gender, weight, HbA1c, lipid profiles, and blood pressure were taken at both visits. Since CVD includes a range of clinical conditions such as stroke, coronary heart disease, heart failure, and atrial fibrillation [26], several different risk factors are recorded for CVD during individuals’ visits. We study four risk factors that indicate CVD risk. These are systolic blood pressure, serum cholesterol level, high-density lipoprotein, and a widely used measure of CVD risk called the Reynolds risk score, which is designed to predict the risk of a future heart attack, stroke, or other major heart disease. The Reynolds risk score is a linear combination of different risk factors such as age, blood pressure, cholesterol levels and smoking habits [27].2 A complete list of variables along with definitions and summary statistics is in Appendix C.
Model of Potential Outcomes
We use concepts and notations from the Neyman (or Neyman-Rubin) model of potential outcomes [28, 29]. The treatment assignment for individual i is denoted by \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_i$$\end{document} , where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_i=0$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_i=1$$\end{document} represent control and treatment. Let \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$Y_i$$\end{document} be the observed outcome and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$X_i$$\end{document} be the observed confounders. For example, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$X_i$$\end{document} represents gender and age in the motivating example. The causal effect for individual i is defined as the difference between the outcome if i receives the treatment, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$Y_i(1)$$\end{document} , and the outcome if i receives the control, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$Y_i(0)$$\end{document} . Since, in practice, an individual cannot be both treated and untreated, we work with two populations: a group of individuals exposed to the treatment and a group of individuals exposed to the control. It is important to distinguish between the observed outcome \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$Y_i$$\end{document} and the counterfactual outcomes \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$Y_i(1)$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$Y_i(0)$$\end{document} . The latter are hypothetical and may never be observed simultaneously; however, they allow a precise characterization of questions of interest. For example, the causal effect for individual i can be written as the difference in potential outcomes:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \tau (X_i) = {\mathbb {E}}[Y_i(1)|X_i] - {\mathbb {E}}[Y_i(0)|X_i]. \end{aligned}$$\end{document}Since the outcome surface \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau (X)$$\end{document} depends on confounders, we focus on the “average treatment effect" (ATE), \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mathbb {E}}_X[\tau (X)]$$\end{document} , which is defined as the average causal effect for all individuals including both treatment and control.

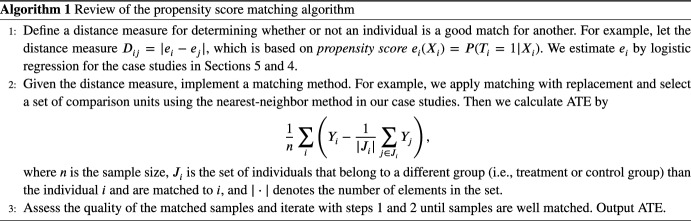

Matching methods attempt to eliminate bias in estimating the treatment effect from observational data by balancing observed confounders across treatment and control groups; see, e.g., Rubin and Thomas [30] and Imbens [31]. These works identify two assumptions on data that are required in order to apply matching methods in an observational study.
- The strong ignorability condition (Rosenbaum and Rubin [32]) is referred to as the combination of exchangeability and positivity, which we discuss later that they are satisfied in our experiments.
- Treatment assignment is independent of the potential outcomes given the confounders.
- There is a non-zero probability of receiving treatment for all values of X: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$0<{\mathbb {P}}(T=1|X)<1$$\end{document} . Weaker versions of the ignorability assumption exist; see, e.g., Imbens [31].
- The stable unit treatment value assumption (SUTVA; Rubin [33]), which states that the outcomes of one individual are not affected by treatment assignment of any other individuals. There are two parts of the SUTVA assumption, which we rely on later in this paper.
- No-interference: The outcome for individual i cannot depend on which treatment is given to individual \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$i'\ne i$$\end{document} . (Rubin [33] attributes this to Cox [34].)
- No-multiple-versions-of-treatment: There can be only one version of any treatment, as multiple versions might give rise to different outcomes. (Rubin [33] attributes this to Neyman [35].) “Version" refers to detailed information that is ignored as we coarsen a refined indicator to be used as a (typically binary) treatment. The assumptions mentioned above are complementary to the assumptions that determine causal models such as the one shown in Fig. 1. To determine if treatment T is ignorable relative to outcome Y, conditional on a set of matching variables, we require only that matching variables block all the back-door paths between T and Y, and that no matching variable is a descendent of T [36]. For example, LCD in Fig. 23 is ignorable since matching the confounders (i.e., gender and age) blocks all the back-door paths and the confounders are not descendants of LCD. The algorithm for propensity score matching is summarized in Algorithm 1. Detailed discussions of each step are deferred to Appendix A.
I-Rand Algorithm
Two-point time-series datasets that are structurally similar to the nutrition dataset introduced in Sect. 2.2 arise frequently in medical and health studies. A dataset of this type consists of a baseline observation at time \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=0$$\end{document} and a follow-up observation at \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=1$$\end{document} , where all individuals receive a treatment between the two time points. How do we apply matching methods to estimate the causal effect of a treatment that was taken between the two time points from a dataset of this type? To address this question, we look at what happens when we attempt to apply statistical methods to estimate the causal effect. Although there are many popular machine learning methods for causal estimation [37, 38], we focus on two widely used approaches: pooling and difference-in-differences.
Pooling [14, 15] combines the baseline and the follow-up observations into a single dataset. This approach treats the measurements from individual i at \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=0$$\end{document} (before taking the treatment) and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=1$$\end{document} (after observing the outcome of the treatment) as distinct data points. This amounts to using observations at \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=0$$\end{document} as a control group. Difference-in-differences [16, 17], on the other hand, makes use of longitudinal data from both treatment and control groups to obtain an appropriate counterfactual to estimate causal effects. This approach compares the changes in outcomes over time between a population that takes a specific intervention or treatment (the treatment group) and a population that does not (the control group).
Consider the motivating example in Sect. 2.1, where every individual embarks on the LCD treatment at time 0. At time 1, we look at at how the outcome T2D is affected by the LCD between times 0 and 1, under numerous assumptions. Suppose we try to estimate the average treatment effect of the LCD by matching propensity scores on a dataset obtained by pooling observations at times 0 and 1. Since, for every i, the treatment \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{i,t}$$\end{document} determines the treatment \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{i, 1 - t}$$\end{document} the outcome for individual i at time t depends on the treatment of individual i at time \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$1-t$$\end{document} . In other words, the pooled approach violates the no-interference assumption, and propensity score matching is not supported.[14, 15]. As we illustrate with simulation in Sect. 3.1.1, the no-interference violation can lead to sub-par performance of causal estimates based on pooling. On the other hand, applying difference-in-differences to the motivating example would require us to make an assumption about what what would happen to individuals not treated between times 0 and 1. We explore this in Sect. 3.1.2.
The issues outlined above prompted us to develop I-Rand, a novel approach to estimating causal effects from two-point time-series data. As we show in simulation, I-Rand can reduce estimation error introduced by violations of the SUTVA assumption incurred by pooling data. There is some conceptional overlap between I-Rand and the synthetic control method [18, 39], which provides a systematic way to choose comparison units (i.e., “synthetic control”) as a weighted average of all potential comparison units that best resembles the characteristics of the unit of interest (i.e., treatment unit). In I-Rand, both the control and treatments units are chosen from the data to form a “synthetic subsample” from which the causal effect is estimated using propensity score matching (i.e., the one control unit with the closest propensity score to the treatment unit of interest).

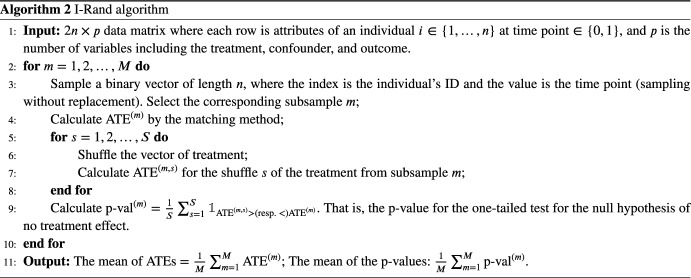

I-Rand samples one of the two visits for each patient, calculates the ATE on this selected subsample, and shuffles the treatment of the subsample to estimate the significance of the treatment. The estimation relies on the matching method described in Sect. 2.3 and applies a permutation test to the statistics estimated from the matching methods on the subsamples to infer the significance. Under the null hypothesis, the empirical ATEs are identically distributed. Formally, we construct a subsample in which each patient appears exactly once, either at \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=0$$\end{document} or \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=1$$\end{document} with the same probability, and then calculate the ATE from this sample. Then we construct additional \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$(M-1)$$\end{document} subsamples, where each additional subsample should be drawn to have as few common observations with existing subsamples as possible. For example, one can apply the Latin hypercube sampling [40] to draw the subsamples. We calculate the ATEs from the constructed \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$(M-1)$$\end{document} subsamples and take the average ATE:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \frac{1}{M}\sum _{m=1}^M \text {ATE}^{(m)}, \end{aligned}$$\end{document}where m indicates the mth generated subsamples. Then the i-Randomization estimator in Equation (1) gives the overall estimated ATE. To assess the significance of the treatment, we add another layer of randomization by permuting the treatments in the subsample. That is, given a subsample m with corresponding estimand \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {ATE}^{(m)}$$\end{document} , we shuffle the treatment vector of this subsample without changing the confounders or the outcome. We then estimate an average treatment effect \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {ATE}^{(m, s)}$$\end{document} for this shuffled treatment, where the superscript (m, s) indicates that we have selected the subsample m and the shuffle s. We repeat the experiment S times (for a fixed subsample m), and obtain the distribution of average treatment effects., i.e., \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$(\text {ATE}^{(m, s)})_{s \in \{1,..., S\}}$$\end{document} . Then, we calculate a p-value as the fraction of permuted average treatment effects that exceed the estimand \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {ATE}^{(m)}$$\end{document} . The additional complexity of I-Rand is justified by the benefits that it brings relative to the pooled approach and difference-in-differences. I-Rand overcomes the SUTVA violation that is inherent in the pooled approach, and it creates a synthetic control group, which is absent in difference-in-differences. The I-Rand algorithm is summarized in Algorithm 23
We note that the permutation test in I-Rand is valid only if the rearranged data are exchangeable under the null hypothesis [41]. In our two-sample test for the nutrition dataset, the exchangeability condition holds since the distributions of the two groups of data are the same under the null hypotheses that there is no treatment effect. The subsampling technique in I-Rand is similar to the one studied by Hahn [13] in the analysis of spatial point patterns. The difference, however, is that the normalization of test statistics (i.e., ATE) is unnecessary in I-Rand since the matching method has balanced the designs.
Comparison of I-Rand with Alternative Methods
We use simulation to compare errors in an I-Rand-based estimation of a treatment effect with errors from the pooled approach and difference-in-differences. We look at causal effect estimation under two types of treatment assignments inspired by our data and the questions considered in this article. First, we study the “LCD-like treatment", as in the motivating example in Sect. 2.1, where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T=0$$\end{document} at \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=0$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T=1$$\end{document} at \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t>0$$\end{document} (some arbitrary time for the second visit of the experiment, after the treatment was assigned) for all individuals. The LCD-like treatment respects the two-point time series structure since the assignment of T depends on time.
Next, we consider a study from Sect. 5.1: does obesity cause T2D? Here, treatment is a binary indicator based on the body-mass index (BMI), where obesity is indicated by \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\textrm{BMI} > 30$$\end{document} . To avoid excess notation, we use the acronym “BMI" to indicate both the body mass index and the binary treatment derived from it. In this study, there is a control group consisting of individuals with BMI < 30. This treatment does not align with time, and we call treatments of this type “BMI-like."4 Here, it is natural to pool the data at the two time points, with a control group of non-obese individuals and a treatment group of obese individuals. To apply difference-in-differences, we split the data into two subsets. The first subset consists of individuals who are non-obese at time 0. The control group in the subset is individuals who are non-obese at time 1, while the treatment group consists of individuals who are obese at time 1. For this subset, the treatment, obesity, has a significant effect on T2D if change in T2D is significantly different in the treatment group than in the control group. The second subset consists of individuals who are obese at time 1. The control group in the subset is individuals who are obese at time 1, while the treatment group consists of individuals who are non-obese at time 1. Again, the treatment, obesity, causes T2D if the change in T2D is significantly different from zero in the treatment group than in the control group. As usual, the numerous assumptions on which our results rely include causal completeness. We note that, while it may be unintuitive, it is certainly possible that the effect of increased obesity on T2D could turn out to be negative. An overview of the comparison of I-Rand with two benchmark methods is given in Table 1.Table 1. Overview of comparison of I-Rand with alternative methods given two-point time-series with novel structuresRespect time structureIgnore time structure(LCD-like treatment)(BMI-like treatment)Pooled approach vs. I-RandSection 3.1.1Section 3.2.1Difference-in-differences vs. I-RandSection 3.1.2Section 3.2.2
All our simulations consider a panel dataset with two time points where outcomes are specified by the structural equation:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \begin{aligned} Y_{i, t}&= \alpha +f(T_{i, t}) + g(X_{i, t})+ \varepsilon ^{Y}_{i, t}, \end{aligned} \end{aligned}$$\end{document}where the confounder vector \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$X_{i,t}$$\end{document} , such as age or gender, takes continuous or categorical values. The parameter \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\alpha \in \mathbb R$$\end{document} , \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$g(\cdot )$$\end{document} are unknown functions, and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$f(\cdot )$$\end{document} is a linear function in the treatment, i.e. \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$f(T_{i,t}) = \delta T_{i,t}$$\end{document} . We provide a set of identifiability conditions for model (2) so that we can uniquely estimate the parameters \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\alpha$$\end{document} , \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\delta$$\end{document} , and the unknown function \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$g(\cdot )$$\end{document} based on the observed outcome \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$Y_{i,t}$$\end{document} , treatment \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{i,t}$$\end{document} , and confounder vector \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$X_{i,t}$$\end{document} . First, we assume there is no perfect multicollinearity among the treatment \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{i,t}$$\end{document} and the confounder vector \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$X_{i,t}$$\end{document} , so their effects on \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$Y_{i,t}$$\end{document} can be separately identified. Second, we assume the error term, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\varepsilon ^{Y}_{i, t}$$\end{document} , is independently and identically distributed and is uncorrelated with the treatment and the confounders. Lastly, we assume \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$g(\cdot )$$\end{document} satisfies the side condition \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathbb E_X[g(X)]=0$$\end{document} , which is necessary to uniquely estimate g based on the observed data [38, 43].
Assuming the confounder satisfies the back-door criterion [36], we can interpret f(.) as the causal mechanism of T affecting Y [44]. The noise term \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\varepsilon ^{Y}_{i, t}$$\end{document} is assumed to be i.i.d. for any i and t, and has zero mean and bounded variance. The treatment \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{i, t}$$\end{document} is specified differently in different examples that we consider below.
Time-Aligned (LCD-Like) Treatment
To complete the specification of the data generating process (2), we set the treatment variable as follows:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} T_{i,t} = \mathbbm {1}_{t = 1},\quad \forall i\in \{1,\ldots ,n\} \text { and }t\in \{0,1\}, \end{aligned}$$\end{document}where the treatment \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{i,t}$$\end{document} for individual i at time t is binary and depends only on time. For example, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{i,t}$$\end{document} in the nutrition data of Sect. 2.2 indicates whether individual i follows an LCD at time t. The outcome \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$Y_{i,t}$$\end{document} is analogous to the HbA1c measure in the nutrition data of Sect. 2.2. We note that the strong ignorability condition in Sect. 2.3 is satisfied under the LCD-like treatment (3). Specifically, the first condition on exchangeability holds since the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T=1$$\end{document} is independent of the potential outcomes given the confounders under (3). The second condition on positivity holds because for any given confounders X that excludes the time t, the probability of receiving treatment satisfies \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$0<\mathbb P(T=1|X)<1$$\end{document} . However, the data-generating process under (3) violates SUTVA in Sect. 2.3.
Comparison to the Pooled Approach
The pooled approach breaches the “no-interference” assumption as \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{i,t}$$\end{document} determines \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{i,t'}$$\end{document} , where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t\ne t'\in \{0,1\}$$\end{document} . Thus, each pair of distinct observations has the same probability of being matched, which violates the “no-interference” assumption of the SUTVA in Sect. 2.3. We refer readers to Appendix A for an overview of the propensity score matching.
We consider a numerical example that illustrates the consequence of breaching the “no-interference” assumption on the pooled data. We consider a correlated structure of confounders that simulates the age and gender in the nutrition data of Sect. 2.2. Let \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$X^{(1)}$$\end{document} denote gender and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$X^{(2)}$$\end{document} denote age. Therefore, for \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=0$$\end{document} , our confounders are simulated as follows:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \begin{aligned} X_{i,0}^{(1)}&= \mu + \sigma \varepsilon _{i}^X, \quad \varepsilon _i^X \sim N(0, 1)\\ X_{i,0}^{(2)}&\sim \text {Unif}\{0,1\}, \end{aligned} \end{aligned}$$\end{document}where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} are respectively the average age and its standard deviation. For \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=1$$\end{document} , we add a time trend on the variable age and keep the variable gender constant:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \begin{aligned} X_{i,1}^{(1)}&= t_i + \rho X^{(1)}_{i, 0} + \sqrt{1 - \rho ^2} \xi _{i}^X,\quad \xi _i^X \sim N(0, 1)\\ X_{i,1}^{(2)}&= X_{i,0}^{(2)}, \end{aligned} \end{aligned}$$\end{document}\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t_i$$\end{document} here is the time elapsed between the first and second visit for individual i (measured in months, and will generate \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t_i$$\end{document} to be uniformly distributed in the time length of the experiment (e.g. 24 months)) and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rho$$\end{document} is the correlation between the confounder at \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=0$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=1$$\end{document} . We set \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rho =0.9$$\end{document} , \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu =40$$\end{document} , \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma = 10$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t_i\sim \text {Unif}\{1, 2,\ldots ,24\}$$\end{document} in this simulation. The outcome \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$Y_{i,t}$$\end{document} is generated by letting \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$g(\cdot )$$\end{document} in (2) be a linear function:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} g(X) = X\beta . \end{aligned}$$\end{document}Here, we set \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\alpha =0$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\delta =1$$\end{document} in (2), and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\beta ^T=(1, 1)$$\end{document} in (6). The noise variable \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\varepsilon ^Y_{i, t}$$\end{document} in (2) is independently drawn from \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$N(0, \sigma ^2)$$\end{document} . Under the pooled approach, we estimate the treatment effect based on the propensity score matching in Algorithm 1. Under I-Rand, we estimate the treatment effect by averaging over the estimates using 500 subsamples using Algorithm 2. Figure 2 reports the mean squared errors (MSEs) for \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\delta$$\end{document} with varied sample sizes and noise levels. In our example, I-Rand outperforms the pooled approach, whose ATE estimate has inflated error due to the breach of “no-interference” assumption.Fig. 2. The MSE for the estimate of treatment effect when varying the sample size and noise level \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} . Left plot: the MSE surface for the I-Rand; Middle plot: the MSE surface for the pooled approach; Right plot: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {MSE(pooled)}-\text {MSE(I-Rand)}$$\end{document}

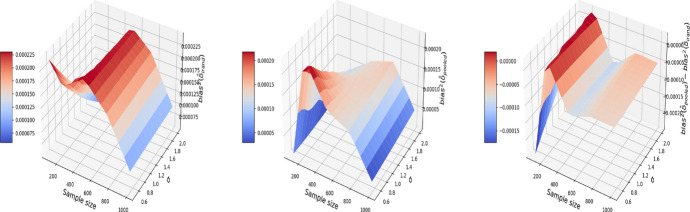

We also explore the decomposition of the MSE to check the bias and variance separately in Figs. 3 and 4. It is seen that the inflated error is related to a larger variance for the pooled approach compared I-Rand, while the bias is close to 0 for both methods.Fig. 3. The \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2$$\end{document} for the estimate of treatment effect when varying the sample size and noise level \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} . Left plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2$$\end{document} surface for the I-Rand; Middle plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2$$\end{document} surface for the pooled approach; Right plot: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2_{\text {pooled}}-\text {bias}^2_{\text {I-Rand}}$$\end{document} Fig. 4. The \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}$$\end{document} for the estimate of treatment effect when varying the sample size and noise level \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} . Left plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}$$\end{document} surface for the I-Rand; Middle plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}$$\end{document} surface for the pooled approach; Right plot: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}_{\text {pooled}}-\text {variance}_{\text {I-Rand}}$$\end{document}
Comparison to Difference-In-Differences
The standard set up of difference-in-differences [16, 17] is one where outcomes are observed for two groups for two time periods. One of the groups is exposed to treatment in the second period but not in the first period. The second group is not exposed to the treatment during either period. In the case where the same units within a group are observed in each time period, the average gain in the control group is subtracted from the average gain in the treatment group, which gives an estimate of the average treatment effect:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \begin{aligned} \text {ATE}&\equiv {\mathbb {E}}_X[{\mathbb {E}}[Y_i(t=1)-Y_i(t=0)|T_i(t=1)=1,T_i(t=0)=0,X]]\\&\quad - {\mathbb {E}}_X[{\mathbb {E}}[Y_i(t=1)-Y_i(t=0)|T_i(t=1)=0,T_i(t=0)=0,X]]. \end{aligned} \end{aligned}$$\end{document}Difference-in-differences removes biases in second-period comparisons between the treatment and control group that could be the result of permanent differences between those groups, as well as biases from comparisons over time in the treatment group that could be the result of trends. We note that this standard difference-in-differences approach does not require the knowledge of the functions \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$f(\cdot )$$\end{document} or \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$g(\cdot )$$\end{document} in (2). However, in our application with the LCD-like treatment design (3), the treatment effect (7) cannot be estimated from data using the aforementioned standard approach of difference-in-differences. The main reason is that LCD-like treatment design lacks the control group \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\{i|T_i(t=1)=0,T_i(t=0)=0\}$$\end{document} . We summarize this result in the following theorem.
Theorem 1
Under the two-point treatment design (3) and the structural equation (2), the treatment effect (7) is not identifiable by difference-in-differences if there is no prior knowledge on the parametric family of \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$f(\cdot )$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$g(\cdot )$$\end{document} in (2).
The proof of Theorem 1 is in Appendix B, which also illustrates that without prior knowledge of the parametric forms for \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$f(\cdot )$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$g(\cdot )$$\end{document} , the difference-in-differences estimate may become biased or even inapplicable under the two-point treatment design (3). One remedy for applying difference-in-differences to the treatment design (3) is constructing a synthetic control group ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T=0$$\end{document} ) from the base values of the confounders X and outcome Y (their values at \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=0$$\end{document} ). Another solution would be to estimate the treatment effect \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\delta$$\end{document} by regressing over the observational treatment group data \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\{i|T_i(t=1)=1,T_i(t=0)=0\}$$\end{document} under the design (3). Nonetheless, we demonstrate that even in a parametric structural equation, I-Rand can outperform difference-in-differences.
We simulate data using the same setup as in 3.1.1. we take the difference in the variables on both sides of the equation (2) and stack the synthetic control group to obtain
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \begin{aligned} DY_{i, 0}:= Y_{i,0}&= X_{i,0}\beta + \varepsilon _{i,0}^Y \quad&\text { at } t=0\\ DY_{i, 1}&= \underbrace{DT_{i, 1}}_1\delta + DX_{i, 1}\beta + D\varepsilon _{i, 1}^Y, \quad&\text { at } t=1 \end{aligned} \end{aligned}$$\end{document}where the operator D denotes the difference in the variable between \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=1$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=0$$\end{document} , i.e., \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$DZ_{i,1} = Z_{i, t=1} - Z_{i, t=0}$$\end{document} for any variable Z. In this example, The difference-in-differences fails to meet the strong ignorable treatment assignment condition in Sect. 2.3 unless we create this synthetic control group. Specifically, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$0<P(\text {Treatment}=1|X)<1$$\end{document} , as \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$P(DT=1|X)=1$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$P(DT=0|X)=0$$\end{document} . Hence we cannot directly apply the propensity score matching in Sect. A to estimate the treatment effect in the original setting. For I-Rand, we apply Algorithm 2 and obtain the treatment effect by averaging over 500 subsamples. Under the difference-in-difference approach, we estimate the treatment effect based on the propensity score matching in Algorithm 1 applied to the setup of Equation (8).

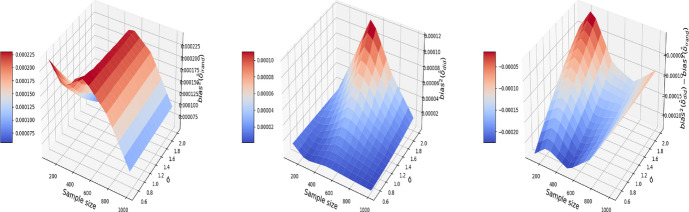

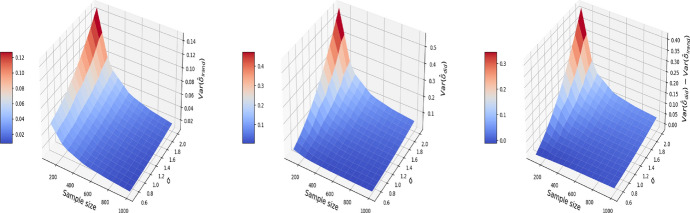

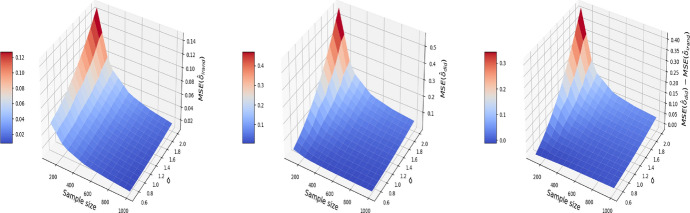

Figures 5, 6, and 7 report respectively the mean-squared errors, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2$$\end{document} and variance of the estimator to the true value \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\delta =1$$\end{document} (left and middle panels), and the difference in these quantities between i-Rand and DiD (right panel), when varying sample sizes and noise levels. From the plots, we see that the estimator with I-Rand has smaller MSEs than the estimator with difference-in-difference due to a smaller variance. While the poor performance of difference-in-differences can be traced to the lack of a control group, adding a synthetic control group still provides an estimator with a small bias. Using regression can also be a solution and could give good results when the treatment and confounders are uncorrelated. But if the treatment and confounders are linearly dependent, the ordinary least squares will fail to estimate a causal effect.Fig. 5. The MSE for the estimate of treatment effect when varying the sample size and noise level \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} . Left plot: the MSE surface for the I-Rand; Middle plot: the MSE surface for the difference-in-differences approach; Right plot: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {MSE(did)}-\text {MSE(I-Rand)}$$\end{document} Fig. 6. The \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2$$\end{document} for the estimate of treatment effect when varying the sample size and noise level \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} . Left plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2$$\end{document} surface for the I-Rand; Middle plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2$$\end{document} surface for the difference-in-differences approach; Right plot: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2_{\text {did}}-\text {bias}^2_{\text {I-Rand}}$$\end{document} Fig. 7. The \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}$$\end{document} for the estimate of treatment effect when varying the sample size and noise level \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} . Left plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}$$\end{document} surface for the I-Rand; Middle plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}$$\end{document} surface for the difference-in-differences approach; Right plot: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}_{\text {did}}-\text {variance}_{\text {I-Rand}}$$\end{document}
We summarize in Table 2 the advantages of I-Rand compared to two benchmark approaches for the LCD-like treatment.Table 2. Comparison of three approaches in the case of the LCD-like treatment in Sect. 3.1Pooled approachDifference-in-differencesI-RandSUTVA assumptionFailHoldHoldControl groupYesNoYes
Time Misaligned (BMI-Like) Treatment
To complete the specification of the data generating process (2), we set the treatment variable as follows:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} T_{i,t} = h(X_{i,t}),\quad \forall i\in \{1,\ldots ,n\}\text { and } t\in \{0,1\}. \end{aligned}$$\end{document}Here the treatment \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{i,t}$$\end{document} for individual i at time t is a binary function of the confounders \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$X_{i,t}$$\end{document} .
Our treatment is time misaligned because it ignores our two-point time-series structure, i.e., two observations for each patient with treatment administrated at \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=0$$\end{document} and observed at \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=1$$\end{document} . It mimics the experiment in Sect. 2.2, where the treatment is a discrete version of BMI: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{i,t}$$\end{document} is weight category (e.g., normal or overweight) of individual i at time t. In this experiment \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{i,t}$$\end{document} depends on the confounders such as LCD, age and gender.
Comparison to the Pooled Approach
Unlike the LCD-like assignment in Sect. 3.1.1, the pooled approach [14, 15] meets the SUTVA assumption of “no-interference” under design (9). Moreover, the pooled approach provides an estimate to \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {ATE}^*$$\end{document} in (B3) by treating the observations from an individual at \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=0,1$$\end{document} as two distinct data points. We demonstrate through numerical examples that the pooled approach is a comparable alternative to I-Rand in the BMI-like treatment assignment (9). We specify the confounder \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$X=(X^{(1)},X^{(2)})$$\end{document} by Eq. 4, where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$X^{(1)}$$\end{document} denotes an individual’s age and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$X^{(2)}$$\end{document} indicates whether or not an individual has followed an LCD. The parameters and simulated data are analogous to Section 3.1 except for the the treatment T which is assigned according to \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{i, t}\sim \text {Ber}\left( p=(1+e^{X_{i,t}\beta _T + \varepsilon _{i,t}^T})^{-1}\right)$$\end{document} where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\varepsilon _{i,t}\sim N(0,1)$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\beta _T = (\tfrac{1}{40}, -1)$$\end{document} . We consider the linear model (6) for outcome \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$Y_{i,t}$$\end{document} , where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\varepsilon _{i, t}^{Y} \sim N(0, \sigma ^2)$$\end{document} , and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\alpha =0$$\end{document} , \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\beta =(1, 1)$$\end{document} , and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\delta =1$$\end{document} .

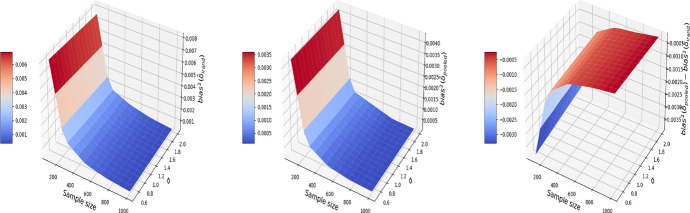

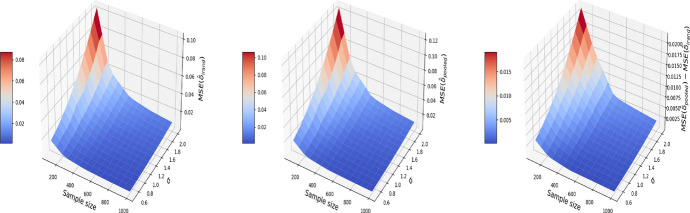

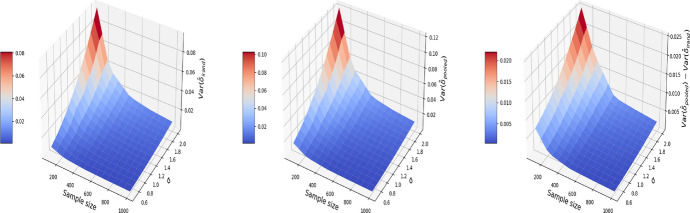

The results are displayed in Figs. 8, 9, 10, where the MSE (resp. bias, variance) surface for I-Rand is shown with varying sample size and noise level \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} . Also displayed is the difference between the MSE (resp. bias, variance) of I-Rand and the pooled approach. It is clear that I-Rand outperforms the pooled approach for the BMI-like treatment (9) due to a smaller variance.Fig. 8. The MSE for the estimate of treatment effect when varying the sample size and noise level \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} . Left plot: the MSE surface for the I-Rand; Middle plot: the MSE surface for the pooled approach; Right plot: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {MSE(pooled)}-\text {MSE(I-Rand)}$$\end{document} Fig. 9. The \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2$$\end{document} for the estimate of treatment effect when varying the sample size and noise level \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} . Left plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2$$\end{document} surface for the I-Rand; Middle plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2$$\end{document} surface for the pooled approach; Right plot: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2_{\text {pooled}}-\text {bias}^2_{\text {I-Rand}}$$\end{document} Fig. 10. The \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}$$\end{document} for the estimate of treatment effect when varying the sample size and noise level \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} . Left plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}$$\end{document} surface for the I-Rand; Middle plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}$$\end{document} surface for the pooled approach; Right plot: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}_{\text {pooled}}-\text {variance}_{\text {I-Rand}}$$\end{document}
Comparison to Difference-In-Differences
In the time misaligned BMI-like treatment, difference-in-differences [16, 17] encounters the problem of having four different types of individuals; always-treated ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\{i|T_i(t=1)=1,T_i(t=0)=1\}$$\end{document} ), never-treated ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\{i|T_i(t=1)=0,T_i(t=0)=0\}$$\end{document} ), treated-to-untreated \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\{i|T_i(t=1)=0,T_i(t=0)=1\}$$\end{document} , and untreated-to-treated \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\{i|T_i(t=1)=1,T_i(t=0)=0\}$$\end{document} . To obtain an estimate of the treatment effect in this case, it is necessary to compare the outcomes of the group of never-treated to untreated-to-treated or the outcomes of the group of always-treated to treated-to-untreated. The idea is that the treatment state should be the same in both groups at \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=0$$\end{document} and different at \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=1$$\end{document} . We illustrate our ideas on the former; the latter follows the same line of reasoning. Difference-in-differences gives an estimate of the causal effect in (7), which is the same as the target effect \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {ATE}^*$$\end{document} in (B3) only if
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned}&{\mathbb {E}}_X[{\mathbb {E}}[Y_i(t=0)|T_i(t=1)=1,T_i(t=0)=0,X]]\nonumber \\&\quad = {\mathbb {E}}_X[{\mathbb {E}}[Y_i(t=0)|T_i(t=1)=0,T_i(t=0)=0,X]], \end{aligned}$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned}&\text { or }\quad {\mathbb {E}}_X[\mathbb E[Y_i(t=1)|T_i(t=1)=0,T_i(t=0)=0,X]] \nonumber \\&\quad = {\mathbb {E}}_X[\mathbb E[Y_i(t=0)|T_i(t=1)=0,T_i(t=0)=0,X]]. \end{aligned}$$\end{document}However, both (10) and (11) are strict and likely to fail in practice. Take the nutrition data in Sect. 2.2 as an example. Condition (10) requires that the expected outcome at the baseline is the same between two different groups: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\{i|T_i(t=1)=1,T_i(t=0)=0\}$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\{i|T_i(t=1)=0,T_i(t=0)=0\}$$\end{document} . However, the unobserved confounders such as lifestyle and genetic information in the two groups \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\{i|T_i(t=1)=1,T_i(t=0)=0\}$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\{i|T_i(t=1)=0,T_i(t=0)=0\}$$\end{document} are different (otherwise the treatment at \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=1$$\end{document} should be the same in two groups), so that condition (10) is likely to fail. Moreover, condition (11) requires the expected outcomes be the same at the two time points, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=0,1$$\end{document} , for the group \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\{i|T_i(t=1)=0,T_i(t=0)=0\}$$\end{document} . However, since an individual does not take an LCD at \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=0$$\end{document} and does take an LCD at \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=1$$\end{document} , the confounder LCD assignment differs between \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=0$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=1$$\end{document} . Hence, the condition (11) would fail for the nutrition data in Sect. 2.2.
Consequently, difference-in-differences (7) cannot be applied to the BMI-like treatment assignment (9). An alternative approach is to eliminate treated-to-untreated (i.e. \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$DT_{i,1}=-1$$\end{document} ) and focus only on untreated-to-treated and never-treated since we have no guarantee the effect is symmetric. By following this approach, we can apply the propensity score matching in Algorithm 1 again. The results are shown in Figs. 11, 12, and 13, where the MSE, bias, and variance surfaces for I-Rand are shown with varying sample size and noise level \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} . Also shown is the difference between these quantities (i.e. MSE, bias, and variance) between the estimate using I-Rand and the benchmark, difference-in-differences. We notice that for our setup, difference-in-difference is unable to estimate the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\delta$$\end{document} , while I-Rand performs similarly in other setups.Fig. 11. The MSE for the estimate of treatment effect when varying the sample size and noise level \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} . Left plot: the MSE surface for the I-Rand; Middle plot: the MSE surface for the difference-in-differences approach; Right plot: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {MSE(did)}-\text {MSE(I-Rand)}$$\end{document} Fig. 12. The \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2$$\end{document} for the estimate of treatment effect when varying the sample size and noise level \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} . Left plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2$$\end{document} surface for the I-Rand; Middle plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2$$\end{document} surface for the difference-in-differences approach; Right plot: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2_{\text {did}}-\text {bias}^2_{\text {I-Rand}}$$\end{document} Fig. 13. The \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}$$\end{document} for the estimate of treatment effect when varying the sample size and noise level \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} . Left plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}$$\end{document} surface for the I-Rand; Middle plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}$$\end{document} surface for the difference-in-differences approach; Right plot: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}_{\text {did}}-\text {variance}_{\text {I-Rand}}$$\end{document}
To conclude this section, we stress that the first argument in favor of the application of I-Rand is its verification of the SUTVA assumption in both the time-aligned and time-misaligned treatments we considered. The estimation of the causal effect is data dependent, but we find that I-Rand performs at least as well as the benchmark methods in the examples considered. Naturally, I-Rand is also subject to some limitations. One of those limitations is the dependence of the estimates across subsamples which delays the convergence of the variance of the estimator to 0. We note that it does not affect the bias much since having one subsample already gives an unbiased estimator, and averaging unbiased estimator yields an unbiased estimator. However, as we increase the number of subsamples, the variance seems to decrease toward 0. We will explore this question in Sect. 3.4.
Estimating the Average Treatment Effect in the Presence of Hidden Confounders
I-Rand averages the ATE of multiple subsamples of the data. However, since the “ignorability” assumption is one that is generally required to obtain an unbiased estimator of the causal effect for each of these subsamples, if the ATE of the subsamples is biased in the presence of hidden confounders, so would the I-Rand estimate. Stuart [45] argues that using a weaker version of ignorability is often sufficiently for some quantities of interest like the population-average treatment effect (PATE), since controlling for observed covariates can mitigate the effect of unobserved ones, assuming those are correlated. In this section, we want to explore the sensitivity of I-Rand to hidden confounders. To do this, we consider the BMI-like treatment and the setting of Sect. 3.2 except that we add a hidden confounder Z that affects both the treatment T and outcome Y and which we don’t control for. For example, the hidden confounder Z could be the physical activity. Therefore, at time \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=0$$\end{document} we have:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \begin{aligned} X_{i,0}^{(1)}&= \mu + \sigma \varepsilon _{i}^X, \quad \varepsilon _i^X \sim N(0, 1),\\ X_{i,0}^{(2)}&\sim \text {Unif}\{0,1\},\\ Z_{i, 0}&\sim \text {Ber}(p). \end{aligned} \end{aligned}$$\end{document}At time \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$t=1$$\end{document} , we have:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \begin{aligned} X_{i,1}^{(1)}&= t_i + \rho X^{(1)}_{i, 0} + \sqrt{1 - \rho ^2} \xi _{i}^X,\quad \xi _i^X \sim N(0, 1),\\ X_{i,1}^{(2)}&= X_{i,0}^{(2)},\\ Z_{i, 1}&\sim \text {Ber}(p). \end{aligned} \end{aligned}$$\end{document}And finally T and Y are given by:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \begin{aligned} T_{i, t}&\sim \text {Ber}\left( p=\tfrac{1}{1+e^{X_{i,t}\beta _T + Z_{i,t}\gamma _{T} + \varepsilon _{i,t}^T}}\right) ,\\ Y_{i, t}&= X_{i, t}\beta + Z_{i, t}\gamma + T_{i, t}\delta + \varepsilon _{i, t}^{Y},\quad \varepsilon _{i,t}^Y \sim N(0, 1), \end{aligned} \end{aligned}$$\end{document}where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\beta _T=(\tfrac{1}{40}, -1)$$\end{document} , \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\gamma _T=-0.5$$\end{document} , \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\beta =(1, 1)$$\end{document} , \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\gamma =1$$\end{document} , \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\delta =1$$\end{document} .
We then estimate the causal effect without observing the hidden confounder Z. We compare the I-Rand method to the pooled approach. Figs. 14, 15, 16 show that the variance of the I-Rand estimator converges to 0 with the sample size, and the bias of the I-Rand is smaller than that of the pooled approach. Despite this, the bias of I-Rand does not tend towards zero with increased sample size, implying that the “no-hidden confounders” assumption is necessary to obtain an unbiased confounder under I-Rand estimation.Fig. 14. The MSE for the estimate of treatment effect when varying the sample size and noise level \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} . Left plot: the MSE surface for the I-Rand; Middle plot: the MSE surface for the pooled approach; Right plot: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {MSE(pooled)}-\text {MSE(I-Rand)}$$\end{document} Fig. 15. The \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2$$\end{document} for the estimate of treatment effect when varying the sample size and noise level \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} . Left plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2$$\end{document} surface for the I-Rand; Middle plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2$$\end{document} surface for the pooled approach; Right plot: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2_{\text {pooled}}-\text {bias}^2_{\text {I-Rand}}$$\end{document} Fig. 16. The \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}$$\end{document} for the estimate of treatment effect when varying the sample size and noise level \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma$$\end{document} . Left plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}$$\end{document} surface for the I-Rand; Middle plot: the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}$$\end{document} surface for the pooled approach; Right plot: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {variance}_{\text {pooled}}-\text {variance}_{\text {I-Rand}}$$\end{document}
I-Rand and the Number of Subsamples

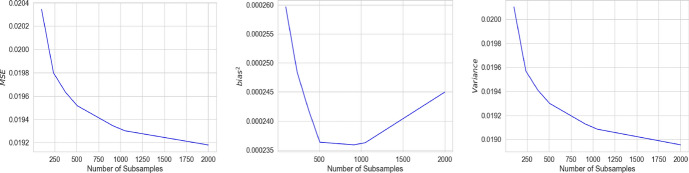

Fig. 17. The MSE (left), \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {bias}^2$$\end{document} (middle) and variance (right) for the estimate of treatment effect using I-Rand when varying the number of subsamples
I-Rand estimate is the mean of the average treatment effect obtained from M subsamples of the original data, therefore its expectation is the expectation of the subsamples ATE. If the ATE from subsamples were independent, we would expect the variance of the estimator to decrease with a factor that is inversely proportional to M. However, because subsamples have overlaps, the convergence of the variance toward 0 is slower. We explore the question by fixing the size of the sample to \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$N=500$$\end{document} under the setup of Sect. 3.2 when increasing the number of subsamples M of the I-Rand algorithm from 100 to 2000. Fig. 17 shows that MSE and variance decrease as the number of subsamples increase; however, the bias changes monotonicity after reaching some value. The value of minimal bias seems to be close to the sample size.
Statistical Inference of I-Rand
To test the significance of the causal effect of our treatment T on the outcome Y using I-Rand, it becomes necessary to perform a hypothesis test. In this process, our null hypothesis posits that the treatment, T, has no effect on the outcome Y. That is, we are testing for \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$H_0: \text {ATE}_{\text {I-Rand}}=0$$\end{document} against the alternative \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$H_1: \text {ATE}_{\text {I-Rand}}\ne 0$$\end{document} . In this paper we address this question by looking at the distribution of the subsamples p-values. A concentration of these p-values close to 0 allows us to reject the null hypothesis of no causal effect again the alternative of nonzero causal effect. For the calculation of the p-values, we perform a permutation test for each subsample to evaluate the significance level of each subsample ATE.Fig. 18. Distribution of the ATE and the I-Rand estimate (Average ATE) for a given simulated sample of size \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$N=500$$\end{document} . Here the number of subsamples \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M=500$$\end{document} Fig. 19. Distribution of the the p-value for hypothesis test for each subsample ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M=500$$\end{document} ) for a given simulated sample of size \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$N=500$$\end{document}
We study one simulated sample from Sect. 3.2 to illustrate our method, which we will use later in our empirical analysis of Sect. 4. In Fig. 18 we report the distribution of the ATE for each subsample as well as the I-Rand estimate (average of the subsample ATE). The p-values distribution of the subsamples is given in Fig. 19. In this case, the estimate of \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\delta =1$$\end{document} is \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\hat{\delta }}=0.89$$\end{document} . The distribution of the p-value shows a range between 0.005 and 0.035, suggesting the rejection of the null hypothesis at level 0.05.
Case Study I: Can Diet Lower the Risk for T2D and CVD?
Treatment Effect of LCD on T2D
We can now analyze the motivating example introduced in Sect. 2.1 and give an answer to the counterfactual question: If an individual changes from a regular diet to an LCD diet, would he / she be less likely to develop T2D? The LCD restricts consumption of carbohydrates relative to the average diet [7]. Several systematic reviews and meta-analyses of randomized control trials suggest beneficial effects of LCD in T2D and CVD, including improving glycaemic control, triglyceride and HDL cholesterol profiles [8–10]. However, the impact of LCD in a “real world" primary care setting with observational data and its cause-and-effect inferences has not been fully evaluated [2]. The challenges of analyzing routine clinical data include the irregular treatment assignments. For example, our analysis relies on the two-point time-series data without control group described in Sect. 2.2, where all patients participated in the program are suggested to change from their regular diets to LCD after their initial visit to the clinic. The irregular design of treatments limit the applications of benchmark methods such as pooled approach and difference-in-differences as discussed Sect. 3. In this section, we apply the proposed I-Rand algorithm to analyze the real data described in Sect. 2.2.
The analysis using observation data utilizes the model of potential outcomes in Sect. 2.3. According to the causal graph in Fig. 1, LCD takes the role of a treatment that affects the mediator BMI and outcome T2D. Gender and age affect BMI and T2D, but not the treatment LCD. To quantify the expected change in T2D if BMI were changed, we need to calculate the total causal effect of LCD on T2D, which can be characterized by the ATE:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} {\mathbb {E}}[\tau _1(\text {Gender}_i,\text {Age}_i)], \end{aligned}$$\end{document}where the potential outcome \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _1$$\end{document} (with “1" indexing that this is the first of a series of nutrition questions) is defined as
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \tau _1(\text {Gender}_i,\text {Age}_i)= & {} \mathbb E[\text {T2D}_i(\text {LCD}=1)\ |\ \text {Gender}_i,\text {Age}_i] \\{} & {} - {\mathbb {E}}[\text {T2D}_i(\text {LCD}=0)\ |\ \text {Gender}_i,\text {Age}_i]. \end{aligned}$$\end{document}We control for the confounders (i.e., gender and age) [36] to estimate the ATE and assess the significance by the proposed I-Rand algorithm. We implement I-Rand by drawing 500 subsamples and calculate the ATE of each subsample. Then, we perform the permutation test for each subsample to evaluate the significance level of the ATE. The result provided in Table 3 indicates that LCD would significantly decrease in the risk of T2D, which is also supported by the box plot of p-values in the first row of Fig. 21, and the distributions of ATEs and p-values in Appendix D.1, where the results show the consistency of the significant causal effects across random subsamples. We make four remarks on the application of I-Rand and the experimental results of this example.
First, there is no control group with individuals on a regular diet at two visits. This is because all individuals were at risk of developing T2D or with T2D and thus suggested to begin the LCD after their first visit. The application of the I-Rand algorithm in this example not only avoids a violation of the SUTVA assumption, but more importantly, to artificially construct synthetic control group. The way that I-Rand constructs synthetic control group is different from the existing synthetic control method [18]. In particular, existing synthetic control method requires the available control individuals and constructs a synthetic control as a weighted average of these available control individuals. However, I-Rand does not require that there exists available control individuals. Instead, I-Rand constructs a synthetic control by subsampling one of the two time points of each individual.Table 3. Causal analysis for the effect of LCD on T2D and Reynolds risk score for CVDLCD on T2D ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mathbb {E}}[\tau _1]$$\end{document} )LCD on Reynolds risk score for CVDTotal effect ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mathbb {E}}[\tau _2]$$\end{document} )Direct effect ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mathbb {E}}[\tau _3]$$\end{document} )Indirect effect ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mathbb {E}}[\tau _4]$$\end{document} )ATE \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$-$$\end{document} 0.593 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$-$$\end{document} 0.015 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$-$$\end{document} 0.009 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$-$$\end{document} 0.005p-value0.0010.0240.1070.003
Second, we note that under the null hypothesis of no causal effect, the p-values follow a uniform distribution on (0, 1) given sufficiently many subsamples. However, the box plot of p-values in the first row of Fig. 21, corresponding to the causal graph in Fig. 1, shows p-values are concentrated at the origin, which indicates a strong evidence for the alternative hypothesis. We note that the hypothesis testing is performed for each subsample independently, but the p-values are not independent across subsamples. This is because the subsamples are correlated although the correlation is weak given each subsample is randomly chosen from the pool of \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$2^{256}$$\end{document} subsamples. If the concentration of the p-values is around 0, we can say with confidence that a small p-value is not a coincidence of the subsample, if most p-values are large, we conclude that the significance of the treatment effect is questionable.
Third, for better appreciating the results in Table 3 we compare them with T2D risks from routine care without LCD suggestion. Some idea of the results that one might expect from routine care can be drawn from the data of control group in the DiRECT study [11], which recently investigated a very low-calorie diet of less than 800 calories and subsequent drug-free improvement in T2D, including T2D remission without anti-diabetic medication. At 12 months, DiRECT study gives \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$46\%$$\end{document} of T2D remission, which is close the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$45\%$$\end{document} rate given in Table 3 from our dataset with LCD over an average of 23 months duration. As a comparison, DiRECT quotes a remission rate at 24 months of just \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$2\%$$\end{document} for routine T2D care without dietary suggestion. This result emphasizes how rare remission is in usual care and the potential value of LCD to lower the T2D risk.
Finally, we note that our approach relies on individuals’ assertions of compliance to the LCD. For several years an LCD has generally been accepted as one containing less than 130 gs of carbohydrate per day [46]. However, it may not be realistic for individuals to count grams of carbohydrate in a regular basis. Our dataset collected from Norwood general practice surgery instead only give clear and simplified explanations of how sugar and carbohydrate affect glucose levels and how to recognize foods with high glycaemic loads [2]. The promising result in Table 3 shows that this simple and practical approach to lowering dietary carbohydrate leads to significant improvement in T2D without the need for precise daily carbohydrate or calorie counting.
Mediation Analysis for the Effect of LCD on CVD
Motivated by the fact that T2D was crucial in explaining CVD risk (Benjamin et al. [5]), we seek to understand the role of T2D as a mediator of the effect of dietary on CVD risk. This is relevant from the perspective of clinical practice for an individual who is afflicted with both T2D and CVD, since he / she may be able to control factors besides T2D that contribute to CVD risk.
Causal Graph of T2D as a Mediator

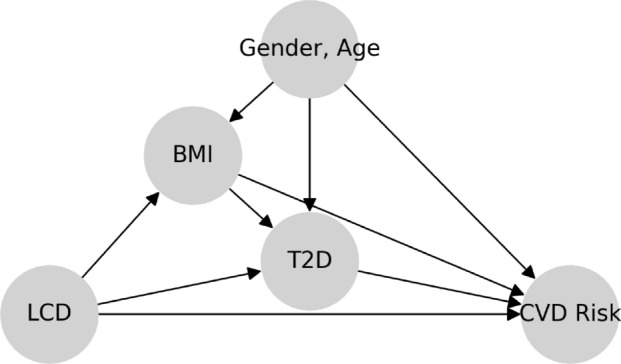

We assume the causal graph in Fig. 20. Note that the outcome CVD has many risk factors, including systolic blood pressure, serum cholesterol level, high-density lipoprotein (which is inversely correlated with CVD risk); see, e.g., Ridker et al. [27]. We study these three well-known risk factors as well as the Reynolds risk score. We motivate Fig. 20 with the following data-generating process: (1) Similar to Fig. 1, choose the treatment LCD at random; Given a selected LCD, sample an individual with a corresponding BMI level; Conditional on the choice of LCD and BMI level, sample the T2D status as the medical outcome; (2) In addition to Fig. 1: Conditional on the choice of LCD and T2D status, sample the medical outcome within a given CVD risk factor. The details are as follows. First, the arrows LCD \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} T2D and LCD \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} BMI encode that the distributions of T2D and BMI depend on LCD status. This dependence was quantified in Sect. 4.1. Second, the arrow T2D \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD reflects the established knowledge in nutrition science that T2D influences CVD risk (Benjamin et al. [5], Martín-Timón et al. [47]). Likewise, the arrow BMI \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD translates the fact that obesity is a cardiovascular risk factor (Sowers [48]). Finally, since our model assumes causal sufficiency, the arrow LCD \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD represents dietary-specific influences on CVD risk. In reality, there may be other mediators, such as socioeconomic status, culture occupation, and stress level.
In addition to the causal graph in Fig. 25, we assume there are no hidden confounders.Fig. 20. Assumed coarse-grained causal graph for the relationship between LCD, BMI, T2D, and the outcome CVD risk. Within this view, T2D acts as a mediator of the effect of LCD on CVD risk
Given these assumptions, we see that LCD causally influences CVD risk along two different paths: a path LCD \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD, giving rise to a direct effect, and two paths LCD \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} BMI \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} T2D \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD and LCD \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} T2D \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD, which are mediated by T2D and give rise to an indirect effect. Note that the direct effect of LCD on CVD risk is likely mediated by additional variables that are subsumed in LCD \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD. We discuss this point further in Sect. 6. In mediation analysis, the goal is to quantify direct and indirect effects. We start with the total effect and then formulate the direct and indirect effects by allowing the treatment to propagate along one path while controlling the other path.
Total Effect of LCD on CVD
Given the causal assumptions in the previous section, the first measure of interest is the total causal effect of LCD on CVD, i.e., the answer to the following question:*“What would be the effect on CVD if an individual changes from regular diet to LCD?"*We formulate the answer using the ATE:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} {\mathbb {E}}[\tau _2(\text {Gender}_i,\text {Age}_i)], \end{aligned}$$\end{document}where the potential outcome \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _2$$\end{document} is defined as
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \tau _2(\text {Gender}_i,\text {Age}_i)= & {} \mathbb E[\text {CVD}_i(\text {LCD}=1)|\text {Gender}_i,\text {Age}_i] \\{} & {} - {\mathbb {E}}[\text {CVD}_i(\text {LCD}=0)|\text {Gender}_i,\text {Age}_i]. \end{aligned}$$\end{document}Using the I-Rand algorithm, we report the results for the effect of LCD on the Reynolds risk score as measure of CVD risk. The total effect and the p-value are given in Table 3. Figure 21 summarizes the effects of LCD on all four measures of CVD risk. The LCD significantly lowered the Reynolds risk score (RRS), systolic blood pressure (SBP) and serum total cholesterol (TBC) but it did not have a statistically significant effect on good cholesterol (HDL). The promising result on the improvement of Reynolds risk score, systolic blood pressure and serum total cholesterol suggests that it may be a reasonable approach, particularly if an individual hopes to avoid medication, to offer LCD with appropriate clinical monitoring.Fig. 21. Mean ATE bar plot (left) and p-values box plot (right) for LCD as the treatment. Each row corresponds to a causal diagram:“Outcome | Treatment; Confounders”. For example, “SBP | LCD; Gender, Age” represents the causal diagram with the systolic blood pressure as the outcome, and gender and age as the confounders, and the LCD as the treatment
Direct Effect of LCD on CVD
We now study the natural direct effect (see, Pearl [49]) of LCD on CVD risk in the context of the following hypothetical question:*“For an individual of non-LCD taker, how would LCD affect the risk of CVD?"*We are asking what would happen if the treatment, LCD, were to change, but that change did not affect the distribution of the mediator, T2D. In that case, the change in treatment would be propagated only along the direct path LCD \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD in Fig. 20. We argue that the analysis in this situation should control for gender, age, and T2D, and a look at Fig. 20 give an explanation [36]. To disable all but the direct path, we need to stratify by T2D. This closes the indirect path LCD \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} T2D \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD. But in so doing, it opens two paths LCD \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} T2D \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\leftarrow$$\end{document} (Gender, Age) \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD, and LCD \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} BMI \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} T2D \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\leftarrow$$\end{document} (Gender, Age) \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD. If we control for (Gender, Age) as well, we close these two paths, and therefore any correlation remaining must be due to the direct path LCD \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD. We refer readers to Pearl [36] for an introduction to mediation analysis based on causal diagram.
To quantify the expected change in CVD if LCD status were changed, we need to control for calculate
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} {\mathbb {E}}[\tau _3(\text {Gender}_i,\text {Age}_i, \text {T2D})], \end{aligned}$$\end{document}where the potential outcome \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _3$$\end{document} is defined as
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \begin{aligned} \tau _3(\text {Gender}_i,\text {Age}_i, \text {T2D}_i)&= \mathbb E[\text {CVD}_i(\text {LCD}=1)|\text {Gender}_i,\text {Age}_i,\text {T2D}(\text {LCD}=0)] \\&\quad \quad - \mathbb E[\text {CVD}_i(\text {LCD}=0)|\text {Gender}_i,\text {Age}_i]. \end{aligned} \end{aligned}$$\end{document}The symbol T2D(LCD \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$=0$$\end{document} ) is the counterfactual distributions of BMI and T2D given that the status of LCD is 0. The expectations above are taken over the corresponding interventional (i.e., LCD \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$=0,1$$\end{document} ) and counterfactual (i.e., T2D(LCD \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$=0$$\end{document} )) distributions. We implement I-Rand, which gives the direct effect for the Reynolds risk score in Table 3. Figure 21 summarizes the direct effects of LCD on all four measures of CVD risk. The LCD has a significant direct effect on lowering the Reynolds risk score (RRS) and serum total cholesterol (TBC) with the average p-value less than \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$10\%$$\end{document} . We complement the results shown in Fig. 21 with the distributions of ATEs and p-values of the subsamples in Appendix D.2. The direct effect in this example represents a stable causal effect that, different from the total effect, is robust to T2D and any cause of CVD risk that is mediated via T2D. This robustness makes the natural direct effect a more actionable concept, and in principle, it can be transported to populations with different physical conditions such as T2D status.
Indirect Effect of LCD on CVD
To isolate the indirect effect from the direct effect, we need to consider a hypothetical change in the mediator while keeping the treatment constant. In our CVD example, we may ask:*“How would the CVD risk of an individual without taking LCD be if his / her T2D status had instead following the T2D distribution of individuals taking LCD?"*The answer to this question is the average natural indirect effect (Pearl [49]). It can be written as
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} {\mathbb {E}}[\tau _4(\text {Gender}_i,\text {Age}_i,\text {T2D})], \end{aligned}$$\end{document}where the potential outcome \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _4$$\end{document} is defined as
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \begin{aligned} \tau _4(\text {Gender}_i,\text {Age}_i)&= \mathbb E[\text {CVD}_i(\text {LCD}=0)|\text {Gender}_i,\text {Age}_i,\text {T2D}(\text {LCD}=1)] \\&\quad \quad - \mathbb E[\text {CVD}_i(\text {LCD}=0)|\text {Gender}_i,\text {Age}_i]. \end{aligned} \end{aligned}$$\end{document}The symbol \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {T2D}(\text {LCD}=1)$$\end{document} refers to the counterfactual distribution of T2D had LCD been 1, and the expectations are taken over the corresponding interventional (i.e., \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {LCD}=0,1$$\end{document} ) and counterfactual (i.e., \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {T2D}(\text {LCD}=1)$$\end{document} ) distributions. Under our assumptions, any changes that occur in an individual’s CVD risk are attributed to treatment-induced T2D and not to the treatment (i.e., LCD) itself.Fig. 22Indirect Effect: Mean ATE bar plot (left) and p-values box plot (right) for the indirect effect of LCD on CVD risk factors with age, gender as confounders and diabetes as a mediator. Each row corresponds to a causal diagram:“Outcome | Treatment; Confounders [Mediator]”. For example, “SBP | LCD; Gender, Age [T2D]” represents the causal diagram with the systolic blood pressure as the outcome, gender, age, as the confounders, T2D as the mediator, and the LCD as the treatment
For a linear model in which there is no interaction between treatment and mediator, the total causal effect can be decomposed into a sum of direct and indirect contributions (see, e.g., Pearl [49]):
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \text {total effect} = \text {direct effect} + \text {indirect effect}. \end{aligned}$$\end{document}This decomposition can be applied to each permutation in each subsample. The estimates are averaged, yielding an estimate of the indirect effect and corresponding distribution of the p-values. Based on this result, we can assess the indirect effect of LCD on the Reynolds risk score, where the result is provided in Table 3. The negative sign on the indirect effect indicates that, in addition to its direct effect, the LCD lowered Reynolds risk score through the mediator T2D. We report the average ATEs and box plots for the distributions of p values for other CVD risk factors in Fig. 22. It shows that the LCD would also have a significant indirect causal effect on other risk factors of CVD, including a reduction in systolic blood pressure (SBP) and an improvement in good cholesterol (HDL). We found, however, that the LCD would have a significant indirect effect in the form of an increase in serum total cholesterol (TBC).
Case Study II: Is Obesity A Significant Risk Factor for T2D and CVD?
Causal Effect of Obesity on T2D
Fig. 23. Assumed coarse-grained causal graph for the relationship between BMI and T2D, with gender and age as confounders
Building on the queries in the previous section, we now want to quantify the causal effect of obesity on T2D and CVD [50]. Consider the counterfactual question,*“What would be the effect on T2D if an individual changes from normal weight to overweight?"*This question cannot be evaluated with a randomized controlled trial, which would require an experimenter to randomly assign individuals to be either obese or of normal weight. Instead, we can attempt to estimate the effect of obesity on T2D from observational data. We make the following assumptions and a specification of the underlying causal structure. First, the BMI is modeled as a categorical variable in this section: normal weight if \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {BMI}<25$$\end{document} , overweight if \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {BMI} \in [25,30)$$\end{document} , obese if \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {BMI}\in [30,35)$$\end{document} ), and severely obese if \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {BMI}\ge 35$$\end{document} . In our analysis, we compare consecutive ordinal levels of obesity pairwise. At each time, we denote the higher level of obesity as 1 (treatment) and the lower level of obesity as 0 (control). Second, similar to the motivating example in Sect. 2.1, gender is a binary variable and age is an ordinal variable, and the medical outcome T2D is an ordinal variable indicating status at time of reporting: non-diabetics, pre-diabetics, and diabetics. Finally, we assume the causal graph shown in Fig. 23, and motivate it by thinking of the following data-generating process: (1) BMI affects the risk of T2D; (2) Gender, age and LCD are unaffected by the BMI level; (3) Gender, age and LCD affect the risk of T2D and the BMI level. Thus, gender, age and LCD are confounders of BMI and T2D. (4) Causal sufficiency: there are no hidden confounders. Under these assumptions, we can calculate an estimate of the effect of BMI on T2D, by adjusting for the confounders using the model of potential outcomes in Sect. 2.3.Table 4. Average treatment effect of BMI on T2D: \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathbb E[\tau _5]$$\end{document} Normal weight vs. overweightOverweight vs. obeseObese vs. severely obeseATE0.4770.3160.14p-value0.0020.0110.196
According to the causal graph in Fig. 23, BMI takes the role of a treatment that affects the outcome T2D. To quantify the expected change in T2D if BMI were changed, we need to calculate
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} {\mathbb {E}}[\tau _5(\text {Gender}_i,\text {Age}_i,\text {LCD}_i)], \end{aligned}$$\end{document}where the potential outcome \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _5$$\end{document} is defined as
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \tau _5(\text {Gender}_i,\text {Age}_i,\text {LCD}_i)= & {} \mathbb E[\text {T2D}_i(\text {BMI}=1)|\text {Gender}_i,\text {Age}_i,\text {LCD}_i]\\{} & {} - \mathbb E[\text {T2D}_i(\text {BMI}=0)|\text {Gender}_i,\text {Age}_i,\text {LCD}_i]. \end{aligned}$$\end{document}By I-Rand in Algorithm 2, we obtain the mean of ATEs \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathbb E[\tau _1]$$\end{document} over 500 subsamples and the mean p-value (from the permutation tests) as follows (see, also Fig. 24) for all three pairwise differences: (1) changing from normal weight to overweight; (2) changing from overweight to obese; (3) changing from obese to severely obese.Fig. 24. Mean ATE bar plot (left) and p-value box plot (right) for BMI as the treatment. Each row corresponds to a causal diagram: “Outcome | Treatment; Confounders". For example, “SBP | BMI; Gender, Age, T2D" represents the the causal diagram with the systolic blood pressure as the outcome, and the gender, age, T2D as the confounders, and the BMI as the treatment which takes three pairwise comparisons: normal weight vs. overweight (green), overweight vs. obesity (orange), obesity vs. severe obesity (blue)
We summarize the results in Table 4, which suggests that the difference of T2D constitutes a causal effect, and changing BMI level from a lower level to a higher level would lead to an increased risk of T2D, where the results are subject to our modelling assumptions. We note that under the null hypothesis of no causal effect, the p-values follow a uniform distribution on (0, 1) given sufficiently many subsamples. However, the box plot of p-values in Fig. 24, corresponding to the causal graph in Fig. 23, shows p-values are concentrated at the origin, which indicates a strong evidence for the alternative hypothesis. In particular, the causal effect of the treatment (normal weight vs. overweight) with p-value 0.002 is significant under the Bonferroni’s false discovery control at the 0.01 level. The detailed distributions of ATEs and p-values are provided in Appendix D, which confirms the consistency of these results across subsamples.
Mediation Analysis for the Effect of Obesity on CVD
We now seek to understand the role of T2D as a mediator of the effect of obesity on CVD risk. As discussed in Sect. 4.2, this mediation analysis is particularly relevant from the perspective of an individual with both T2D and CVD. We study four well-known risk factors of CVD: systolic blood pressure, serum cholesterol level, high-density lipoprotein, and Reynolds risk score; see, Ridker et al. [27].
Causal Graph of T2D as a Mediator

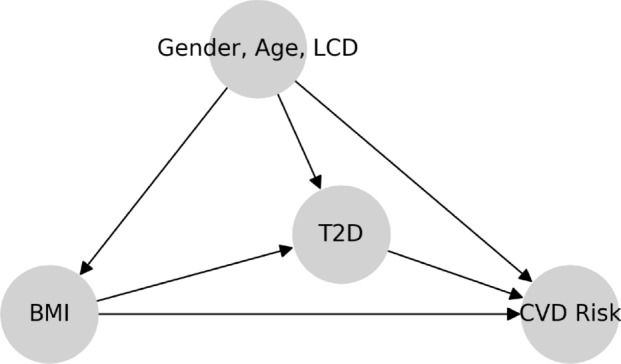

Fig. 25. Assumed coarse-grained causal graph for the relationship between BMI, T2D, and the outcome CVD. Within this view, T2D acts as a mediator of the effect of BMI on CVD, with the gender, age and LCD as confounders
We assume the causal graph in Fig. 25, and motivate Fig. 25 with the following data-generating process: (1) Choose a BMI level at random; (2) Given a selected BMI level, sample an individual with a T2D status; (3) Conditional on the choice of BMI level and T2D status, sample the medical outcome within a given CVD risk factor. The details are as follows. First, the arrow BMI \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} T2D encodes that the distribution of T2D depends on BMI level. This dependence was quantified in Sect. 5.1. Second, the arrow T2D \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD reflects the established knowledge in nutrition science that T2D influences CVD risk [5, 47]. Finally, since our model assumes causal sufficiency, and in particular, that T2D is the only mediator in the effect of BMI on CVD risk, the arrow BMI \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD represents obesity-specific influences on CVD risk.
In addition to the causal graph in Fig. 25, we assume there are no hidden confounders. Given these assumptions, we see that BMI causally influences CVD risk along two different paths: a path BMI \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD, giving rise to a direct effect, and a path BMI \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} T2D \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD mediated by T2D, giving rise to an indirect effect. Note that the direct effect of BMI on CVD is likely mediated by additional variables that are subsumed in BMI \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD Risk. We discuss this point further in Sect. 6. In mediation analysis, the goal is to quantify direct and indirect effects. We start with the total effect and then formulate the direct and indirect effects by allowing the treatment to propagate along one path while controlling the other path.
Total Effect of BMI on CVD
Given the causal assumptions in the previous section, the first measure of interest is the total causal effect of obesity on CVD, i.e., the answer to the following question:*“What would be the effect on CVD if an individual changes from normal weight to overweight?"*As we did in Sect. 5.1, we formulate the answer using the ATE:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} {\mathbb {E}}[\tau _6(\text {Gender}_i,\text {Age}_i,\text {LCD}_i)], \end{aligned}$$\end{document}where the potential outcome \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _6$$\end{document} is defined as
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \tau _6(\text {Gender}_i,\text {Age}_i,\text {LCD}_i)= & {} \mathbb E[\text {CVD}_i(\text {BMI}=1)|\text {Gender}_i,\text {Age}_i,\text {LCD}_i] \\ {}{} & {} - \mathbb E[\text {CVD}_i(\text {BMI}=0)|\text {Gender}_i,\text {Age}_i,\text {LCD}_i]. \end{aligned}$$\end{document}We now give a detailed result for one of the CVD risk factors, namely the systolic blood pressure, where the description and the summary statistics are deferred to Appendix C. It is known that increasing systolic blood pressure significantly increases the risk of CVD (e.g., Bundy et al. [51]). By the proposed I-Rand with 500 subsamples and the corresponding permutation test for each subsample, we obtain the mean of ATEs \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mathbb {E}}[\tau _6]$$\end{document} given in Table 5.Table 5. Mediation analysis for the effect of BMI on SBPNormal weight vs. overweightOverweight vs. obeseObese vs. severely obeseTotal effect \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mathbb {E}}[\tau _6]$$\end{document} (p-value)29.634 (0.001)15.911 (0.001)8.929 (0.022)Direct effect \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mathbb {E}}[\tau _7]$$\end{document} (p-value)31.48 (0.001)16.023 (0.001)9.359 (0.021)Indirect effect \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mathbb {E}}[\tau _8]$$\end{document} (p-value) \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$-$$\end{document} 1.846 (0.112) \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$-$$\end{document} 0.112 (0.146) \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$-$$\end{document} 0.43 (0.231)
The results show that an individual changing from normal weight to overweight would significantly lead to an increase in systolic blood pressure. In contrast, the box plot of p-values in Fig. 24 indicates only weak evidence that changing BMI would have a causal effect on other risk factors of CVD including serum total cholesterol (TBC), high-density lipoprotein (HDL), and Reynolds risk score (RSS). The observation is also supported by distributions of ATEs and p-values in Appendix D. The failure to reject the null hypothesis may also be due to unobserved confounders such as genetic information, smoking, and stress levels.
Direct Effect of BMI on CVD
We now study the natural direct effect (see, Pearl [49]) of obesity on CVD risk in the context of the following hypothetical question:*“For an individual of normal weight, how would a weight gain affect the risk of CVD?"*We are asking what would happen if the treatment, BMI, were to change, but that change did not affect the distribution of the mediator, T2D. In that case, the change in treatment would be propagated only along the direct path BMI \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD in Fig. 25. To disable all but the direct path, we need to stratify by T2D. This closes the indirect path BMI \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} T2D \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD. But in so doing, it opens the path BMI \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} T2D \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\leftarrow$$\end{document} (Gender, Age, LCD) \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD since T2D is a collider in Fig. 25. If we control for (Gender, Age, LCD) as well, we close the direct path, and therefore any correlation remaining must be due to the direct path BMI \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} CVD.
To quantify the expected change in T2D if BMI were changed, we need to calculate
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \mathbb E[\tau _7(\text {Gender}_i,\text {Age}_i,\text {LCD}_i,\text {T2D})], \end{aligned}$$\end{document}and where the potential outcome \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _7$$\end{document} is defined as follows:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \begin{aligned} \tau _7(\text {Gender}_i,\text {Age}_i,\text {LCD}_i,\text {T2D}_i)&= \mathbb E[\text {CVD}_i(\text {BMI}=1)|\text {Gender}_i,\text {Age}_i,\text {LCD}_i, \text {T2D}(\text {BMI}=0)] \\&\quad \quad - \mathbb E[\text {CVD}_i(\text {BMI}=0)|\text {Gender}_i,\text {Age}_i,\text {LCD}_i]. \end{aligned} \end{aligned}$$\end{document}The symbol \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {T2D}(\text {BMI}=0)$$\end{document} refers to the counterfactual distribution of T2D given that the value of BMI is 0, and the expectations are taken over the corresponding interventional (i.e., \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {BMI}=0,1$$\end{document} ) and counterfactual (i.e., \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text {T2D}(\text {BMI}=0)$$\end{document} ) distributions. Hence, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _7$$\end{document} defines the influence that is not mediated by T2D in the sense that it quantifies the sensitivity of the CVD to changes in BMI while T2D is held fixed, as illustrated in Fig. 25. By I-Rand algorithm, we obtain mean ATEs \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mathbb {E}}[\tau _7]$$\end{document} with 500 subsamples and the mean p-value of permutation tests for systolic blood pressure in Table 5. See, also Fig. 24 for other CVD risk factors. In addition to the summary statistics shown above, we provide the distributions of ATEs and p-values of the subsampling in Appendix D.4. We find, for example, that a change from normal weight to overweight would lead to a increase in systolic blood pressure of 31.48 mmHg on average (see Appendix C for summary statistics of systolic blood pressure). The direct effect in this example represents a stable biological relationship that, different from the total effect, is robust to T2D and any cause of high systolic blood pressure that is mediated via T2D.
Indirect Effect of BMI on CVD
We conclude this section by studying the indirect effect in the context that*“How would the CVD risk of a normal weight individual be if his / her T2D status had instead following the T2D distribution of overweight individuals?"*The answer is formulated by
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \mathbb E[\tau _8(\text {Gender}_i,\text {Age}_i,\text {LCD}_i,,\text {T2D})], \end{aligned}$$\end{document}where the potential outcome \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _8$$\end{document} is defined
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \begin{aligned} \tau _8(\text {Gender}_i,\text {Age}_i)&= \mathbb E[\text {CVD}_i(\text {BMI}=0)|\text {Gender}_i,\text {Age}_i,,\text {LCD}_i \text {T2D}(\text {BMI}=1)] \\&\quad \quad - \mathbb E[\text {CVD}_i(\text {BMI}=0)|\text {Gender}_i,\text {Age}_i,\text {LCD}_i]. \end{aligned} \end{aligned}$$\end{document}Under our assumptions, any changes that occur in an individual’s CVD risk are attributed to BMI-induced T2D and not to the BMI itself. The indirect effect of the treatment is the change of CVD risk obtained by keeping the BMI of each individual fixed and setting the distribution of T2D to the level obtained under treatment.Fig. 26Indirect Effect: Mean ATE bar plot (left) and p-values box plot (right) for the indirect effect of BMI on CVD risk factors with age and gender as confounders and T2D as a mediator. Each row corresponds to a causal diagram: “Outcome | Treatment; Confounders [Mediator]”. For example, “SBP | BMI; Gender, Age, [T2D]” represents the causal diagram with the systolic blood pressure as the outcome, gender and age as the confounders, T2D as the mediator, and BMI as the treatment
Consider a linear model in which there is no interaction between treatment and mediator. This yields the decomposition (15) and the indirect effect of BMI on the systolic blood pressure given in Table 5. We report the average ATEs and box plots for the distributions of p-values for other CVD risk factors in Fig. 26. We find that changing only the distribution of T2D that results from an increase in BMI from normal weight to overweight would lead to a decrease in systolic blood pressure of about 1.848 mmHg on average. Notably, the sign of this indirect effect is opposite to the sign of the corresponding direct effect, which suggests that indirect and direct effects tend to offset one another. There are several possible explanations for this. For example, the offset may be due to missing BMI data, which results in selection bias. Further discussion of selection bias is in Sect. 6. Another possible explanation is the obesity paradox given the comorbidity conditions (see, e.g., Uretsky et al. [52] and Lavie et al. [23]) that overweight people may have a better prognosis, possibly because of the medication or overweight individuals having lower systemic vascular resistance compared to leaner hypertensive individuals.
Discussion on Assumptions and Models
We assume the causal relationships between variables of demographics, obesity, T2D, and CVD to be captured by causal graphs in the previous sections, which correspond to different nutrition-related questions. These causal graphs constitute a coarse-grained view, which neglects many potentially important risk factors. A strength of this coarse-grained approach is that it allows for quantitative reasoning about different causal effects including total, direct, and indirect effects in situations where the data do not allow a more fine-grained analysis. In the following, we discuss assumptions and limitations of our approach and point out some future directions.
Selection Bias
The data we considered concerns only those patients who are from the Norwood general practice surgery in England and has opted to follow LCD by 2019 [2]. We can introduce an additional variable V with \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$V=1$$\end{document} meaning that an individual who is from the Norwood general practice surgery and follows LCD by 2019 and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$V=0$$\end{document} otherwise. In that case, our analysis is always conditioned on \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$V=1$$\end{document} . If the individual who follows LCD is randomly sampled from the population of Norwood general practice surgery with 9,800 patients, the implicit conditioning on \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$V=1$$\end{document} would not introduce bias to an inference for the larger population. However, samples are generally not collected randomly. In particular, age and health conditions are causal factors on the participation in the LCD program, i.e., age \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow V$$\end{document} and health condition \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow V$$\end{document} and through self-selection. Moreover, due to the possible speciality and reputation of the LCD program, T2D \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow V$$\end{document} , CVD \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow V$$\end{document} . Finally, there may be complex interactions between office visit and T2D or CVD, where the process involves the feedback \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$V \rightarrow$$\end{document} T2D and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$V\rightarrow$$\end{document} CVD. The fact that we consider only individuals who participate in the LCD program while the visit itself depends on multiple other factors inevitably leads to the problem of selection bias. Several approaches have been developed to decrease this bias under certain conditions; see, e.g., Bareinboim and Tian [53], Bareinboim and Pearl [54].
Unobserved Confounders
An important assumption upon which relies our estimation of the causal effect, is the absence of hidden confounders, i.e., we assume that gender and age are the only confounders.5 In particular, it is the basis of our estimates of the direct and indirect effects. It may be possible to relax the absence of hidden confounders depending on the availability of experimental data. See Pearl [49] for further discussion.
Additional Mediators
In our coarse-grained view, the arrows possibly subsume many other potentially important risk factors within the causal paths. For example, the strength of the effect BMI \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\rightarrow$$\end{document} T2D in Sect. 2.1 is estimated without consideration of mediators.
Model Selection
In this section, we compare the proposed I-Rand with the method of difference-in-differences[16, 17]. Then we discuss some generalizations of the models used for analysis in the previous sections. The following analysis explores the impact of difference in treatment on difference in outcome. For a given variable, we calculate the difference as the value on the second visit minus the value on the first visit. In our analysis, we set confounders (e.g., age and gender) to the values recorded at the first visits. We note two main differences between I-Rand and difference-in-differences. First, when the LCD is the treatment, all individuals are LCD-takers and there is no control group. The I-Rand creates a control group by subsampling, while difference-in-differences relies on the null hypothesis of “no effect.” Second, when BMI is the treatment, I-Rand subsamples one of the two observations for each individual to avoid two types of unintended treatments. In difference-in-differences, such subsampling is unnecessary since we have one observation for each individual. We perform two experiments: a decrease in BMI (i.e., \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \text {BMI} < 0$$\end{document} ), or a change in BMI in excess of a threshold (e.g., \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \text {BMI}$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$<\text {median of }|\Delta \text {BMI}_i|$$\end{document} ). The latter choice of treatment splits the data into two equally-sized subgroups of treatment and control, and it is more robust than the first choice of treatment since the BMI of almost all individuals decreased between visits. For BMI with a median threshold, the causal effect for individual i has the usual estimation formula, i.e., ATE \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$= {\mathbb {E}}|\tau (X_i)]$$\end{document} , where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau (X_i) = {\mathbb {E}}[Y_i(1) | X_i] - {\mathbb {E}}[Y_i(0) | X_i]$$\end{document} . In the case of LCD and decrease of BMI, the causal effect reduces to \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau (X_i) = {\mathbb {E}}[Y_i(1) | X_i]$$\end{document} . Note that the design of the experiment however, breaches the non-zero probability of receiving treatment assumption, i.e., \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$0< P(T = 1|X) < 1$$\end{document} , which is required by the causal effect estimation. As a matter of fact, all individuals are treatment-takers between the two observation dates. Hence, we add a hypothetical control group that does not take the treatment and has a 0 valued outcome. To estimate the causal effect for the latter that is applicable to permutation analysis, we implement Algorithm 3 for difference-in-differences analysis.Fig. 27. Bar plot of ATE for LCD as the treatment for the difference-in-differences analysis without threshold (we omit the p-values as they are all under a 1% significance level). Each row corresponds to a causal diagram:“Outcome | Treatment; Confounders”. For example, “SBP|LCD; Gender, Age, BMI” represents the causal diagram with the systolic blood pressure as the outcome, and gender, age, BMI as the confounders, and LCD as the treatmentFig. 28Bar plot of ATE for BMI as the treatment for difference-in-differences analysis without threshold (we omit the p-values as they are all under a 1% significance level). Each row corresponds to a causal diagram:“Outcome | Treatment; Confounders”. For example, “SBP | BMI; Gender, Age” represents the causal diagram with the systolic blood pressure as outcome, gender and age as confounders, and BMI as treatmentFig. 29Bar plot of ATE (left) and p-value (right) for BMI as the treatment for the difference-in-differences analysis with threshold (median). Each row corresponds to a causal diagram:“Outcome | Treatment; Confounders”. For example, “SBP | BMI; Gender, Age” represents the causal diagram with the systolic blood pressure as the outcome, and gender, age as the confounders, and BMI as the treatment

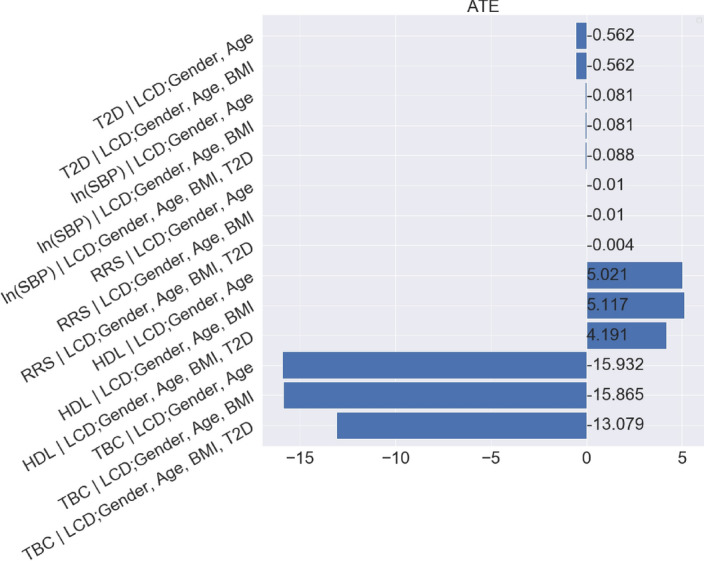

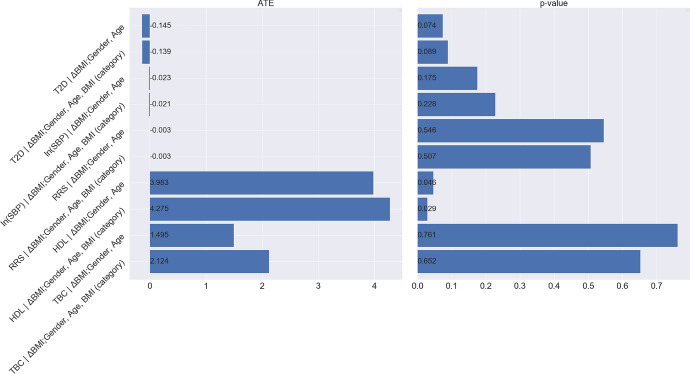

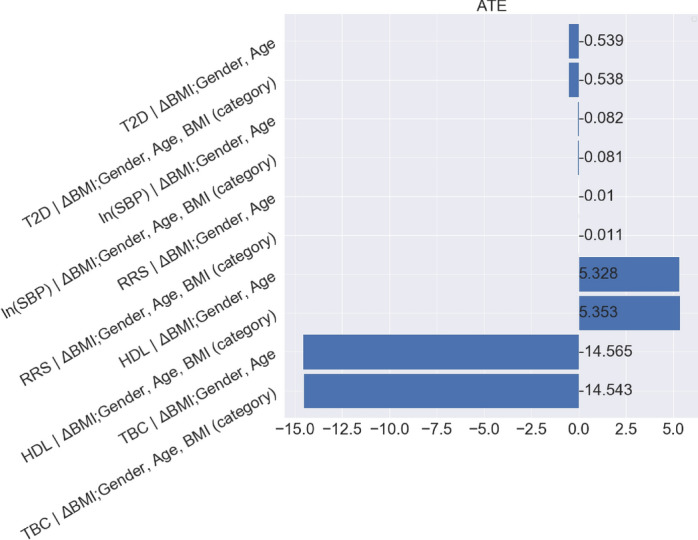

We summarize the results in Figs. 27, 28, and 29. For a change in diet (i.e., \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta \text {LCD}=1$$\end{document} ), we find that LCD diet significantly impacts the change in T2D status and CVD risk factors. The same applies to the first choice of treatment for BMI (i.e., \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta$$\end{document} BMI \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$< 0$$\end{document} ). For the second choice of treatment for BMI (i.e., \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta$$\end{document} BMI \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$< \text {Threshold}$$\end{document} ), we find that a change in BMI has a significant causal effect on a change in T2D even when controlling for the BMI categories. Moreover, a decrease in BMI leads to an increase in HDL (ATE \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$=3.983$$\end{document} , p-value \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$<4.6\%$$\end{document} without controlling for BMI categories and ATE \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$=4.275$$\end{document} , p-value \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$<2.9\%$$\end{document} when controlling for BMI categories).
The limitation of the difference-in-differences in our dataset is that we do not have enough data for longitudinal analysis. As a result, variance across samples (noise) could be much larger than the variance within samples (signal). On the other hand, the results based on the difference-in-differences method with only two time points are always subject to biases (e.g., Raudenbush [55]).
There are different ways to generalize our linear models to nonlinear models. For example, it could be of interest to ask whether or not BMI above a certain threshold has a causal effect on CVD or T2D. Moreover, the linear models we used in this article cannot represent interactions among variables. It could also be of interest to assess the direct and indirect effects allowing for interactions between treatments and mediators [49].
Conclusion
In conclusion, our work presents the I-Rand method, a novel resampling approach for two-point time-series data, in contexts lacking a control group. This strategy robustly estimates and facilitates inference of causal effects. We applied the I-Rand method to a low-carbohydrate dietary intervention dataset, which targets the reduction of type-2 diabetes and cardiovascular disease risks. This application further substantiated the significance of obesity as a risk factor while emphasizing the potential efficacy of the dietary intervention. Our approach extends the methodological toolkit for statisticians and health researchers working with similar data structures, providing the means to extract useful insights even when the control groups are absent.
