Assistance from a mixing zone model to perform aortic femoral perfusion strategy with severe atherosclerotic and artheromic aortic disease for endoscopic minimally invasive redo mitral valve repair

TL;DR

A new perfusion strategy is used in minimally invasive heart surgery to reduce the risk of brain complications in patients with severe aortic disease.

Contribution

A mixing zone model is introduced to optimize antegrade and retrograde perfusion in high-risk cardiac surgery.

Findings

Combined antegrade and retrograde perfusion can be safely used in redo mitral valve surgery with a diseased aorta.

Reducing the ascending aorta cannulation size relative to the femoral artery improves perfusion outcomes.

The patient recovered without cerebral complications using the described strategy.

Abstract

Minimally invasive cardiac surgery (MICS) for redo mitral valve surgery in the presence of severe atheroma and atherosclerotic diseased atherosclerotic and artheromic aorta presents significant challenges and increases the risk of postoperative cerebral infarction. At our institution, to mitigate the risk of postoperative cerebral complications, we employ a strategy combining antegrade and retrograde perfusion during MICS for patients with atherosclerotic and artheromic aorta. However, the mixing zone during cardiopulmonary bypass (CPB) with combined antegrade and retrograde perfusion has not been thoroughly evaluated. In this case, we performed a completely endoscopic MICS redo mitral valve plasty (MVP). CPB was established using cannulation of both the ascending aorta (Asc Ao) and the femoral artery (FA). The patient received planned systemic hyperkalemia without an aortic cross clamp. In addition, due to aortic insufficiency, circulatory arrest was also needed. The patient experienced an uneventful post-operative recovery without any cerebral complication. Furthermore, we evaluated the mixing zone during the combined antegrade and retrograde perfusion using an arteriovenous circulation model. Our findings suggest that when performing perfusion via the Asc Ao and FA, it is advisable to select Asc Ao cannulation size reduced by one size against FA cannulation size to optimize the procedure.

Figures

Full text

Introduction

In a recent study, minimally invasive cardiac surgery (MICS) offers distinct advantages in redo cases when compared to median sternotomy [1]. Cardiopulmonary bypass (CPB) is typically established via femoral artery (FA) cannulation in the minithoracotomy approach [2, 3]. However, retrograde perfusion is associated with a higher incidence of postoperative neurological complications compared to antegrade perfusion [4–6]. To mitigate the risk of postoperative cerebral complications, particularly in patients with a severe atherosclerotic and atheromic diseased, CPB is established through axillary or ascending aorta (Asc Ao) cannulation according to the facility’s protocol [7].

At our institution, in-patients presenting with a severe atherosclerotic and atheromic diseased, we utilize a combination of Asc Ao or axillary artery and FA perfusion. The criteria for this approach include any of the following findings on a preoperative enhanced computed tomography (CT) scan of the aorta or iliac arteries: thrombosis with a thickness greater than 4.0 mm or circumferential calcification. Based on these criteria, we employed a combination of Asc Ao and FA perfusion. Additionally, we evaluated the mixing zone when antegrade and retrograde perfusion were combined using an arteriovenous circulation system [8].

This study was approved by the Institutional Review Board of Kitaharima Medical Center (IRB 06-16), with a waiver of informed consent.

Case report

The patient (height 164 cm; weight 54 kg) had a history of coronary artery bypass grafting (CABG) left internal thoracic artery to left anterior descending artery (LITA-LAD), aorta to radial to posterior descending artery (Ao-RA-#14), and gastroepiploic artery to posterior descending branch to atrioventricular branch (GEA-#4PD-#4AV) 4 years ago. At this time, the patient was diagnosed with severe mitral regurgitation and patent foramen ovale (PFO) by transesophageal echocardiography (TEE). The contrast-enhanced CT scan revealed calcification observed from the Asc Ao extending the abdominal aorta. Also, the aortic arch and descending aorta were observed intimal thickening >4.0 mm (6.48 mm and 7.89 mm of intimal thickening in the aortic arch and descending aorta) combined with calcification (Figures 1a–1c). The patient had a low left ventricular ejection fraction (44%) and EuroSCORE (European System for Cardiac Operative Risk Evaluation) was 13%. The totally endoscopic procedure was planned for redo-MVP under systemic hyperkalemia without cross-clamping due to being difficult aortic cross-clamping. Moreover, to prevent postoperative cerebral infarction, the Asc Ao and FA were planned to establish CPB. Table 1 indicates CPB management and postoperative outcomes including preoperative CPB plan.

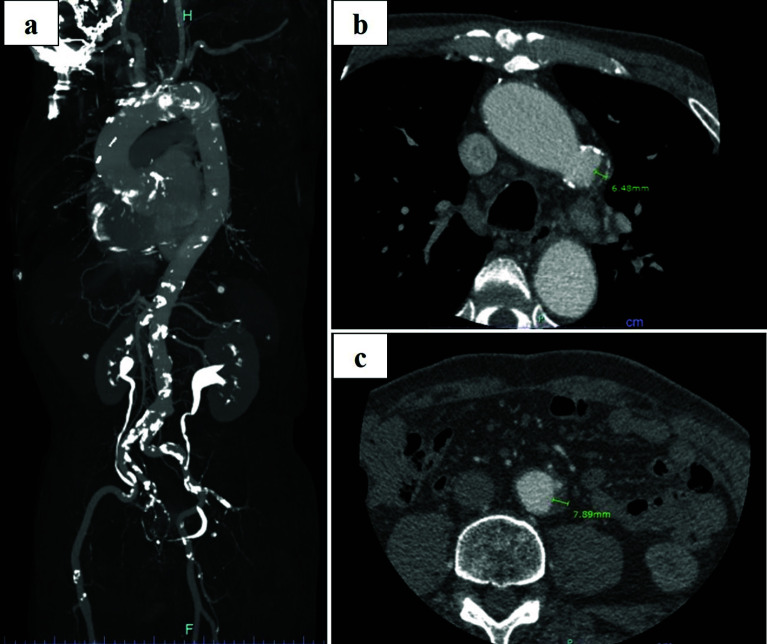

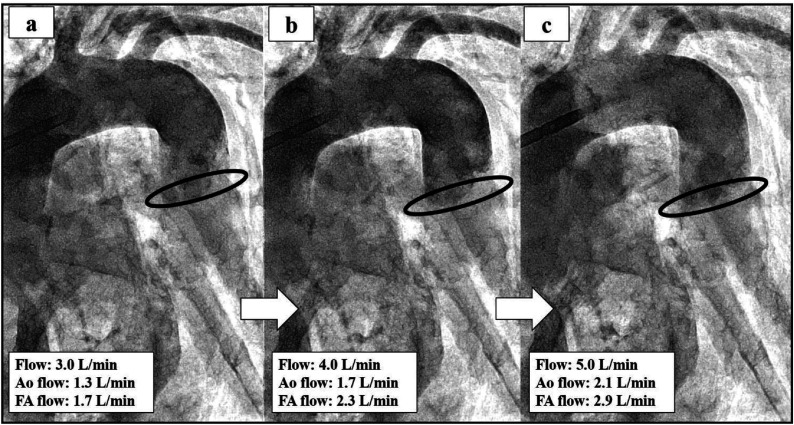

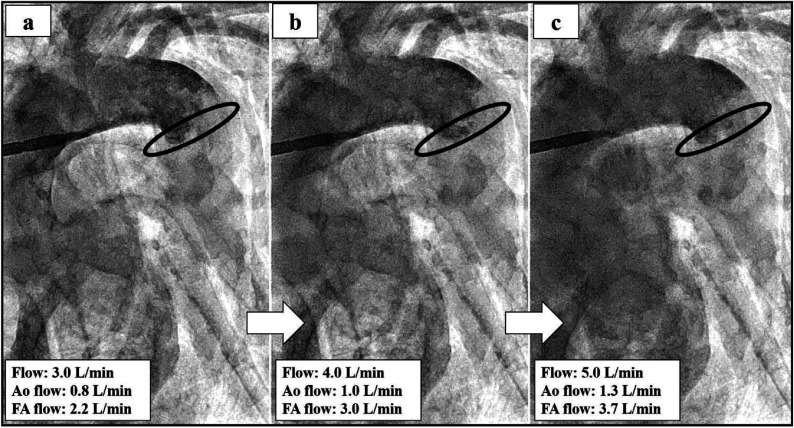

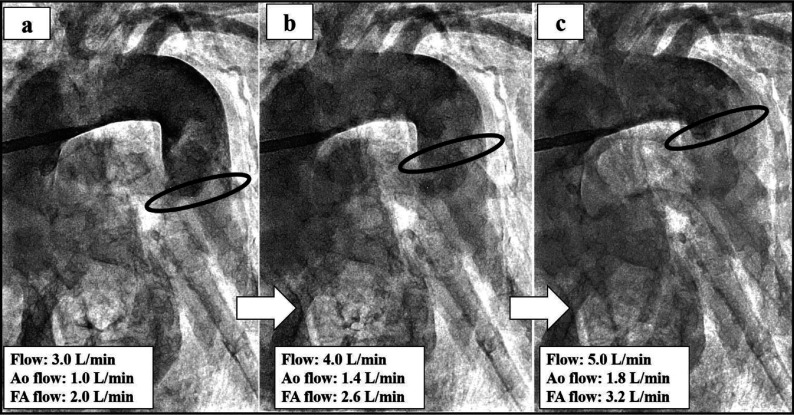

Figure 1(a) Preoperative contrast-enhanced CT of the atherosclerotic and artheromic aorta. (b, c) The aortic arch and descending aorta indicate intimal 6.48 mm and 7.89 mm of intimal thickening of the aortic arch and descending aorta combined with calcification. CT: Computed Tomography. Figure 2(a–c) The evaluation of the mixing zone if changing the flow rate from 3.0 L/min to 5.0 L/min by using 14Fr in the ascending aorta and 18Fr in the femoral artery. The black line indicates the mixing zone. Figure 3(a–c) The evaluation of the mixing zone if changing the flow rate from 3.0 L/min to 5.0 L/min by using 14Fr in the ascending aorta and 16Fr in the femoral artery. The black line indicates the mixing zone. Figure 4(a–c) The evaluation of the mixing zone if changing the flow rate from 3.0 L/min to 5.0 L/min by using 14Fr in the ascending aorta and 20Fr in the femoral artery. The black line indicates the mixing zone. Table 1CPB management and outcomes including preoperative CPB plan. CPB.: Cardiopulmonary bypass; Rt FA.: Right femoral artery; Rt FV.: Right femoral vein; CI.: Cardiac index; mABP.: Mean arterial blood pressure; ICU.: Intensive care unit.CPB management and outcomesPreoperative CPB planCannulation (RtFA: 18Fr, Asc Ao: 14Fr, RtFV: 23/25Fr)Targeting CI: 2.0–2.6 L/min/m^2^, mABP: 60–70 mmHgTargetting rectal temperature: 26 °CSystemic hyperkalemia combined with circulatory arrestRepeatedly circulation arrest: for up to 5 minPrevent oliguria management: 10 mL/h of continuous furosemideTargetting blood potassium level: 8.0–10.0 mEq/LDialysis: Gravity drainage hemofiltration methodOperative CPB managementCI: 2.4 L/min/m^2^mABP: 60 mmHgNadir rectal temperature: 26 °CCirculation arrest time: 25 minCardiac arrest time: 90 minCPB time: 394 minPostoperative outcomesICU stay: 3 dayVentilation time: 37 hHospital stay: 16 daysMajor complications: None

Following induction of general anesthesia, the patient underwent redo-MVP via right thoracotomy procedure. CPB was established with a venous cannula 23/25Fr (MICS Cannulae; LivaNova, Tokyo, Japan) placed via the right femoral vein (FV) and an arterial cannula 18Fr (PCKC-A, MERA, Tokyo, Japan) placed in the right FA. Because it is possible to ensure total flow, we chose 18Fr in FA in response to what may arise when Asc cannulation causes any troubles. Until Asc Ao cannulation, CI (cardiac index) was kept at less than 1.0 L/min/m^2^ to prevent cerebral plaque embolism. After an arterial cannula 14Fr (PCKC-A, MERA, Tokyo, Japan) was placed in the Asc Ao, CPB was managed from 2.0 to 2.6 L/min per m^2^ of the target CI. Asc Ao cannulation was performed two-window technique. Phenylephrine and noradrenaline were administered to maintain mean arterial blood pressure (mABP) above 60 mmHg. A CDI Blood Parameter Monitoring System 500 (Terumo, Tokyo, Japan) was recalibrated every 30 min, and an arterial blood gas sample was also checked every 30 min. The patient was cooled to 26 °C. To obtain cardiac arrest, 800 mL of the hyperkalemia solution (500 mL of bicarbonate ringer solution with 50 mL of KCL 10 mEq/L, 20 mL of MgSO_4_, and 100 mg of 2% lidocaine) administered bolus infusion from CPB circuit. To maintain cardiac arrest, we continuously infused hyperkalemia solution, and the target of a blood potassium level was managed at 9 mEq/L. Due to the influence of aortic regurgitation, it was difficult to get a good vision. Therefore, we performed MVP combined with circulation arrest. When a left ventricular vent through the MV was useful in preventing aortic valve release, we started rewarming the temperature and lowering potassium levels in the blood by using dilutional ultrafiltration (DUF) and administering continuous furosemide (45 mL of 20% mannitol + 50 mg of furosemide) at 10 mL/h. Weaning from CPB was performed using inotropes (5.5γ of dobutamine and 0.03γ of noradrenaline). Mean CI and mABP were 2.4 L/min/m^2^ and 60 mmHg. Circulation arrest time, cardiac arrest time, and CPB time were 25 min, 90 min, and 394 min, respectively. Due to difficulty stopping bleeding, it became a long perfusion time. The duration of mechanical ventilation and length of stay in the intensive care unit (ICU) was 37 h and 3 days, respectively. The postoperative course was uneventful without cerebral infarction and he was discharged 16 days. Informed consent to report patient information and images was obtained.

Discussion

In recent years, a meta-analysis reported that minimally MICS for redo cases has many advantages over median sternotomy [1]. In our institution, we actively employ totally endoscopic MICS for redo cases, aiming to mitigate risks and optimize patient outcomes [9]. However, re-operative valve surgery is acknowledged to be more complex and has increased morbidity and mortality rates [10]. Moreover, patients with atherosclerotic disease such as intravascular thrombus or severe calcification are more likely to have postoperative cerebral infarction by using retrograde perfusion via the FA [5, 11]. MICS through right minithoracotomy is often established CPB by commonly used femoral cannulation [2, 3]. In patients with atherosclerotic and artheromic aorta, antegrade perfusion using axillary cannulation, or Asc Ao is performed to prevent post-operative cerebral complications [5, 7, 12].
