Risk factors for iliac limb migration after endovascular infrarenal aortic repair
Byung Chan Lee, Chan Park, Hyoung Ook Kim, Woong Yoon, Yong Yeon Jeong, Soo Jin Na Choi, Ho Kyun Lee, Hong Sung Jung, Youngsup Yoo
TL;DR
The study found that larger iliac artery sizes and less oversizing of stent grafts increase the risk of stent movement and leaks after aortic repair.
Contribution
Identified anatomical and procedural risk factors for iliac limb migration and its association with endoleaks after aortic repair.
Findings
Larger common iliac artery diameters and lower iliac limb oversizing correlate with significant migration.
Significant migration is linked to a higher risk of developing type 1b endoleaks.
Patients with CIA diameter >20 mm require careful oversizing and close monitoring.
Abstract
This study investigated anatomical and procedural factors influencing iliac limb migration and its correlation with late type 1b and type 3 endoleaks. We analyzed data of 141 iliac limbs from 91 patients who underwent endovascular aneurysm repair for infrarenal abdominal aortic aneurysm between 2005 and 2017. Iliac limb migration was measured using initial and follow-up computed tomography angiography scans conducted at least three years post-procedure, with significant migration defined as a change of ≥ 5 mm. The iliac limbs were classified into Group 1 (G1; n = 34 limbs, 26 patients) with significant migration and Group 2 (G2; n = 107 limbs, 65 patients) without significant migration. The median follow-up periods were 70.5 months (interquartile range 49.7–91.8 months) for G1 and 57.6 months (interquartile range 44.2–73.2 months) for G2. Multivariable analysis confirmed that…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAortic aneurysm repair treatments · Peripheral Artery Disease Management · Cardiac, Anesthesia and Surgical Outcomes
Introduction
Endovascular aneurysm repair (EVAR) has emerged as the primary treatment for abdominal aortic aneurysm (AAA) in patients with suitable anatomical characteristics^1^. However, concerns remain regarding the long-term durability of EVAR, particularly due to the higher frequencies of reinterventions and delayed complications^2–5^.
One significant drawback of EVAR is stent graft migration, which can cause severe complications such as type 1 endoleak, stent graft separation, kinking, or graft occlusion. This issue is a primary factor contributing to the need for EVAR reinterventions^6–8^. While much research has focused on proximal stent graft migration at the aortic neck^9–12^, there is less attention on the cephalad migration of iliac limb stent grafts at the distal landing zone.
Several studies have suggested that the migration of iliac stent grafts can be influenced by factors such as large AAAs, dilated or aneurysmal common iliac artery (CIA), short lengths of CIA fixation, lower degrees of iliac limb oversizing, and bell-bottom iliac limbs^8,13–16^. However, studies specifically assessing risk factors contributing to significant iliac limb migration at the distal landing zone remain scarce, with underexplored complex interactions among these factors. Consequently, this study investigates the anatomical and procedural factors associated with iliac limb migration and examines the potential correlation between iliac limb migration and the occurrence of type 1b and type 3 endoleaks.
Methods
Patients
This retrospective study, conducted at a single center (Chonnam National University Hospital, Gwangju, Korea), was approved by the Institutional Review Board (IRB) of Chonnam National University Hospital. Due to the retrospective nature of the study, the IRB (CNUH-2024-103) waived the requirement of obtaining informed consent. All methods were performed in accordance with the relevant guidelines and regulations. The study included all patients who underwent EVAR for infrarenal AAA between 2005 and 2017. The following patients were excluded from the study: First, patients who did not undergo preoperative computed tomography angiography (CTA) within three months before EVAR were excluded to ensure accurate and up-to-date anatomical assessment. Second, to ensure accuracy in evaluating procedural factors and to establish a reliable baseline for assessing iliac limb migration, patients who did not undergo postoperative CTA within one month of the procedure were excluded. Third, long-term imaging data were necessary to analyze iliac limb migration and assess outcomes over time. Consequently, patients who did not undergo postoperative CTA at least three years after EVAR were excluded to ensure the reliability of migration-related findings. Fourth, patients treated with straight aortic endografts were excluded from the study because their design does not involve iliac limb placement, which is the focus of this study. Fifth, aorto-uni-iliac (AUI) systems extend into a single iliac artery via a tapered tube and are usually paired with a contralateral iliac occluder and femorofemoral crossover graft. They are typically indicated in cases where adverse iliac anatomy is present, such as tortuous, stenotic, or aneurysmal vessels. Furthermore, these devices may be necessary when a calcified and stenotic aortic bifurcation obstructs the proper deployment of the two iliac limbs of a bifurcated device. To minimize bias resulting from these procedural differences and anatomical variations and to achieve a more homogeneous sample for analysis, patients treated with AUI endografts were excluded. Sixth, patients lacking detailed stent-graft sizing data were excluded, as such information is critical for assessing procedural factors, including iliac limb oversizing. Seventh, patients with early type 1 or type 3 endoleaks occurring within six months were excluded, as these complications arise from anatomical or technical factors unrelated to iliac limb migration and typically require immediate reintervention. However, type 1 or 3 endoleaks detected beyond six months post-EVAR were not excluded. Eighth, iliac limbs that became occluded during follow-up were excluded from the analysis because accurately measuring the migration distance of iliac limbs using the Aquarius iNtuiton workstation (TeraRecon, Durham, NC, USA) becomes challenging in these cases. Furthermore, these cases often require immediate reintervention or surgical intervention. Ultimately, all iliac limbs that were extended to the external iliac arteries (EIAs) during EVAR were excluded from the analysis, including those that underwent hypogastric artery embolization or were treated with iliac branch devices. However, if a patient had one iliac limb extended to the EIA while the contralateral limb was deployed within the CIA, only the limb with a landing zone in the CIA was included in the analysis. This criterion was applied to maintain methodological uniformity and enhance sample homogeneity.
Study protocol
Iliac limb migration assessment
Iliac limb migration was assessed by two independent researchers who were not involved in the treatment or follow-up processes and were unaware of patient identities. The assessment was conducted using the Aquarius iNtuiton workstation (TeraRecon, Durham, NC, USA). To ensure consistent and accurate measurements, a central lumen-line reconstruction methodology was employed. Central lumen lines were initially reconstructed automatically on the dedicated workstation; any detected errors were corrected manually using a semi-automatic approach. The researchers measured the distance from the origin of the deep femoral artery to the distal end of the iliac limb stent-graft on the initial post-operative CTA within one month and on the final follow-up CTA at a minimum of three years post-EVAR. Significant migration of the iliac limb was defined as a length change of 5 mm or more (Fig. 1). For iliac limbs without significant migration, migration measurements were limited to the initial post-operative CTA and the last follow-up CTA. However, for iliac limbs exhibiting significant migration, additional migration measurements were performed on all interim CTA scans obtained between the initial post-operative and final follow-up CTAs to determine when significant migration was first detected.

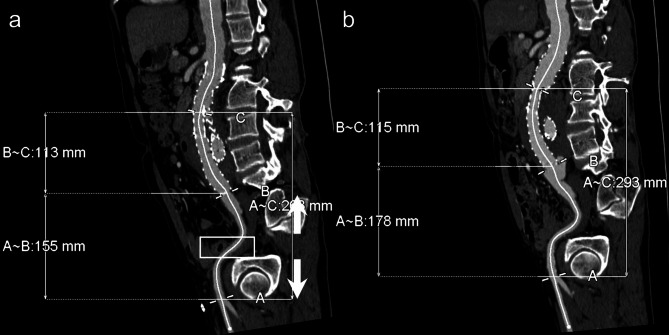

Fig. 1. Assessment of limb migration length in a 63-year-old male patient with an infrarenal abdominal aortic aneurysm following endovascular aortic repair. (a) The initial post-operative CTA scan, performed one week after the procedure, measured the distance from the origin of the deep femoral artery to the distal end of the left iliac limb stent-graft as 155 mm. (b) At the 3-year and 8-month follow-up, the distance was measured at 178 mm on the CTA. The limb migration length was determined to be 23 mm. CTA computed tomography angiography.
Anatomical and procedural evaluations
Anatomical characteristics were assessed by two independent investigators who were not involved in the iliac limb migration assessment. Each investigator analyzed a distinct subset of patients. Prior to data collection, a calibration process was conducted to standardize measurement techniques and ensure consistency. Reliability was assessed through periodic cross-checks on 20% of cases, where both investigators independently measured the same parameters. Any discrepancies or ambiguities identified during these cross-checks were resolved through discussion and consensus. This methodology was designed to enhance measurement reliability, minimizing interobserver variability. Anatomical characteristics included the maximum diameter of the infrarenal aortic aneurysm sac, aortic tortuosity index, infrarenal aortic angle, maximum diameter and length of the CIA, iliac tortuosity index, and iliac angle. Pre-procedural CTA measurements were conducted using the Aquarius iNtuiton workstation. The measurements of the aortic tortuosity index, infrarenal aortic angle (previously referred to as the aortic angle in prior study), iliac tortuosity index, and iliac angle followed the methodology described by Chaikof et al.^17^. The infrarenal aortic angle was defined as the most acute angle between the lowest renal artery and the aortic bifurcation, as described in the Anatomic Severity Grading (ASG) system^17^. Procedural factors were also assessed by the same investigators and included the length of the iliac seal, the degree of the iliac seal, the degree of iliac limb oversizing, the diameter of the iliac limb, whether the iliac limbs were deployed in a Ballerina configuration, the manufacturers of the iliac limb, and the occurrence of type 2 endoleak during follow-up. The length of the iliac seal was assessed using established methods^18^ on the initial post-operative CTA. To ensure a precise evaluation of sealing effectiveness, the iliac seal length was defined as the segment of the CIA where the iliac limb exhibited good circumferential apposition with the arterial wall, as described in a prior study^18^. The degree of the iliac seal was quantified by calculating the relative difference between the length of the iliac seal measured on the initial follow-up CTA (reflecting good circumferential apposition of the iliac limb) and the total length of the CIA measured on the pre-procedural CTA, using the formula: (iliac seal length – native CIA length) / native CIA length. Similarly, the degree of iliac limb oversizing was quantified by determining the percentage difference between the diameter of the selected iliac limb and the diameter of the native CIA, using the formula: (iliac limb diameter – native CIA diameter) / native CIA diameter.
Each iliac limb was evaluated separately and categorized into two groups: Group 1 (G1) consisted of iliac limbs with significant migration (≥ 5 mm), while Group 2 (G2) comprised those without significant migration (< 5 mm).
Statistical analysis
Statistical power analysis for the final sample size was conducted using G*Power 3.1 software^19^. An effect size of 0.5 was selected, representing a moderate effect according to Cohen’s conventions, to detect a statistically significant difference between groups. The alpha level was set at 0.05 to minimize the risk of a Type I error. Subsequently, the statistical analysis was conducted using SPSS Statistics, Version 27 (IBM, SPSS Inc., Chicago, IL, USA). Data normality was assessed using the Kolmogorov-Smirnov test. Data are presented as mean and standard deviation for normally distributed data, median and interquartile range (25th and 75th percentiles) for non-normally distributed data, or as counts and percentages. Anatomical characteristics and procedural factors of both groups were assessed using the Student t-test, Mann-Whitney U test, chi-square test, and Fisher’s exact test as appropriate. To assess the rate of iliac limb migration over time, the migration rate per year was calculated by dividing the total migration distance (mm) by the follow-up duration (years). Additionally, Kaplan-Meier analysis with the log-rank test was used to estimate the time to the first detection of significant migration. To predict the likelihood of significant iliac limb migration, univariate and multivariate Cox proportional hazard models were employed. Variables for multivariate analysis were selected based on a combination of clinical relevance and statistical significance identified in the univariate analysis. Specifically, variables with a p-value of less than 0.05 in the univariate analysis were included in the multivariate model. To minimize the risk of overfitting, the final model was constructed using a backward stepwise selection approach. Multicollinearity was assessed using variance inflation factors (VIFs); variables with a VIF greater than 10 were excluded to ensure the robustness of the model. A p-value below 0.05 was considered statistically significant. Variables that remained significant in the multivariate analysis were further analyzed using Receiver Operating Characteristic (ROC) curve analysis. Optimal cutoff values were determined by maximizing Youden’s index, and limbs were subsequently divided into two groups based on these cutoff values. Survival curves for these groups were assessed using the Kaplan-Meier method. To compare significant iliac limb migration based on the stent-graft type, a subgroup analysis was performed using Kaplan-Meier analysis and the log-rank test for the two most frequently used stent-graft types among the four included in this study. The occurrence of late type 1 and type 3 endoleaks, which manifested more than six months after the procedure, was compared between G1 and G2 using the chi-square test. The temporal relationship between significant migration and the development of type 1b endoleaks was investigated using Kaplan-Meier survival analysis. This analysis assessed the time interval from significant iliac limb migration to the detection of type 1b endoleaks. Additionally, a correlation analysis was conducted to evaluate the association between the timing of significant migration and the detection of type 1b endoleaks. To further investigate anatomical changes over time, additional analyses were conducted to assess variations in CIA diameter. The Mann-Whitney U test was used to compare pre-procedural CIA diameter, last follow-up CIA diameter, and the change in CIA diameter (last follow-up – pre-procedural) between groups with significant iliac limb migration (G1) and those without (G2). Similarly, comparisons were made between groups with type 1b endoleak (G3) and those without (G4) to examine the association between type 1b endoleak and CIA dilation. The correlation between iliac limb migration length and CIA diameter change was assessed using Spearman’s correlation, while the relationship between CIA diameter change and the occurrence of type 1b endoleak was evaluated using both Kendall’s tau-b and Spearman’s rho.
Results
Patient and limb characteristics
Out of a total of 482 patients with 964 iliac limbs, the main analysis included 141 iliac limbs (14.6%) from 91 patients, comprising 74 males and 17 females. Exclusion criteria are detailed in Fig. 2. None of the included patients had undergone primary EVAR for an infected (mycotic) AAA. Additionally, 8 patients (8.8%) in the final cohort had undergone primary EVAR for a ruptured infrarenal aortic aneurysm. The calculated statistical power for the final sample size of 141 iliac limbs in this study was 0.819, indicating the study’s ability to detect significant associations.

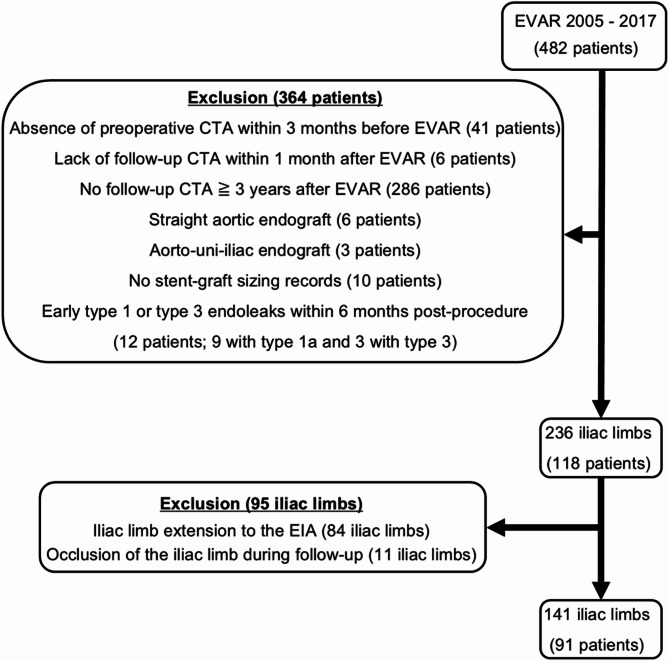

Fig. 2. Flow chart for patient and iliac limb selection. CTA computed tomography angiography, EIA external iliac artery, EVAR endovascular aneurysm repair.
Iliac limb migration
Among the 141 iliac limbs examined, 34 (24.1%) were identified as having significant migration (≥ 5 mm) and were categorized as G1, while 107 limbs (75.9%) showed no significant migration (< 5 mm) and were classified as G2. All iliac limbs in G1 demonstrated upward migration. The median migration length for G2 was 2.0 mm (1.0–3.0 mm), while for G1, it was significantly greater at 8.0 mm (6.0–18.3 mm) (P < 0.001). The median follow-up period for the iliac limbs was 61.6 (45.9–76.2) months, with follow-up durations of 70.5 (49.7–91.8) months for G1 and 57.6 (44.2–73.2) months for G2 (P = 0.030). The median migration rate per year was 1.54 mm/year (1.01–2.63 mm/year) in G1 and 0.34 mm/year (0.15–0.55 mm/year) in G2 (P < 0.001). Kaplan-Meier survival analysis indicated that the median time to the first detection of significant iliac limb migration was 44.1 months (25.6–73.2 months) in G1 (P < 0.001) (Fig. 3). Additionally, other baseline demographic characteristics, including age, sex, limb site, smoking status, diabetes mellitus, hypertension, coronary artery disease, chronic kidney disease, and cerebrovascular accidents, showed no statistically significant differences between the two groups (Table 1).

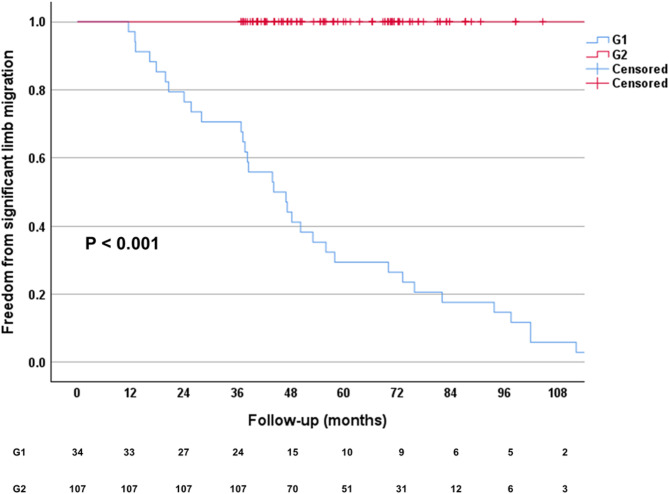

Fig. 3. Kaplan-Meier survival analysis for the time to first detection of significant iliac limb migration following endovascular infrarenal aortic repair. The Kaplan-Meier curves illustrate the cumulative probability of remaining free from significant iliac limb migration (≥ 5 mm) over time. The table below the graph displays the number of iliac limbs at risk at each time interval. G1, group 1; G2, group 2.
Table 1. Comparative analysis of demographics, anatomical characteristics, and procedural factors between groups with (G1) and without (G2) significant limb migration. The data is displayed as median (25th–75th percentiles), number (%), or mean ± standard deviation. AAA, abdominal aortic aneurysm; CIA, common iliac artery; EVAR endovascular aneurysm repair.VariablesG1 (n = 34)G2 (n = 107)P valueMedian migration length (mm)8.0 (6.0–18.3)2.0 (1.0–3.0)< 0.001Median follow-up (months)70.5 (49.7–91.8)57.6 (44.2–73.2)0.030Median migration rate (mm/year)1.54 (1.01–2.63)0.34 (0.15–0.55)< 0.001Age (years)76.0 (69.8–80.0)77.0 (68.0–83.0)0.447Male sex27 (79.4%)87 (81.3%)0.807Ruptured infrarenal AAA before primary EVAR1 (2.9%)13 (12.1%)0.188Limb site (Left / Right)20 (58.8%) / 14 (41.2%)58 (54.2%) / 49 (45.8%)0.637Past smoking3 (8.8%)4 (3.7%)0.359Current smoking6 (17.6%)12 (11.2%)0.328Diabetes mellitus6 (17.6%)19 (17.8%)0.988Hypertension20 (58.8%)67 (62.6%)0.692Coronary artery disease6 (17.6%)25 (23.4%)0.483Chronic kidney disease0 (0.0%)7 (6.5%)0.196Cerebrovascular accident8 (23.5%)15 (14.0%)0.191 Anatomical characteristics Infrarenal AAA diameter (cm)6.0 (5.2–7.0)5.5 (4.5–7.2)0.289Aortic tortuosity index1.2 (1.1–1.3)1.1 (1.1–1.3)0.292Infrarenal aortic angle (° )122.9 (104.1–137.8)134.0 (102.0–148.7)0.131CIA diameter (mm)19.8 (16.1–23.7)15.1 (13.7–18.5)< 0.001CIA length (mm)49.5 (40.0–69.3)47.0 (37.0–56.5)0.243Iliac tortuosity index1.4 (1.3–1.5)1.3 (1.3–1.5)0.422Iliac angle (° )66.2 ± 33.483.8 ± 31.80.006 Procedural factors Iliac sealing length (mm)39.80 ± 16.1940.23 ± 18.840.904Iliac sealing degree (%)74.4 (64.8–89.3)83.1 (70.5–94.4)0.030Iliac limb oversizing degree (%)10.9 (7.6–18.8)19.0 (13.0–26.7)0.010Iliac limb diameter (mm)20.0 (16.0–20.0)16.0 (14.5–20.0)0.012Ballerina configurationof iliac limbs16 (47.1%)54 (50.5%)0.729Iliac limb manufacturers0.665Medtronic Endurant(Santa Rosa, CA, USA)14 (41.2%)44 (41.1%)Gore Excluder(Flagstaff, AZ, USA)15 (44.1%)51 (47.7%)Cook Zenith(Bloomington, IN, USA)3 (8.8%)10 (9.3%)S&G Seal (Seongnam, Korea)2 (5.9%)2 (1.9%)Type 2 endoleak occurrence16 (47.1%)40 (37.4%)0.315
Anatomical and procedural factors
A comparative analysis of the anatomical characteristics and procedural factors of G1 and G2 is detailed in Table 1. The preoperative CIA diameter was significantly larger in G1 (median 19.8 mm, 16.1–23.7 mm) compared to G2 (median 15.1 mm, 13.7–18.5 mm) (P < 0.001). Additionally, the iliac angle was significantly more acute in G1 (66.2 ± 33.4°) compared to G2 (83.8 ± 31.8°) (P = 0.006). No significant differences were detected in other anatomical factors, including the preoperative diameter of the aortic aneurysm sac, aortic tortuosity index, infrarenal aortic angle, CIA length, and iliac tortuosity index. Among procedural factors, no statistically significant difference was observed in the length of the iliac seal between the two groups (P = 0.900). However, the degree of the iliac seal was significantly lower in G1 (median 74.4%, 64.8–89.3%) compared to G2 (median 83.1%, 70.5–94.4%) (P = 0.030). Moreover, the degree of iliac limb oversizing was significantly smaller in G1 (10.9%, 7.6–18.8%) compared to G2 (19.0%, 13.0–26.7%) (P = 0.010). In addition, the diameter of the iliac limb was significantly larger in G1 (median 20.0 mm, 16.0–20.0 mm) compared to G2 (median 16.0 mm, 14.5–20.0 mm) (P = 0.012). No significant difference was observed between the two groups in the occurrence of type 2 endoleaks, the manufacturers of the iliac limbs, or whether the iliac limbs were deployed in a Ballerina configuration.
Risk factors for significant migration
Univariate analysis identified aortic tortuosity index, CIA diameter, iliac angle, iliac limb oversizing degree, and iliac limb diameter as significant predictors of iliac limb migration (Table 2). Pearson’s correlation analysis revealed a strong correlation between CIA diameter and iliac limb diameter (r = 0.711, P < 0.001), with a high VIF of 11.078. To address collinearity and ensure model stability, iliac limb diameter was excluded from the final multivariate Cox model. In the multivariable Cox proportional hazards model, CIA diameter (hazard ratio 1.16, 95% confidence interval 1.05–1.27, P = 0.002) and iliac limb oversizing degree (hazard ratio 0.97, 95% confidence interval 0.96–0.99, P = 0.002) remained significant predictors of significant iliac limb migration.
Table 2. Predictive factors for significant limb migration following endovascular infrarenal aortic repair. Univariate and multivariate Cox proportional hazards analyses were performed. Due to high collinearity between common iliac artery (CIA) diameter and iliac limb diameter (variance inflation factor = 11.078, Pearson’s R = 0.711, P < 0.001), only CIA diameter was included in the multivariate analysis. AAA, abdominal aortic aneurysm; CI, confidence interval; CIA, common iliac artery; EVAR endovascular aneurysm repair; HR, hazard ratio.VariablesUnivariableMultivariableHR95% CIP valueHR95% CIP valueAge1.000.96–1.050.872Sex (female)1.080.47–2.510.854Limb site (right)1.020.51–2.040.948Ruptured infrarenal AAA before primary EVAR0.380.05–2.790.340Past smoking1.280.38–4.320.692Current smoking1.480.61–3.590.392Diabetes mellitus0.680.26–1.810.444Hypertension0.930.47–1.850.835Coronary artery disease0.900.36–2.220.816Chronic kidney disease0.050.00–301.810.493Cerebrovascular accident1.320.59–2.930.498 Anatomical characteristics Infrarenal AAA diameter1.060.88–1.270.561Aortic tortuosity index11.311.06–120.960.0454.100.28–59.370.301Infrarenal aortic angle0.990.98–1.000.093CIA diameter1.121.03–1.21< 0.0011.161.05–1.270.002CIA length1.010.99–1.020.255Iliac tortuosity index1.060.17–6.510.954Iliac angle0.980.97–0.99< 0.0010.990.98–1.000.096 Procedural factors Iliac sealing length1.010.99–1.020.547Iliac sealing degree1.000.98–1.010.860Iliac limb oversizing degree0.970.96–0.990.0040.970.96–0.990.002Iliac limb diameter1.051.01–1.150.010Ballerina configuration ofiliac limbs1.170.59–2.300.646Iliac limb manufacturersMedtronic Endurant(Santa Rosa, CA, USA)1.00Gore Excluder(Flagstaff, AZ, USA)0.780.38–1.630.510Cook Zenith(Bloomington, IN, USA)0.290.06–1.390.121S&G Seal (Seongnam, Korea)0.800.17–3.780.780Type 2 endoleak occurrence1.280.65–2.500.481
ROC curve analysis identified a CIA diameter of 20.7 mm (Youden’s index: 0.387) and iliac limb oversizing of 9.6% (Youden’s index: 0.322) as the optimal cutoff values associated with an increased risk of significant limb migration (Fig. 4). The CIA diameters and degrees of iliac limb oversizing were categorized into two groups based on these cutoff values. Subsequently, a Kaplan-Meier survival analysis was conducted. Iliac limbs with a preoperative CIA diameter of 20.7 mm or more, or iliac limb oversizing degree less than 9.6%, exhibited significantly higher rates of significant iliac limb migration during the follow-up period (Fig. 5a and b). A subgroup analysis comparing the two most frequently used stent-graft types revealed significant migration in 14 out of 58 iliac limbs (24.1%) for the Medtronic Endurant (Santa Rosa, CA, USA) and in 15 out of 66 iliac limbs (22.7%) for the Gore Excluder (Flagstaff, AZ, USA). The mean time to significant migration was 96.8 months (95% confidence interval 84.4–109.2) for the Medtronic Endurant and 82.9 months (95% confidence interval 73.7–92.0) for the Gore Excluder. Kaplan-Meier analysis indicated no statistically significant difference in the freedom from significant iliac limb migration between the two stent-graft types (P = 0.785), as illustrated in Fig. 5c.

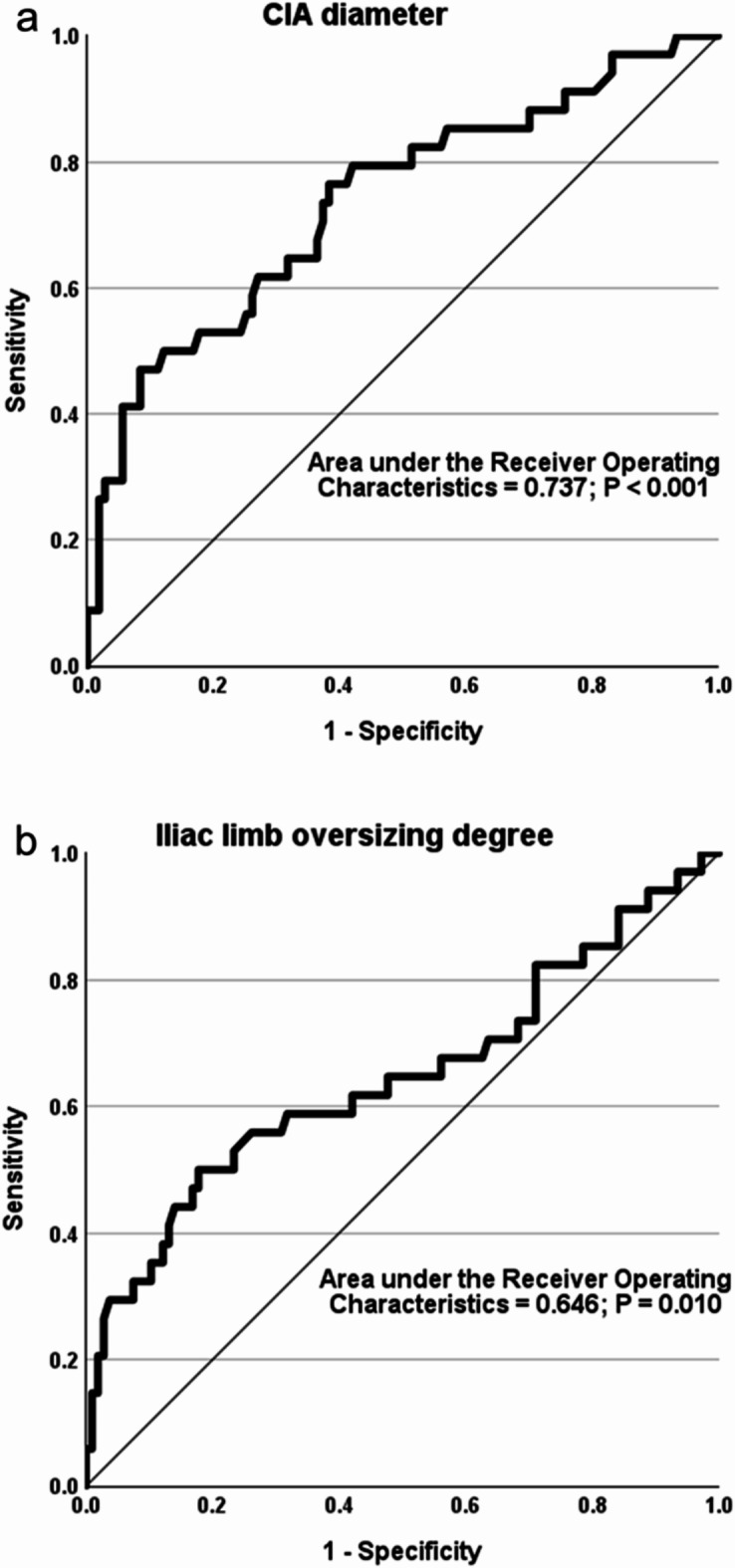

Fig. 4. Receiver operating characteristic curves to identify the optimal cutoff values for (a) the diameter of the CIA and (b) the degree of oversizing of the iliac limb associated with an increased risk of significant limb migration. CIA common iliac artery.

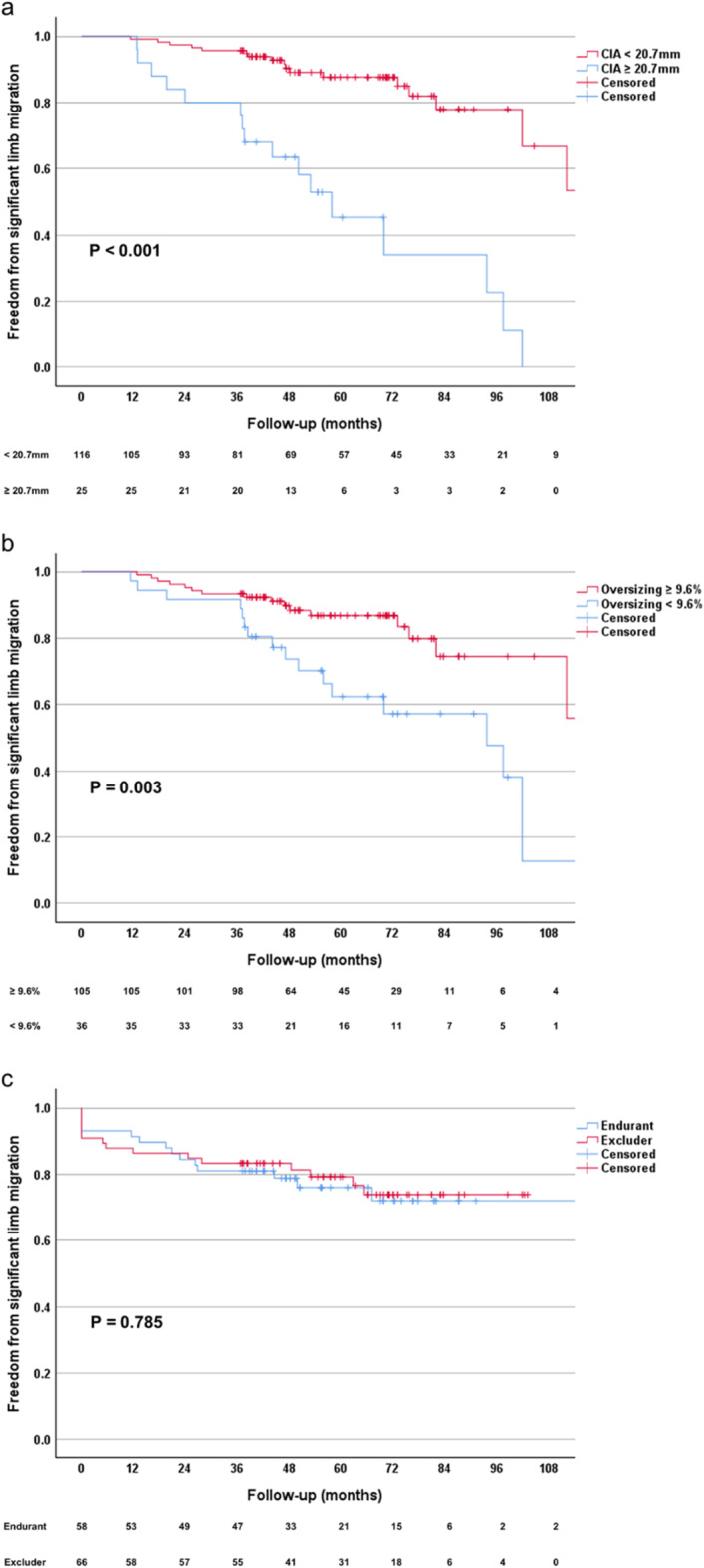

Fig. 5. Kaplan-Meier survival analysis of significant iliac limb migration following endovascular infrarenal aortic repair. The Kaplan-Meier curves illustrate the likelihood of remaining free from significant limb migration based on (a) the preoperative diameter of the common iliac artery, (b) the degree of oversizing of the iliac limb, and (c) the type of stent-graft used (Medtronic Endurant vs. Gore Excluder). The tables below each graph indicate the number of iliac limbs without significant migration at designated time intervals post-procedure.
Endoleak occurrence
Type 1b endoleaks were not observed in G2. Among the iliac limbs in G1, 11 out of 34 limbs (32.4%) had type 1b endoleaks (odds ratio 5.652, 95% confidence interval 3.901–8.189, P < 0.001). Type 1b endoleaks were first detected on average 59.9 ± 24.0 months post-EVAR. Among iliac limbs exhibiting significant migration (G1), the median time from the onset of significant migration to the detection of type 1b endoleaks was 15.7 months (0–27.3 months) (Fig. 6). A statistically significant difference was observed between G1 and G2 (P < 0.001). In iliac limbs that developed type 1b endoleaks, the median time to significant iliac limb migration was 44.1 months (16.3–53.0 months), whereas the median time to the detection of type 1b endoleaks was 59.9 months (37.8–73.5 months). A strong positive correlation (r = 0.927, P < 0.001) was identified between the time to significant migration and the time to type 1b endoleak detection, indicating a close temporal association between these events. Of the 11 limbs with type 1b endoleaks, 10 were identified as having type 1b endoleaks more than three years post-EVAR and subsequently underwent iliac limb extension as a reintervention. The remaining iliac limb showed a type 1b endoleak at 31.3 months post-EVAR. Despite multiple recommendations for reintervention based on clinical guidelines, the patient strongly refused further treatment and opted for continued surveillance. This decision was made after the patient was fully informed of the potential risks, including aneurysm sac expansion and rupture. Type 1a or 3 endoleaks were not observed in either group.

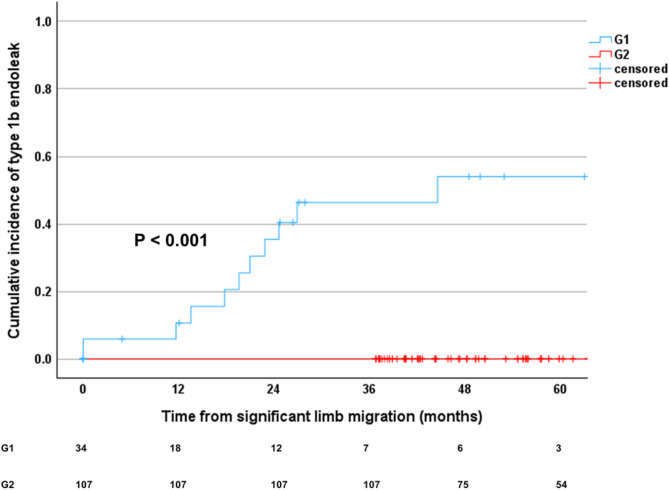

Fig. 6. Kaplan-Meier survival analysis of cumulative incidence of type 1b endoleaks following significant iliac limb migration. The Kaplan-Meier curves illustrate the cumulative incidence of type 1b endoleaks after significant iliac limb migration for G1 and G2. The table below the graph indicates the number of iliac limbs at risk at specific time intervals post-migration. G1, group 1; G2, group 2.
