Non-ischemic phenotypes of low-risk chest pain patients based on exercise stress echocardiography: a pilot study
Tamara Ryabova, Elena Abramenko, Ivan Yolgin, Konstantin Zavadovsky, Vyacheslav Ryabov
TL;DR
This study identifies four non-ischemic types of low-risk chest pain patients using stress echocardiography, which could help improve diagnosis and reduce unnecessary medical use.
Contribution
The study introduces four distinct non-ischemic phenotypes in low-risk chest pain patients based on stress echocardiography findings.
Findings
90% of patients showed one or more abnormal stress biomarkers despite being low-risk.
Four non-ischemic phenotypes were identified in 63% of patients, differing in factors like hypertensive response and heart rate reserve.
Non-ischemic patients had a low (23%) incidence of coronary artery disease.
Abstract
A significant proportion (∼85%) of low-risk non-ST-elevation acute coronary syndrome (NSTE-ACS) patients do not receive objective confirmation of ischemia by stress echocardiography (SE), yet remain a healthcare burden due to lower long-term survival and overuse of medical services. We aimed to identify non-ischemic phenotypes in low-risk NSTE-ACS patients by analyzing a wide range of parameters available during exercise SE. Inpatients [n = 103, median age 56 (46–65) years, 65 (63%) men] with suspected NSTE-ACS without high-risk criteria underwent exercise SE using a semi-supine cycle ergometer. Abnormal stress biomarkers [regional wall motion abnormalities (RWMAs), ST-segment depression, induced angina, peak systolic blood pressure, force-based contractile reserve (CR), heart rate reserve (HRR), and low exercise capacity] were used for phenotyping. Non-ischemic phenotypes were…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3| Variables | All patients ( |
|---|---|
| Age (years) | 56 (46–65) |
| Sex, male (%) | 65 (63%) |
| BMI (kg/m2) | 28.1 (25.2–31.2) |
| Smoker, current or ≤5 years ago (%) | 44 (42%) |
| Diabetes mellitus (%) | 8 (8%) |
| Hypertension (%) | 91 (89%) |
| Dyslipidemia (%) | 75 (73%) |
| ≥3 CAD risk factors (%) | 92 (89%) |
| GRACE score | 87 (72–109) |
| Carotid atherosclerosis (%) | 68 (66%) |
| Type No. |
| Low exercise capacity (%) | Hypertensive response (%) | ST-segment depression (%) | Induced angina (%) | RWMA (%) | Reduced contractile reserve (%) | Reduced heart rate reserve (%) |
|---|---|---|---|---|---|---|---|---|
| Non-ischemic phenotypes | ||||||||
| 1 | 17 | 41 | 0 | 0 | 0 | 6 | 0 | 0 |
| 2 | 10 | 40 | 30 | 0 | 0 | 0 | 100 | 0 |
| 3 | 10 | 40 | 100 | 20 | 10 | 0 | 0 | 0 |
| 4 | 28 | 79 | 14 | 11 | 21 | 4 | 64 | 100 |
| Ischemic phenotypes | ||||||||
| 5 | 26 | 62 | 12 | 100 | 35 | 0 | 46 | 23 |
| 6 | 12 | 67 | 8 | 83 | 83 | 100 | 92 | 33 |
| All patients | Type 1 | Type 2 | Type 3 | Type 4 |
| ||
|---|---|---|---|---|---|---|---|
|
| 65 | 17 (27%) | 10 (15%) | 10 (15%) | 28 (43%) | NA | |
| Abnormal stress biomarkers | 2 (1–3) | 0 (0–1)2,3,4 | 2 (1–2)1,4 | 2 (1–2)1,4 | 3 (2–4)1,2,3 | < 0.001 | |
| Abnormal stress biomarkers defining the type | |||||||
| Contractile reserve | 2.1 (1.8–2.5) | 2.3 (2.1–2.7)2,4 | 1.8 (1.7–1.9)1,3 | 2.6 (2.3–3.0)2,4 | 1.9 (1.5–2.2)1,3 | < 0.001 | |
| Heart rate reserve | 1.9 (1.6–2.1) | 2.0 (1.9–2.3)4 | 2.1 (2.0–2.5)4 | 2.1 (2.0–2.2)4 | 1.6 (1.5–1.7)1,2,3 | < 0.001 | |
| Peak SBP (mmHg) | 199 (180–222) | 191 (187–204)3 | 197 (178–222)3 | 238 (230–246)1,2,4 | 187 (165–208)3 | 0.015 | |
| Abnormal stress biomarkers not used for classification | |||||||
| В-lines, | 8 (14%) | 1 (6%) | 1 (14%) | 2 (20%) | 4 (17%) | 0.717 | |
| TRV >3.4 сm/s (%) | 12 (31%) | 2 (22%) | 3 (42%) | 2 (33%) | 5 (38%) | 0.702 | |
| Е/e′ > 14 (%) | 1 (2%) | 0 | 0 | 1 (10%) | 0 | 0.134 | |
| Left ventricular contractility | |||||||
| ΔLVEF (%) | 9 (5–13) | 12 (10–16)2 | 5 (3–7)1,3 | 11 (7–13)2 | 9 (3–12) | 0.004 | |
| ΔSV (%) | 16 (7–26) | 15 (7–20) | 19 (10–30) | 15 (10–19) | 17 (5–26) | 0.871 | |
| Exercise capacity | |||||||
| MET | 5.7 (4.6–6.4) | 6.1 (5.6–7.2)4 | 5.5 (5.3–6.4) | 6.0 (5.2–6.8) | 4.7 (4.0–5.9)1 | 0.021 | |
| Inconclusive test (%) | 25 (38%) | 1 (6%)3,4 | 2 (20%)3 | 9 (90%)1,2 | 13 (46%)1 | <0.001 | |
| Cardiac power/mass | |||||||
| P/m at rest (W/100 g) | 0.7 (0.6–0.9) | 0.6 (0.6–0.7)3,4 | 0.6 (0.5–0.7) | 0.5 (0.4–0.6)1,4 | 0.9 (0.6–1.1)1,3 | <0.001 | |
| Peak P/m (W/100 g) | 2.1 (1.7–2.4) | 2.1 (1.6–2.5) | 2.2 (2.0–2.5) | 1.9 (1.8–2.0) | 2.1 (1.5–2.4) | 0.506 | |
| P/m reserve (W/100 g) | 1.3 (1.0–1.8) | 1.4 (1.1–1.8) | 1.7 (1.4–1.8) | 1.3 (1.3–1.6) | 1.2 (0.7–1.5) | 0.187 | |
| Clinical profile of the patients | |||||||
| Age (years) | 55 (45–65) | 54 (47–62) | 53 (42–67) | 53 (42–62) | 56 (47–67) | 0.672 | |
| Male subjects (%) | 43 (66%) | 13 (76%) | 7 (70%) | 8 (80%) | 15 (54%) | 0.295 | |
| BMI (kg/m2) | 28.6 (25.4–31.7) | 27.4 (24.2–29.3) | 27.0 (23.8–30.7) | 30.4 (28.1–32.5) | 28.9 (26.2–32.8) | 0.110 | |
| Smoker, current or ≤5 years ago (%) | 29 (45%) | 8 (47%) | 6 (60%) | 5 (50%) | 10 (36%) | 0.569 | |
| Dyslipidemia (%) | 46 (71%) | 13 (76%) | 6 (60%) | 7 (70%) | 20 (71%) | 0.841 | |
| Diabetes mellitus (%) | 6 (9%) | 1 (6%) | 1 (10%) | 0 | 4 (14%) | 0.551 | |
| Hypertension (%) | 57 (89%) | 14 (82%) | 9 (90%) | 10 (100%) | 25 (89%) | 0.562 | |
| Chronic pulmonary disease (COPD, asthma) (%) | 2 (3%) | 0 | 0 | 0 | 2 (7%) | 0.436 | |
| Chronic renal disease, GFR < 60 ml/kg/min (%) | 5 (8%) | 0 | 1 (10%) | 0 | 4 (14%) | 0.257 | |
| Resting and peak cardiac parameters | |||||||
| Resting heart rate (bpm) | 68 (60–82) | 67 (59–72)4 | 64 (59–67)4 | 58 (55–63)4 | 83 (73–87)1,2,3 | < 0.001 | |
| Peak heart rate | 136 (122–146) | 141 (131–148) | 142 (126–153) | 127 (117–137) | 130 (113–145) | 0.029 | |
| Resting blood pressure (mmHg) | |||||||
| Systolic | 128 (119–139) | 124 (115–131) | 134 (114–140) | 130 (122–138) | 131 (120–144) | 0.577 | |
| Diastolic | 79 (72–88) | 73 (67–79) | 82 (67–89) | 86 (77–91) | 80 (73–87) | 0.167 | |
| Peak blood pressure (mmHg) | |||||||
| Systolic | 199 (180–222) | 191 (187–204)3 | 197 (178–222)3 | 238 (230–246)1,2,4 | 187 (165–208)3 | < 0.001 | |
| Diastolic | 89 (82–104) | 86 (80–92)3 | 99 (81–119) | 108 (100–111)1,4 | 87 (79–98)3 | 0.015 | |
| Resting EDV (ml) | 98 (82–110) | 96 (90–110) | 98 (91–105) | 108 (98–122) | 92 (76–105) | 0.095 | |
| Peak EDV (ml) | 93 (80–110) | 92 (82–102) | 107 (80–116) | 105 (91–115) | 92 (80–105) | 0.467 | |
| Resting end-diastolic index (ml/m2) | 50 (44–54) | 51 (43–57) | 51 (47–55) | 51 (49–57) | 46 (43–52) | 0.181 | |
| Peak end-diastolic index (ml/m2) | 48 (43–54) | 46 (42–53) | 57 (43–64) | 50 (45–57) | 47 (44–51) | 0.263 | |
| Resting ESV (ml) | 36 (28–44) | 39 (32–41) | 30 (25–40)3 | 47 (43–50)2,4 | 34 (28–42)3 | 0.005 | |
| Peak ESV (ml) | 28 (20–32) | 19 (16–24) | 24 (21–38) | 33 (32–37) | 25 (20–30) | 0.061 | |
| Resting end-systolic index (ml/m2) | 19 (15–23) | 19 (16–24) | 16 (13–20) | 22 (20–25)4 | 16 (14–20)3 | 0.015 | |
| Peak end-systolic index (ml/m2) | 13 (11–16) | 13 (10–15) | 13 (11–19) | 16 (15–17) | 13 (11–16) | 0.174 | |
| Resting SV (ml) | 64 (56–69) | 63 (54–69) | 64 (53–73) | 65 (61–69) | 62 (56–68) | 0.826 | |
| Peak SV (ml) | 72 (64–79) | 70 (65–80) | 75 (61–79) | 74 (72–84) | 68 (64–79) | 0.736 | |
| Resting stroke index (ml/m2) | 31 (29–36) | 31 (29–36) | 33 (30–37) | 31 (29–34) | 31 (28–36) | 0.871 | |
| Peak stroke index (ml/m2) | 37 (33–41) | 36 (34–39) | 37 (37–45) | 36 (33–40) | 37 (33–42) | 0.727 | |
| Resting LV EF (%) | 61 (58–67) | 60 (58–61)2 | 66 (63–71)1,3 | 57 (55–58)2,4 | 63 (59–67)3 | 0.001 | |
| Peak LV EF (%) | 71 (68–75) | 71 (71–76) | 72 (68–76) | 69 (65–71) | 72 (68–75) | 0.066 | |
| Resting cardiac output (L/min) | 2.2 (1.9–2.6) | 2.1 (1.9–2.3)4 | 2.1 (1.9–3.7) | 1.8 (1.7–2.0)4 | 2.5 (2.2–3.4)1,3 | 0.002 | |
| Peak cardiac output (L/min) | 5.1 (4.4–6.3) | 4.8 (4.6–5.7) | 6.2 (4.4–11.2) | 4.5 (4.1–5.4) | 5.3 (4.2–7.5) | 0.445 | |
| Resting cardiac index (L/min/m2) | 1.2 (0.9–1.5) | 1.2 (0.9–1.2) | 1.1 (1.1–2.2) | 0.9 (0.8–1.0)4 | 1.5 (1.1–1.9)3 | 0.004 | |
| Peak cardiac index (L/min/m2) | 2.6 (2.2–3.3) | 2.6 (2.4–3.0) | 3.1 (2.6–5.9) | 2.2 (1.8–2.6) | 3.1 (2.1–3.9) | 0.128 | |
| Resting Е/е′ | 6.4 (5.4–7.5) | 6.3 (5.7–6.9) | 6.3 (4.7–6.8) | 7.4 (6.2–12.0) | 6.0 (5.3–8.3) | 0.203 | |
| Peak Е/е′ | 6.9 (5.7–7.9) | 6.2 (5.8–6.9) | 5.3 (4.2–6.7) | 7.3 (6.1–8.6) | 7.6 (5.7–9.3) | 0.025 | |
| LV mass (g) | 164 (143–194) | 148 (143–164)3 | 176 (158–192)3 | 206 (188–241)1,2,4 | 158 (133–196)3 | 0.006 | |
| LV mass index (g/m2) | 86 (75–98) | 81 (73–86)3 | 90 (79–101) | 97 (89–122)1,4 | 83 (71–95)3 | 0.010 | |
| Left atria index (ml/m2) | 28 (26–33) | 27 (26–32) | 29 (26–33) | 30 (29–36) | 27 (26–30) | 0.091 | |
| Coronary atherosclerosis | |||||||
| Coronary angiography (%) | 55 (85%) | 14 (82%) | 6 (60%) | 10 (100%) | 25 (89%) | NA | |
| ICA ( | 9/46 | 1/13 | 1/5 | 1/9 | 6/19 | NA | |
| Gensini score 5 | 5.0 (0–11.5) | 5.5 (0–15.0) | 5.0 (0–6.0) | 5.3 (3.5–13.0) | 5.0 (0–8.5) | 0.739 | |
| CAD, ≥50% lesions (%) | 15 (23%) | 5 (36%) | 2 (33%) | 3 (30%) | 5 (20%) | 0.768 | |
| CAD, ≥70% lesions (%) | 6 (9%) | 1 (7%) | 1 (17%) | 2 (20%) | 2 (8%) | 0.632 | |
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCardiac Imaging and Diagnostics · Heart Rate Variability and Autonomic Control · Cardiovascular Function and Risk Factors
Introduction
1
Acute coronary syndrome (ACS) is a preliminary diagnosis that denotes recent symptoms and signs that suggest the onset of myocardial infarction (MI) or unstable angina (UA). The final diagnoses for ACS include 21% MI, 5% UA, and more than 70% attributed to other diseases and chest pain of unknown etiology (1). Approximately 500,000 ACS cases are documented in Russia annually, with approximately half of these cases classified as low-risk non-ST-elevation ACS (NSTE-ACS) (2). These patients are stable individuals with acute chest pain, not accompanied by ischemic electrocardiogram (ECG) changes and elevated levels of troponin, and they initially require verification of ischemia (3).
For this purpose, coronary computed tomography angiography (CCTA), stress imaging, or standard care with no testing are used. Among these, stress echocardiography (SE) offers several advantages: it reduces observation delays compared to standard care (4), identifies ischemia-causing coronary lesions more effectively than CCTA (5), and does not increase oncological risk. However, the main benefit is considered to be the high negative predictive value for long-term adverse cardiac events. In low-risk NSTE-ACS patients, a negative SE result, defined by the absence of regional wall motion abnormalities (RWMAs), is detected in the vast majority of cases, ranging from 65% to 97% (6, 7).
Nevertheless, in patients with unspecified non-cardiac chest pain, alongside the low incidence of cardiac events, the rate of re-presentation to the emergency department during 1-year follow-up reaches 14%, with hospital stays comparable to those of heart patients (1). Moreover, in a study by Innocenti et al., only half of the patients with cardiac events during the follow-up period were found to have positive SE results (8). Cortigiani et al. reported a significant decrease in the long-term survival of patients with reduced coronary reserve, chronotropic reserve, and a combination of both in the absence of RWMAs during dipyridamole SE (9). While other SE parameters may also be associated with a worse prognosis (10), their significance in low-risk NSTE-ACS remains uncertain.
An extended analysis of the SE results in low-risk NSTE-ACS patients may help to identify individual vulnerabilities beyond ischemia that may be associated with long-term survival and overuse of healthcare services. Also, it is essential to understand whether the parameters with proven prognostic value in stable coronary artery disease (CAD) have the potential for use in a heterogeneous population of low-risk NSTE-ACS patients and whether such “screening” is reasonable.
The aim of this study is to identify non-ischemic phenotypes in patients with low-risk NSTE-ACS by analyzing a wide range of parameters available during exercise SE using a semi-supine cycle ergometer.
Materials and methods
2
The study was performed in agreement with the standards of good clinical practice and the principles outlined in the Helsinki Declaration. The study protocol was approved by the local ethics committee (protocol No. 222, dated 21 December 2021). All patients signed a written informed consent. Figure 1 shows the flowchart of patient enrollment.

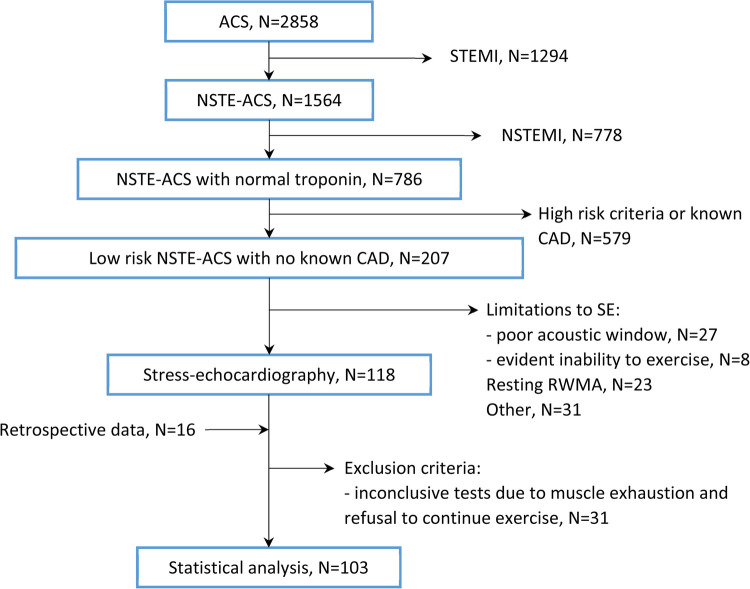

Patient flow diagram. CAD, coronary artery disease; NSTE-ACS, non-ST-elevation acute coronary syndrome; NSTEMI, non-ST-elevation myocardial infarction; RWMA, regional wall motion abnormalities; SE, stress echocardiography; STEMI, ST-elevation myocardial infarction.
Study population
2.1
We prospectively enrolled consecutive adult inpatients with acute chest pain of probable coronary origin, normal or non-diagnostic ECG, and negative troponin levels, who were hospitalized in the emergency cardiology department for further investigation, with a working diagnosis of low-risk NSTE-ACS in the period from January 2022 to November 2023. The troponin test was negative at least twice in a 12-h interval. Exclusion criteria included: (1) poor acoustic window; (2) resting RWMAs; (3) reduced (<50%) left ventricular ejection fraction (LVEF); (4) persistent atrial fibrillation; (5) complete atrioventricular block; (6) recent ventricular tachycardia; (7) severe valvular disease; (8) evident inability to exercise; and (9) known CAD (previous MI, revascularization, documented positive stress test, or obstructive coronary atherosclerosis). In addition, we retrospectively recruited patients who met the named criteria and underwent SE during their index hospitalization from December 2020 to December 2021.
Stress testing
2.2
SE was performed using a semi-supine cycle ergometer CASE (GE HealthCare, Milwaukee, WI, USA) and a Affiniti 70 Ultrasound system (Phillips, Bothell, WA, USA). The default workload protocol followed the WHO guidelines (steps of 25 W lasting 2 min, starting from 25 W). Beta-blockers or other heart rate-lowering medications were stopped 48 h before the test or were not initiated. Echocardiographic images, loop series, visual semi-quantitative contractility assessments, and blood pressure (BP) measurements were obtained at each load step and during recovery. ECG monitoring was continuously performed. Test termination criteria included: (1) stress-induced RWMAs in ≥2 adjacent myocardial segments in a 16-segment LV model; (2) ST-segment depression ≥2 mm; (3) serious arrhythmias (ventricular tachycardia, sustained ventricular allorhythmia, or hemodynamically unstable supraventricular tachycardia); (4) BP increase (systolic ≥230 mmHg, diastolic ≥120 mmHg) or decrease under load; (5) limiting chest pain or dyspnea; (6) muscle exhaustion; and (7) patient refusal to continue exercise.
End-diastolic volume, end-systolic volume (ESV), and LVEF were measured in B-mode using the Simpson method. Force-based contractile reserve (CR) was calculated as follows (11):
where BP is the blood pressure (mmHg) and ESV is the end-systolic volume (ml).
Heart rate reserve (HRR) was calculated as the ratio of peak heart rate to resting heart rate. The ST-segment shift was measured 60–80 ms after the J point. Exercise capacity (EC), expressed in metabolic equivalent (MET), was evaluated by step size and pedaling speed. Induced angina was defined as chest pain or chest discomfort with typical localization appearing during exercise.
Tests that were inconclusive due to muscle exhaustion and patient refusal to continue exercise were excluded from further analysis.
Cardiac power/mass (P/m) was calculated using the following formula (12):
where CO is the cardiac output (L/min), BP is the blood pressure (mm Hg), and LV mass is the mass of LV myocardium (g). Doppler-mode stroke volume (SV) was used to calculate cardiac output:
where VTI_LVOT_ is the left ventricular outflow tract (LVOT) velocity time integral (VTI) and d_LVOT_ is the left ventricular outflow tract diameter.
Lung ultrasound for B-lines was carried out at rest and peak stress in four zones along the anterior chest surface, both on the left and right sides, in the projection of the apexes and anterior basal segments.
Phenotyping
2.3
Abnormal stress biomarkers were the basis for clustering as binary variables (presence or absence) when they occurred more often than twice. These biomarkers included: (1) RWMA in ≥2 adjacent myocardial segments; (2) ST-segment depression ≥1 mm; (3) induced angina; (4) peak systolic blood pressure (SBP) ≥220 mmHg; (5) CR <2.0; (6) HRR <1.8; and (7) low EC, defined as <6 MET for age ≤75 years, and <4 MET for age >75 years. Peak tricuspid regurgitant flow velocity (TRV) ≥3.4 m/s was not used for clustering due to missing data but was taken into account to characterize stress responses.
Non-ischemic phenotypes were defined as those not belonging to the clusters with the highest frequencies of standard ischemic criteria, such as RWMAs, ST-segment depression, and induced angina.
Coronary angiography
2.4
Patients underwent invasive coronary angiography or CCTA according to standard techniques during the index hospitalization. The severity of coronary atherosclerosis was evaluated retrospectively using the Gensini score (13).
Statistical analysis
2.5
Data were analyzed with the STATISTICA 10 program. For clustering, a hierarchical method was used (proximity measure—a percentage of disagreement, combining clusters using Ward's method). The optimal number of clusters was determined by a significant increase in the linkage distance and by an agreement that each cluster should include at least 10 patients. Comparison between >2 independent groups was conducted using the Kruskal–Wallis test for continuous variables, and the chi-square test for categorical and rank variables. Comparison between two independent groups was performed using the Mann–Whitney U-test for continuous variables and Fisher’s exact test for categorical variables. Correction for multiple hypothesis testing was performed using the Holm–Bonferroni method. A p < 0.05 was considered significant. Data are expressed as median (interquartile range) or N (%).
Results
3
Study design
3.1
The patient flow diagram is shown in Figure 1.
Patient characteristics
3.2
In total, 118 patients underwent SE during the prospective enrollment, and 16 patients were selected retrospectively. A total of 31 (23%) patients with inconclusive or uninterpretable stress tests, which were terminated due to muscle exhaustion or patient refusal to continue exercise, were excluded from further analysis. Table 1 summarizes the baseline characteristics of the 103 enrolled subjects.
Stress testing results
3.3
In the conventional interpretation of the stress test for ischemia, the results were positive in 14 (14%) patients, negative in 59 (57%) patients, and inconclusive in 30 (29%) patients. Reasons for early test termination were inadequate SBP increase (50%), dyspnea (33%), ST-segment depression ≥2 mm (10%), arrhythmia (7%), and induced angina (3%).

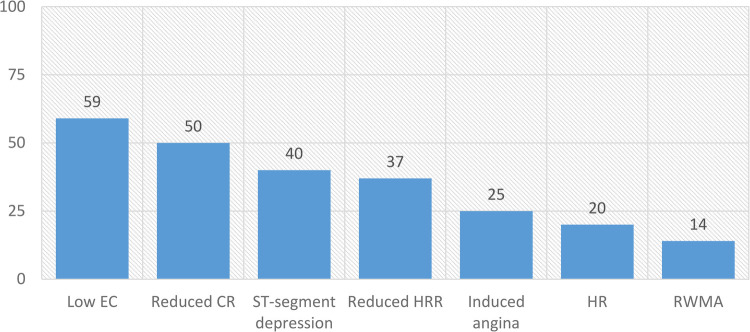

Figure 2 shows the frequency of abnormal stress biomarkers. Individually, patients had up to six abnormal biomarkers, with only 10 (10%) patients having no abnormal biomarkers used for phenotyping.
Frequencies (%) of abnormal stress biomarkers in patients with low-risk NSTE-ACS. CR, contractile reserve; EC, exercise capacity; HR, hypertensive response; HRR, heart rate reserve; RWMA, regional wall motion abnormalities.
Phenotyping results
3.4

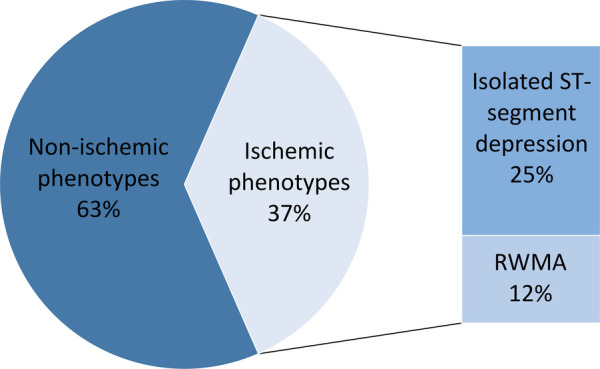

Cluster analysis identified six phenotypes (Table 2). The highest frequencies of ST-segment depression (100% and 83%, respectively), induced angina (35% and 83%), RWMAs (0% and 100%), and a 100% incidence of at least one of these were found in phenotypes 5 and 6. On this basis, phenotypes 5 and 6 were classified as ischemic, and the remaining phenotypes (1–4) were classified as non-ischemic (Figure 3).
Phenotyping results. RWMA, regional wall motion abnormalities.
Non-ischemic types differed in the frequency of hypertensive response (HR), reduced CR, and reduced HRR. The rate of low exercise capacity varied from 40% to 79% and did not show significant differences between the phenotypes. The frequency rate of standard ischemic criteria did not exceed the first quartile. Two patients who had inducible RWMAs showed an abnormality pattern related to non-ischemic phenotypes and were categorized into phenotypes 1 and 4. One of them had no atherosclerotic plaques (false-positive stress test result), and the other had borderline stenoses (50%–60%) in two arteries, with fractional flow reserve not being assessed.
Non-ischemic phenotypes
3.5
Phenotype 1 patients (n = 17) had a minimal incidence of abnormalities (“near-normal type”); these patients typically exhibited solely lowered exercise capacity or no abnormal stress biomarkers. One patient had inducible RWMAs unaccompanied by other signs of ischemia (Table 2).
All patients classified as phenotype 2 (n = 10) had reduced force-based contractile reserve without other signs of ischemia (“inotropic insufficiency type”). They showed a smaller absolute increase in peak LVEF, 5 (3–7) vs. 12 (8–15) in patients with normal CR (types 1 and 3, p < 0.001), higher LVEF at rest, 66 (63–71) vs. 58 (57–61), p < 0.001, smaller ESV (p = 0.017), and a smaller decrease in ESV at peak load, 4 (2–5) ml vs. 12 (9–18) ml, p < 0.001. Peak SV and its peak increase in these groups did not differ (p = 0.984 and 0.564) (Table 3).
Phenotype 3 patients were characterized by a hypertensive response to exercise (“hypertensive type”). In nine (90%) of them, the stress test was completed before reaching the submaximal heart rate due to a rapid growth of SBP. Despite this, they had a normal HRR and a lower resting heart rate than other phenotypes. Of all the subjects studied, these patients had the highest LV myocardial mass index. There were eight (80%) men in this phenotype group, but the sex differences between the groups were insignificant.
Patients classified as phenotype 4 (“chronotropic insufficiency type”) had the highest incidence of abnormal stress biomarkers. They had reduced HRR, accompanied by reduced CR (64%) and low exercise capacity (79%). This group was characterized by the highest resting heart rate, 83 (73–87) bpm vs. 63 (58–70) bpm in the other groups (p < 0.001), and the highest associated indices of pumping function (cardiac output, cardiac index, and P/m). It is worth noting that the target heart rate was not achieved in only 46% of these patients. A subanalysis of phenotype 4 patients who achieved (n = 16) or did not achieve (n = 12) submaximal heart rate showed significant differences in resting heart rate, 86 (83–90) bpm vs. 72 (65–81) bpm, p = 0.001, peak heart rate, 144 (130–148) bpm vs. 112 (98–120) bpm, p < 0.001, the ratio of achieved to submaximal heart rate, 85% (85%–86%) vs. 64% (61%–75%), p < 0.001, and heart rate reserve, 1.7 (1.6–1.7) vs. 1.5 (1.3–1.6), p = 0.022. Inotropic insufficiency was detected in these subgroups with the same frequency, p = 1.000; exercise capacity tended to decrease in patients who stopped the test prematurely, 4.2 (3.8–5.7) MET vs. 5.2 (4.4–6.4) MET, p = 0.170.
Baseline clinical and demographic characteristics did not differ by phenotype, except for higher body mass index (BMI) in “hypertensive type” patients. Detailed characteristics of the phenotypes are presented in Table 3.
Cardiac power/mass
3.6
Resting P/m was higher in the “chronotropic insufficiency type” patients, essentially due to higher heart rate at rest, since no other inputs for P/m calculation showed significant differences between this group and the others (blood pressure, stroke volume, and LV mass). Peak P/m and P/m reserve did not differ between phenotypes. A subanalysis of all non-ischemic phenotype patients with low (n = 37) and normal (n = 28) exercise capacity, irrespective of phenotype, revealed a lower P/m reserve in patients with low exercise capacity, 1.3 (0.8–1.5) vs. 1.6 (1.2–1.8), p = 0.012.
Coronary atherosclerosis
3.7
In total, 92 (89%) patients underwent coronary angiography (29 invasive coronary angiography, 63 CCTA). Obstructive atherosclerosis with ≥50% narrowing in any coronary artery or branch was identified in 31 (34%) patients; with ≥70% narrowing in 17 (18%) patients. Multivessel disease (≥2) was found in 16 (17%) patients. Twenty-eight (30%) patients had non-obstructive coronary lesions, and 33 (36%) had no atherosclerotic plaques. The Gensini score was 5.0 (0–14.8) in all patients, 13.3 (8.0–17.5) in patients with 50%–69% stenosis, and 30.0 (24.5–46.0) in patients with ≥70% stenosis.
There were no differences between the non-ischemic phenotypes in terms of the Gensini score (p = 0.734) and the frequency of CAD (Table 3). Lesions ≥70%, detected in 6 (9%) patients, did not impair local contractility. Compared with ischemic phenotypes, non-ischemic phenotype patients had a lower incidence of CAD, both ≥50% and ≥70% lesions (p = 0.048 and 0.013, respectively).
Discussion
4
Our hospital works as a regional PCI center (14). Local practice does not include prehospital non-invasive testing of patients presenting with chest pain; the decision on whether hospitalization is necessary is based on an initial ACS assessment (3). Thus, all enrolled patients with acute chest pain, normal or non-diagnostic ECG, and normal troponin levels had a high clinical expectation of CAD according to clinical judgment based on history and pain characteristics. Compared to the other studies with the same design (4, 15), our patients were similar in age and sex but had a higher frequency of traditional CAD risk factors, mainly dyslipidemia and hypertension, and the majority of them (89%) had ≥3 risk factors.
However, the incidence of inducible RWMA (14%) in the study group was low, although higher than that reported by Jasani et al. (5%) and Heitner et al. (8%) (4, 15, 16). In addition, 30% of patients had isolated ST-segment depression, and 7% experienced induced angina not associated with RWMA or ST-segment shift, two of the obligatory criteria for microvascular ischemia (17).
The most frequent abnormal stress biomarker not directly related to ischemia was low exercise capacity. The chosen MET threshold was quite low and was considered, along with the failure to achieve submaximal heart rate, to be a criterion for an inconclusive stress test (18). The incidence of low exercise capacity in ischemic and non-ischemic types, 63% and 57%, did not differ. Its largest proportion (79%) was found in “chronotropic insufficiency type” patients. As low exercise capacity was detected in the absence of other abnormalities and was not associated with failure to achieve submaximal heart rate, it may be the consequence of physical detraining. It may also be the result of performing a stress load on a semi-supine bicycle ergometer. According to Flores-Blanc et al., low exercise capacity at the same METs threshold was observed in only 8% of chest pain patients (the sample included individuals with known CAD) who performed the exercise on a treadmill (19).
Inotropic insufficiency, which is a component of the ischemic response, was determined in half of the patients. It reflects the inability of the ischemic myocardium to provide the necessary increase in SBP, and the absence of hyperkinesia does not produce the required reduction in ESV. In patients with stable CAD, a high percentage of reduced CR is accompanied by a comparable frequency of RWMA and reduced coronary reserve (11). In our study, this response was also detected in combination with RWMA. However, occurring in isolation, reduced CR is more likely to be of “artifact” origin. It is observed in patients with a higher resting LVEF who have a low reserve for reducing ESV. In addition, given the absence of other traditional ischemia criteria and the low frequency of obstructive lesions, it can be judged that it is not a reflection of balanced ischemia. There is also little reason to suspect that this is an early sign of diastolic dysfunction, as this group revealed the lowest peak Е/е′ with a tendency to decrease compared to the resting value and the low frequency of appearance or increase in the number of B-lines.
An increase in heart rate of less than 80% of the resting value was detected in 37% of patients. When associated with signs of ischemia, this could indicate a low ischemic threshold; however, this response was also observed in the pattern of non-ischemic responses. Cluster analysis identified a group of patients with a 100% incidence of reduced chronotropic reserve not associated with ischemia, combining into it those who reached a submaximal heart rate but had a higher resting heart rate and those who prematurely stopped the exercise, more often due to limiting dyspnea or a high rate of systolic BP increase, in other words, having an increased sympathetic tone or other conditions requiring correction. This emphasizes the heterogeneity of the population of patients with low-risk NSTE-ACS in the initial cardiac function parameters. Differences in response to exercise also complicate the picture. Pharmacological stress agents, mostly vasodilators, are more standardized because the response is assessed after the administration of a standard dose of the drug. The study by Cortigiani et al. showed the prognostic value of a reduced chronotropic reserve in acute chest pain patients and found a reduced 8-year survival rate of 76% vs. 93%; this study utilized dipyridamole, and some tests were carried out under the influence of beta-blockers; also, the study sample included patients with atrial fibrillation. It is worth noting that the age of patients with a reduced chronotropic reserve in that study was higher, 71 ± 12 years (increasing to 75 ± 11 years in combination with a reduction in coronary reserve) (9).
Every fifth patient exhibited a hypertensive response. Cluster analysis confirmed that this response mainly interferes with obtaining diagnostic results from exercise tests. In 90% of the “hypertensive type” patients, SE was incomplete. Higher LV mass and LV mass index may indicate the duration of hypertension, which is one of the factors causing microvascular remodeling and the development of microvascular ischemia (17). At the same time, ST-segment depression and induced angina were observed at a low rate in these patients, although it is possible that the ischemic threshold was not reached in others.
One-sixth of the patients experienced stress-induced pulmonary hypertension. In the absence of ischemia, this response is considered a marker of the initial stage of pulmonary arterial hypertension in asymptomatic patients with risk factors (20). In a significant proportion of the patients, the flow of tricuspid regurgitation could not be visualized (in 41% at rest and 45% at peak load), which is more typical of healthy individuals (21). Despite this assumption, the response was not used for clustering, and in non-ischemic phenotypes, isolated increases in systolic pulmonary artery pressure were detected with a similar frequency.
Rare abnormalities were a positive diastolic stress test (1%) and an arrhythmia meeting stress termination criteria (2%).
We used the cardiac power indices to approximate the prognosis of patients with different phenotypes. Their prognostic value was shown in a large study by Anand et al., which assessed the outcomes of a long-term, 3.9 (0.6–8.3) years, follow-up of 24,885 stable patients with preserved ejection fraction (≥50%) without valvular heart disease who performed routine exercise stress echocardiography on a treadmill (99%) or a bicycle ergometer (1%). Patients with lower peak P/m and P/m reserve had lower survival rates and a higher incidence of heart failure (12). In our study, non-ischemic phenotypes did not differ in terms of peak P/m and P/m reserve.
Worth considering is that in patients with non-high-risk NSTE-ACS, particularly those with no known CAD, and in stable patients who were included in Anand et al.’s study, the overall mortality during the observation period was quite low (8, 12). Also, in a series of studies devoted to the role of stress echocardiography in the diagnostic algorithm for acute chest pain, the study by Cortigiani et al. stood out, characterized by the highest level of overall patient mortality (24%) and the longest follow-up period (7.3 ± 4.3 years) (9).
Pooling patients into homogeneous groups (phenotypes) within the same disease and applying a differentiated approach to their treatment is based on differences in long-term prognosis, more often adverse cardiac events. A well-known example of phenotyping using stress echocardiographic parameters is the StressEcho 2020 study. Its authors supplemented the assessment of local contractility with contractile reserve, coronary reserve, heart rate reserve, and lung ultrasound for B-lines, identifying the phenotypes of patients with stable CAD (ischemic, congestive, impaired contractility, microvascular, and autonomic dysfunction) and showed that long-term survival decreases with increasing number of abnormalities (11). However, the task of functional phenotyping in low-risk acute chest pain patients without evidence of ischemia due to the lack of a common diagnosis is closer to determining indicators for screening in the general population.
Now, in the era of highly sensitive troponin tests, there is a growing question about the utility of non-invasive tests, particularly stress tests, in suspected ACS, supported by data on a good mid-term prognosis for survival without cardiovascular events (22). In certain categories of patients, stress tests may prolong the path to diagnosis and resource utilization, for example in women with a narrow anteroposterior chest dimension and non-high CAD probability, due to the increased likelihood of having a false-positive SE, which may be the result of external compression rather than true myocardial ischemia (23). Summarizing the current evidence, it can be assumed that in view of the expanded diagnostic capabilities of exercise SE beyond the assessment of local contractility, the uncertainty surrounding the longer-term prognosis of patients with impaired cardiac reserve makes the question of the reasonable “screening” with SE still relevant. Therefore, larger studies with more participants and longer follow-up durations are needed to assess the survival of these patients. In addition, evaluating other, equally important endpoints with a higher incidence, such as the rate of emergency department re-presentations, makes practical sense closer to real time. The results of such an evaluation have not yet been reported.
Limitations
4.1
Clinical risk stratification tools, such as the HEART score, which could improve the objectivity of triage, were not applied (as they are not routinely used in local practice). A distinctive feature of the patient sample, unlike other similar studies, is the higher incidence of hypertension among CAD risk factors, which makes us cautious about these data. It was assumed that the results of invasive and non-invasive coronary angiography for anatomic assessment of the coronary arteries are considered equal. The rather small size of some clusters may affect the representability of the findings. Pulmonary congestion was not evaluated definitively by B-line criteria because of missing data.
Conclusion
5
The predominant majority (90%) of low-risk NSTE-ACS patients have one or more abnormal stress biomarkers based on an extended stress test assessment. Four non-ischemic phenotypes were identified: “near-normal type,” “inotropic insufficiency type,” “hypertensive type,” and “chronotropic insufficiency type.” Non-ischemic phenotypes exhibit a low frequency of obstructive coronary atherosclerosis. Further proof-of-concept studies are needed to investigate the significance of the obtained phenotypes in the long term.
