Imaging Studies of the Stifle Joint in Puma concolor (Linnaeus, 1771)

TL;DR

This study uses various imaging techniques to examine the stifle joint in pumas, revealing structural details important for understanding their anatomy and potential health issues.

Contribution

The study provides the first detailed imaging analysis of puma stifle joints using multiple modalities, including ultra-high-field MRI.

Findings

Digital radiography, CT, and MRI each revealed different aspects of the puma stifle joint anatomy.

Meniscal mineralization was detected in four pumas using all imaging methods.

Ultra-high-field MRI (7 Tesla) provided the most precise visualization of cruciate ligaments and menisci.

Abstract

Pumas are known for their agility and can jump to heights exceeding 5 m. The stifle joint is considered a complex joint, both anatomically and functionally. Although the stifle joint of wild felines shares several characteristics observed in domestic cats, other characteristics are specific to each species. Therefore, this study aimed to evaluate the stifle joints of pumas (Puma concolor) using digital radiography, computed tomography (CT), and magnetic resonance imaging (MRI). Imaging methods complemented each other in assessing the components of the puma’s stifle joint, as certain structures like the cruciate ligaments and meniscus were not visible on plain radiographs. The meniscus and cruciate ligaments were visualized on CT and MRI, but ultra-high-field MRI (7 Tesla) allowed these structures to be observed with precision. In the stifle joints where meniscal mineralization was present, identified in three adults and one young animal, it was detected across all imaging modalities.

Although the stifle joint of wild felines shares several characteristics observed in domestic cats, other characteristics are specific to each species. This study aimed to evaluate the stifle joints of eight Puma concolor, including two young and six adults, through different imaging examinations. All stifles were assessed using radiographs and computed tomography (CT). Magnetic resonance imaging (MRI) was performed on the stifles of one animal using 7 Tesla equipment. In all imaging modalities, the four sesamoid bones were detected. Meniscal mineralization was identified in the stifles of three adult animals and one young animal. The cruciate ligaments and menisci were identified on CT, with MRI providing better visualization. The mean values of CT measurements (cm2) in the sagittal section included patella (2.475), medial fabella (0.481), lateral fabella (0.772), popliteal sesamoid (0.222), and medial meniscus (0.051). No differences were found in HU values between the central trabecular bone of the patella and popliteal sesamoid, the cortical bone of the patella and lateral and medial fabellas, or the cortical bone of the patella and popliteal sesamoid. In conclusion, the descriptions of the stifle of Puma concolor from the different imaging methods contribute to understanding the species and can serve as a basis for identifying alterations.

Figures

Full text

1. Introduction

The puma (Puma concolor) is a mammal of the felid family, with 32 subspecies classified into six phylogeographic groups based on genomic analysis [1,2,3]. Among these groups, Puma concolor capricornensis, Puma concolor concolor, Puma concolor cabrerae, and Puma concolor puma are found in South America; Puma concolor cougar is found in North America; and Puma concolor costaricensis is found in Central America [1]. The puma is considered the second-largest feline in the Americas and the largest of the puma genus [4], and can be found from Canada to the south of South America, excluding some regions of Chile and the Caribbean islands [5,6]. This feline inhabits tropical and subtropical humid forests, temperate forests, mountainous areas, and swamps, as well as arid or cold regions, demonstrating its ability to adapt to various environments, including those near agricultural and anthropized areas [4,6].

The body mass of pumas ranges from 22 to 74 kg, with females being smaller than males [5]. Both males and females are solitary and are active during crepuscular and nocturnal hours [4,5,7]. Pumas are known for their agility and can jump to heights exceeding 5 m [5]. Sexual maturity is reached after 24 months and their lifespan typically ranges from 8 to 10 years, although they can live up to 13 years [3].

The species is classified as least concern globally by the International Union for Conservation of Nature (IUCN) Red List [2]. In Brazil, pumas are found in all biomes but face threats such as habitat loss and fragmentation due to agricultural expansion, roadkill, persecution for predation, and fires [3,5,6].

The stifle joint of domestic felines is considered a complex joint, both anatomically and functionally, consisting of the medial and lateral femorotibial, and femoropatellar joints, which form three communicating compartments [8,9]. Although the stifle joint of wild felines shares several characteristics observed in domestic cats, other characteristics are specific to each species, such as mineralization of the medial meniscus and the presence of one or two fabellas [10]. Some anatomical, radiological, and histological studies have been carried out on the stifle joint of Puma concolor [10,11,12]. However, there is a lack of evaluations utilizing advanced imaging techniques such as computed tomography (CT) and magnetic resonance imaging (MRI), which can avoid osseous or soft tissue superimposition, allow for cross-sectional imaging, and provide better visualization of the joint structures.

Therefore, this study aimed to evaluate the stifle joints in pumas (Puma concolor) using digital radiography, CT, and MRI. Additionally, CT measurements and Hounsfield Unit (HU) values were obtained to assess sesamoids and medial meniscus mineralization in the sagittal view. The hypothesis was that a combination of at least two imaging modalities is necessary for a more comprehensive assessment of the puma stifle joints.

2. Materials and Methods

2.1. Animal Selection

The methodology used in the present study was approved by the Institutional Ethics Committee for the Use of Animals (CEUA-n^o^. 0179/2022) and the National Environmental and Wildlife Bureau (SISBIO-84129-2). Hind limbs from eight pumas were used, including three males and five females, and two young and six adults, with body masses ranging from 26.5 to 51 kg (mean 41.31 kg ± 5.94). Except for one puma from a zoo, all hind limbs were obtained from roadkill animals. Since most of the animals were free-ranging, their ages were classified as young and adult. The right and left hind limbs of all animals were harvested by disarticulation at the hip joint, placed in plastic bags, numbered from 1 to 8, and stored in a −20 °C freezer for preservation until imaging exams.

2.2. Imaging Studies

Radiographs of the stifle joints (n = 16) were taken in the craniocaudal and mediolateral views with digital radiography equipment (NEOVet, Sedecal, Hefei, China). Exposure parameters were set to 60 kVp and 8 mAs, with a focus-film distance of 100 cm. CT scans were performed on a 16-channel scanner (SOMATOM Emotion, Siemens, Erlangen, Germany) with parameters set 130 kVp, 116 mA, and a 0.8 mm slice thickness. Cross-sectional images were obtained from the distal portion of the femur to the proximal portion of the tibia. Multiplanar (dorsal and sagittal) and three-dimensional (3D) reconstruction images were evaluated using RadiAnt DICOM (Digital Imaging and Communications in Medicine) Viewer software 2023.1 (64-bit) (Medixant, Poznan, Poland). In the sagittal slice, the areas of the patella, medial, and lateral fabellae (sesamoid bones located at the head of the gastrocnemius muscle), and the sesamoid of the popliteus muscle were measured (Figure 1). Additionally, Hounsfield Units (HU) were measured in each region of interest (ROI) of the sesamoids, which included one point in the compact bone area located proximally and another in the trabecular bone positioned in the center, as shown in Figure 1(a2,b2,d2). Due to the small size of the medial meniscus mineralization, the ROI was located in the central area (Figure 1(c2)). All measurements were taken by an experienced imaging veterinarian. If present, meniscal mineralization was identified based on its position in the femorotibial joint and its density was measured in HU (Figure 1).

MRI (sagittal and dorsal sections) was performed on the stifles of one animal randomly selected using 7 Tesla equipment (Magnetom 7T, Siemens Healthineers—GhMb, Erlangen, Germany). Sequences trialed for sagittal, transversal, and dorsal planes included two-dimensional (2D) T2-weighted, 3D-DESS (double echo steady-state), 3D T2 SPACE (Sampling Perfection with Application optimized Contrast using different flip angle Evolution), and 3D FLASH (fast low-angle shot).

The three imaging methods were used to identify and characterize osseous and soft tissue structures of the stifle joint.

2.3. Statistical Analysis

The normality of the data measurements was verified using the Kolmogorov–Smirnov test. Based on the distribution, the paired t-test and Wilcoxon test were used to compare the variables between the stifles and among sesamoids. A significance level of p < 0.05 was adopted. Statistical analyses were conducted using GraphPad Prism Version 4.0 software (San Diego, CA, USA).

3. Results

3.1. General Information and CT Measurements

Imaging exams confirmed that two animals were young because the proximal tibial and distal femur growth plates were fully open. Also, four animals had fractures: two in the left femur (nos. 6 and 7), one in the left fibula (no. 3), and one in the left fibula and both femur bones (no. 1). All fractures were pre-mortem and caused by a fatal road accident.

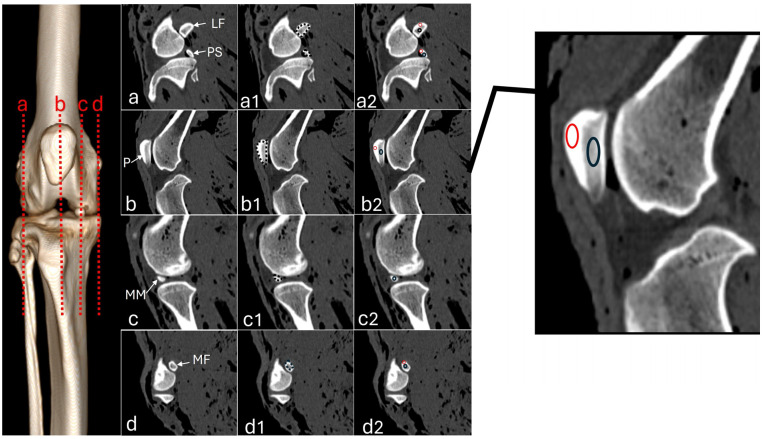

Table 1 displays CT measurements of the sesamoids and meniscus mineralization. The HU values for the sesamoids and meniscus mineralization in the right and left stifle joints are presented in Table 2 and Table 3, respectively.

3.2. Stifle Joint Description

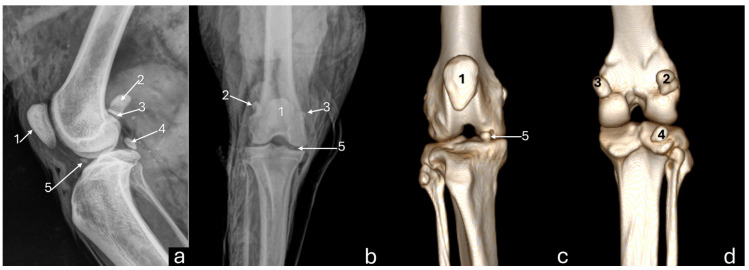

On the mediolateral radiographic view (Figure 2a), the patella had a triangular shape with a wider base than the apex, positioned in the trochlear groove. The femoral condyles had a convex surface without overlap, with the lateral condyle approximately 9% larger than the medial condyle. The articular surface of the tibia had a convex appearance. The fabellae and sesamoid of the popliteal muscle were identified. An intra-articular radiopaque structure consistent with partial meniscus mineralization was observed in the stifles of three adults and one young animal. On the craniocaudal radiographic view (Figure 2b), well-defined and convex femoral condyles on the articular surface were visualized, with the lateral condyle approximately 18% larger than the medial one. The patella was oval and positioned in the trochlear groove. The extensor fossa was identified on the lateral condyle. The surface of the lateral and medial tibial condyles had a slightly convex appearance, with the lateral one being around 24% larger. The intercondylar eminence was clearly defined, showing two intercondylar tubercles, with the lateral one larger than the medial one, and a central intercondylar area. The lateral and medial fabellae were visualized as rounded radiopaque structures in the epicondylar region of the lateral and medial condyles, respectively. The lateral fabella was larger than the medial one. The head of the fibula was articulated with the tibia. In the medial compartment of the femorotibial joint, a radiopaque structure was seen, compatible with meniscal mineralization in the same four animals.

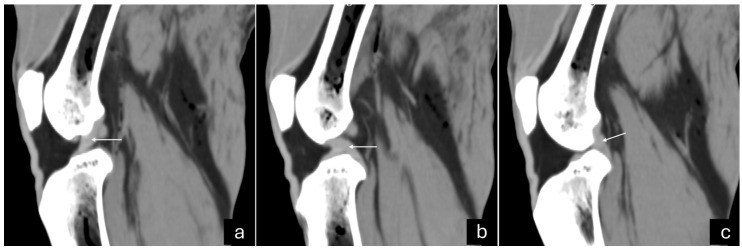

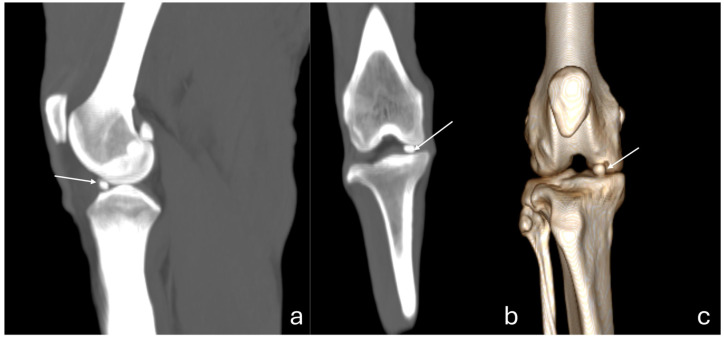

The 3D reconstruction of CT images (Figure 2c) revealed, in a cranial view, the patella as a drop-shaped structure with a wider base than the apex, positioned in the symmetrical trochlear groove. Meniscal mineralization was identified in the stifles of the same four animals as a hyperdense portion in the medial compartment. The caudal and lateral views displayed the lateral and medial fabellae in the epicondylar region of the lateral and medial condyles, respectively, with the lateral one being larger (Figure 2d). Other bone structures showed similar patterns as seen in radiographic images. Multiplanar and cross-sectional images allowed identification of the patella, infrapatellar fat, cranial cruciate ligament (from the caudal portion of the femur to the cranial area of the tibia), caudal cruciate ligament (from the cranial aspect of the femur to the popliteal margin of the tibia), and meniscofemoral ligament (Figure 3). The menisci were more difficult to identify, but those with partial mineralization were easily visualized (Figure 4). The fabellae and sesamoid of the popliteal were also identified; all had a thin cortical layer.

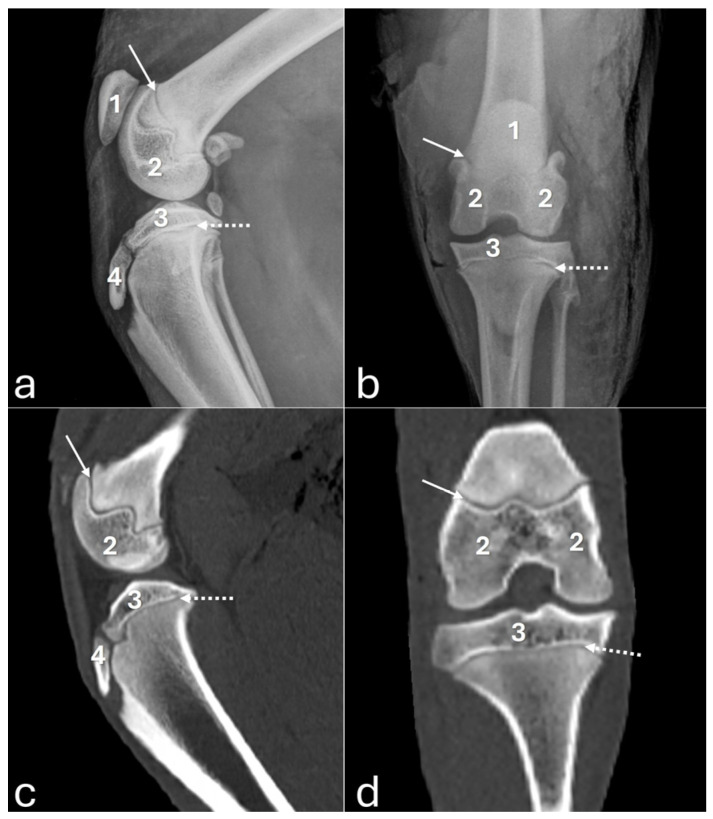

Figure 5 displays radiographs and CT images of the stifle joint of a young puma where no meniscal mineralization was detected.

No bone or cartilage lesions were found in the stifle joints on radiograph and CT images.

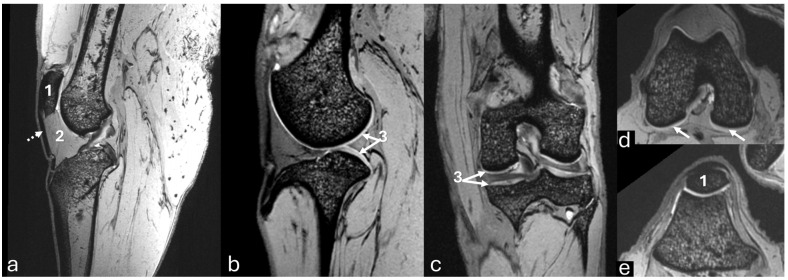

The MRI images of the stifle joint structures were evaluated in all sequences, but qualitatively the 3D-DESS was considered better than the others. The 3D-DESS showed that the cartilages of the femur and tibia had a uniformly homogenous white signal in all planes and the bone contours were regular (Figure 6). High-resolution imaging of subchondral bone was also visualized. All sesamoids were identified.

The sagittal plane image showed the hypointense patellar ligament beginning at the patellar apex and inserting on the tibial tuberosity, patella, patellofemoral compartment, and infrapatellar fat pad, which was located deep on the patellar ligament in the cranial part of the joint (Figure 6a). The cranial cruciate ligament ran from the caudal aspect of the femur condyle to the tibial tuberosity (Figure 7a). The caudal cruciate ligament ran from the cranial aspect of the femoral intercondyloid fossa to the popliteal notch of the tibia (Figure 7d). The meniscofemoral ligament ran from the lateral meniscus to the medial condyle of the femur. Both menisci had a hypointense signal with a triangular shape or bow-tie appearance according to the slice. The mineralization of the medial meniscus was identified in the cranial aspect (Figure 8a).

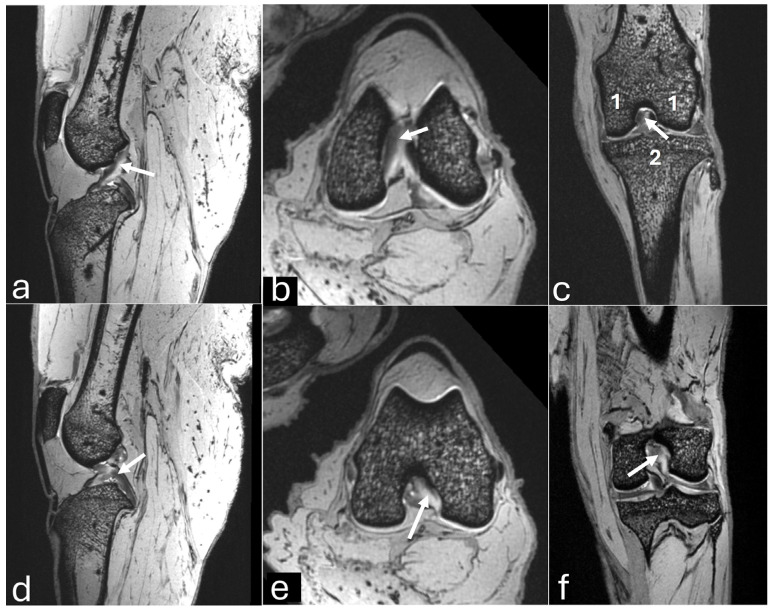

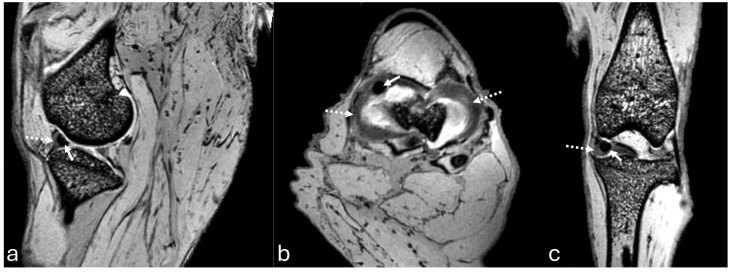

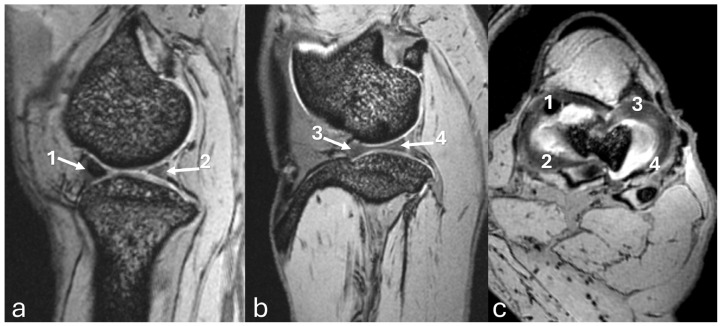

The transverse plane showed the cruciate ligaments (Figure 7b,e) and the C-type shape of both menisci, with the medial meniscus being larger than the lateral one (Figure 8b and Figure 9c). The cranial and caudal horns were identified (Figure 9c). Meniscal mineralization was easily identified in the cranial horn of the medial meniscus as a rounded structure with a hypointense signal (Figure 8b and Figure 9c).

The dorsal plane revealed that the medial and lateral femoral condyles articulated with the tibial plateau and formed the medial femorotibial and lateral femorotibial compartments (Figure 7c). The fibula head was located on the lateral side. The lateral and medial collateral ligaments showed a hypointense signal. The cranial and caudal cruciate ligaments were clearly visible in the intercondylar notch between the medial and lateral compartments (Figure 7c,f). The caudal cruciate ligament appeared thicker than the cranial cruciate ligament. Both menisci had a triangular shape with a hypointense signal, which was less than the mineralization of the medial meniscus (Figure 8c).

3.3. Statistical Analysis

No statistical differences were found in the tomographic measurements (cm^2^) and HU values of the sesamoids and medial meniscus mineralization between the right and left stifles. Therefore, the values were combined and are presented as a single value in Table 4 and Table 5. HU values of the trabecular and compact bones in the medial and lateral fabellae were similar, so their values were combined for comparison with other sesamoids. Additionally, there were no significant differences in HU values between the central trabecular bone of the patella and popliteal sesamoid, the cortical bone of the patella and fabellae of the gastrocnemius, or the cortical bone of the patella and popliteal sesamoid (Table 6).

4. Discussion

Imaging methods complemented each other in assessing the components of the puma’s stifle joint, as certain structures like the cruciate ligaments and meniscus are not visible on plain radiographs.

The four sesamoid bones were detected in all stifle joints, i.e., the patella, the medial and lateral fabellae, and the popliteal sesamoid, as described in the domestic cat [8]. Previous studies using two [12] or three [11] cadavers of Puma concolor also verified all sesamoids. The patella appeared oval on craniocaudal radiographs and drop-shaped on cranial CT reconstructions, with a triangular shape on mediolateral radiographs. The appearance resembled that described by radiographic examinations and anatomic dissection of Puma concolor, as a flattened pyramid shape craniocaudally with a broad proximal base and rounded distal apex [11]. On CT, the patella was visualized as positioned within a symmetrical trochlear groove. Symmetry of the distal femur was also noted in lions (Panthera leo), suggesting a trend in cursorial carnivores [13]. HU values indicated density differences between the cortical and central bone of the patella. However, the cortical bone density of the patella was similar to the cortical bone of the other sesamoids.

The lateral (0.77 cm^2^) and medial (0.48 cm^2^) fabellae were easily visualized in all imaging methods, with the lateral fabella approximately 37.7% larger in size than the medial fabella, consistent with findings in other studies on Puma concolor [11,12]. In domestic cats, the lateral fabella is ossified and visible on radiographs, whereas the medial fabella is often not visualized, being in these cases histologically formed of fibrocartilage [8,14]. The popliteal sesamoid was most clearly visible in the mediolateral radiographic view and easily identifiable through CT reconstruction. It was the smallest of the sesamoids (0.22 cm^2^). In domestic cats, this sesamoid articulates with the lateral condyle of the tibia [15] and may fail to ossify [16]. A study of three Puma concolor specimens found that this sesamoid was embedded at the tendomuscular transition of the popliteus muscle [11].

The meniscus and cruciate ligaments were visualized on CT and MRI, but ultra-high-field MRI (7 Tesla) allowed these structures to be observed with precision. Following FDA (Food and Drug Administration) approval for clinical use in humans, 7 Tesla MRI has been used to diagnose meniscal injuries and changes in articular cartilage and subchondral bone due to its rapid image acquisition, high spatial resolution, and superiority in detecting early tissue changes [17,18]. No articular cartilage changes were observed in the stifle joint using DESS and FLASH sequences in the present study. Previous research in humans found similar sensitivity of FLASH and DESS sequences for longitudinal morphometry of stifle cartilage [19]. Additionally, the subchondral bone showed no changes when evaluated with the T2 sequence in the present study, which is considered the most accurate for detecting this type of injury [20].

In the stifle joints where meniscal mineralization was identified, it was recognized in all imaging modalities in the medial meniscus. A CT scan of Panthera tigris described the meniscal mineralization as dense cortical bone surrounding a less dense stroma, similar to the structure of the patella and fabella [10]. In the present study, meniscal mineralization exhibited a median HU of 971, which is lower than cortical bone (HU range of 1159.37–1363.5) and higher than trabecular bone (HU range of 373.87–632.12) found in various sesamoids.

The role of meniscal mineralization is always controversial in domestic and wild felines [10,21,22,23,24]. In wild felines, medial meniscal mineralization has been described in Puma concolor, Panthera tigris, Acinonyx jubatus, Panthera leo, Panthera tigris, Panthera pardus, and Leopardus tigrinus, but it was not associated with joint degenerative processes [10,11,21,23,25], as verified in the present study in the imaging analysis. Conversely, in domestic felines, one study attributed the presence of mineralization to degenerative joint disease [22], and another found that cats with a ruptured cranial cruciate ligament had a higher percentage of medium and large mineralizations compared to those without rupture [24].

In the present study, meniscal mineralization was detected in three adults and one young animal. The young animal had meniscal mineralization of a smaller size and a lower HU value than the adults. A study involving large felines suggested that meniscal ossicles mineralize with skeletal maturation and become radiographically visible around one year of age or in the last half of skeletal maturation [10]. The absence of meniscal mineralization in a young animal could be justified by this statement, but there were three adults in which mineralization was not identified, indicating that meniscal mineralization is not a constant finding. Furthermore, a study reported that Panthera leo, Panthera tigris, and Panthera leo with meniscal ossicles typically had a lateral fabella but often lacked the medial fabella of the gastrocnemius muscle [10]. This contrasts with the present study, where all animals had all sesamoids regardless of the presence or absence of mineralized medial meniscus.

To obtain a better understanding of meniscal mineralization, conducting studies that monitor animals in their natural habitat from birth and using periodic imaging exams to identify the timing of mineralization occurrence would be beneficial. Although meniscal mineralization in non-domestic felines may not be directly linked to stifle joint disease, it is important to consider that environmental factors could play a role in orthopedic diseases. This present study focused on pumas from a tropical region heavily impacted by human activities such as sugarcane plantations and increased road infrastructure, which limit the movement of these animals. Therefore, further research involving pumas from different regions is necessary to determine if environmental factors influence the development of meniscal mineralization.

A major limitation of this study was the small sample size of animals, which restricted the statistical analysis, especially regarding factors such as sex, age, and body mass. Further studies with a larger number of animals will be necessary. Moreover, imaging studies to assess growth plate closure in this species are essential to enhance the understanding of joint changes. However, the challenges in obtaining large felines for research purposes and the ethical concerns about the use of wild animals must be considered.

In conclusion, the descriptions of the stifle of Puma concolor in the different imaging methods contribute to understanding the species and can serve as a basis for identifying alterations.
