Finite Element Numerical Simulation of Deformation of Critical Vehicle Components and Damage to Retaining Walls of Emergency Escape Ramps During Truck Impacts
Pinpin Qin, Zhicheng Xu, Yiyuan Shi
TL;DR
This paper uses simulations to study how truck impacts affect vehicle components and retaining walls of escape ramps.
Contribution
A validated finite element model was developed to analyze deformation and damage during truck impacts on retaining walls.
Findings
Two stages of deformation were observed in the cockpit during impacts.
Retaining wall damage increased with higher vehicle speed, impact angle, and bumper stiffness.
Punching shear and corner shear damage were identified in the wall impact regions.
Abstract
In this study, finite element numerical simulations were used to investigate the deformation of critical vehicle components and the damage characteristics of the retaining wall at the end of the emergency escape ramp after the impact of a Ford 800 truck on the retaining wall of the refuge lane. A finite element model of the reinforced concrete retaining wall of the truck was created using the LS-DYNA (R11.0) program and the correctness of the constructed finite element model was confirmed by tests. The parameters of the reinforced concrete retaining wall were determined using orthogonal tests. Finite element numerical simulations of vehicle impact on the retaining wall were carried out, and the results showed that two stages of deformation occurred at the front and rear sides of the cockpit during the impact process, and the damage of the retaining wall increased with the increase in…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

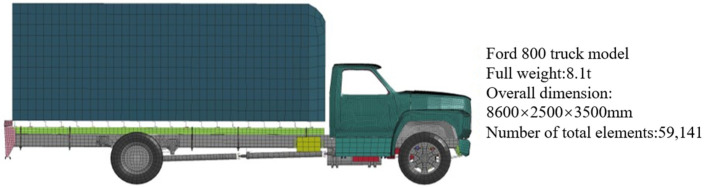

Figure 1

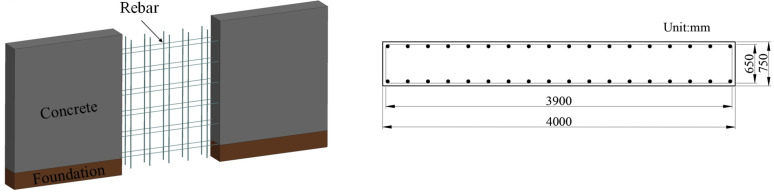

Figure 2

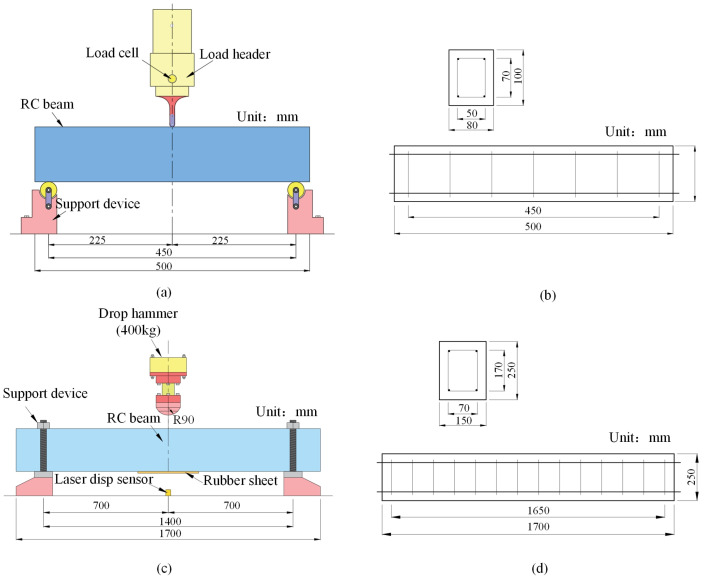

Figure 3

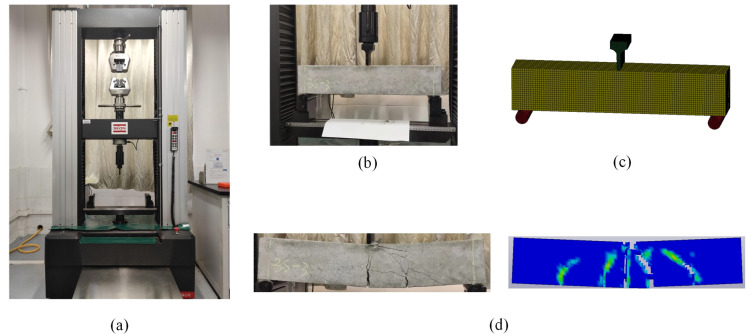

Figure 4

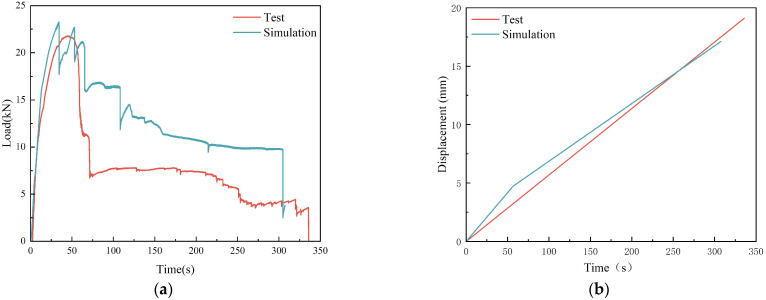

Figure 5

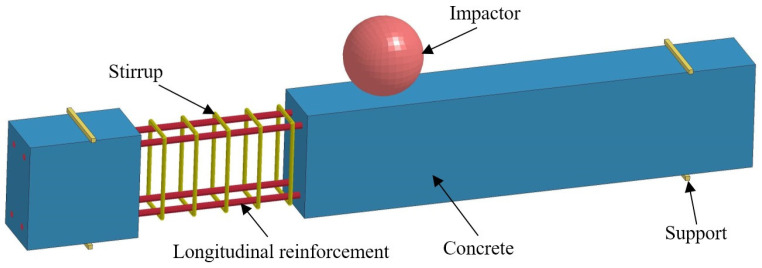

Figure 6

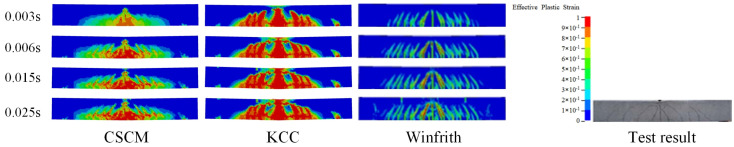

Figure 7

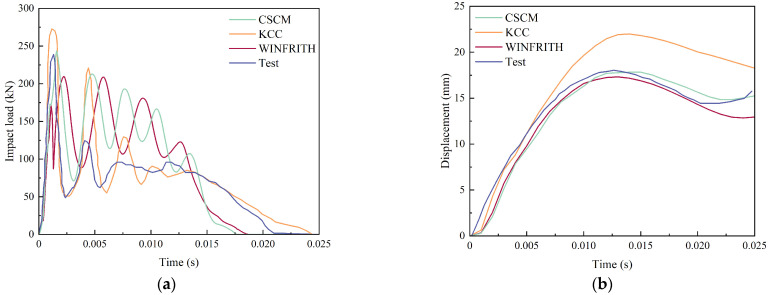

Figure 8

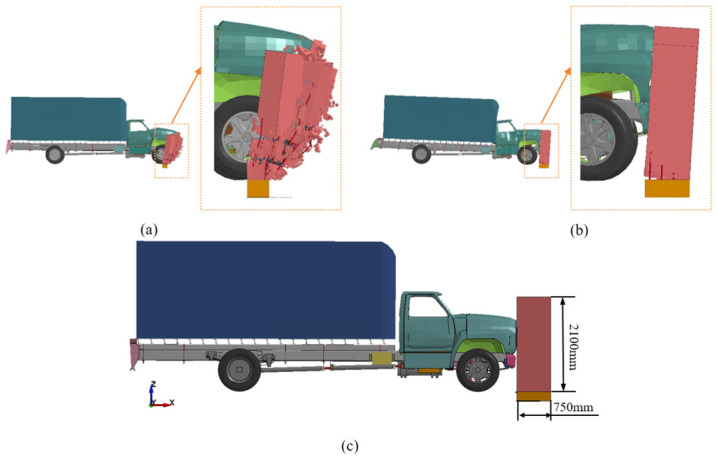

Figure 9

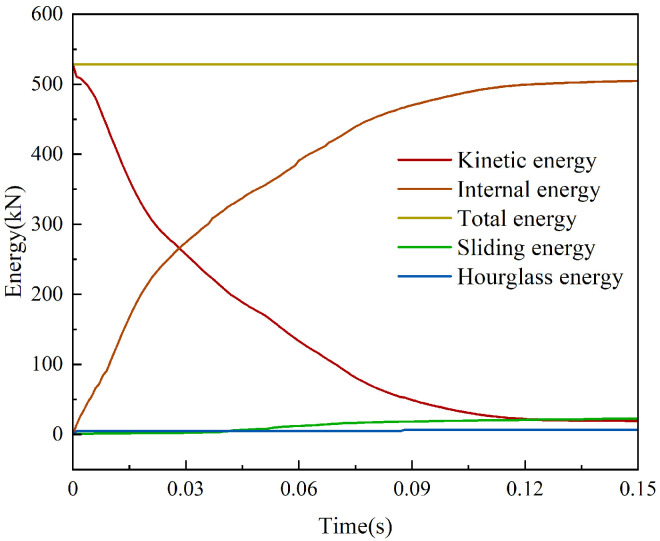

Figure 10

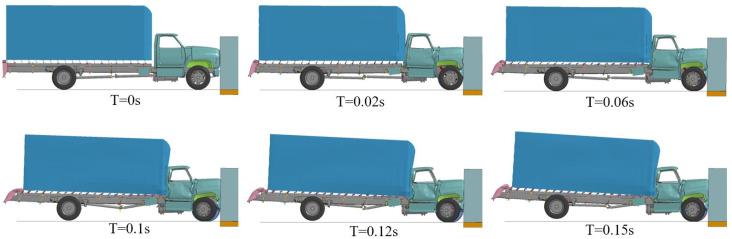

Figure 11

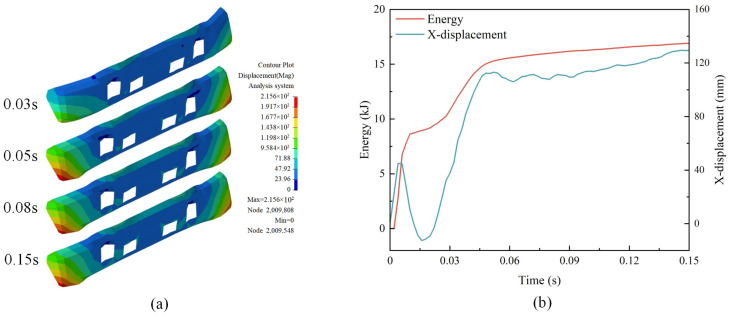

Figure 12

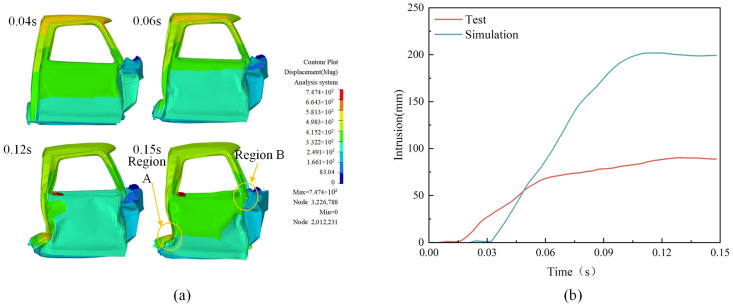

Figure 13

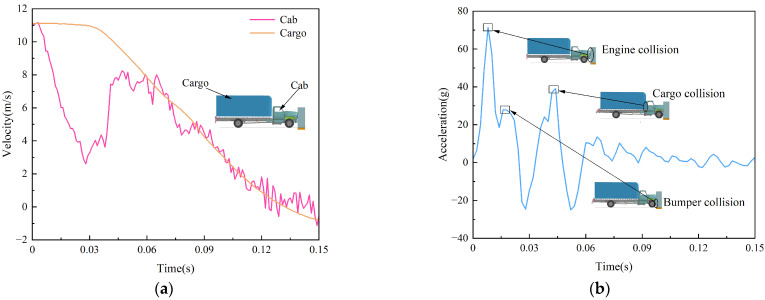

Figure 14

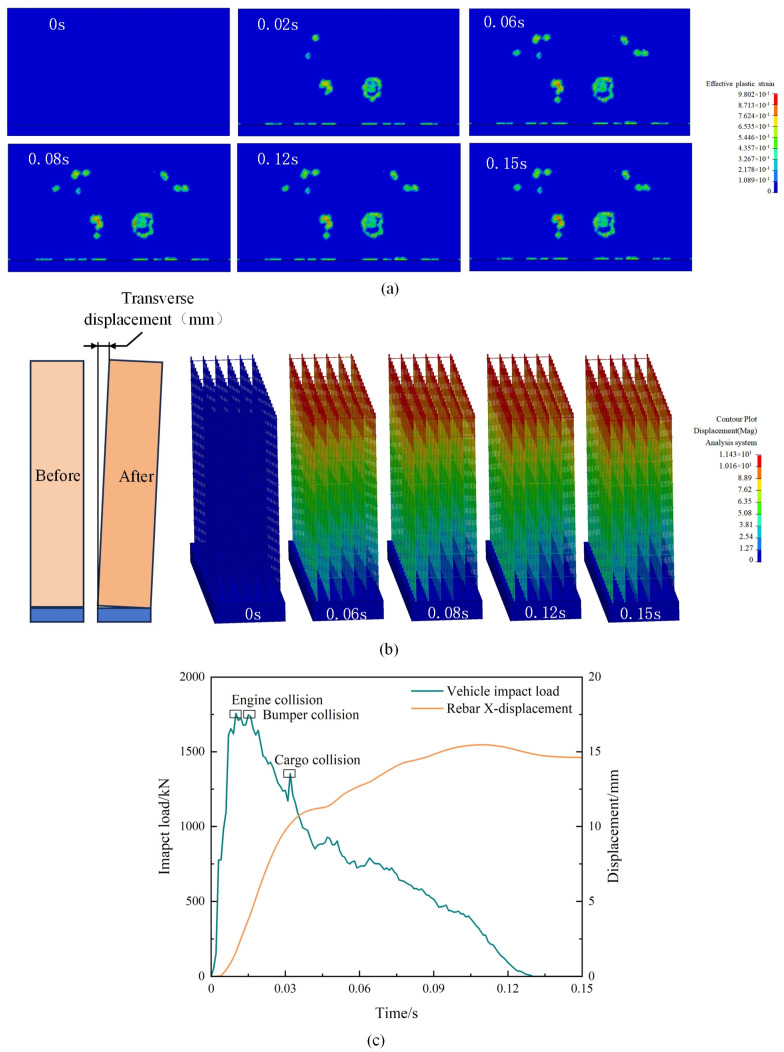

Figure 15Peer Reviews
