Position Detection System for Moving-Magnet Linear Motors Based on a Magnetoresistive Sensor Array
Jun Wang, Xiang Chen, Quyan Chen, Qing Xi, Haiyang Sun
TL;DR
This paper presents a new position detection system for moving-magnet linear motors using magnetoresistive sensors, offering high accuracy and no length limitations.
Contribution
A novel position detection system using magnetoresistive sensor arrays for moving-magnet linear motors is proposed.
Findings
The system achieves a linear correlation coefficient higher than magnetic grid rulers.
Position detection accuracy of ±9 μm is demonstrated experimentally.
The method supports long-distance position detection without length limitations.
Abstract
The moving-magnet linear motor has received considerable attention in the development of logistic and factory automation in recent years. A reliable position detection system is the key to achieving the precise position and control of the motor. At present, the magnetic grid-scale and grating-scale are the most widely used traditional detection methods. However, these are not suitable for position detection with moving-magnet linear motors. They have the disadvantages of being easy to disturb, having a high cost, and exhibiting a limited measurement range. In this work, a moving-magnet linear motor position detection system based on an array of magnetoresistive sensors is used. The array is configured by arranging the magnetoresistive sensors at equal intervals along a line parallel to the trajectory of the armature. Then, the permanent magnet is fixed on the rotor and detected by…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

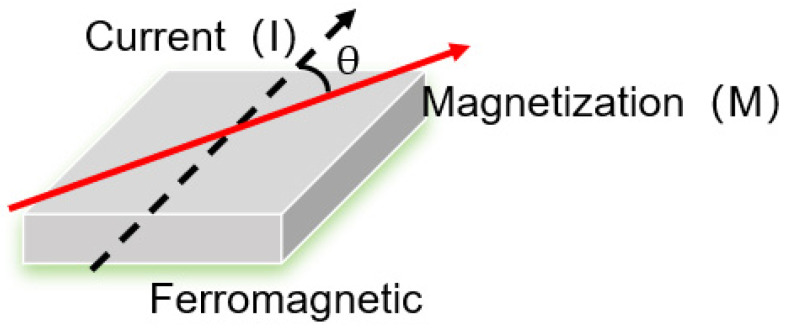

Figure 1

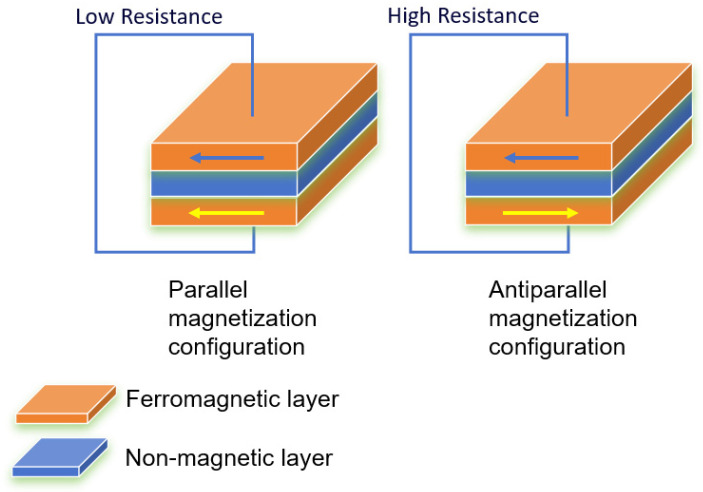

Figure 2

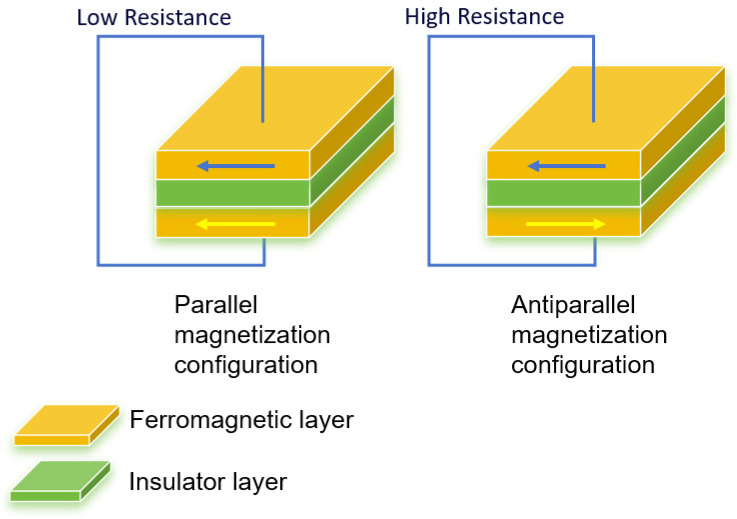

Figure 3

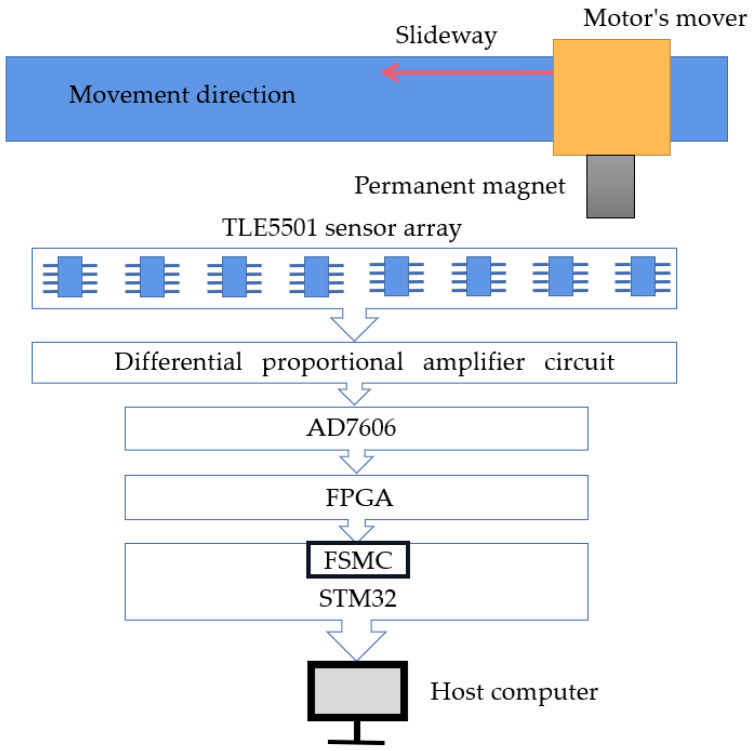

Figure 4

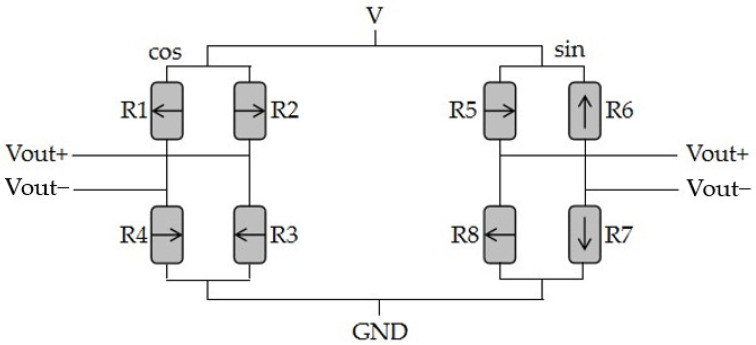

Figure 5

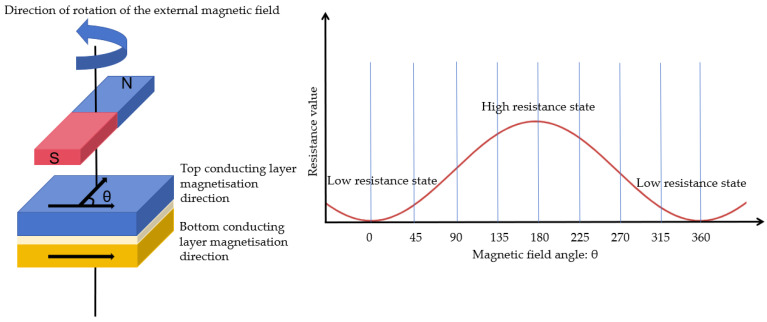

Figure 6

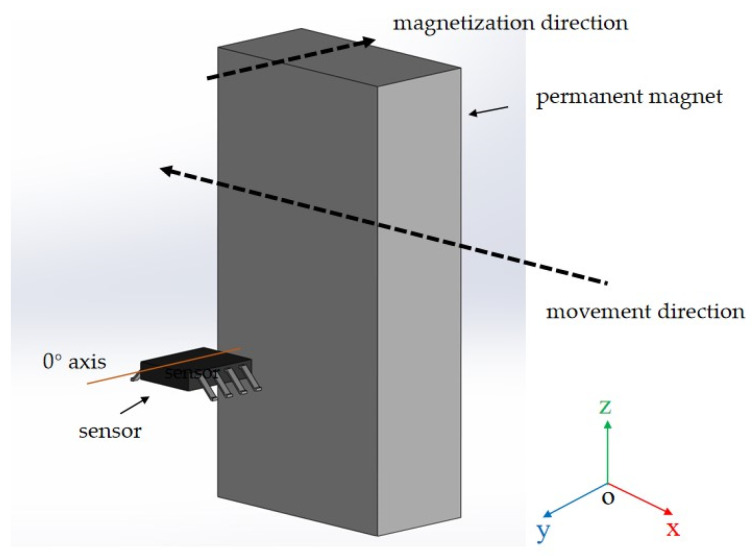

Figure 7

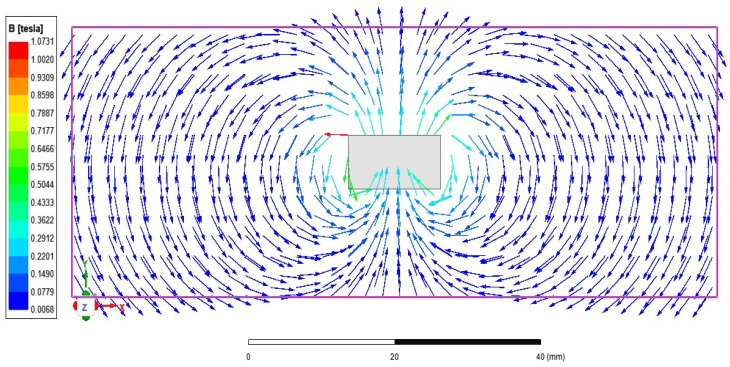

Figure 8

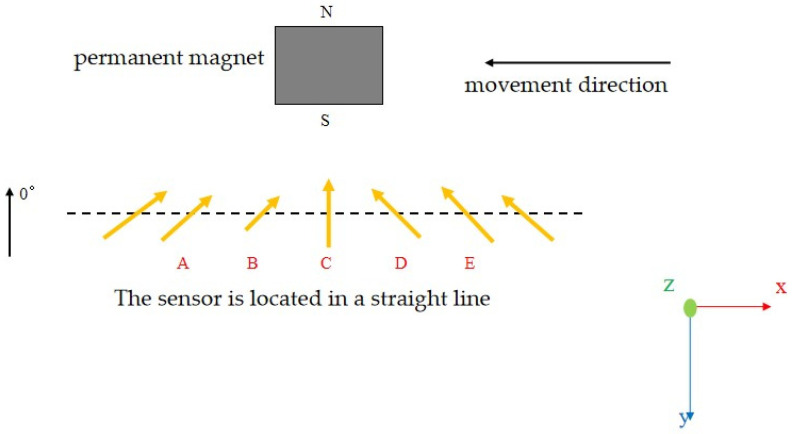

Figure 9

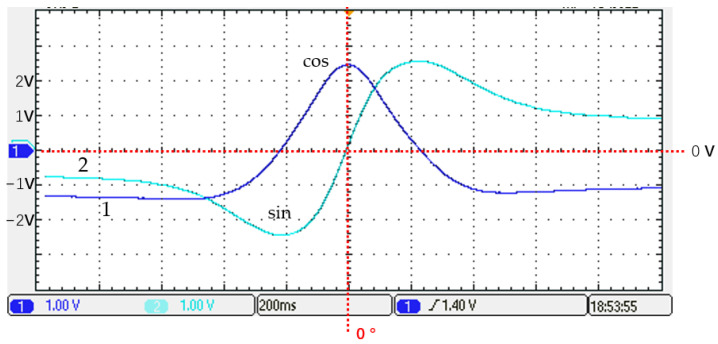

Figure 10

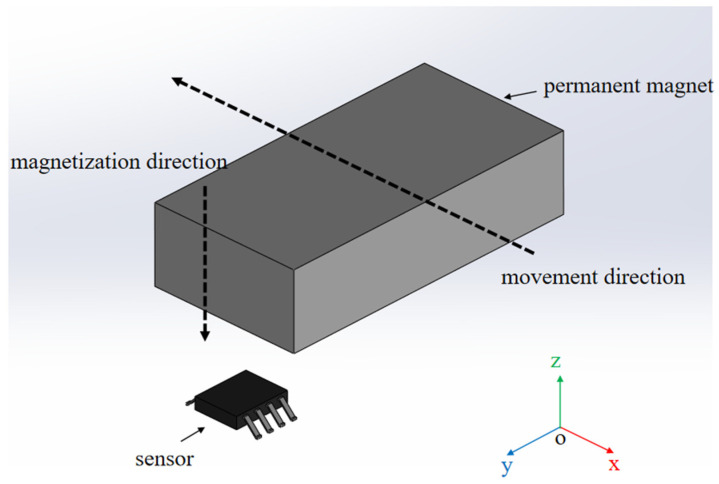

Figure 11

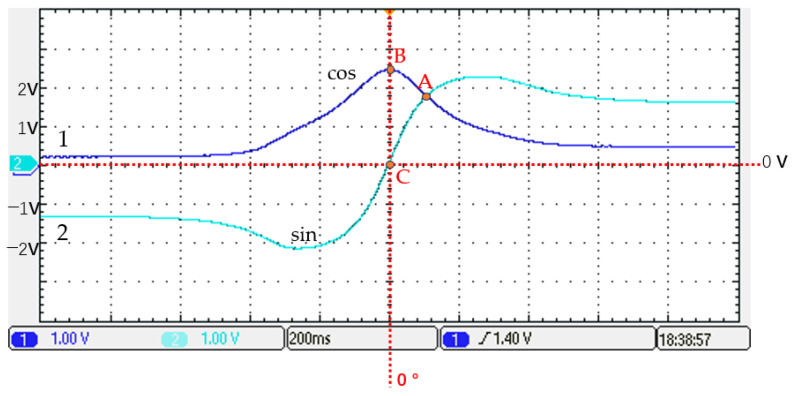

Figure 12

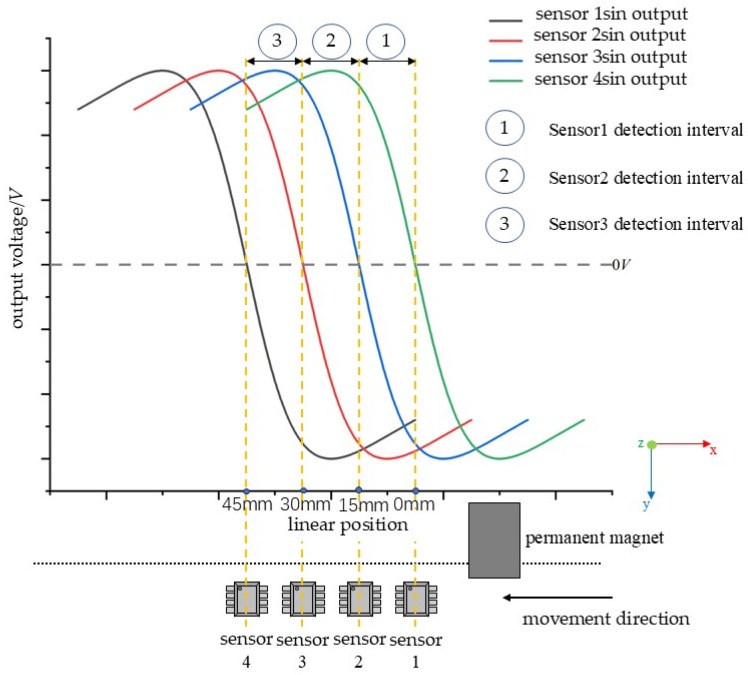

Figure 13

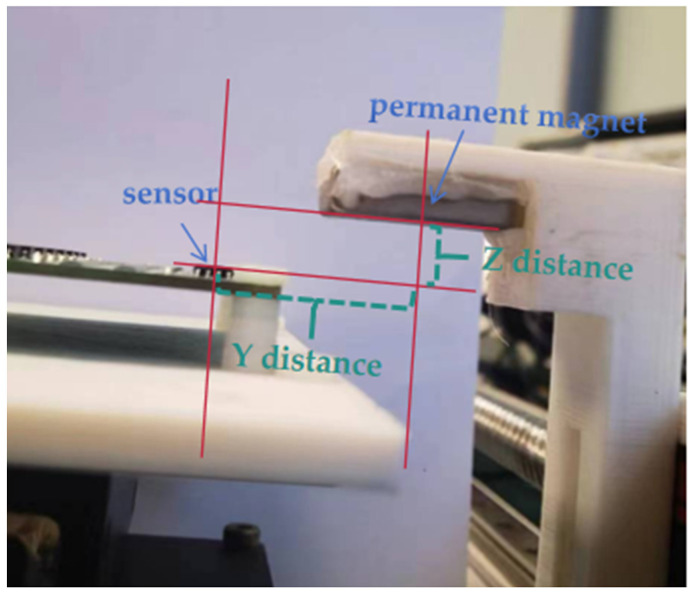

Figure 14

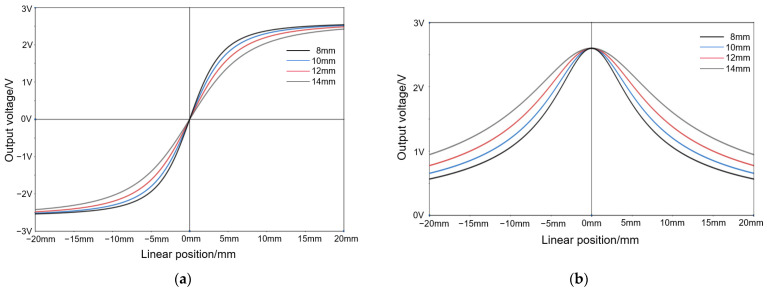

Figure 15

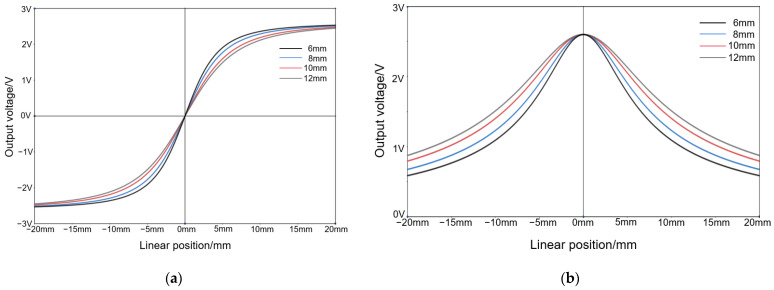

Figure 16

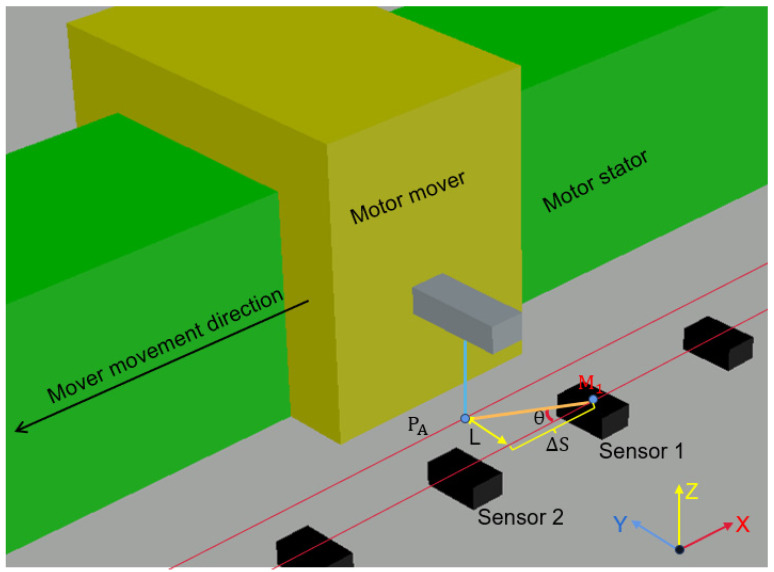

Figure 17

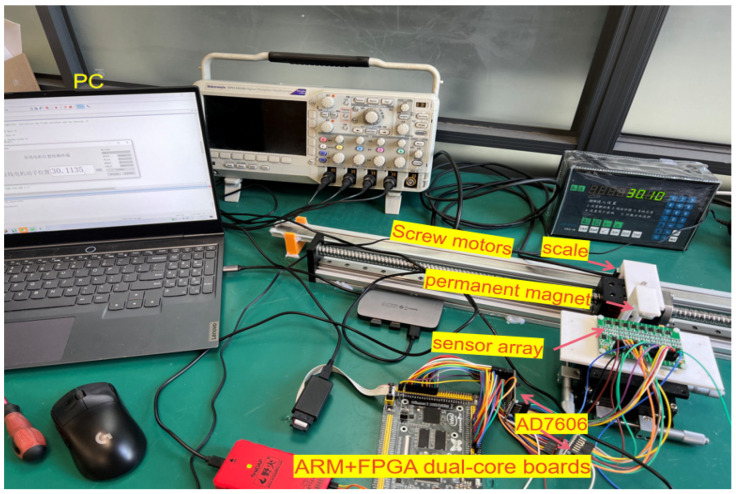

Figure 18

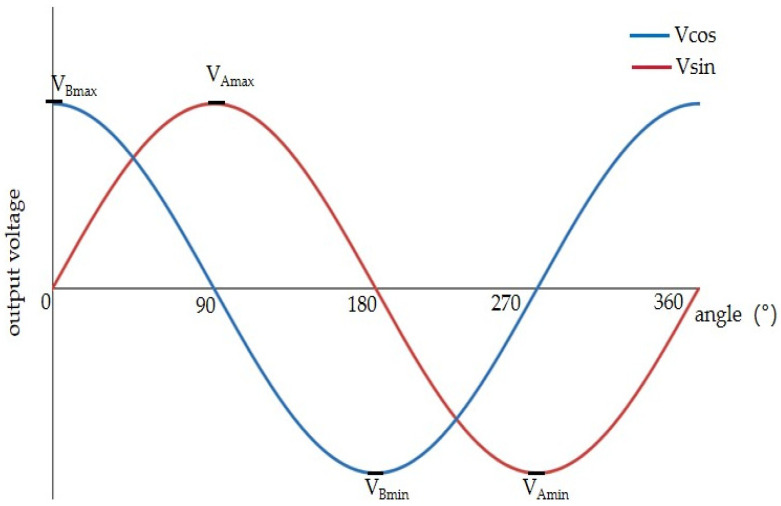

Figure 19

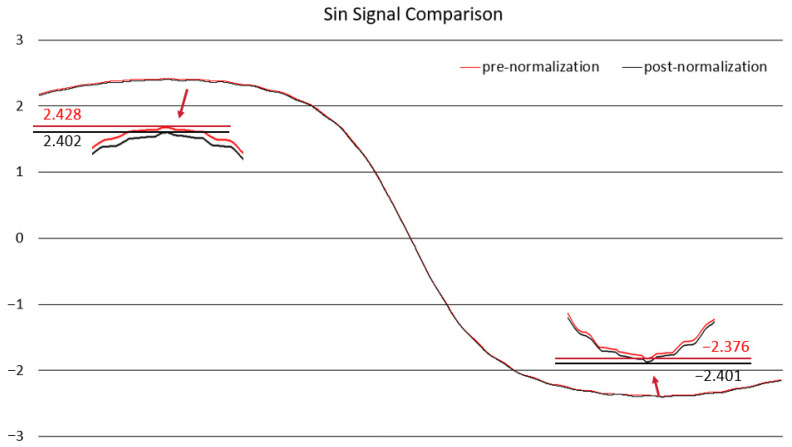

Figure 20

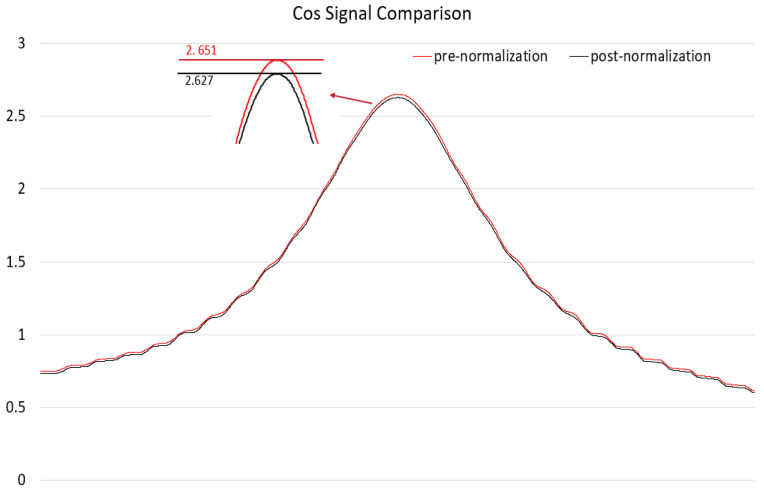

Figure 21

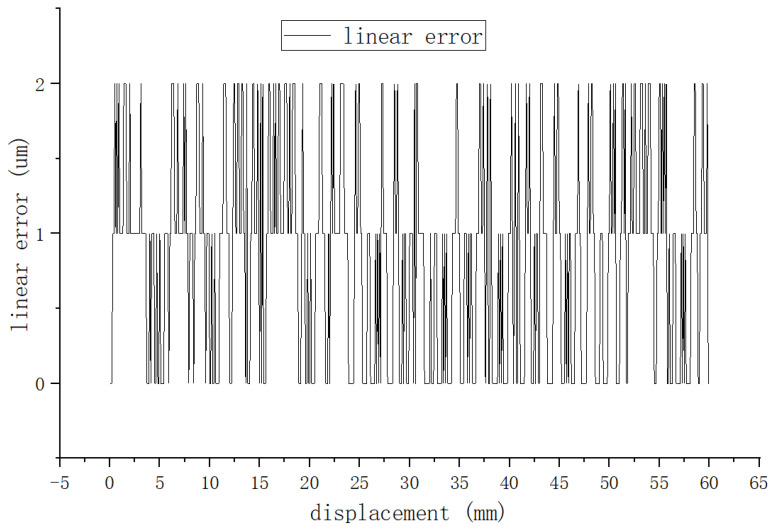

Figure 22

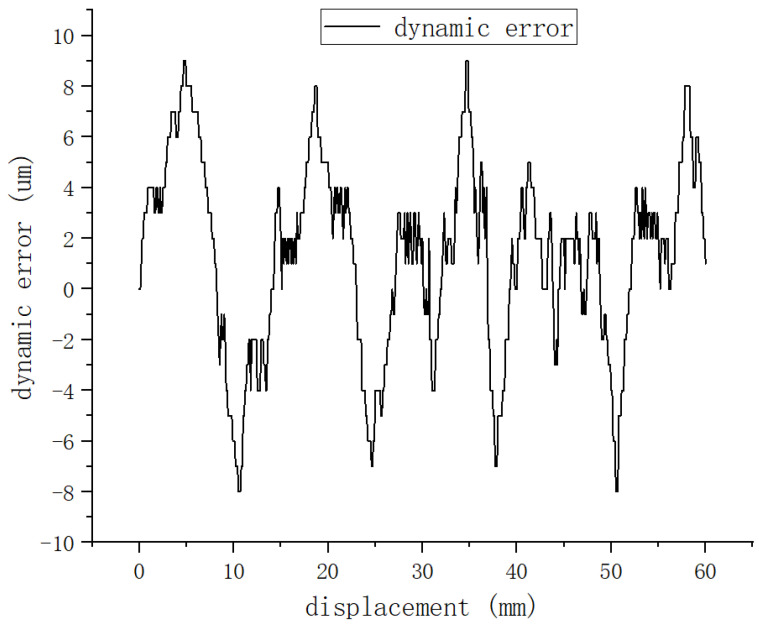

Figure 23Peer Reviews
