Dual-Scale Collaborative Optimization of Microtubule Self-Healing Composites Based on Variable-Angle Fiber Design
Peng Li, Baijia Fan, Shenbiao Wang, Jianbin Tan, Wentao Cheng
TL;DR
This paper introduces a new optimization method for self-healing composites with microtubule networks to improve their mechanical and self-healing properties.
Contribution
A dual-scale collaborative optimization framework combining variable-angle fiber design and microtubule network carrier optimization is proposed.
Findings
Variable-angle fiber design outperforms fixed-angle designs in terms of non-inferior solutions.
Dual-scale optimization reduces compliance by up to 10.64% compared to single-objective optimization.
The framework provides a better balance between structural compliance and carrier head loss.
Abstract
To enhance the mechanics and self-healing properties of the self-healing composite, this study introduces an innovative optimization method for variable-angle fiber-reinforced self-healing composites with microtubule network carriers. The study aims to minimize macroscopic structural compliance and carrier head loss. Firstly, a topological description function (TDF) for the self-healing composite was introduced, taking into account the configuration and geometry of the macroscopic structure and microtubule network carrier as design variables. Secondly, the relationship between the fiber laying angle and component spindle direction was established. An element stiffness matrix for variable-angle fibers was derived to determine the compliance of the self-healing composite. Then, the microtubule network head loss was calculated based on the Hardy Cross method. Finally, by integrating the…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

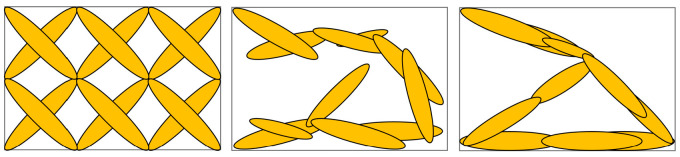

Figure 1

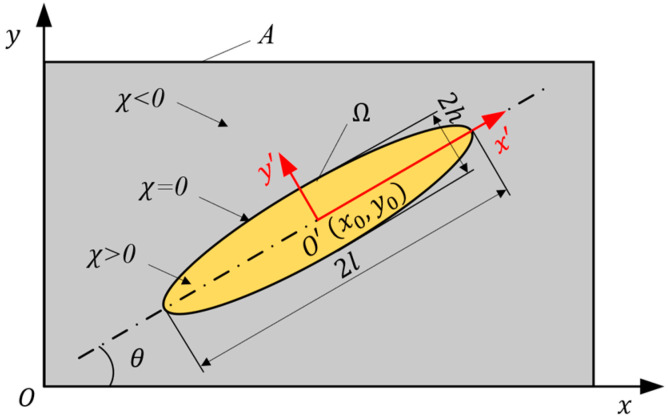

Figure 2

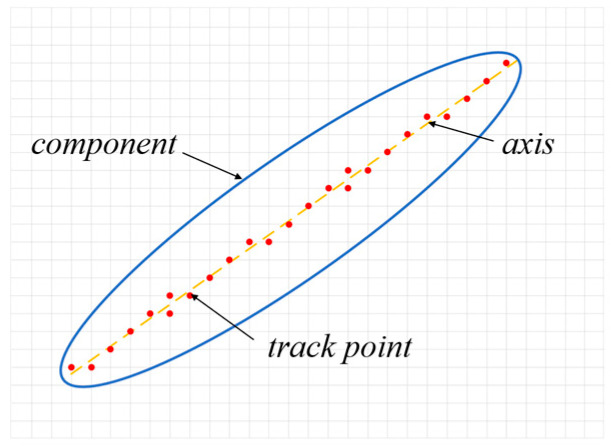

Figure 3

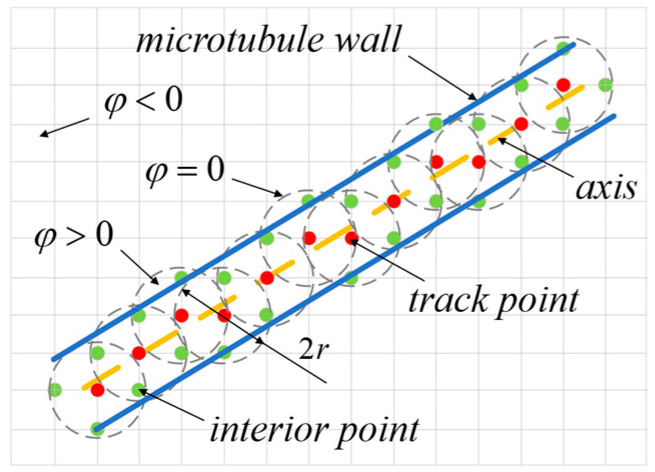

Figure 4

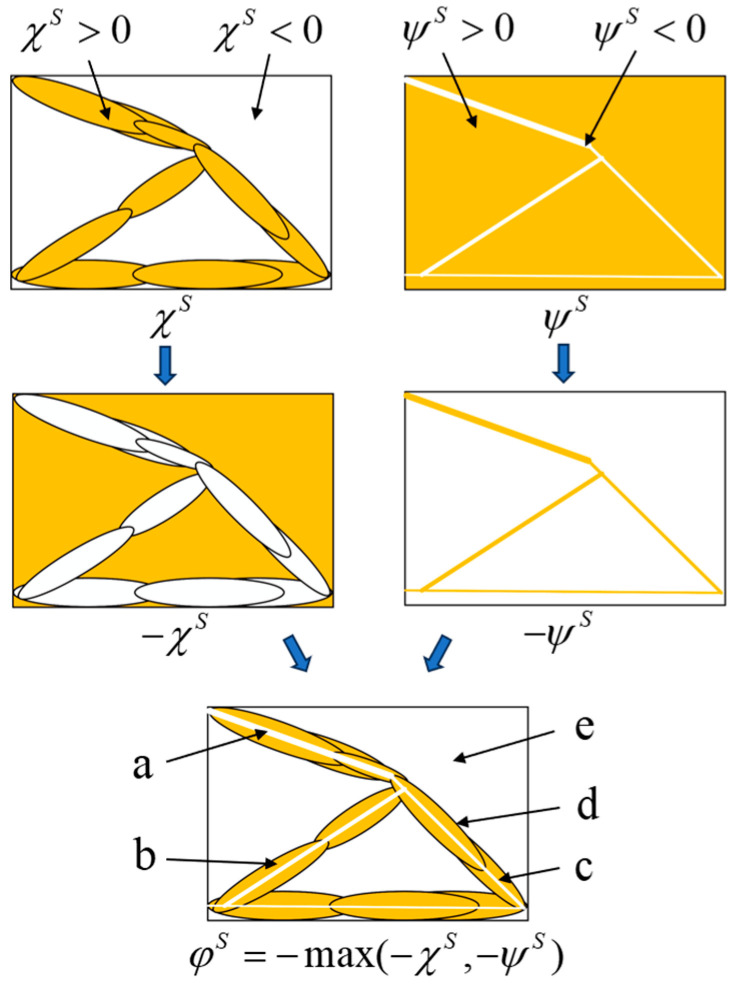

Figure 5

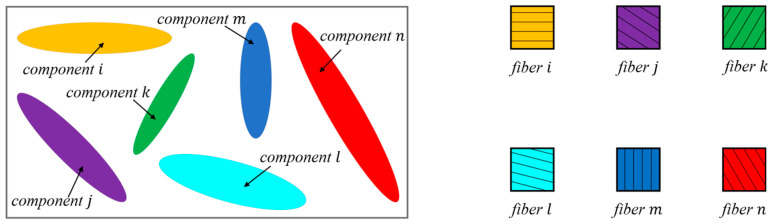

Figure 6

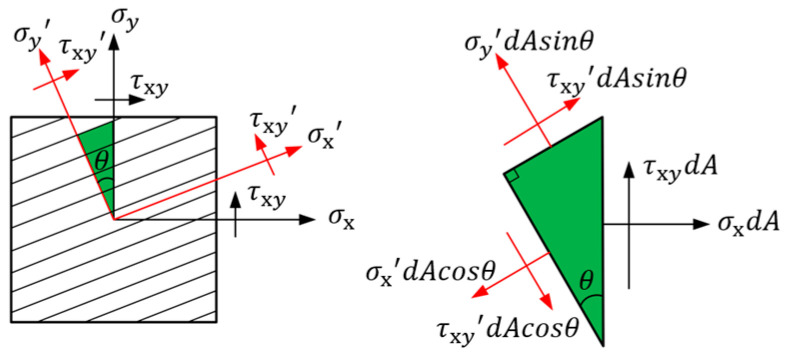

Figure 7

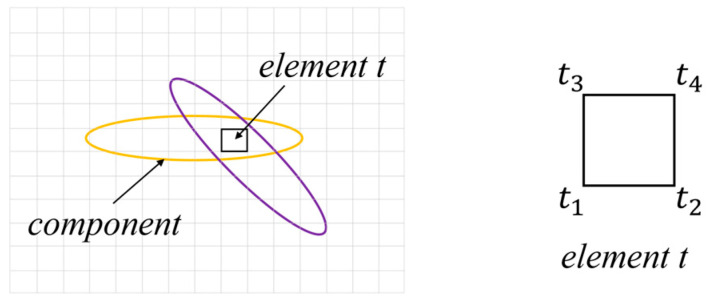

Figure 8

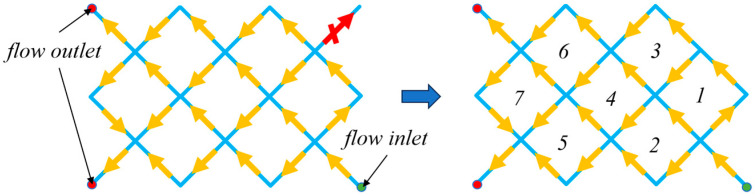

Figure 9

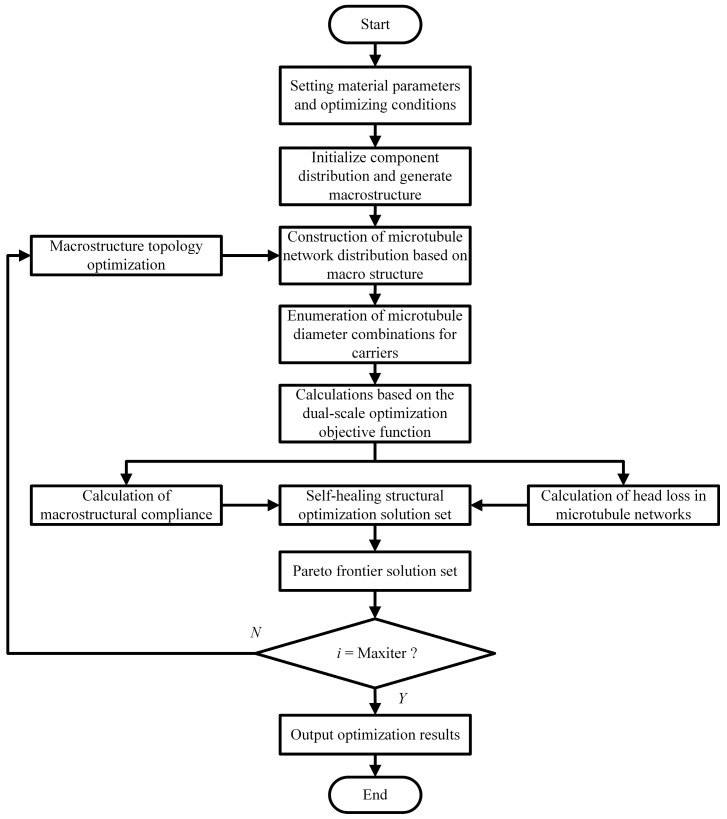

Figure 10

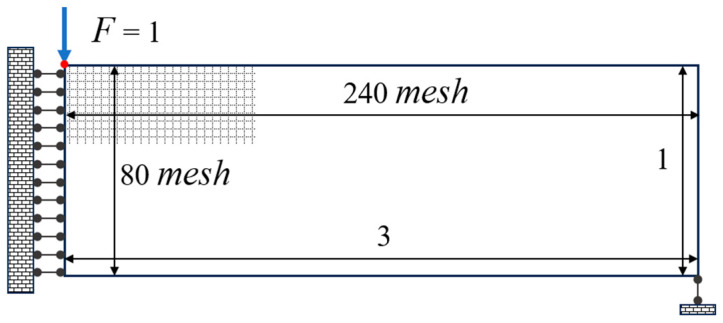

Figure 11

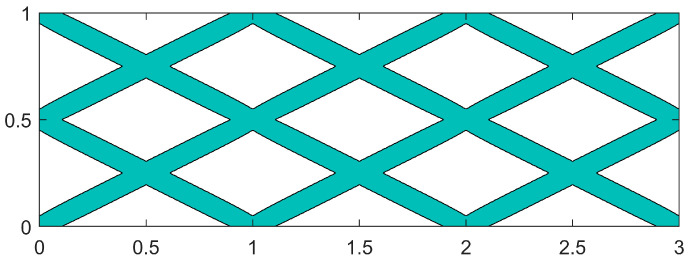

Figure 12

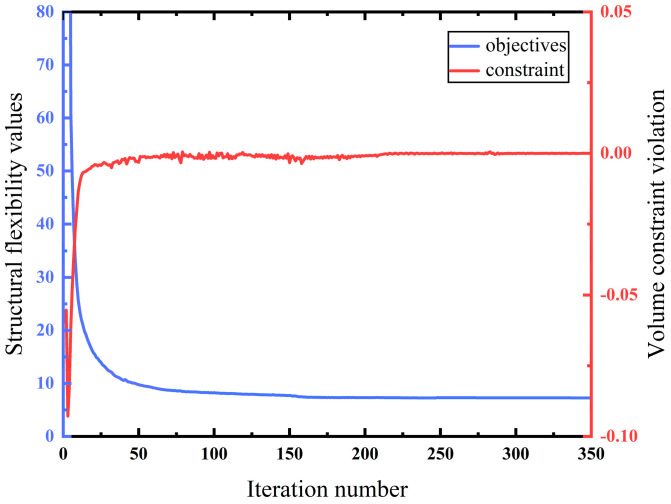

Figure 13

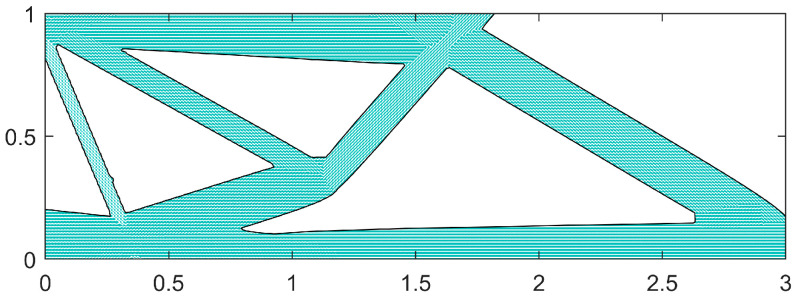

Figure 14

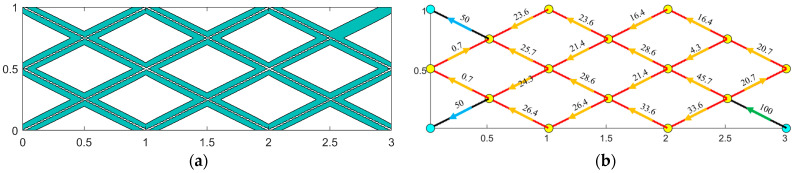

Figure 15

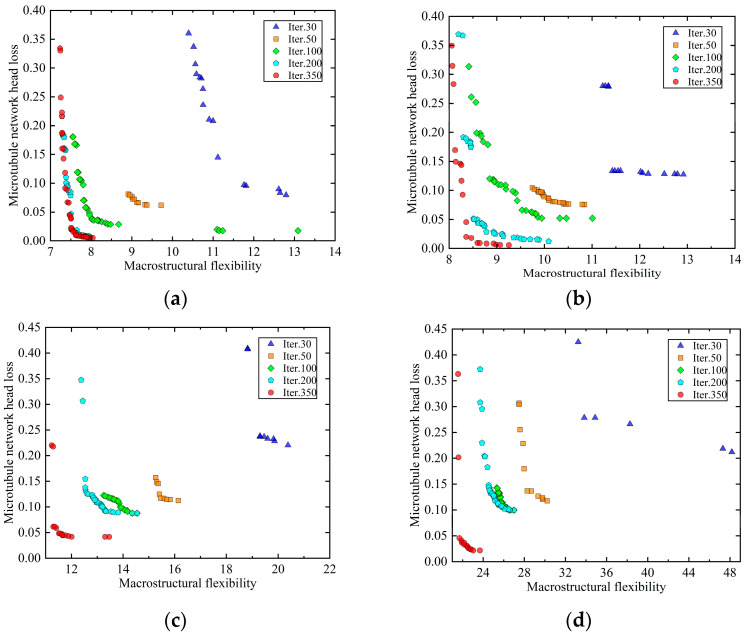

Figure 16

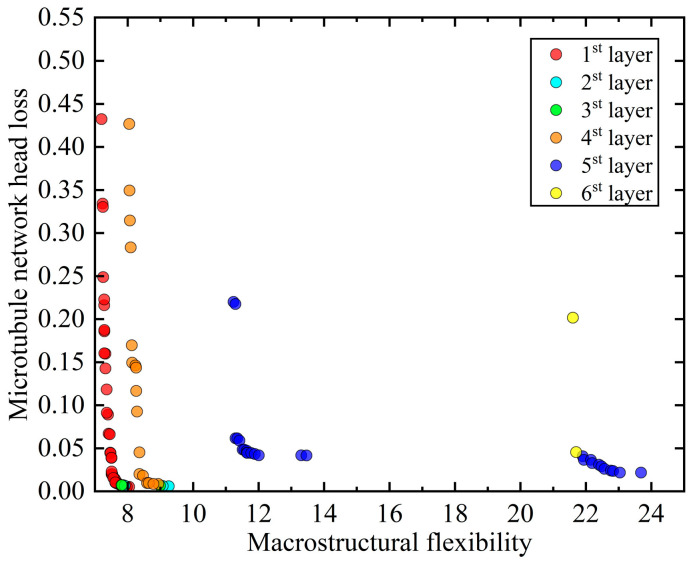

Figure 17

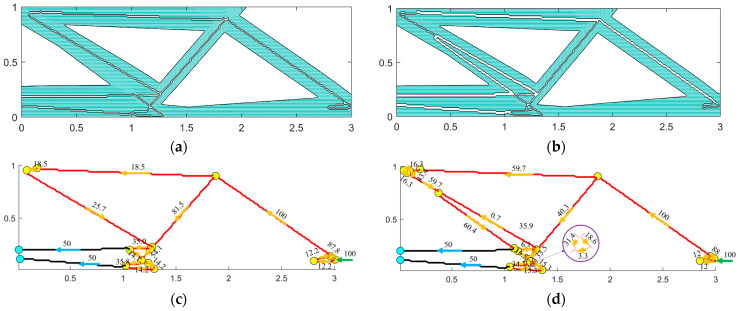

Figure 18Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsTopology Optimization in Engineering · Polymer composites and self-healing · Innovations in Concrete and Construction Materials
