Study on the Electro-Fenton Chemomechanical Removal Behavior in Single-Crystal GaN Pin–Disk Friction Wear Experiments
Yangting Ou, Zhuoshan Shen, Juze Xie, Jisheng Pan
TL;DR
This study explores how electric fields and chemical reactions affect the polishing of single-crystal gallium nitride, optimizing material removal.
Contribution
The paper introduces a novel method combining electro-Fenton chemistry and mechanical polishing to enhance GaN material removal efficiency.
Findings
Optimal material removal occurs with W0.5 diamond abrasives at 1.5 wt% concentration and urethane pads under 0.2242 MPa pressure.
Electro-Fenton reactions significantly influence oxide layer formation and removal during polishing.
Friction and wear experiments reveal the impact of polishing parameters on surface quality and removal rates.
Abstract
Electro-Fenton chemical mechanical polishing primarily regulates the generation of hydroxyl radicals (·OH) via the Fenton reaction through an applied electric field, which subsequently influences the formation and removal of the oxide layer on the workpiece surface, thereby impacting the overall polishing quality and rate. This study employs Pin–Disk friction and wear experiments to investigate the material removal behavior of single-crystal GaN during electro-Fenton chemical mechanical polishing. Utilizing a range of analytical techniques, including coefficient of friction (COF) curves, surface morphology assessments, cross-sectional analysis, and power spectral density (PSD) measurements on the workpiece surface, we examine the influence of abrasives, polishing pads, polishing pressure, and other parameters on the electro-Fenton chemical–mechanical material removal process.…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

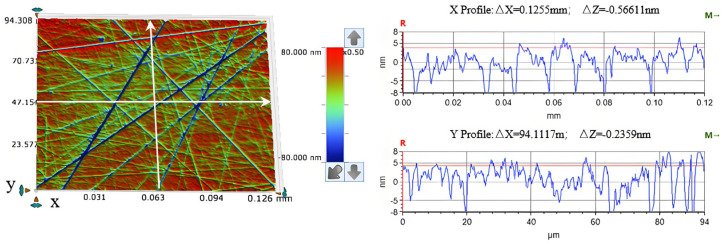

Figure 1

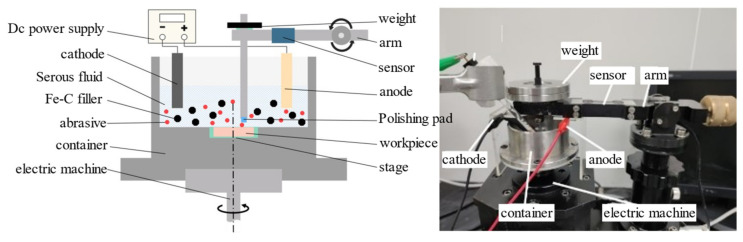

Figure 2

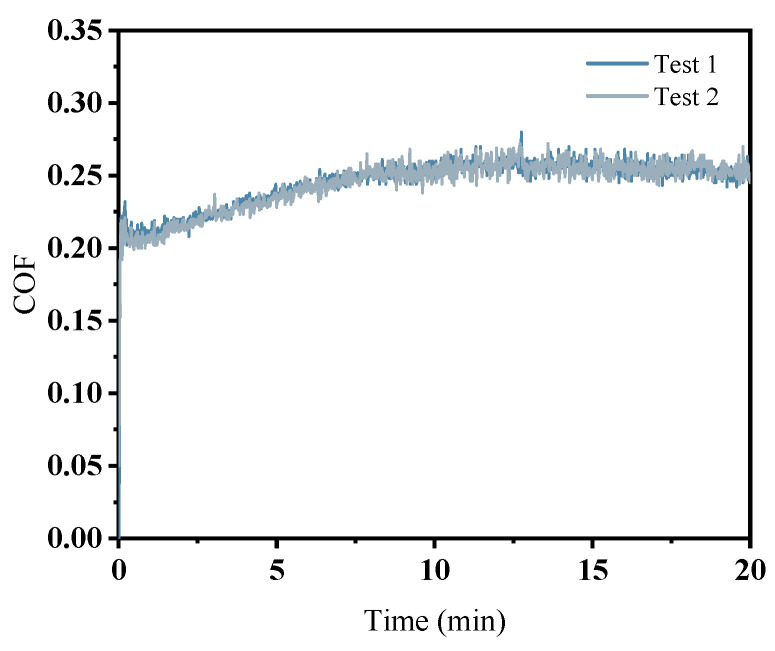

Figure 3

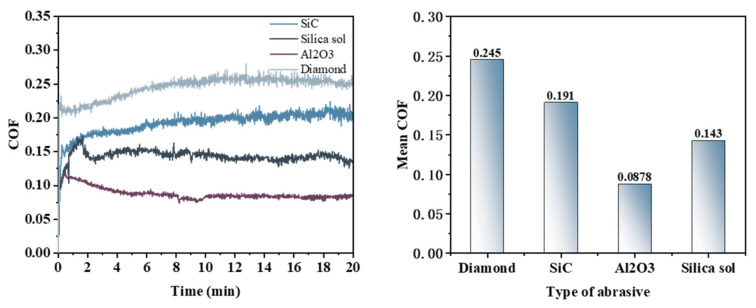

Figure 4

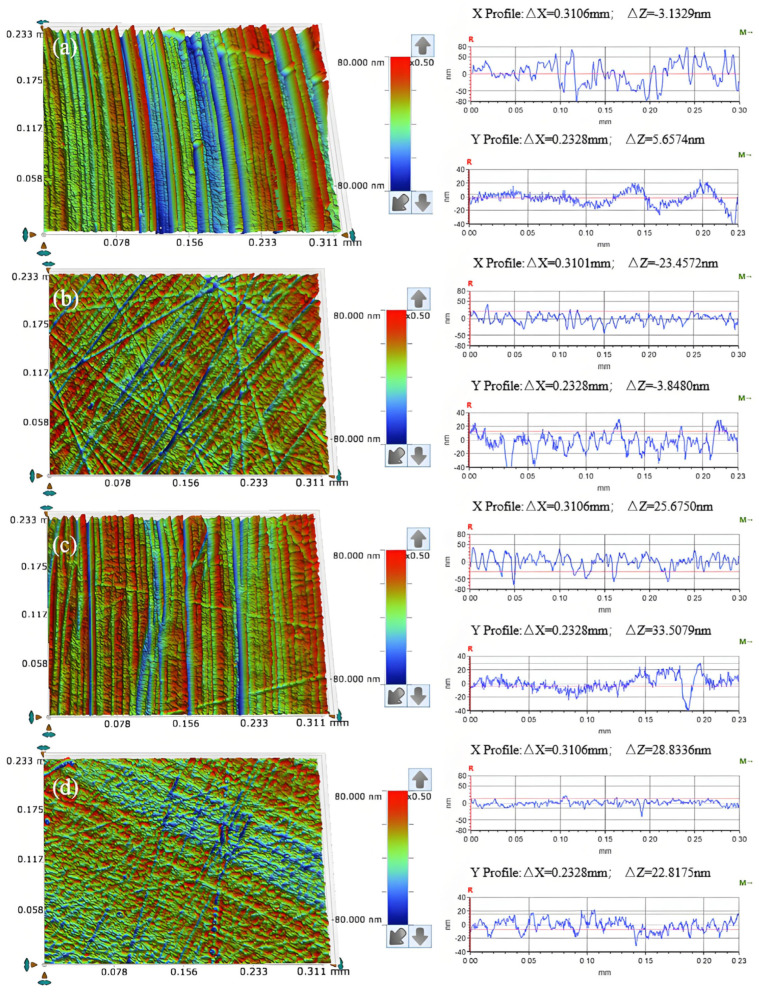

Figure 5

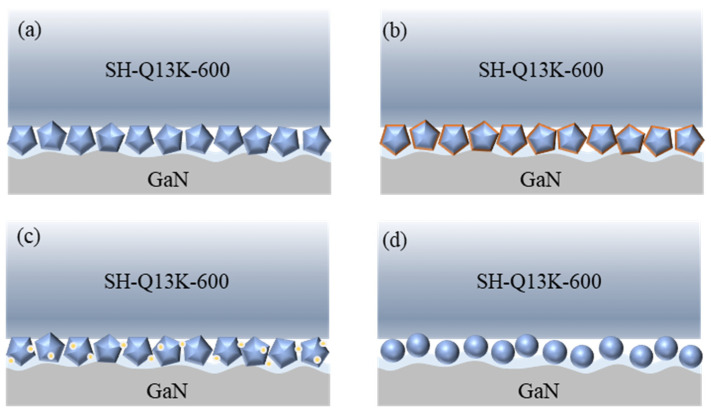

Figure 6

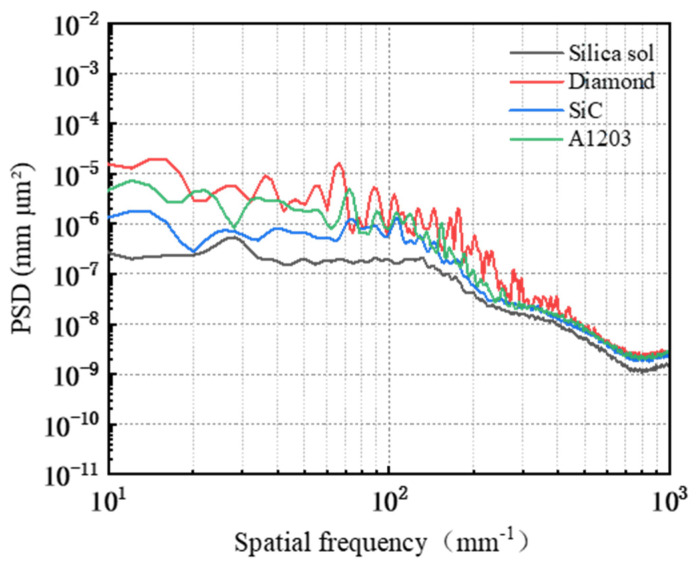

Figure 7

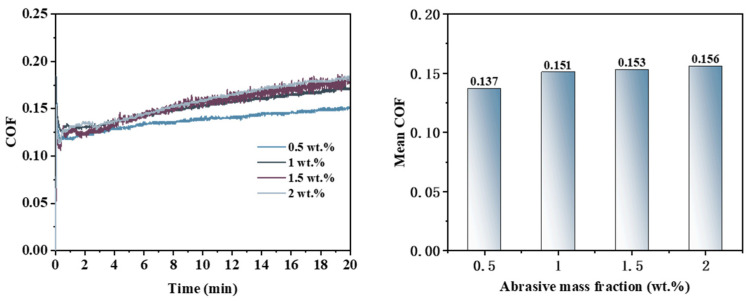

Figure 8

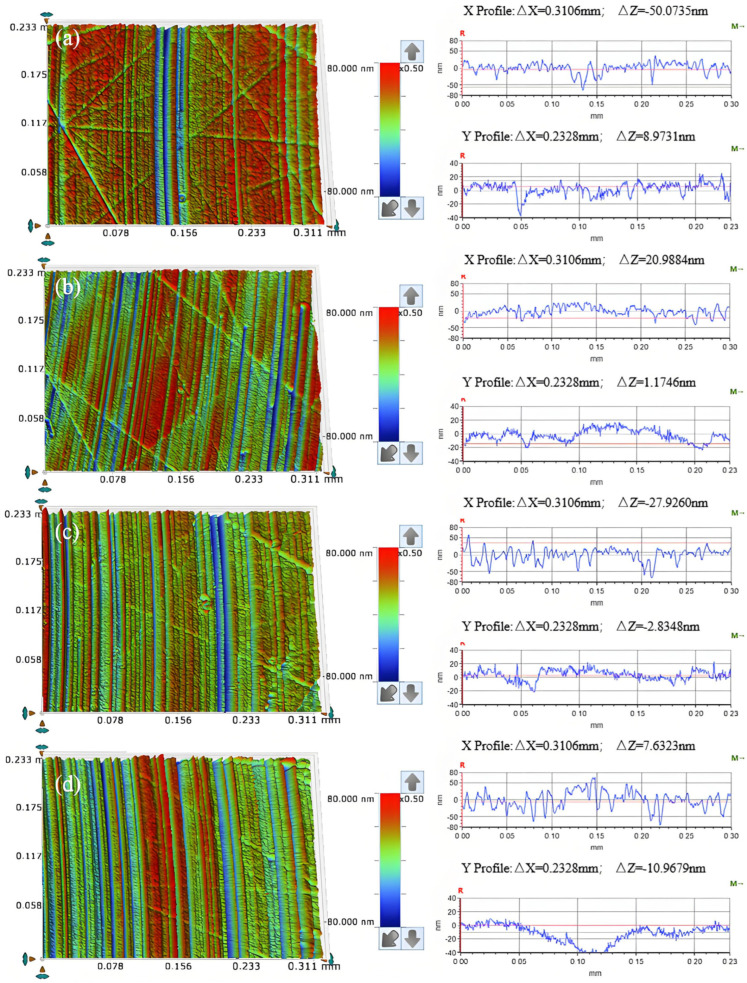

Figure 9

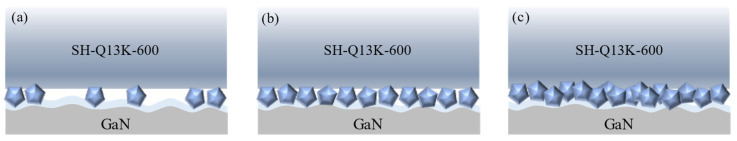

Figure 10

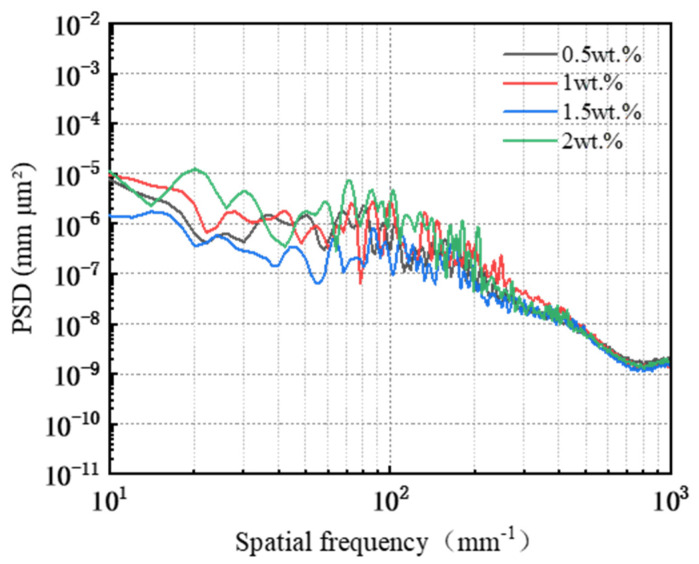

Figure 11

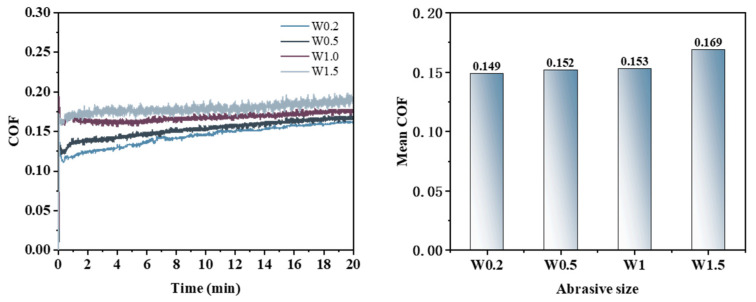

Figure 12

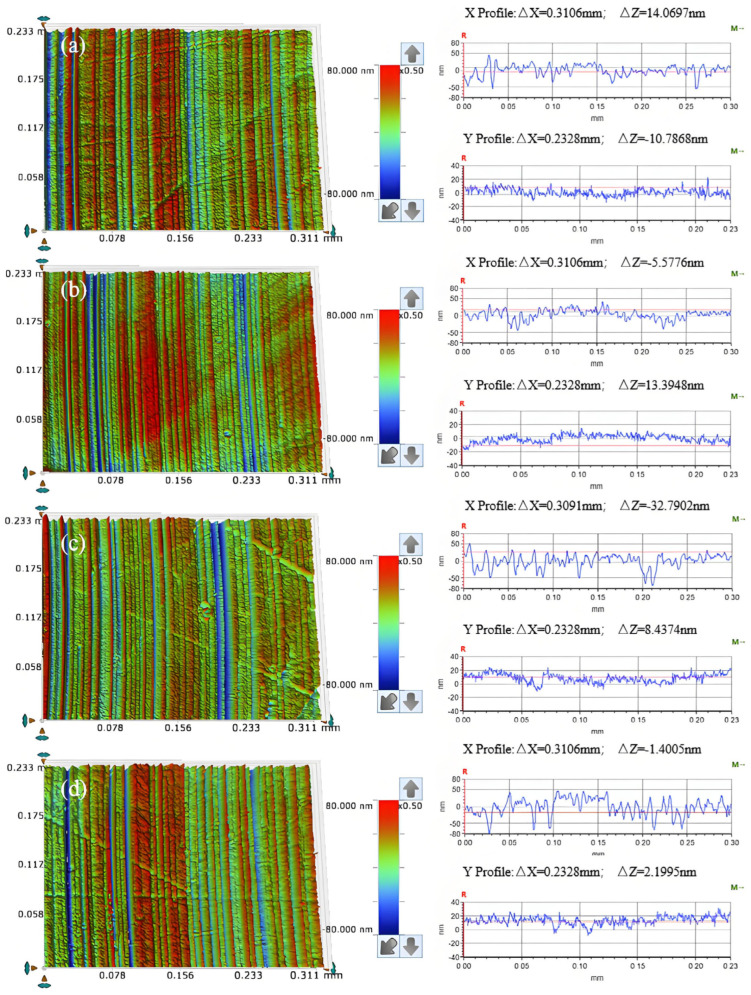

Figure 13

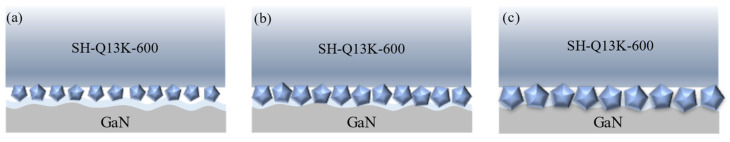

Figure 14

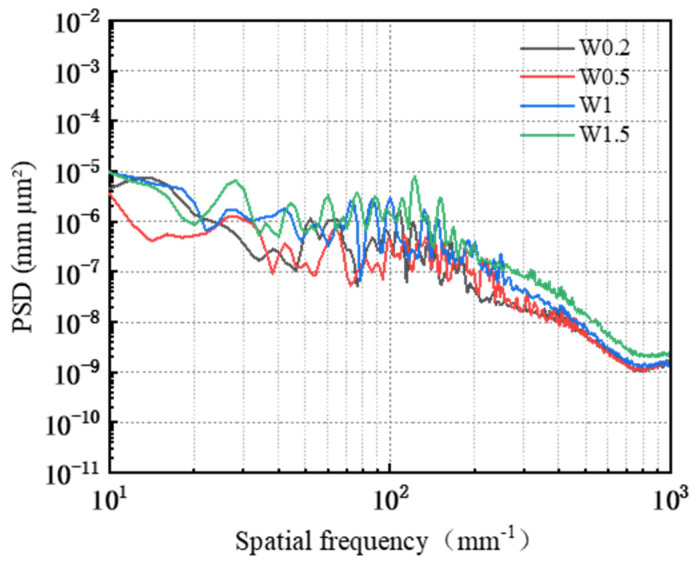

Figure 15

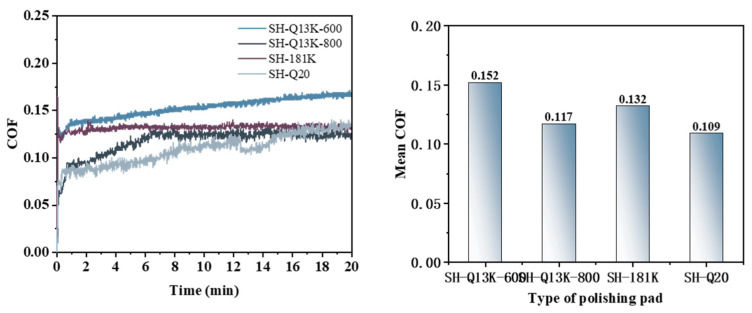

Figure 16

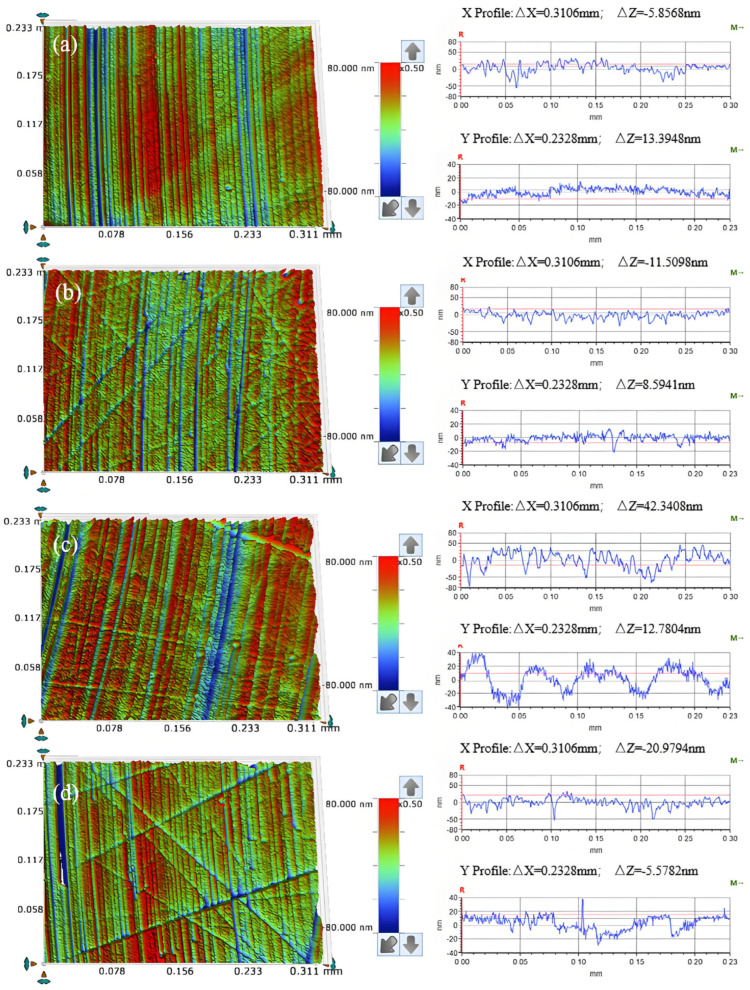

Figure 17

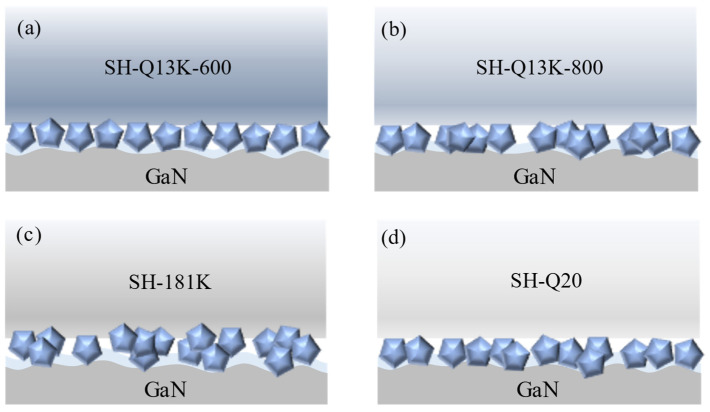

Figure 18

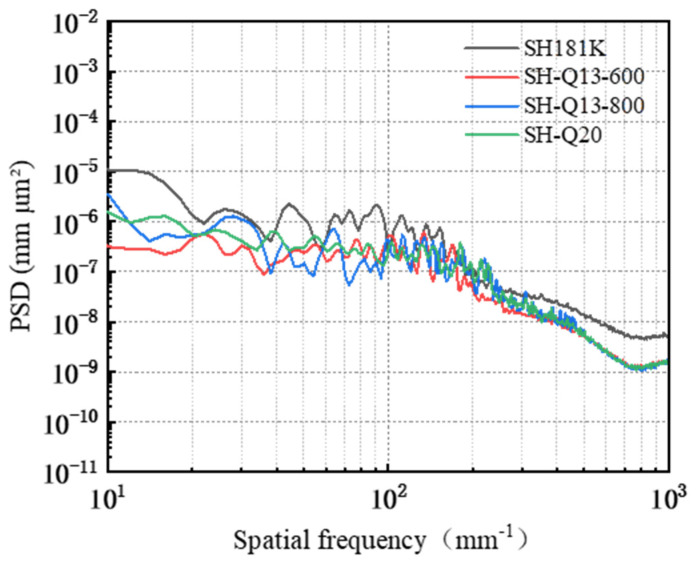

Figure 19

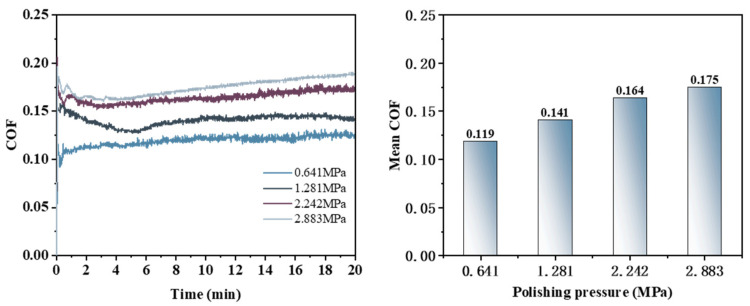

Figure 20

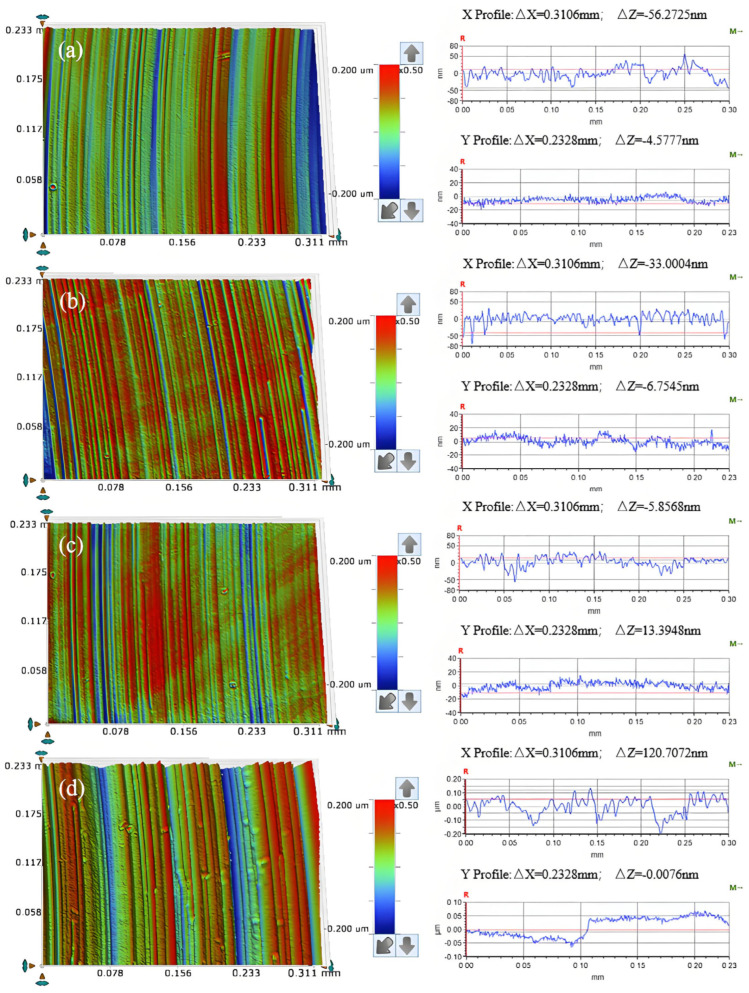

Figure 21

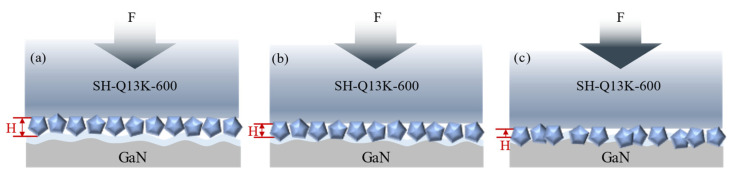

Figure 22

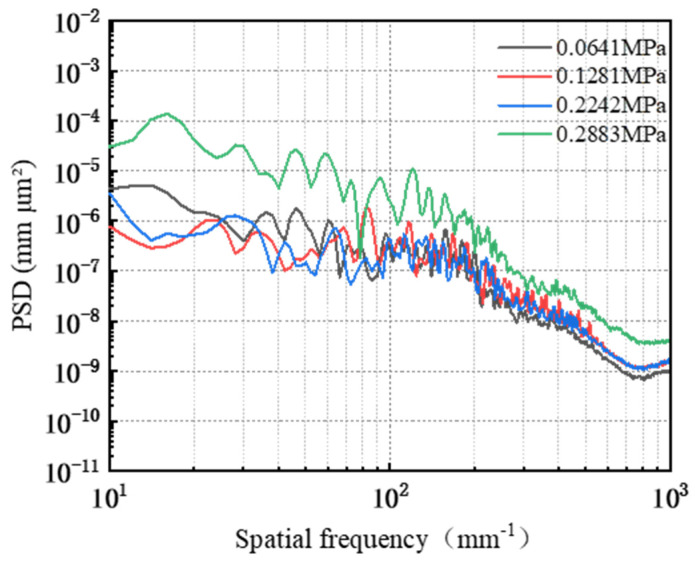

Figure 23Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsMetal and Thin Film Mechanics · Semiconductor materials and devices · GaN-based semiconductor devices and materials
