Multi-Perspective Characterization of a Performance of a Barrel Drill Made of Tungsten Carbide Composite
Kazimierz Rychlik, Mirosław Bramowicz, Sławomir Kulesza
TL;DR
This study analyzes the surface characteristics of a tungsten carbide barrel drill after sintering and grinding to understand its structural and roughness properties.
Contribution
The paper introduces a multiscale analysis of surface roughness and functional structure using fractal dimensions for WC-Co barrel drills.
Findings
Profilometric measurements revealed roughness parameters Ra, Rq, and Rz for the outer surface layers.

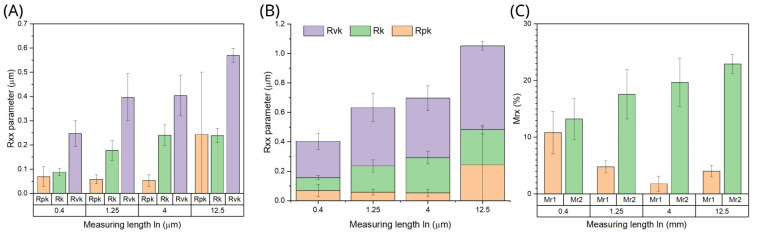

Functional structure was characterized using Rpk, Rk, Rvk, and material ratios Mr1 and Mr2.

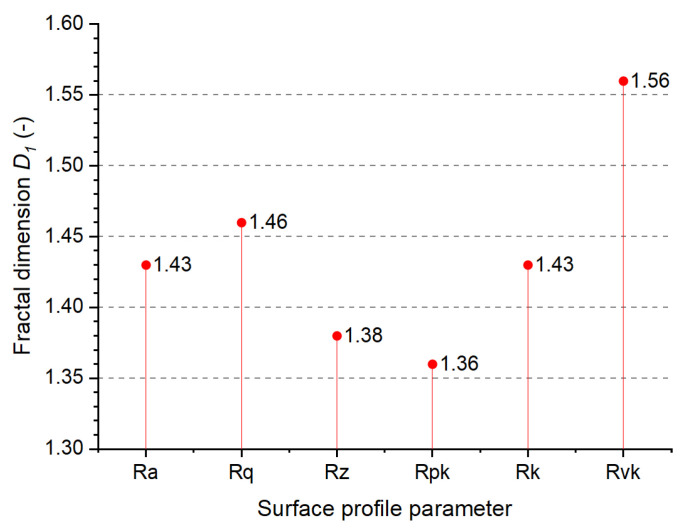

Fractal dimensions showed consistent surface profiles, likely due to finer finishing processes.
Abstract
This paper presents the results of an estimation of the structural and roughness parameters of the outer surface layers of a barrel drill made of cobalt matrix sintered tungsten carbide samples (WC-Co) made by sintering and subjected to finishing by grinding. In order to evaluate the geometric and functional structure of the surface, profilometric measurements were carried out at different scan lengths. The geometric structure of the studied surfaces was characterized by the roughness parameters Ra, Rq, and Rz, while the functional structure was determined by the reduced profile heights Rpk, Rk, Rvk and the material ratios Mr1 and Mr2 determined by the Abbott-Firestone curves. Multiscale analysis of the dependence of the roughness and functional parameters on the measurement lengths was carried out using the root mean square (RMS) method, from which monofractal structures of the surface…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

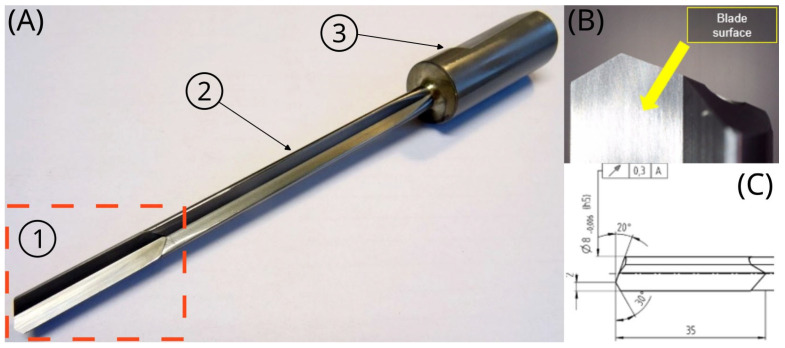

Figure 1

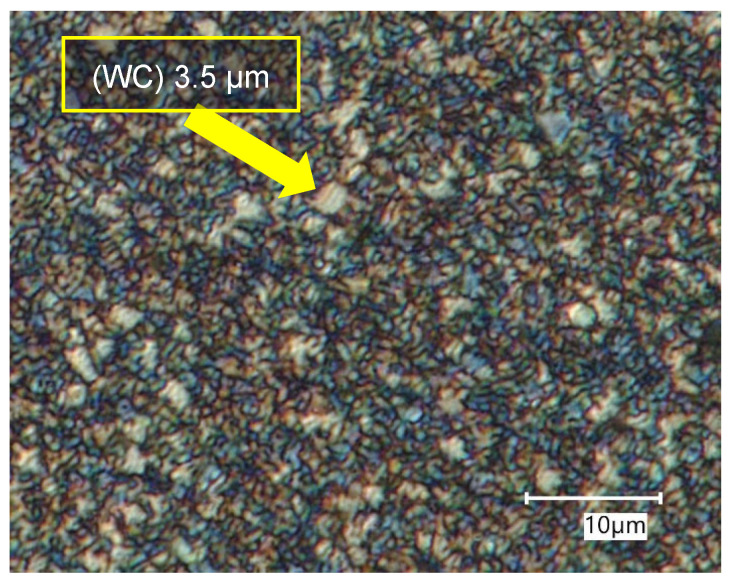

Figure 2

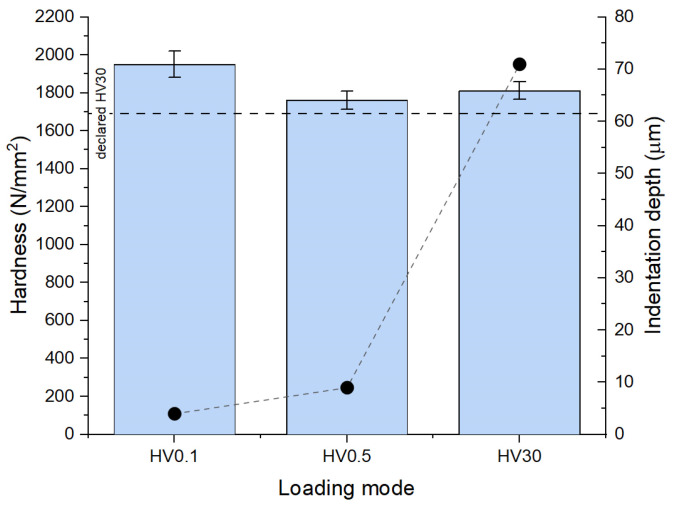

Figure 3

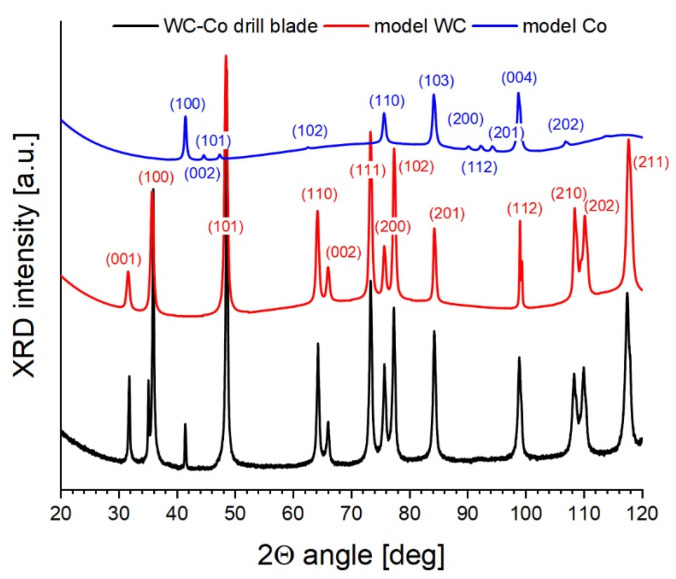

Figure 4

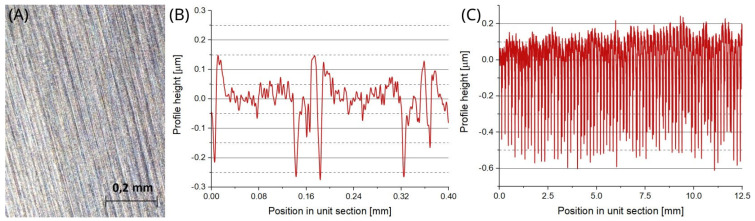

Figure 5

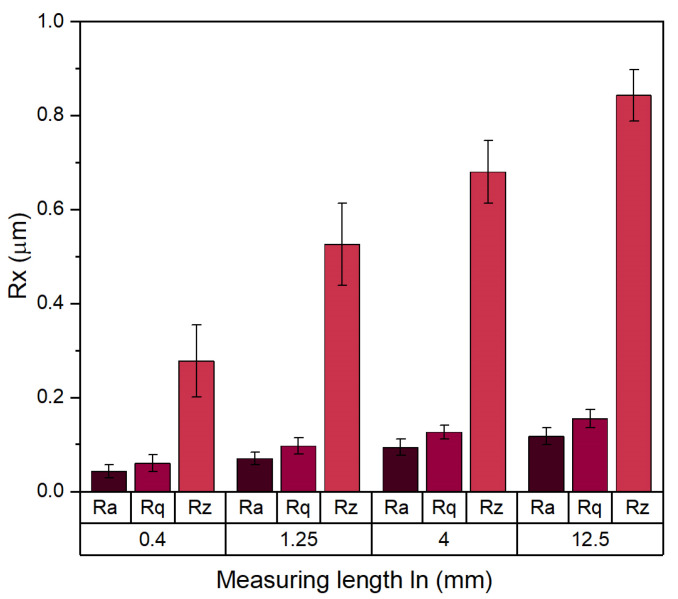

Figure 6
Figure 7
Figure 8

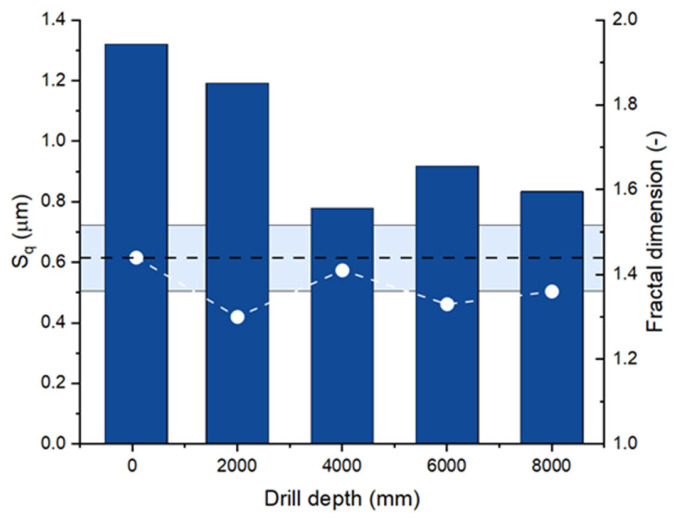

Figure 9

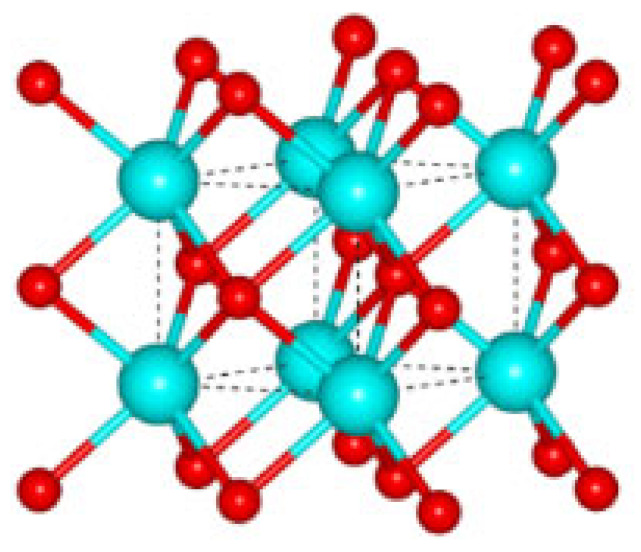

Figure 10

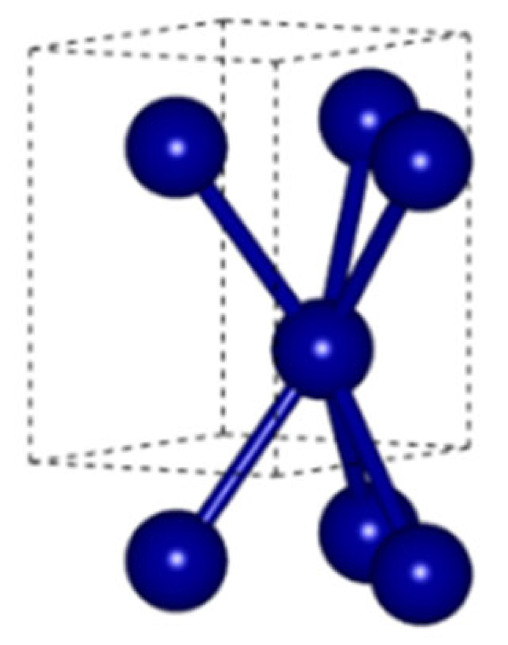

Figure 11Peer Reviews
